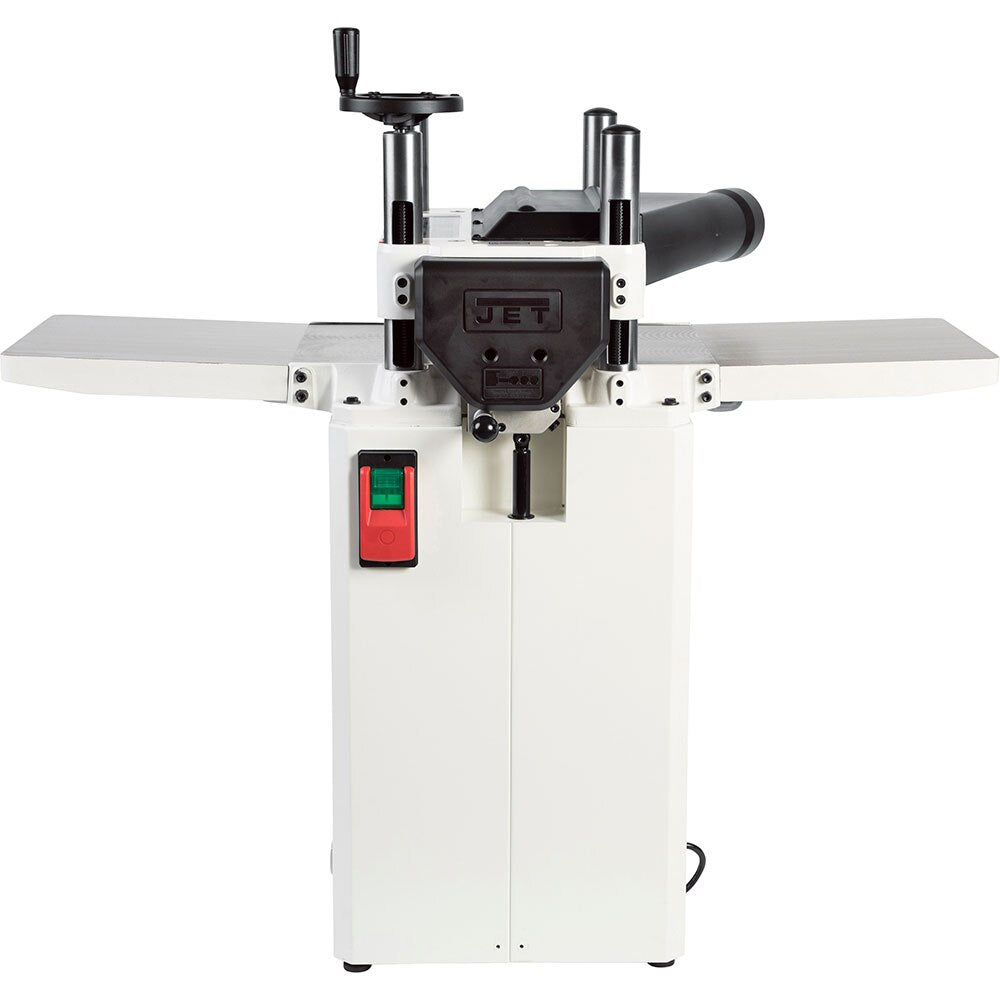

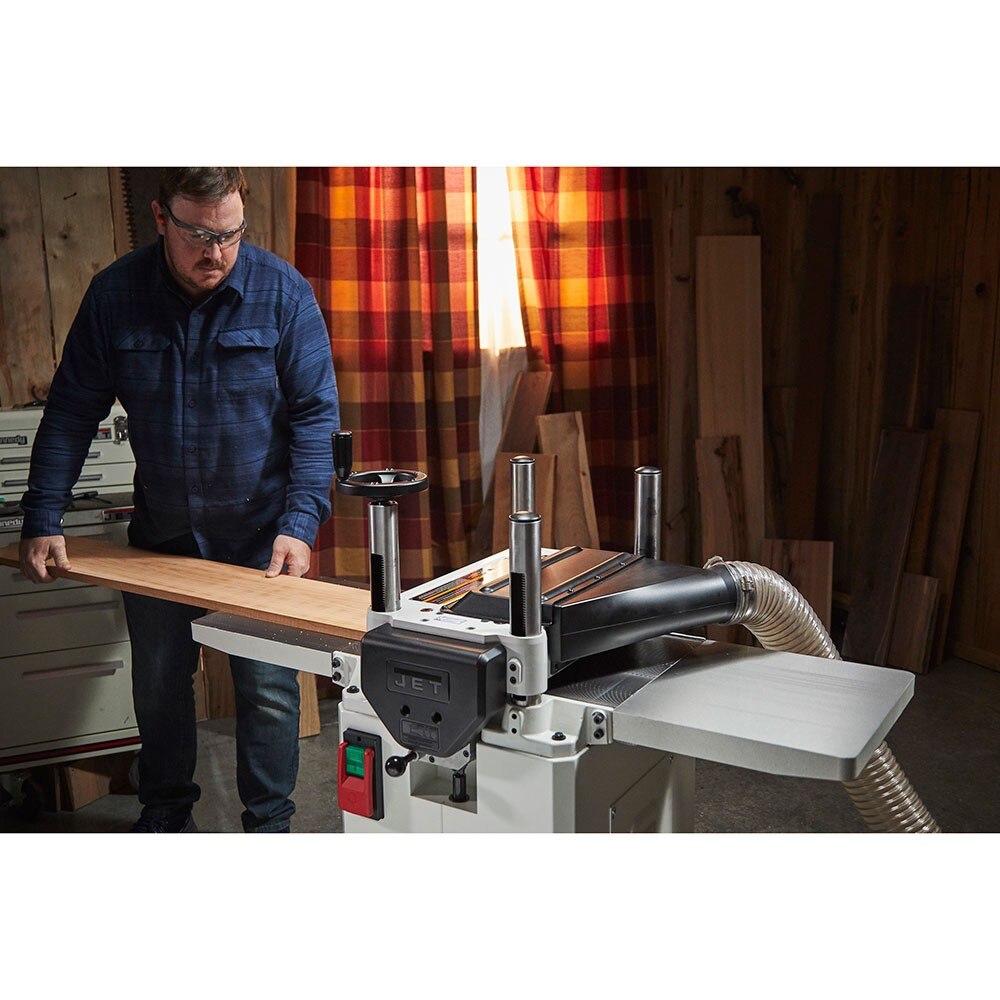

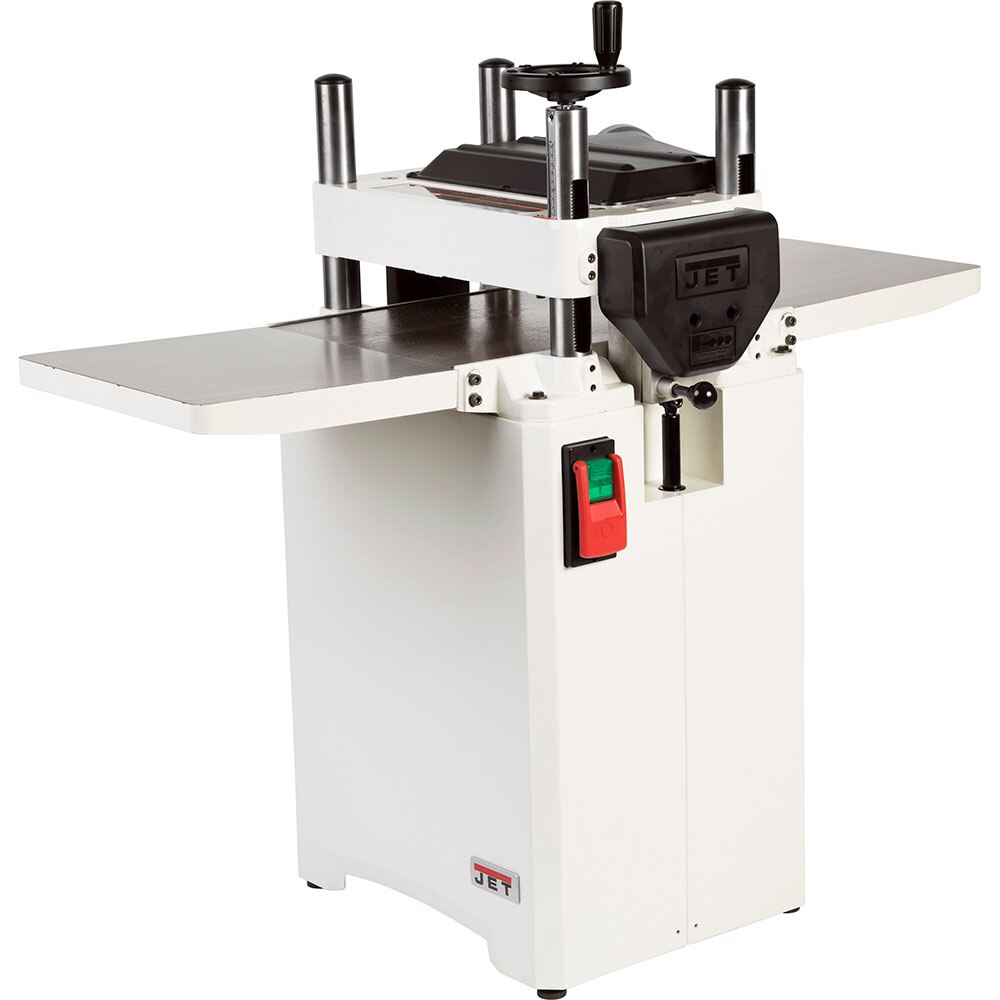

Jet JT9-722155 JWP-15BHH, 15" JET Helical Cutterhead Planer
Free Shipping
$3,199.99
$3,931.42
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Jet 722155 Description
The New Jet 15" Helical Head Planer Delivers The Power And Efficiency That Woodworkers Demand In The Shop. Features Include A Premium Helical Cutterhead With 48 Staggered Carbide Knives For A Superior Finish And Quieter Cut, Innovative Precision Air Strut System Pass™, Rugged 4 Post Design, Cast Iron Infeed/Outfeed Tables, 2 Infeed Speeds And A Heavy-Duty Cast Iron Base Mounted To A Closed Steel Cabinet.
Jet 722155 Includes
- (1) Straight Knife Planer
- (1) Helical Cutterhead
Jet 722155 Features
- Innovative Jet - Precision Air Strut System (Pass™) Provides Consistent Upward Pressure On The Cutterhead, Reducing The Chance Of Board Snipe

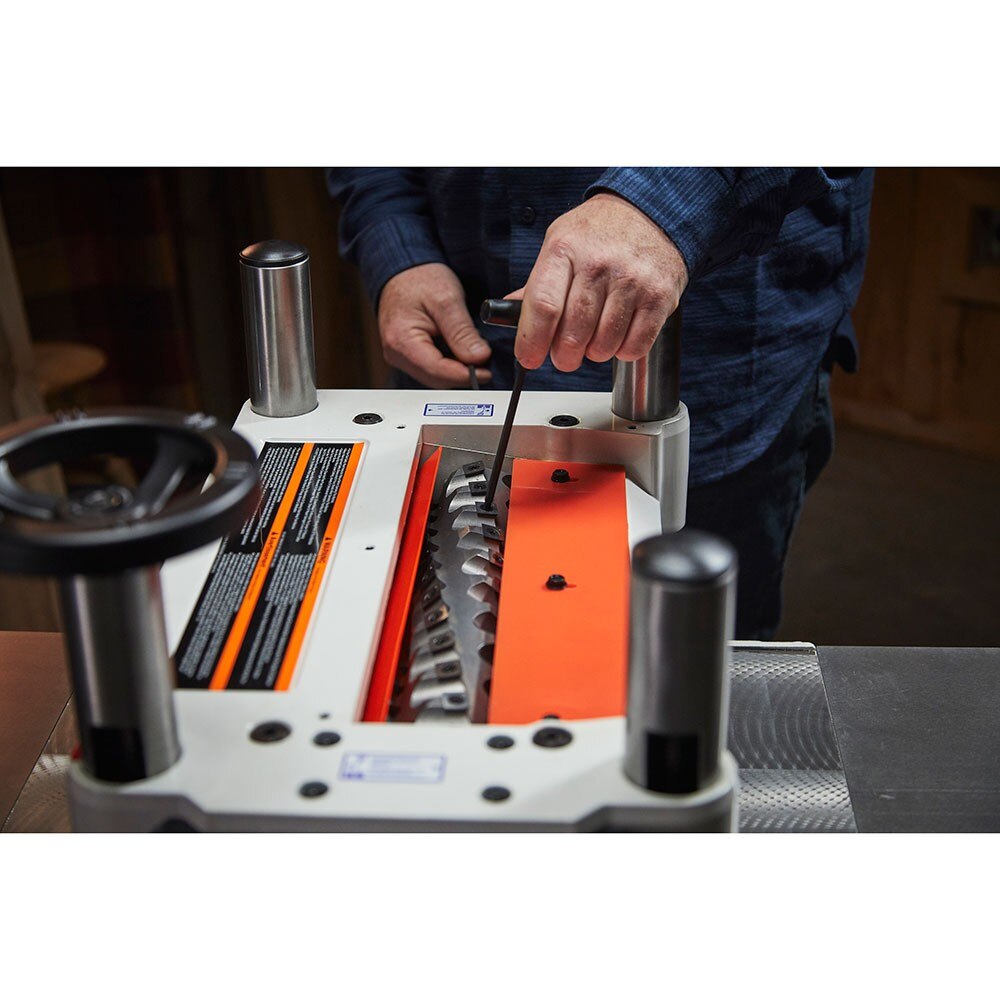

- Helical Cutterhead Houses 48 Staggered Carbide Knives That Are Engineered To Align Themselves Without Any Adjustment For A Superior Finish And Quieter Cut
- Heavy-Duty Precision Ground Cast Iron Table And Four Post Design Provides Maximum Control And Support When Passing Boards Through Planer.
- Powerful 3-Hp Motor With V-Belt Transmission Reduces Vibration And Running Noise

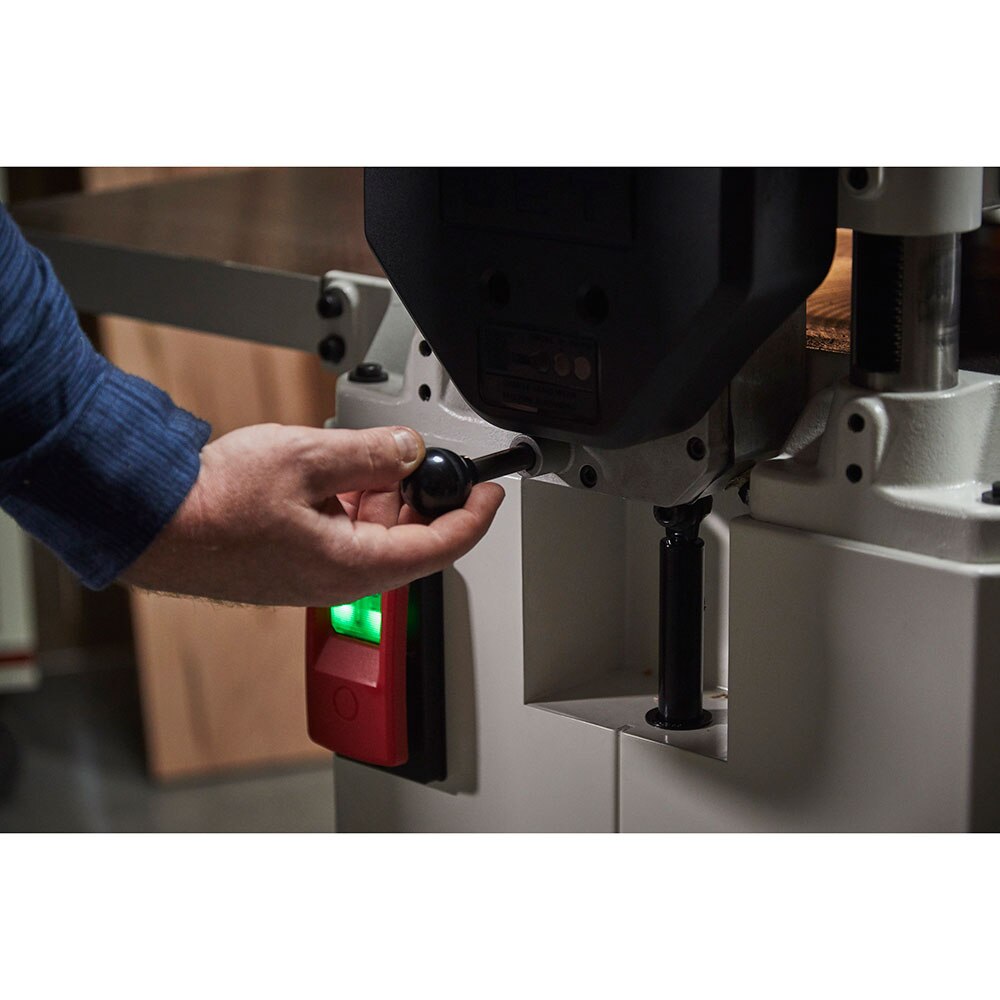

- Dual Infeed Speed Control For 16Fpm Or 20Fpm, Maximizes Cut Efficiency
- Maximum Depth Of Cut 1/8", 6" Cutting Height And 15" Width Capacity

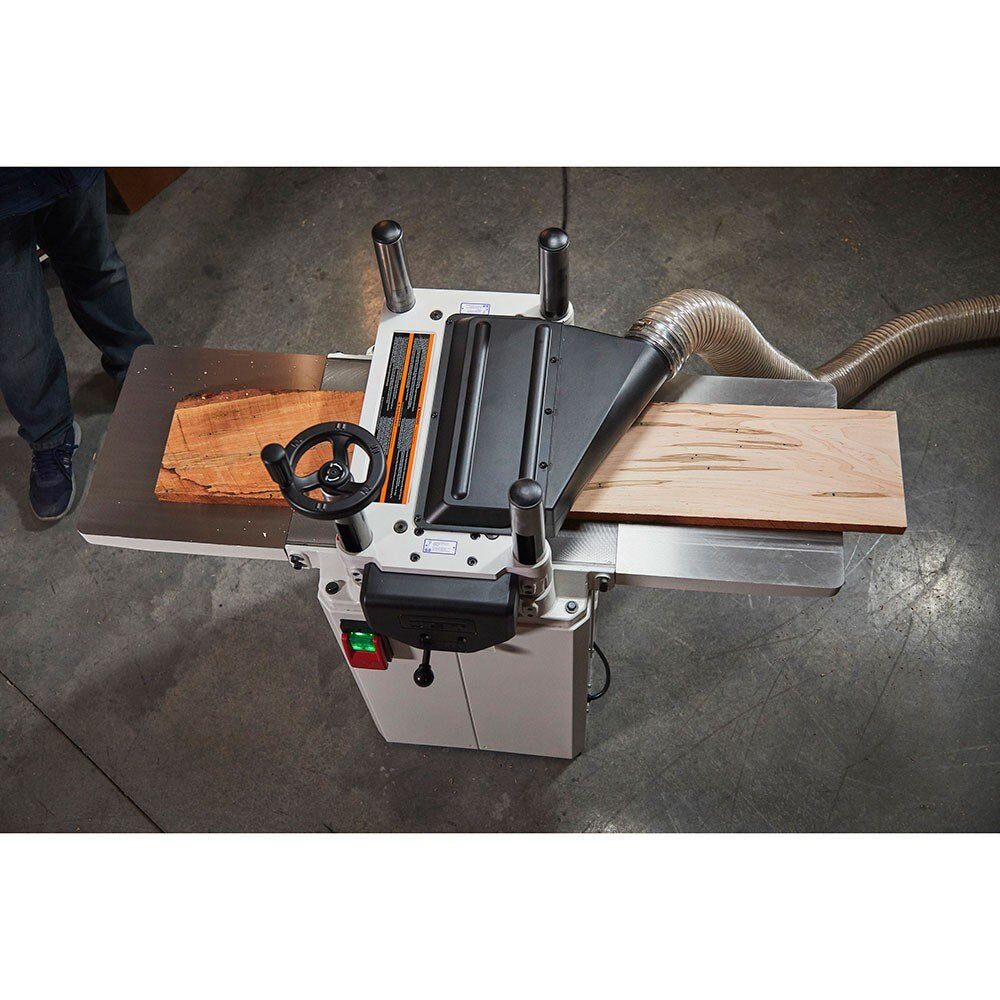

- Large Cast Iron Precision Ground Infeed/Outfeed Tables Provide Support For Large Work Pieces

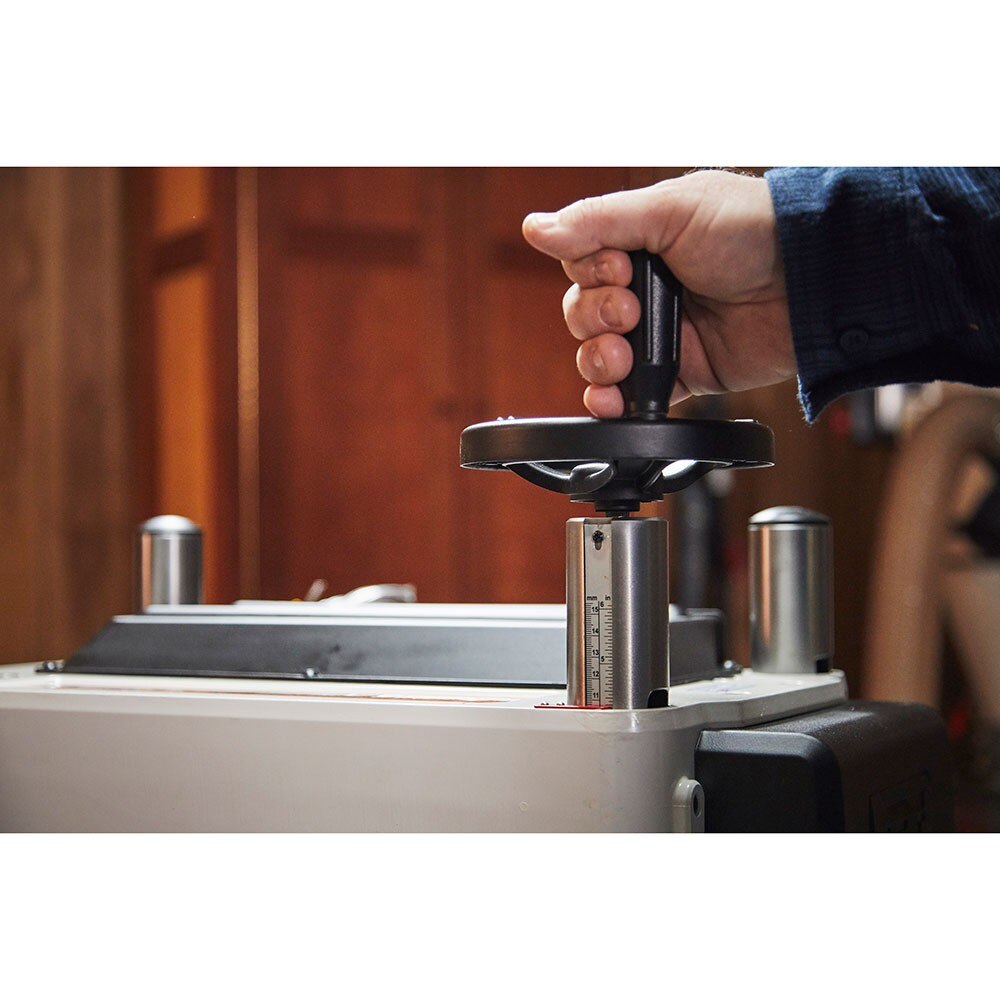

- Large Hand Wheel With Positive Gear Drive Easily Moves The Head To The Desired Board Thickness

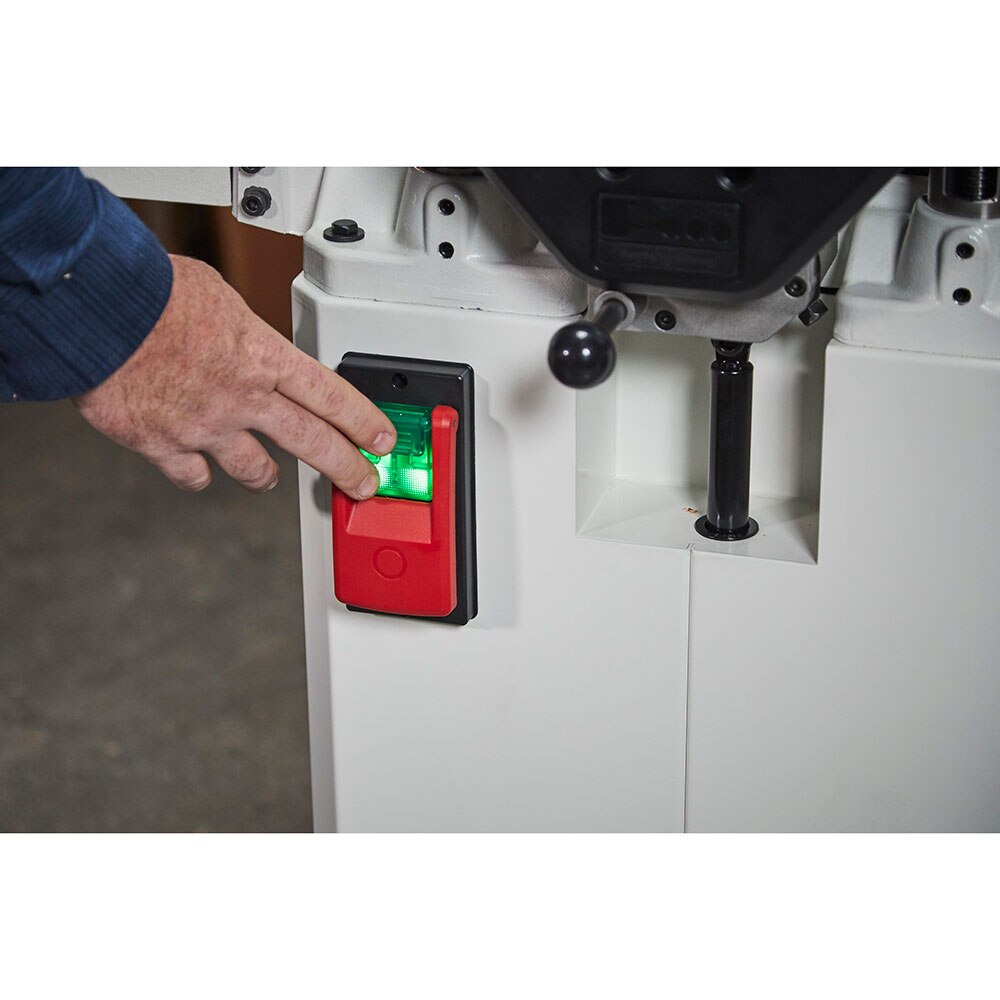

- Magnetic Switch With Green Safety Light Illuminates When Powered

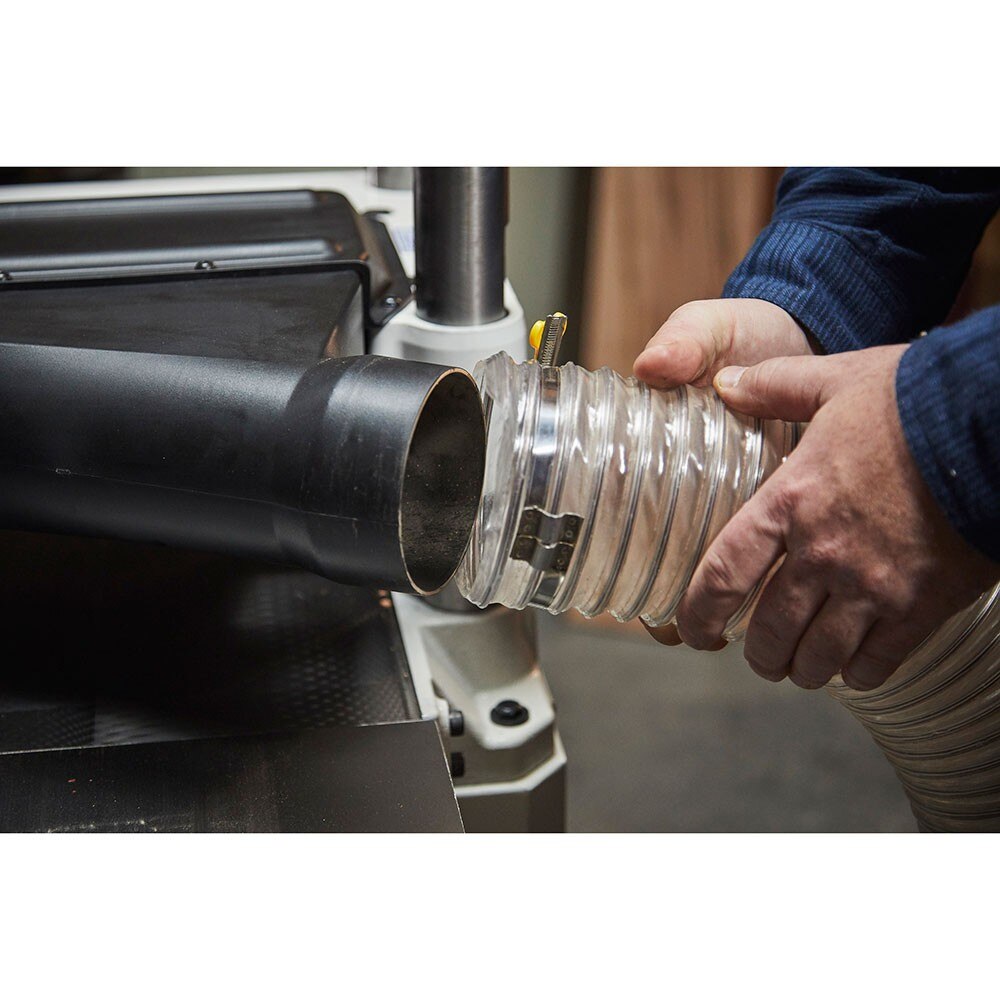

- 4" Dust Port Hooks Up To Dust Management System And Helps Keep Shop Clean
Jet 722155 Specifications
| Height | 44.88" |
| Length | 29.92" |
| Volume | 20.803 |
| Width | 26.77" |
| Prop 65 | Cancer and Reproductive Harm |
| Cutterhead Speed (RPM) | 5,200 |
| Maximum Depth of Cut | 1/8" |
| Feed Rate (FPM) | 16 and 20 |
| Motor Power (HP) | 3 |
| Dust Collection Minimum CFM Required | 600 CFM |
| Number of Speeds | 2 |
| Number of Knives | 48 |
| Maximum Planing Thickness | 6" |
| Cutterhead Diameter | 2-5/8" |
| Motor Amps | 15 |
| Dust Port Outside Diameter | 4" |
| Motor Phase (PH) | 1 |
| Table Size with Extensions (L x W) | 15 x 49.2 in. |
| Type of Cutterhead | Helical Head |
| Maximum Planing Width | 15" |
