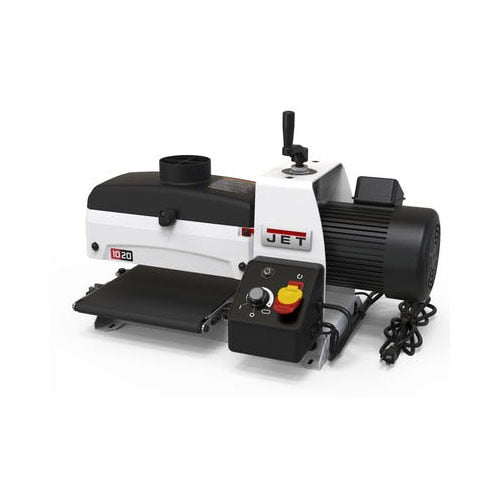

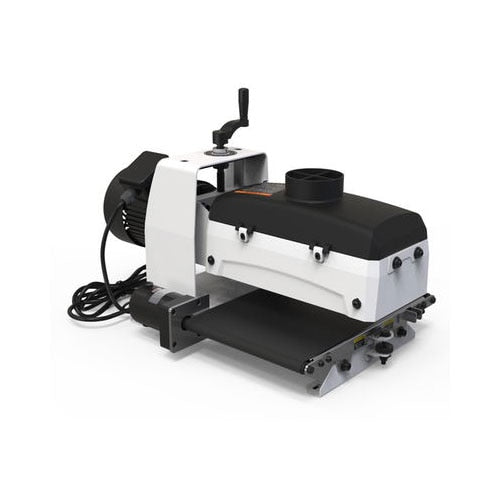

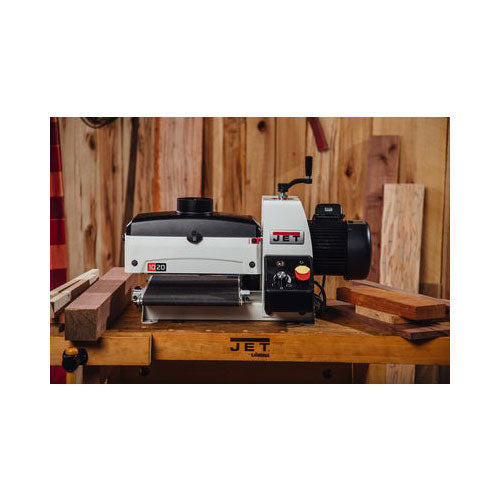

Jet JT9-723510 JWDS-1020 Benchtop Drum Sander
$230.00 off
Free Shipping
$869.99
$1,099.99
Unit price
/
Unavailable
Description
Description
Jet 723510 Description

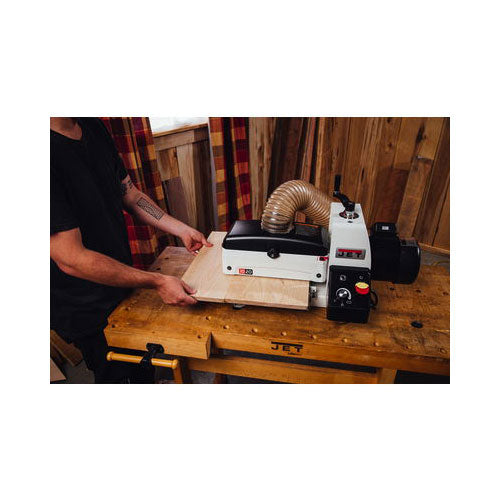

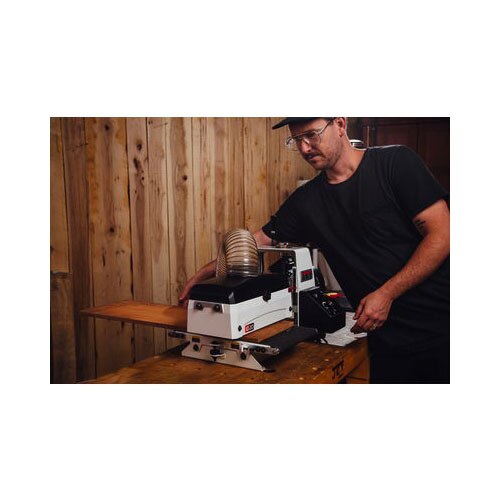

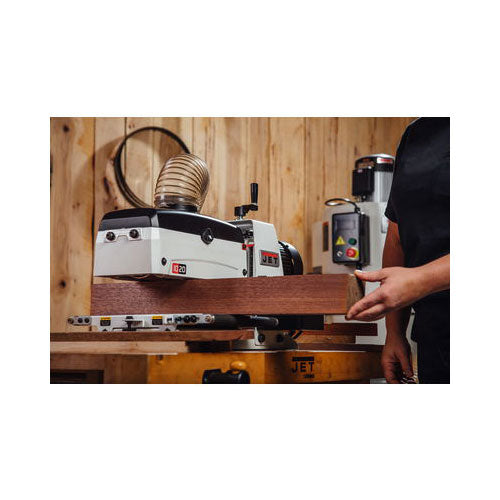

The compact JWDS-1020 benchtop sander from JET packs a powerful 1HP motor that will sand boards up to 3" thick and 20" wide. The innovative patented dust hood ensures dust is funneled to the 4 inch dust port that easily connects to a Dust Collector. Adjusting the table back to parallel is convenient with just the turn of a dial. The self-cooling extruded aluminum sanding drum protects the sanding surface from heat damage, preventing waste.
Jet 723510 Includes
- (1) Benchtop Drum Sander
Jet 723510 Features
- Heavy duty die-cast aluminum and steel body provides rigidity for consistent quality

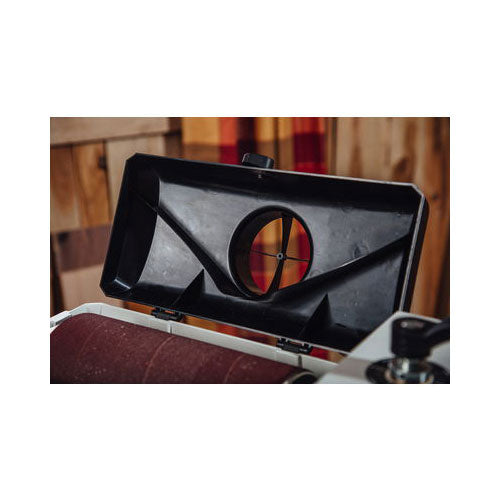

- Patented dust hood incorporates an integrated channel that directs dust to a 4" collection port.

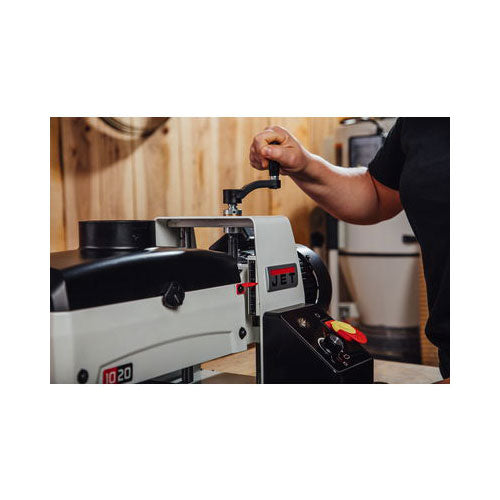

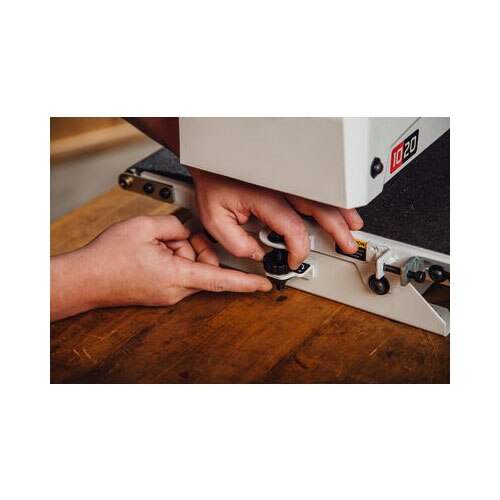

- Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position

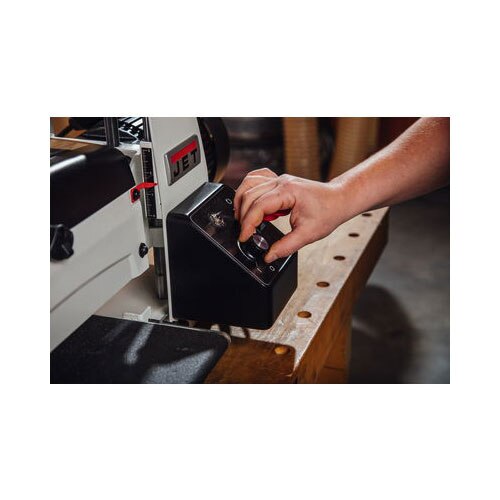

- Infinitely variable-speed control allows the user to choose the optimal feed rate

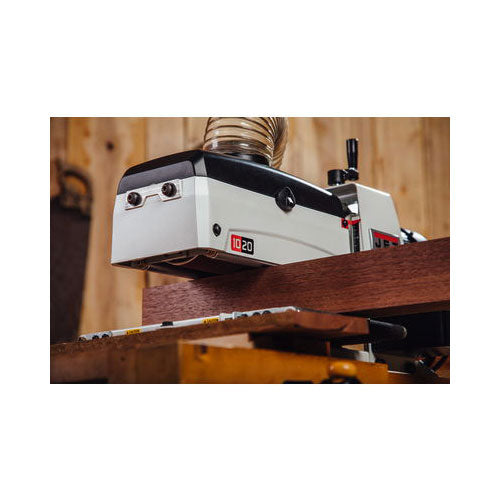

- Open ended design allows for up to 20" of sanding capacity with 2 passes

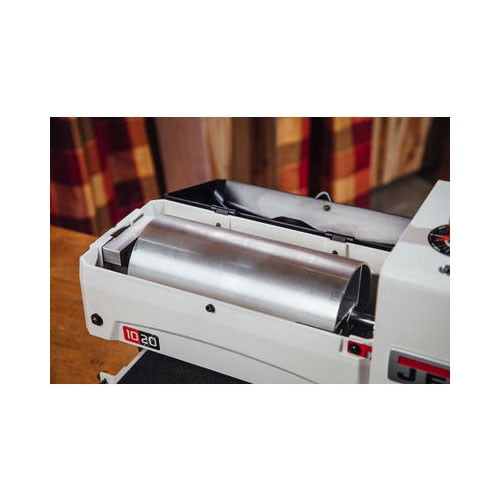

- Extruded aluminum drum is designed to dissipate heat and protect wood from heat-damage
- Redesigned conveyor system pulls the workpiece through the sander instead of pushing

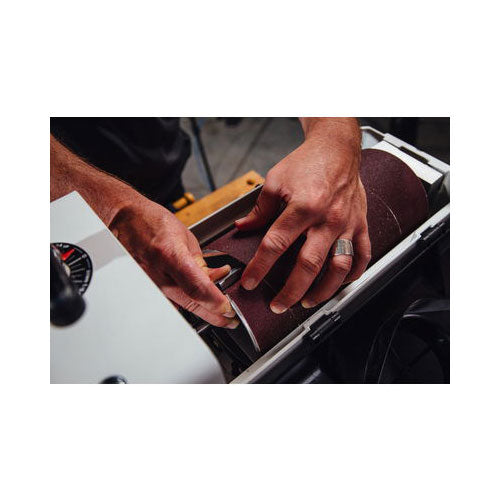

- Toolless abrasive take-up fasteners make changing abrasives quick and easy
- Precision-flattened reinforced steel conveyor bed supports the boards passing under the sanding drum
- Control system with integrated circuit breaker protects motor from over heating
Jet 723510 Specifications
| Height | 17.130" |
| Length | 29.450" |
| Volume | 5.988 |
| Width | 20.510" |
| Prop 65 | Cancer and Reproductive Harm |
| Drum Length (In.) | 10 |
| Minimum Board Thickness (In.) | 1/32 |
| Dust Collection Minimum CFM Required (CFM) | 550 |
| Minimum Board Length (In.) | 2-1/4 |
| Maximum Board Width (In.) | 20 |
| Drum Diameter (In.) | 5 |
| Prewired Voltage (V) | 115 |
| Maximum Board Thickness (In.) | 3 |
| Motor Phase (PH) | 1 |
| Motor Power (HP) | 1 |
| Dust Port Outside Diameter (In.) | 4 |
| Conveyor Motor | Totally Enclosed DC |
| Conveyor Speed (FPM) | 0-10 |
| Motor Voltage (V) | 115 |
| Style (Type) | Benchtop |
| Drum Speed (RPM) | 1725 |
