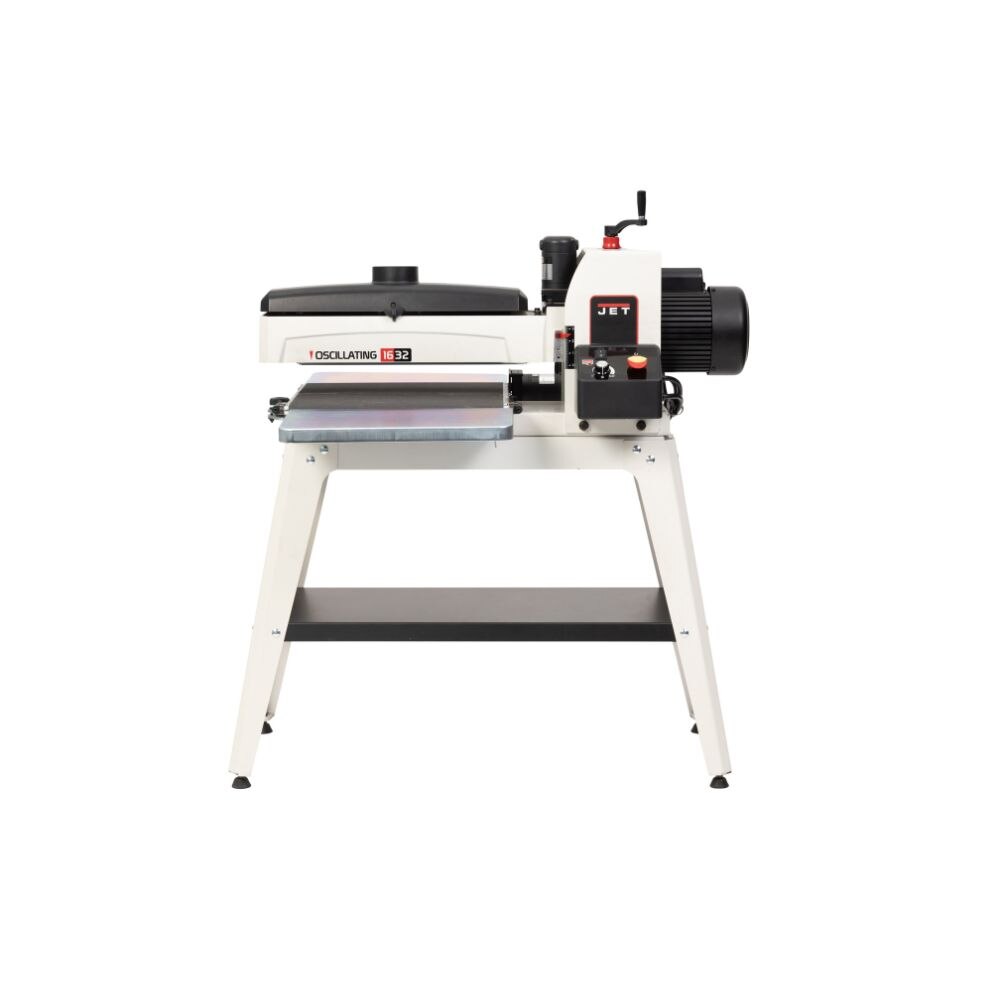

Jet JT9-723525 1632 Oscillating Drum Sander with Stand
Black Friday Sale
Free Shipping
$1,784.99
$2,099.99
Unit price
/
Unavailable
Description
Description
Jet JT9-723525 Description
The JET 1632 Oscillating Drum Sander produces an unbeatable sanding finish, with its exclusive variable speed oscillating drum moving from left to right—minimizing visual scratch patterns in workpieces and increasing the lifespan of abrasive paper. Its patent-pending hood design extracts 97% of the dust that the sander creates. Additional features such as Sandsmart™ feed control technology, tool-less parallelism adjustment, and Heavy Duty Steel Stand make this popular sander the most innovative in its class.
Jet JT9-723525 Includes
- (1) Sander with Conveyor Table (An 80-grit, 3-inch wide abrasive strip is pre-installed on the drum)
- (1) Handle
- (1) Instruction manual
- (1) Warranty card
- (1) Stand Assembly
- (1) Shelf
- (2) Short Rails
- (2) Long Rails
- (4) Legs
- (4) Leveling Feet
- (8) Flat Washers
- (4) Hex Nuts
- (24) Carriage Bolts, M8x16
- (24) Flanged Lock Nuts, M8
Jet JT9-723525 Features
- Self-Cooling Drum
- Sandsmart™ control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
- Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 in. collection port

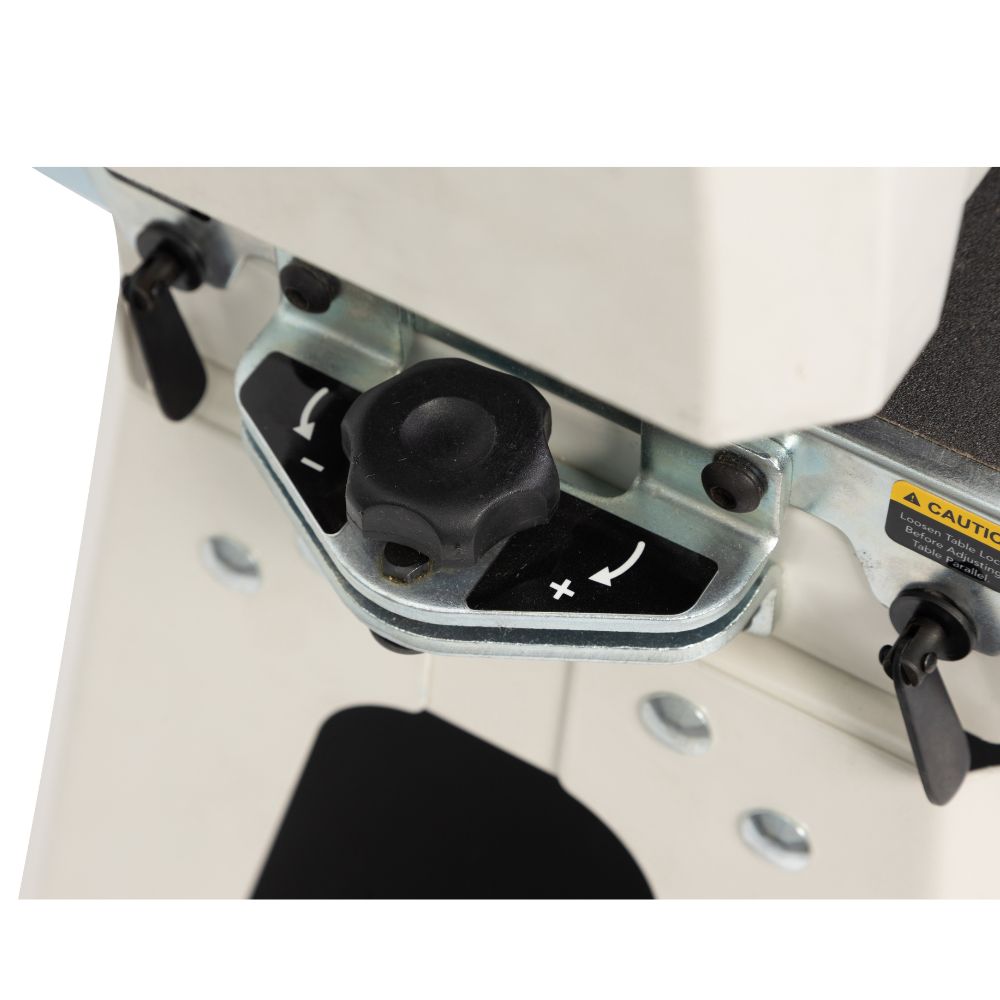

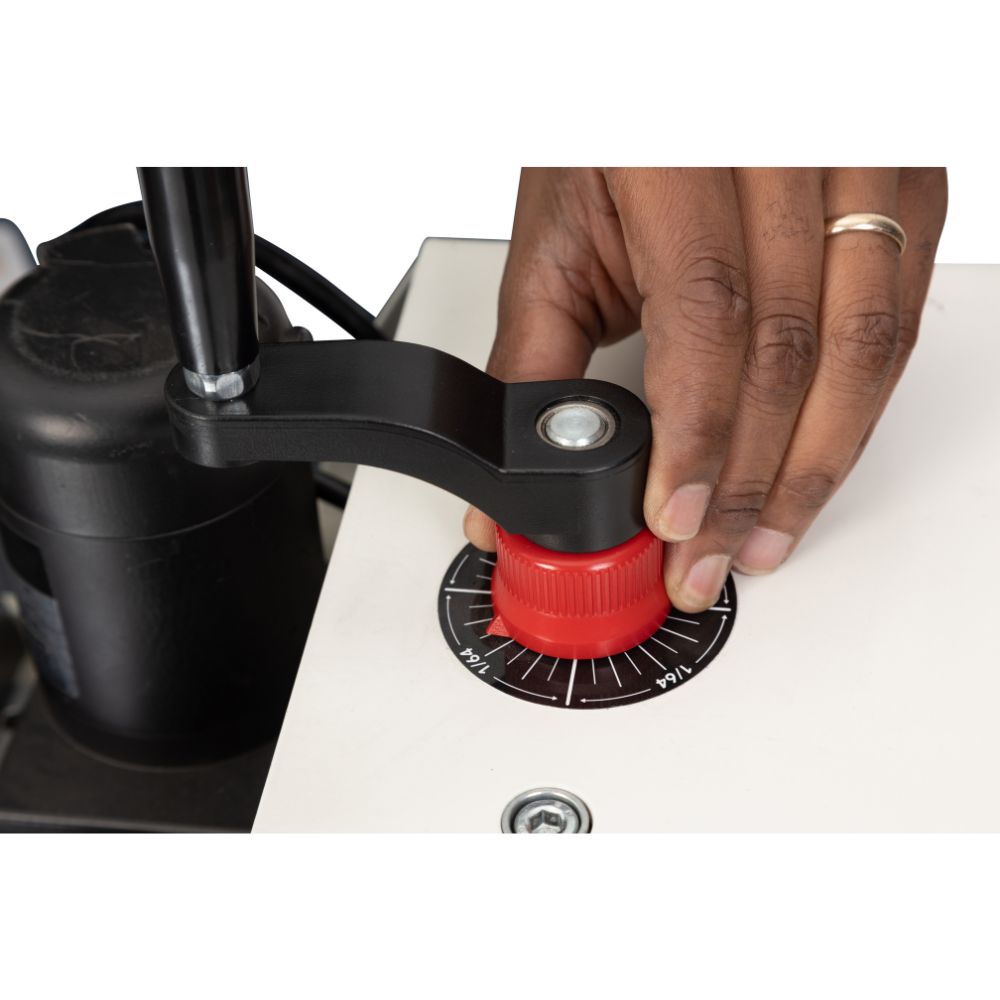

- Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required

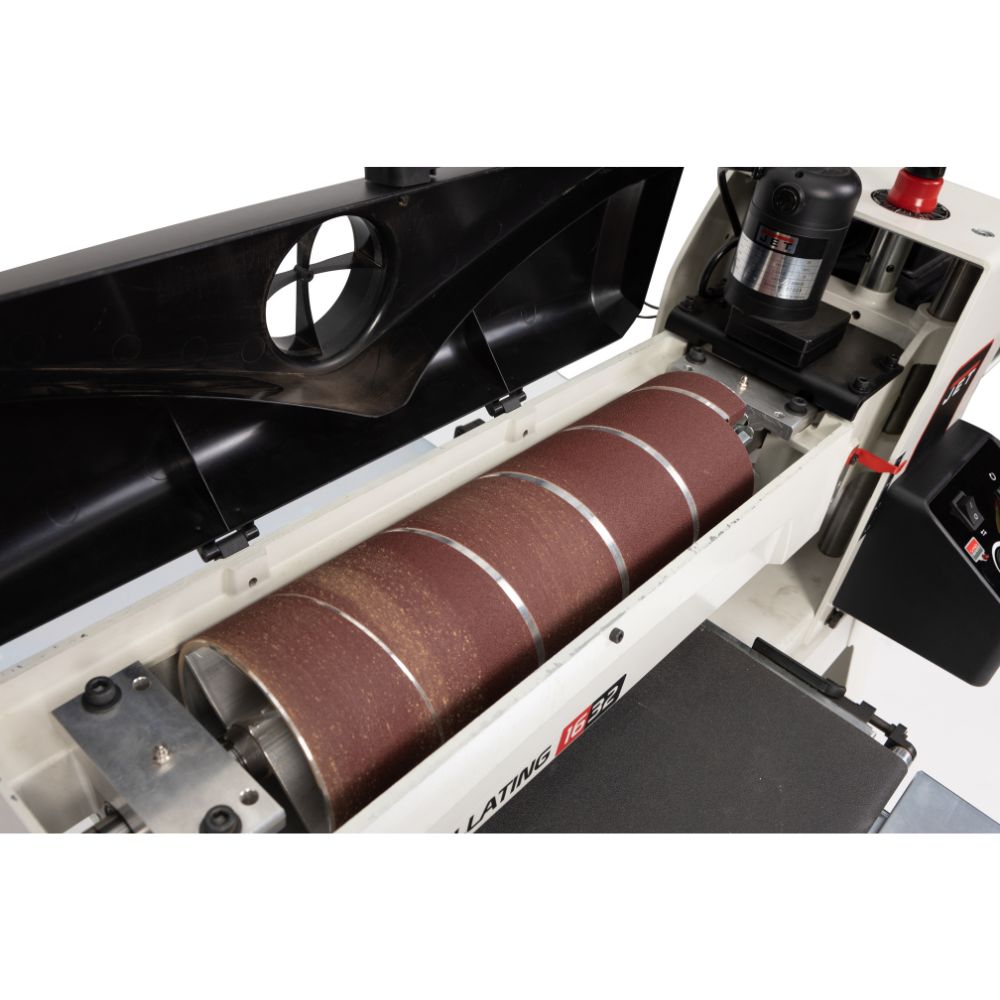

- Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and has 3/4" of oscillating stroke
- Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
- Conveyor belt TRACKERS™ reduce the need for manual belt adjustments
- Tool less abrasive take-up clips make changing abrasives quick and easy

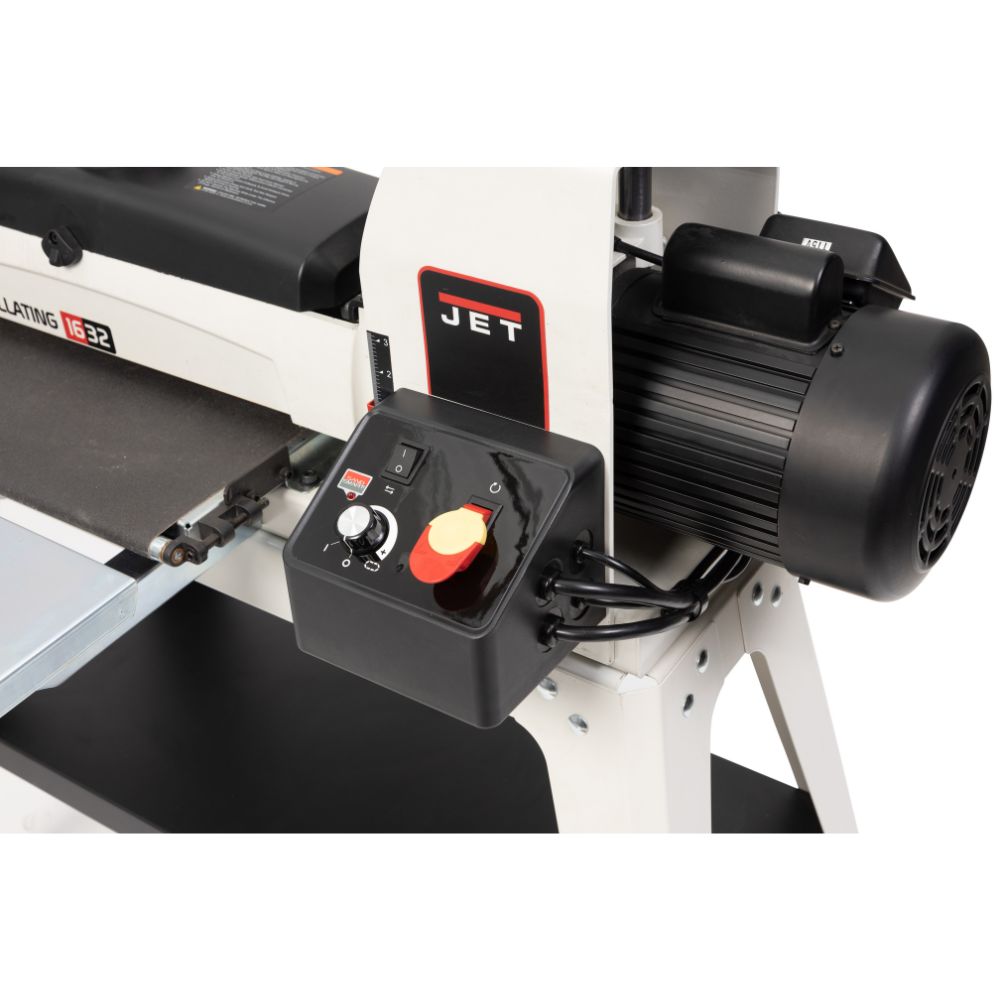

- Separate feed and drum motors provide independent control, optimizing the performance of the sander
- Dust hose hanger for added ease of use
Jet JT9-723525 Specifications
| Conveyor Speed (FPM) | 0 to 10 |
| Drum Bearing Diameter | 1" |
| Drum Diameter | 5" |
| Drum Length | 16" |
| Drum Speed (RPM) | 1725 |
| Dust Collection Minimum CFM Required (CFM) | 400 |
| Dust Port Outside Diameter | 4" |
| Maximum Board Thickness | 3" |
| Maximum Board Width | 16" |
| Minimum Board Length | 2-3/8" |
| Minimum Board Thickness | 1/32" |
| Motor Amps | 14 |
| Motor Power (HP) | 1-1/2 |
| Number of Sanding Drums | 1 |
| Recommended Circuit Size (Amps.) | 20 |
| Style (Type) | Drum Sander |
| Weight | 191 lbs |
