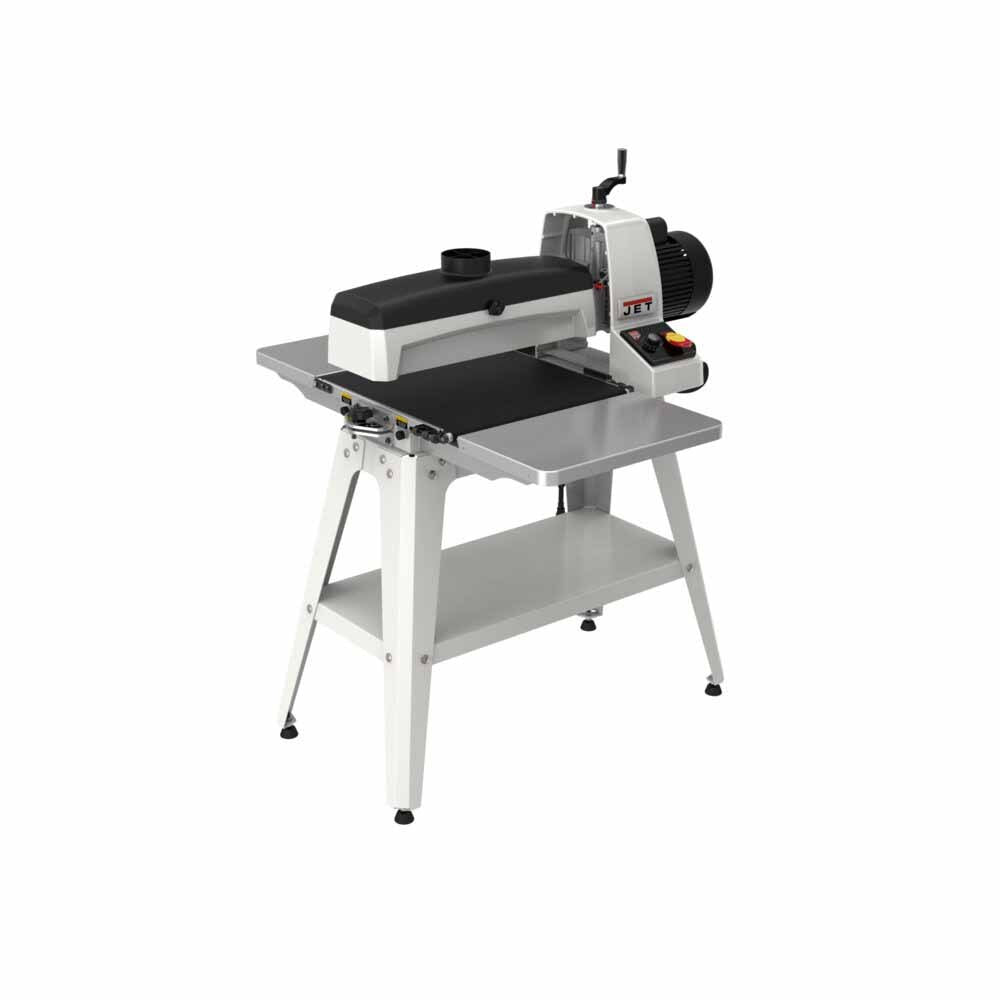

Jet JT9-723530K JWDS-1836 Drum Sander with Stand
Description
Description
Jet 723530K Description
Introducing the newly designed JET JWDS-1836 Drum Sander from JET. The 1.75 horsepower motor delivers plenty of power to handle just about any sanding task. The innovative tool-less parallelism system keeps adjustments simple. The worktable is easily positioned by a turn of the parallelism dial. The variable-speed rate permits you to choose the optimal feed rate for a full range of projects, while the Sandsmart feature continuously monitors the load on the drum motor to prevent an overload situation. The mirrored design of the dust hood optimizes dust collection preventing chips and dust from getting between your work-piece and the finish. The JWDS-1836 Drum Sander delivers everything you need for an effortless finish.
Jet 723530K Features
- Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
- Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required
- Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
- Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4" collection port
- Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4" collection port
- Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
- Precision-flattened reinforced steel conveyor bed
- Redesigned conveyor system pulls the workpiece through the sander instead of pushing
- One rotation of the top-position handwheel adjusts the drum height by 1/16"
- The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
Jet 723530K Specifications
| Recommended Circuit Size (Amps.) | 20 |
| Drum Length (In.) | 18 |
| Minimum Board Thickness (In.) | 1/32 |
| Dust Collection Minimum CFM Required (CFM) | 500 |
| Minimum Board Length (In.) | 2-3/8 |
| Maximum Board Width (In.) | 36 (two passes) |
| Drum Diameter (In.) | 5 |
| Maximum Board Thickness (In.) | 3 |
| Motor Amps | 15 |
| Motor Phase (PH) | 1 |
| Motor Power (HP) | 1-3/4 |
| Number of Sanding Drums | 1 |
| Dust Port Outside Diameter (In.) | 4 |
| Conveyor Motor | 43 in.-lbs. torque, direct drive, dc |
| Conveyor Speed (FPM) | 0 - 10 |
| Motor Voltage (V) | 115 only |
| Style (Type) | Open Stand |
| Drum Speed (RPM) | 1,720 |
| Drum Bearing Diameter (In.) | 1 |
