Jet JT9-724020 JWS-20CS Spindle Shaper, 1-1/2HP, 1Ph 115/230V
Description
Description
Jet JT9-724020 Description

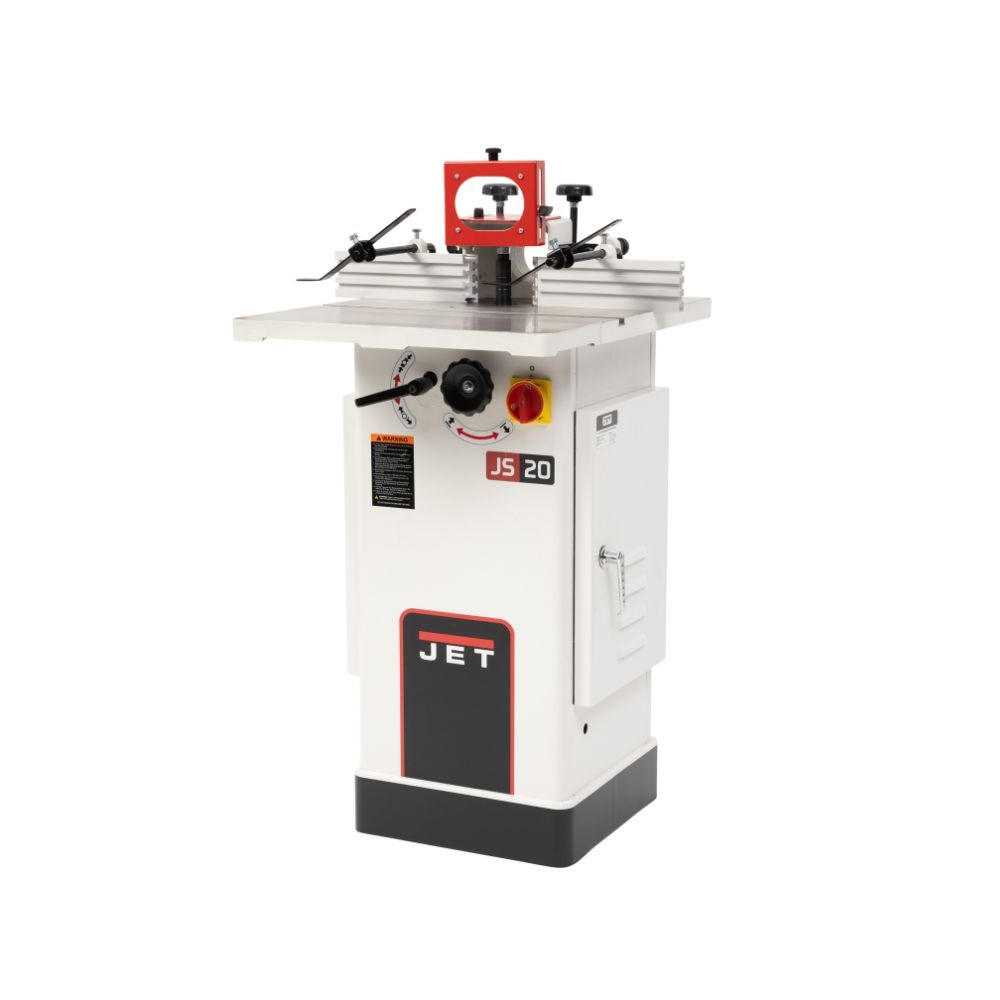

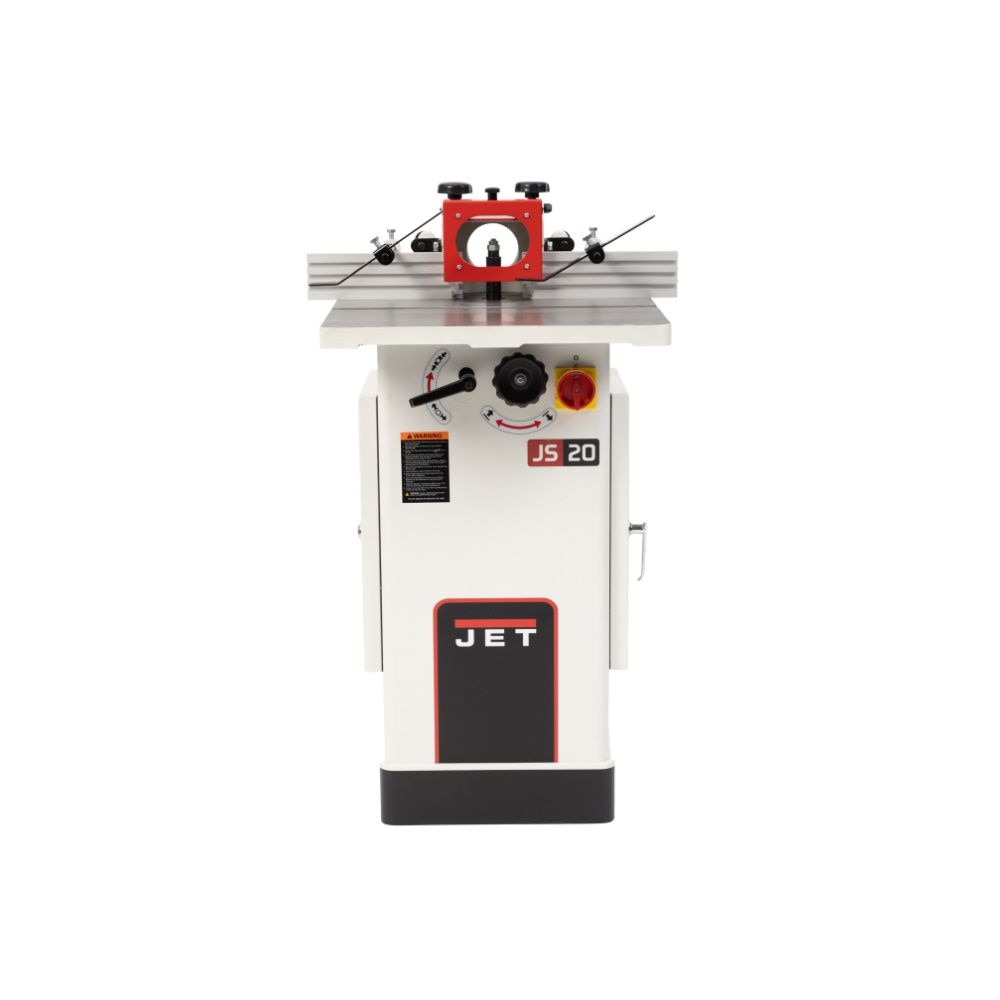

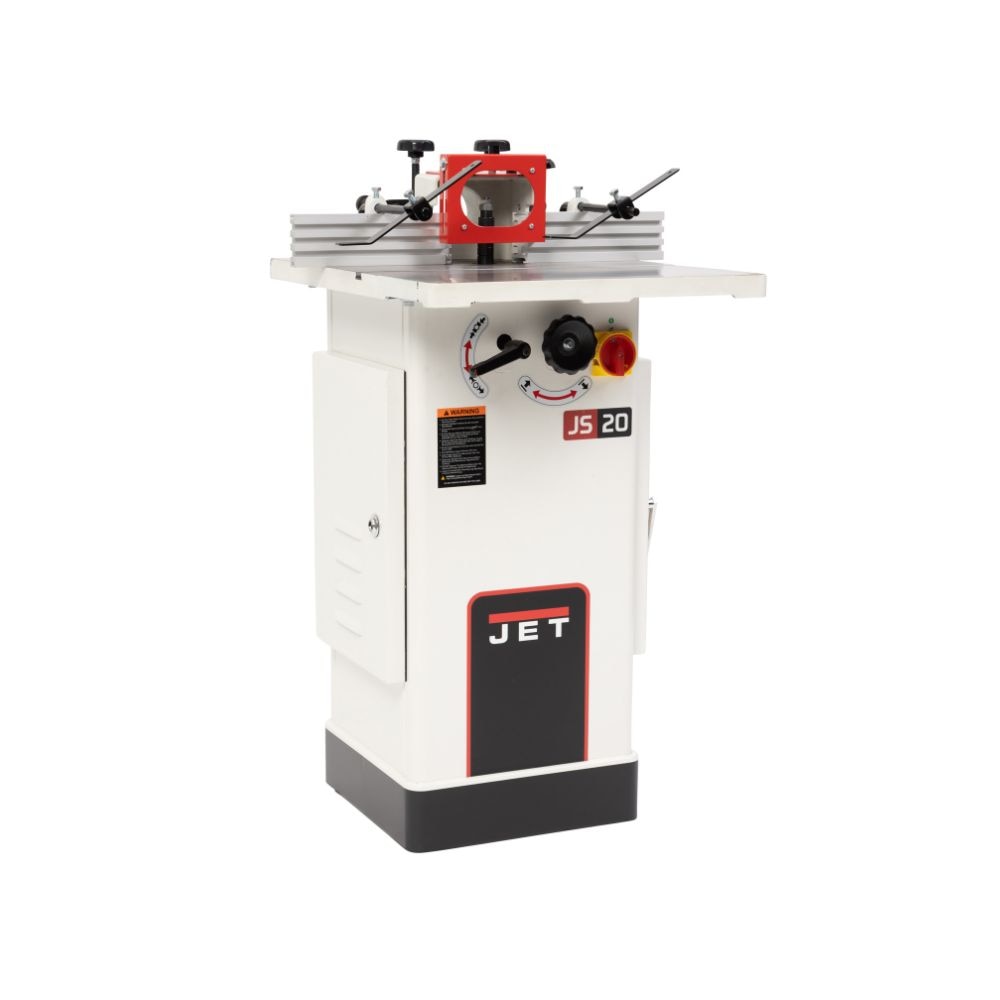

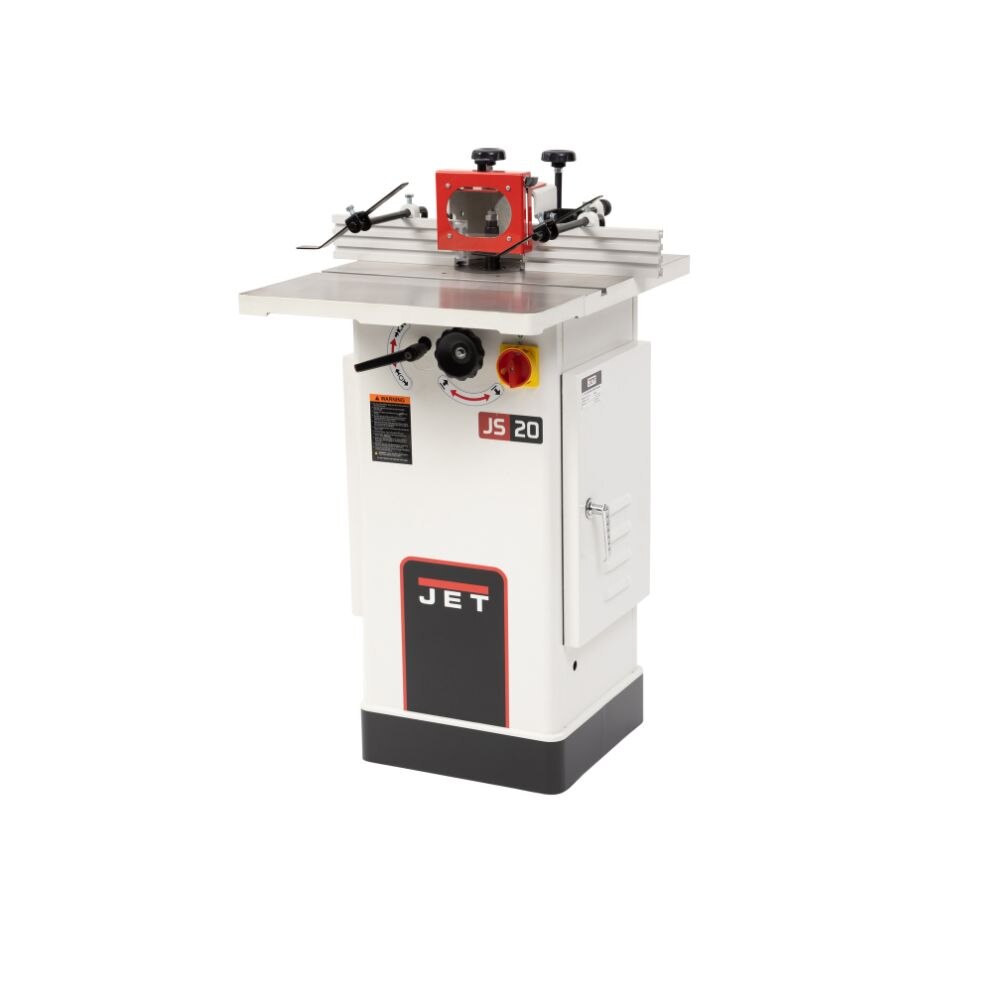

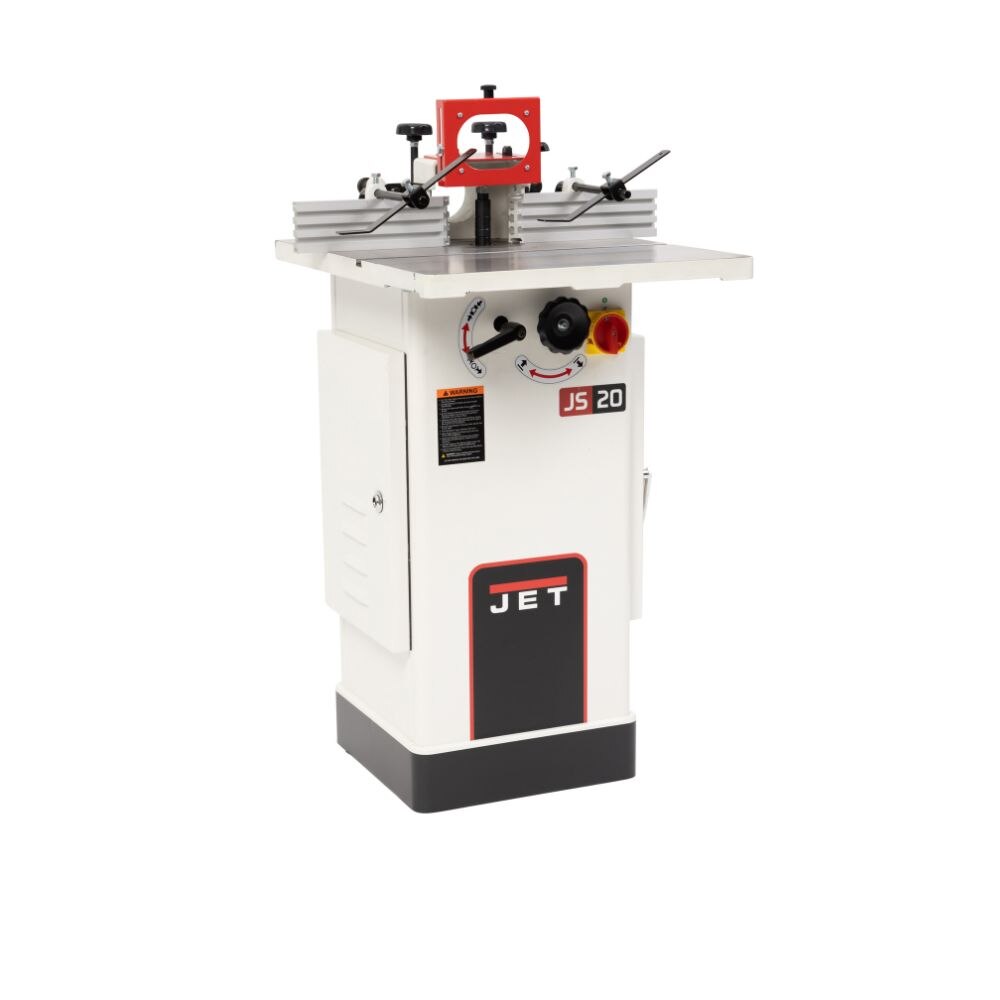

If you're looking for a space-saving shaper for your shop, the new JET JWS-20CS Shaper is what you need. This compact powerhouse features a 8000 and 10000 RPM reversing 1-1/2HP motor. The sleek 18"(L) X 20" (W) precision ground cast iron table provides a durable work area for various projects. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independent left and right fences feature micro-adjustment, and a built in 4” dust port. When add the new JET JWS-20CS Shaper in your shop today, you'll know why JET products are "Built Better to Build Better."
Jet JT9-724020 Includes
- (1) Shaper
- (1) Dust Chute
- (1) Miter Gauge
- (1) Draw Bar & Nut
- (1) 1/2" Spindle Assembly
- (1) 3/4" Spindle Assembly
- (1) 1/4" Router Collet
- (1) 1/2" Router Collet
- (1) Arbor Wrench
- (1) 3mm Hex Key Wrench
- (1) 12mm / 14mm Open End Wrench
Jet JT9-724020 Features
- Powerful 1-1/2HP motor delivers dependable power, even on heavy jobs

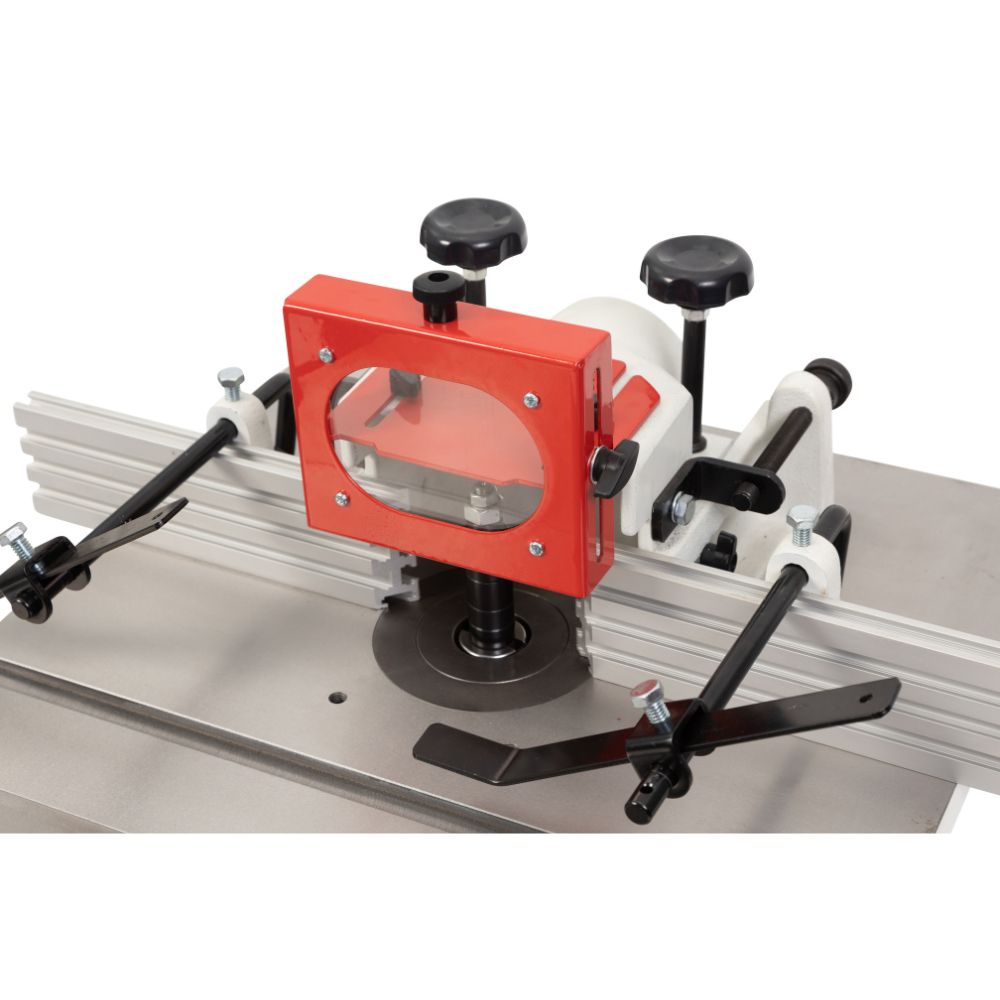

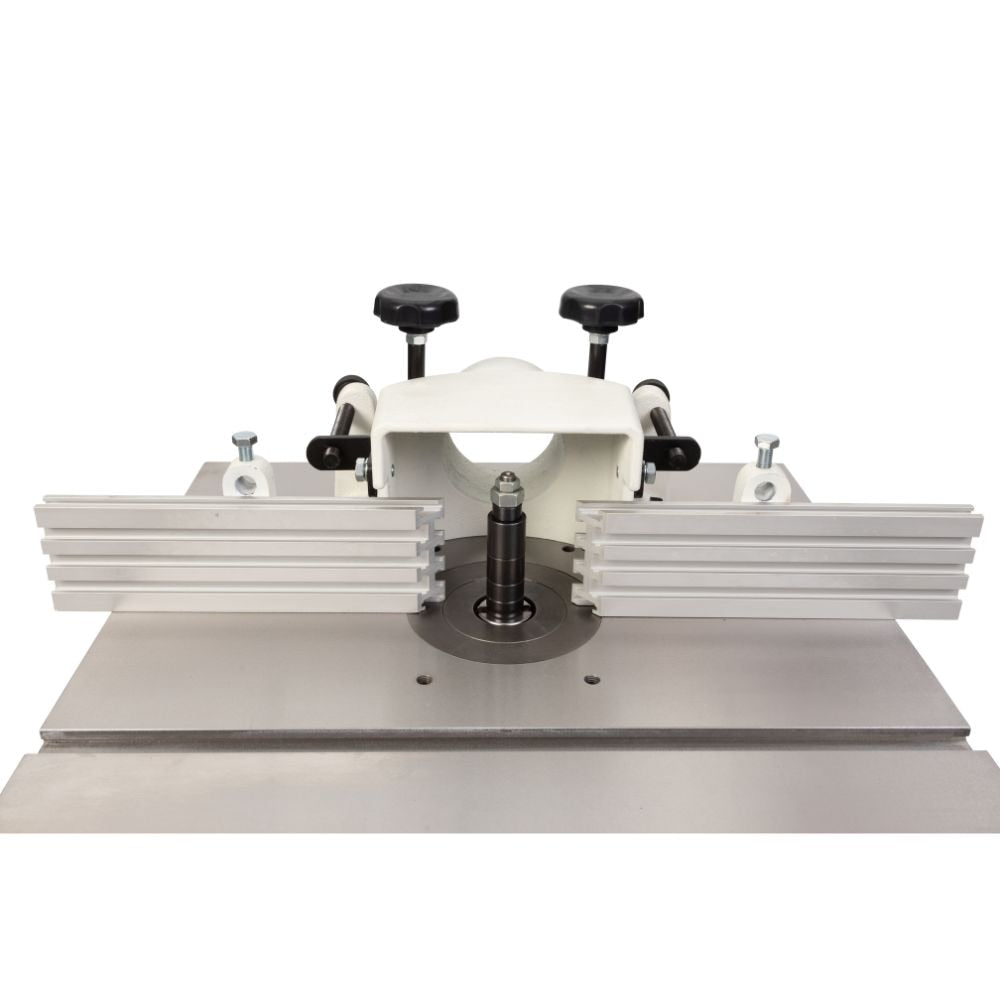

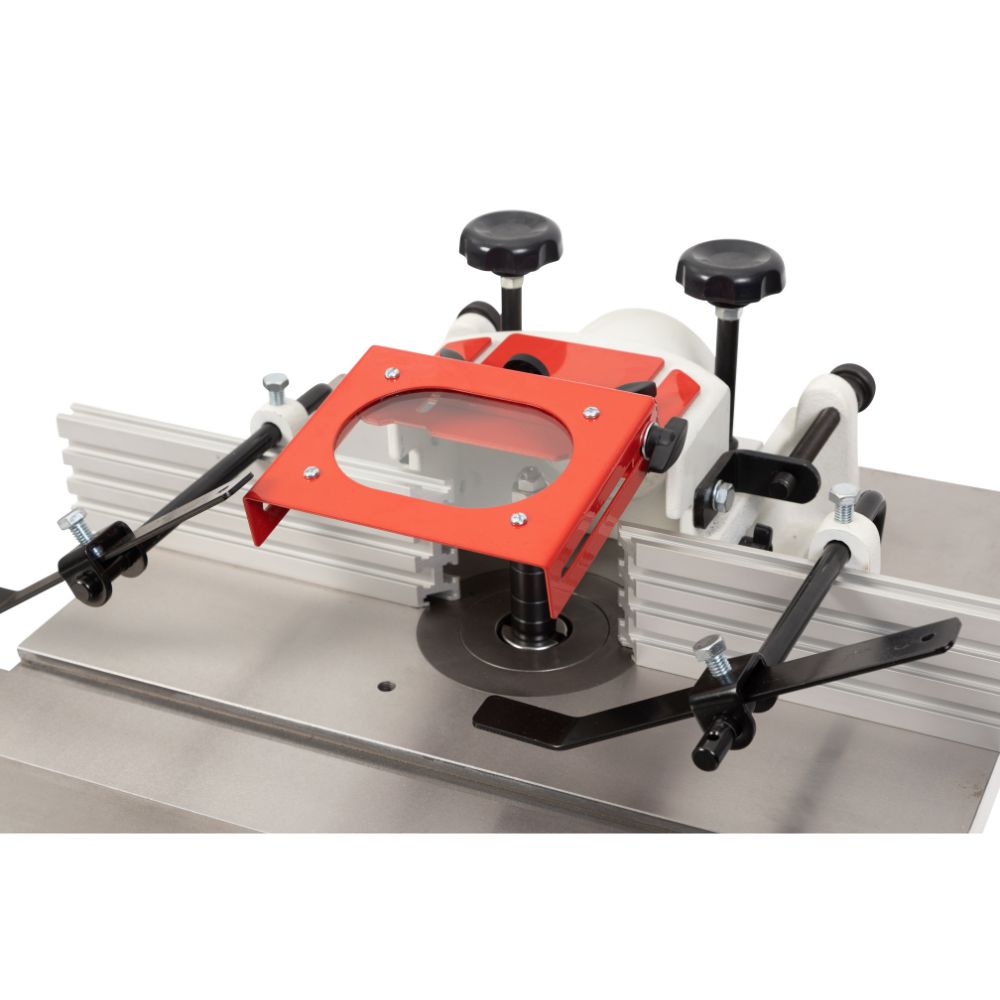

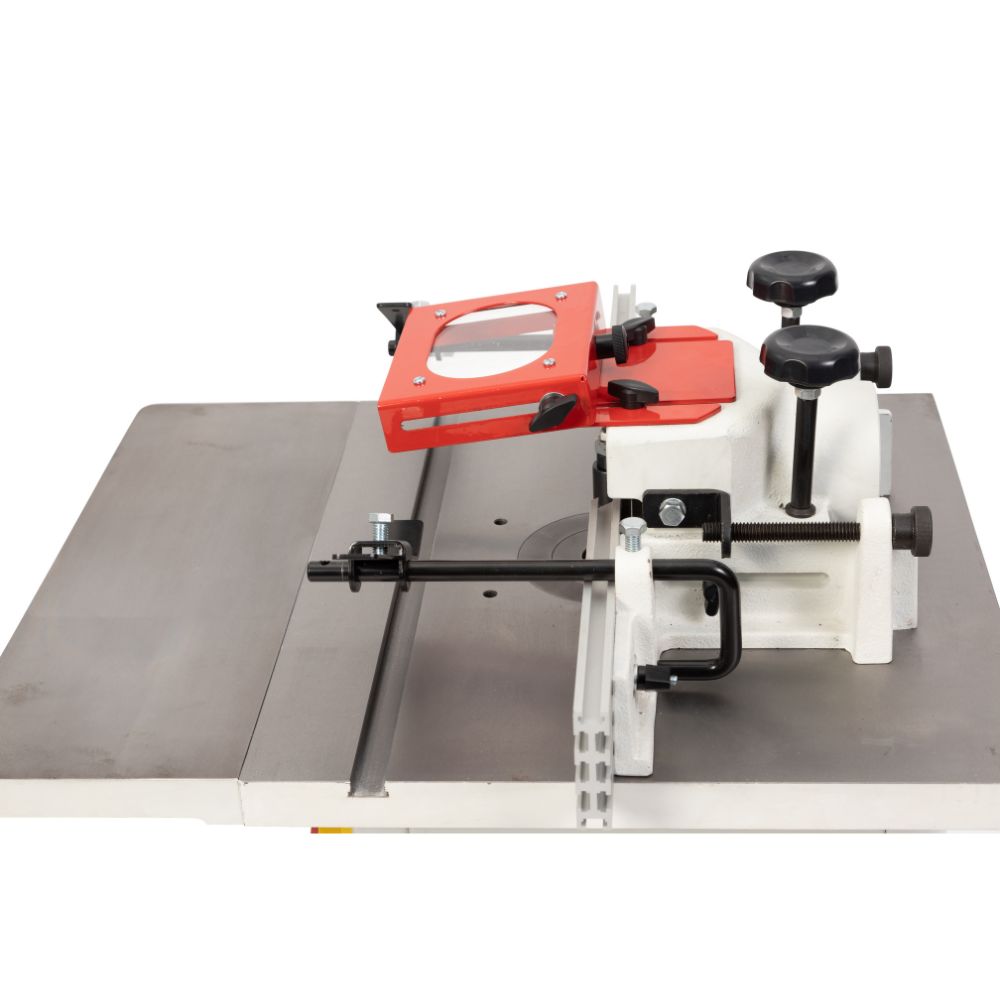

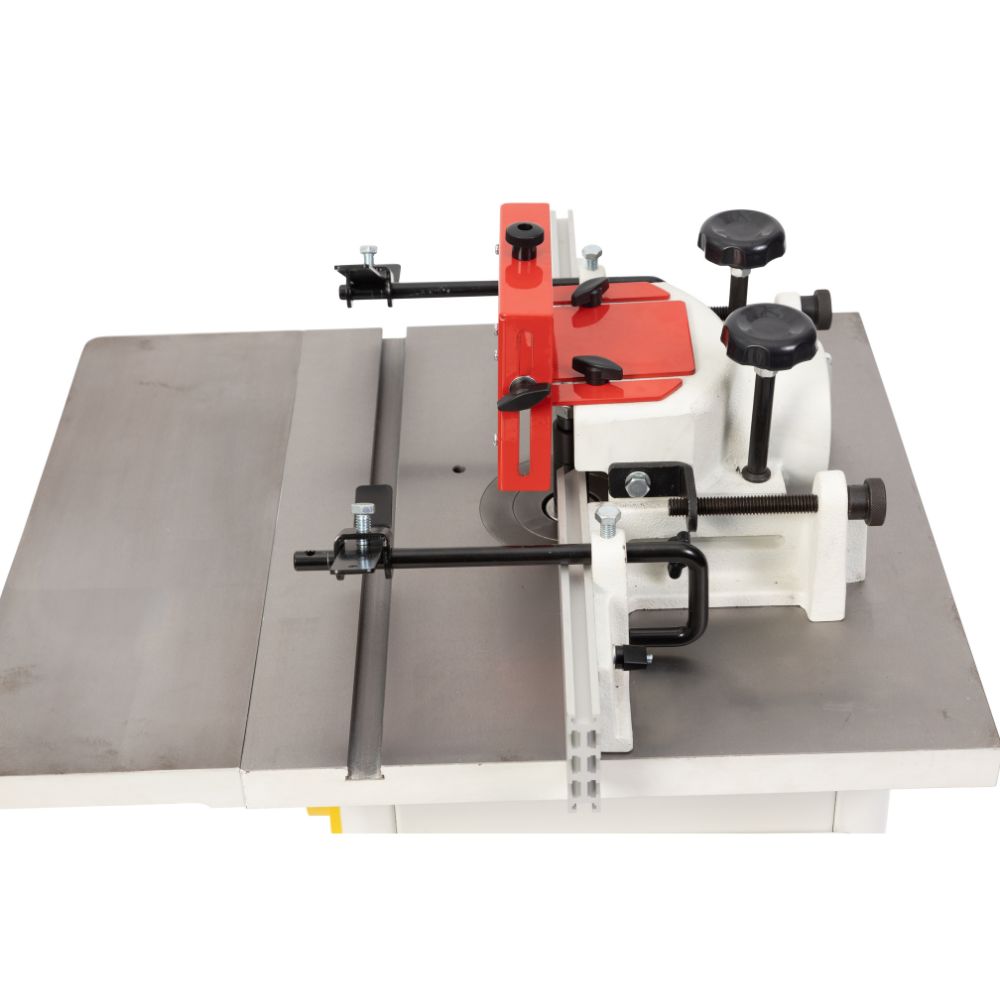

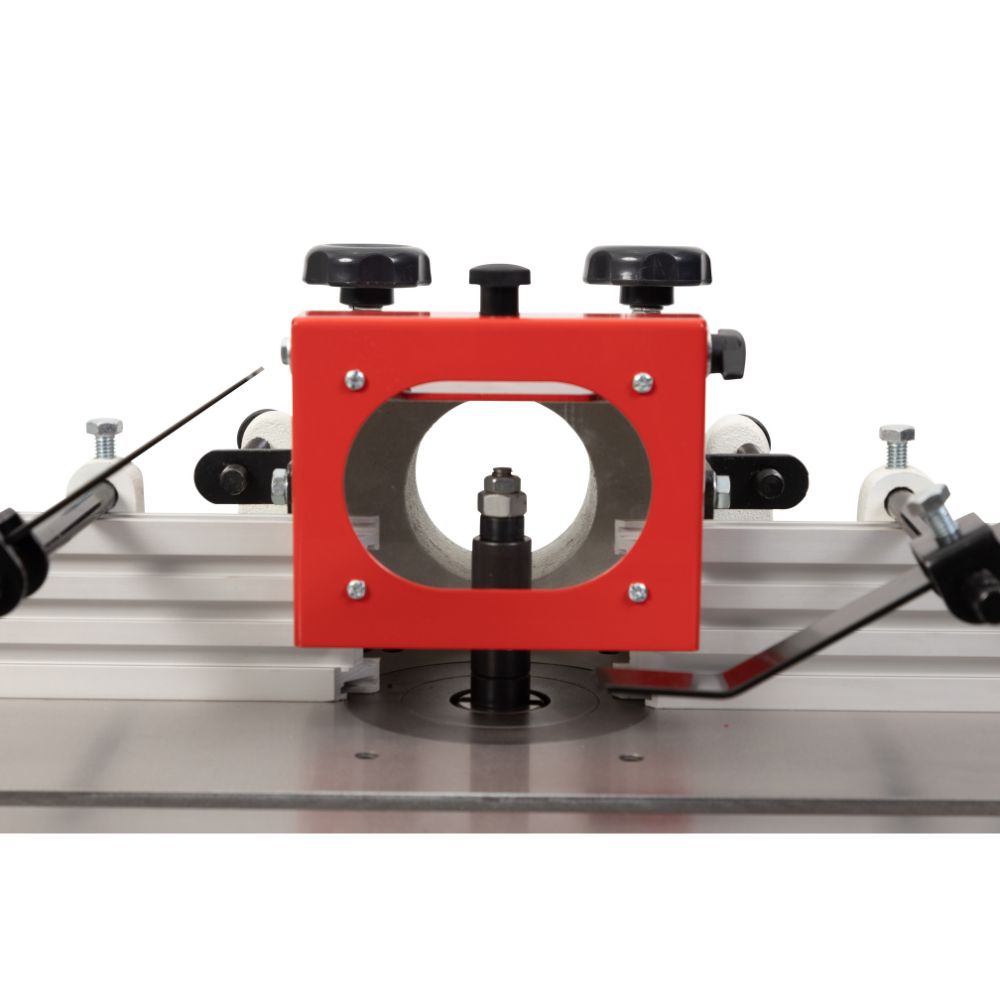

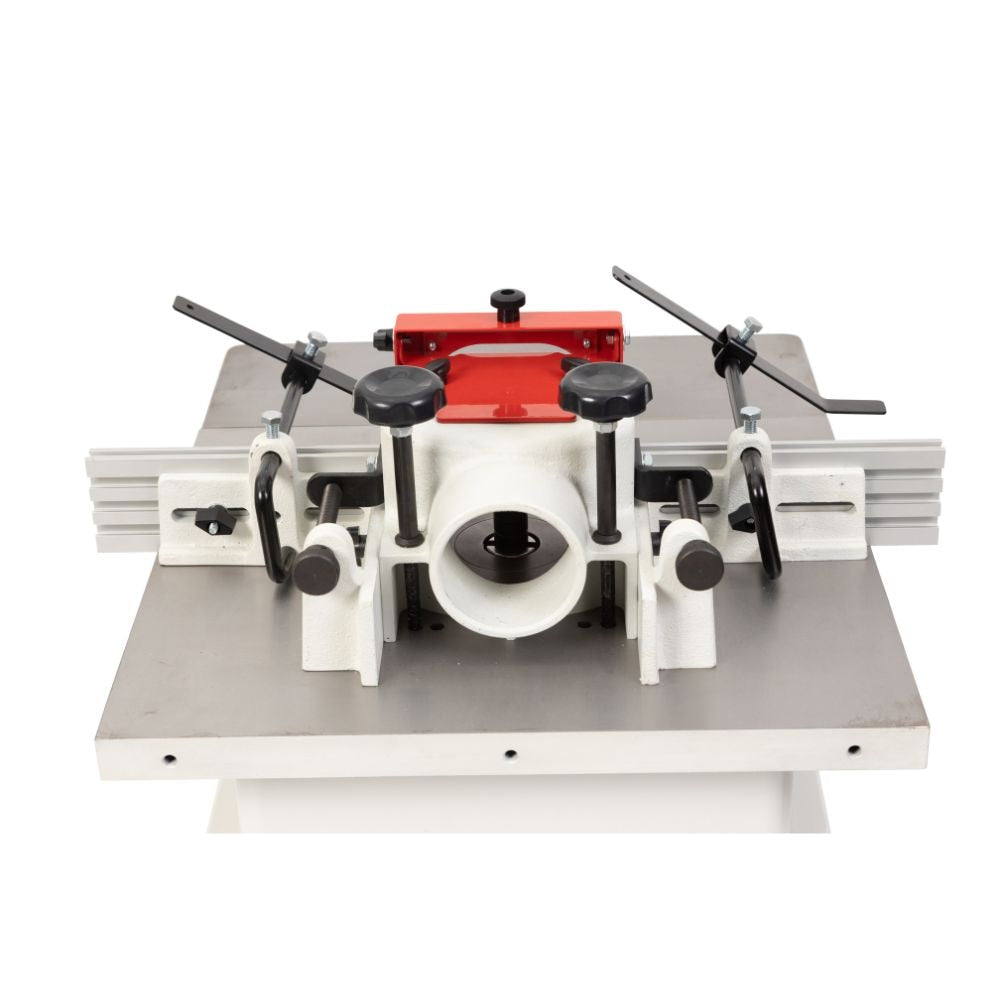

- Independent left and right fences feature micro-adjustment and have zero-clearance capability

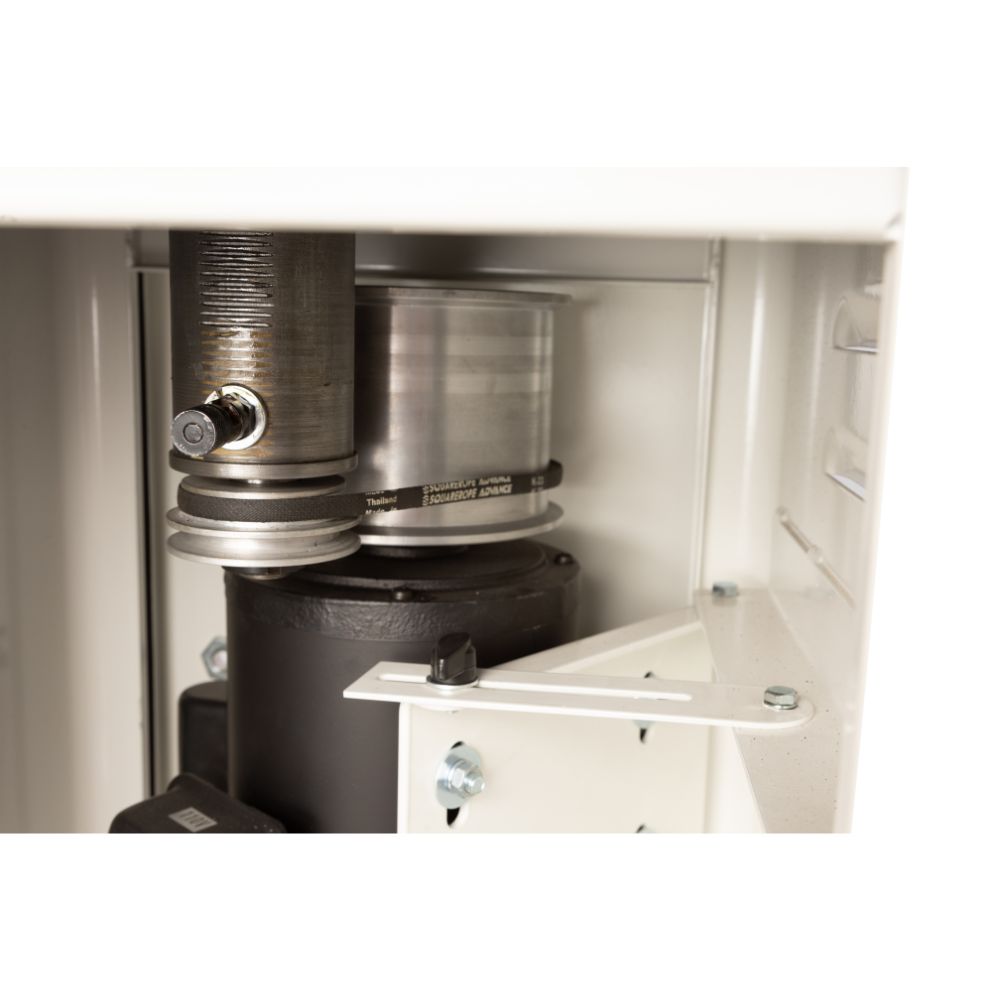

- Fully enclosed, heavy-duty steel stand has a removable cover for easy motor access

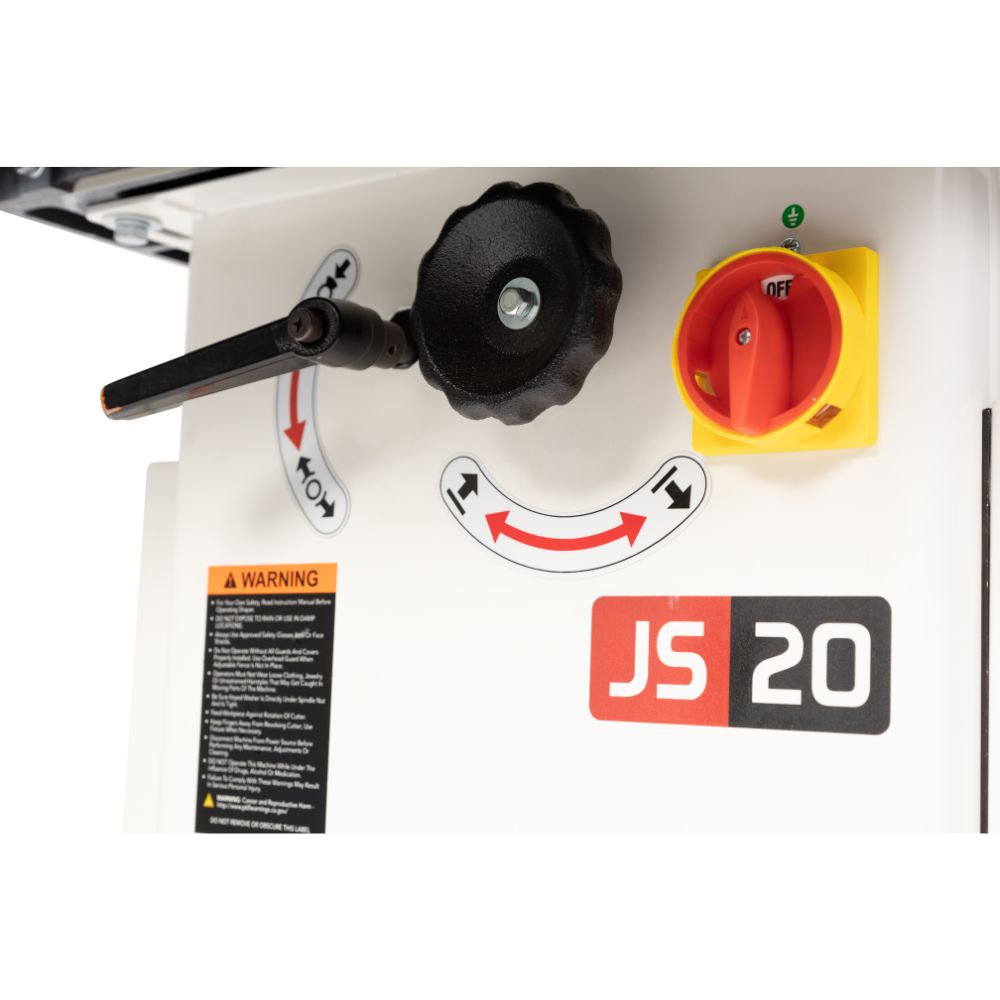

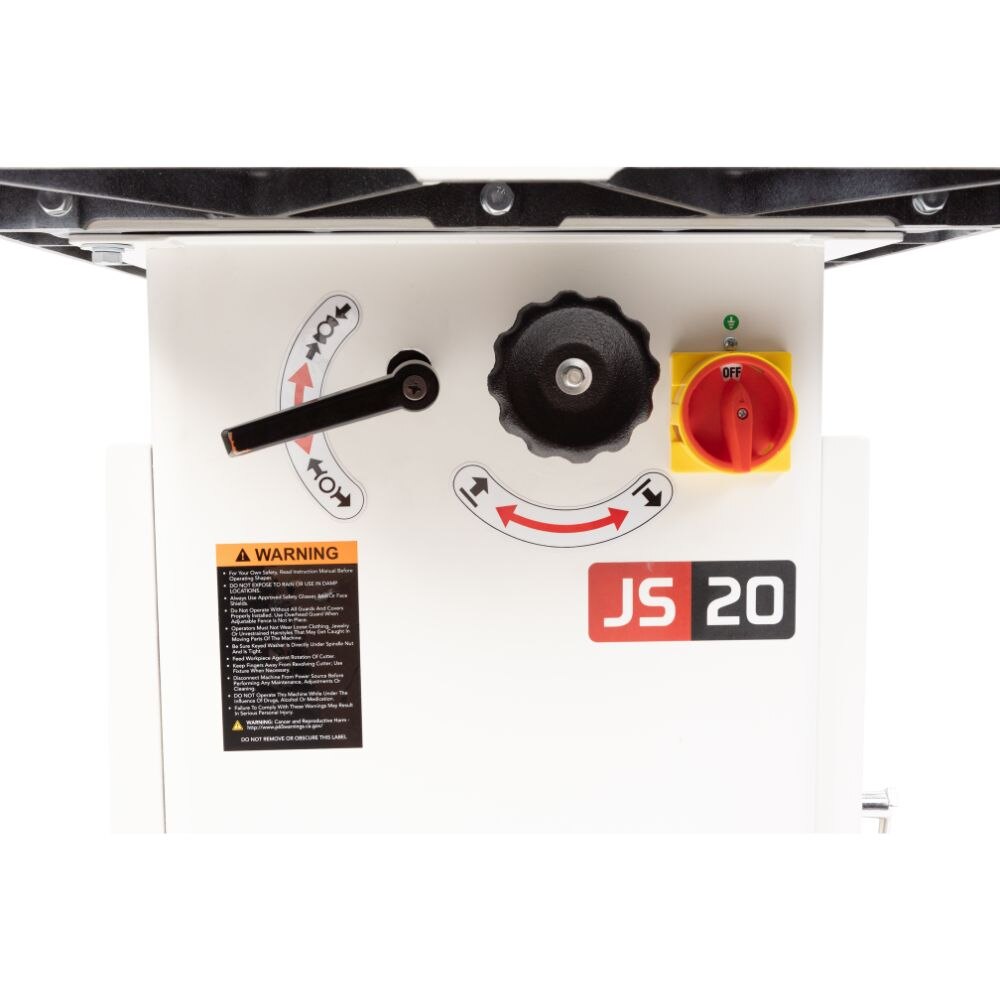

- Forward/reverse switch for left and right hand operation

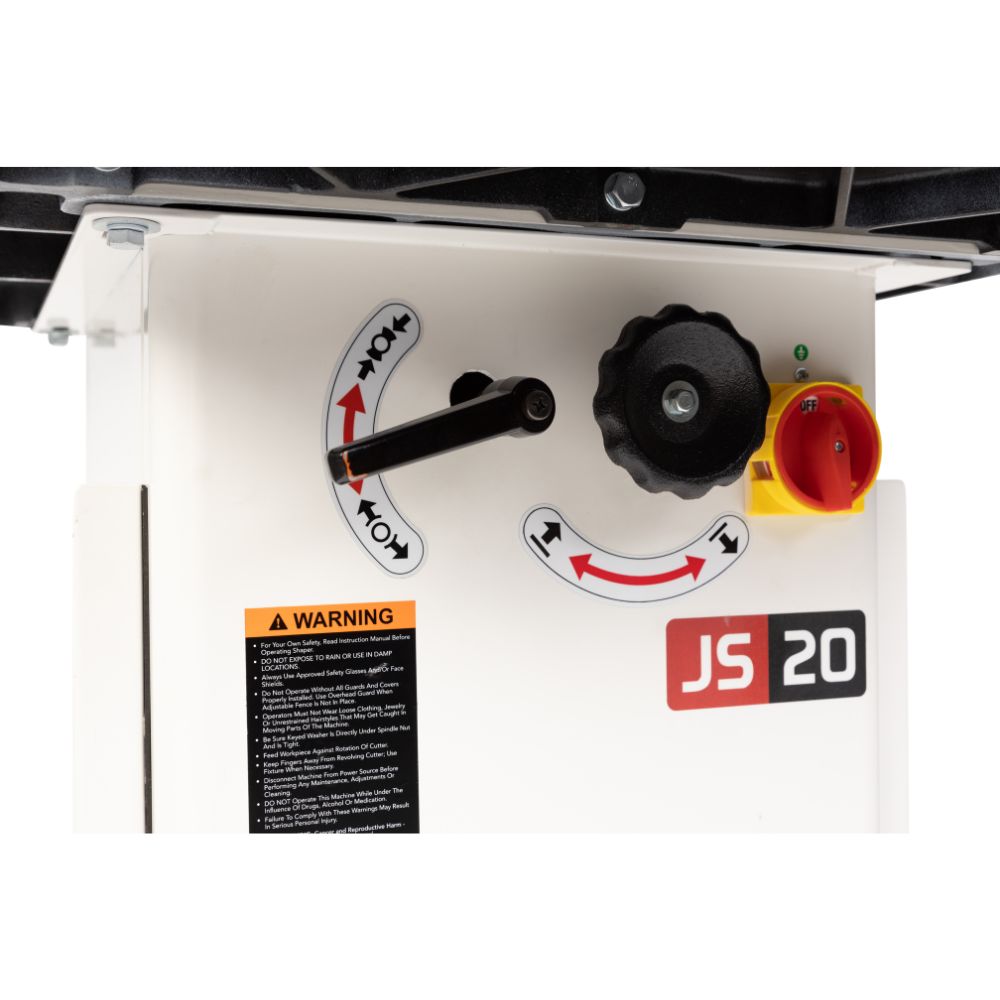

- Extra-large handwheel is conveniently located for fast, easy, and accurate spindle height adjustments

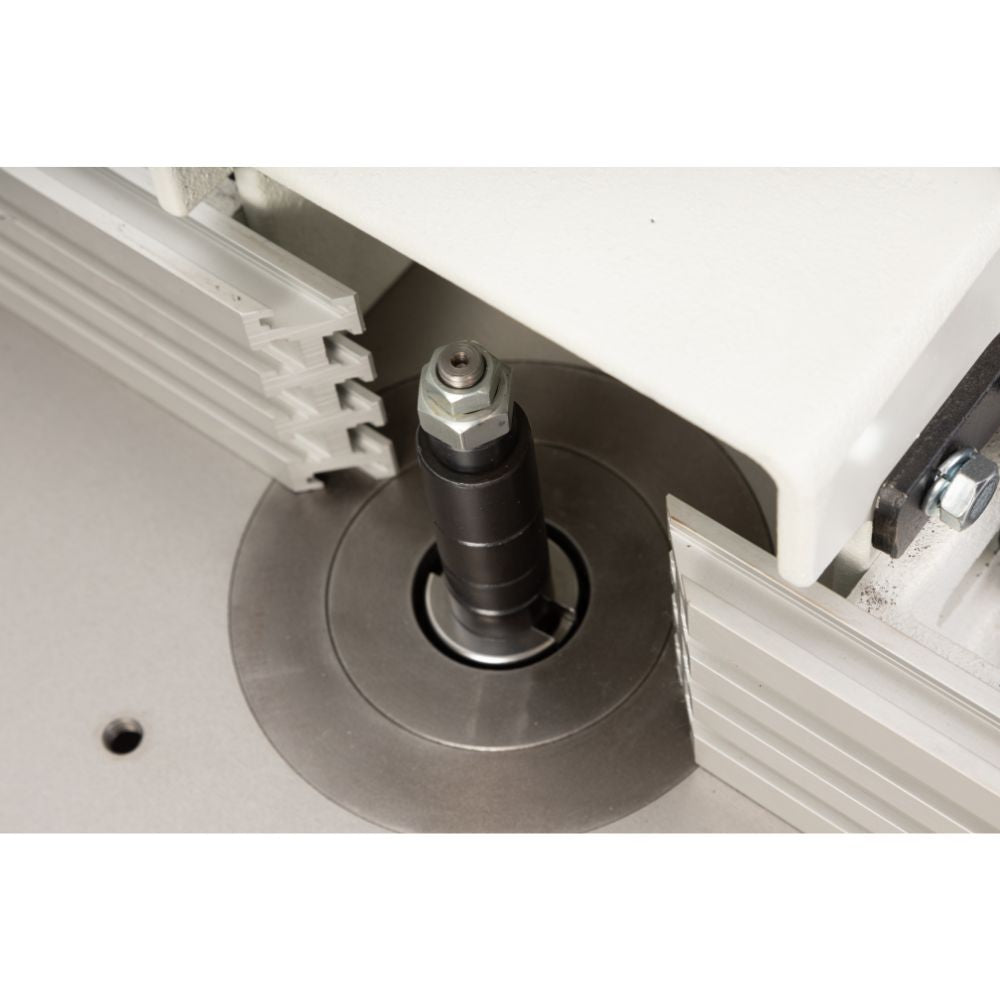

- 1/2" and 3/4" interchangeable spindles and router bit collets for use with shaper cutter and router bits

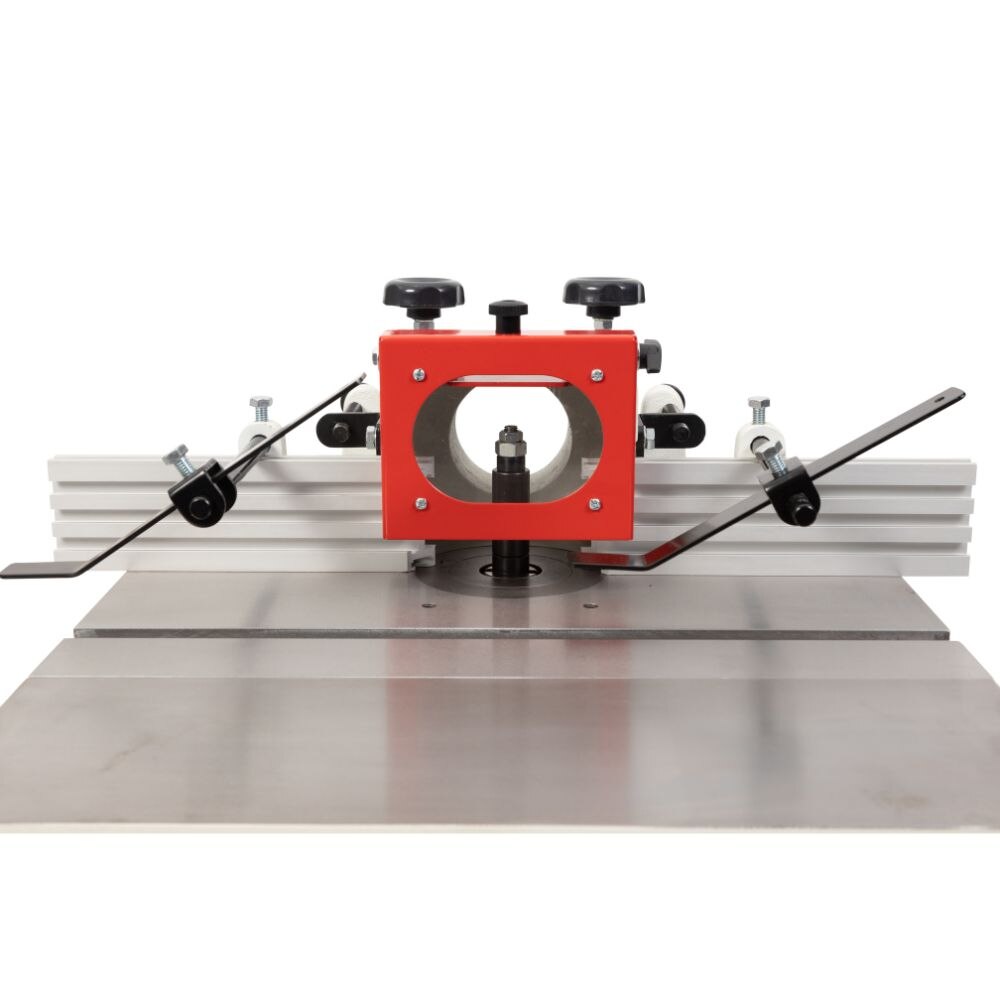

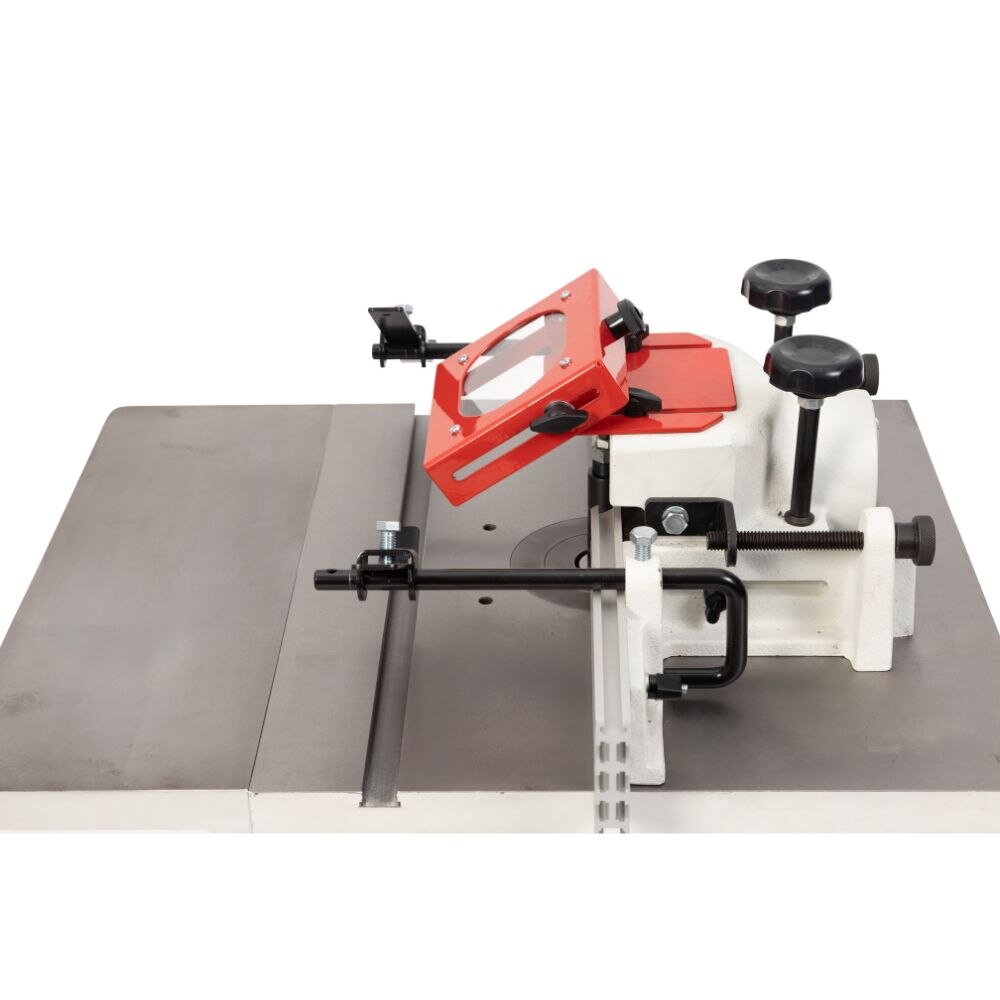

- Two adjustable work hold-downs to secure your work while shaping

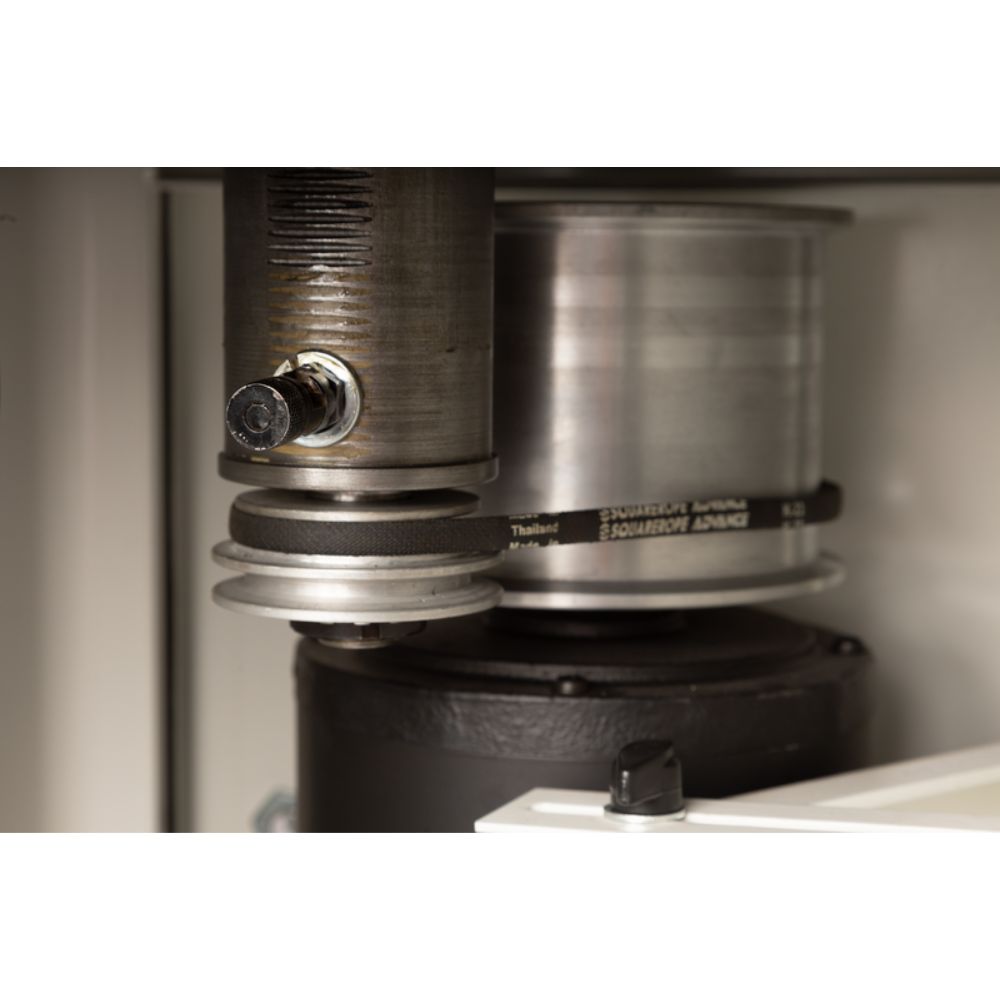

- Two reversible spindle speeds lets you select the best speed and torque for different cutter diameters
Jet JT9-724020 Specifications
| Dust Collection Minimum CFM Required (CFM) | 300 |
| Dust Port Outside Diameter | 4" |
| Electrical Controls | Manual |
| Fence Size (L x H) | 10" x 3" |
| Motor Amps | 15/7.5 |
| Motor Phase | 1 |
| Motor Power (HP) | 1-1/2 |
| Motor Voltage | 115V |
| Prewired Voltage | 115V |
| Reversible | Yes |
| Router Bit Collet Included | 1/2 |
| Spindle Speed (RPM) | 8000 & 10000 |
| Spindle Travel | 2" |
| Style (Type) | Floor Standing Model |
| Table Height from Floor | 33-1/2" |
| Table Size (L x W) | 18" x 20" |
| Weight | 198 lbs |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
