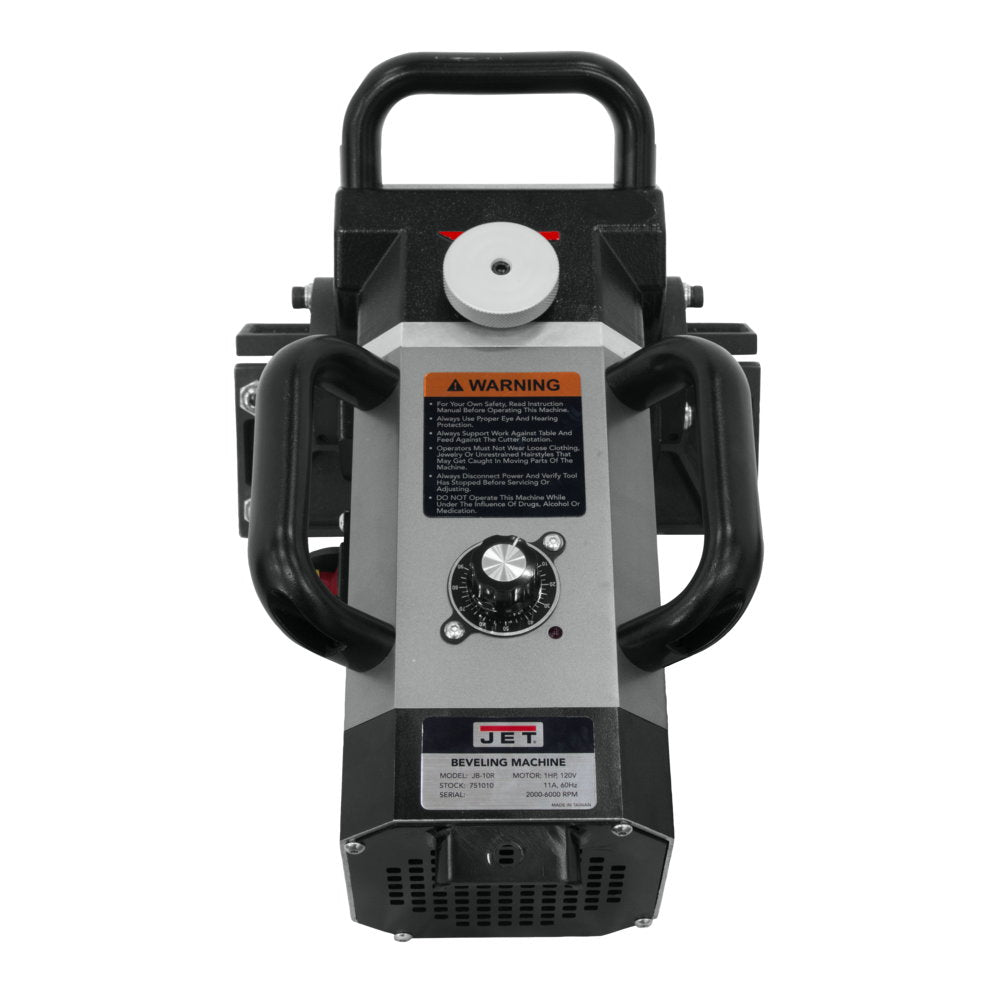

Jet JT9-751005 JB-10P Portable Plate Beveling Machine, Straight Only
Free Shipping
$1,339.00
$1,625.93
Unit price
/
Unavailable
Description
Description
Jet 751005 Features
- Brushless motor increases torque output and RPM's
- Cutting blade with 10 Indexable blades
- Cooling fan prevents overheating
- Three ball pins are added on the guide plate so the contact area can be adjusted at all times, ensuring a smooth chamfering process
- CSA/US: Following strict guidelines and electrical requirements, this JET Portable Plate Beveling machine is CSA/US certified
- Non-slip ergonomic rubber handle
- Plate mounted to relieve operator fatique
- Elimates slow grinding, no fumes, heat or smoke
- Chamfers 45° from the front 1/4" and 3/8" from the side width
Jet 751005 Specifications
| Chamfering Angle (Deg.) | 15-45 |
| Chamfering Capacity Front Width (In.) | 1/4 |
| Chamfering Capacity Side Width @ 45 Deg (In.) | 3/8 |
| V-Block Length (In.) | 9 |
| Minimum Depth of Cut (In.) | 1/8 |
| Length of Power Cord (Ft.) | 5 |
| Gross Weight (Lbs) | 22 |
| Net Weight (Lbs.) | 20.46 |
| Overall Dimensions (L x W x H) (In.) | 15.7 x 11.02 x 11.8 |
| Speed (RPM) | 2,000 - 5,000 |
| Motor (HP) | 1HP, 120V, Single Phase |
| Amperage | 15 |
