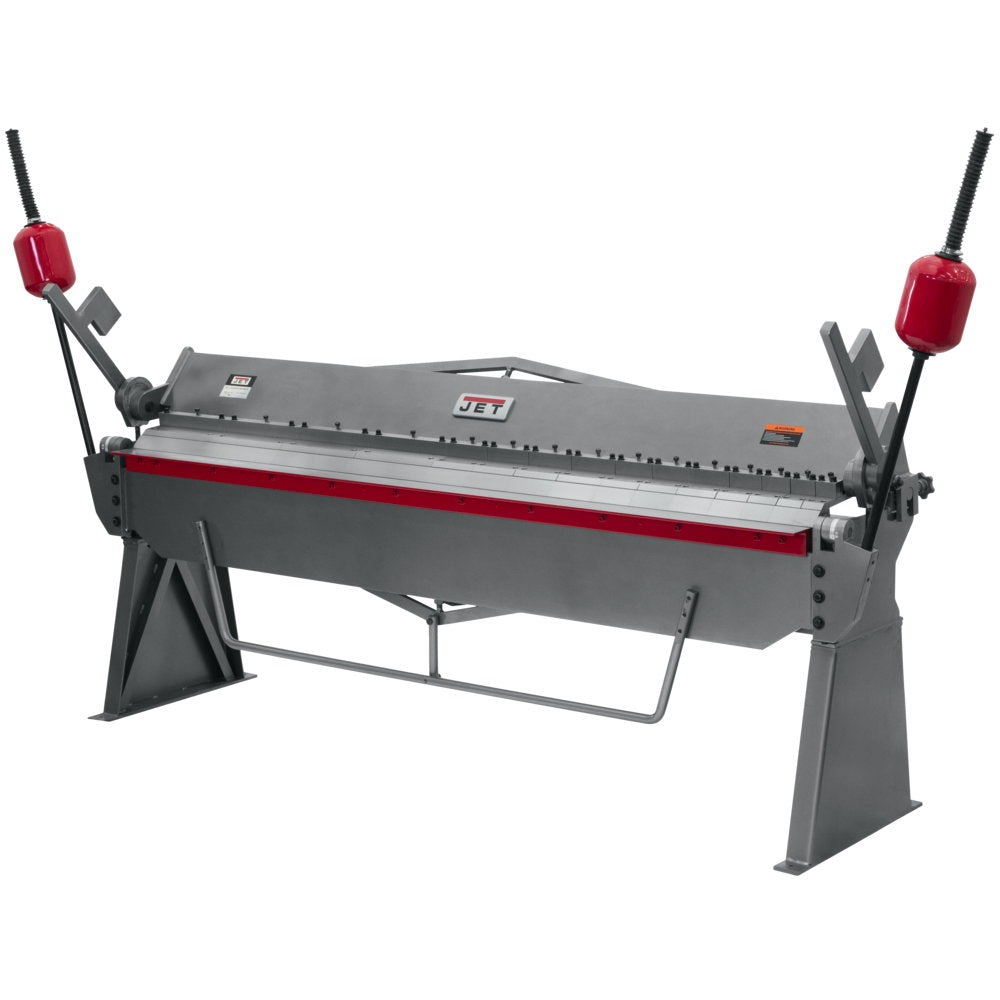

Jet JT9-754115 BPF-16100, 100" x 14 Gauge Floor Model Hand Brake

FEATURES:
• Wide assortment of finger widths allow greater versatility in the shop
• With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
• All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
• Both the bed and apron are bored in line to assure the utmost accuracy
• Counter weights can be moved up or down to adjust desired leverage
• Stop rod for repeatable bending
• 16 gauge maximum capacity for mild-steel
• 14 gauge maximum capacity for aluminum and copper alloys
• 18 gauge maximum capacity for stainless steel

SPECIFICATIONS:
• Style (Type): Floor Box and Pan
• Maximum Box Depth (In.): 4
• Maximum Lift of Beam (In.): 2-1/4
• Number and Width of Fingers (In.): 15 (4@12in, 4@6in, 3@5in, 1@4in, 1@3-1/2in, 1@3in, 1@2-1/2in)
• Finger Nose Angle (Deg.): 45
• Bending Length Capacity (In.): 100
• Mild Steel Capacity (Gauge): 16
• Beam Adjustment (Front to Rear) (In.): 1
• Overall Dimensions (L x W x H) (In.): 140 x 30 x 76
• Nose Radius (In.): 1/32


To accommodate space restraints in your shop, as well as forming and shaping needs of your operation JET Bench and Floor Model Hand Brakes, Bench Model Box and Pan Brakes, and Floor Model Box and Pan Brakes are designed to deliver superior accuracy and durability. Finger width assortments and removable finger sections enhance overall productivity in your facility. JET Brakes are built rugged to provide superior satisfaction with every bend you make
