Jet | SKU:
JT9-754430K

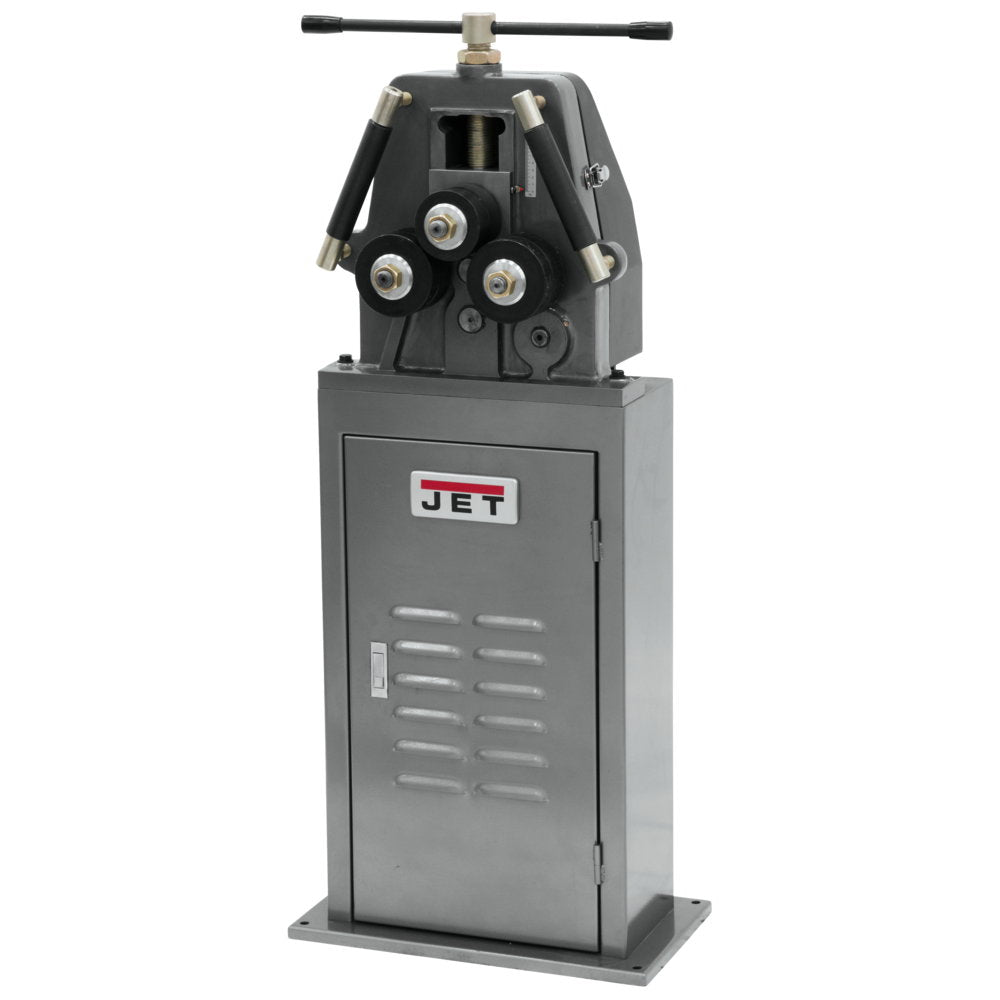

Jet JT9-754430K MPR-10HV Manual Pinch Roller
Free Shipping
$2,019.00
$2,451.64
Unit price
/
Unavailable
Description
Description
Jet 754430K Description
The JET Manual Pinch Roll Bender offers great versatility, bending and rolling round, square, and solid tubing and flat bar. Heavy-duty cast iron construction is machined to strict tolerances to maintain accuracy.
Jet 754430K Features
- Heavy duty cast iron construction machined to strict tolerances with maintain tolerances and accuracy
- Hardened rolling shafts with bronze bushings ensures the machine will last for years of operation
- Open face design allows the operator to roll full circles
- Reduction gearbox cuts down on operator fatigue
- Equipped with various size segment rolls for flat bar, square tubing and angle iron
- Base comes standard with a full storage cabinet
Jet 754430K Specifications
| Number and Diameter of Rolls (In.) | 3 & 3-1/2 |
| Operating Positions | Vertical |
| Shaft Center Distance | 1.18 |
| Style | 3 Roll Pyramid Style |
| Pinch | Single |
| Lower Roll (Dia.) | 4.65 |
| Angle Iron Capacity (Size/Min Dia.) | 1-1/4 (.30) |
| Solid Round Capacity (Size/Min Dia.) | 7/8 (20 min dia) |
| Flat Bar Easy Way (Size/Min Dia.) | 2 (6-1/2 min dia) |
| Pipe Capacity (Size/Min Dia.) | 1/ 0.28 |
| Round Tube Capacity (Size/Min Dia.) | 1-1/4 (20) |
