Jet | SKU:
JT9-756100

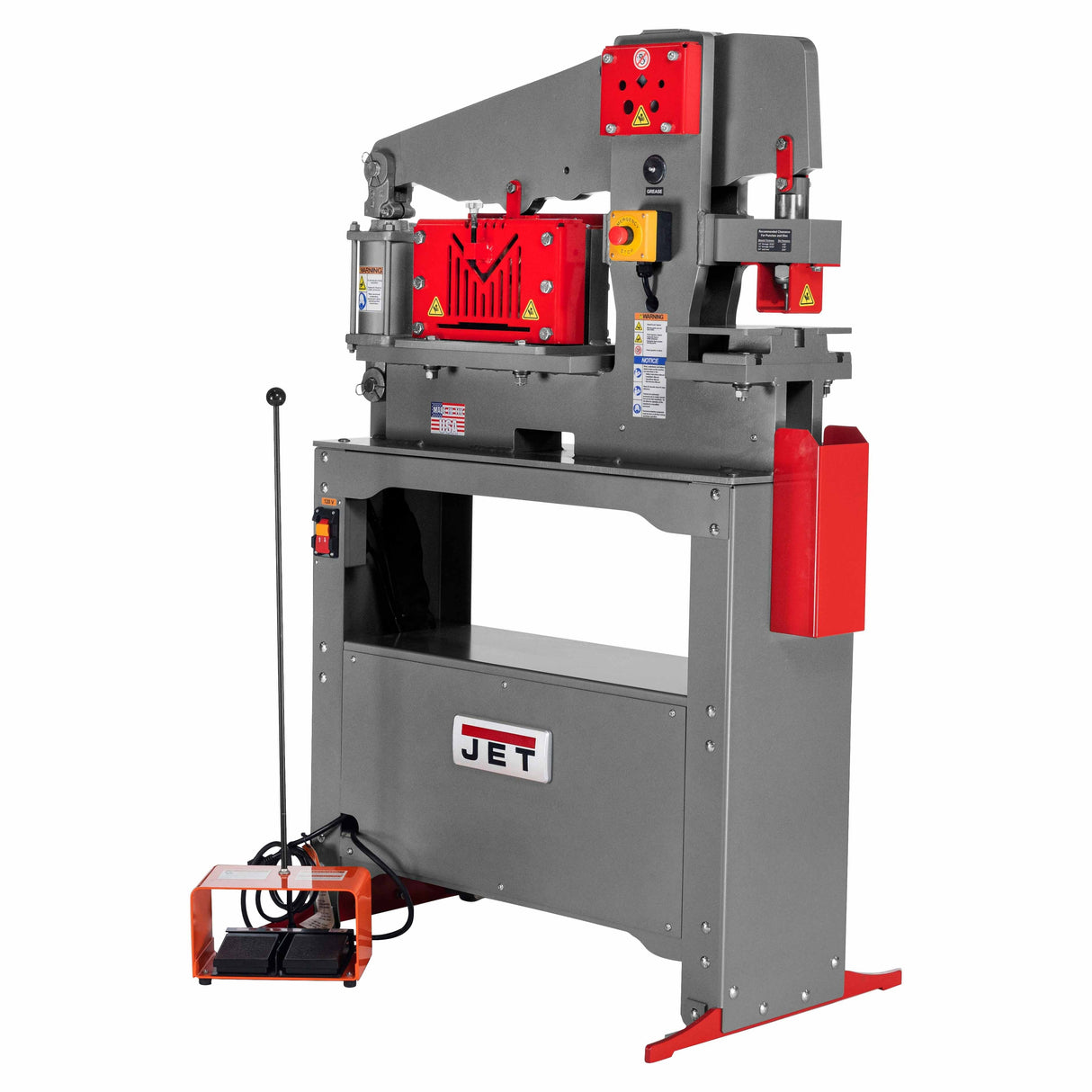

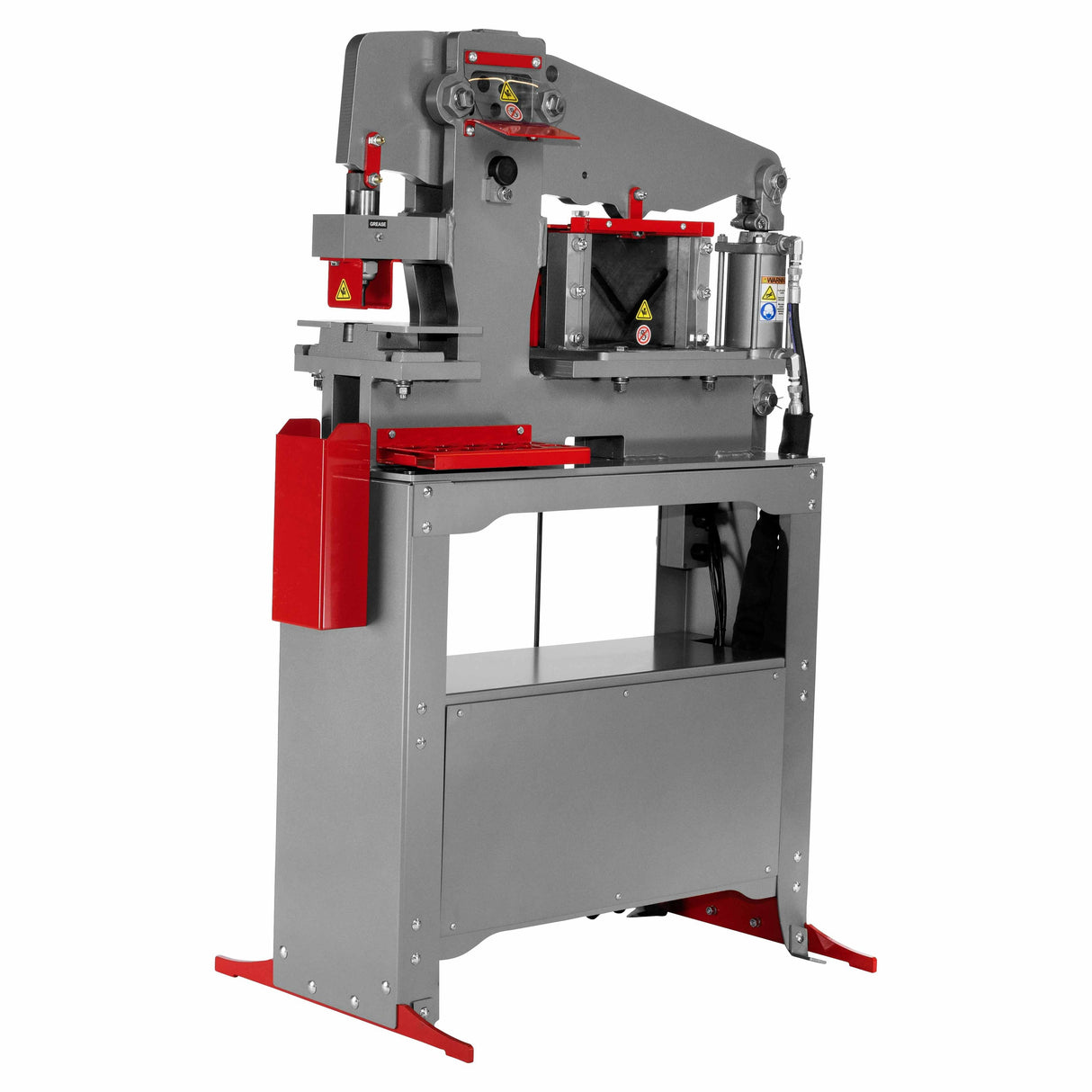

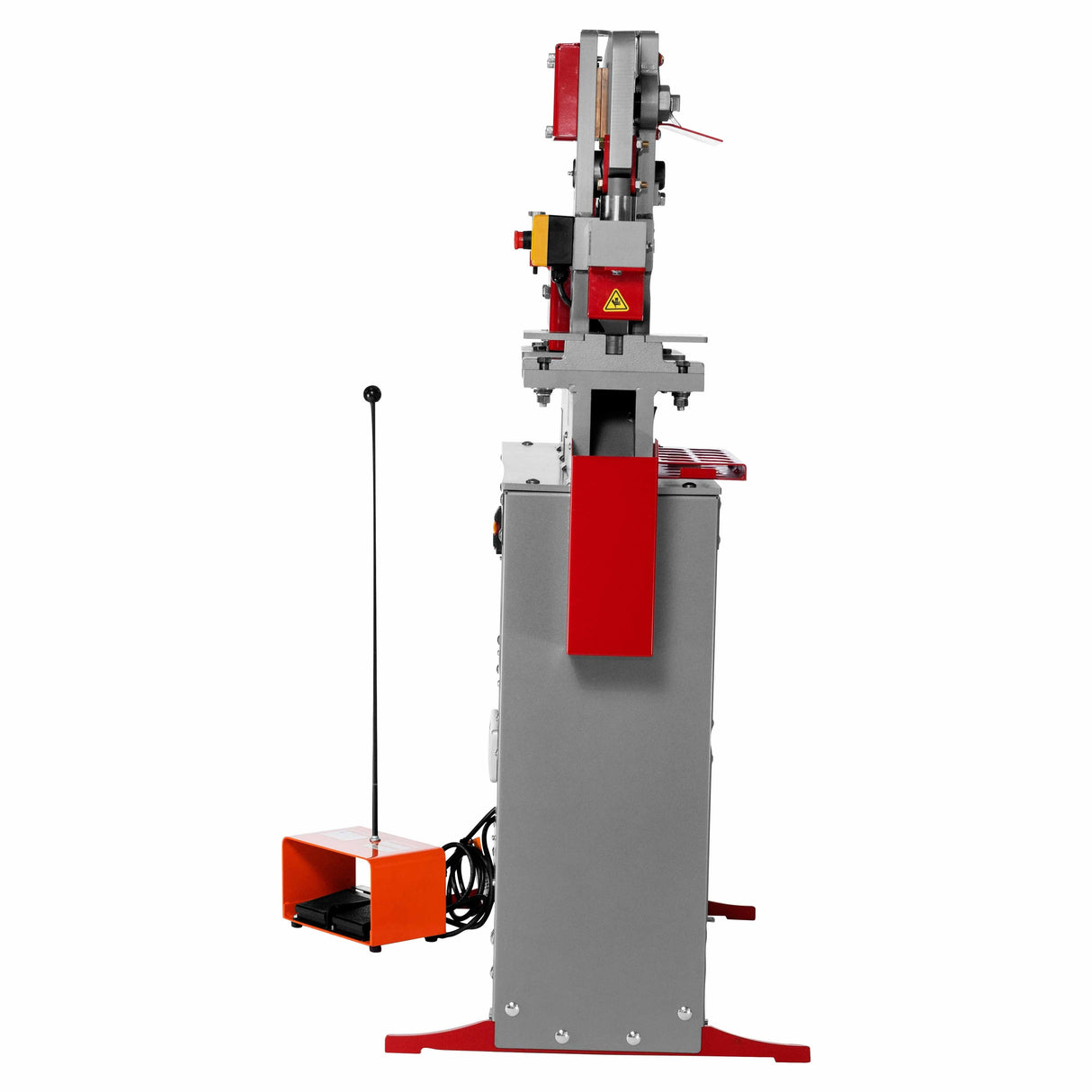

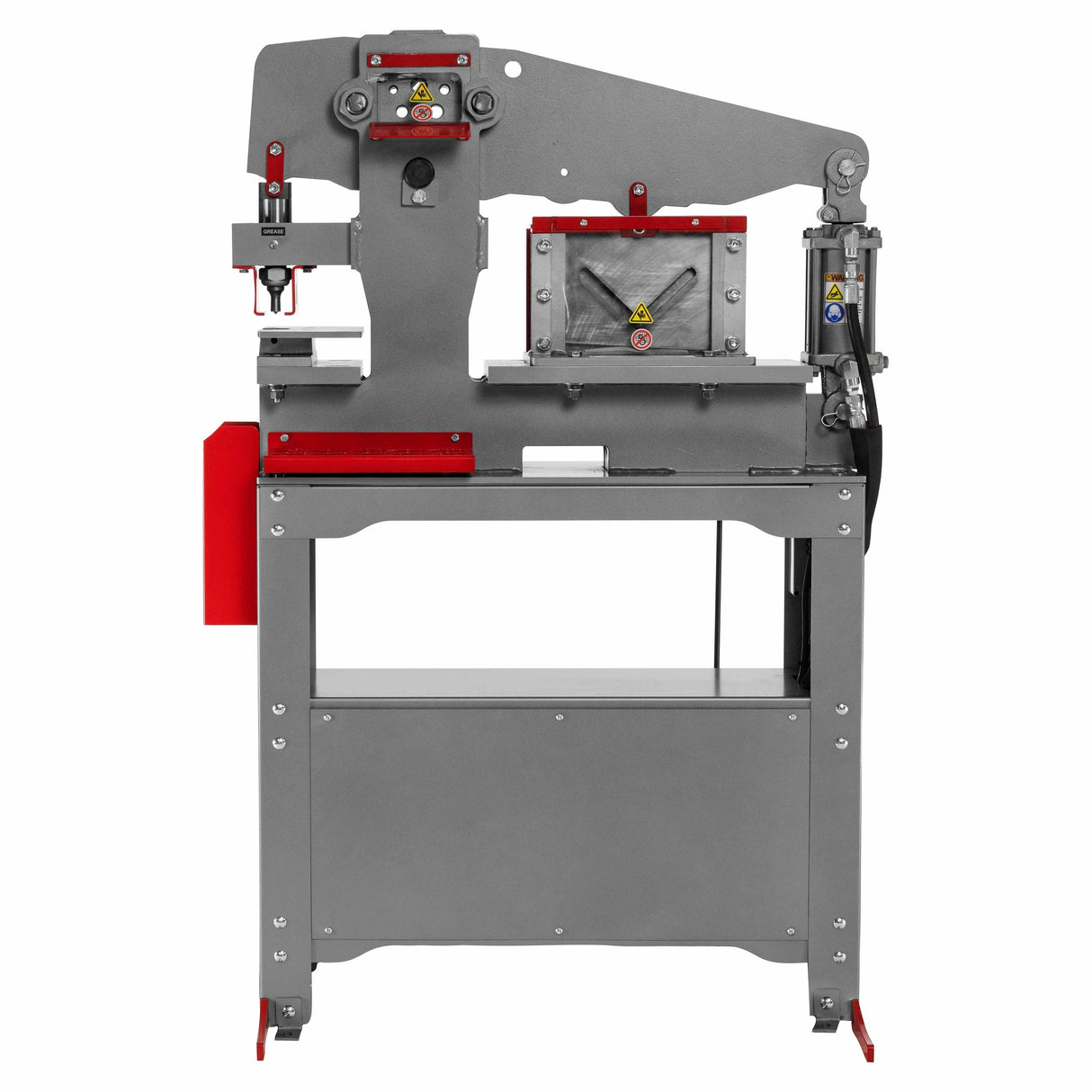

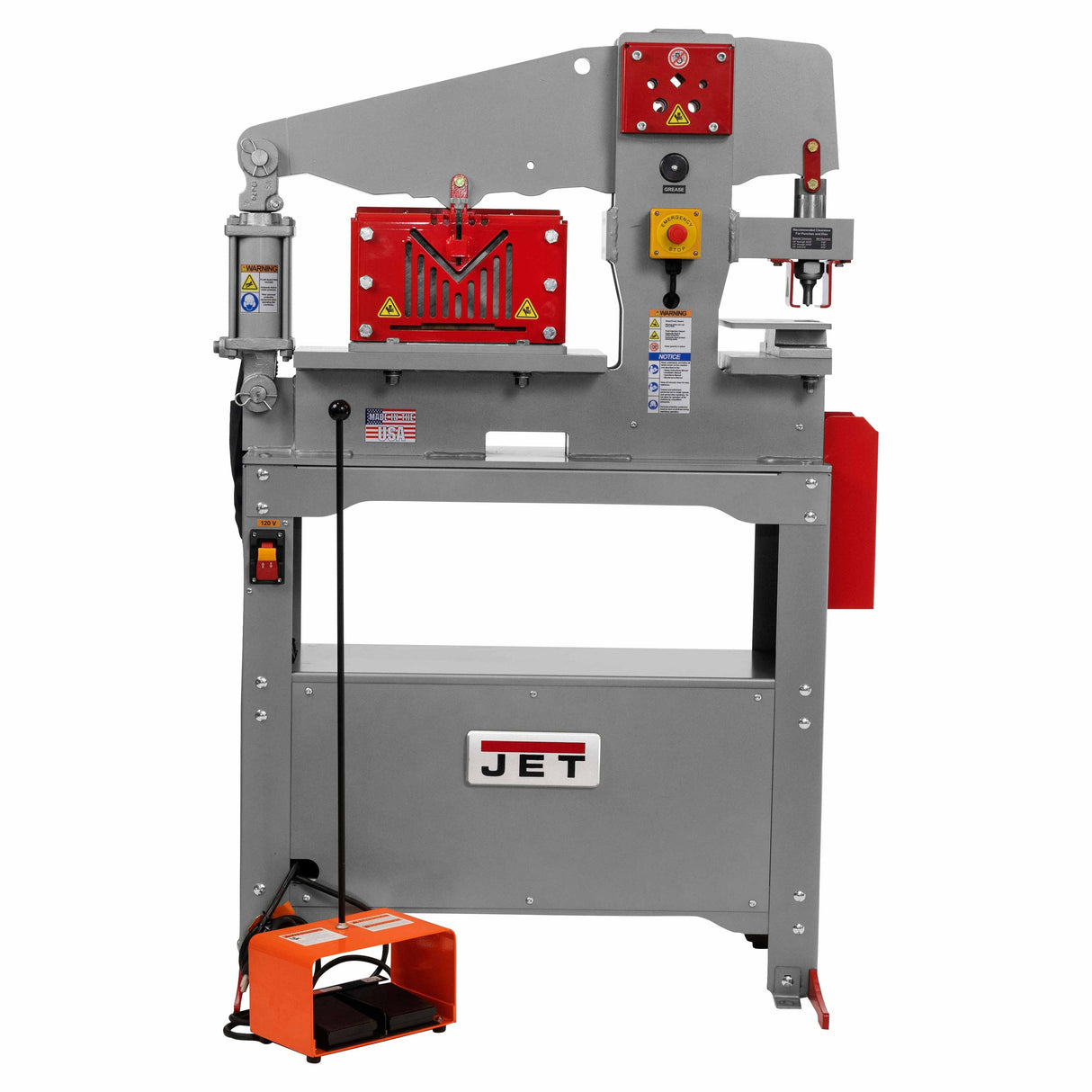

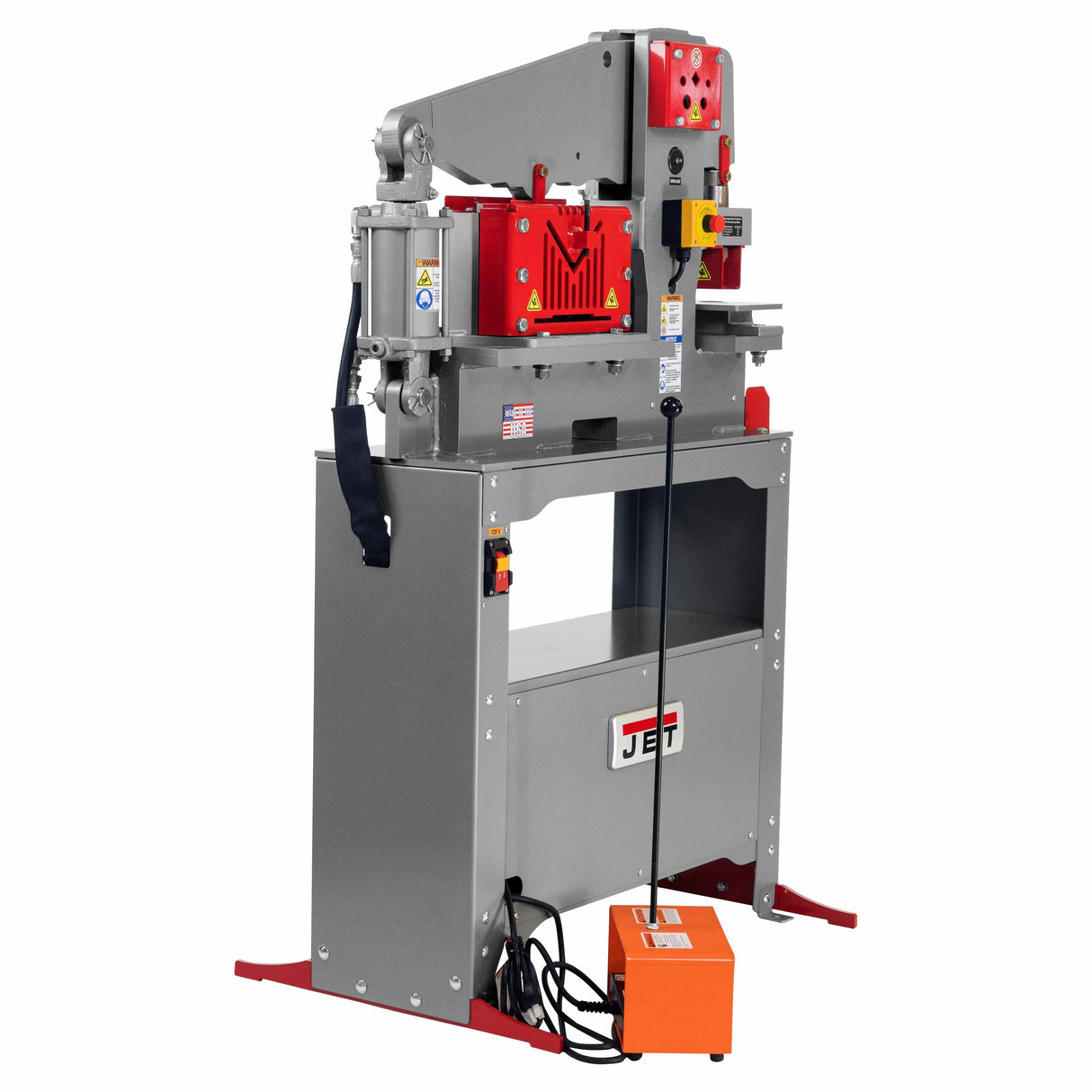

Jet JT9-756100 JIW-45T 45 Ton Ironworker
Free Shipping
$6,699.00
$11,048.30
Unit price
/
Unavailable
Description
Description
Features:
• Heavy-duty, USA made, steel construction
• Blades for the Flat Bar, Angle, & Rod Shear are made of precision machined, high-quality tool steel with 2 cutting edges for extended life

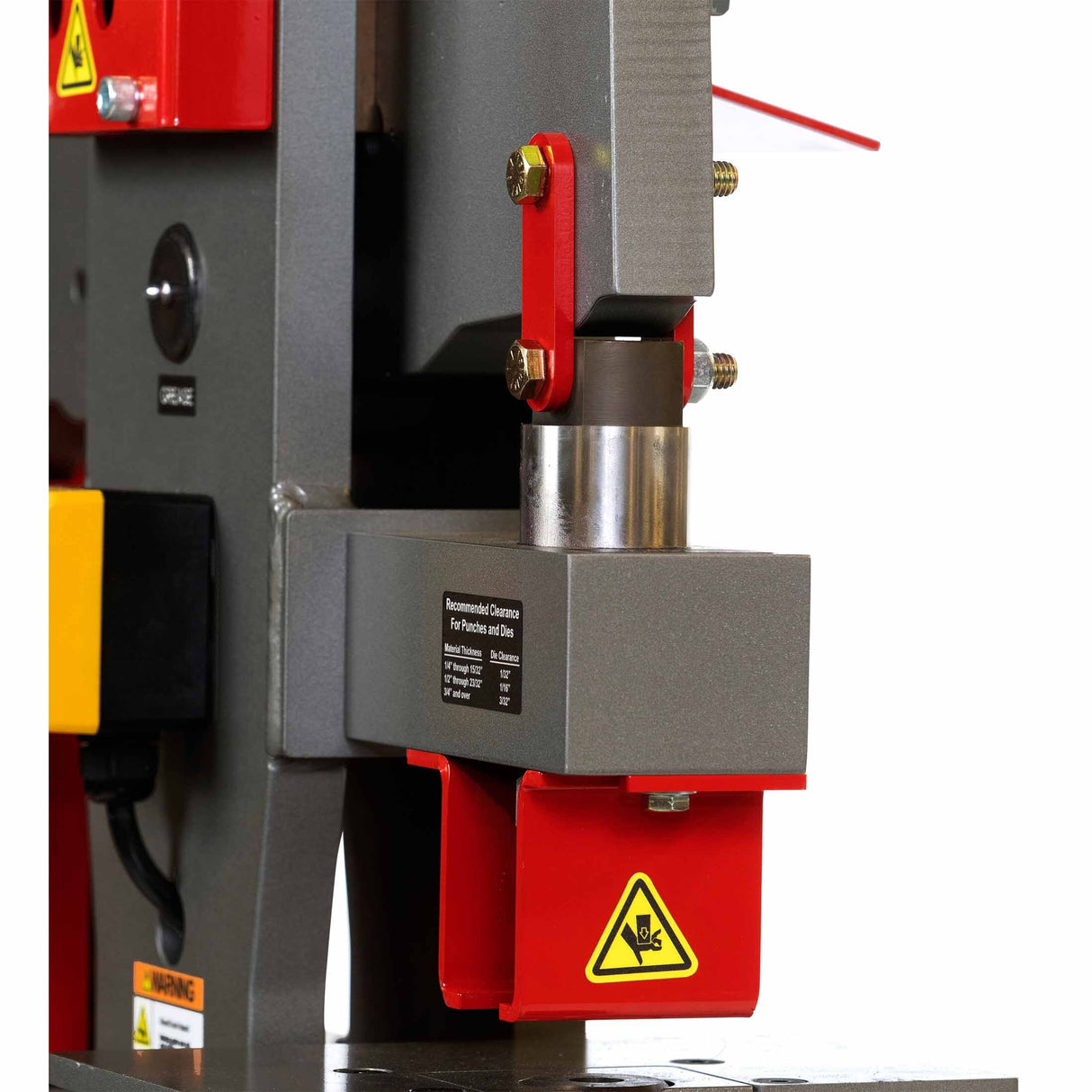

• Compatible with most Edwards punch & die sets includinground, square, oblong, hex, and metric. Visit jettools.com for full listing.
• ANSI Compliant guarding on the Angle & Rod Shears

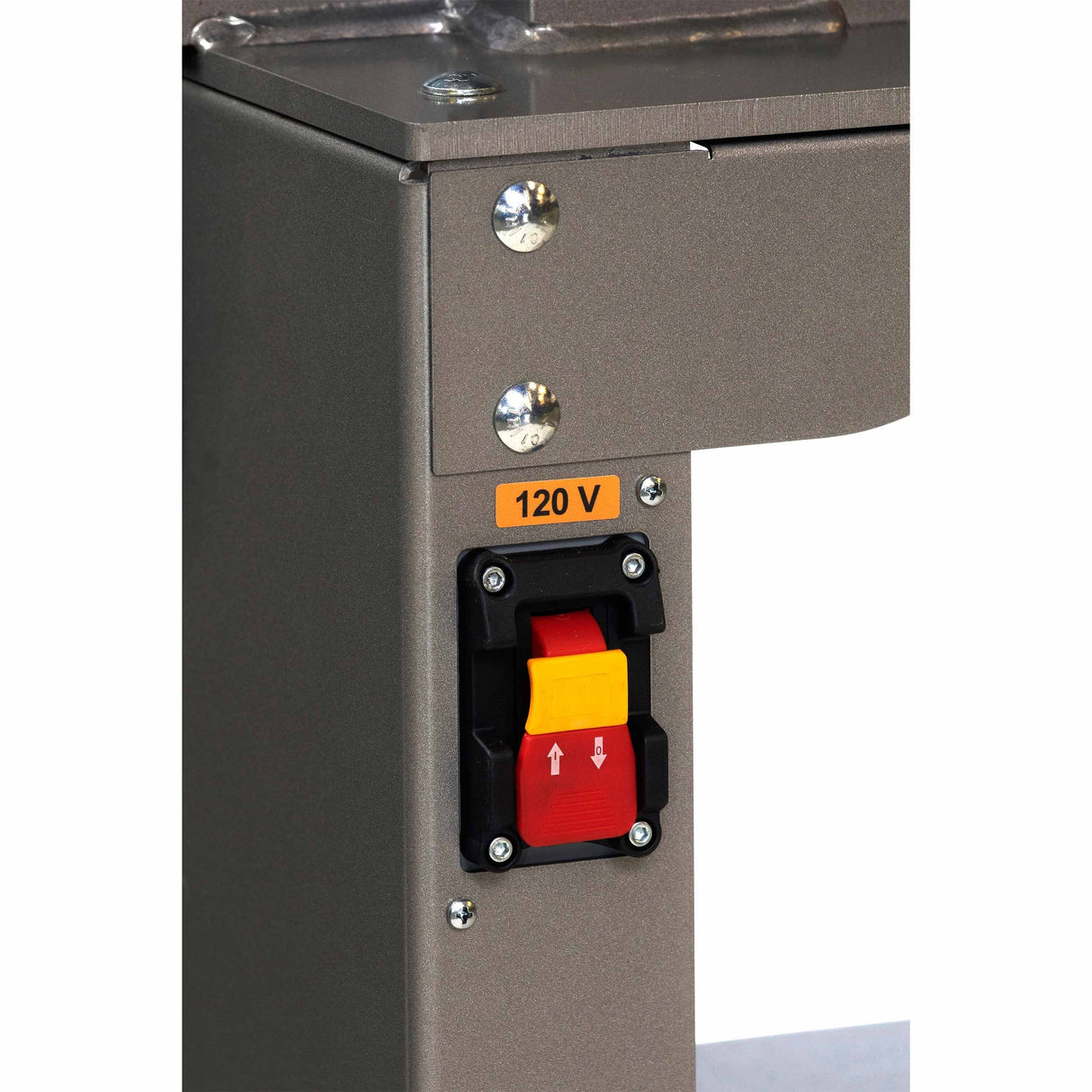

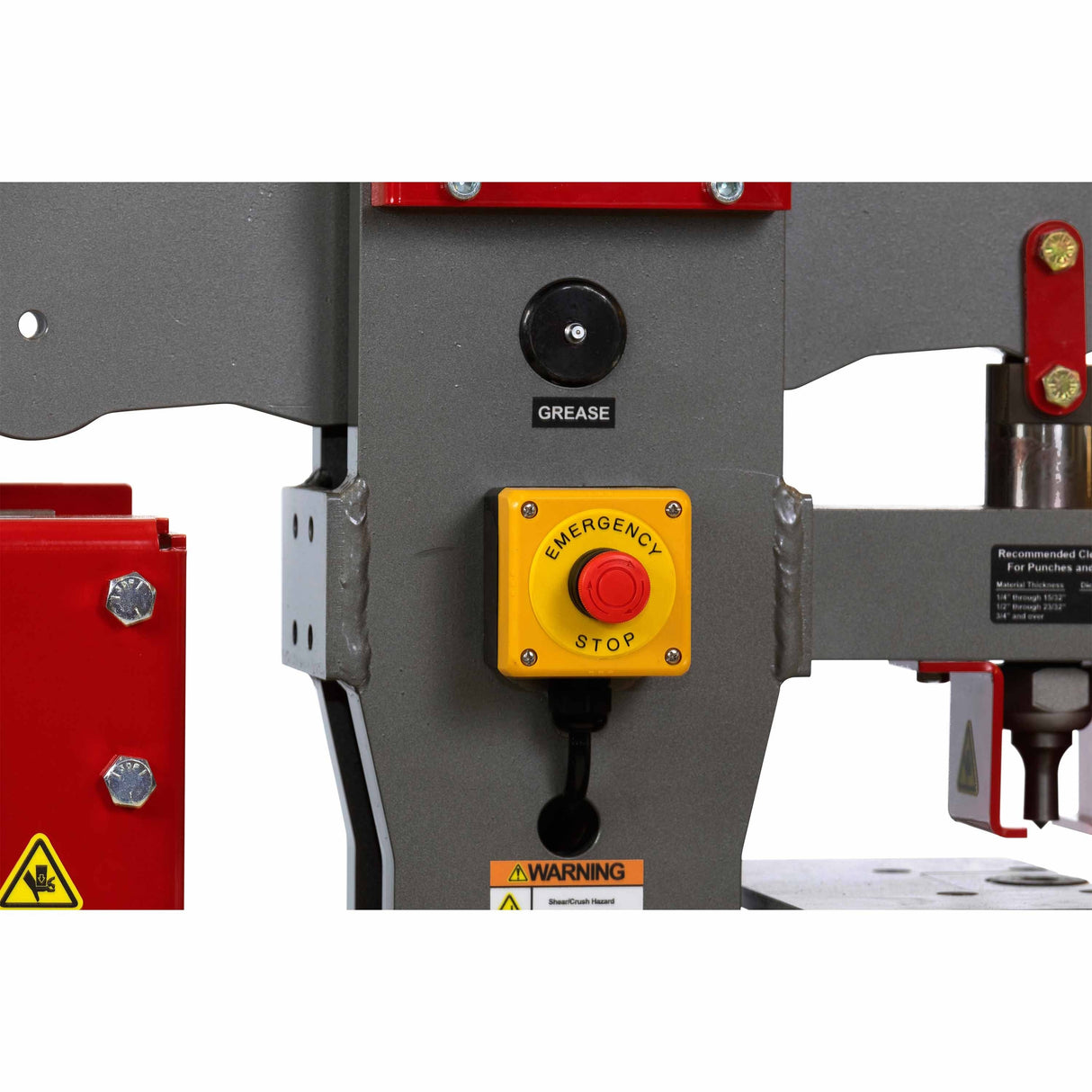

• E-stop with UL Listed compliant controls providing additional operator safety
• Convenient foot control with handle is easy to move between workstations
• Optimized workstation heights reduce user fatigue
• Slug chute collects all punch slugs keeping work area clear
• Four Workstations - Punch, Flat Bar Shear, Angle Shear, and Rod Shear
• Operates on 115V power allowing use almost anywhere
• Includes a punch & due storage tray able to hold up to 10 punch & die sets
• Compact machine that allows for fast and easy transitions between operations
Specifications:
• Model Number: JIW-45T
• Punch Rating (tons): 45
• Punch Capacity (in.): 1 diam. in 1/2 mild steel
• Punch Work Height (in.): 41
• Punch Throat Depth (in.): 5-3/4
• Punch Stroke (in.): 1-1/2
• Flat Bar Shear Max Capacity (in.): 1/4 x 8 3/8 x 6
• Flat Bar Shear Work Height (in.): 40
• Angle Shear Max Capacity (in.): 3 x 3 x 1/4
• Angle Shear Work Height (in.): 43
• Rod Shear Sizes (in.): 5/16 diam, 1/4 diam, 3/8 diam, 1• /2 diam, 5/8 diam, 3/4 diam., 5/8 x 5/8
• Rod Shear Max. Capacity Round (in.): 3/4
• Rod Shear Max. Capacity Square (in.): 5/8
• Power Requirement (V) :115
• Motor (HP): 1.5
• Product Dimensions (in.): 40 x 24 x 58
• Shipping Dimensions (in.): 51 x 45 x 64
• Product Weight (lbs.): 698
• Shipping Weight (lbs.): 802
• Heavy-duty, USA made, steel construction
• Blades for the Flat Bar, Angle, & Rod Shear are made of precision machined, high-quality tool steel with 2 cutting edges for extended life
• Compatible with most Edwards punch & die sets includinground, square, oblong, hex, and metric. Visit jettools.com for full listing.
• ANSI Compliant guarding on the Angle & Rod Shears
• E-stop with UL Listed compliant controls providing additional operator safety
• Convenient foot control with handle is easy to move between workstations
• Optimized workstation heights reduce user fatigue
• Slug chute collects all punch slugs keeping work area clear
• Four Workstations - Punch, Flat Bar Shear, Angle Shear, and Rod Shear
• Operates on 115V power allowing use almost anywhere
• Includes a punch & due storage tray able to hold up to 10 punch & die sets
• Compact machine that allows for fast and easy transitions between operations
Specifications:
• Model Number: JIW-45T
• Punch Rating (tons): 45
• Punch Capacity (in.): 1 diam. in 1/2 mild steel
• Punch Work Height (in.): 41
• Punch Throat Depth (in.): 5-3/4
• Punch Stroke (in.): 1-1/2
• Flat Bar Shear Max Capacity (in.): 1/4 x 8 3/8 x 6
• Flat Bar Shear Work Height (in.): 40
• Angle Shear Max Capacity (in.): 3 x 3 x 1/4
• Angle Shear Work Height (in.): 43
• Rod Shear Sizes (in.): 5/16 diam, 1/4 diam, 3/8 diam, 1• /2 diam, 5/8 diam, 3/4 diam., 5/8 x 5/8
• Rod Shear Max. Capacity Round (in.): 3/4
• Rod Shear Max. Capacity Square (in.): 5/8
• Power Requirement (V) :115
• Motor (HP): 1.5
• Product Dimensions (in.): 40 x 24 x 58
• Shipping Dimensions (in.): 51 x 45 x 64
• Product Weight (lbs.): 698
• Shipping Weight (lbs.): 802
