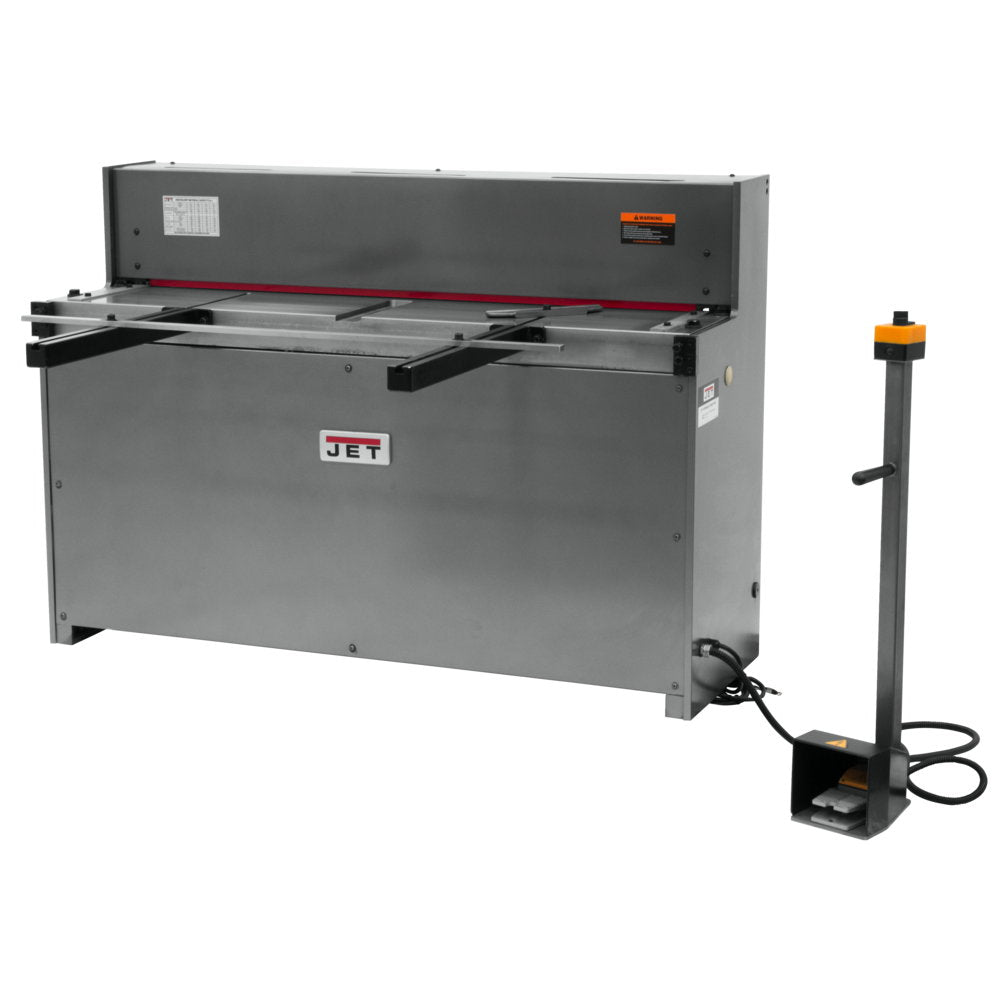

Jet JT9-756206 HS1452-3T, 52" x 14 Gauge Hydraulic Shear 3 PH

FEATURES:
• 3 HP, 220V, 3 Ph
• Heavy-duty steel construction eliminates deflection across the blade span
• Hand-wheel controlled back gauge for quick and easy depth adjustments
• Easy to use satellite foot controls with emergency stop button
• Precise bed and beam accuracy assures working accuracy
• Low cutting angle to cut narrow strips without twisting
• 14 gauge maximum capacity for mild-steel
• 10 – 12 gauge maximum capacity for soft alloys

SPECIFICATIONS:
• Style (Type): Hydraulic
• Shearing Length Capacity (In.): 52
• Mild Steel Capacity (Gauge): 14
• Front Gauge Capacity (In.): 23-1/2
• Back Gauge Capacity (In.): 25-1/2
• Weight (Lbs.): 1,335
• Strokes Per Minute (Full Length): 20
• Max. Soft. Alloy Capacity (Gauge): 10 - 12
• Overall Dimensions (L x W x H) (In.): 62 x 77 x 42

The JET HS-1452 delivers the strength and accuracy your shop demands in a rugged, steel framed hydraulic shear. Capable of making the big cuts, and versatile enough to handle just about any job you need completed. The low angle blade design ensures smooth cuts along the precision-aligned bed and beam.
