Kenwood | SKU:
NX-P1202AVK

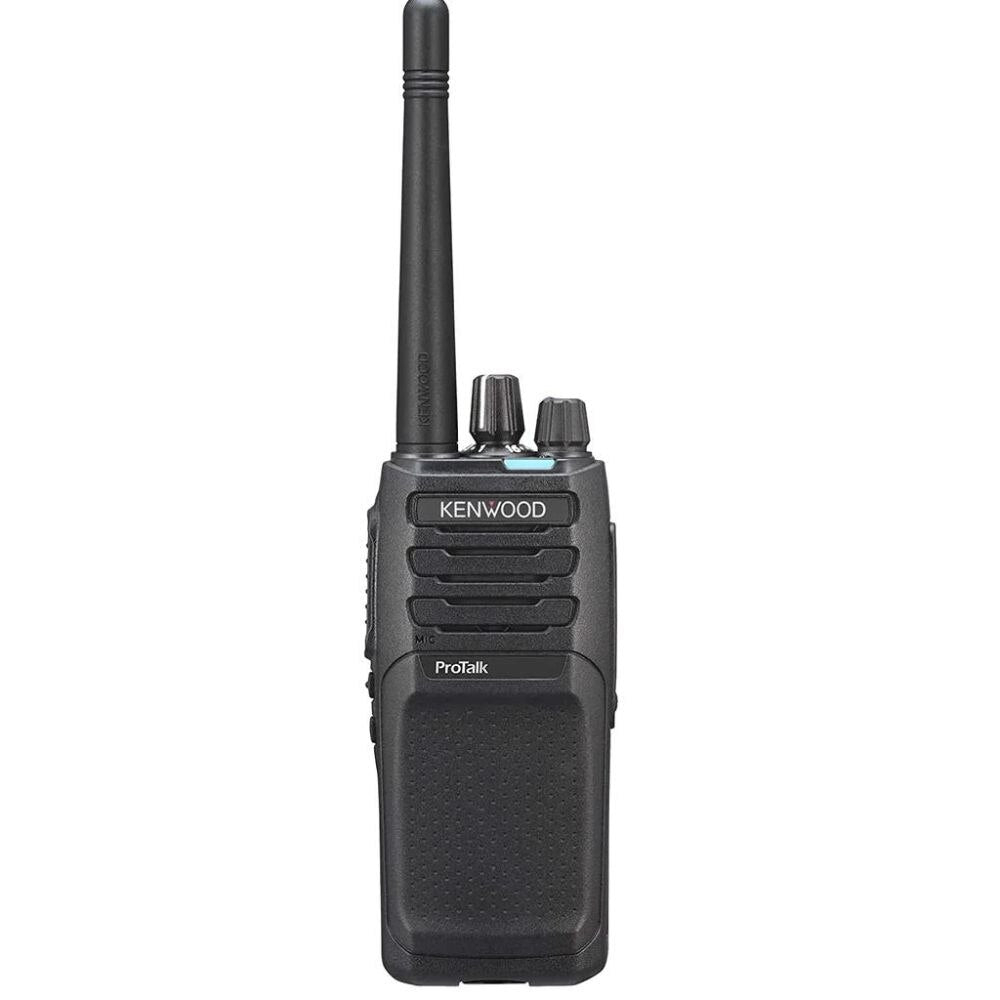

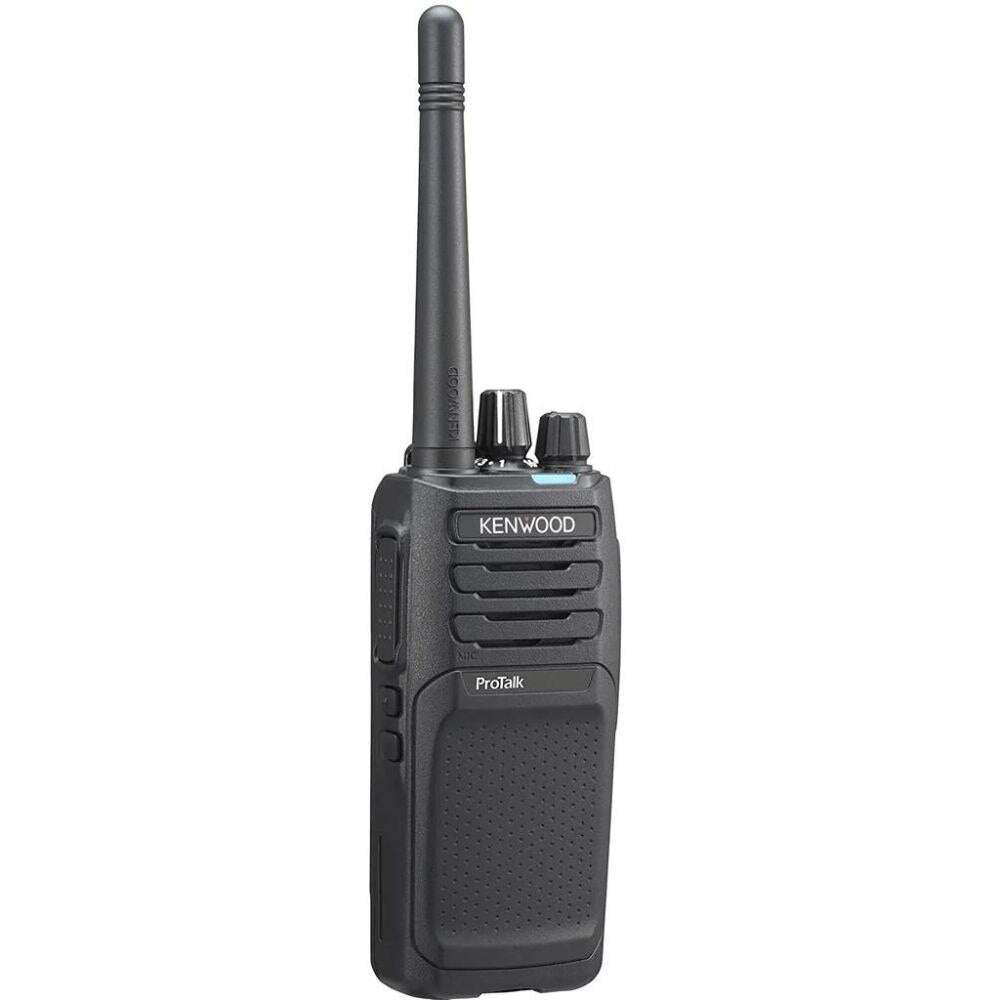

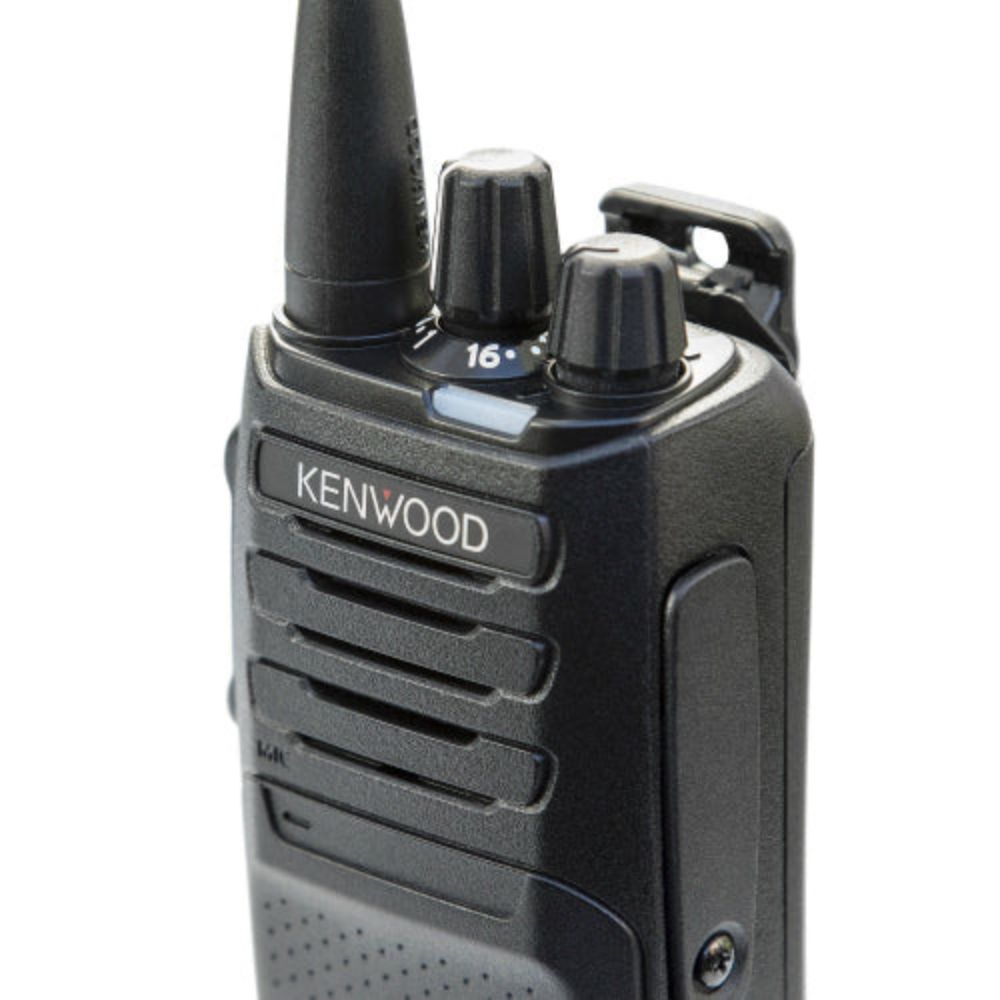

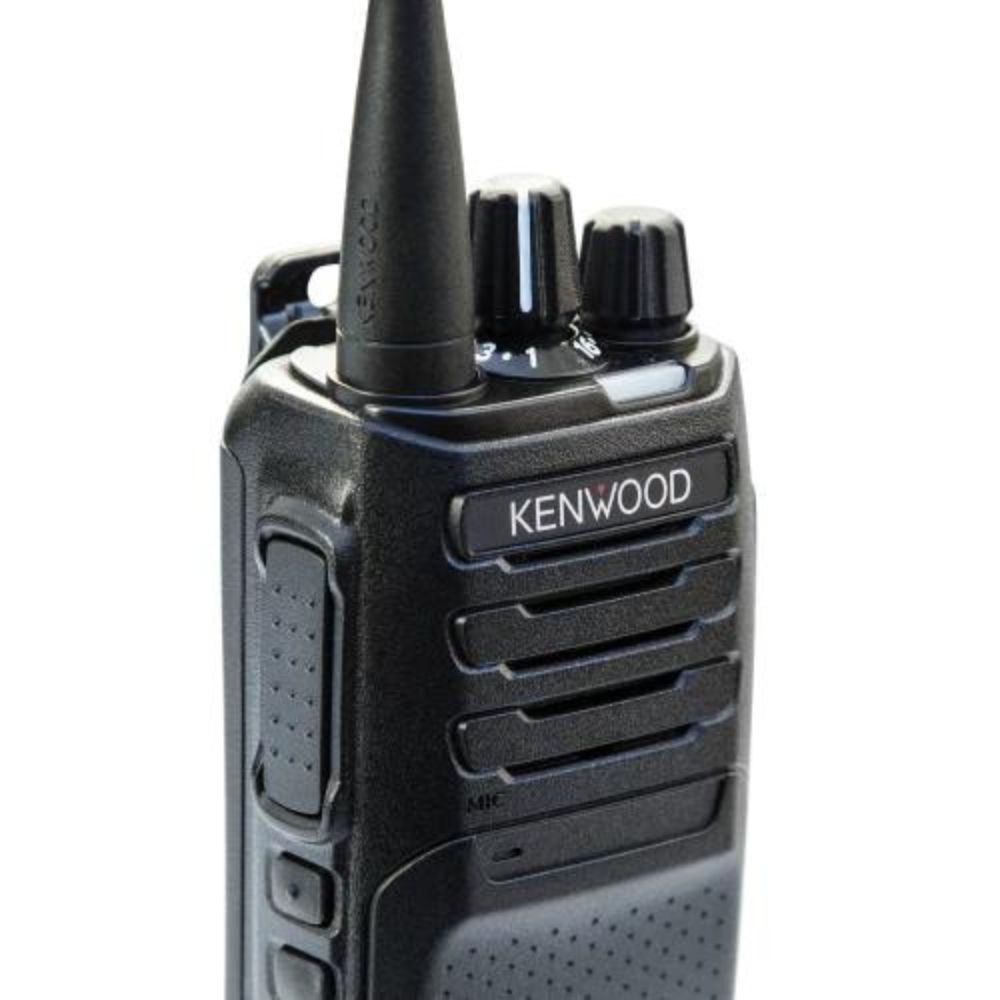

Kenwood NX-P1202AVK 2 Watt, 16 Channel, VHF Two-Way Radio
Free Shipping
$265.00
$290.80
Unit price
/
Unavailable
Description
Description
Kenwood NX-P1202AVK Description
The Kenwood ProTalk NX-P1202AVK is a 2 Watt, Analog, 64 Channel VHF Two-Way Radio that can be upgraded to work on either DMR or NXDN Digital Platforms based on customer needs. The NX-P1202AVK comes with an industry leading 3-Year Warranty. The radio meets or exceeds 11 stringent military specs and is IP 54/55 rated for dust and water resistance. The radio comes standard with a battery, belt clip, antenna and charger.
Kenwood NX-P1202AVK Includes
- (1) VHF Two Way Radio
- (1) Heavy Duty Lithium Ion Battery
- (1) Belt Clip
- (1) Removable Antenna
- (1) Fast Charger
Kenwood NX-P1202AVK Features
- 64 Total Channels, 16 channels per zone, 4 zones available
- 2 Watt Output Power
- Multi-protocol digital radio: Designed to operate under NXDN digital and Analog
- 151-159 MHz VHF Frequency
- Rechargeable Lithium Battery Pack Included
- Includes Drop-In Fast Battery Charger
- Secure Communication - in analog mode is a 16-code voice inversion scrambler
- Cloning Capable
- Repeater Capable
- Manager Lockout
- Call Alert Tone
- Channel Scan
- Scan Channel Delete/Add
- Low Battery Alert
- Battery Saver. High, medium and low settings.
- Time-out Timer
- Keypad Lock
- Keystroke Tone Signal
- Military Specifications
- Three Year Manufacturer Warranty
Kenwood NX-P1202AVK Specifications
| Depth | 1.32" |
| Width | 2.13" |
| Height | 4.84" |
| Pre-Set Frequencies | 27 (151-159 MHz) |
| Number of Channels | 16 (64 in Total) |
| Channel Spacing | 12.5 kHz |
| Frequency Stability | ±2.5 ppm (-30°C ~ +60°C) |
| Antenna Impedance | 50 ohms |
| Sensitivity | 0.25µV/0.28µV |
| Selectivity | 70dB/60dB |
| Intermodulation Distortion | 70dB/60dB |
| Spurious Response | 70 dB |
| Receiver Audio Distortion | |
| Audio Output | 1 W / 12 ohms (Internal Speaker) 500mW / 8 ohms (External Speaker) |
| RF Power Output | 2W/1W |
| Spurious Response | 70 dB |
| FM Hum and Noise | 45/40dB |
| Transmitter Audio Distortion | |
| Type of Emission | 16KØF3E/11KØF3E |
| In Steel or Concrete Reinforced Buildings Range | Up to 220,000 sq.ft. |
| High-Rise Buildings Range | Up to 13 floors |
| Operating Temperature | -22°F ~ +140°F (-30°C ~ +60°C) |
| Battery Life | Up to 17 hours |
| Power Source | 2,000 mAh Li-Ion Battery |
| Battery Life Alert | Yes |
| Operating Voltage | 7.5V DC±20% |
