Kenwood | SKU:
NX-P1300ISNUK

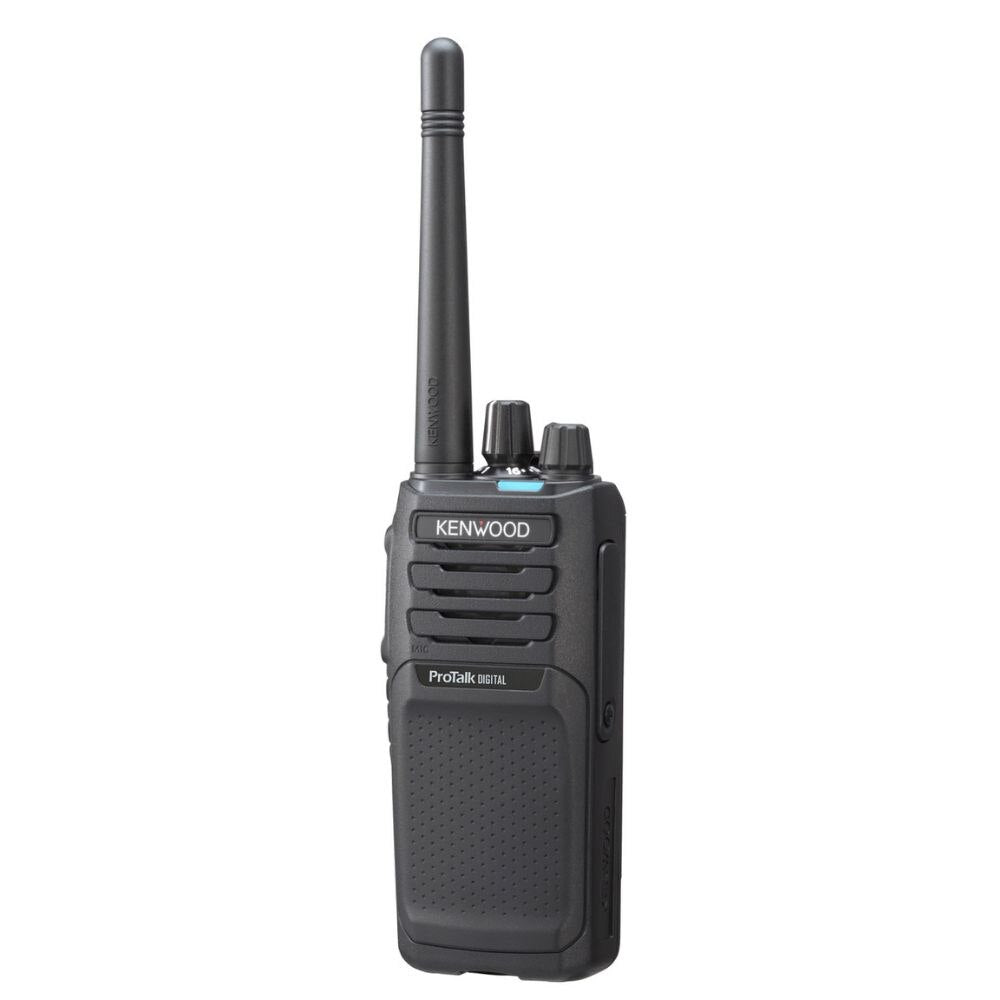

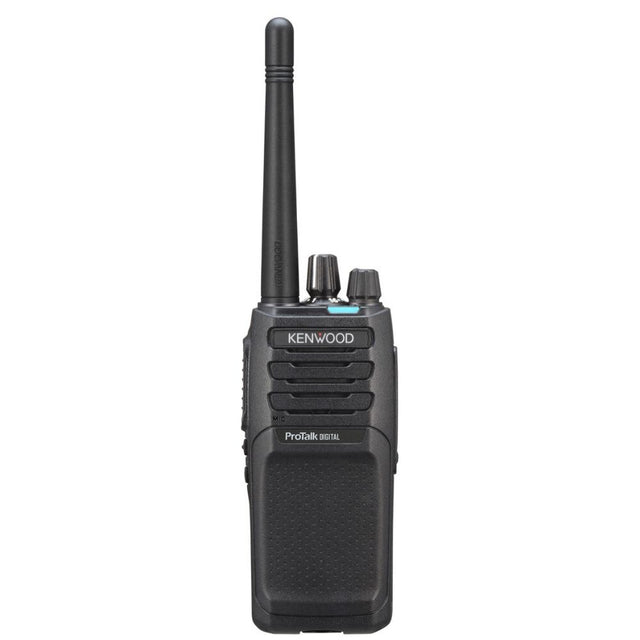

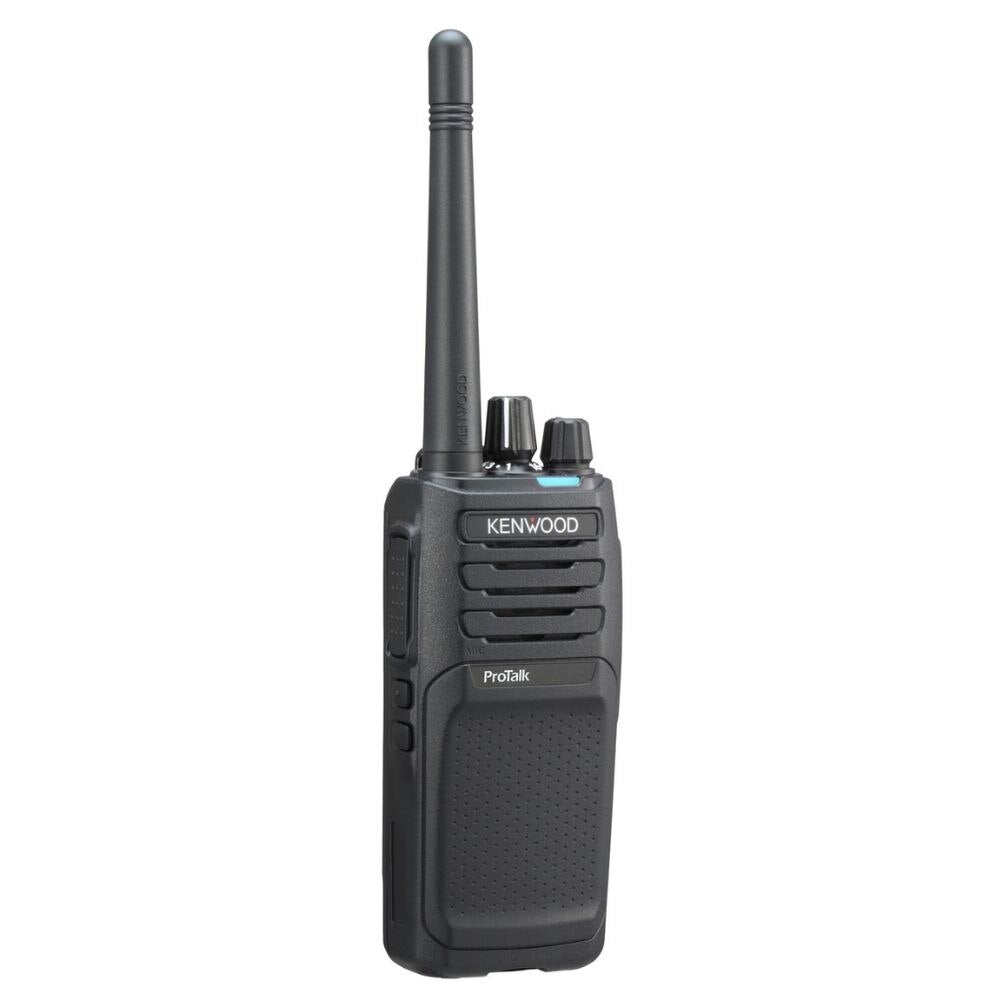

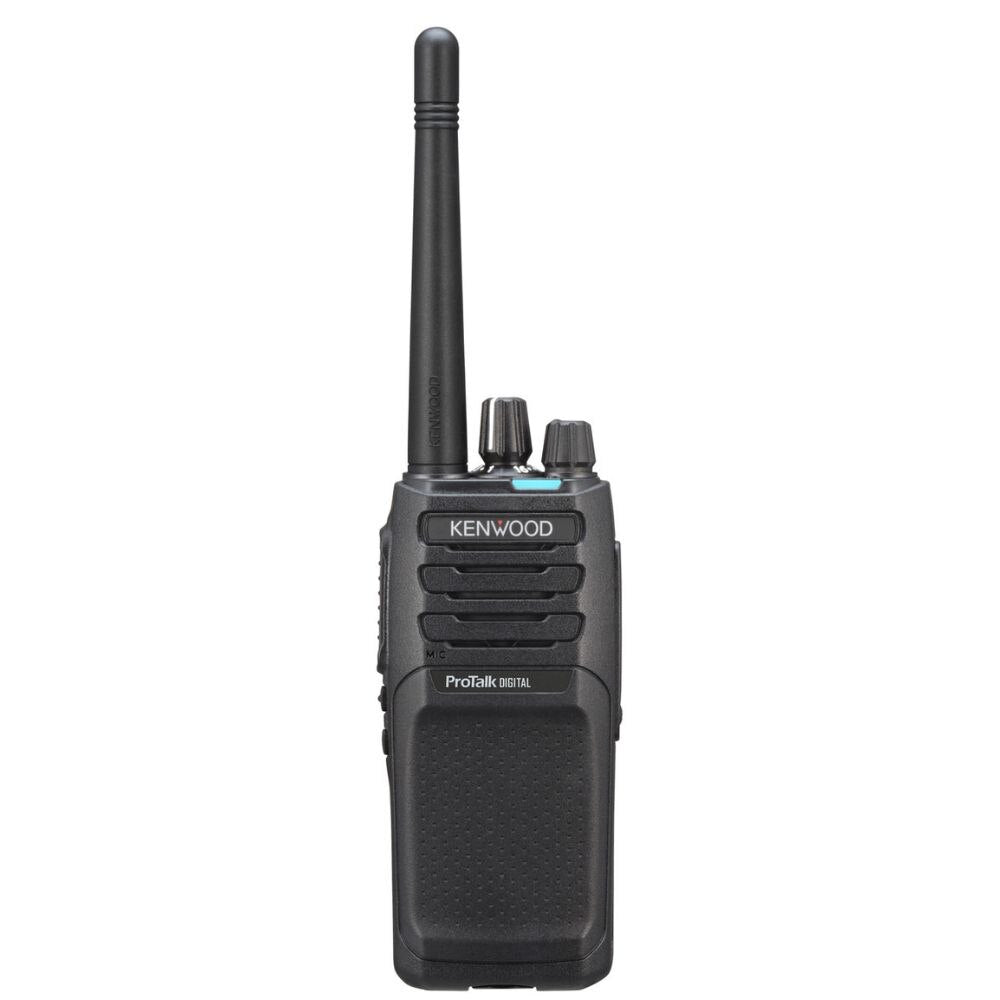

Kenwood NX-P1300ISNUK 5 Watt, Quad-Zone, 16 Channel, Digital NXDN/Analog, UHF Two-Way Radio
Free Shipping
$409.00
$578.20
Unit price
/
Unavailable
Description
Description
Kenwood NX-P1300ISNUK Description
The Kenwood ProTalk NX-P1300ISNUK is a 5 Watt 64 Channel Intrinsically Safe Digital UHF Two Way Radio that can operate on either DMR or NXDN Digital Standards based on your specific need. You'll find this is an affordable digital walkie talkie with 16 easily accessible channels on the dial with added functionality for those needing more channels. Kenwood NX-P1300ISNUK walkie talkies are impressively built, exceeding Military Standard for Durability and Water Resistance while providing Kenwood's impressive audio quality.
Kenwood NX-P1300ISNUK Includes
- (1) UHF Two Way Radio
- (1) Heavy Duty Lithium Ion Battery
- (1) Belt Clip
- (1) Removable Antenna
- (1) Fast Charger
Kenwood NX-P1300ISNUK Features
- Multi-protocol digital radio: Designed to operate under NXDN or DMR digital and FM analog protocols
- Battery Level Indication
- Multi-status function indication
- RF output power 5W both on VHF/UHF
- Mixed Zone – analog and digital
- Renowned KENWOOD Audio Quality: TX/RX audio profile with optimizable digital processor
- Audio Equalizer: Flat, High, Low
- Auto Gain Control: On, High, Low, Off
- Noise Suppressor
- Microphone type settings
- Multiple Scan Functions; Dual Priority, Single Priority, Single Zone, Multi, Normal Scan
- VOX & PTT –triggered Semi- VOX, Voice-operated TX
- Emergency Function: Customizable Emergency Profile
- Lone Worker
- Max / Min Volume setting & Volume control
- Voice Announcement
- Remote Stun / Kill / Check
- Front Panel Programming Mode (for Keypad model)
- Electronic Serial Number (ESN)
- MIL-STD-810 C/D/E/F/G
- IP54 and IP55
- Intrinsically Safe Option
Kenwood NX-P1300ISNUK Specifications
| Depth | 1.48" |
| Width | 2.13" |
| Height | 4.84" |
| Pre-set Frequencies | 451-470 MHz |
| Max. Channels per Radio | 64 |
| Number of Zones | 4 |
| Channel Spacing Analog - Digital | 25*1 / 12.5 kHz, 12.5 / 6.25 kHz |
| Power Supply | 7.5 VDC ±20 % |
| Battery Life (5-5-90) | KNB-45L (2000mAh) |
| Operating Temperature(Radio only)*2 | -22°F to +140°F (-30°C to +60°C) |
| Frequency Stability (-30 to +60°C; +25°C Ref.) | ±0.5 ppm |
| Antenna Impedance | 50 ohm |
| NXDN® @ 6.25 kHz Digital (3% BER) | 0.18 microvolt |
| NXDN® @ 12.5 kHz Digital (3% BER) | 0.22 microvolt |
| Analog @ 12.5/25 kHz (12 dB SINAD) | 0.20 microvolt / 0.24 microvolt |
| Selectivity Analog @ 12.5 / 25 kHz | 68 dB / 74 dB |
| Intermodulation Distortion | 70 dB |
| Spurious Rejection | 70 dB |
| Receiver Audio Distortion | 7% |
| Audio Output Power | 1 W / 12 ohm (Internal Output), 500 mW / 8 ohm (External Output) |
| RF Power Output*2 (High / Low) | 5 W / 4 W / 1 W |
| Spurious Emission | -70 dB |
| FM Hum & Noise Analog @ 12.5 / 25 kHz | 40 dB / 45 dB |
| Transmitter Audio Distortion | 2% |
