Kenwood | SKU:
PKT-23K

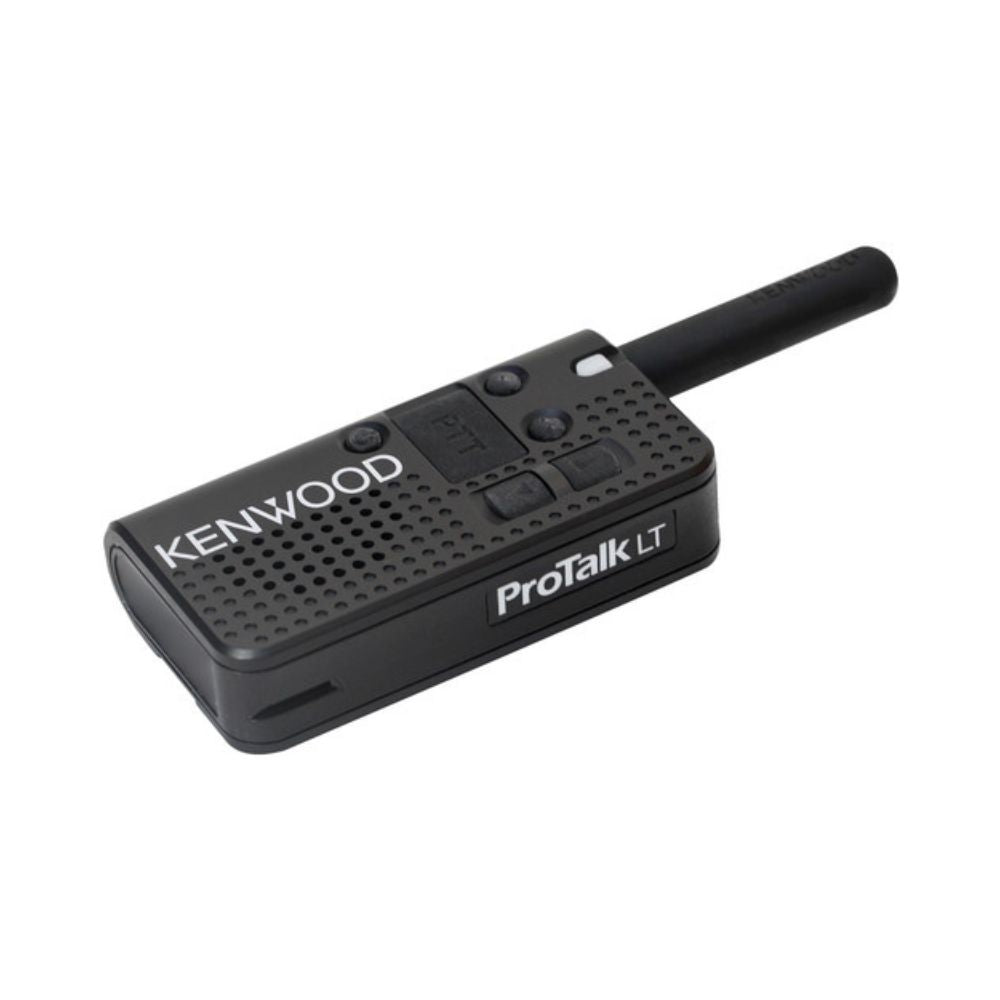

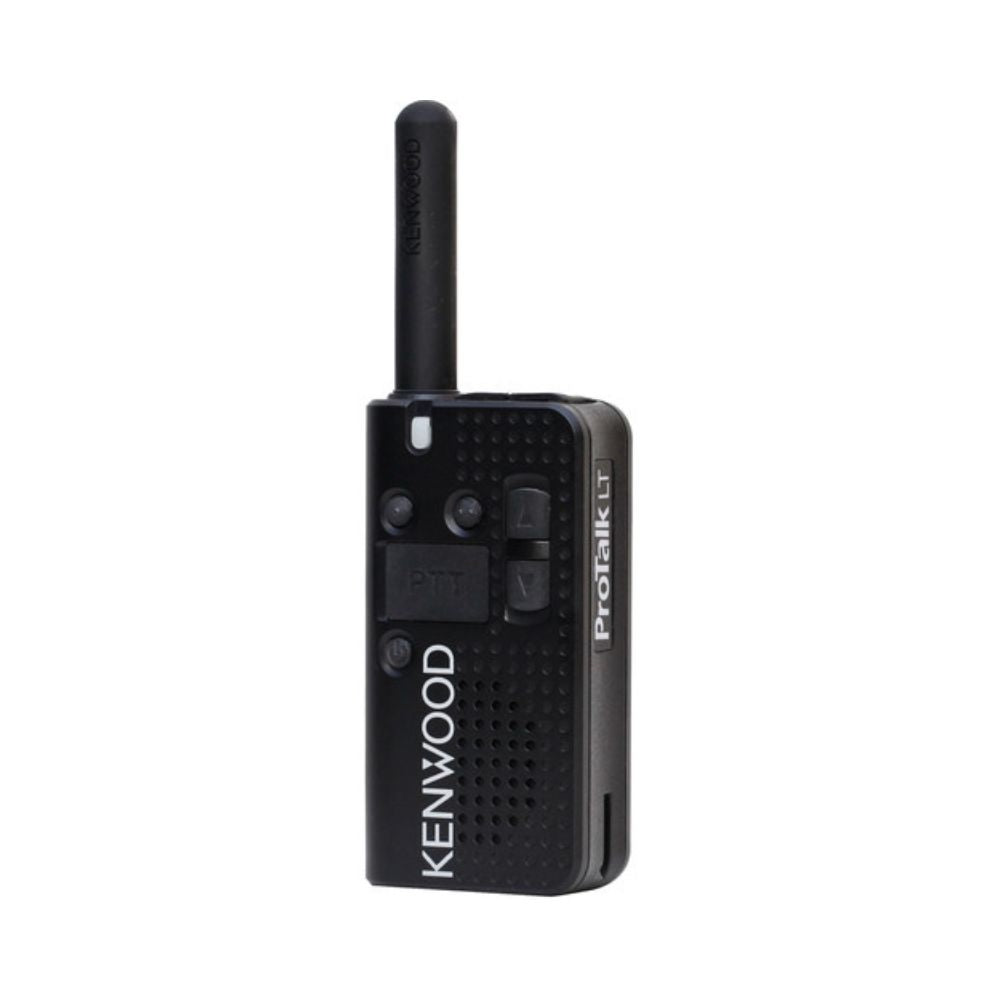

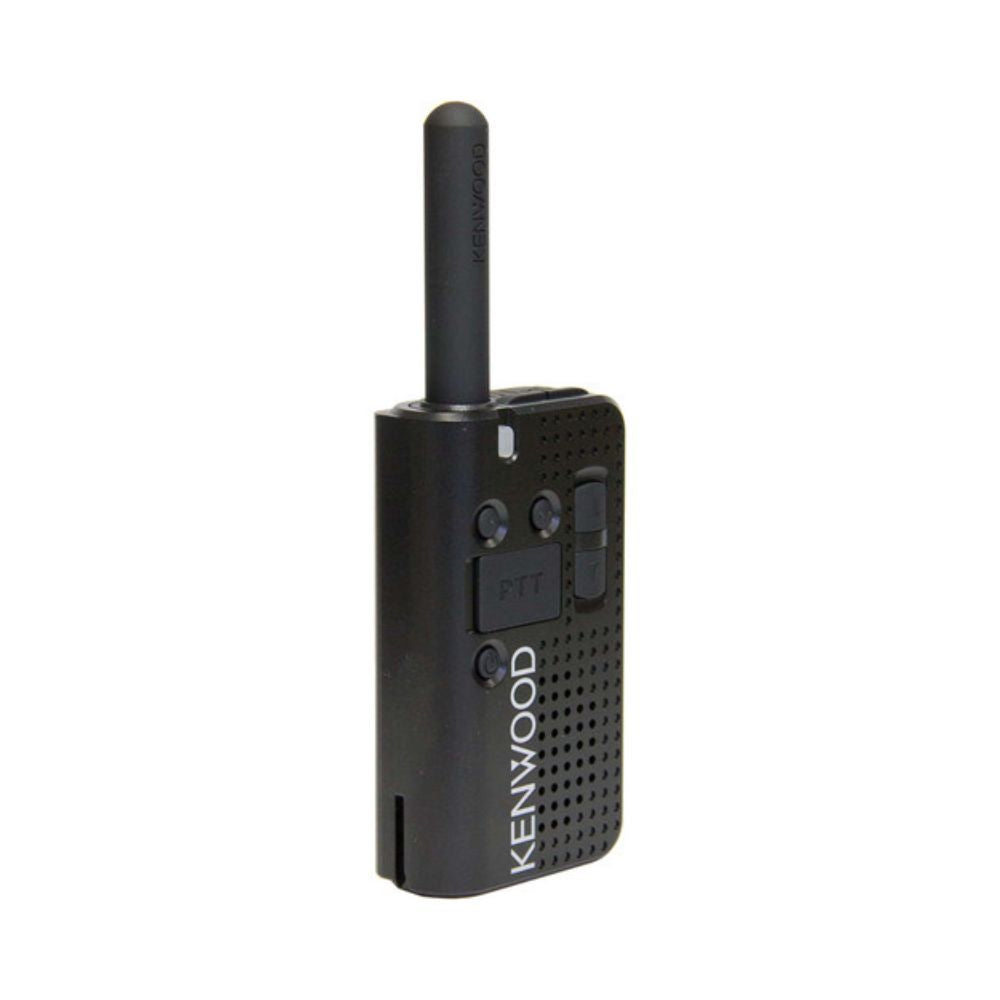

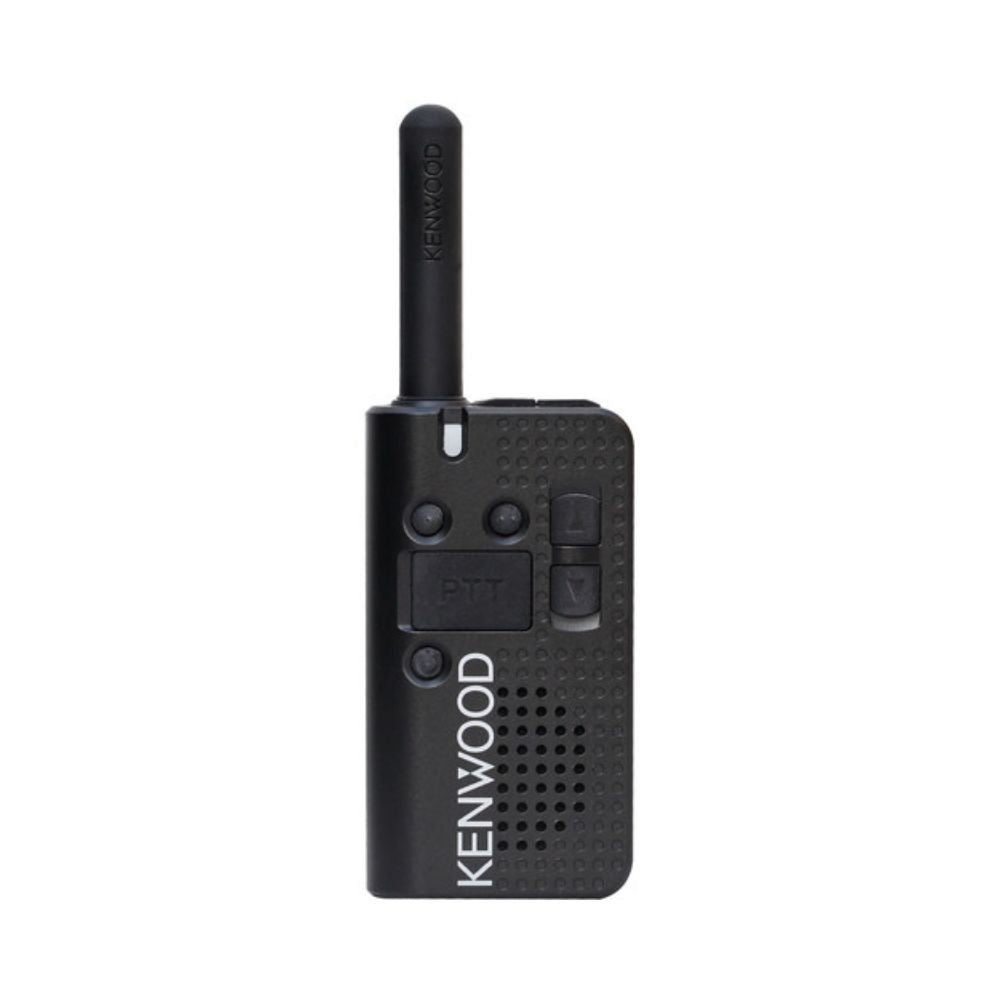

Kenwood PKT-23K 1.5 Watt, 4 Channel UHF Two-Way Radio
$165.00
$197.00
Unit price
/
Unavailable
Description
Description
Kenwood PKT-23K Description
At only 3.9oz, KENWOOD’s PKT-23 UHF two-way radio provides 1.5 watt transmit power, 4 channels, and up to 15 hours of operation. This small but powerful radio is simple to operate and durable, meeting or exceeding MIL-Spec standards 810 C/D/E/F/G (11 items) and IP54 (dust/water intrusion). Connect to the standard micro USB port to charge or use included charging cup, and plug KENWOOD headphones into the 3.5mm audio jack for hands free operation. Versatile, strong, and small - the PKT-23 is built business tough.
Kenwood PKT-23K Includes
- (1) UHF ProTalk PTK-23K Radio
- (1) 1,430mAh Li-Ion
- (1) 3-Hour Fast Charger
- (1) Belt Clip
- (1) Owner’s Manual
Kenwood PKT-23K Features
- 1.5 Watts Transmit Power
- 4 Channels
- Enhanced KENWOOD Audio
- Micro USB Port
- VOX Ready
- IP54 & MIL-STD 810 C/D/E/F/G 11 items
- Li-Ion Battery offering up to 15 hrs of Operation
- 2 Year Warranty
Kenwood PKT-23K Specifications
| Depth | 0.8" |
| Width | 1.8" |
| Height | 3.3" |
| Frequency Range Receive BRS | 451-470 MHz Preset 99 Channels |
| Number of Channels | 4 |
| Zones | 128 |
| Max. Channels per Zone | 250 |
| Channel Spacing (FCC Narrow Compliant) | 12.5 kHz |
| Channel Step | 5, 6.25 kHz |
| Operating Voltage | 3.8V DC ± 10% |
| Frequency Stability | ± 2.5ppm (-14 |
| Antenna Impedance | 50 ohm |
| Sensitivity (12dB SINAD) Narrow | .22 microvolt |
| Selectivity Narrow | 60 dB |
| Intermodulation Distortion Narrow | 50 dB |
| Audio Output | 300 mW with Less Than 5% Distortion |
| RF Power Output | 1.5 W (ERP) / 0.5 W (ERP) |
| Spurious Response | 55 dB |
| FM Hum & Noise Narrow | 50 dB |
| Audio Distortion | Less than 5% |
| Modulation Narrow | 11K |
| Battery Life (5-5-90 duty cycle) w/KNB-71L (1,430mAh) | Approx. 11 hours (Battery saver off), Approx. 15 hours (Battery saver on) |
