Klein Tools | SKU:
16499

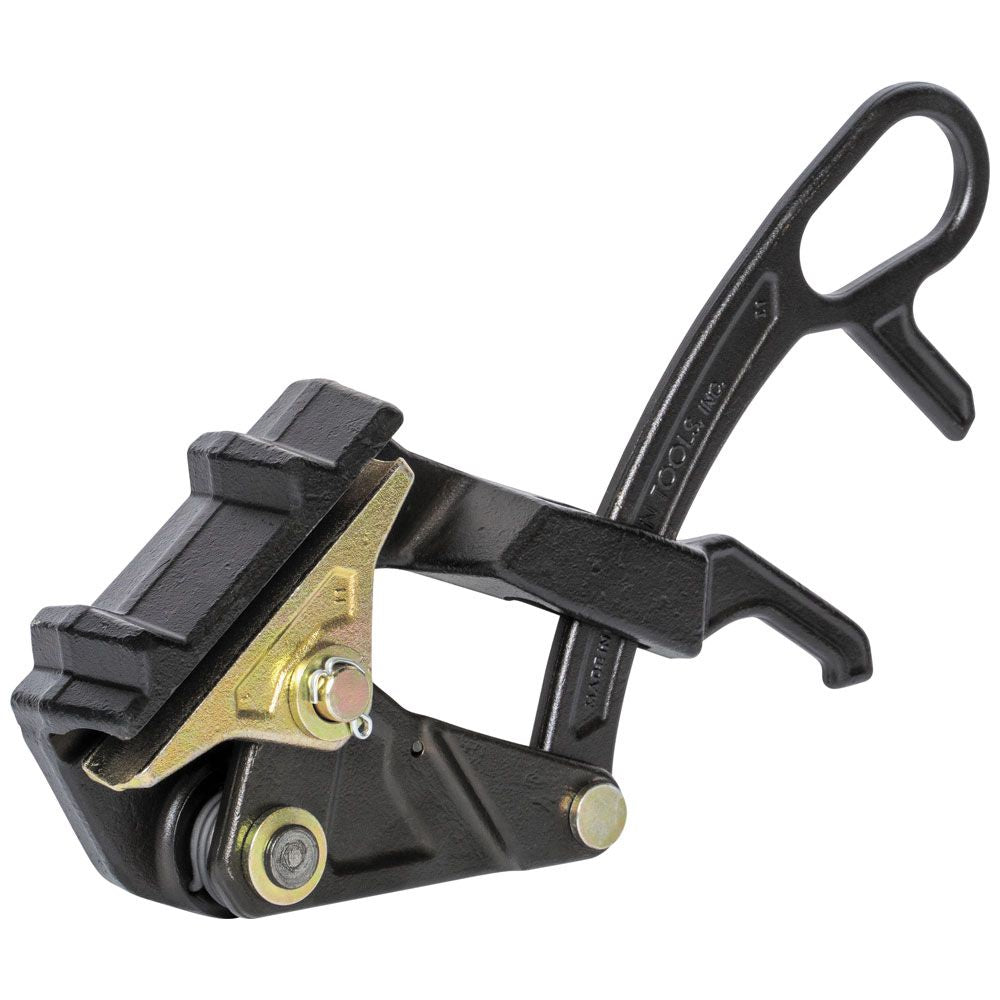

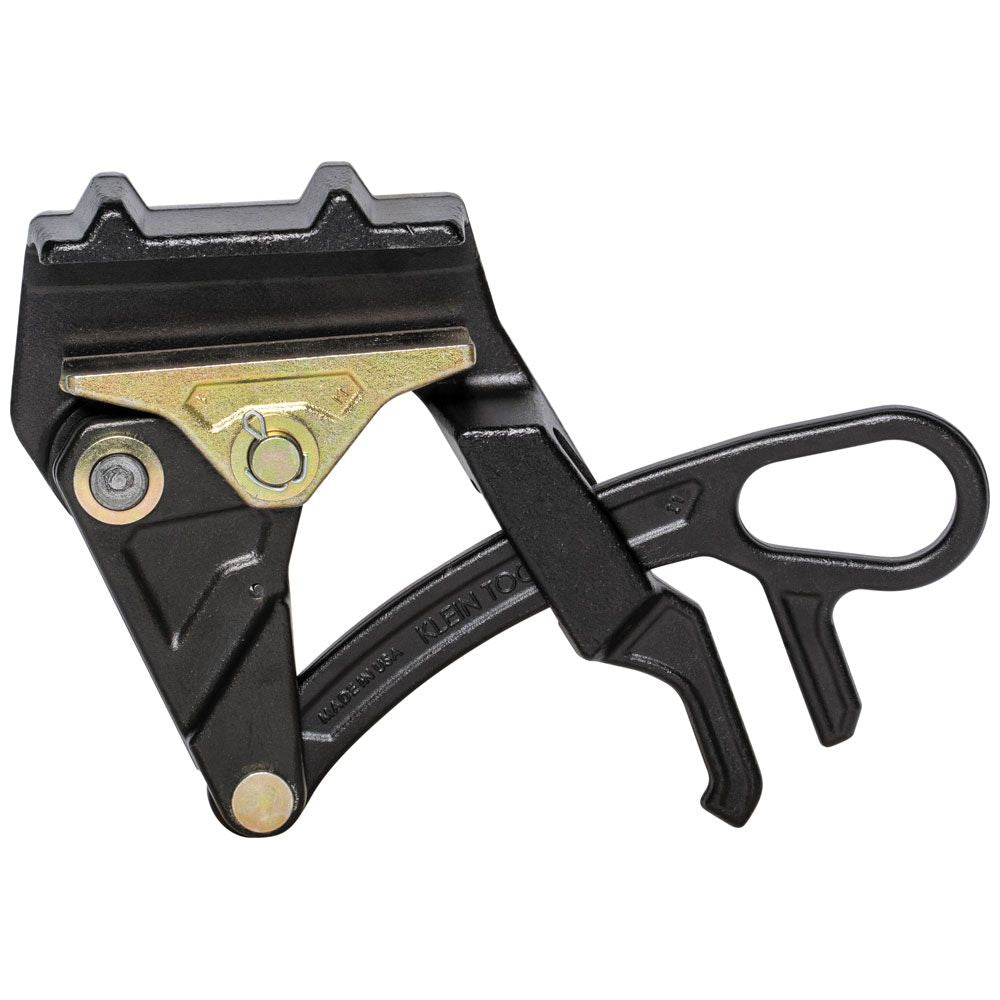

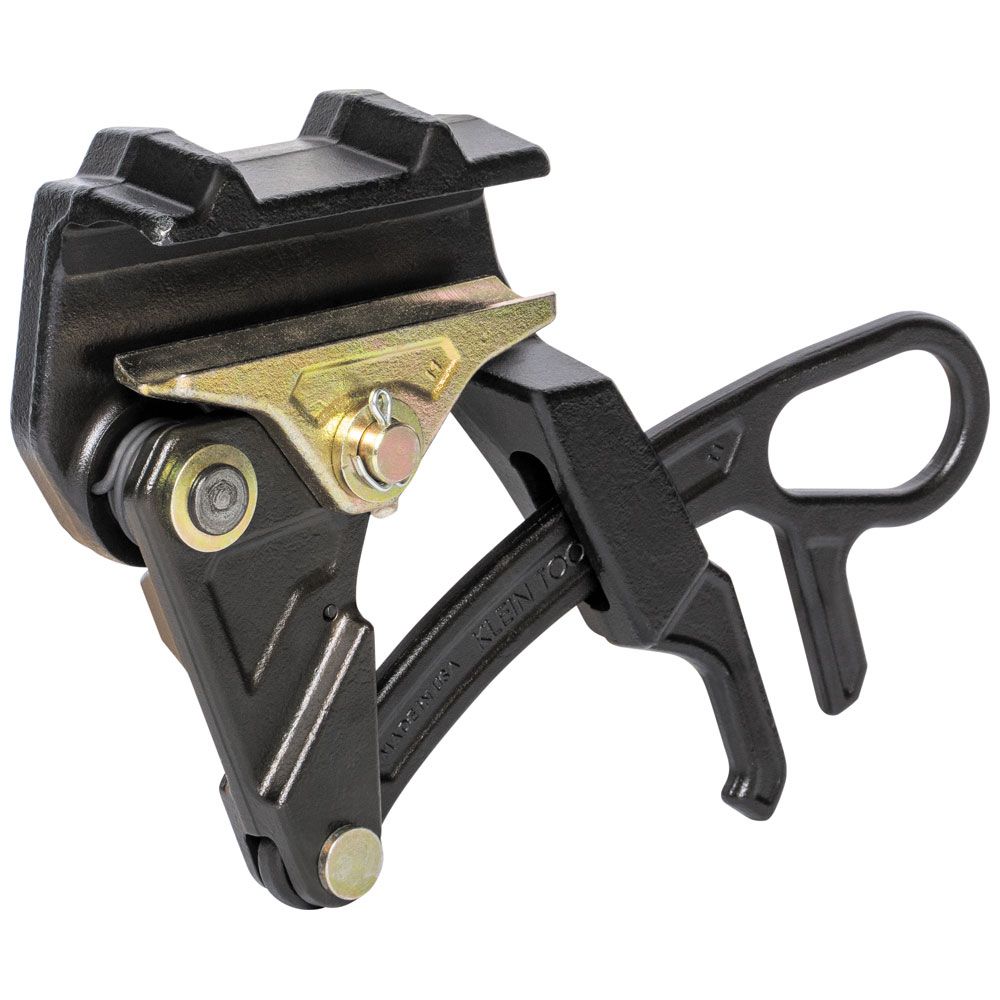

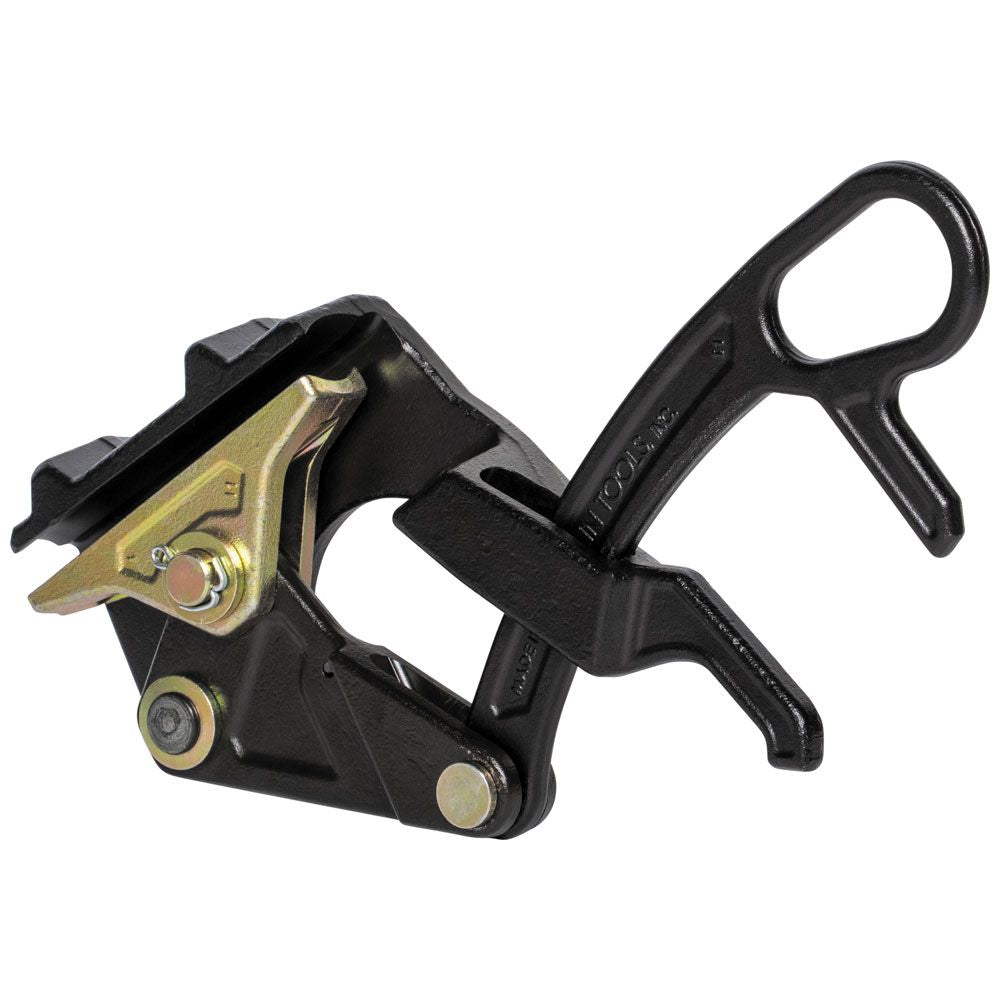

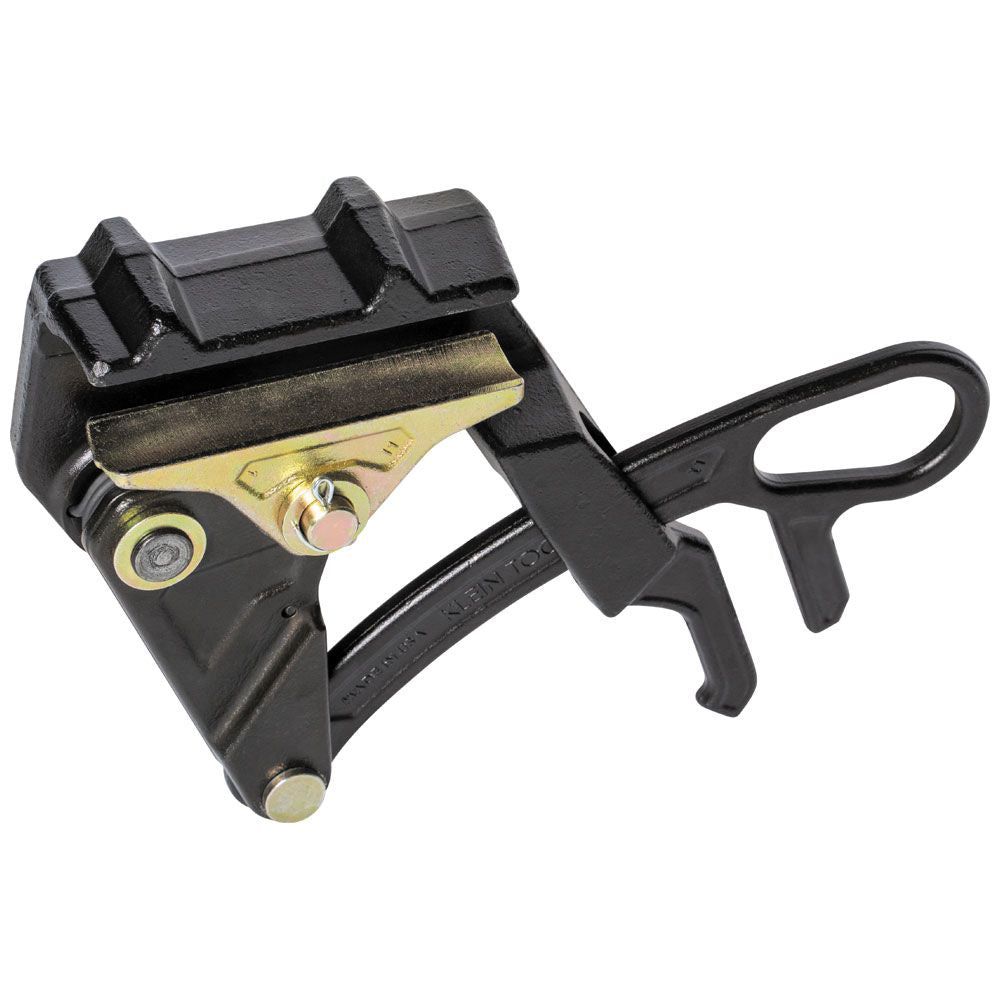

Klein 16499 Wide Range Transmission Grip
Free Shipping
$415.18
$691.98
Unit price
/
Unavailable
Description
Description
INCLUDES:
• (1) Wide Range Transmission Grip
FEATURES:

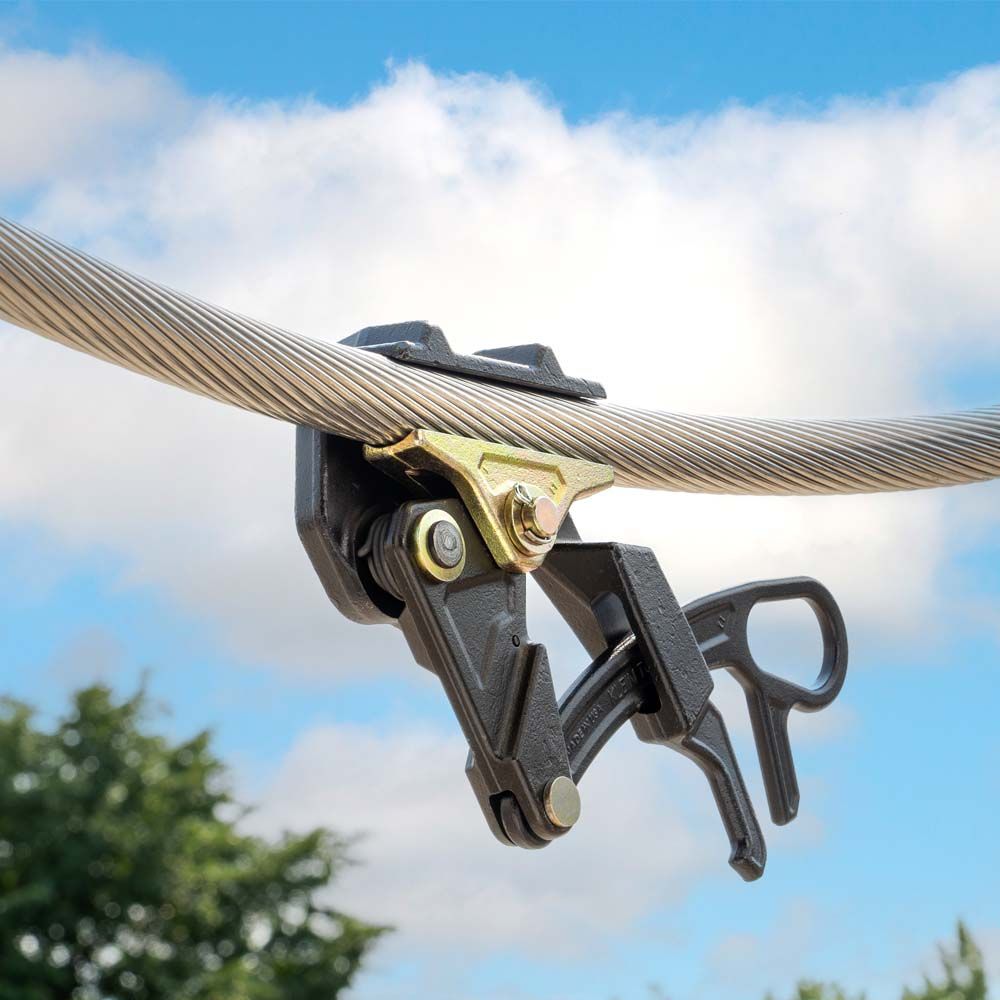

• Securely pulls ACSR, AAC and bare copper cables

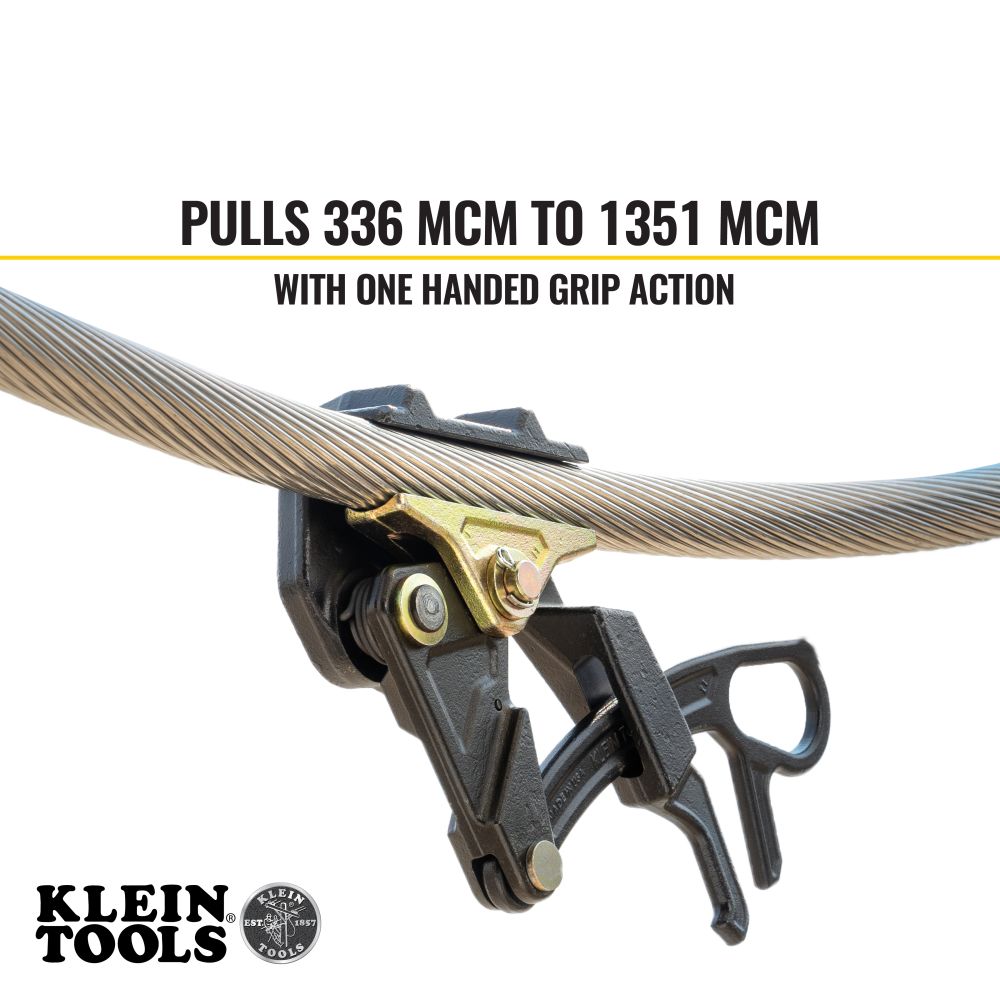

• Holds cable sizes from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm)
• Fine Sawtooth jaw geometry provides greater grip strength
• Spring closes grip on cable to hold the initial position
• Made in the USA

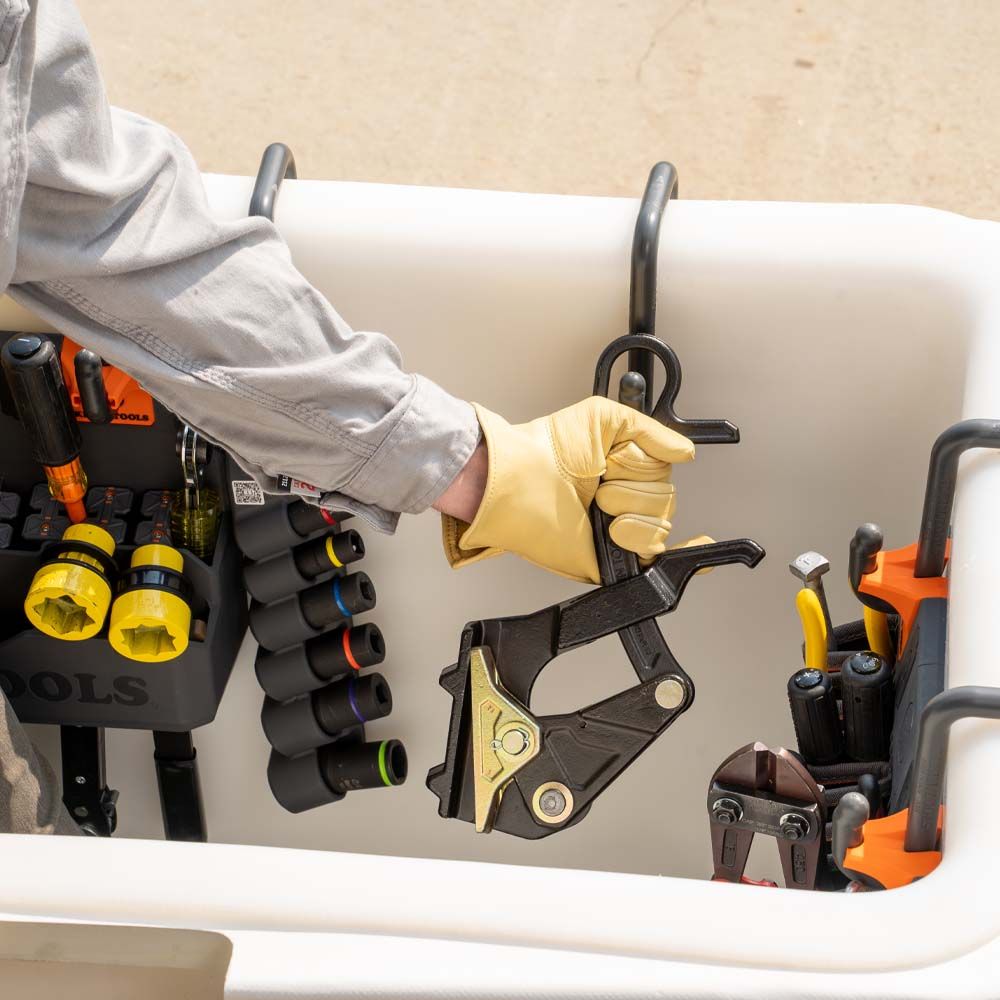

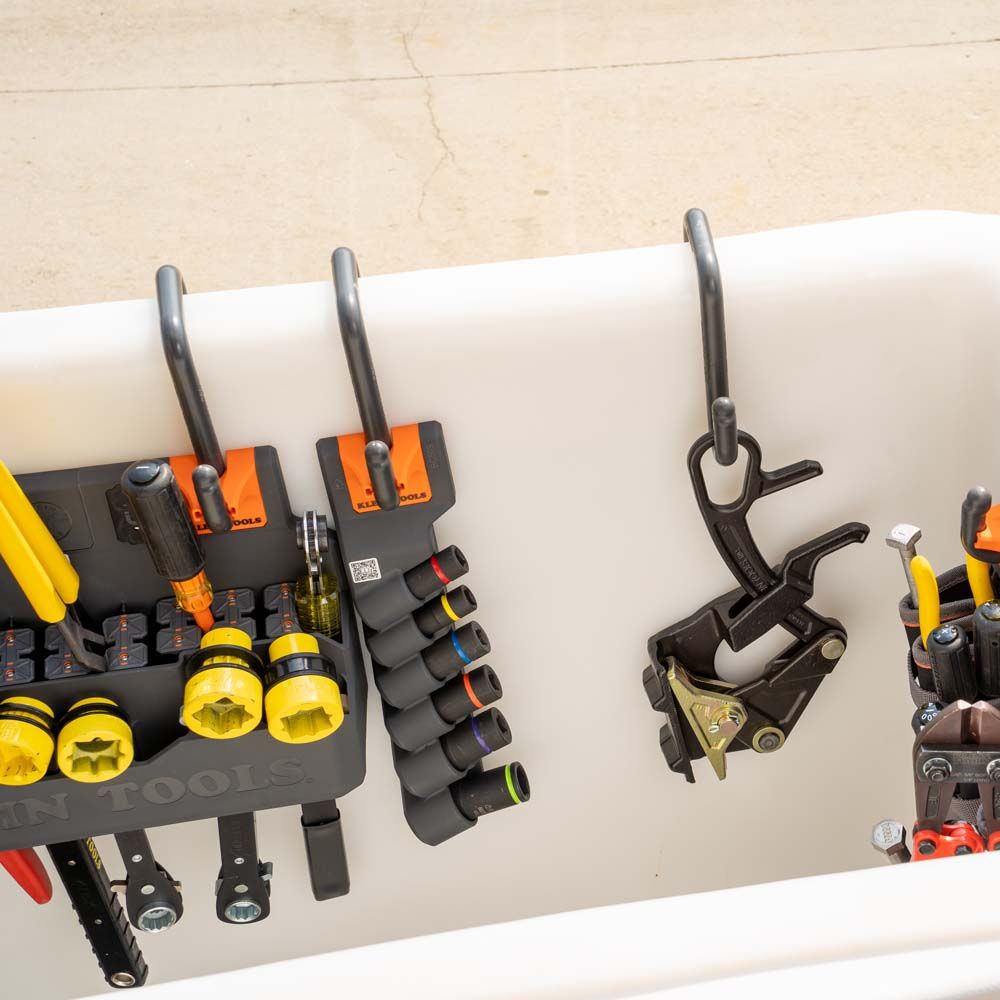

• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
• Max Safe Load of 12,000-Pound (5443 kg)
• Patent pending design
SPECIFICATIONS:
• Type: Parallel Jaw Grip
• Application: Wire Pulling
• Jaw Length: 4.85" (12.3 cm)
• Material: Steel
• Cable Type: ACSR, AAC, Bare Copper
• Cable Diameter: 0.68" to 1.42" (17.3 to 36.1 mm)
• Hot Latch: N
• Swing Latch: N
• Spring: Y
• Locking Handle: Y
• Jaw Type: Round
• Maximum Safe Load: 12000 lbs (5443 kg)

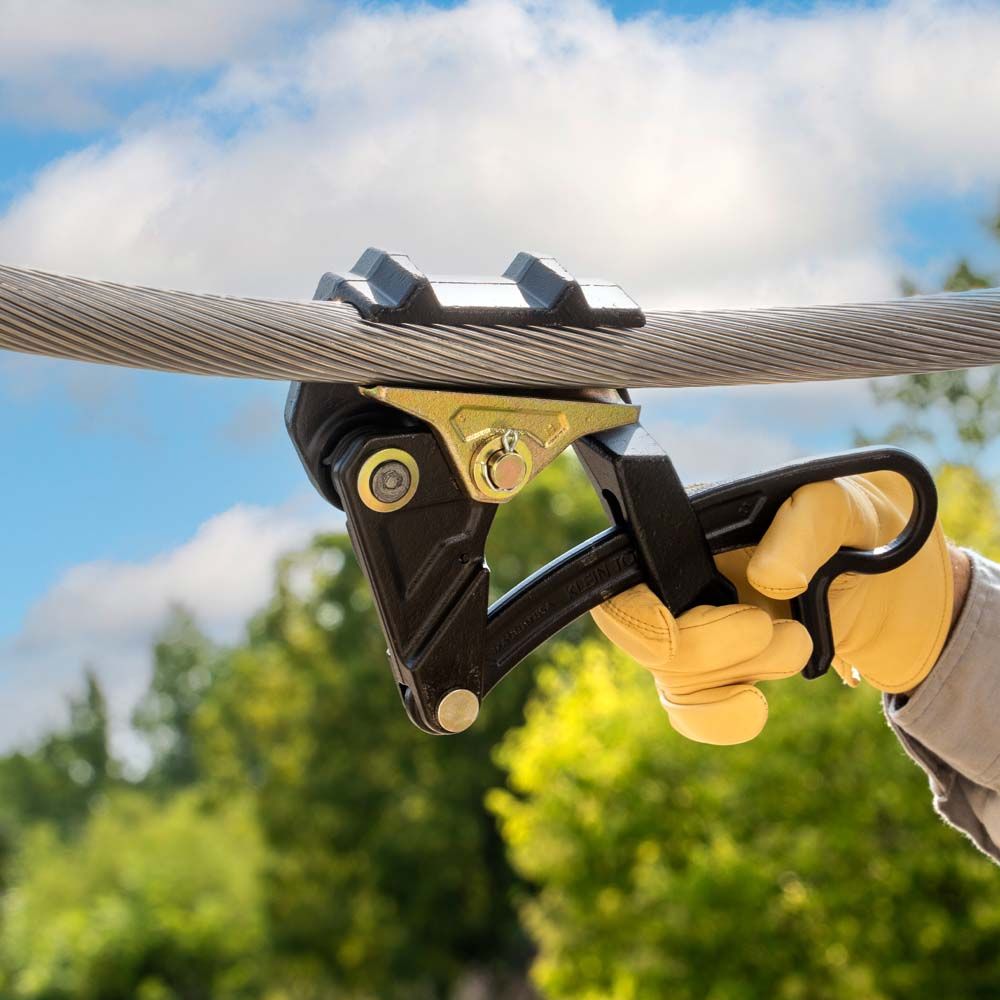

• Special Features: One-Handed Grip
• Overall Length: 13.1" (33.3 cm)
• Overall Width: 2.4" (6.1 cm)
• Overall Height: 8.1" (20.6 cm)
• Weight: 8.1 lbs (3.7 kg)

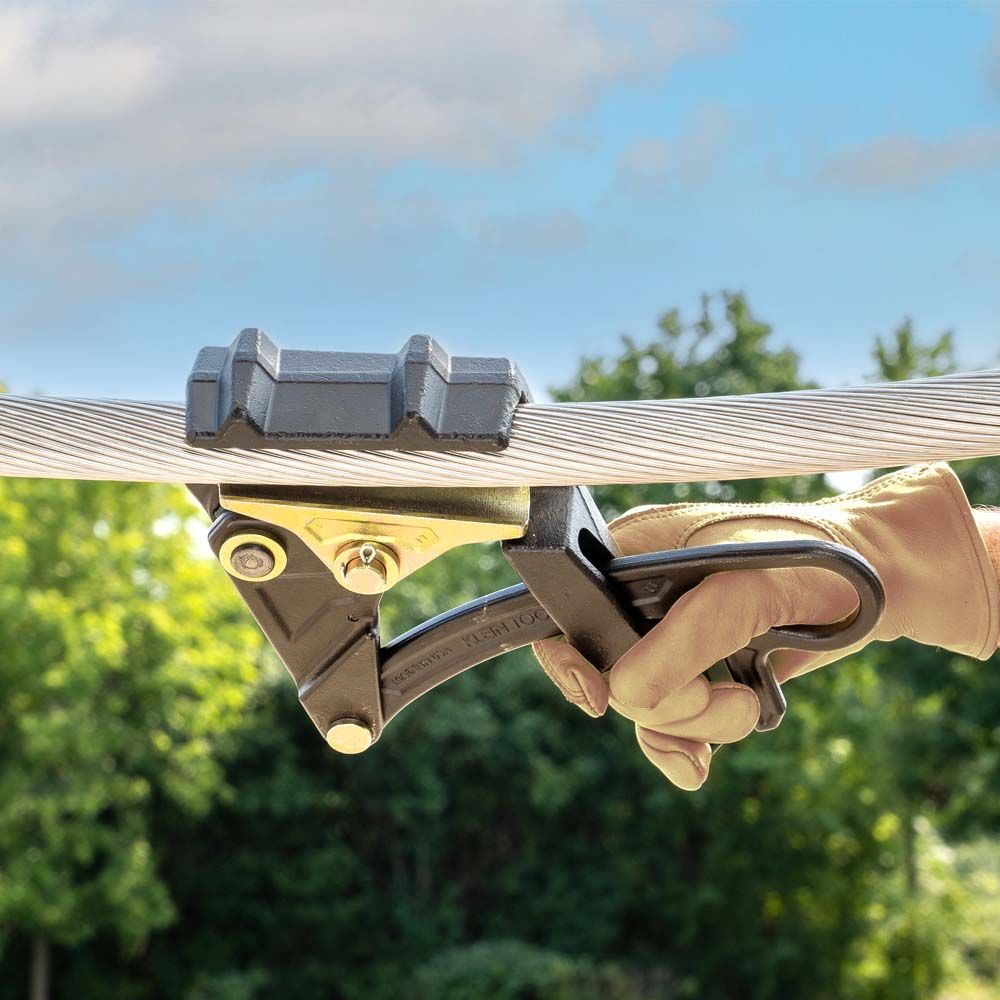

The Klein Tools Wide Range Transmission Grip was specifically designed to securely pull ACSR, AAC and bare copper cables. Holds a wide range of cable from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm). This grip has a maximum safe load of 12,000-Pound (5443 kg).
• (1) Wide Range Transmission Grip
FEATURES:
• Securely pulls ACSR, AAC and bare copper cables
• Holds cable sizes from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm)
• Fine Sawtooth jaw geometry provides greater grip strength
• Spring closes grip on cable to hold the initial position
• Made in the USA
• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
• Max Safe Load of 12,000-Pound (5443 kg)
• Patent pending design
SPECIFICATIONS:
• Type: Parallel Jaw Grip
• Application: Wire Pulling
• Jaw Length: 4.85" (12.3 cm)
• Material: Steel
• Cable Type: ACSR, AAC, Bare Copper
• Cable Diameter: 0.68" to 1.42" (17.3 to 36.1 mm)
• Hot Latch: N
• Swing Latch: N
• Spring: Y
• Locking Handle: Y
• Jaw Type: Round
• Maximum Safe Load: 12000 lbs (5443 kg)
• Special Features: One-Handed Grip
• Overall Length: 13.1" (33.3 cm)
• Overall Width: 2.4" (6.1 cm)
• Overall Height: 8.1" (20.6 cm)
• Weight: 8.1 lbs (3.7 kg)
The Klein Tools Wide Range Transmission Grip was specifically designed to securely pull ACSR, AAC and bare copper cables. Holds a wide range of cable from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm). This grip has a maximum safe load of 12,000-Pound (5443 kg).
