Klein 3006CR Ratcheting Non-Insulated Terminal Crimper, 10 to 22 AWG Wire
$29.99
$42.90
Unit price
/
Unavailable
Description
Description
Klein 3006CR Description
The full-cycle Ratcheting Crimper crimps 10-22 AWG non-insulated wire terminals. This tool features five crimping cavities in one tool for five size ranges of non-insulated terminals. Crimper design provides low effort to crimp while maintaining a high terminal pull-off force. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time. Compound lever-action of narrow-span handles puts more crimping power into each squeeze. Comfort grips help reduce hand fatigue.
Klein 3006CR Includes
- (1) Crimper
Klein 3006CR Features
- Crimping Tool crimps non-insulated terminals onto 10-22 AWG stranded copper wire
- Adjustable compound action design puts more crimping power into each squeeze

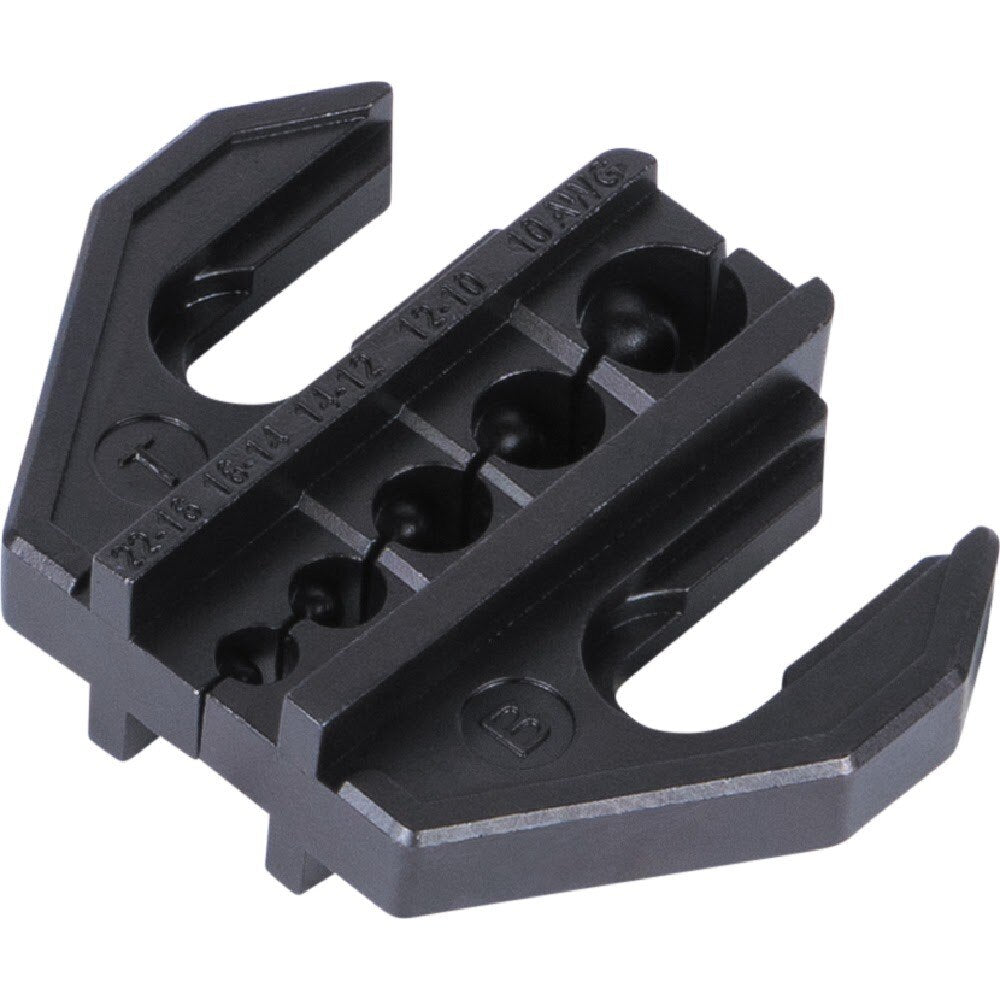

- Five crimping cavities in one tool: 22–18 AWG, 18–14 AWG, 14-12 AWG, 12-10 AWG and 10 AWG terminals
- Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
- Unique cavity design provides consistent crimp from either side of the tool
- Dial adjusts the amount of force applied to the crimp
- Dual-material molded grips provide added comfort
Klein 3006CR Specifications
| Type: | Ratcheting Crimper |
| Cable Size: | 10-22 AWG |
| Connector Type: | Non-Insulated |
| Handle Finish: | Dual-Material |
| Handle Color: | Red/Black |
| Material: | Steel |
| Special Features: | 4 Crimping Cavities |
| Application: | Non-Insulated Terminal Crimping on Stranded Wire |
| Overall Length: | 9" (22.9 cm) |
| Overall Width: | 3" (7.6 cm) |
| Overall Height: | 0.09" (0.2 cm) |
| Weight: | 1.3 lbs (0.6 kg) |
