Klein 501915 TDR Cable Length Meter
Free Shipping
$199.99
$279.98
Unit price
/
Unavailable
Description
Description

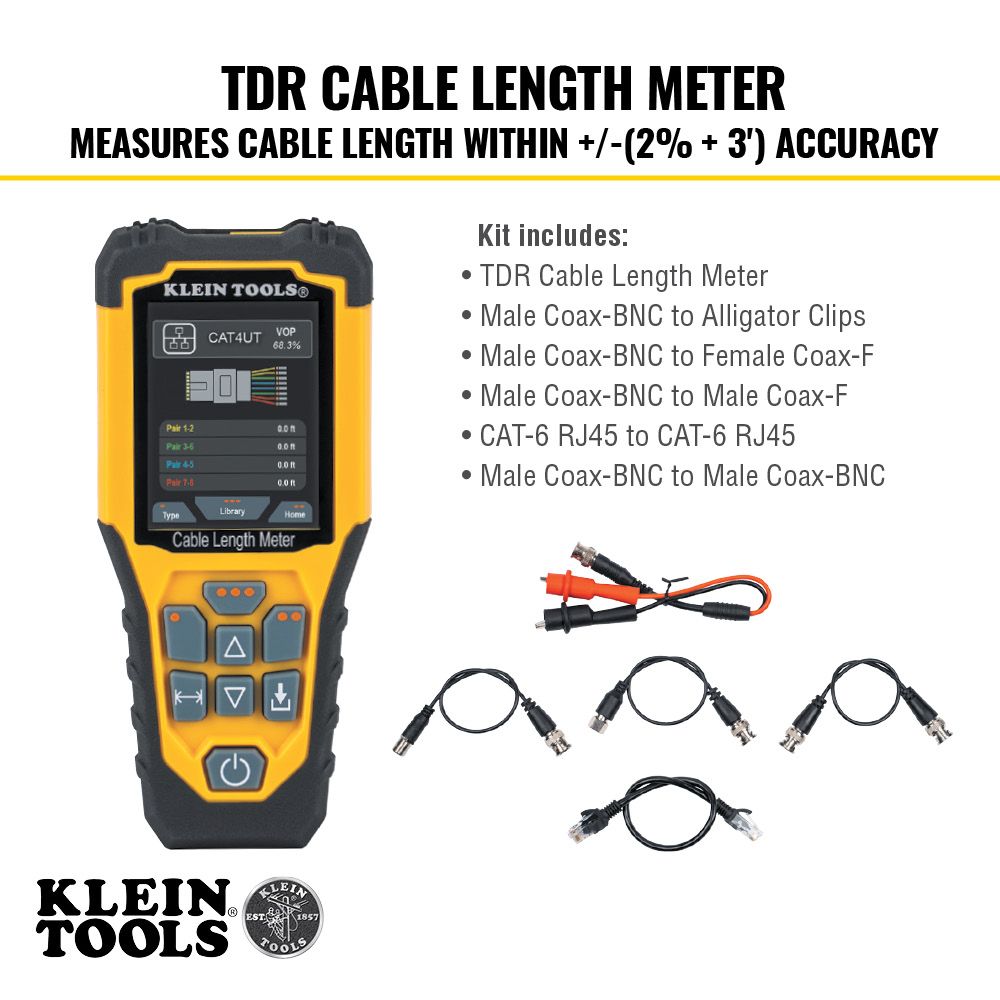

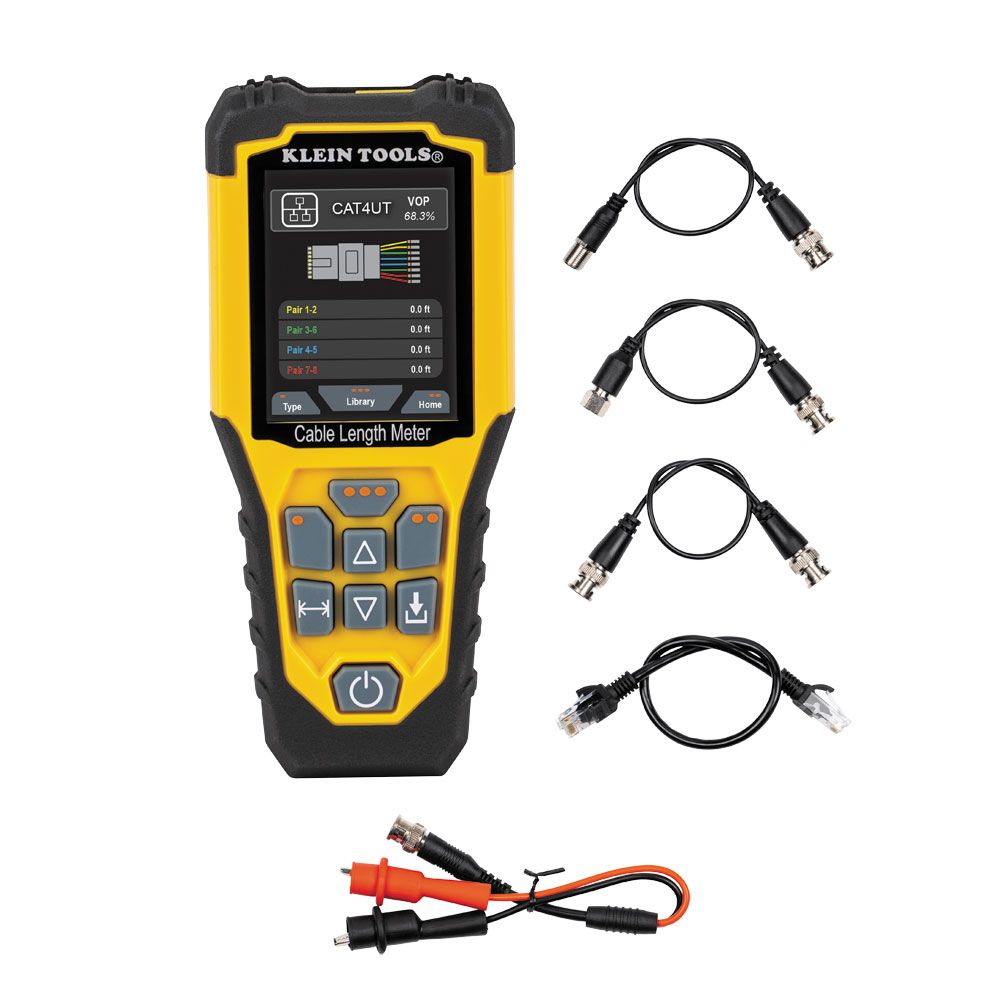

INCLUDES:
• (1) Cable Length Meter
• (2) Batteries
• (5) Test Leads
• (1) Pouch
FEATURES:

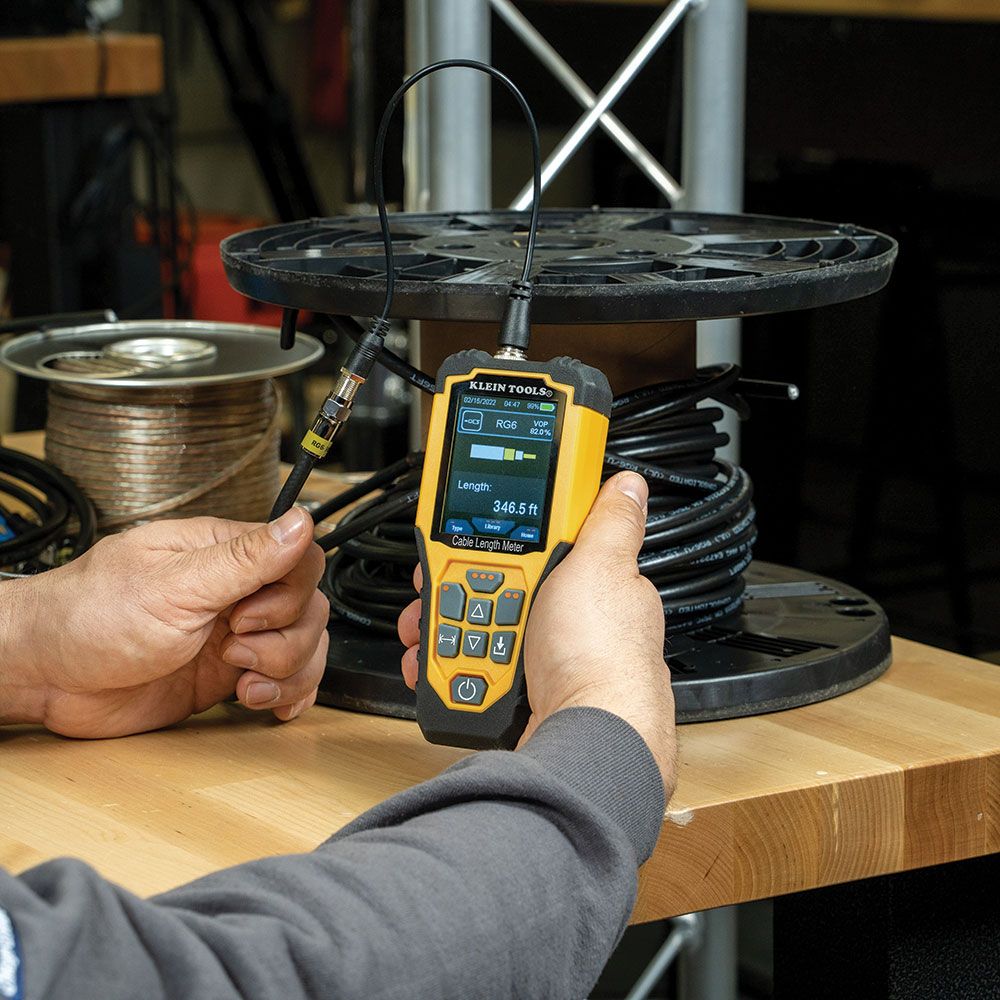

• Cable length meter measures length of electrical, data, two-wire and Romex® cables up to 3000 feet (914 m)

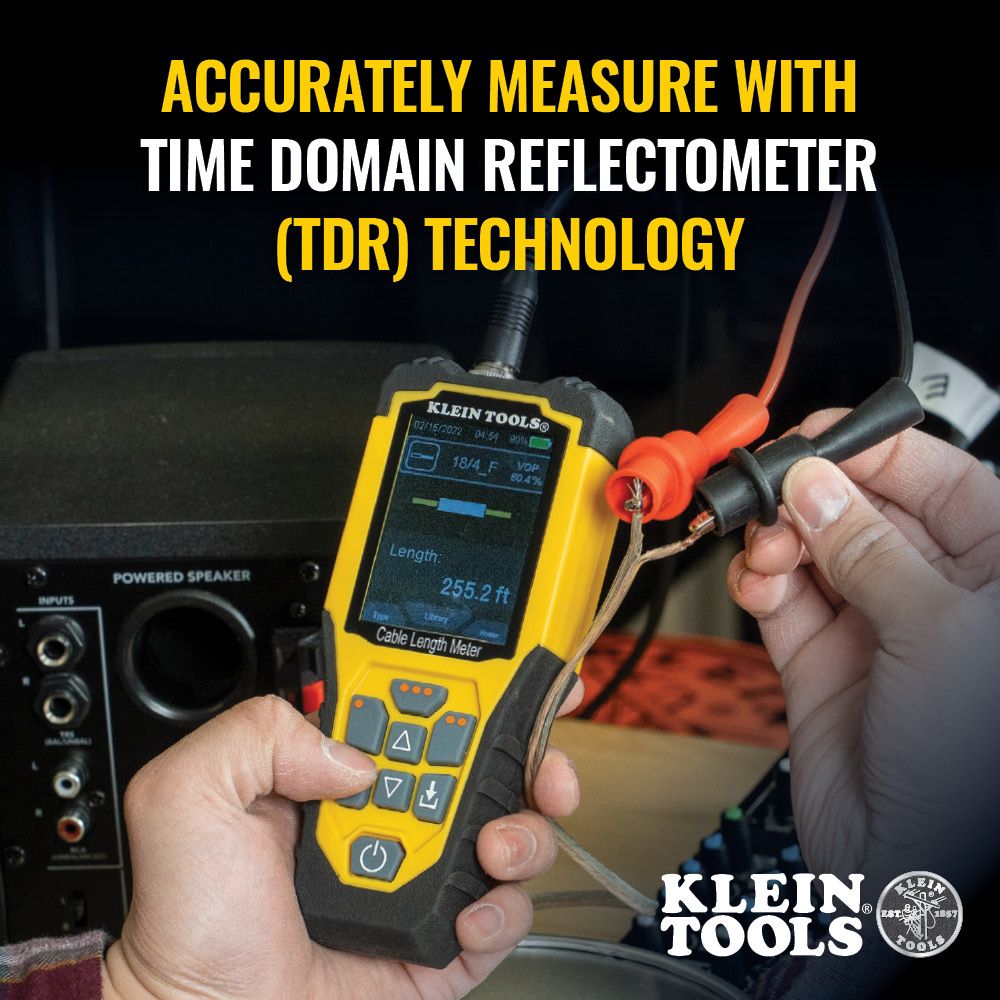

• TDR technology measures Distance-to-Fault, Open or Short, on terminated or unterminated cable
• Programmed with Velocity of Propagation (VoP) values for Coax, Data, Romex® and other multiwire cables for accurate length measurement within +/-(2-Percent plus 3-Foot/0.9 m) accuracy
• Stores custom cable VoP values for consistently accurate results and time savings

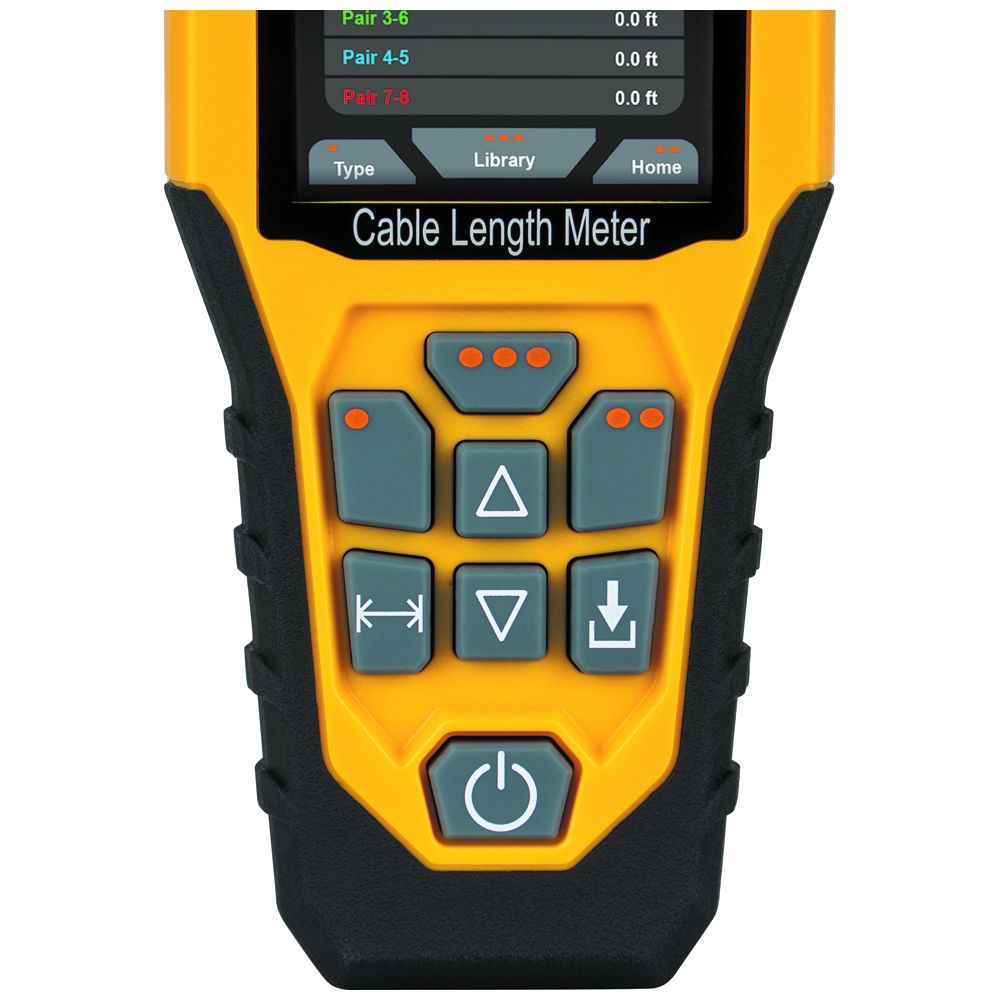

• Simple interface with full color, interactive LCD
• Tones unenergized, open-ended wires for wire tracing (requires Analog Probe (Cat. No. VDV500-123, sold separately)

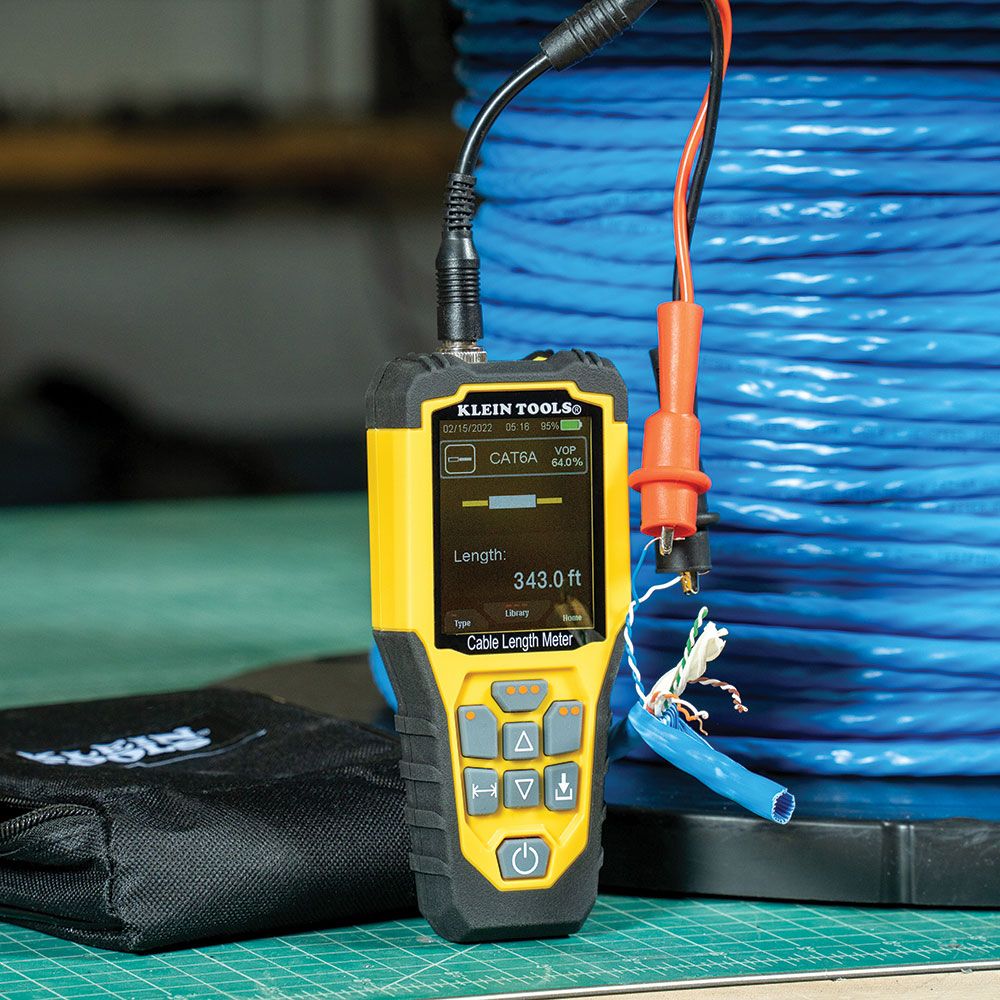

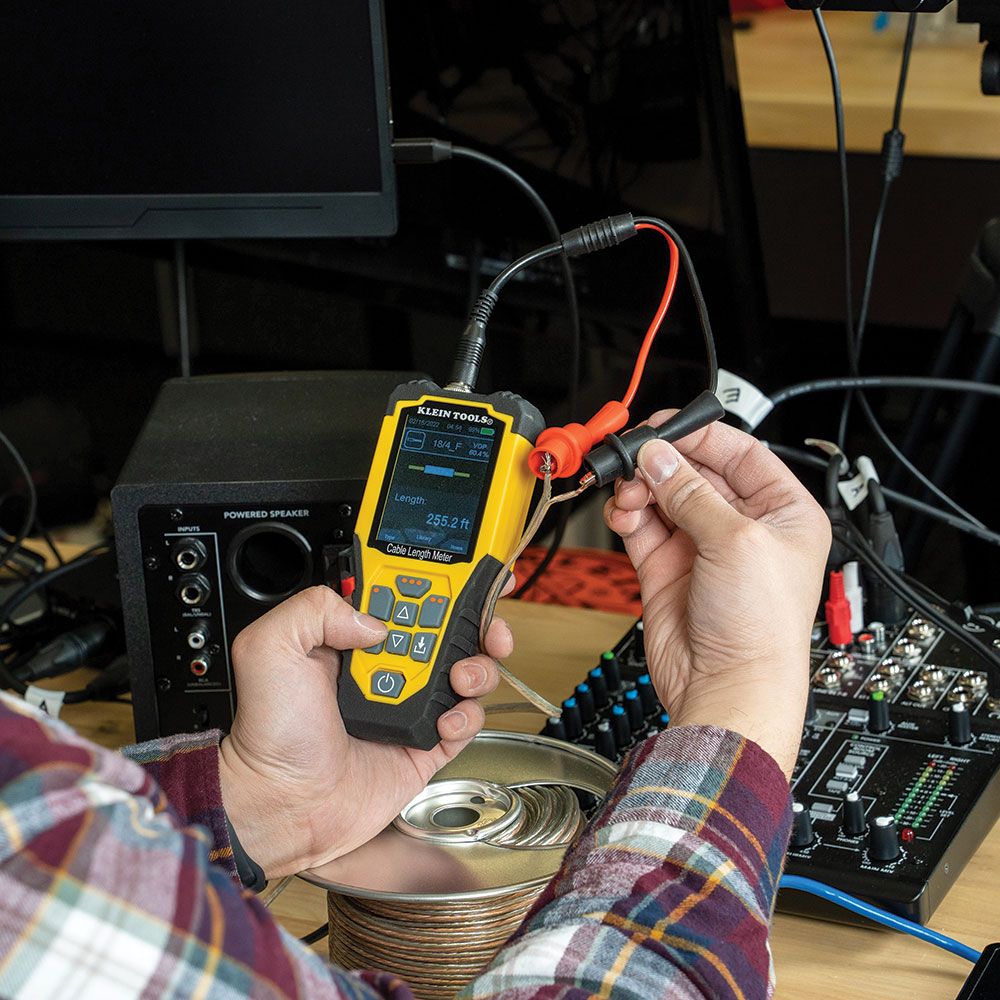

• Coax-BNC or high quality alligator clips for quick, easy connection to test most cable types

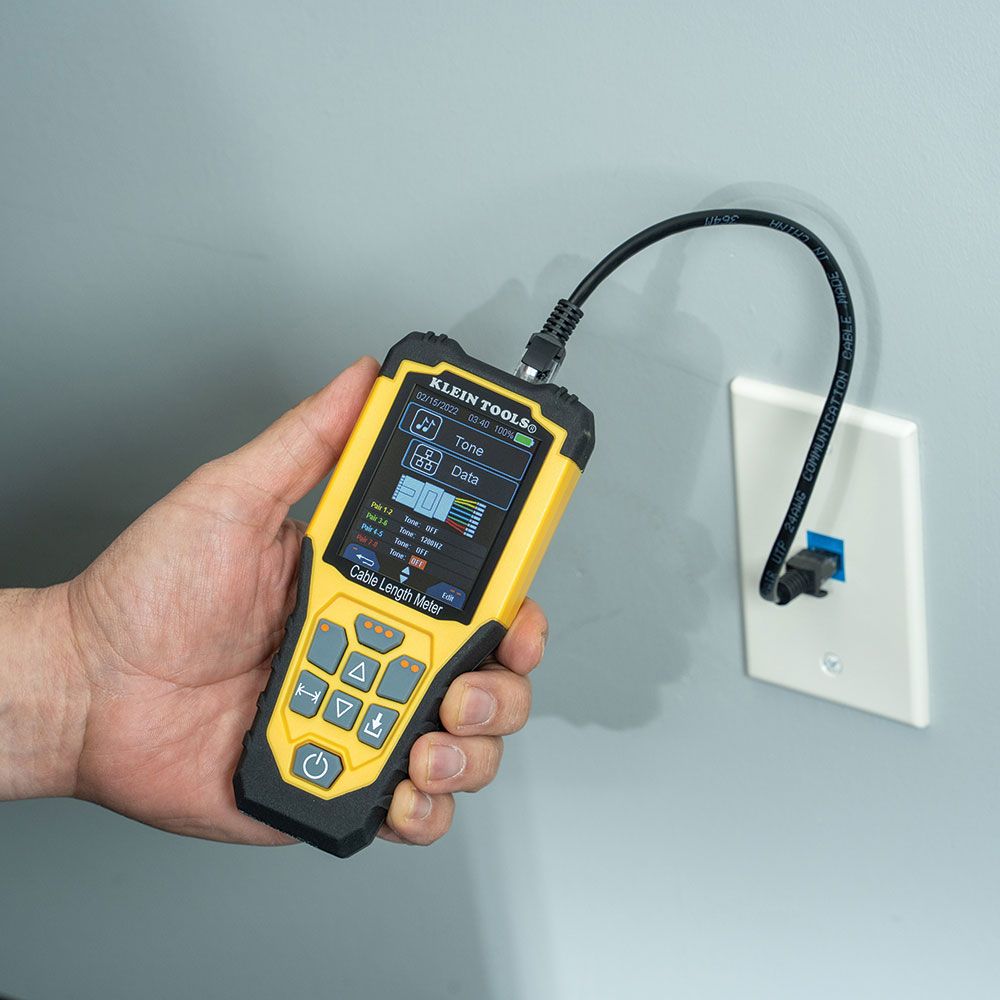

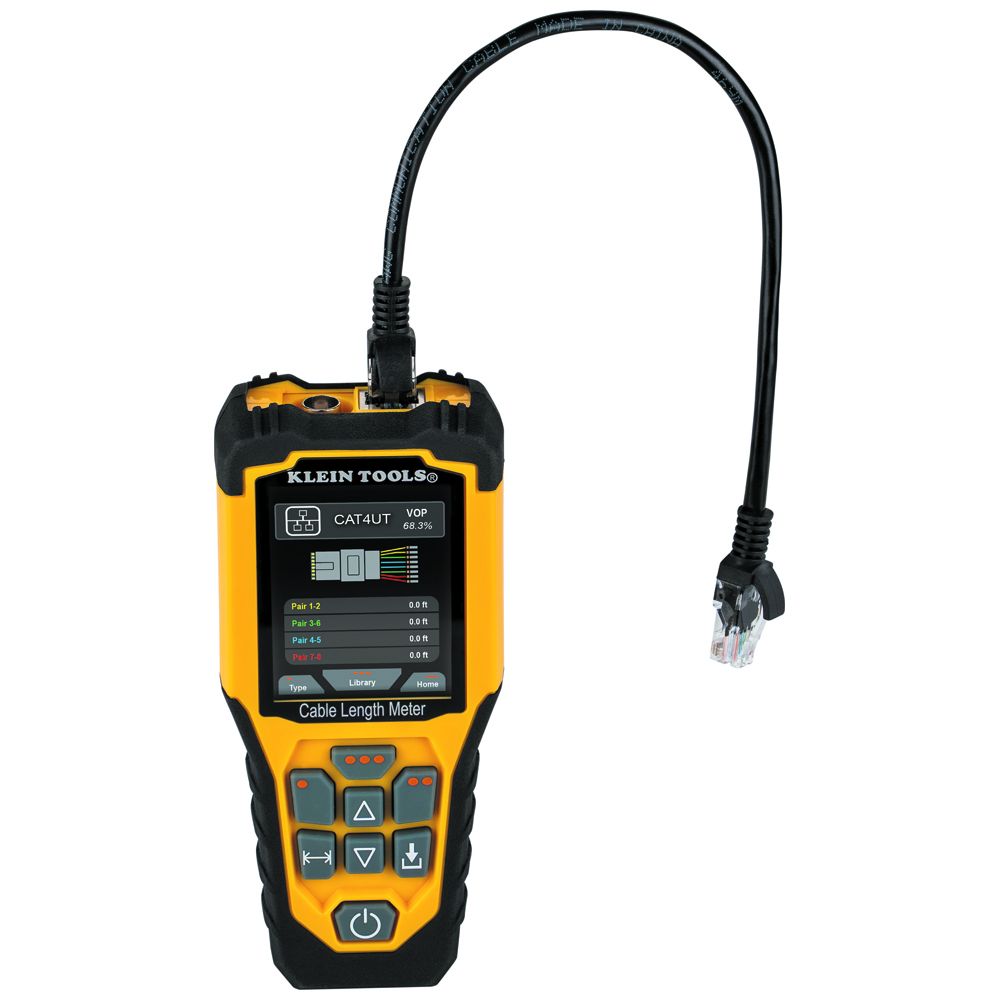

• RJ45 jack for accurate length measurement of terminated data cables
• Measurements can be switched between and metric and imperial units
• Includes padded carrying case and leads
SPECIFICATIONS:
• Test & Measure Types: Length, Distance-to-Fault
• Faults Detected: Distance-to-Fault, Open or Short
• Display: Backlit LCD
• Cable Type: Coaxial, Data, Electrical
• Connection & Adapter Types: BNC, RJ45
• Multiple Style Tone Generator: Two Tones
• Application: Cable Length Measurement
• Type: Cable Meter
• Batteries: 2 × AA Alkaline
• Battery Life: Active: Approx 15 hr; Standby: Approx 3 yr.
• Drop Protection: 6.6' (2 m)
• Material: ABS Plastic
• Included: Batteries, Test leads, Carrying Pouch
• Special Features: Velocity of Propagation Range: 20 to 99.9%
• Overall Length: 2.7" (6.9 cm)
• Overall Width: 1.4" (3.6 cm)
• Overall Height: 6.2" (15.7 cm)
• Weight: 7.6 oz (215 g) without batteries

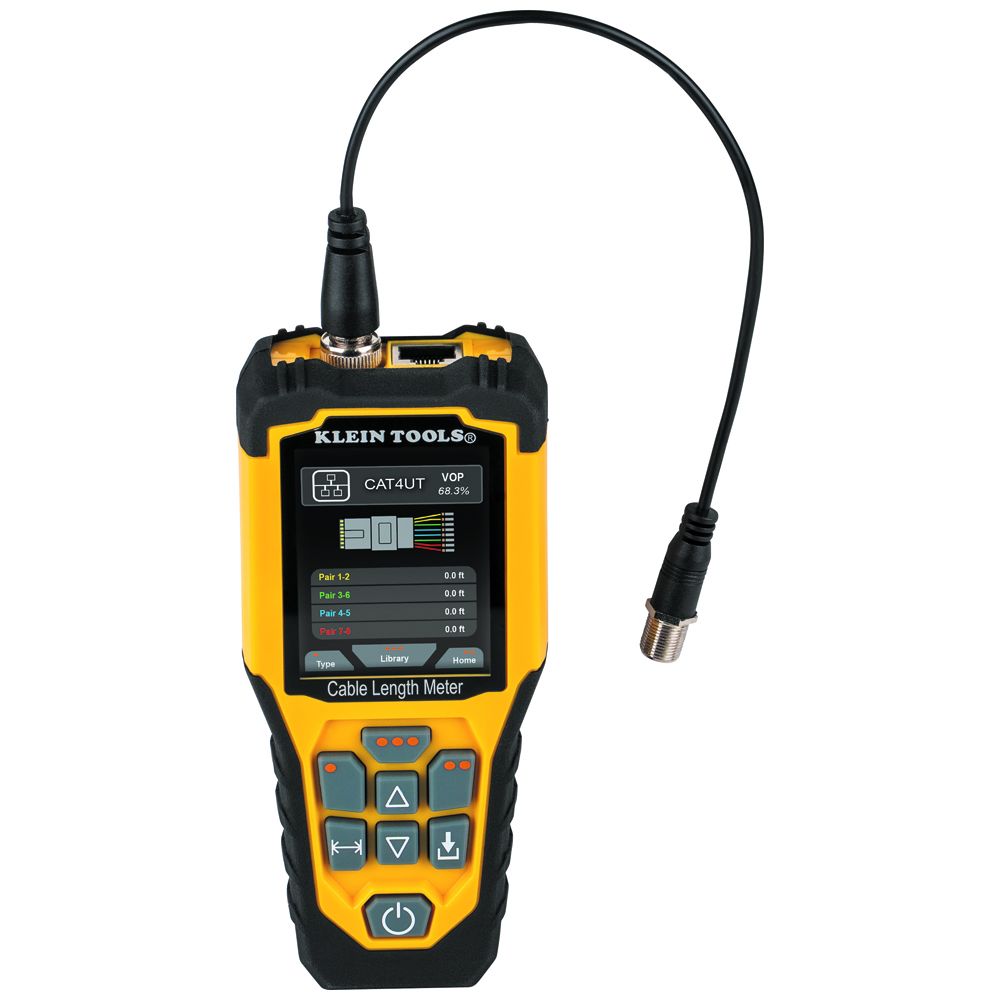

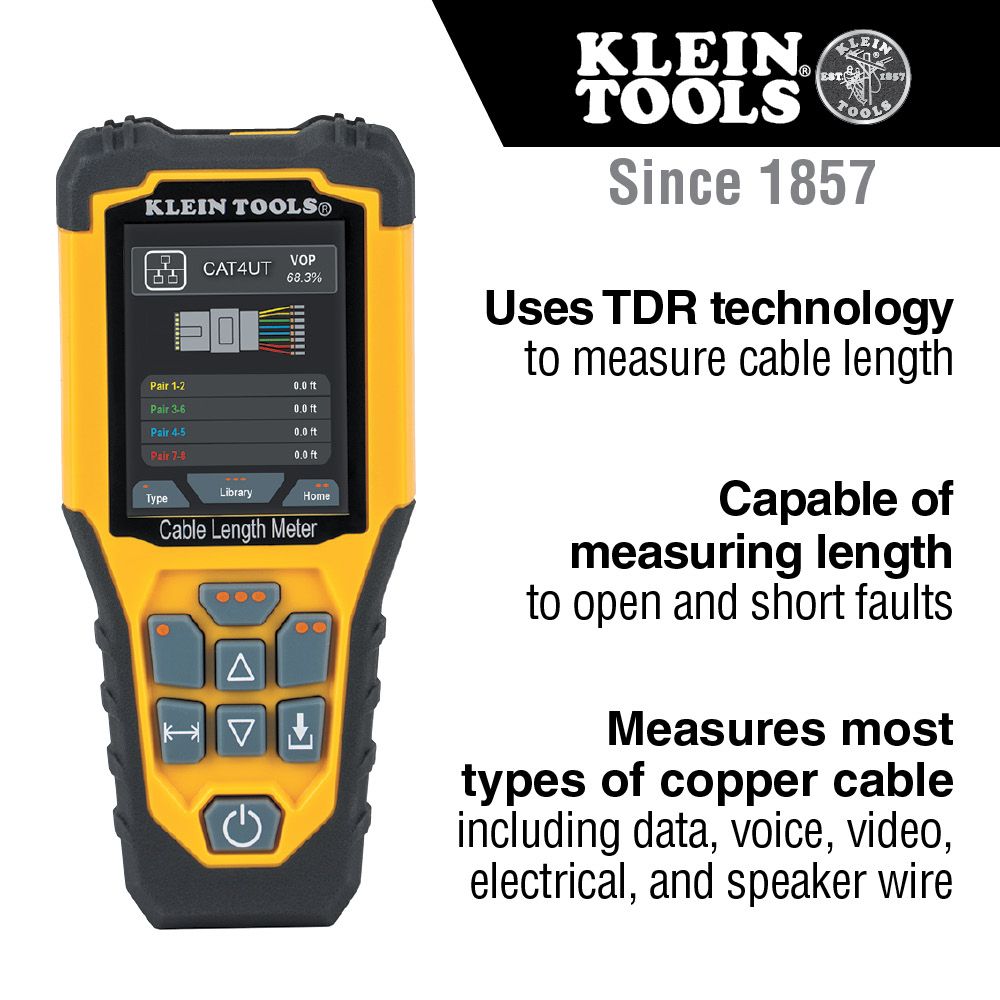

The Klein Tools Cable Length Meter is a portable Time Domain Reflectometry (TDR) cable length tester. It measures cable length, calibrates Velocity of Propagation (VoP) values, finds distance to faults in cables, and provides built-in tone generation for cable tracing. This tester provides accurate cable length measurement for a wide variety of cable types at an affordable price. Includes test leads and a carrying case.
