At a Glance
Die Size
600 MCM
Die Type
W-Die
Connector Type
Lug
Crimp Type
Hydraulic Battery
Sold As
Individual
For Use On
Electrical Components
For Use With
Crimper
Color
Black
Finish
Painted
Description
Description
Klein BAT20-7T12 Description

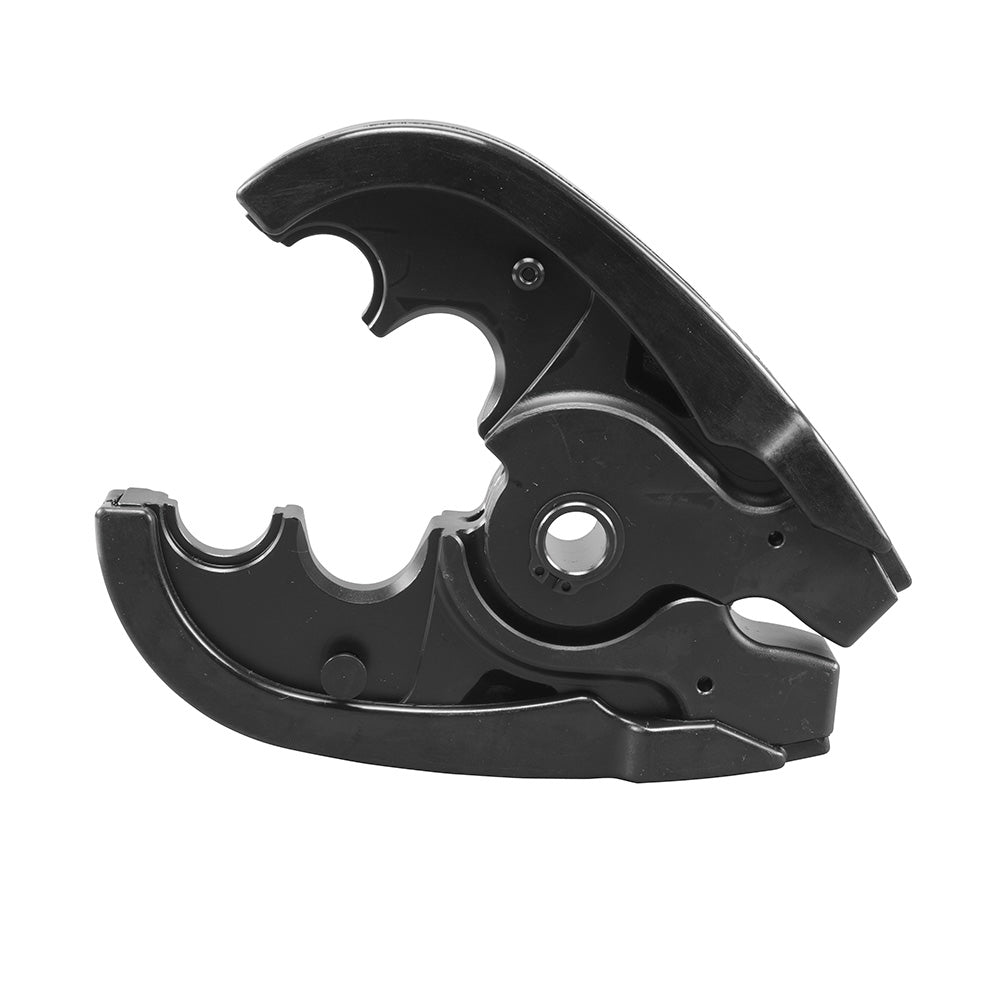

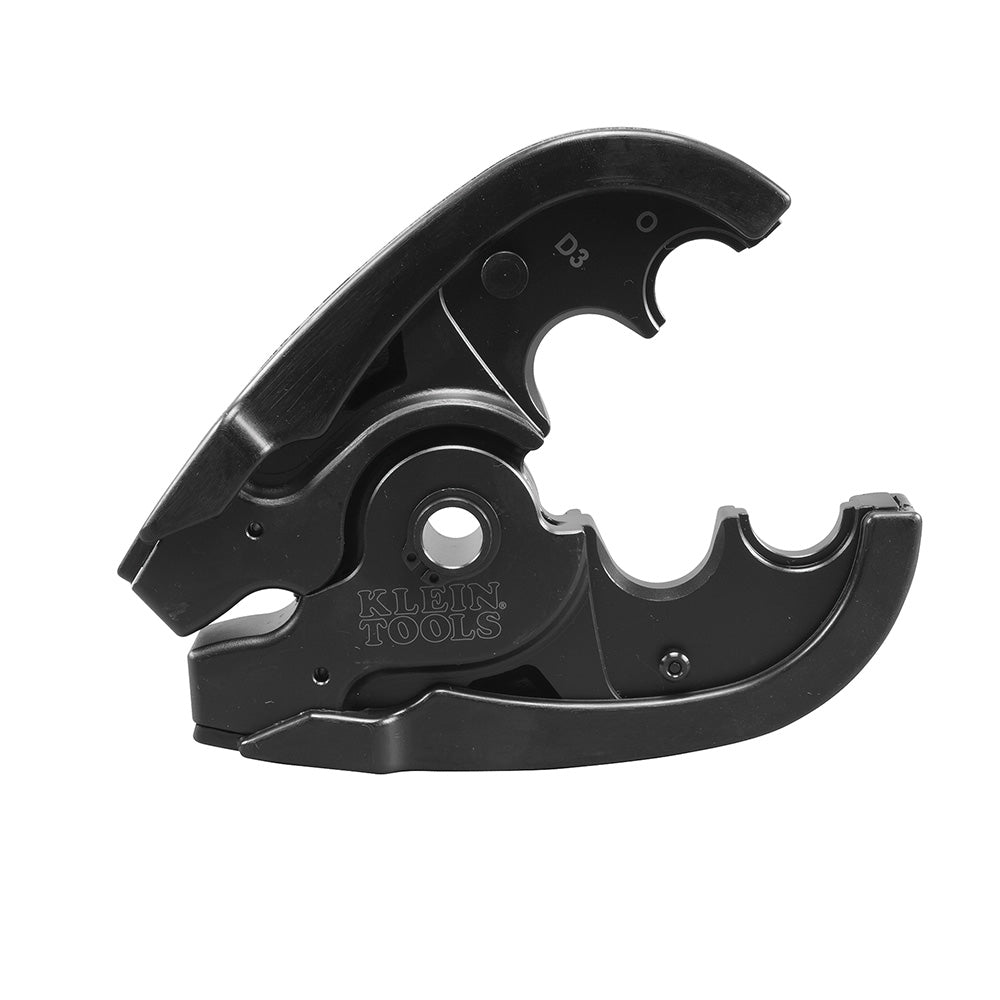

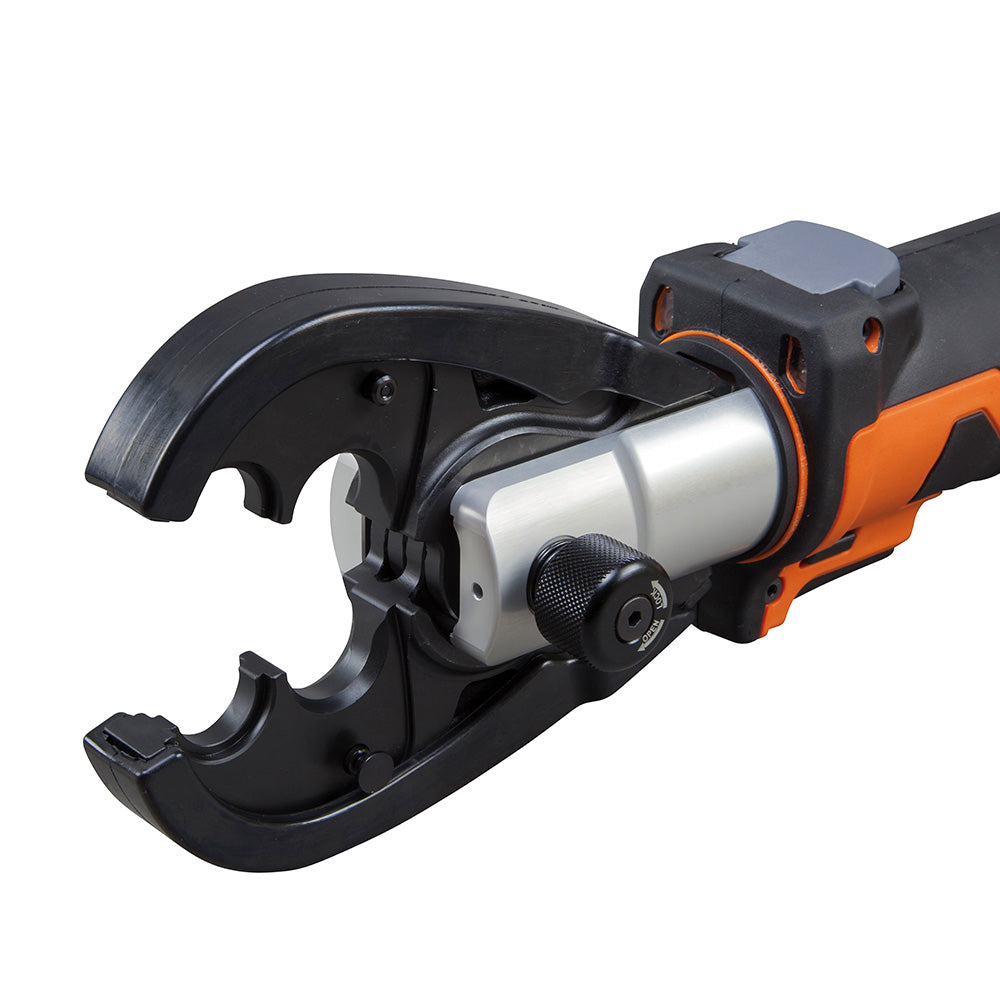

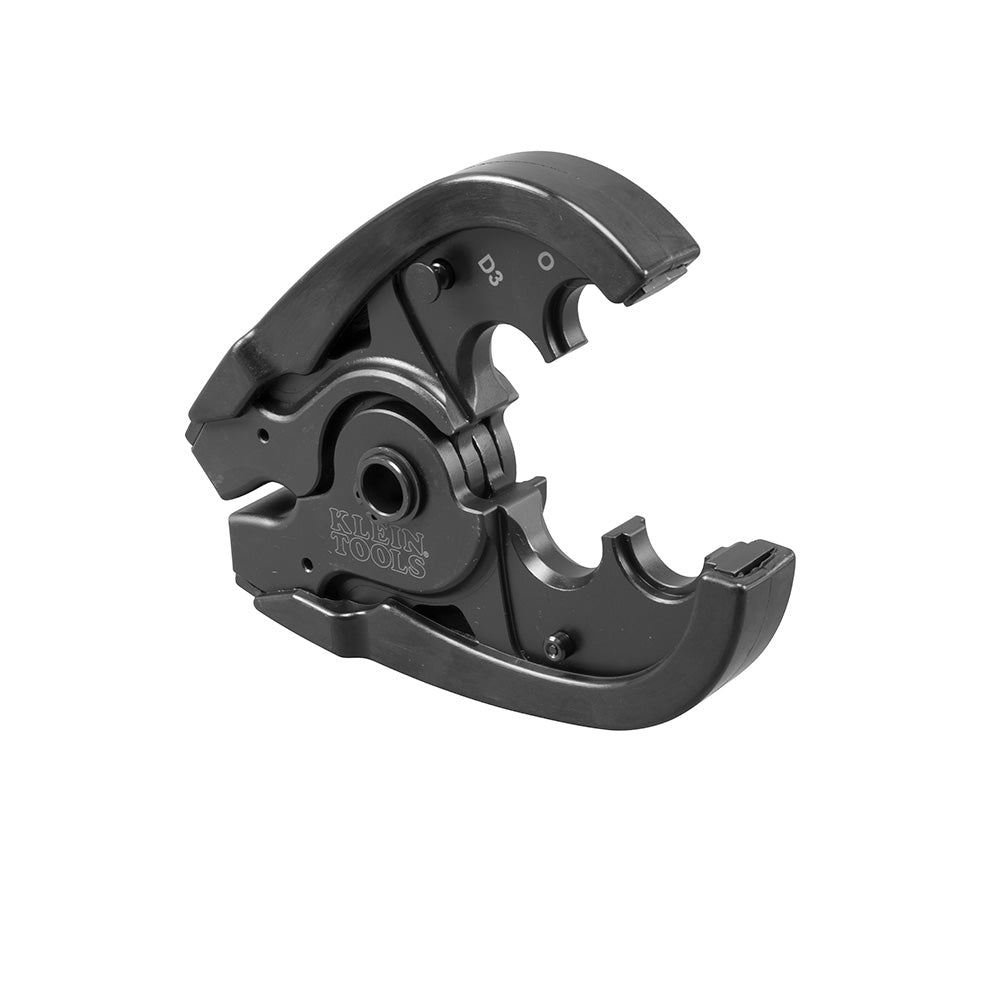

This crimping jaw works with Klein's battery-operated cable crimper (BAT20-7T). Crimps 600 copper, 350 aluminum and 477 ACSR cable. Features O Fixed Die and D3 Groove head. Compatible with industry standard W-style dies.
Klein BAT20-7T12 Includes
- (1) Crimping Jaw, Fixed O Die/D3 Groove
Klein BAT20-7T12 Features
- Replacement crimping jaw for Klein's battery-operated cable cutter/crimper (BAT20-7T)
- Crimps 600 MCM copper cable
- Crimps 350 MCM aluminum cable
- Crimps 477 MCM ACSR cable
- Features an O fixed die and D3 groove
- Compatible with industry standard W-style dies
- 7 ton hydraulic force provides 15-Percent more crimping power
Klein BAT20-7T12 Specifications
| Type: | For Battery Operated Tools |
| Application: | Cable Crimping |
| Special Features: | For Use with Tools Powered by DeWALT 20V Lithium-ion Batteries |
| Maximum Cable Capacity (Copper): | 600 MCM |
| Maximum Cable Capacity (Aluminum): | 350 MCM |
| Maximum Cable Capacity (ACSR): | 477 MCM |
| Maximum Cable Capacity (Guy Strand): | � |
| Bolt Maximum Capacity: | � |
| Overall Length: | 6.25" (158.8 mm) |
| Overall Height: | 6.5" (165.1 mm) |
| Overall Width: | 1.5" (38.1 mm) |
| Voltage: | 20V |
| Weight: | 3.18 lb (1.44 kg) |
Toolup Part # :
443007
