Klein Tools | SKU:
CL320KIT
Klein CL320KIT HVAC Electrical Test Kit
$124.99
$179.14
Unit price
/
Unavailable
Description
Description
Klein Tools CL320KIT Description
Klein Tools HVAC Electrical Test Kit features Cat. No. CL320 Auto-Ranging, TRMS (True Root Mean Square), 400A HVAC Clamp Meter; Cat. No. IR07 Dual IR and Probe Thermometer, for both surface and air temperature measurements; and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester With Flashlight, for detection of AC voltage from 12 to 1000V with visual and audible indicators. Included is a convenient carrying pouch, test leads with CAT III/CAT IV safety caps, thermocouple, and all batteries.

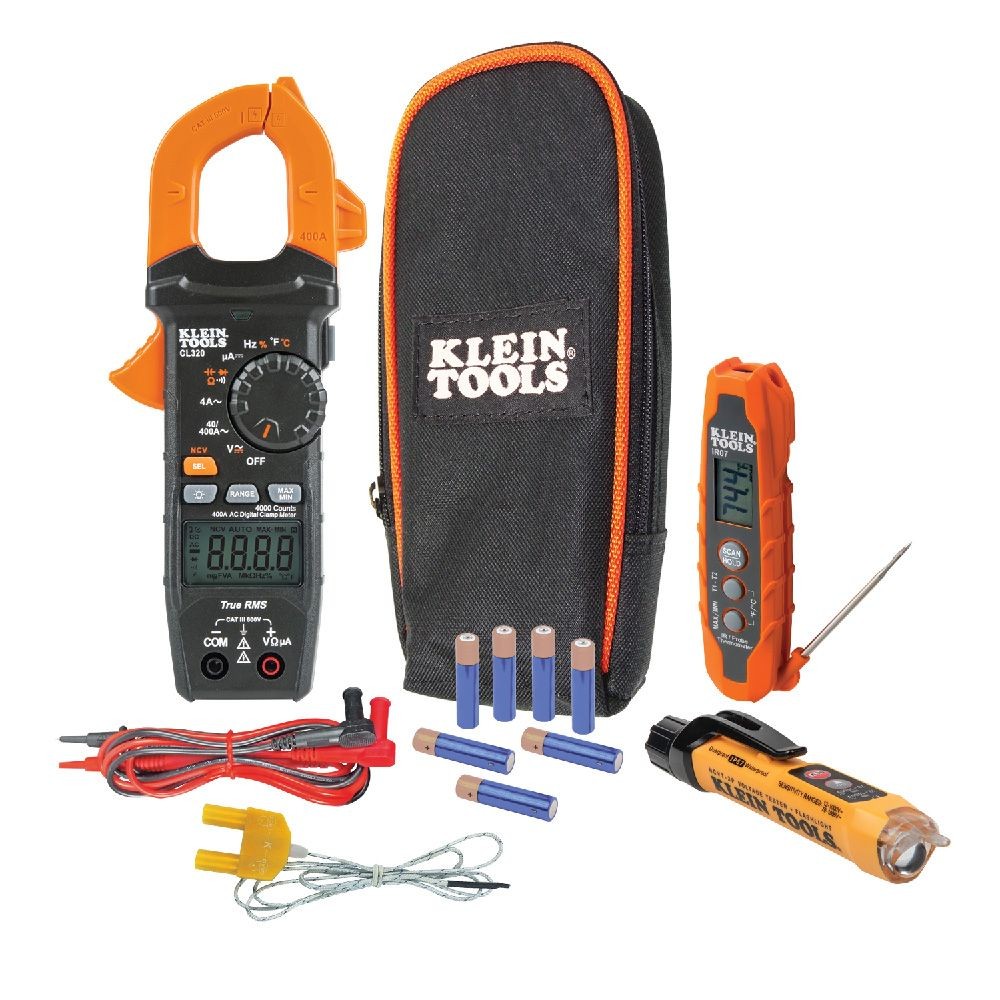

Klein Tools CL320KIT Includes

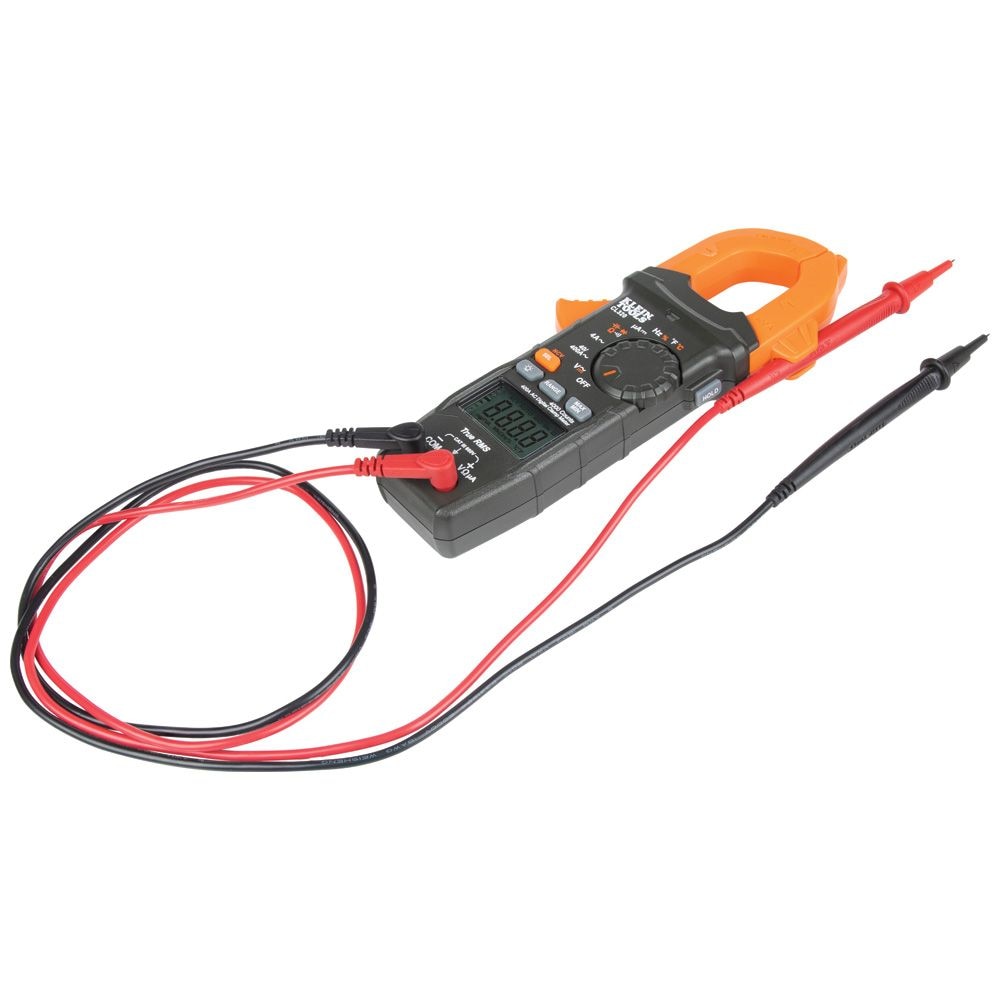

- (1) CL320 Digital Clamp Meter with Test Leads and Thermocouple
- (1) IR07 Dual IR and Probe Thermometer
- (1) NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight
- (1) Carrying Pouch
- (1) Instructions
- (7) AAA Batteries
Klein Tools CL320KIT Features
- HVAC Kit with testers for the HVAC Professional; Cat. No. CL320 HVAC Digital Clamp Meter with AC Auto-Ranging, Cat. No. IR07 Dual IR/Probe Thermometer, and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight

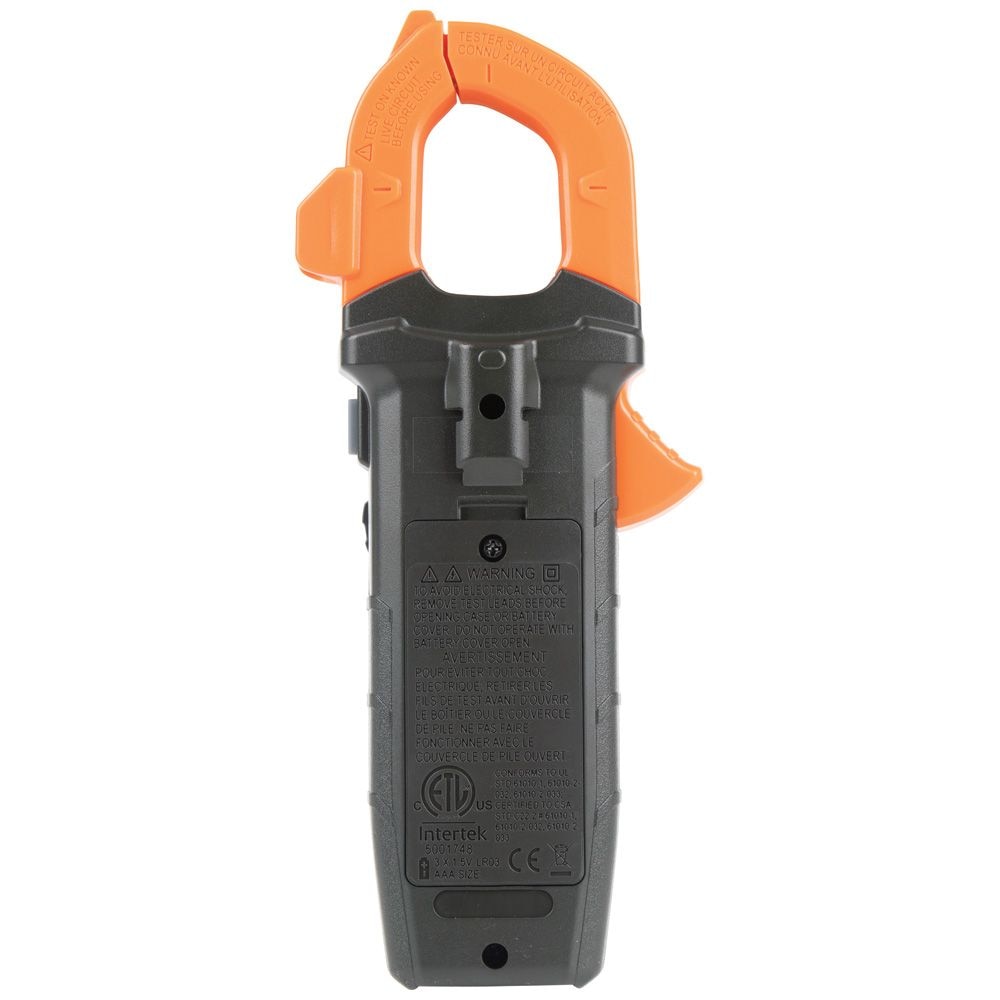

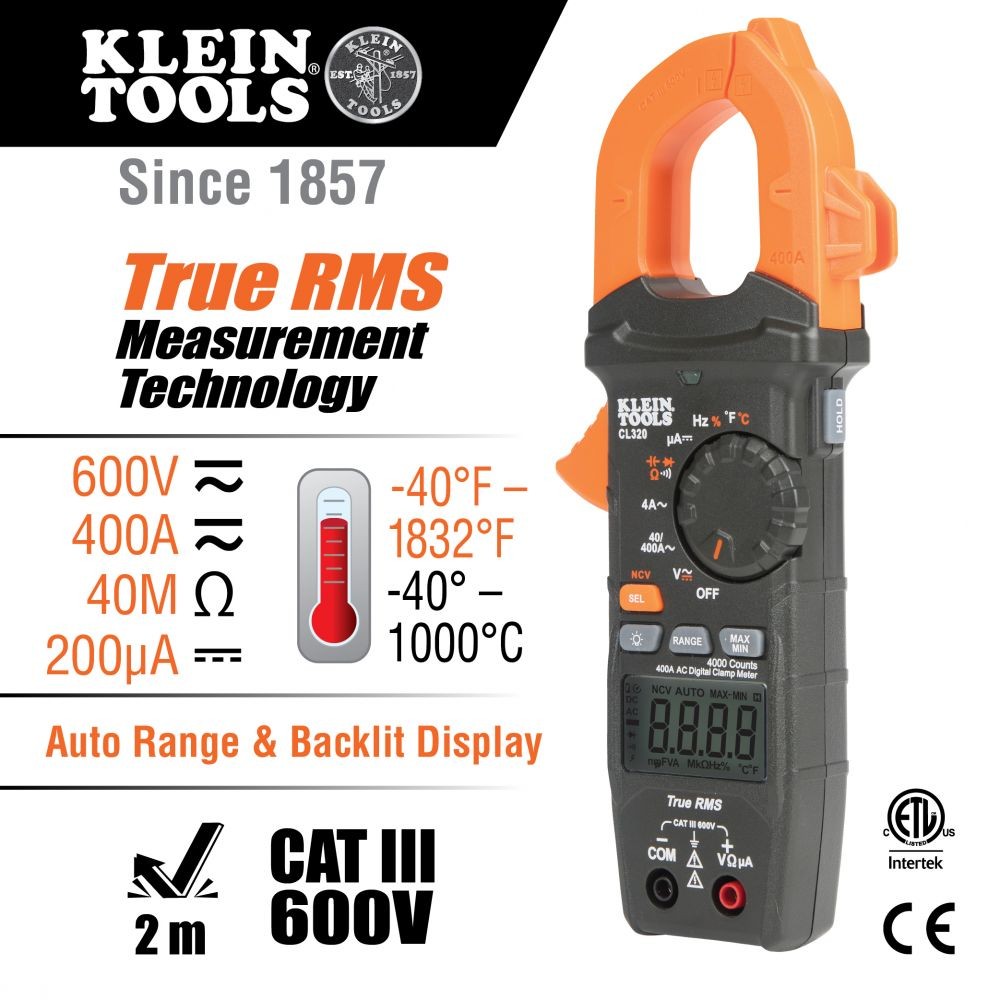

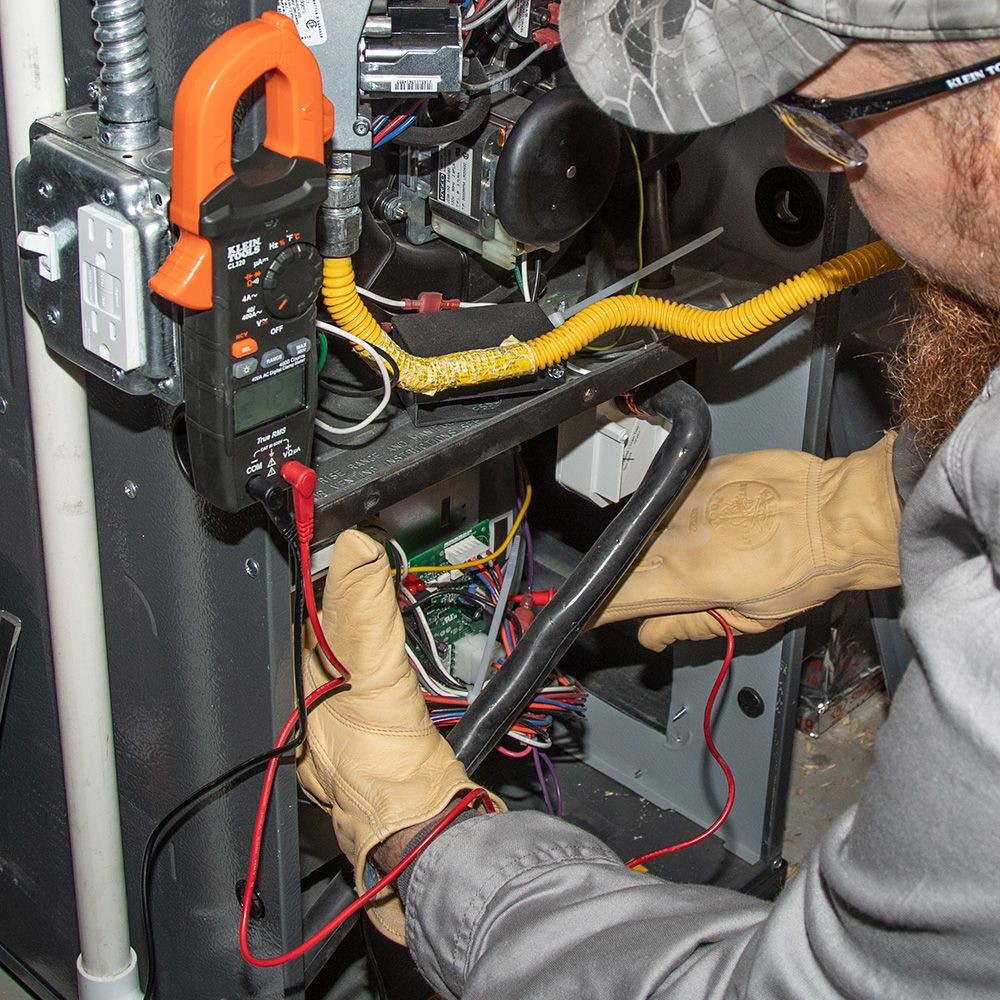

- HVAC Clamp Meter Cat. No. CL320 with TRMS measurement technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature

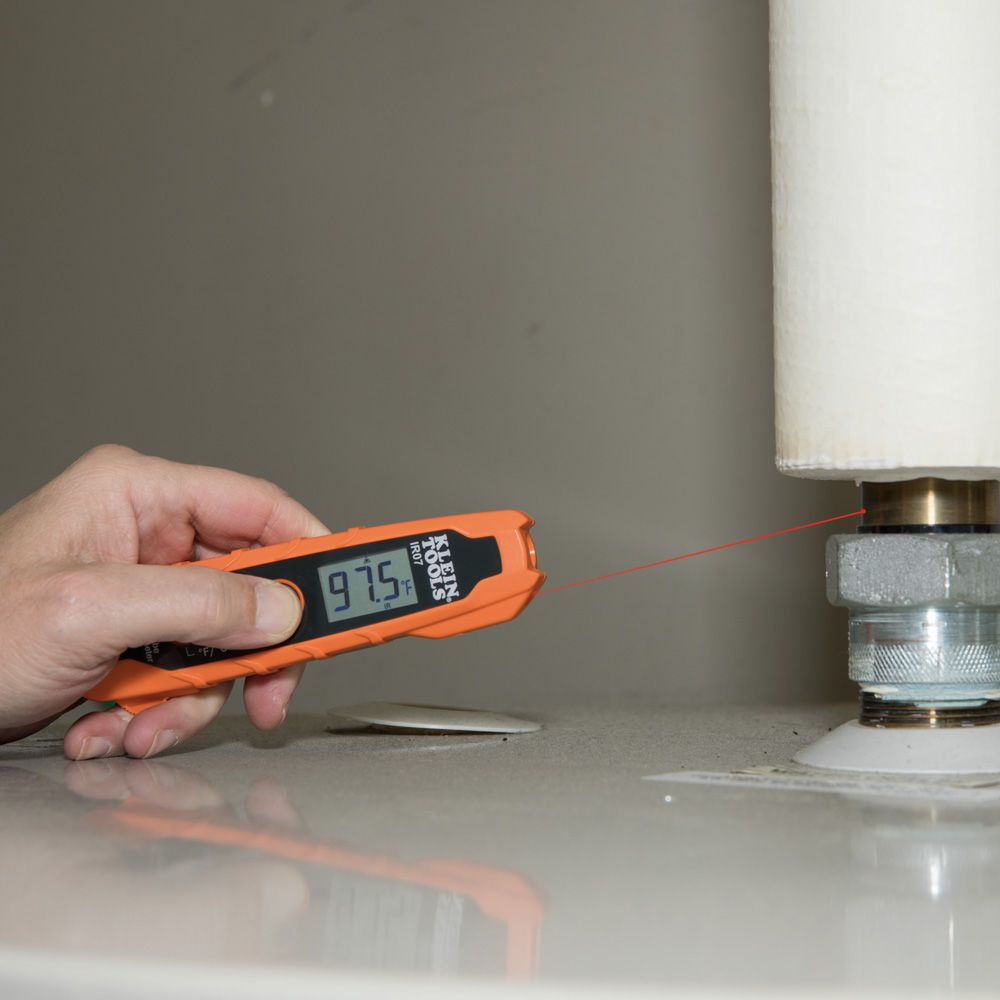

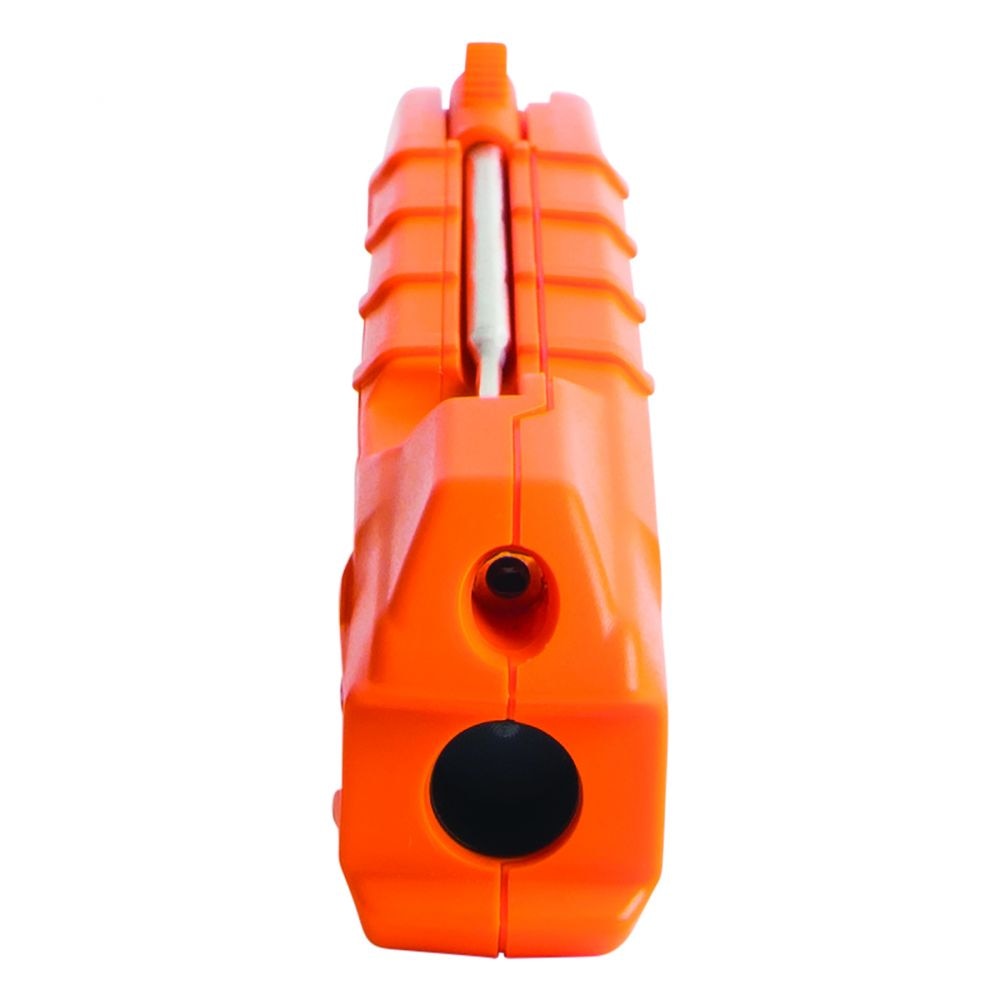

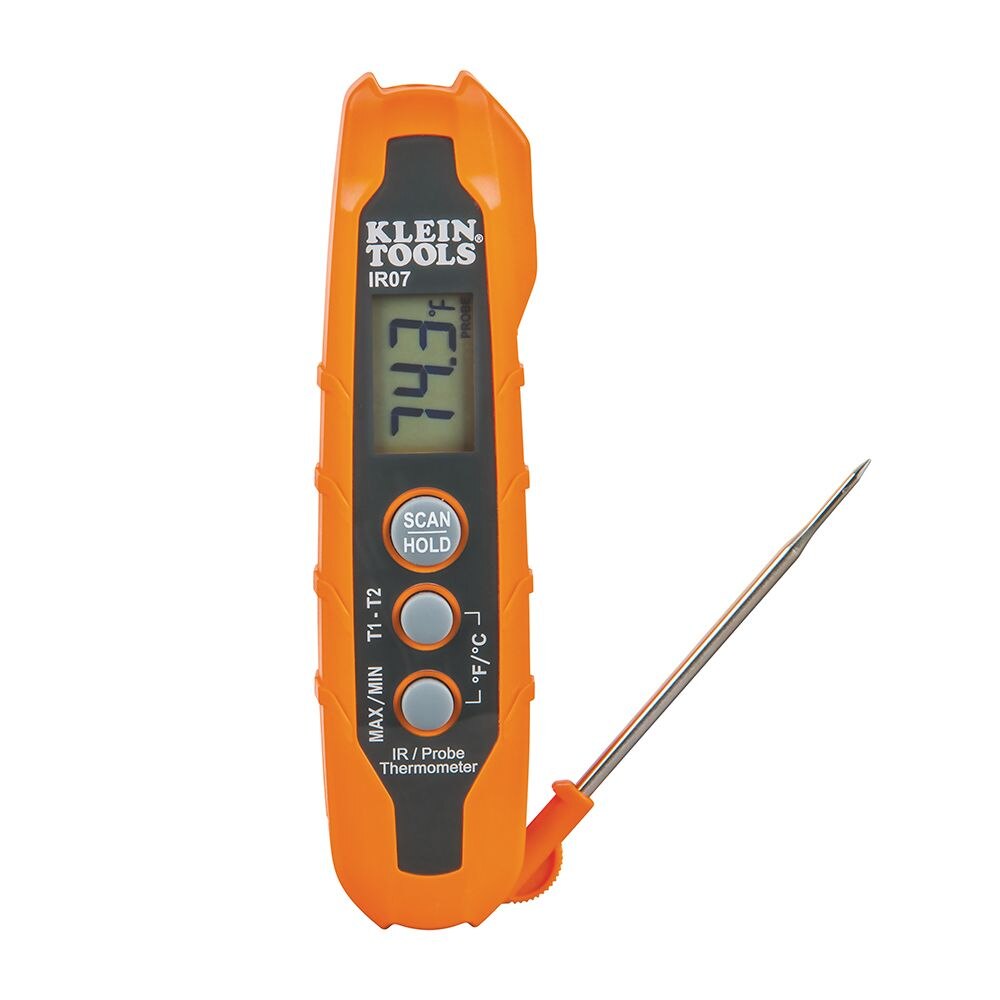

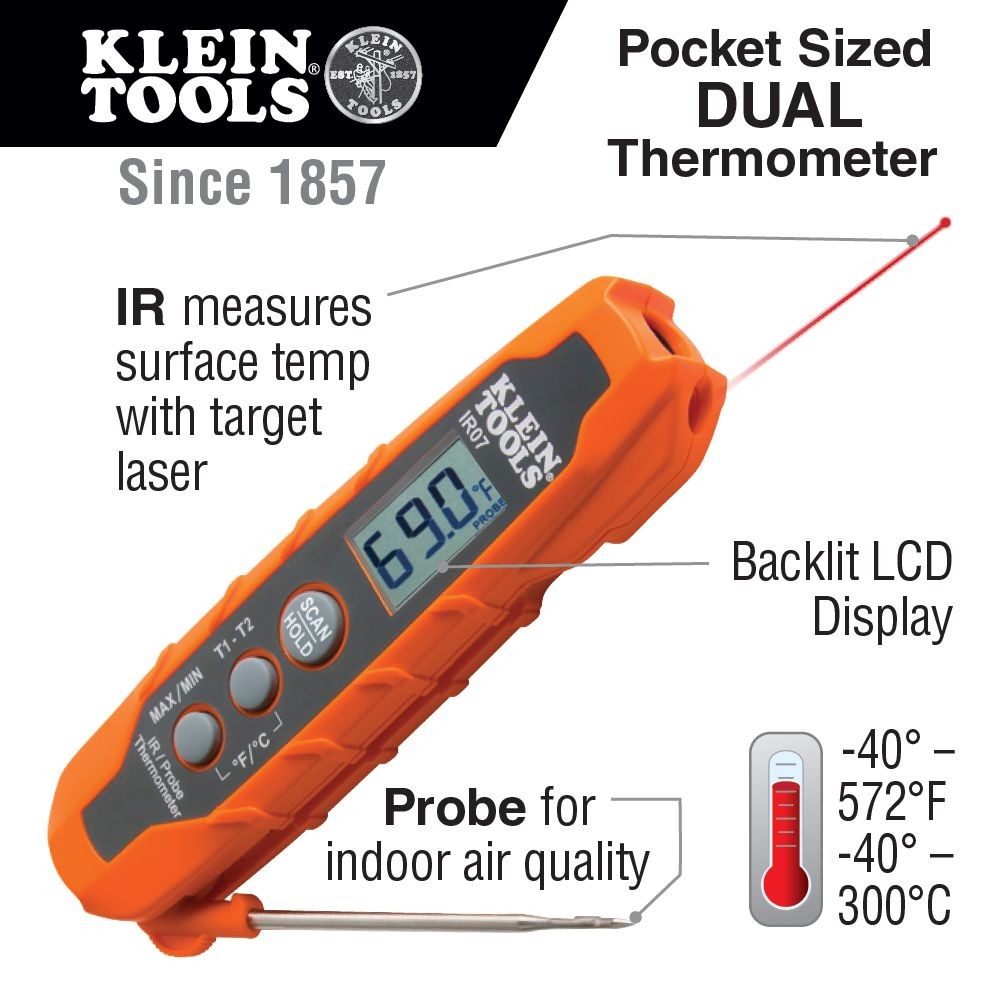

- Cat. No. IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); accurately measure surface temperature with Infrared Thermometer (DS ratio 8:1)

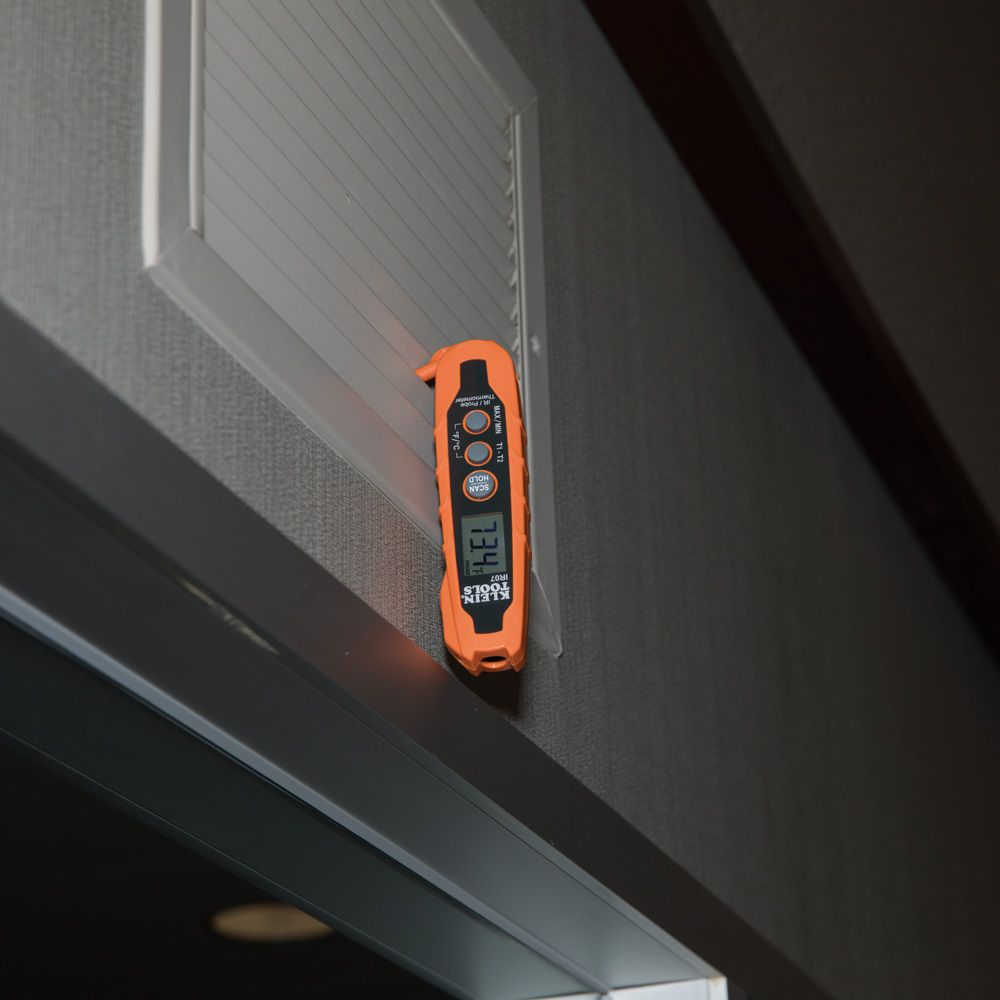

- Measure air vents and duct temperature using temperature probe with hands-free hanging hook; calculate differential temperature (T1-T2) for both IR and probe temperatures; IR07 is not a medical device and is NOT intended for use on people or animals

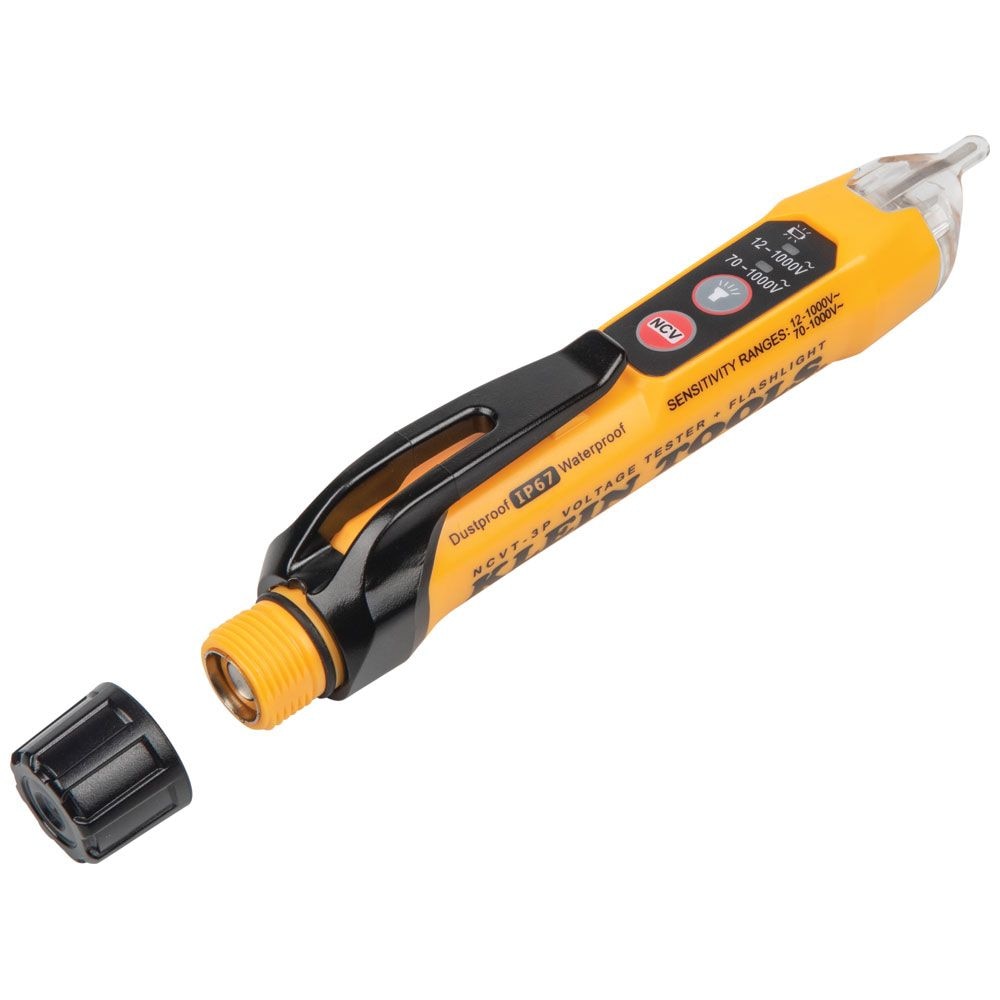

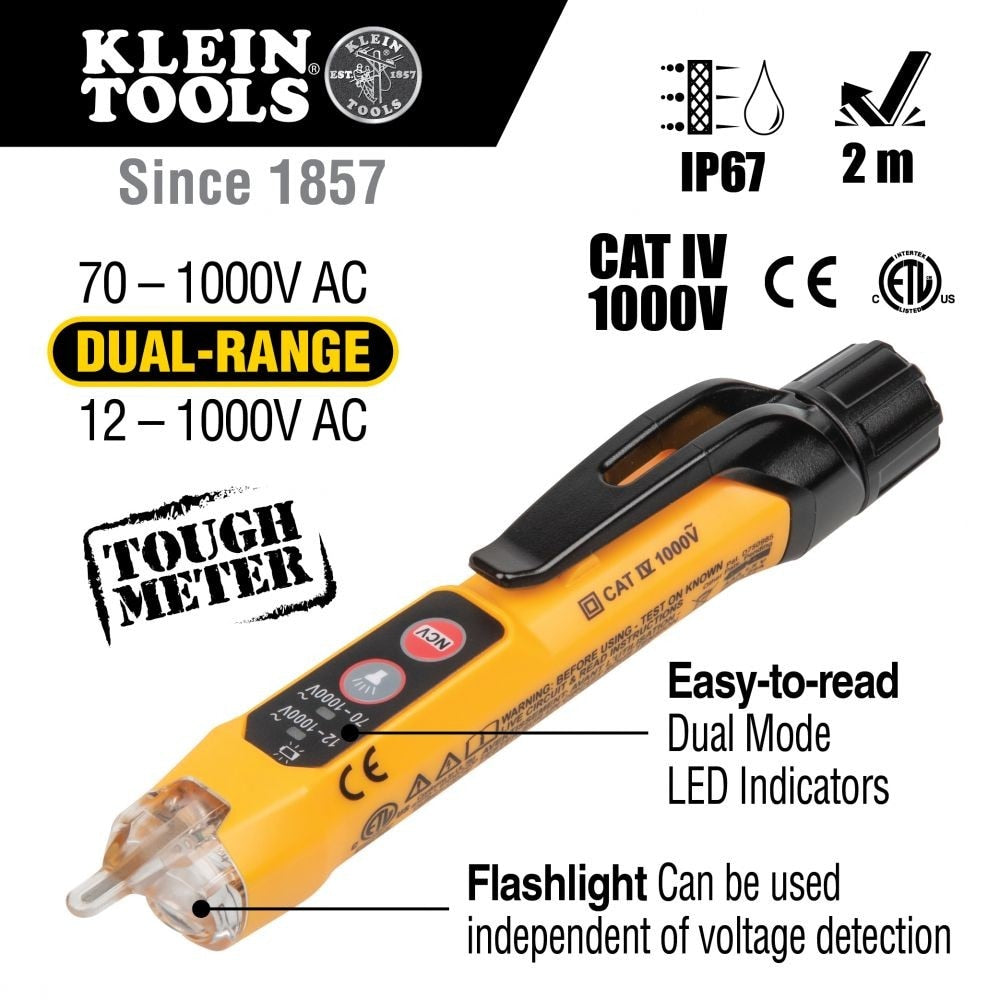

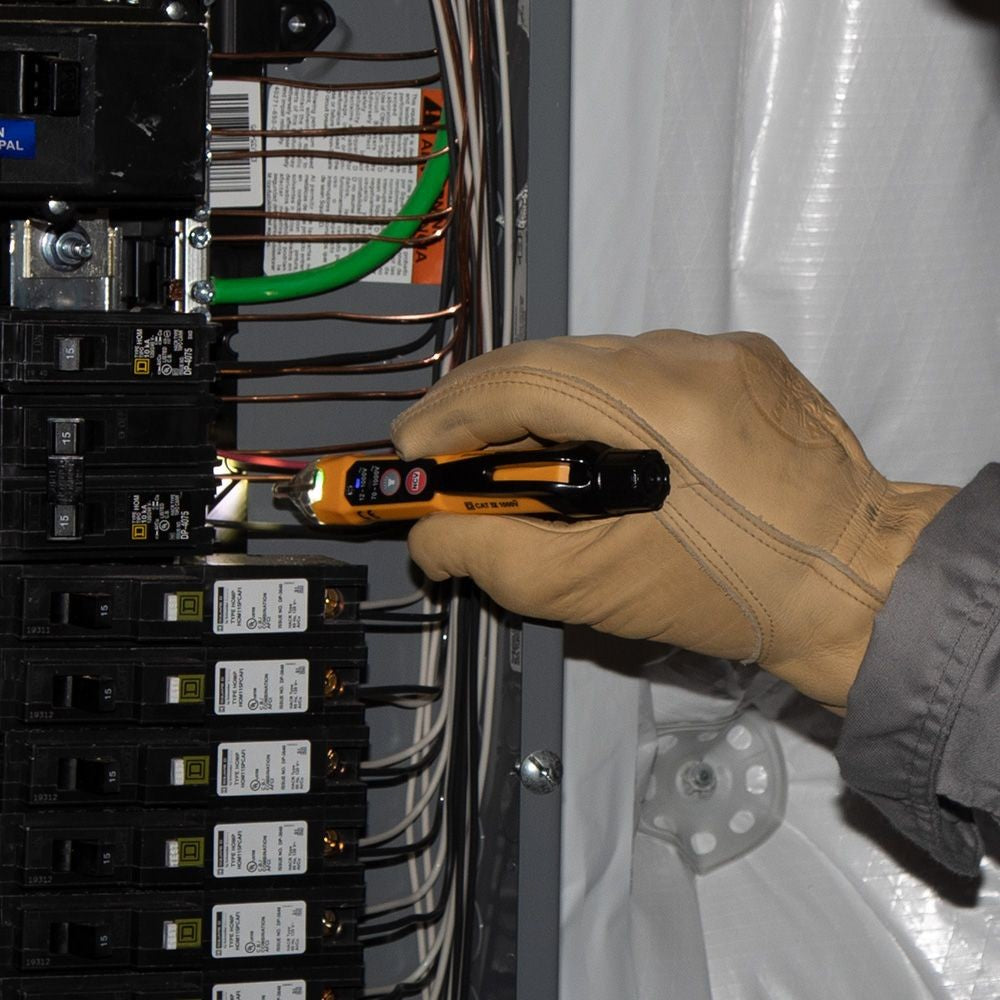

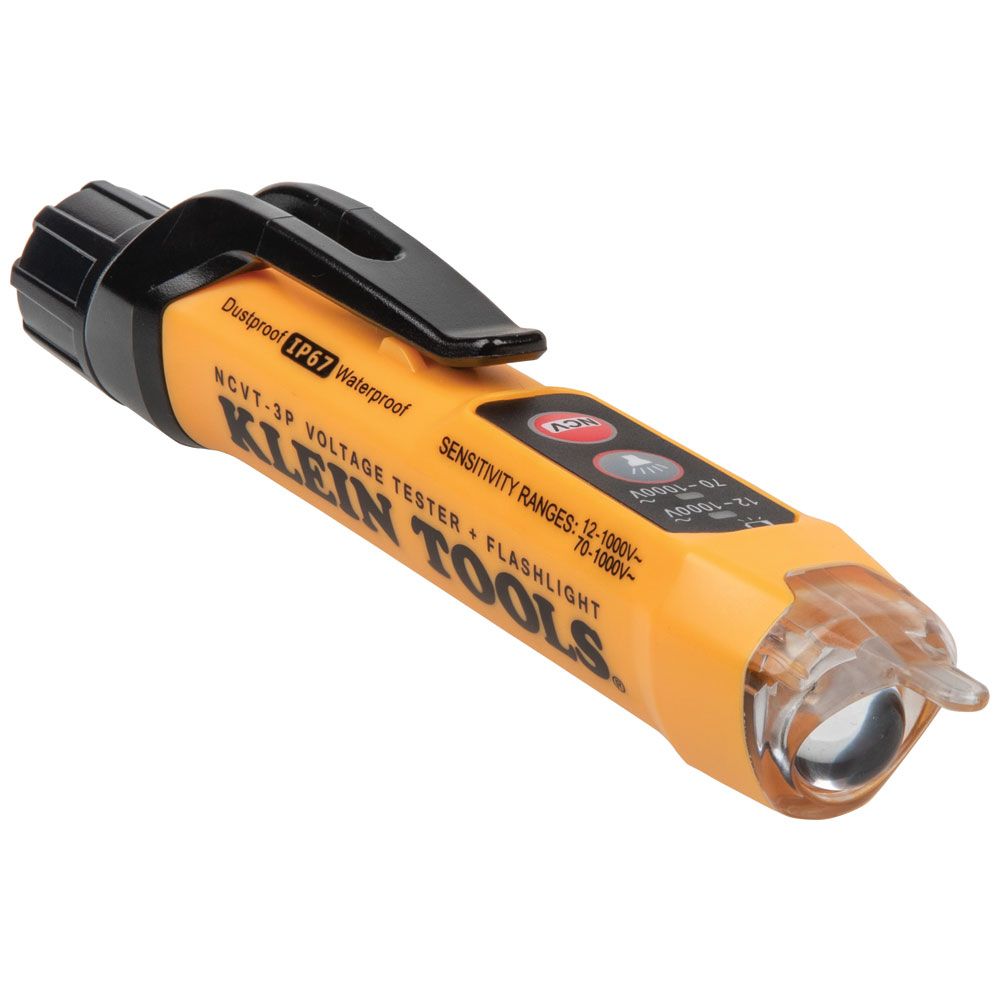

- Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications; detects voltage with simultaneous visual and audible voltage indicators
- Bright flashlight illuminates work area and may be used independent of voltage detection function; CAT IV 1000V rating provides expanded operation and protection
Klein Tools CL320KIT Specifications
| Type | HVAC Testers |
| Material | ABS/Electronics |
| Jaw Size | 1.6'' (4.1 cm) |
| Display | 4000 Count Backlit LCD |
| Functions | TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature |
| Voltage | Cat. No. CL320 |
| Frequency | 10 Hz to1 MHz |
| Current | 400 A AC |
| Capacitance | 4000 µF |
| Ohms (Resistance) | 40MO |
| AC Voltage | 600V |
| DC Voltage | 600V |
| DC Polarity Indicator | Yes |
| DC Micro-Amp | 200 ?A |
| Temperature Range | -40° to 1832°F (-40° to 1000°C) |
| Batteries | 7x AAA |
| Auto-Power Off | Yes |
| Drop Protection | 6.6' (2 m) |
