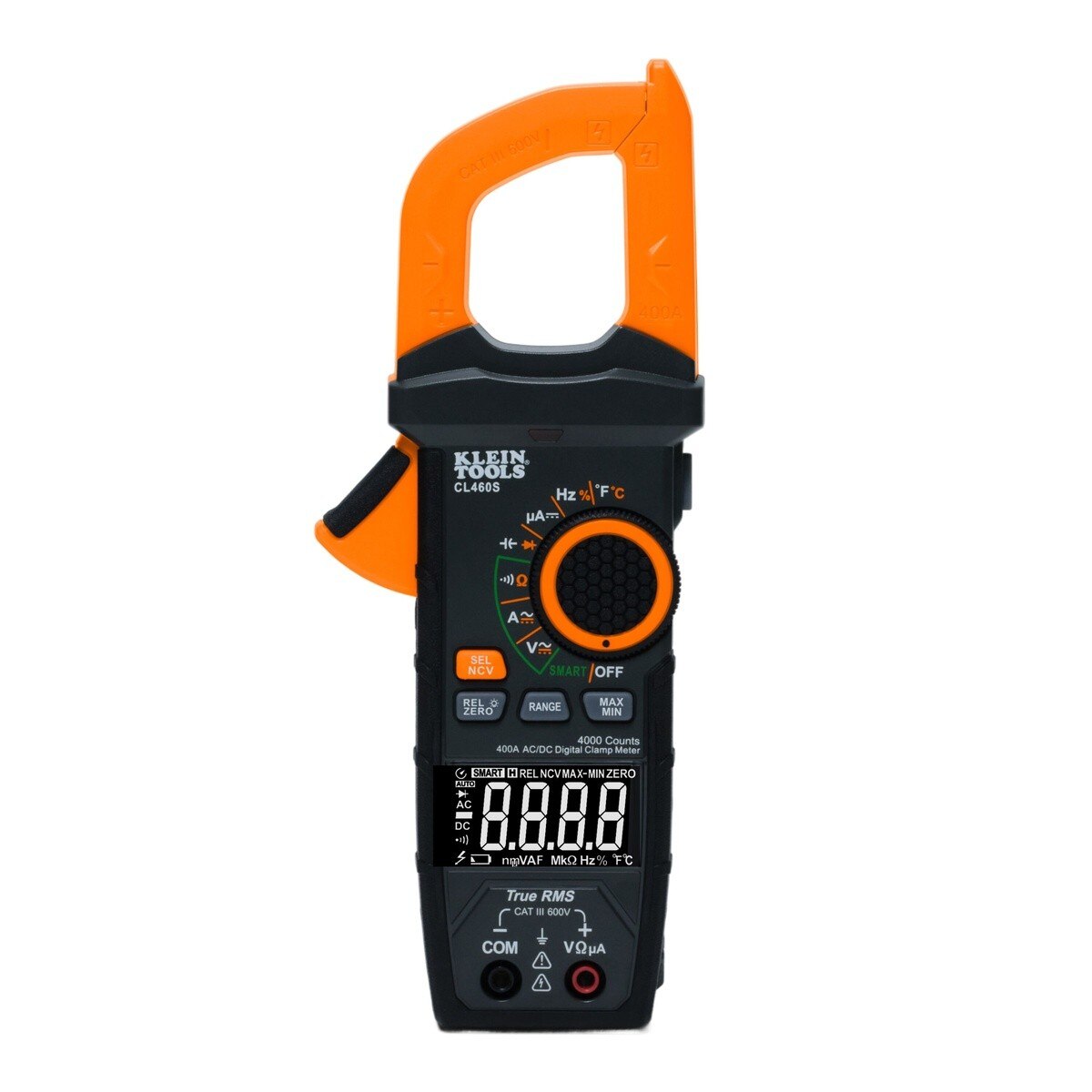

Klein CL460S Description
Klein Tools CL460S Smart Digital Clamp Meter combines auto-detection technology with traditional dial control for versatile electrical testing. Smart mode automatically switches between voltage, current, resistance, and continuity without manual selection. It delivers 400A AC/DC capability, TRMS accuracy, and a reverse-contrast backlit display for clear readings, plus a built-in lead holder and compatibility with optional magnetic hangers for hands-free positioning.

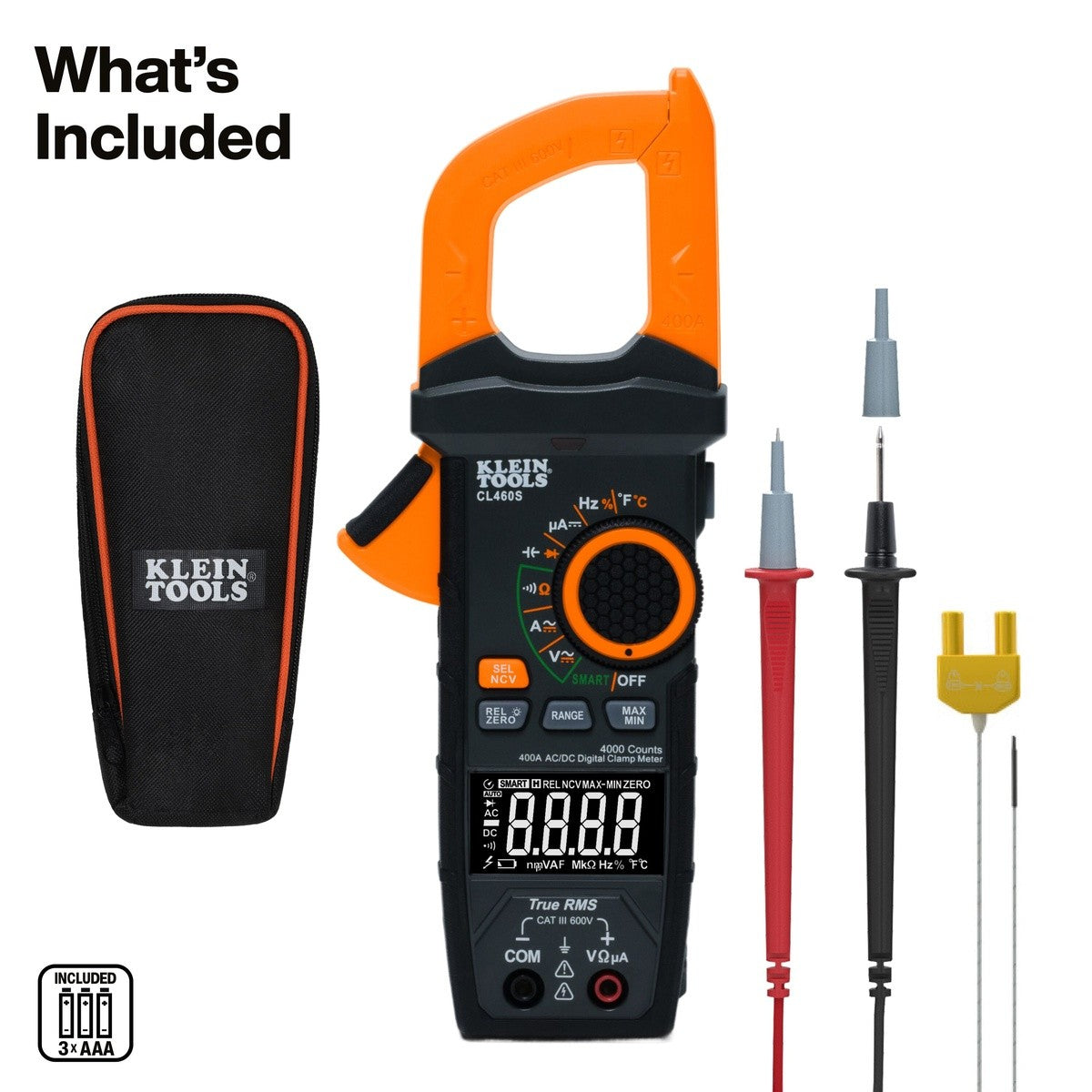

Klein CL460S Includes
- (1) CL460S Clamp Meter
- (1) Right-Angle Input Test Leads
- (1) Thermocouple
- (1) Carrying Case
- (1) Instruction Manual
- (3) AAA Batteries
Klein CL460S Features
- Smart mode automatically detects measurement type and switches between continuity, voltage, resistance, and current without dial adjustment
- Measures AC/DC voltage up to 600V and AC/DC current up to 400A
- Measures resistance up to 40M Ohm
- Reverse-contrast display with optimized backlighting for readability in varied lighting
- Auto-ranging precision with TRMS technology for reliable measurements
- Built-in test lead holder for hands-free operation
- Compatible with optional magnetic hangers for convenient positioning
- Slim, rugged design built to withstand demanding jobsite conditions
- Non-contact voltage testing capability
- Drop protection rated to 6.5 ft (2 m)
Klein CL460S Specifications
| Type | Closed Clamp Meter |
| Application | Electrical diagnostic and troubleshooting applications |
| Special Features | SMART Mode; backlit reverse-contrast display; built-in lead holder |
| Material | ABS/Electronics |
| Batteries | 3 x AAA |
| Battery Life | 22 hr |
| Auto-Power Off | Yes |
| Jaw Size | 1.25 in (3.2 cm) |
| Drop Protection | 6.5 ft (2 m) |
| Display | 4000 Count LCD |
| Display Size | 1.5 in |
| Functions | SMART Mode; AC/DC Voltage; AC/DC Current; Resistance; DC Micro Amps; Audible Continuity; Temperature; Non-Contact Voltage Testing; Diode Test; Capacitance; Frequency/Duty Cycle; Min/Max Value; Rel/Zero; Data Hold |
| Auto Ranging | Yes |
| TRMS | Yes |
| Voltage Measurement | 600V AC; 600V DC |
| Current Measurement | 400A AC/DC |
| Frequency Range | 10Hz - 60kHz |
| Product Length (in) | 11.625 |
| Product Width (in) | 6.25 |
| Product Height (in) | 2.75 |
| Shipping Weight (lb) | 0.697 |
Toolup Part # :
872896
