Klein Tools | SKU:
CL810

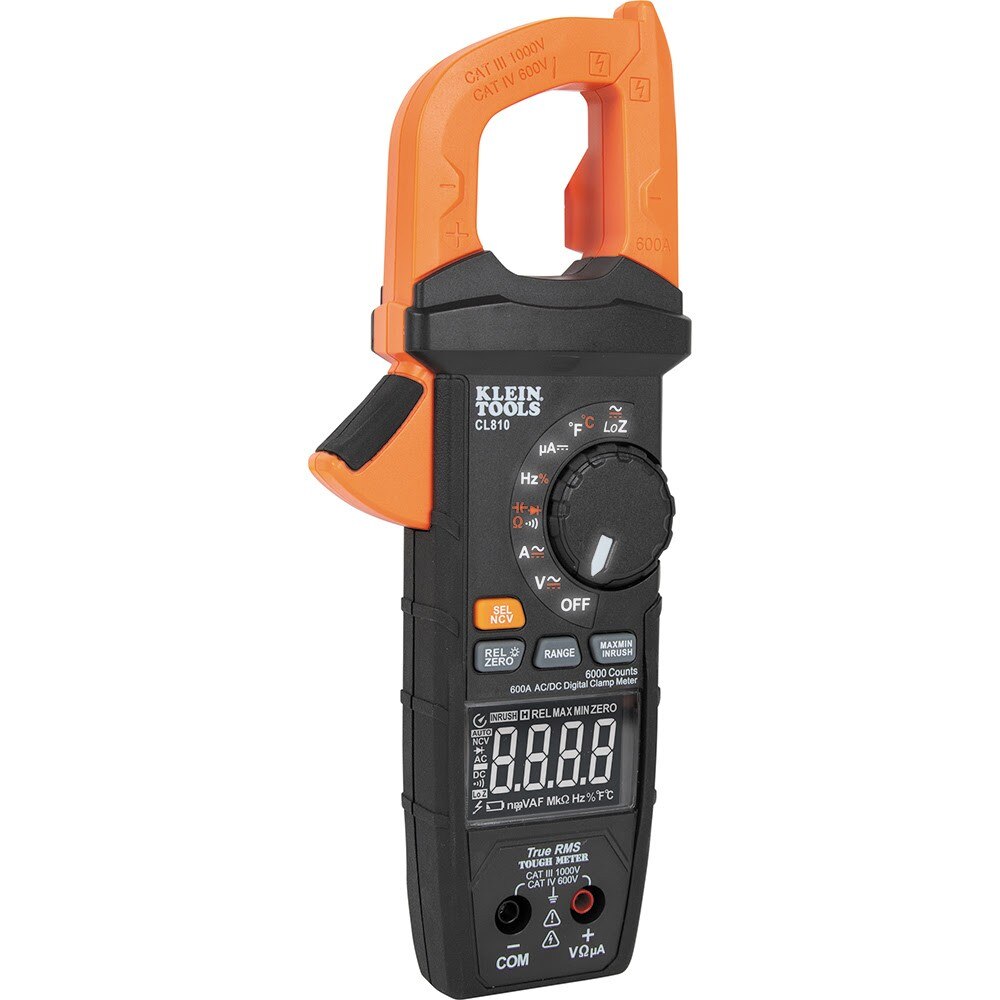

Klein CL810 600A AC/DC Auto-Ranging Digital Pro Clamp Meter with Worklight
$129.97
$187.50
Unit price
/
Unavailable
Description
Description
Klein CL810 Description
Klein Tools CL810 Clamp Meter with Flashlight delivers accurate measurements across AC/DC current, voltage, resistance, continuity, frequency, inrush, and capacitance, all with True RMS precision. It features diode testing and LoZ mode to eliminate ghost voltages. Temperature is taken via thermocouple. Features NCV detection with escalating audio-visual alert. The transflective reverse-contrast display and lighted dial ensure visibility in any lighting; a reliable tool for diverse applications.

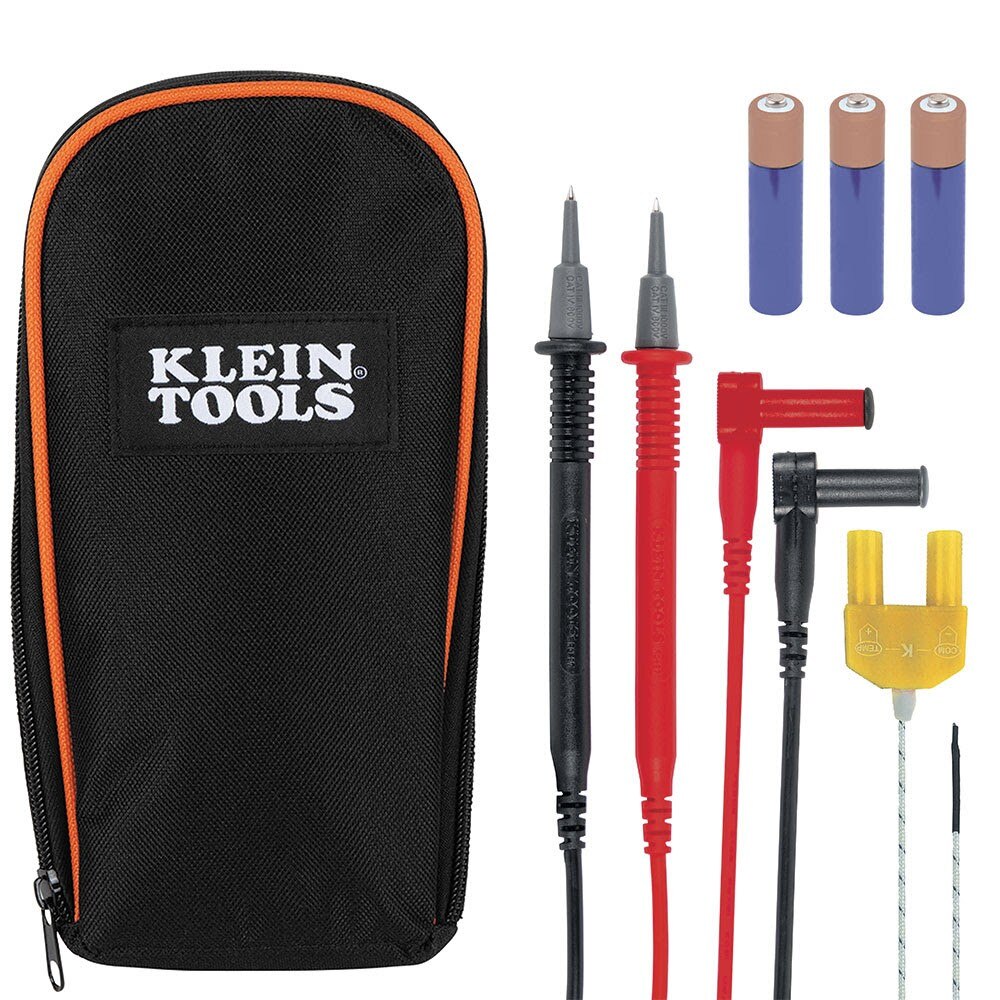

Klein CL810 Includes
- (1) Clamp Meter
- (1) Right-Angle Input Test Leads
- (1) Thermocouple
- (1) Storage Pouch
- (1) Instruction Manual
- (3) AAA Batteries
Klein CL810 Features
- Clamp meter with True RMS provides accurate and reliable measurements across various applications
- Measures AC/DC voltage, AC/DC current, resistance, DC micro amps, temperature, diode test, continuity, capacitance, frequency/duty cycle, and inrush

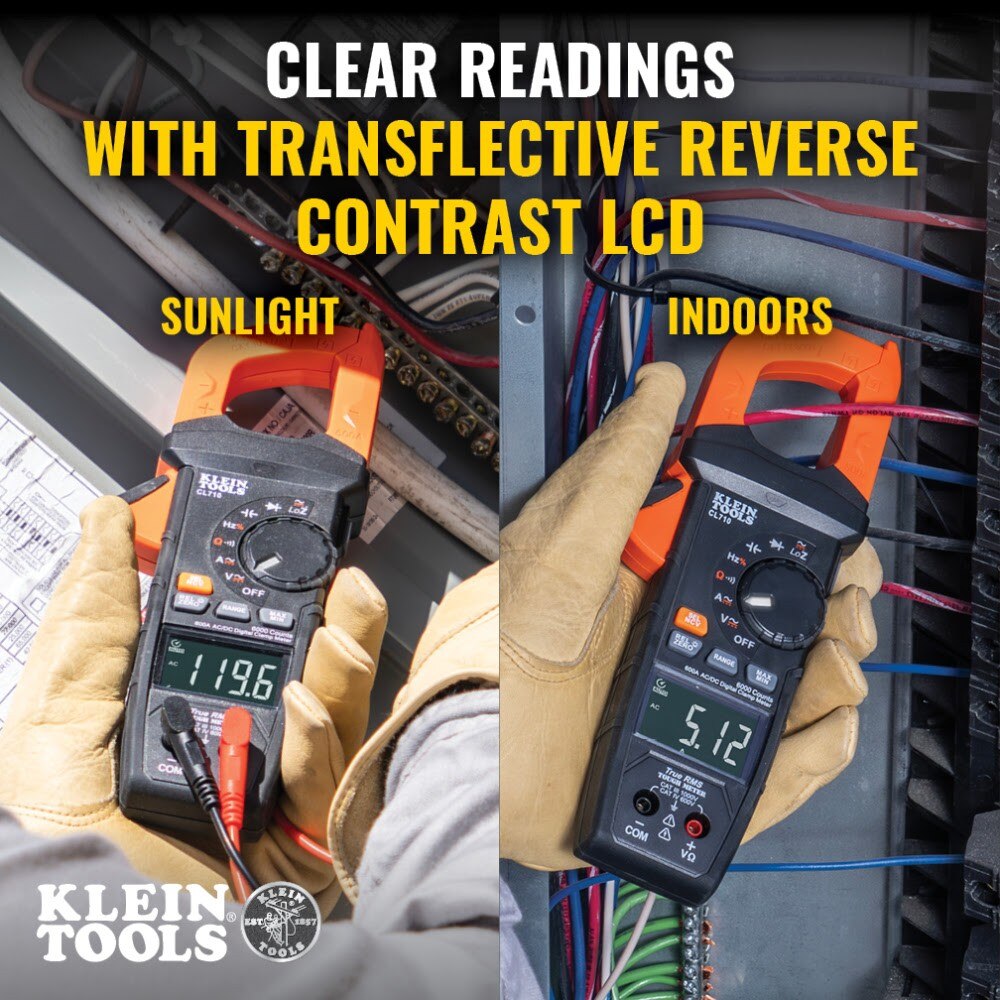

- Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments

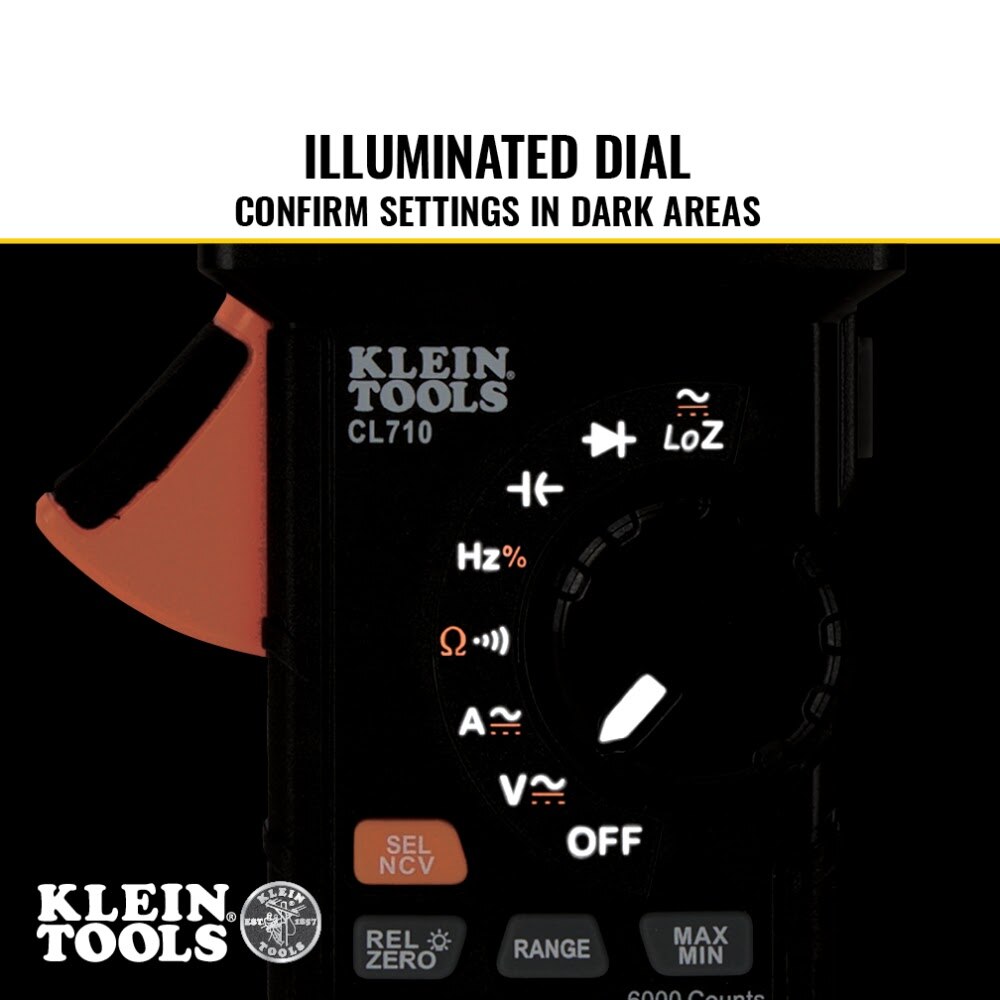

- Illuminated dial ensures clear visibility and easy reading, even in low-light environments
- Features a low impedance (LoZ) mode to identify and eliminate ghost voltages, preventing false readings and ensuring more accurate measurements

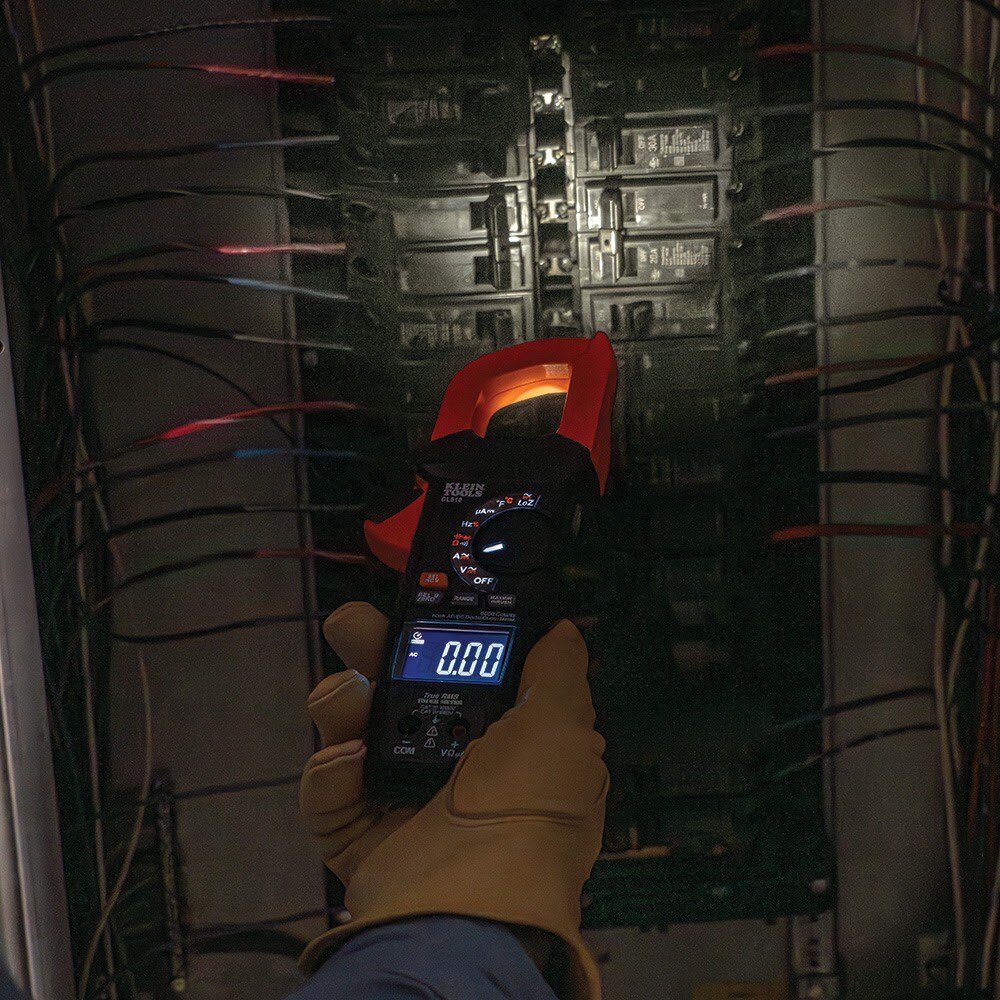

- Integrated worklight illuminates the work area for improved visibility in dark or confined spaces
- Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
- Rated IP40 for ingress protection, withstands drops from 6.6 feet (2 m), and includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
- Ergonomic design and overmold provide a comfortable grip, with easy dial adjustment using the thumb

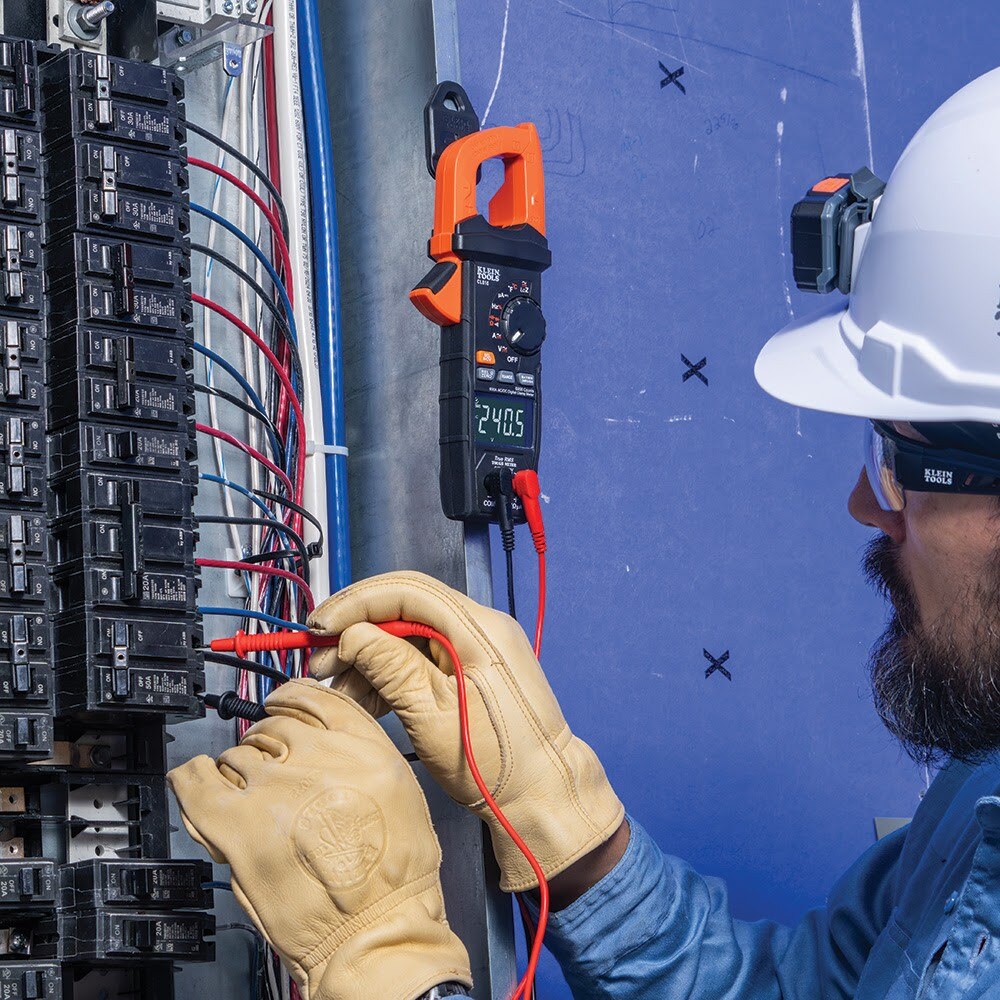

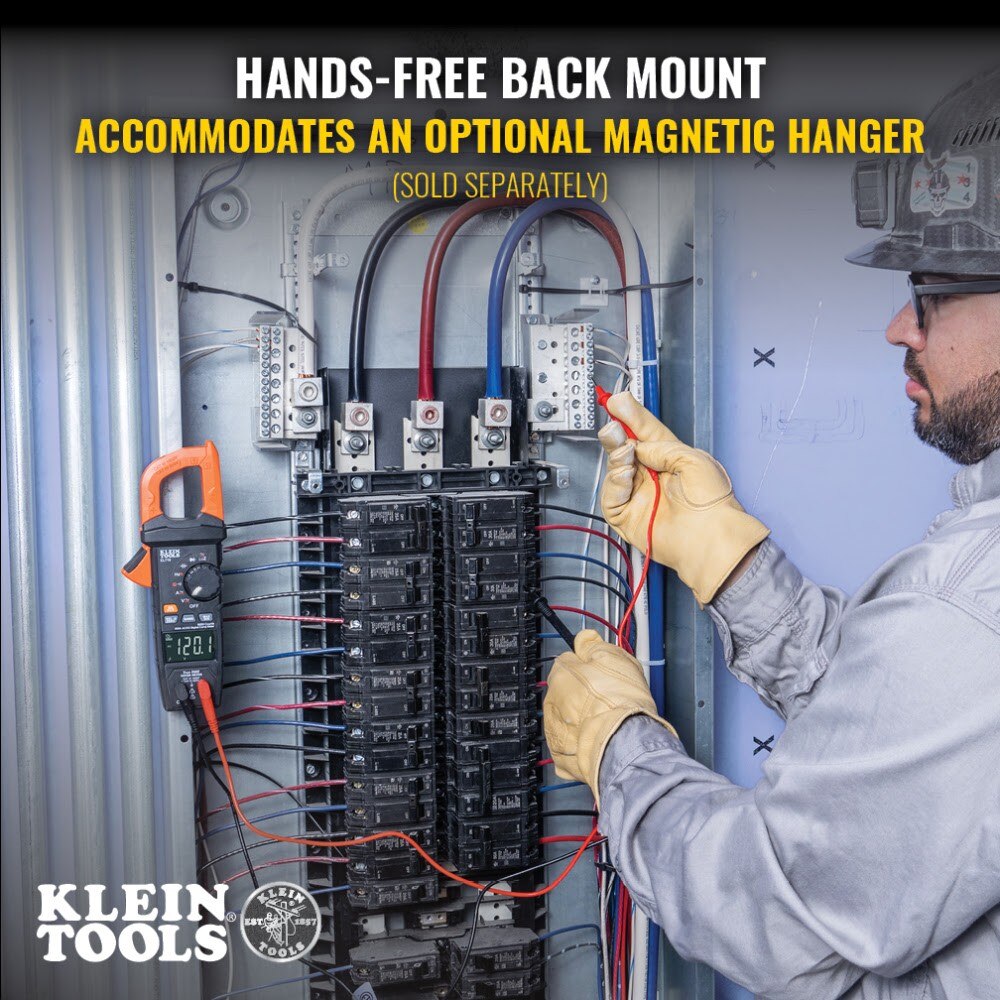

- Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
Klein CL810 Specifications
| Type: | Pro Clamp Meter |
| Functions: | AC/DC/ Voltage, AC/DC Current, Resistance, DC Micro Amps, Audible Continuity, Temperature, Low Impedance, Non-Contact Voltage Testing, Diode Test, Capacitance, Frequency/Duty Cycle, Inrush, Min/Max Value, Rel/Zero, Data Hold Capability |
| Ohms (Resistance): | 60M? |
| Accuracy: | See Instructions |
| Frequency: | 1Hz - 500 KHz |
| Ingress Protection: | IP40 |
| AC Voltage: | 1000V |
| DC Voltage: | 1000V |

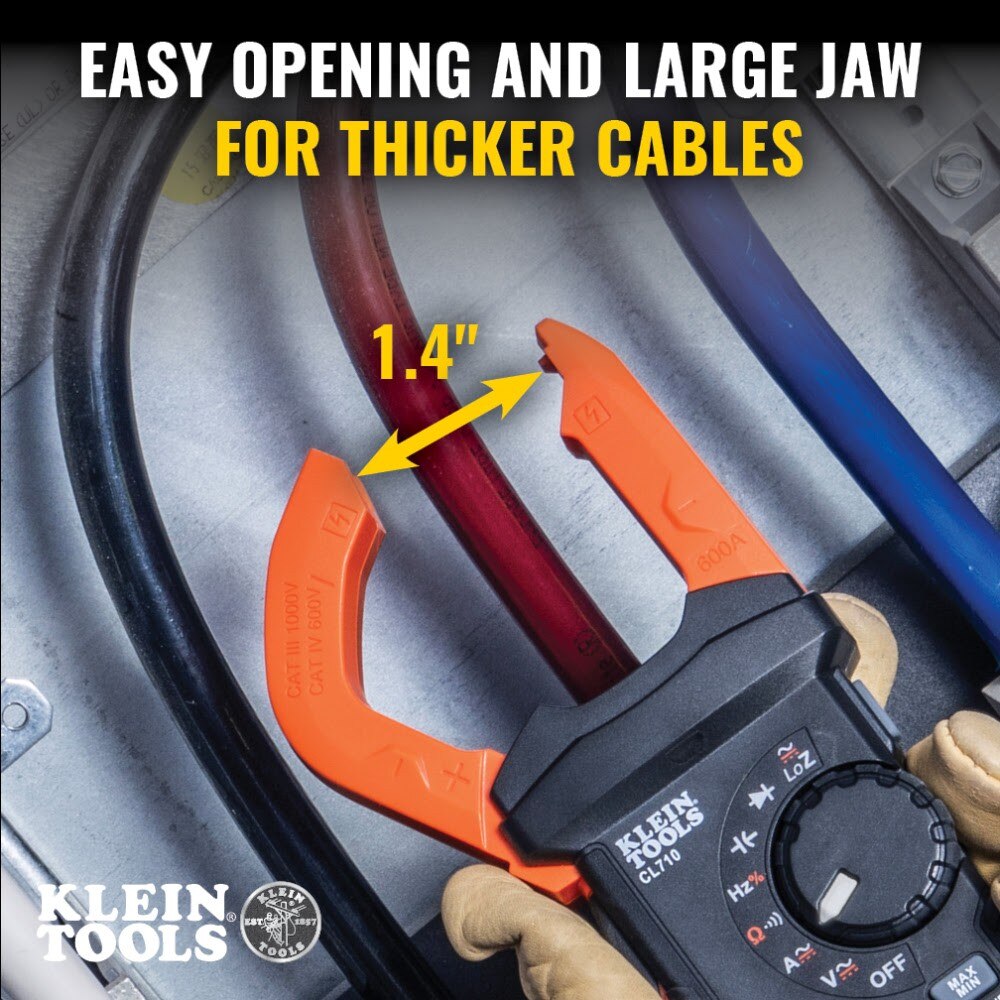

| Jaw Size: | 1.4" (3.6 cm) |
| Capacitance: | 6000µF |
| Current: | 600A |
| Voltage: | 1000V AC; 1000V DC |
| Auto-Power Off: | Yes |
| Special Features: | Transflective Reverse-Contract Display; Lighted Dial; Built-in Worklight; Built-in Lead Holder |
| Temperature Range: | 40° to 1832° F (-40° to 1000° C) |
| Standard: | CAT IV 600V, CAT III 1000V, Class 2, Double Insulation, CE, UKCA |
| Batteries: | 3 x AAA |
| Display: | Transflective Reverse-Contrast with 6000 Count LCD |
| Display Size: | 1.5" x 1.0" (3.83 x 2.6 cm) |
| Auto Ranging: | Yes |
| TRMS: | Yes |
| Material: | ABS/Electronics |
| DC Polarity Indicator: | Yes |
| DC Micro-Amp: | Yes |
| Drop Protection: | 6.6' (2 m) |
| Application: | Variety of Electrical Diagnostic and Troubleshooting Applications |
| Overall Length: | 9.06" (2.3 cm) |
| Overall Width: | 3.47" (8.8 cm) |
| Overall Height: | 1.65" (4.2 cm) |
| Weight: | 13 oz (369 g) Including Batteries |
