Klein Tools | SKU:
TI290

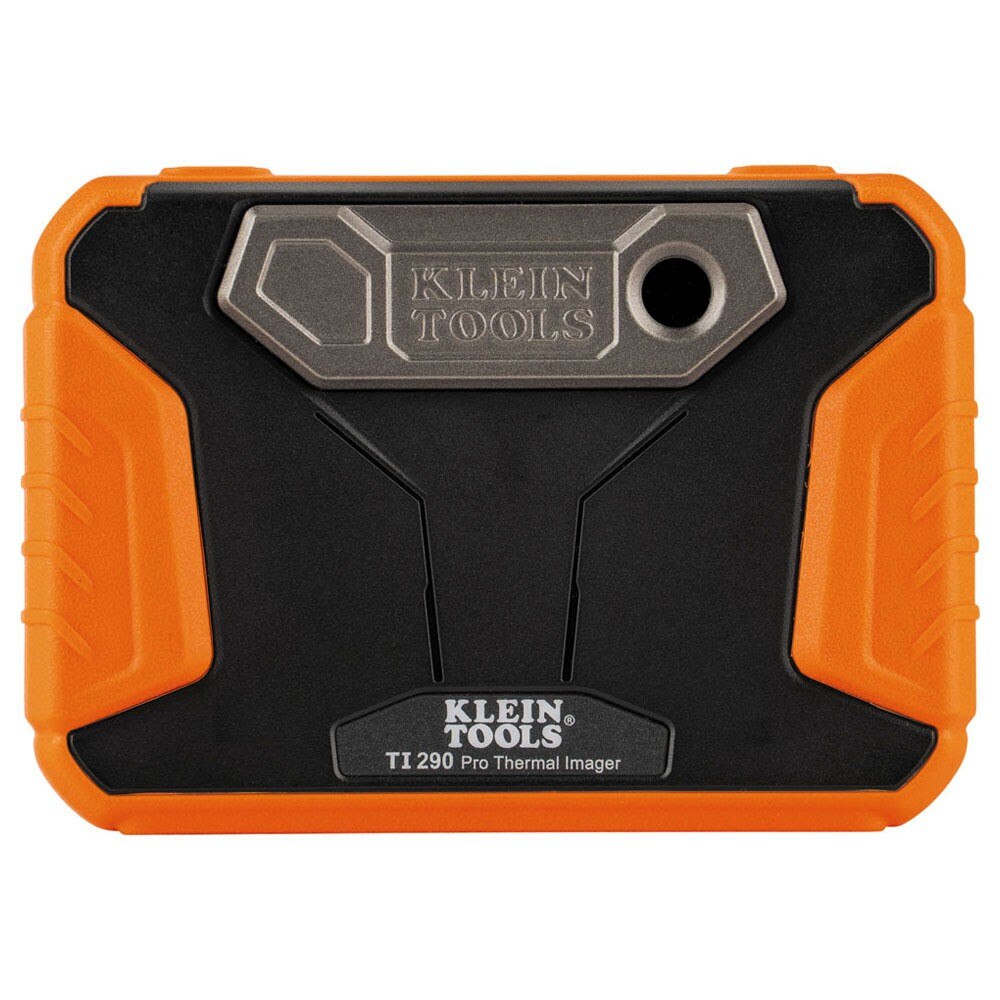

Klein TI290 Rechargeable Pro Thermal Imager
Free Shipping
$499.99
$778.00
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description

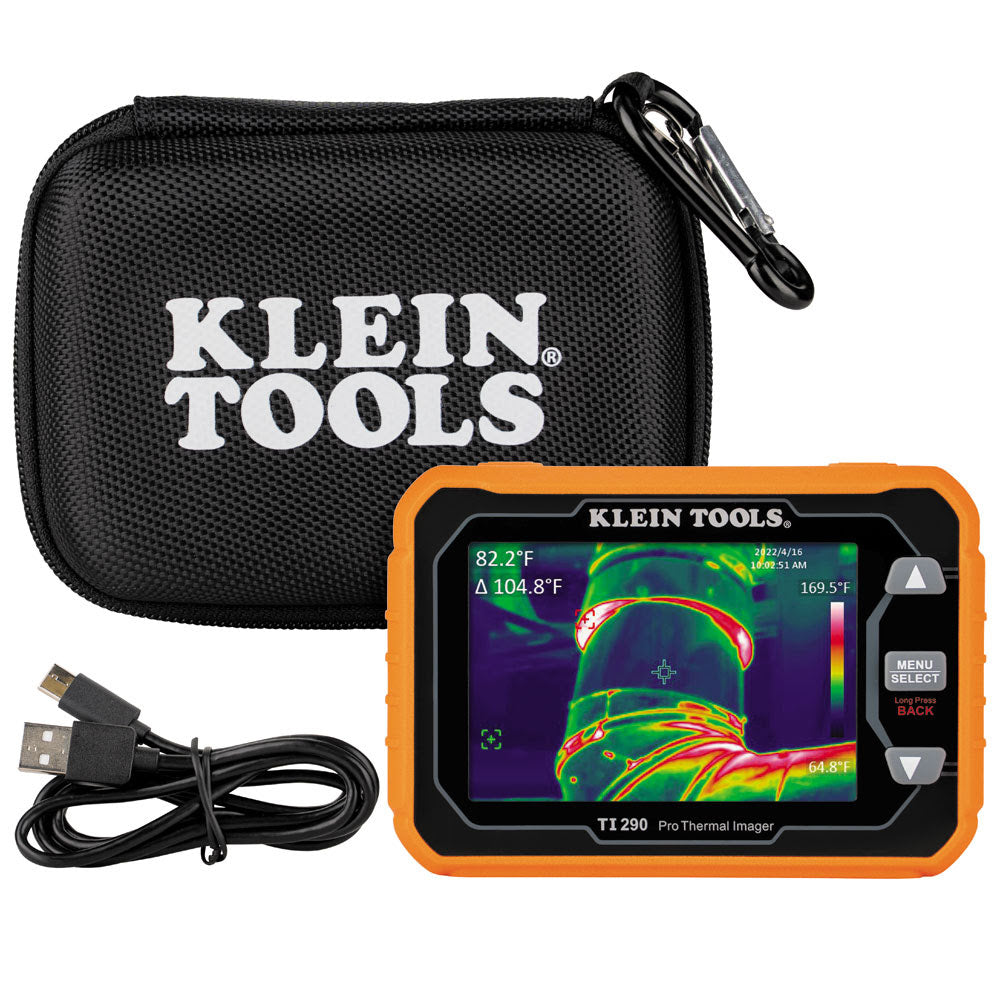

INCLUDES:
• (1) Rechargeable Thermal Imager
• (1) USB Charging Cable
• (1) Molded Soft-Storage Case with Carabiner
• (1) Instructions
FEATURES:

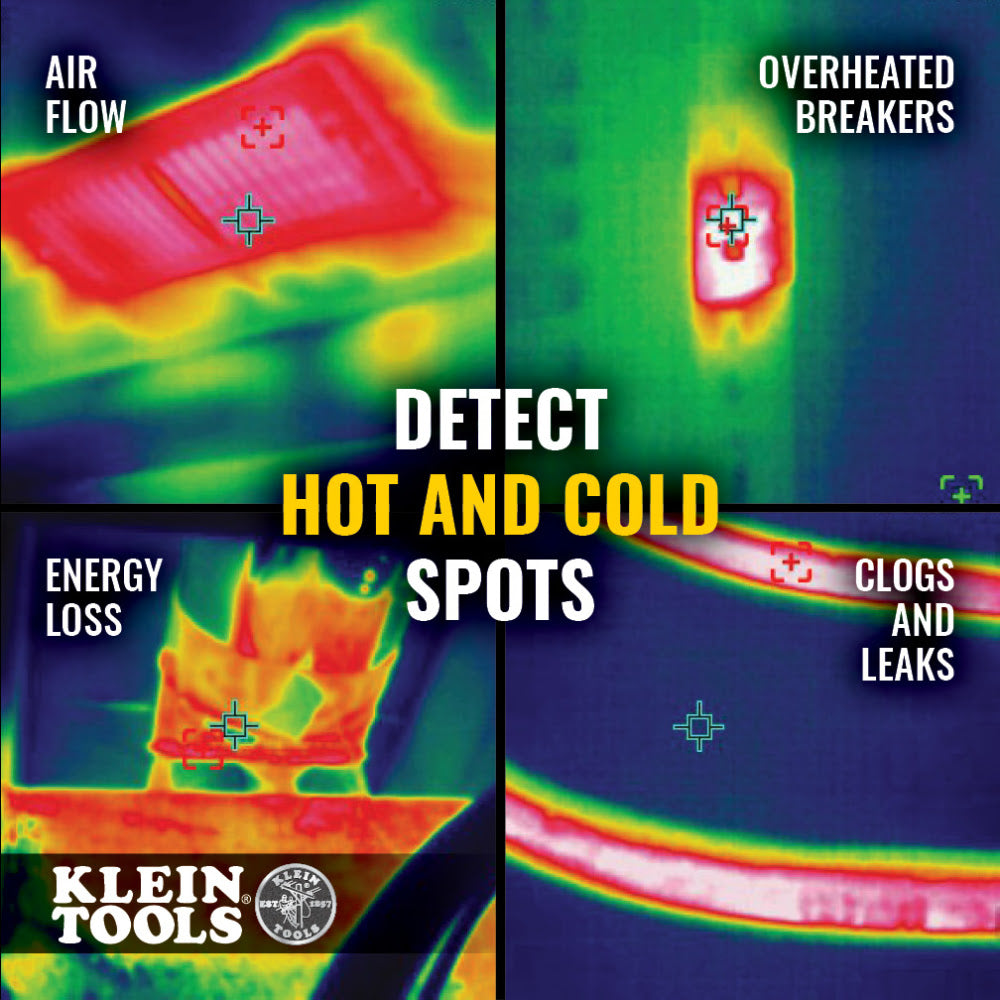

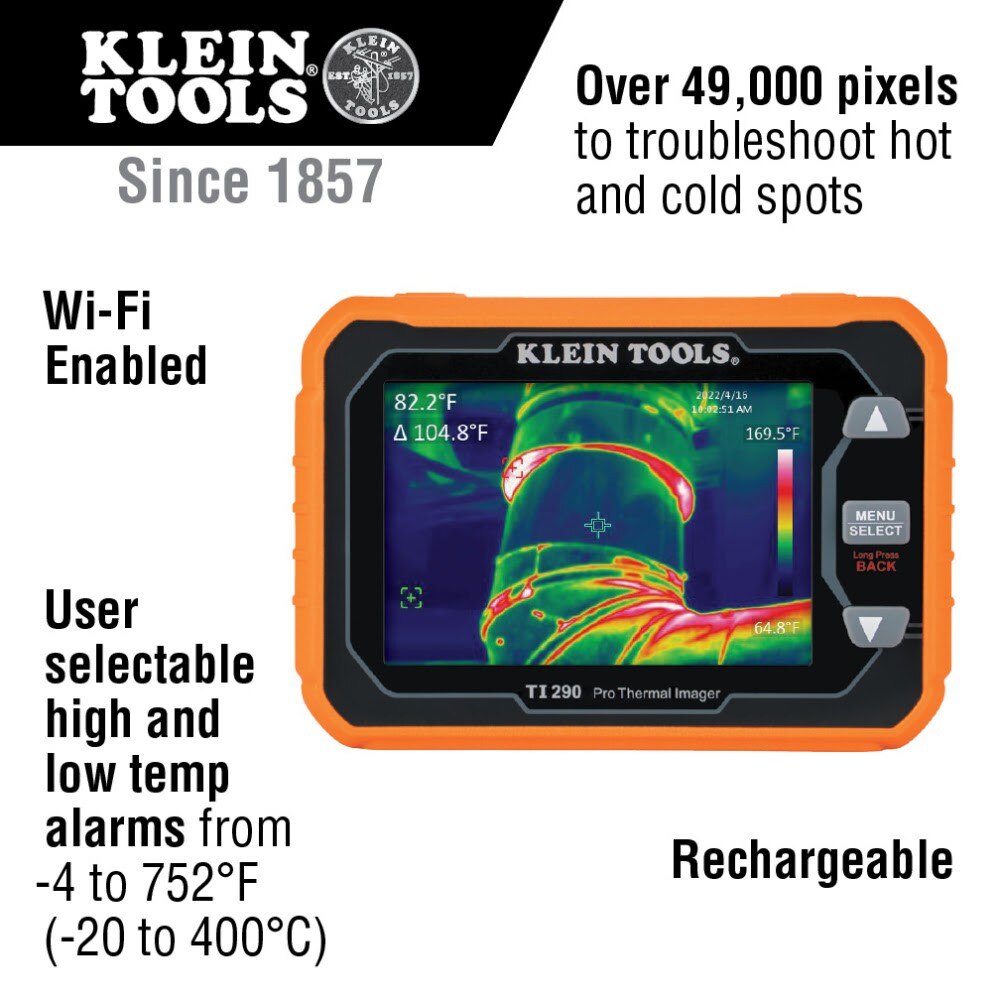

• Thermal Imager has over 49,000 pixels to troubleshoot hot and cold spots

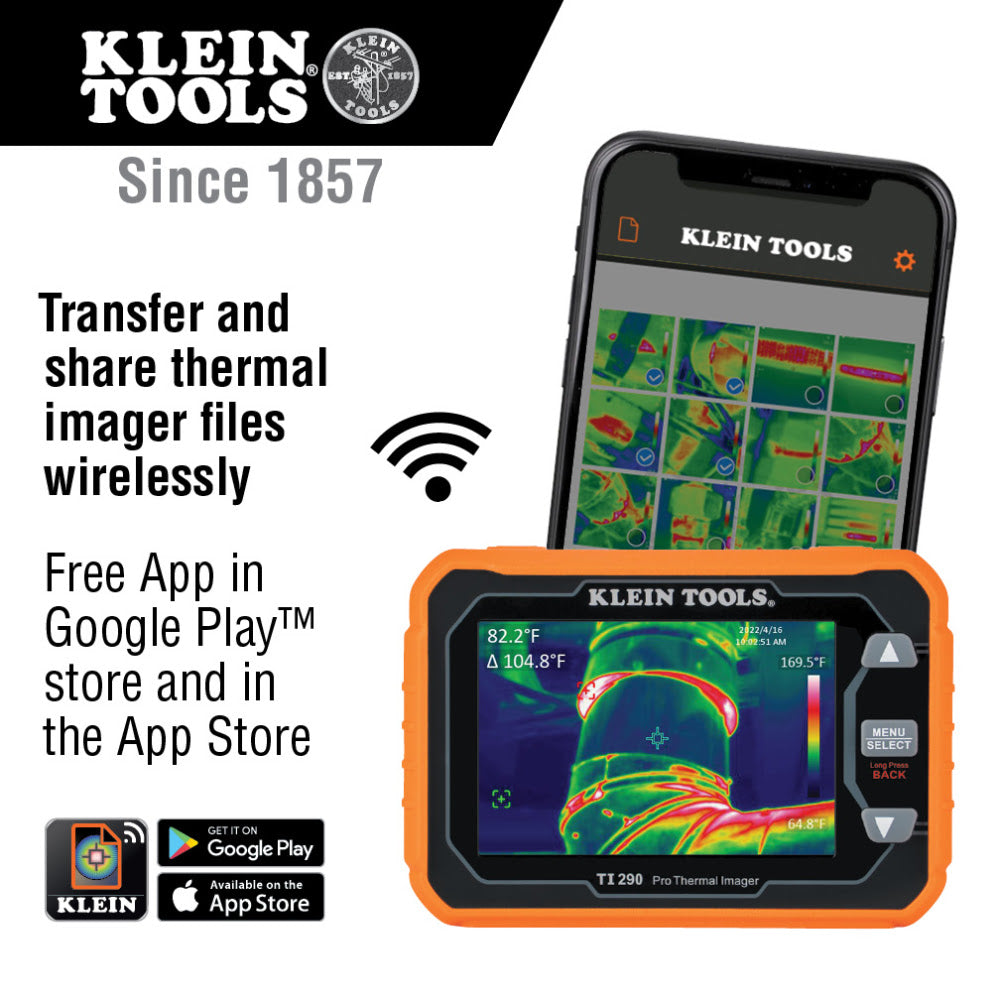

• Easily capture, store and share thermal images with Wi-Fi capabilities
• User selectable high and low temperature alarms from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius)
• Adjustable emissivity from 00.1 to 0.99
• Select color palettes to best capture the event; ironbow, rainbow, or grayscale
• Rechargeable lithium-ion battery
• App is available for free in Google Play™ store and in the App Store

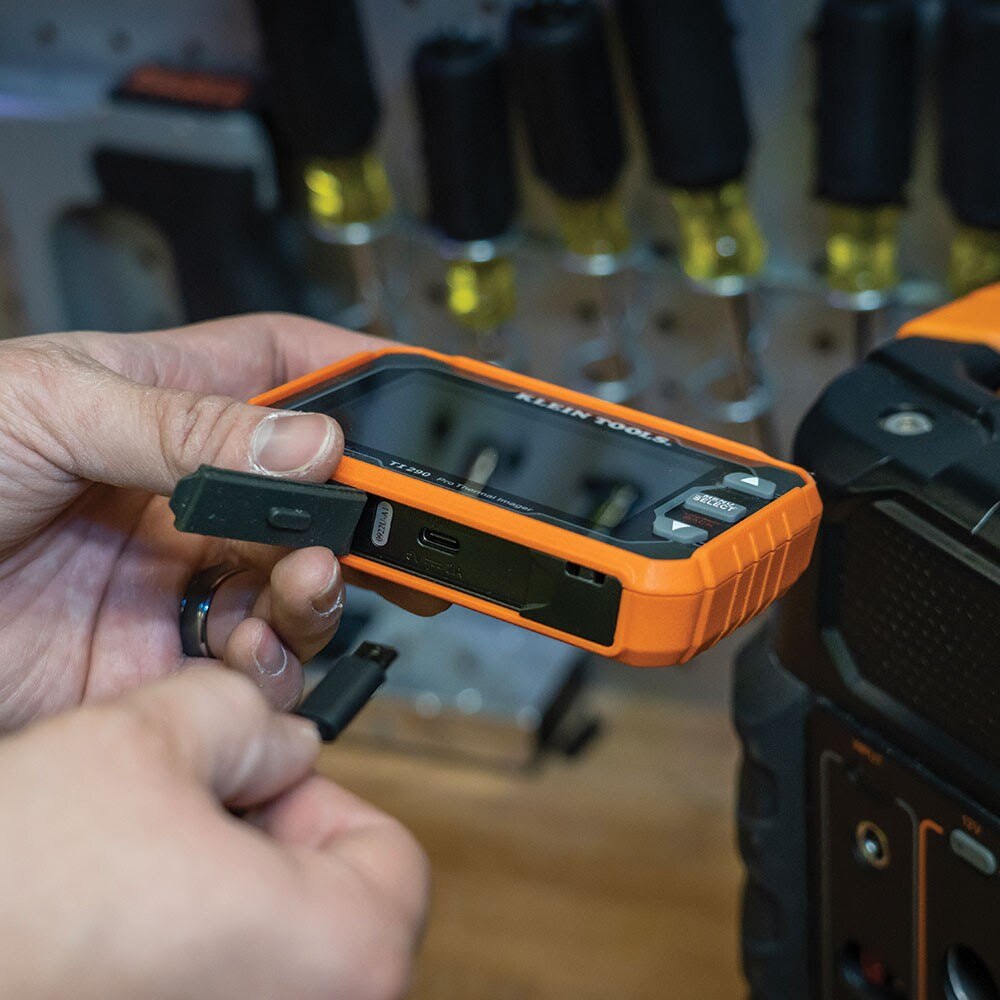

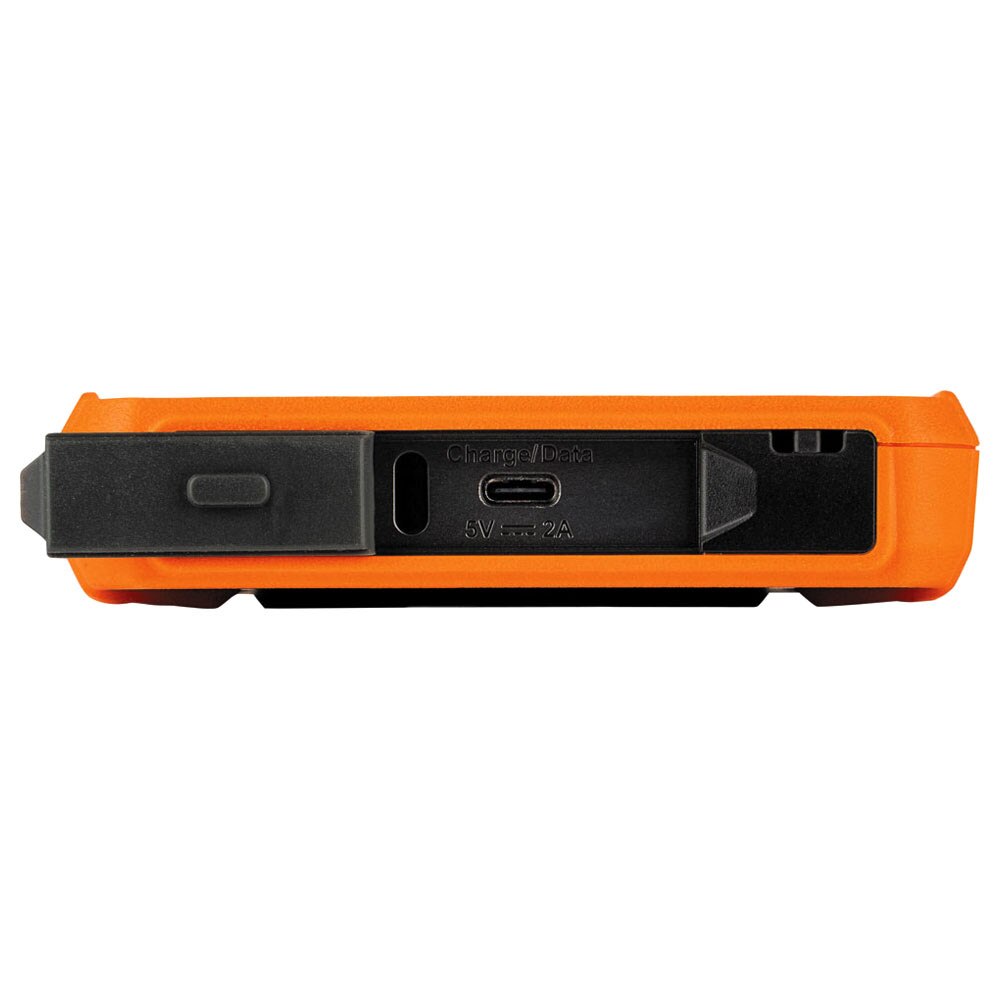

• Includes thermal imager, USB-C charging cable, molded soft-storage case with carabiner, and instructions
• Durable 6.6-Foot (2 m) drop test protection
SPECIFICATIONS:
• Overall Length: 3.1" (8 cm)
• Overall Width: 1.06" (3 cm)
• Overall Height: 4.48" (11.4 cm)
• Display: 3.5" (8.9 cm) TFT LCD
• Display Resolution: 49,152 Pixels
• Accuracy: ±2°C (±3.6°F) or 2%, Whichever is Greater
• Maximum Frames per Second: <9 Hz
• Field of View: 55.6° +/- 2.8°
• Sensor Resolution: 49,152 Pixels
• Spectral Range: 8 to 14?m
• Photo Capture: Yes and Wi-Fi Data Transfer
• Memory: 10,000 Images
• Sensor Type: VOx Microbolometer
• Temperature Range: -4° to 752°F (-20° to 400°C)
• Thermal Sensitivity: <50 mK
• Type: Thermal Imager
• Emissivity: 0.01 to 0.99
• Material: ABS and Electronic Components
• Color Palettes: Ironbow, Rainbow, Grayscale
• Standards: CE and UKCA
• Special Features: Wi-Fi Transfer, High and Low Temperature Points, Crosshairs to Pinpoint Specific Temperatures, Options for Temperature Alarms, 3 Color Palettes

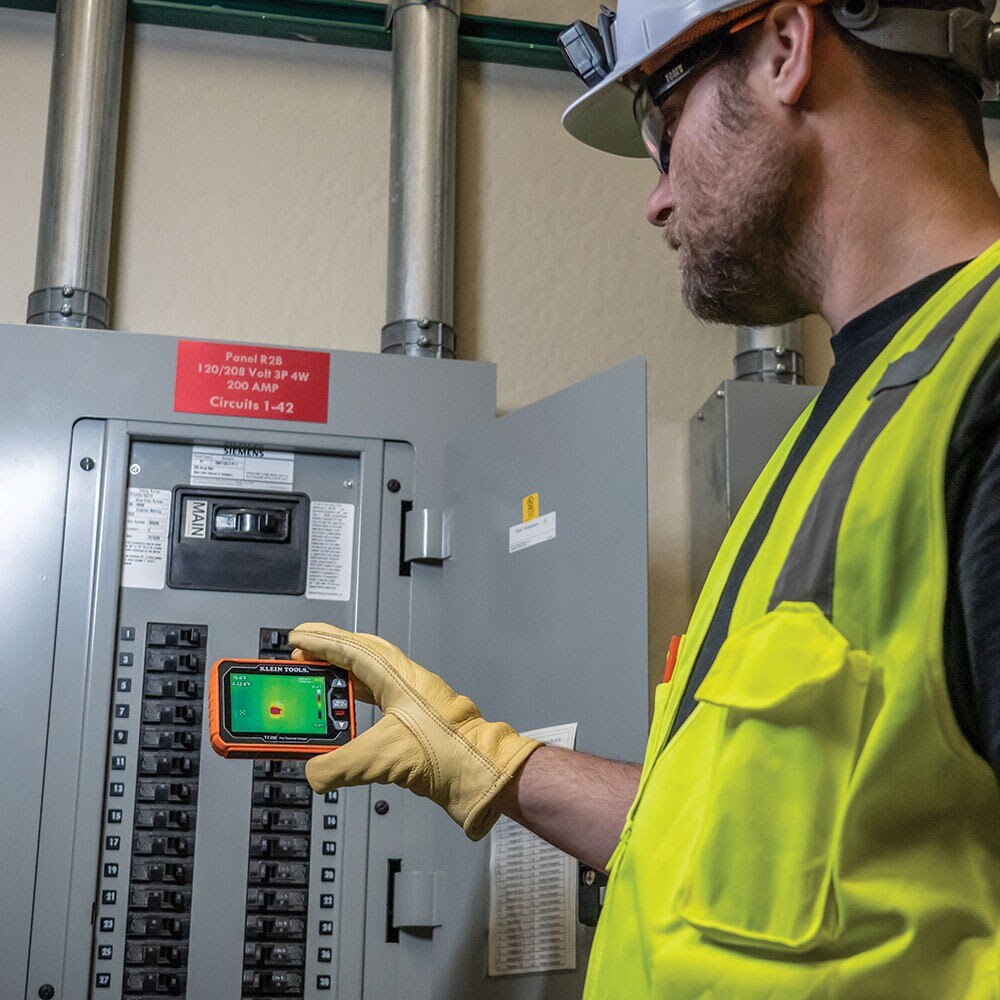

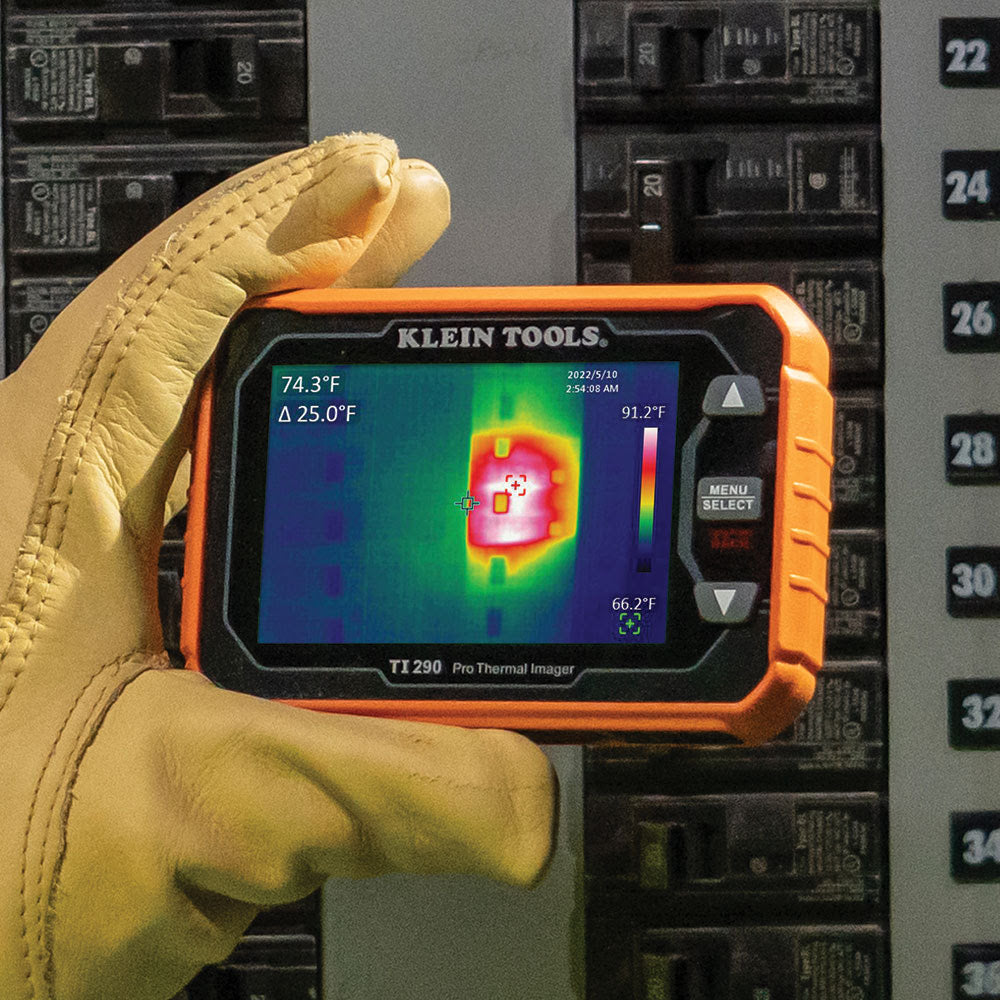

• Application: View Hot and Cold Spots for Instant Troubleshooting
• Batteries: Lithium-Ion
• Battery Life: 5 yr
• Weight: 7.5 oz (213 g)

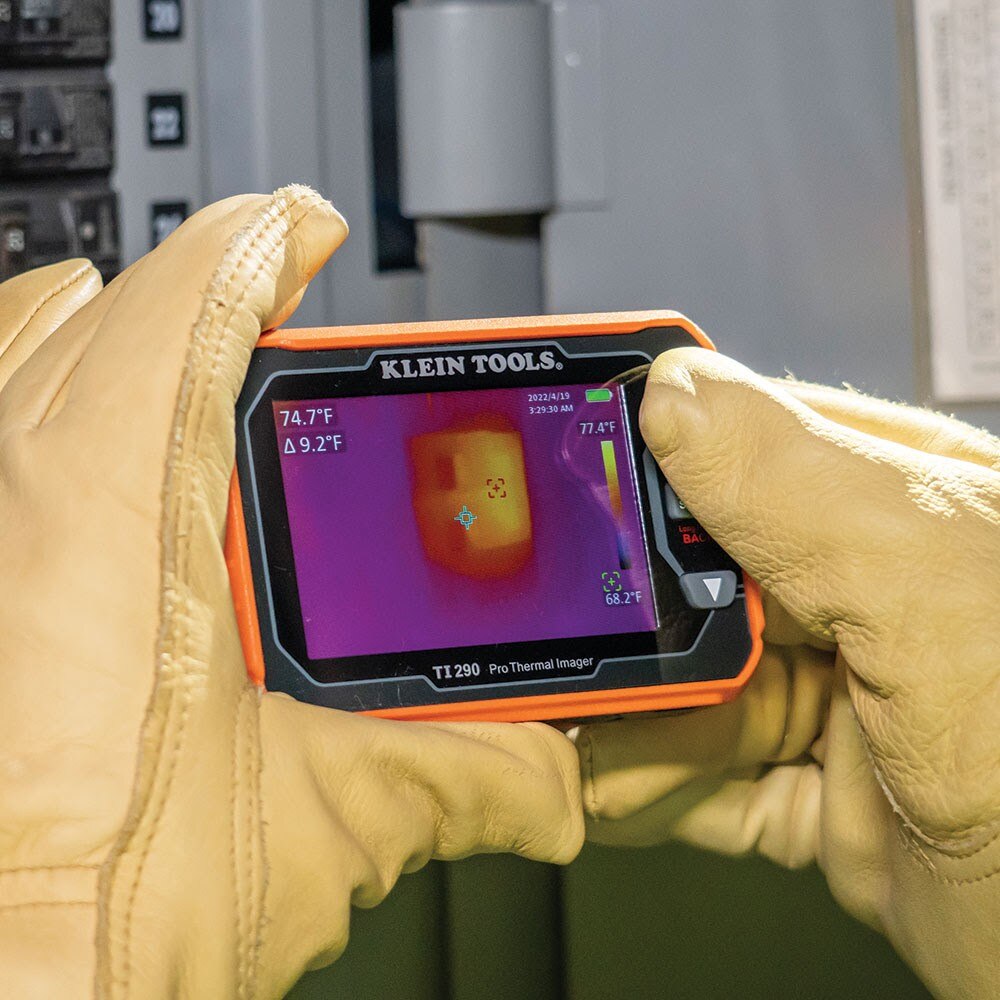

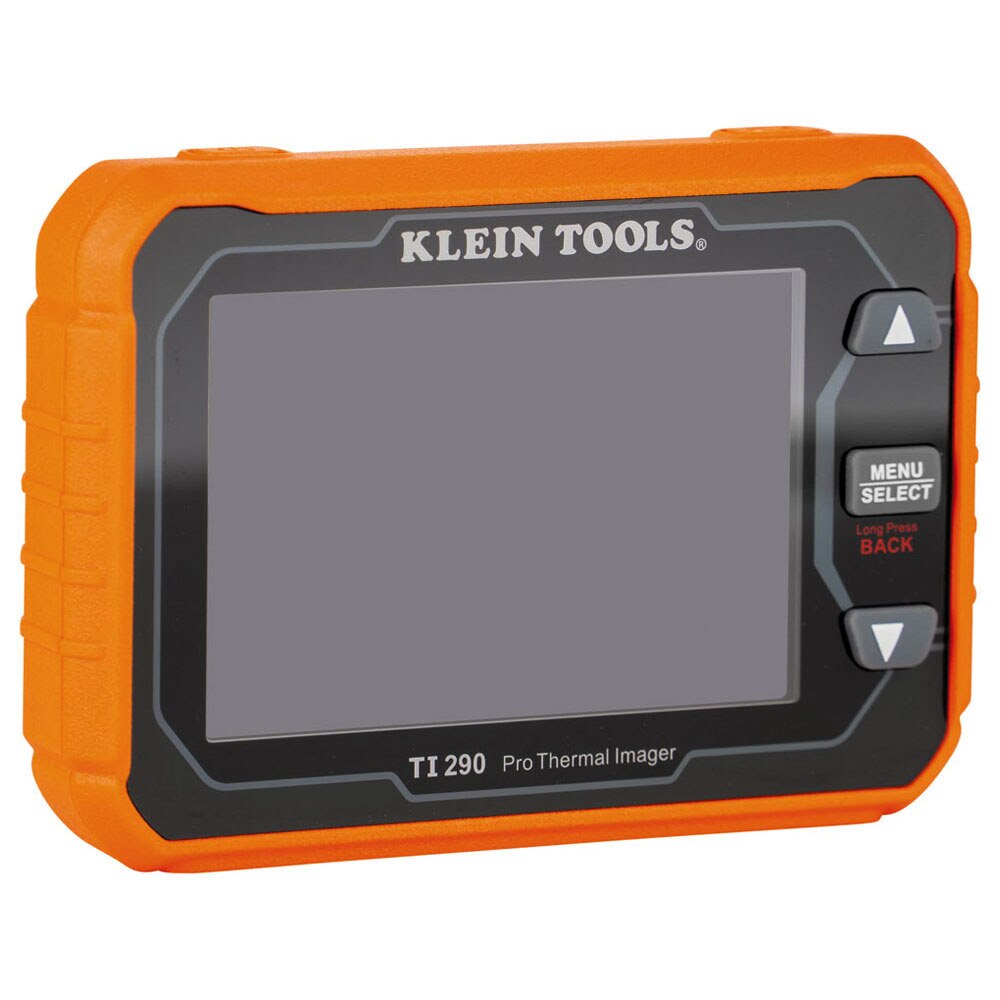

The Klein Tools TI290 is a high resolution, Wi-Fi enabled, professional model USB rechargeable Thermal Imager. The large LCD displays unseen hot and cold spots for instant troubleshooting. Excellent resolution with over 49,000 pixels and your choice of three color palettes. The meter provides high and low temperature points, crosshairs to pinpoint specific temperatures, and options for temperature alarms. App is available for free in Google Play™ store and in the App Store.
• (1) Rechargeable Thermal Imager
• (1) USB Charging Cable
• (1) Molded Soft-Storage Case with Carabiner
• (1) Instructions
FEATURES:
• Thermal Imager has over 49,000 pixels to troubleshoot hot and cold spots
• Easily capture, store and share thermal images with Wi-Fi capabilities
• User selectable high and low temperature alarms from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius)
• Adjustable emissivity from 00.1 to 0.99
• Select color palettes to best capture the event; ironbow, rainbow, or grayscale
• Rechargeable lithium-ion battery
• App is available for free in Google Play™ store and in the App Store
• Includes thermal imager, USB-C charging cable, molded soft-storage case with carabiner, and instructions
• Durable 6.6-Foot (2 m) drop test protection
SPECIFICATIONS:
• Overall Length: 3.1" (8 cm)
• Overall Width: 1.06" (3 cm)
• Overall Height: 4.48" (11.4 cm)
• Display: 3.5" (8.9 cm) TFT LCD
• Display Resolution: 49,152 Pixels
• Accuracy: ±2°C (±3.6°F) or 2%, Whichever is Greater
• Maximum Frames per Second: <9 Hz
• Field of View: 55.6° +/- 2.8°
• Sensor Resolution: 49,152 Pixels
• Spectral Range: 8 to 14?m
• Photo Capture: Yes and Wi-Fi Data Transfer
• Memory: 10,000 Images
• Sensor Type: VOx Microbolometer
• Temperature Range: -4° to 752°F (-20° to 400°C)
• Thermal Sensitivity: <50 mK
• Type: Thermal Imager
• Emissivity: 0.01 to 0.99
• Material: ABS and Electronic Components
• Color Palettes: Ironbow, Rainbow, Grayscale
• Standards: CE and UKCA
• Special Features: Wi-Fi Transfer, High and Low Temperature Points, Crosshairs to Pinpoint Specific Temperatures, Options for Temperature Alarms, 3 Color Palettes
• Application: View Hot and Cold Spots for Instant Troubleshooting
• Batteries: Lithium-Ion
• Battery Life: 5 yr
• Weight: 7.5 oz (213 g)
The Klein Tools TI290 is a high resolution, Wi-Fi enabled, professional model USB rechargeable Thermal Imager. The large LCD displays unseen hot and cold spots for instant troubleshooting. Excellent resolution with over 49,000 pixels and your choice of three color palettes. The meter provides high and low temperature points, crosshairs to pinpoint specific temperatures, and options for temperature alarms. App is available for free in Google Play™ store and in the App Store.
