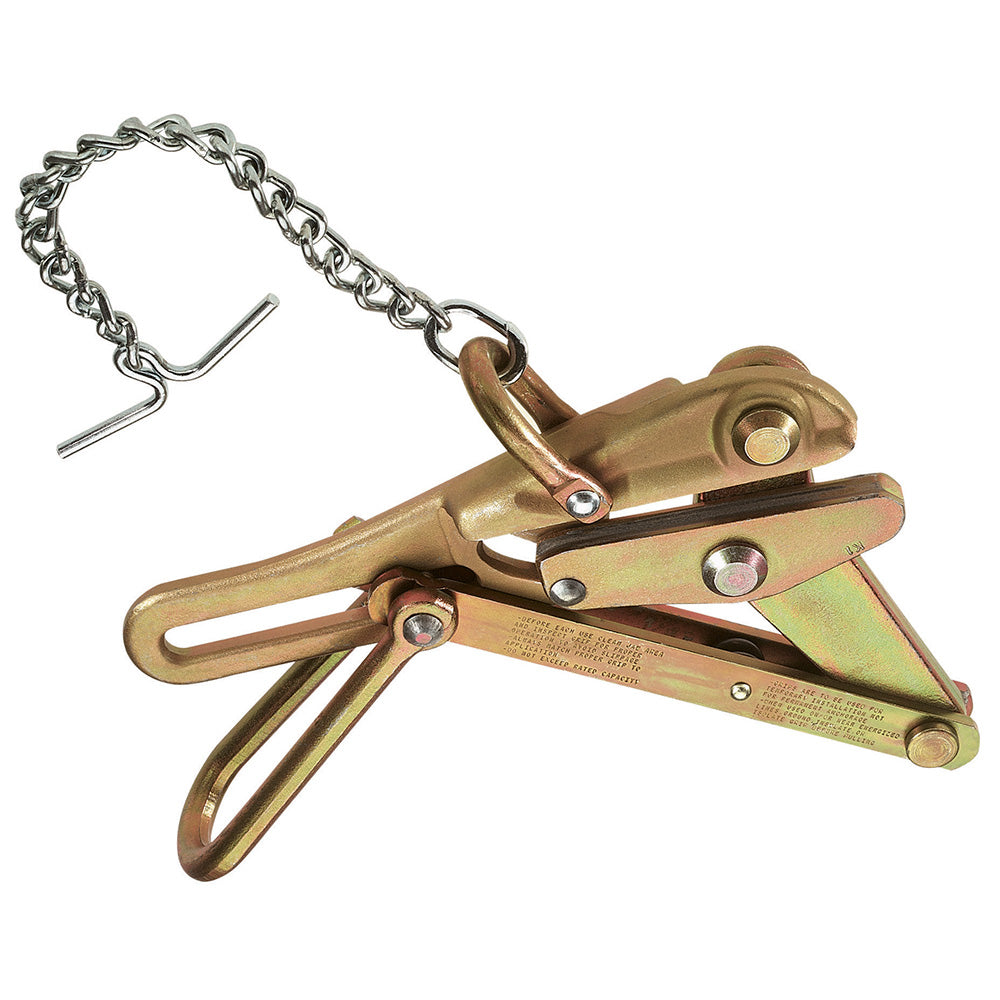

Klein Tools 1692-5AT Chicago Grip Bell-System Type Grip

INCLUDES:
• (1) Chicago Grip

FEATURES:
• For 0.218 to 0.550-Inch (5.54 to 13.97 mm) diameter cable range
• Aggressive jaw pulls steel strand cable
• Max Safe Load of 8000-Pound (3629 kg)
• Equipped with chain, toggle and shackle to keep grip from falling off the cable
• Outside diameter of support wire includes thickness of polyethylene coating
• For support wire 0.134 and larger, refer to 1659 series

SPECIFICATIONS:
• Type: "L" Strand Puller
• Cable Type: Steel Strand
• Cable Diameter: 0.218" to 0.55" 6 to 14 mm)
• Jaw Type: Double V
• Jaw Length: 5" (12.7 cm)
• Maximum Safe Load: 8000 lb (3629 kg)
• Weight: 6.6 lb (2.99 kg)


Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.12-Inch to 1.0-Inch (3.10 to 25.4 mm). Equipped with chain, toggle and shackle. For support wire 0.134-Inch and larger, refer to 1659 series. Outside diameter of support wire includes thickness of polyethylene coating.
