Klein Tools | SKU:
RT310

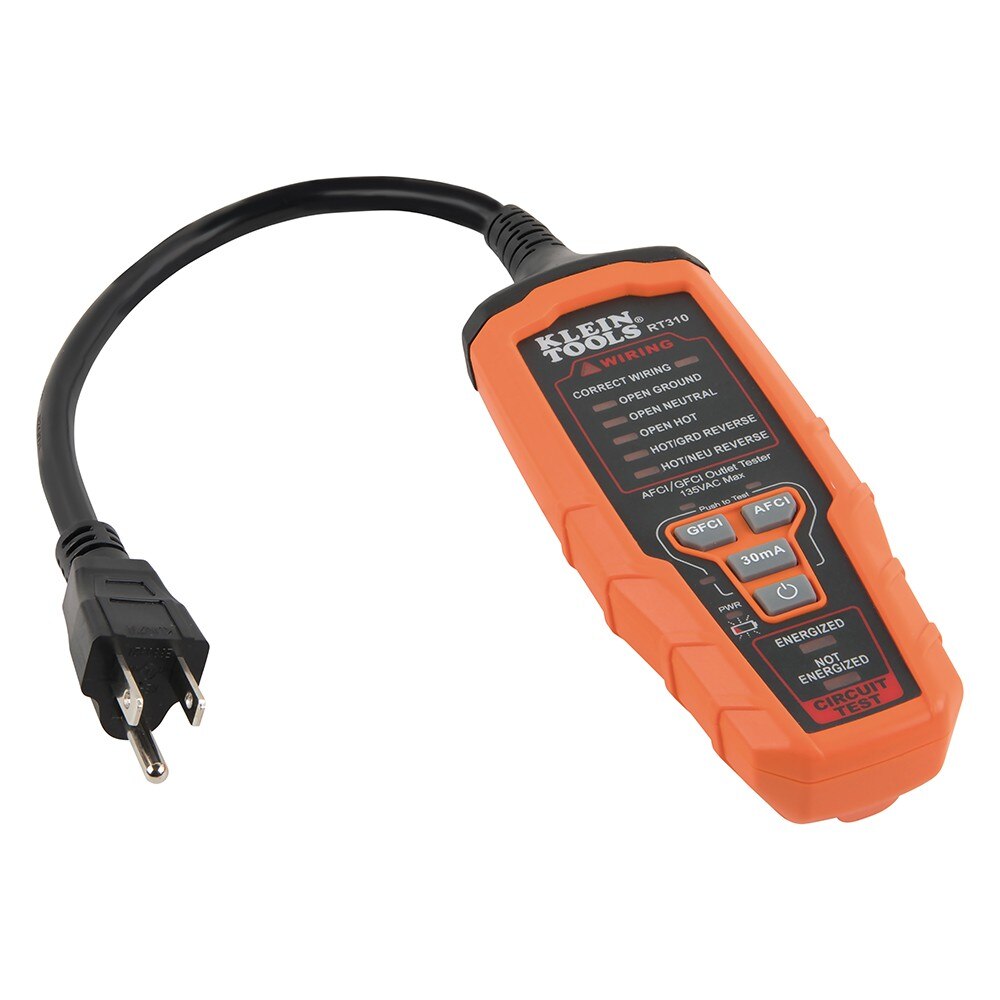

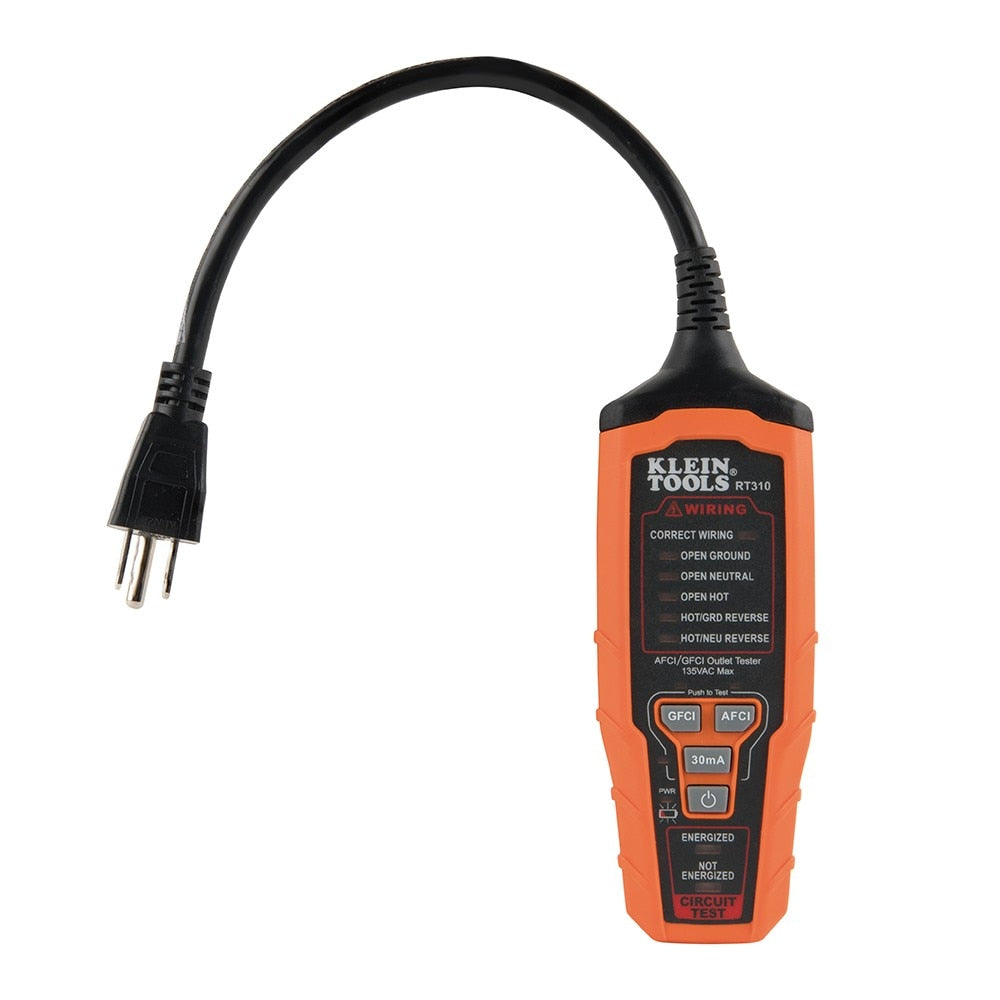

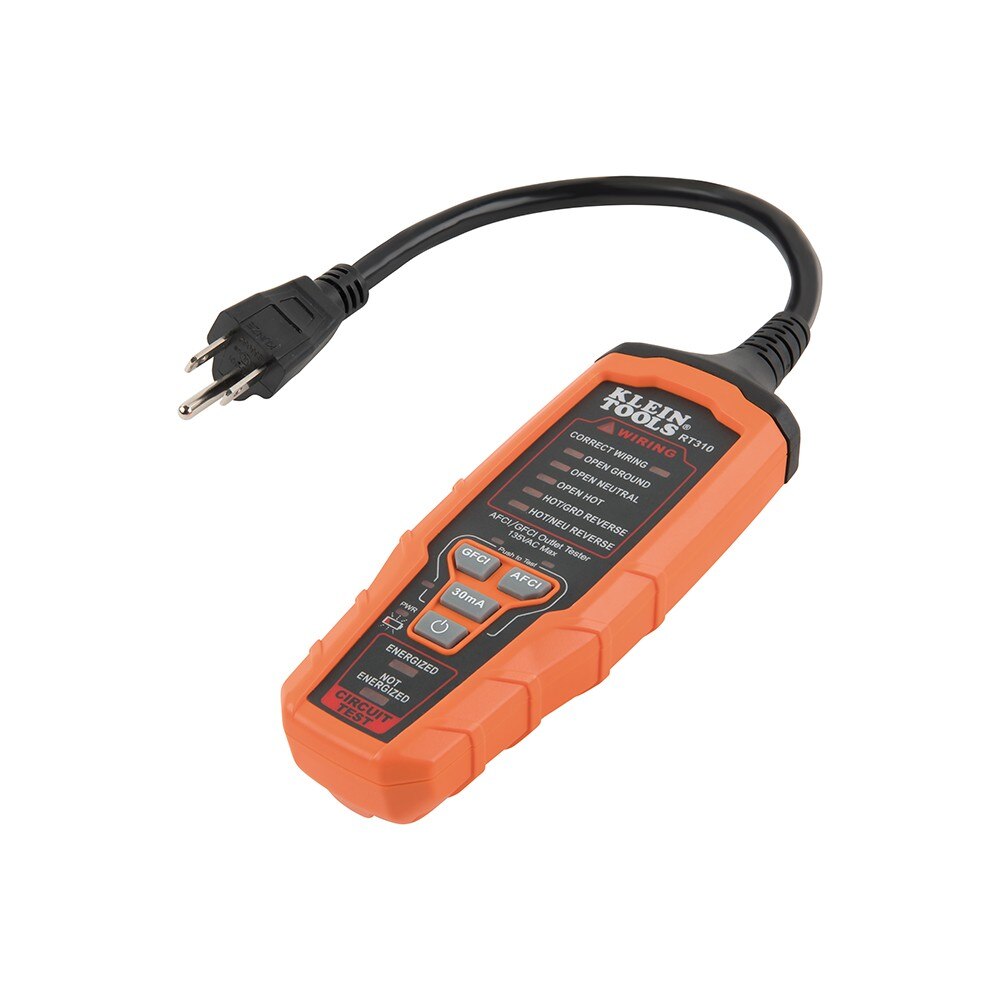

Klein Tools RT310 AFCI /GFCI Outlet Tester
$39.97
$57.90
Unit price
/
Unavailable
Description
Description
INCLUDES:
(3) 1.5V AAA Alkaline Batteries
(1) AFCI /GFCI Outlet Tester
FEATURES:
Detects the most common wiring faults in standard, AFCI, and GFCI electrical outlets
Test AFCI devices by simulating arc fault conditions
Test GFCI devices by simulating ground fault conditions
Capable of detecting a dual-open wiring fault with simultaneous open neutral and open ground wires
Tester delivers clear visual indication of the wiring condition at the electrical outlet
Designed to test North American-style grounded electrical outlets in 120V AC circuits (incorporates a three-pin plug)
Electrical plug is on a 10-Inch (254 mm) flexible electrical cord to access electrical outlets in difficult to reach locations
Low battery indicator and easily accessible battery compartment; Uses 3 x 1.5V AAA alkaline batteries (included)
Powers off automatically after approximately 2 minutes of non-use to conserve battery life
Built to withstand a 6.6-Foot (2 m) drop
CATIII 135V safety rating
Measurement category III is applicable to test and measuring circuits connected to the distribution part of the buildings low-voltage MAINS installation
SPECIFICATIONS:
Type: AFCI/GFCI Electrical Battery Operated Outlet Tester
Application: RT310 is an electrical outlet tester that tests for wiring faults in electrical outlets, and Tests AFCI and GFCI Devices
Special Features: Tests AFCI and GFCI, Simulates Ground Fault and Arc Flash Conditions, Detects Dual-Open Wiring Fault
Material: PC/ABS Housing with Electronic Components
Drop Protection: 6.6' (2.0 m)
AFCI: Yes
GFCI: Yes
Voltage: 120V AC in 3-Wire Grounded Electrical Outlet
Batteries: 3 x 1.5V AAA Batteries
Included: 3 x 1.5V AAA Alkaline Batteries
Standard: CATIII 135V
Overall Length: 7.4" (188.0 mm)
Overall Height: 1.3" (33.0 mm)
Overall Width: 2.3" (58.4 mm)
Weight: 8.5 oz (241 g)
RT310 is an electrical tester that tests the wiring condition at an electrical outlet, and inspects and checks AFCI and GFCI devices. It is designed for use with North American 120V electrical outlets. It can detect and identify common wiring faults. Includes 3 x 1.5V AAA alkaline batteries.
RT310 Instructions
(3) 1.5V AAA Alkaline Batteries
(1) AFCI /GFCI Outlet Tester
FEATURES:
Detects the most common wiring faults in standard, AFCI, and GFCI electrical outlets
Test AFCI devices by simulating arc fault conditions
Test GFCI devices by simulating ground fault conditions
Capable of detecting a dual-open wiring fault with simultaneous open neutral and open ground wires
Tester delivers clear visual indication of the wiring condition at the electrical outlet
Designed to test North American-style grounded electrical outlets in 120V AC circuits (incorporates a three-pin plug)
Electrical plug is on a 10-Inch (254 mm) flexible electrical cord to access electrical outlets in difficult to reach locations
Low battery indicator and easily accessible battery compartment; Uses 3 x 1.5V AAA alkaline batteries (included)
Powers off automatically after approximately 2 minutes of non-use to conserve battery life
Built to withstand a 6.6-Foot (2 m) drop
CATIII 135V safety rating
Measurement category III is applicable to test and measuring circuits connected to the distribution part of the buildings low-voltage MAINS installation
SPECIFICATIONS:
Type: AFCI/GFCI Electrical Battery Operated Outlet Tester
Application: RT310 is an electrical outlet tester that tests for wiring faults in electrical outlets, and Tests AFCI and GFCI Devices
Special Features: Tests AFCI and GFCI, Simulates Ground Fault and Arc Flash Conditions, Detects Dual-Open Wiring Fault
Material: PC/ABS Housing with Electronic Components
Drop Protection: 6.6' (2.0 m)
AFCI: Yes
GFCI: Yes
Voltage: 120V AC in 3-Wire Grounded Electrical Outlet
Batteries: 3 x 1.5V AAA Batteries
Included: 3 x 1.5V AAA Alkaline Batteries
Standard: CATIII 135V
Overall Length: 7.4" (188.0 mm)
Overall Height: 1.3" (33.0 mm)
Overall Width: 2.3" (58.4 mm)
Weight: 8.5 oz (241 g)
RT310 is an electrical tester that tests the wiring condition at an electrical outlet, and inspects and checks AFCI and GFCI devices. It is designed for use with North American 120V electrical outlets. It can detect and identify common wiring faults. Includes 3 x 1.5V AAA alkaline batteries.
RT310 Instructions
