Klein Tools | SKU:
VDV501851
Klein Tools VDV501851 Ethernet Cable Tester Kit with Scout Pro 3 Tester, Remotes and Adapter (Starter Kit)
$99.98
$146.66
Unit price
/
Unavailable
Description
Description
Klein Tools VDV501851 Description
The Scout Pro 3 Tester Starter Kit is a versatile cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with included location mapping remotes. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.

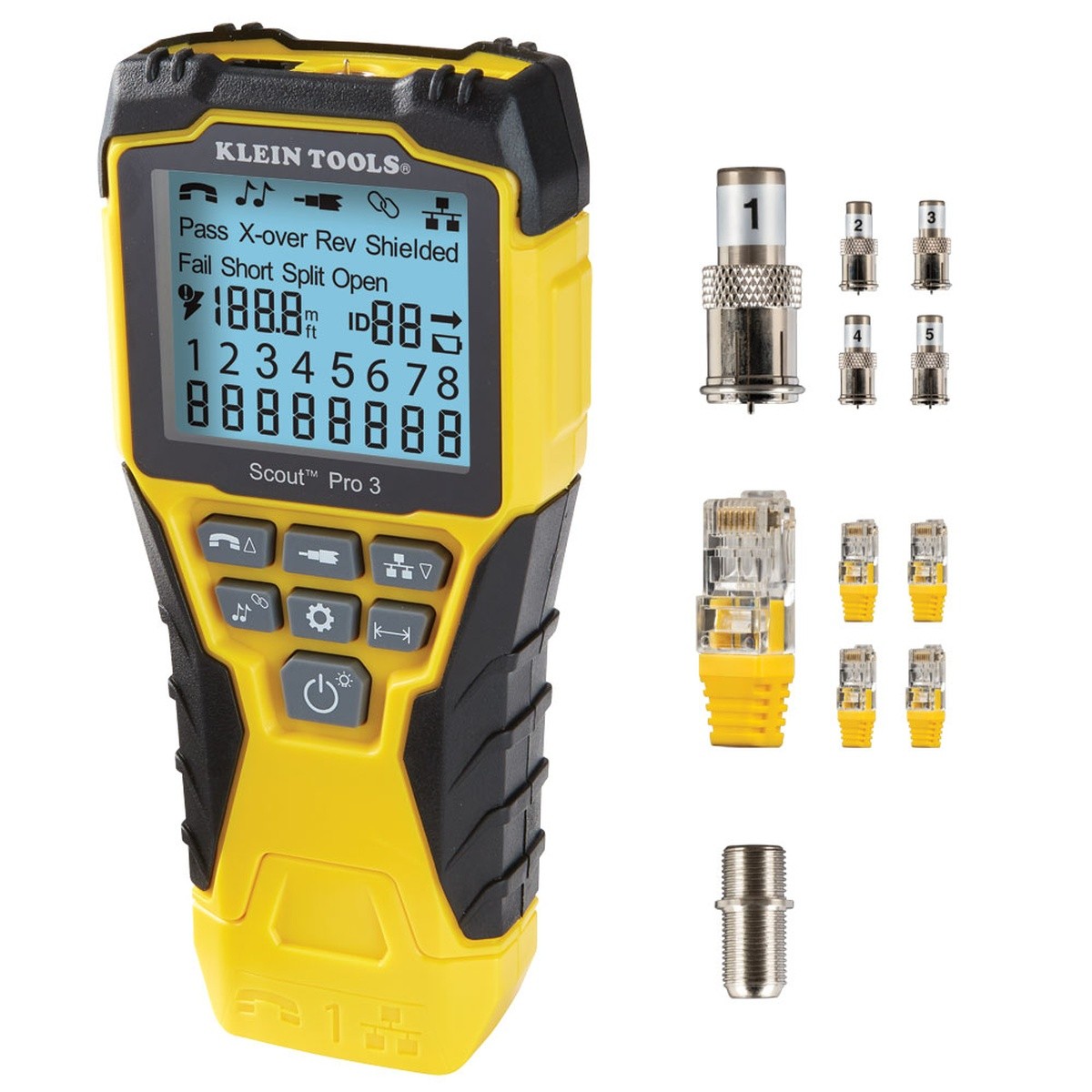

Klein Tools VDV501851 Includes
- (1) Scout Pro 3 Tester

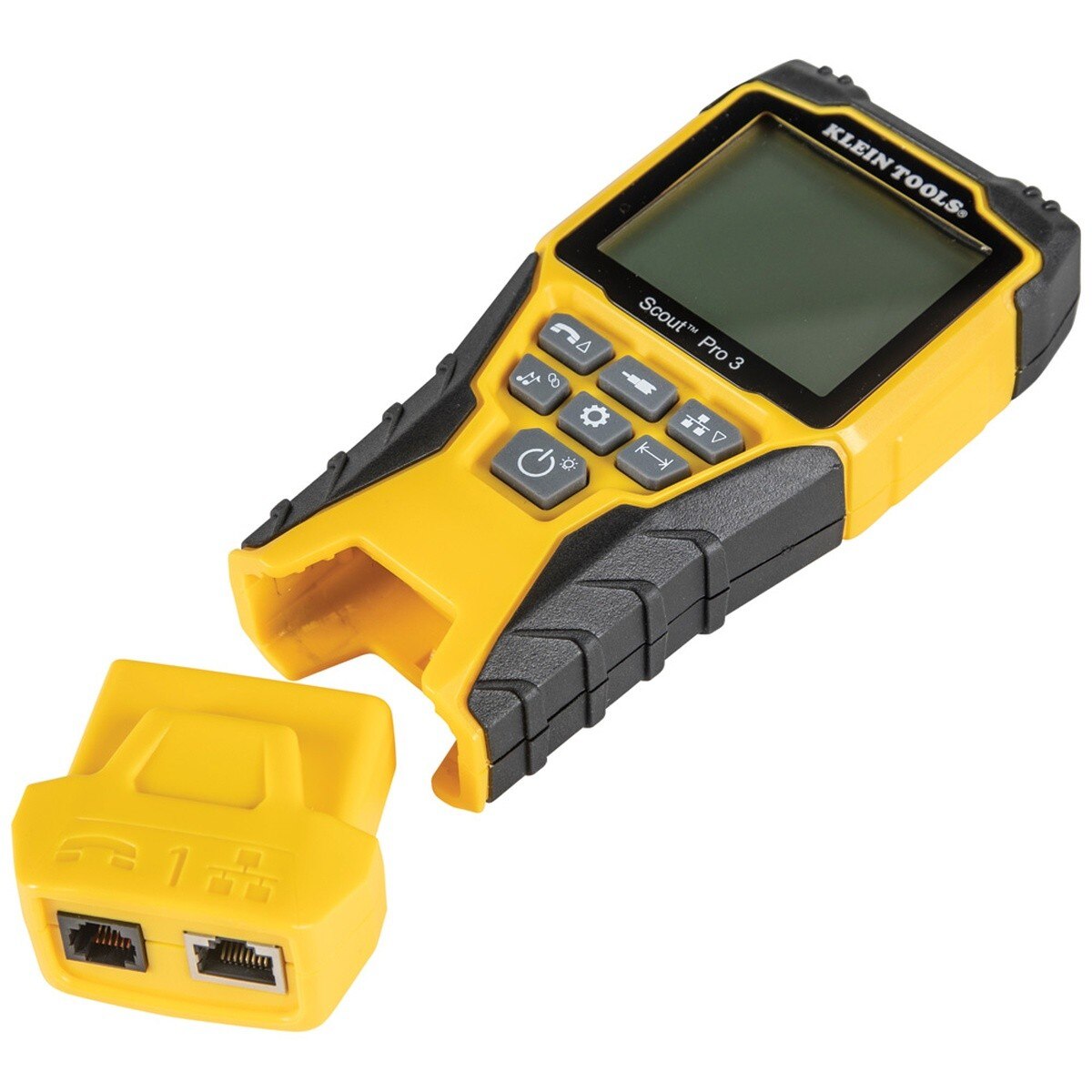

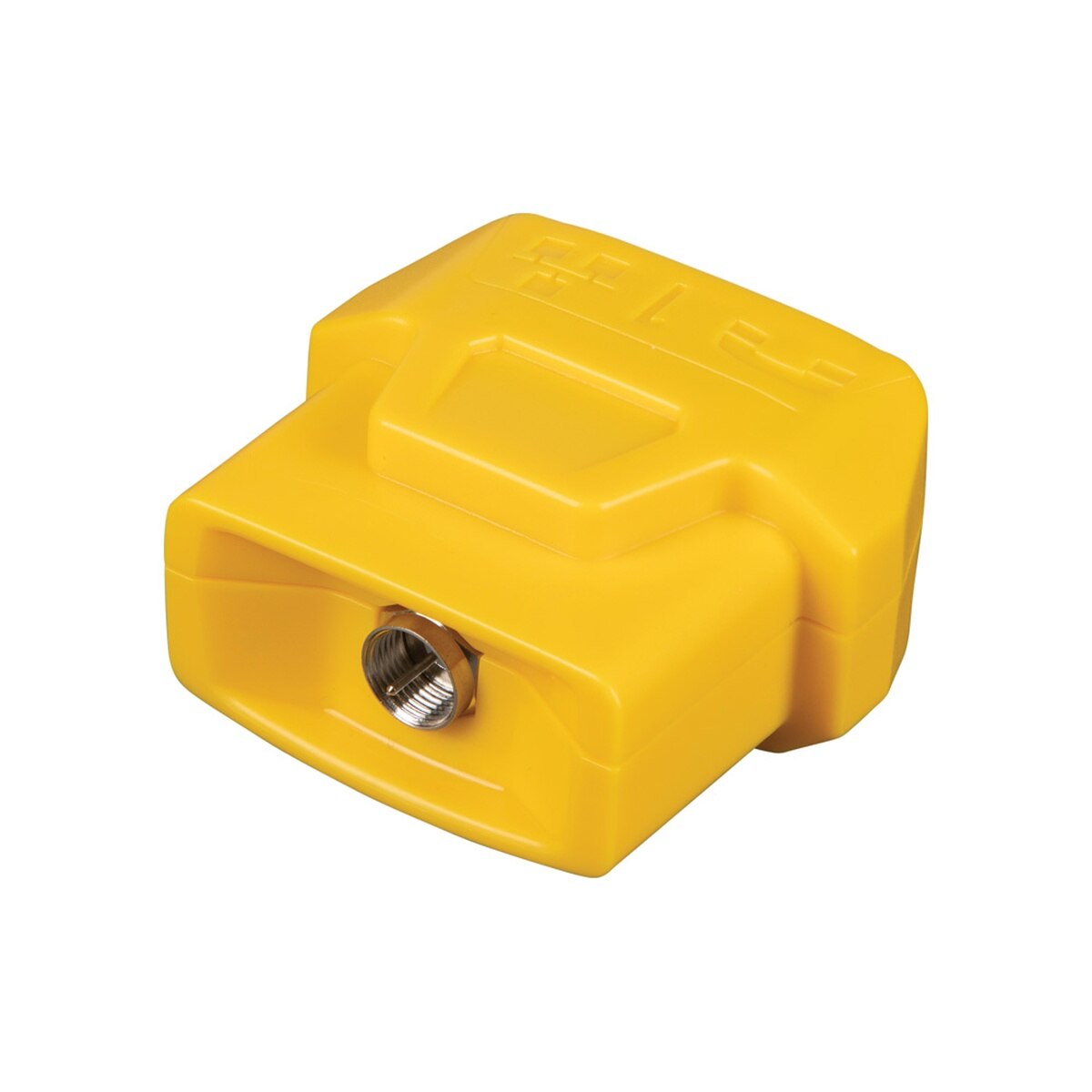

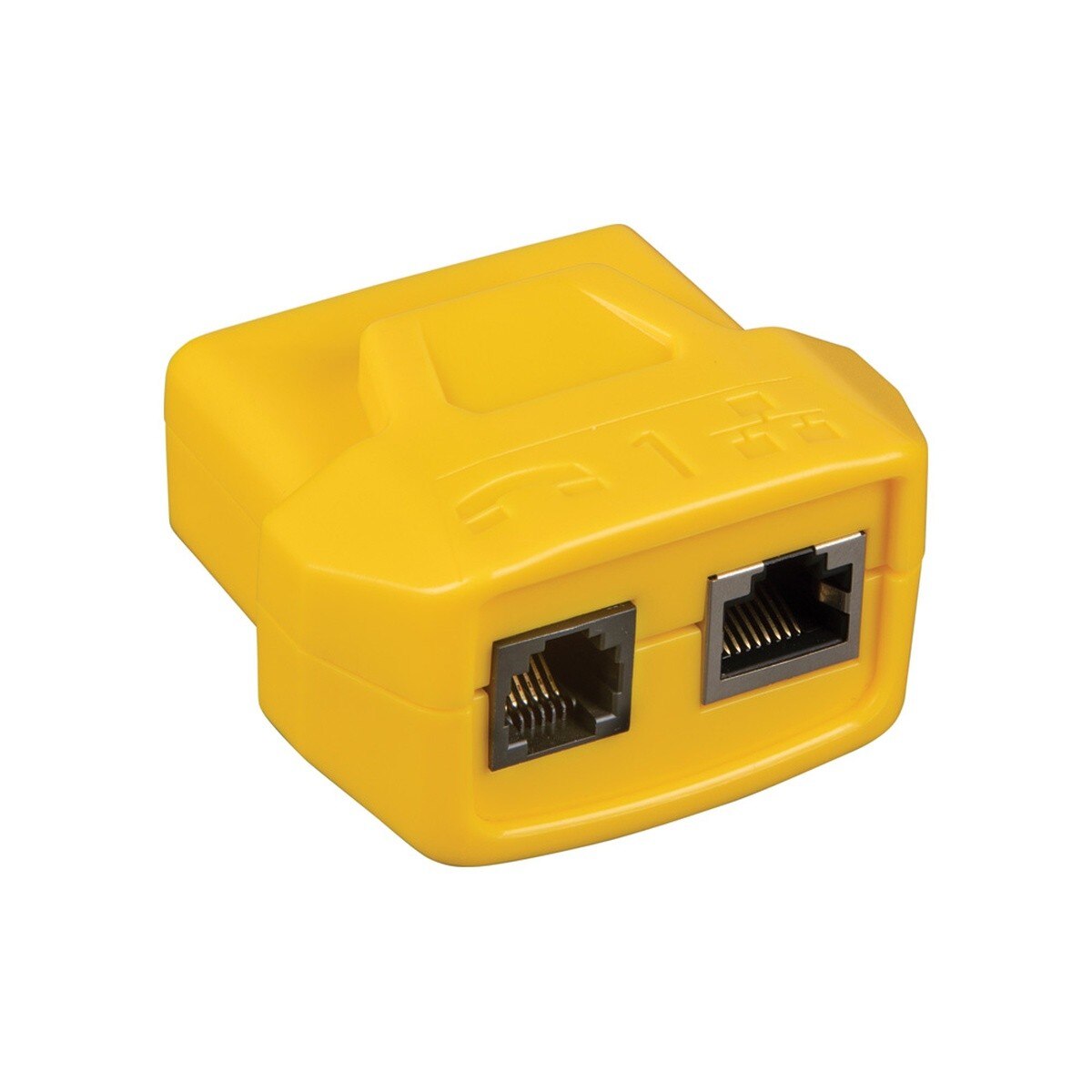

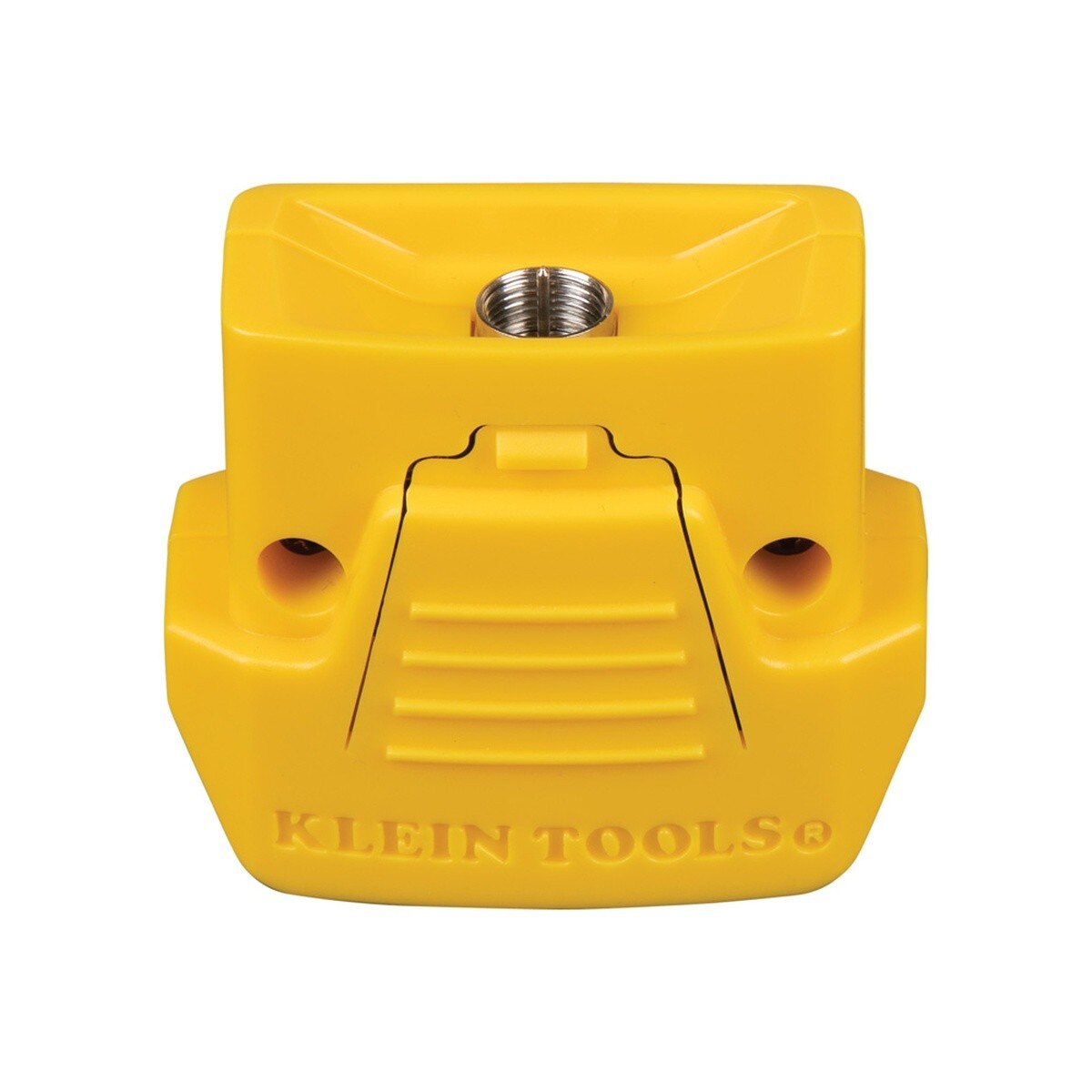

- (1) Self-Storing Remote

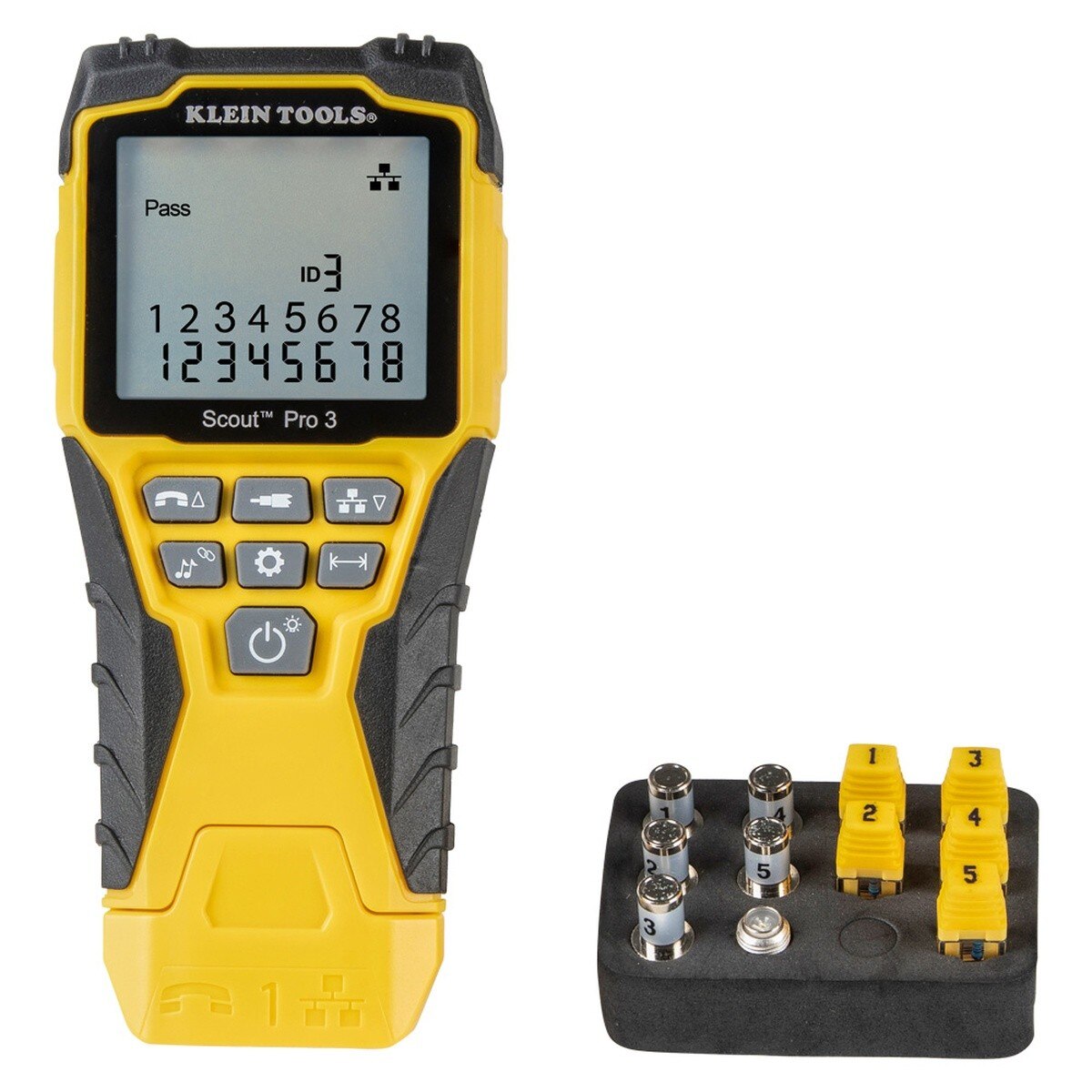

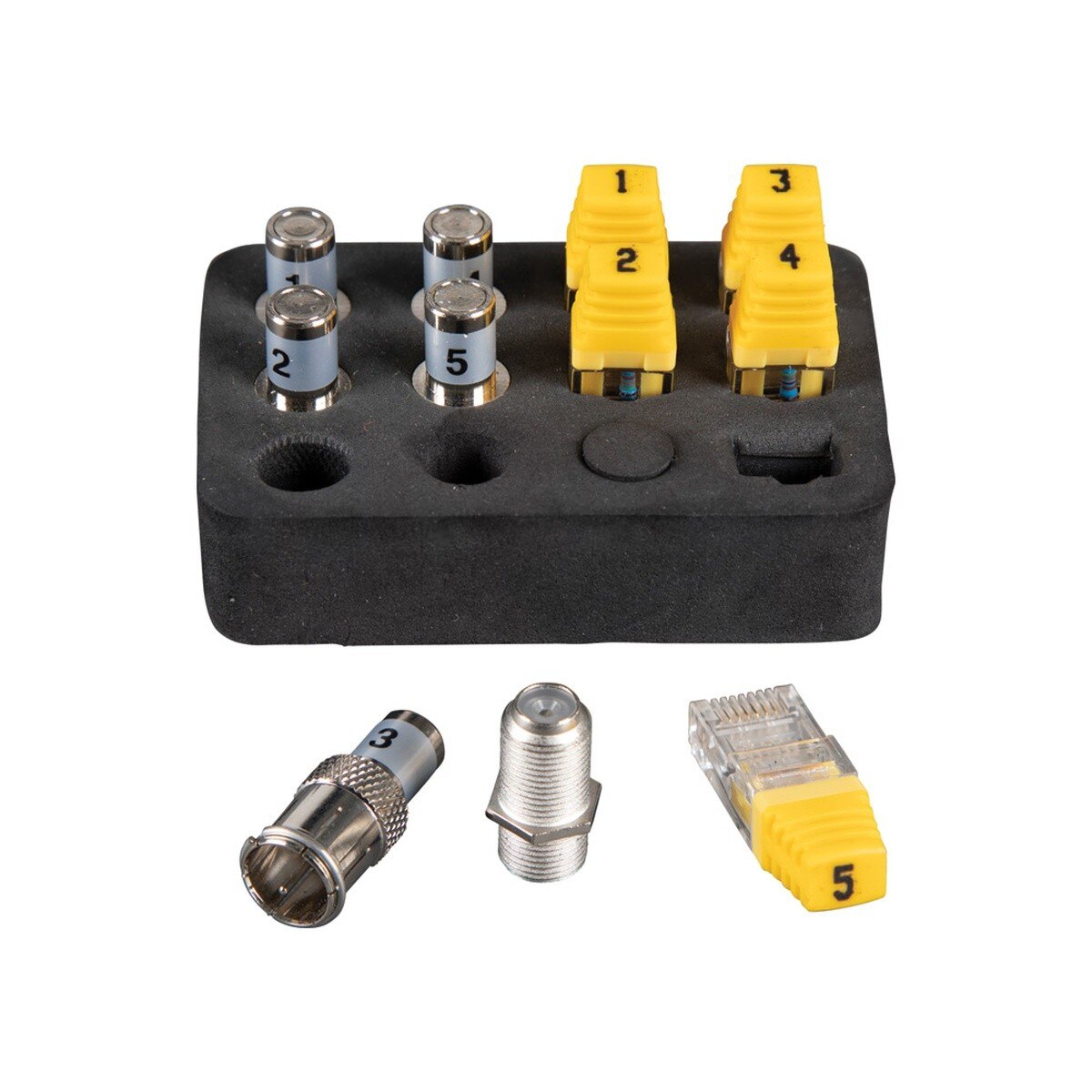

- (5) LanMap RJ45 Locator Remotes
- (5) CoaxMap F-connector Locator Remotes
- (1) Coax F-adapter
- (1) Manual
- (1) 9V Battery
Klein Tools VDV501851 Features
- Tests voice (RJ11/12), data (RJ45) and video (coax F-connector) cables
- Measures cable length up to 2000 ft (610 m)
- Detects Open, Short, Miswire or Split-Pair faults

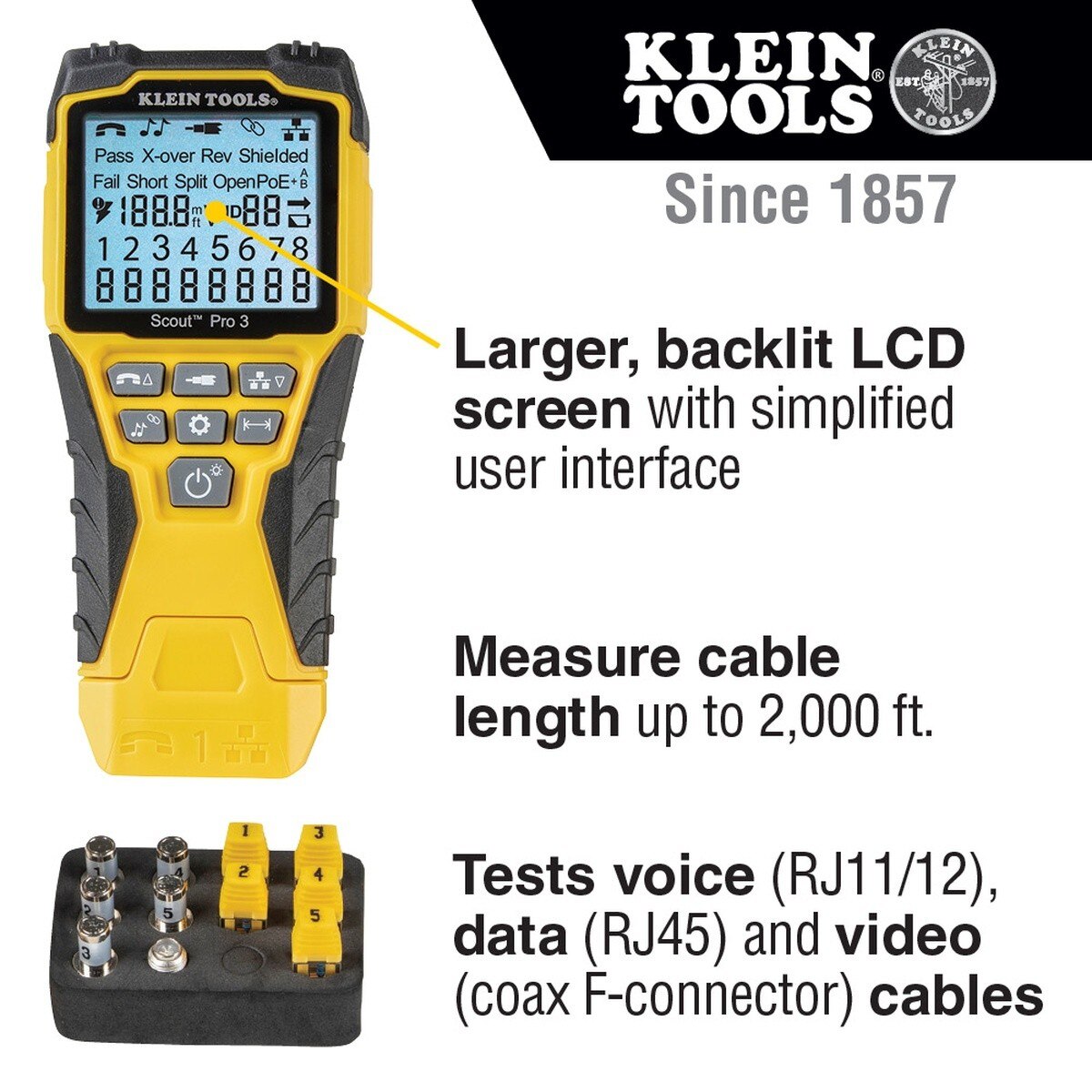

- Backlit LCD displays cable length, wiremap, cable ID and test results
- Multiple style tone generator (requires analog probe VDV500-123; sold separately)

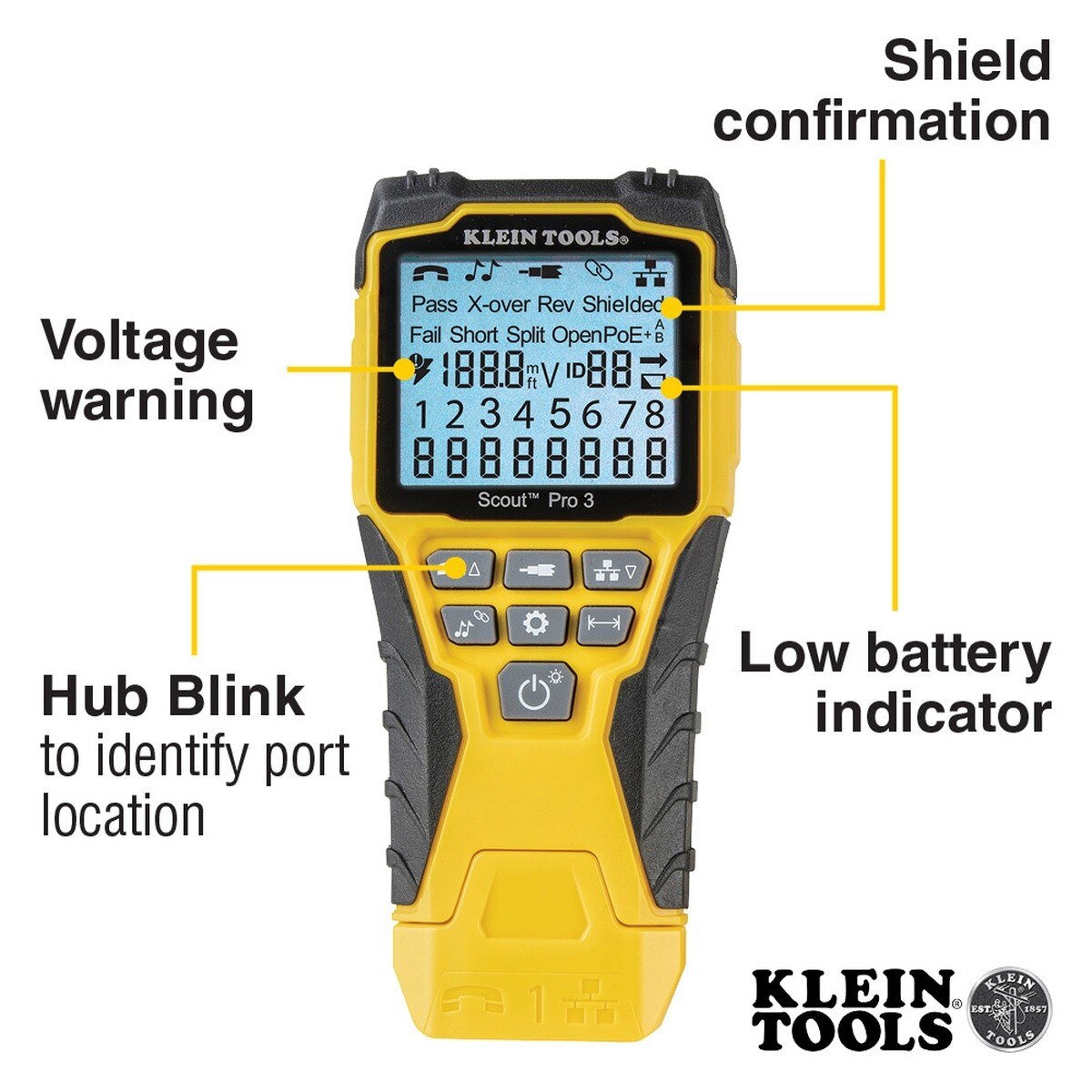

- Hub Blink mode to identify switch or hub port
- LanMap and CoaxMap location remotes map and ID multiple runs
- Voltage warning, shield detection and low-battery indicator
- Auto power-off to conserve battery life
- Drop protection rated to 2 m
Klein Tools VDV501851 Specifications
| Type | Twisted Pair, DATA, Voice, LAN, and Coaxial |
| Application | Cable Testing |
| Special Features | Measures Cable Length; Backlit LCD; Hub Blink |
| Cable Type | DATA: Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q |
| Overall Length | 7 in (17.8 cm) |
| Overall Height | 3 in (7.6 cm) |
| Overall Width | 1.25 in (3.2 cm) |
| Material | Plastic and Metal |
| Test-n-Map ID Remotes | (1) Self-Storing |
| Location ID | (5) RJ45 Data and (5) F-Coax connector Locator Remotes |

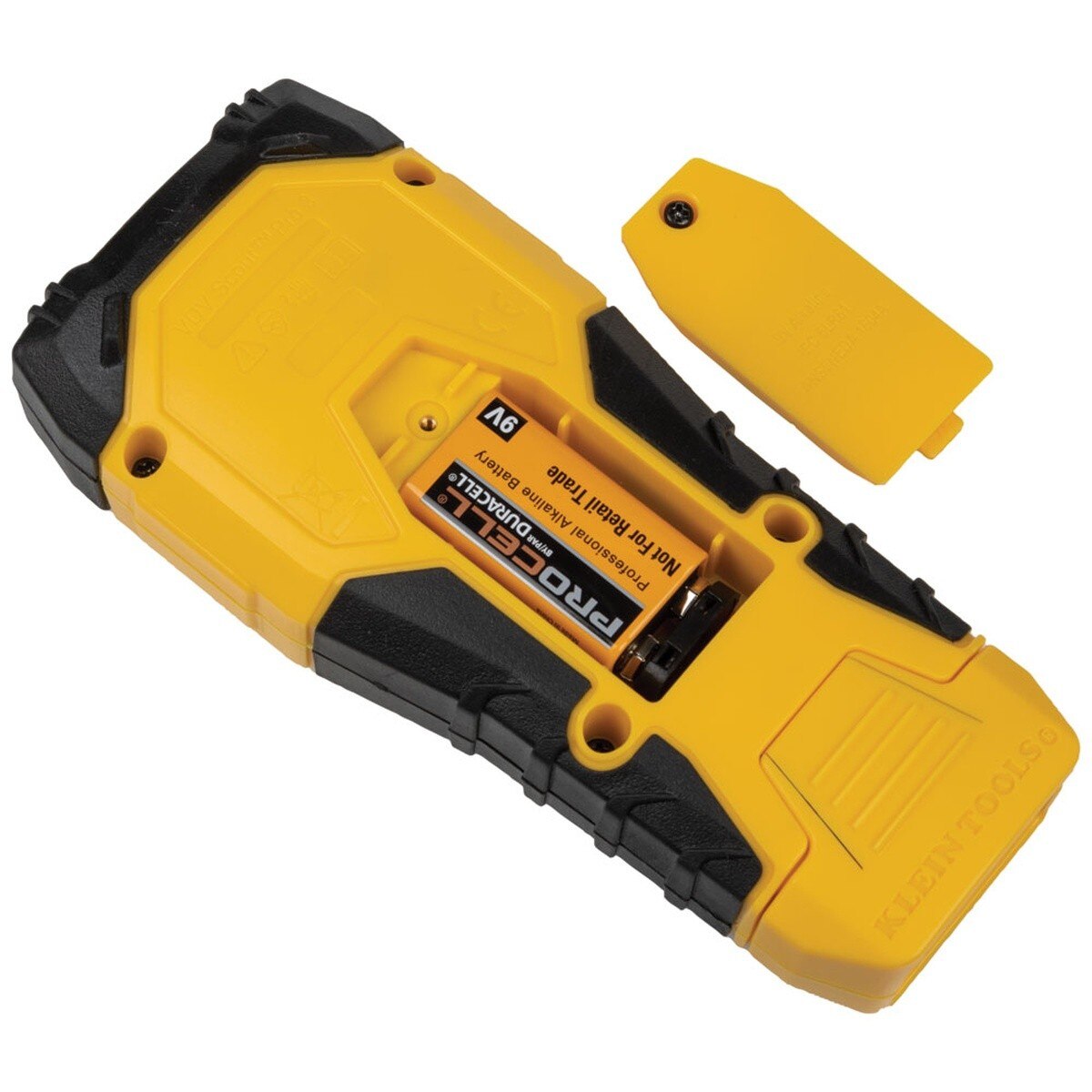

| Batteries | 9V Alkaline |
| Battery Life | Active: 50 hr |
| Drop Protection | 2 m |
| Supported Remotes | 18 |
| Connection & Adapter Types | RJ11, RJ12, RJ45, Coax F |
| Display | Backlit LCD |
| Multiple Style Tone Generator | Yes (5); Requires Tracing Probe (VDV500-123); Sold Separately |
| Faults Detected | Open, Short, Miswire |
