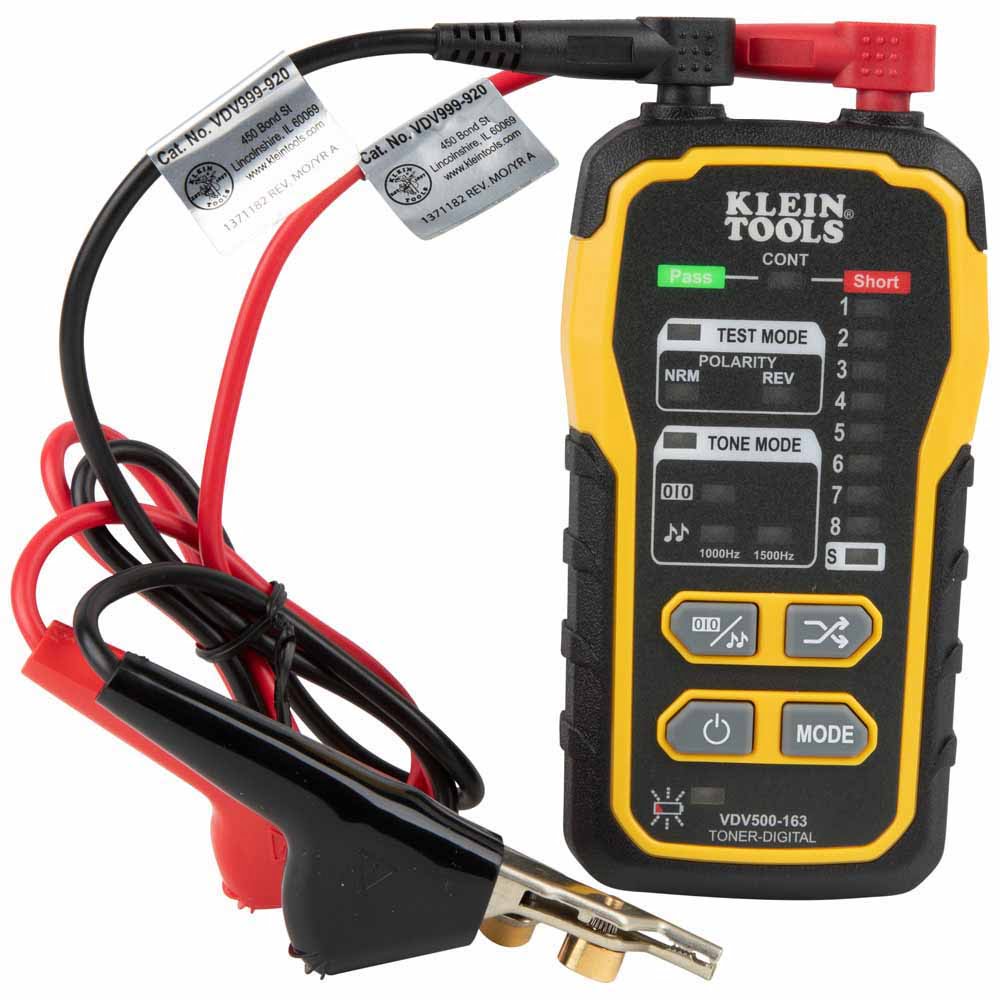

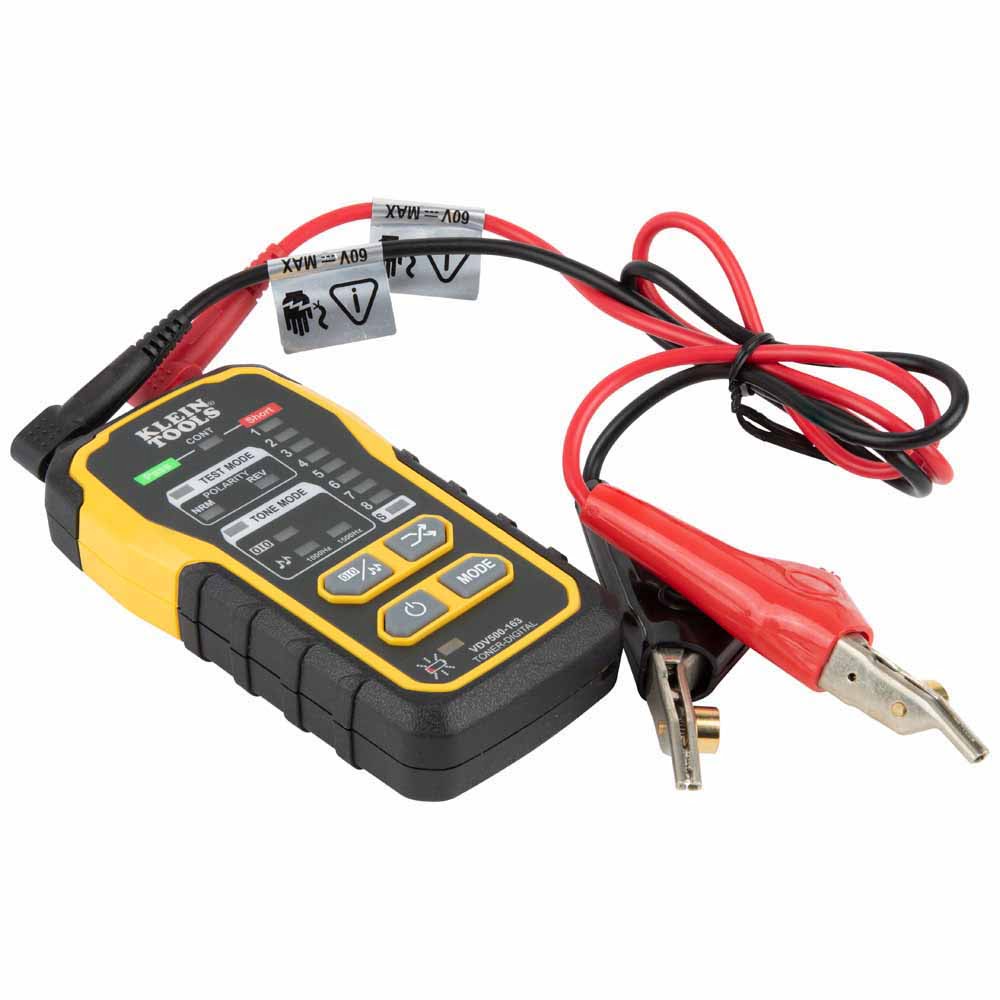

Klein VDV500163 Digital Tone Generator

INCLUDES:
• (1) Tone Generator
• (1) 4 x AAA Batteries

FEATURES:
• Digital tone generator traces and locates cables on an active network when used with Digital Tracing Probe (Cat. No. VDV500-223; sold separately)
• Wire mapping capabilities to check Pin-to-Pin connections with shield detection (requires Digital Tracing Probe, (Cat. No. VDV500-223; sold separately)

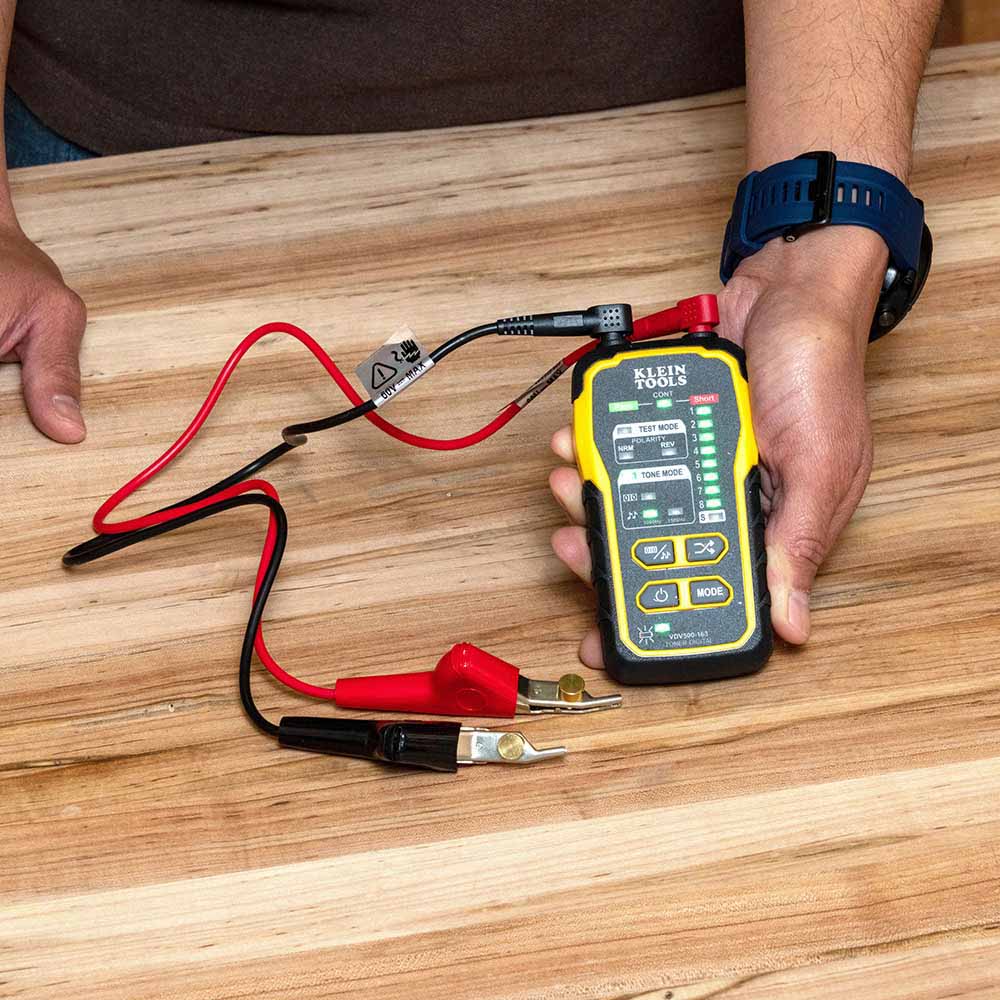

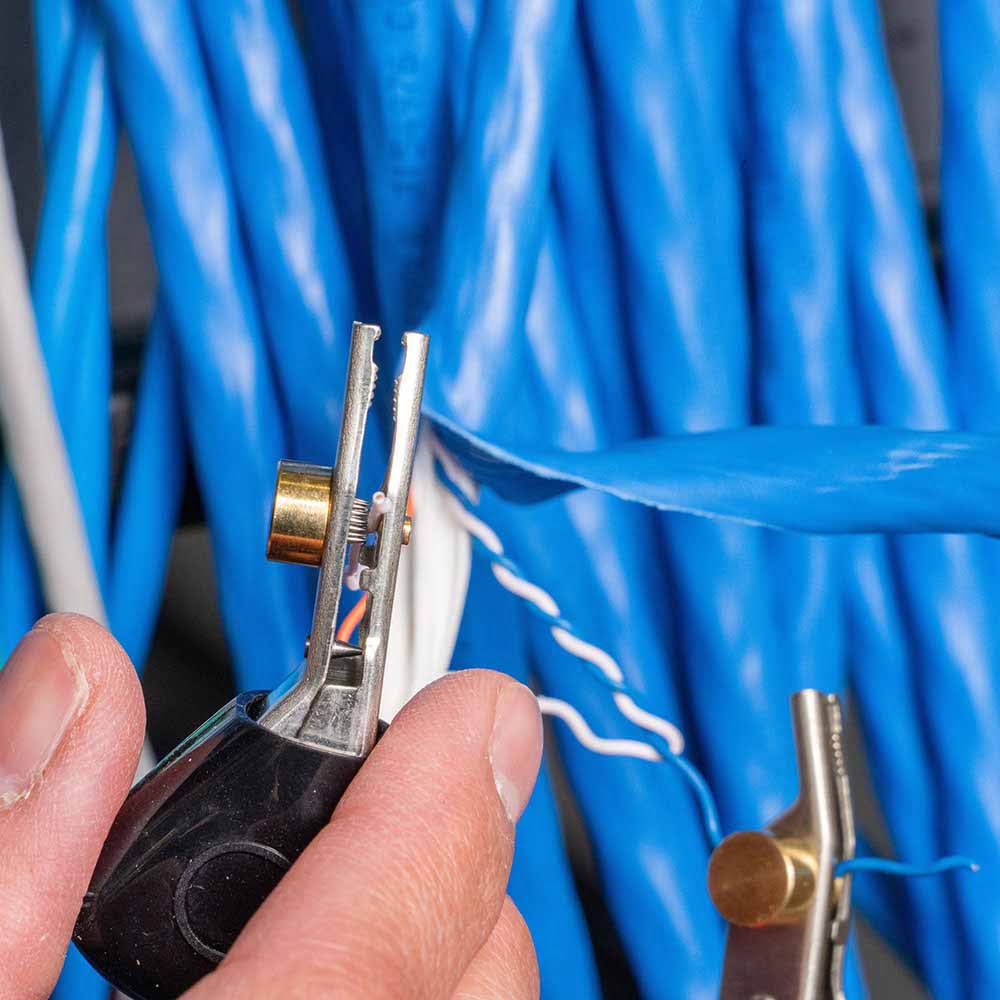

• Rugged Angled Bed of Nails (ABN) clips securely attach to wires

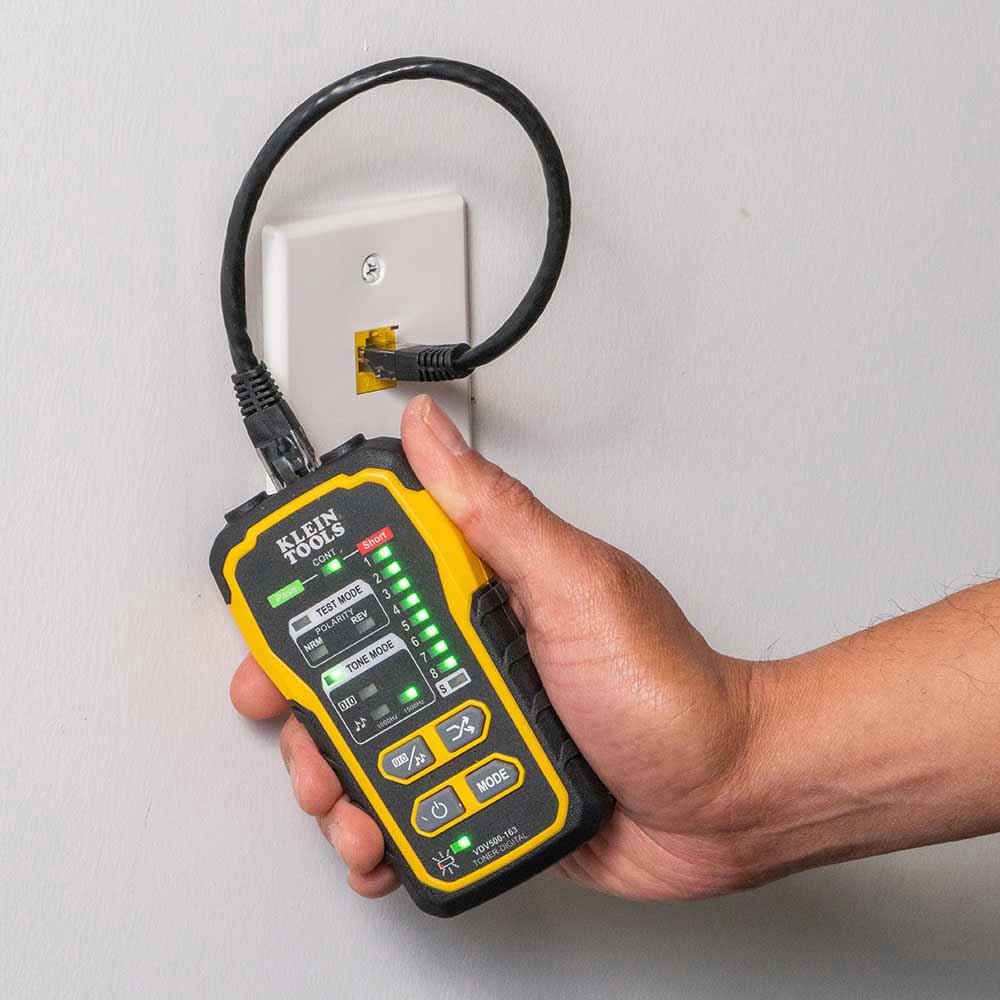

• RJ45 port to test RJ45, RJ11 and RJ12 data cables

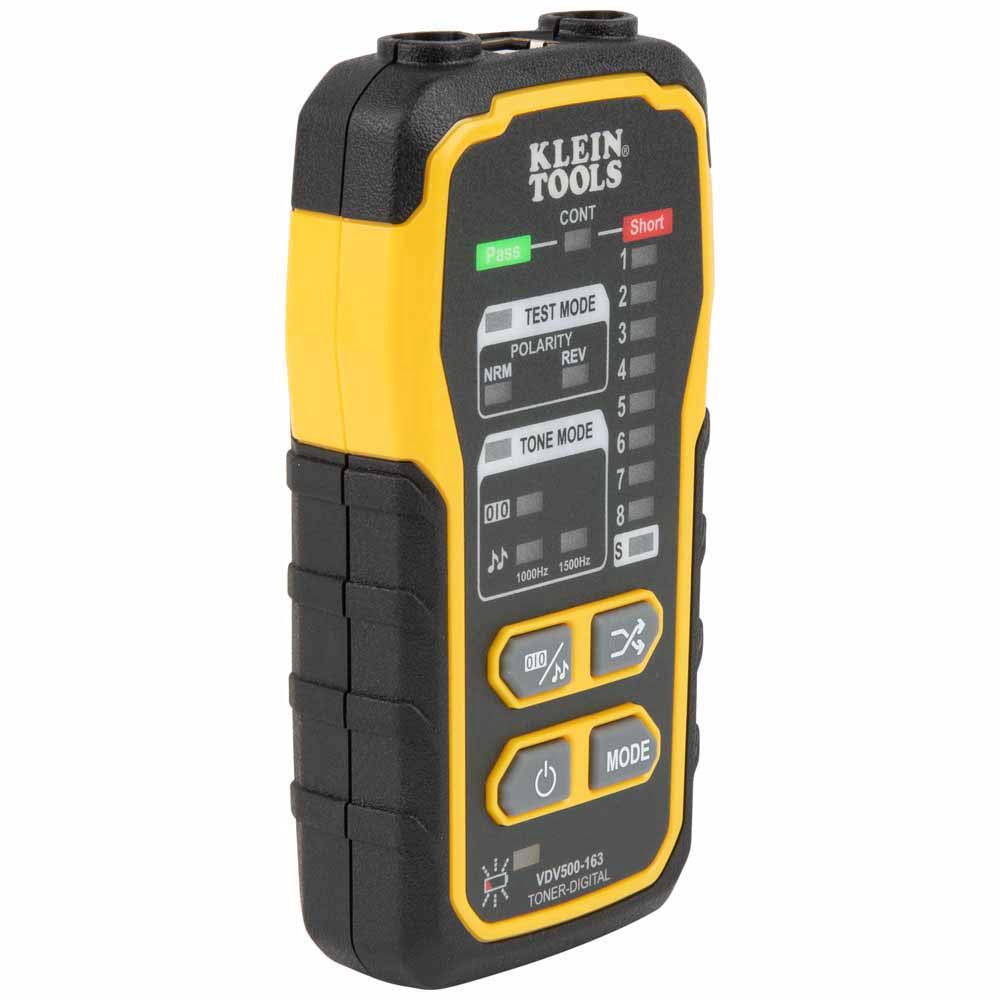

• Tests for continuity and polarity with response displayed on clearly labeled, easy-to-read LEDs
• Three distinct tone cadences
• Auto Power-Off and Low Battery Indicator

SPECIFICATIONS:
• Type: Digital Wire Tracing
• Application: Wire Toning
• Special Features: Performs Analog and Digital Toning
• Material: ABS

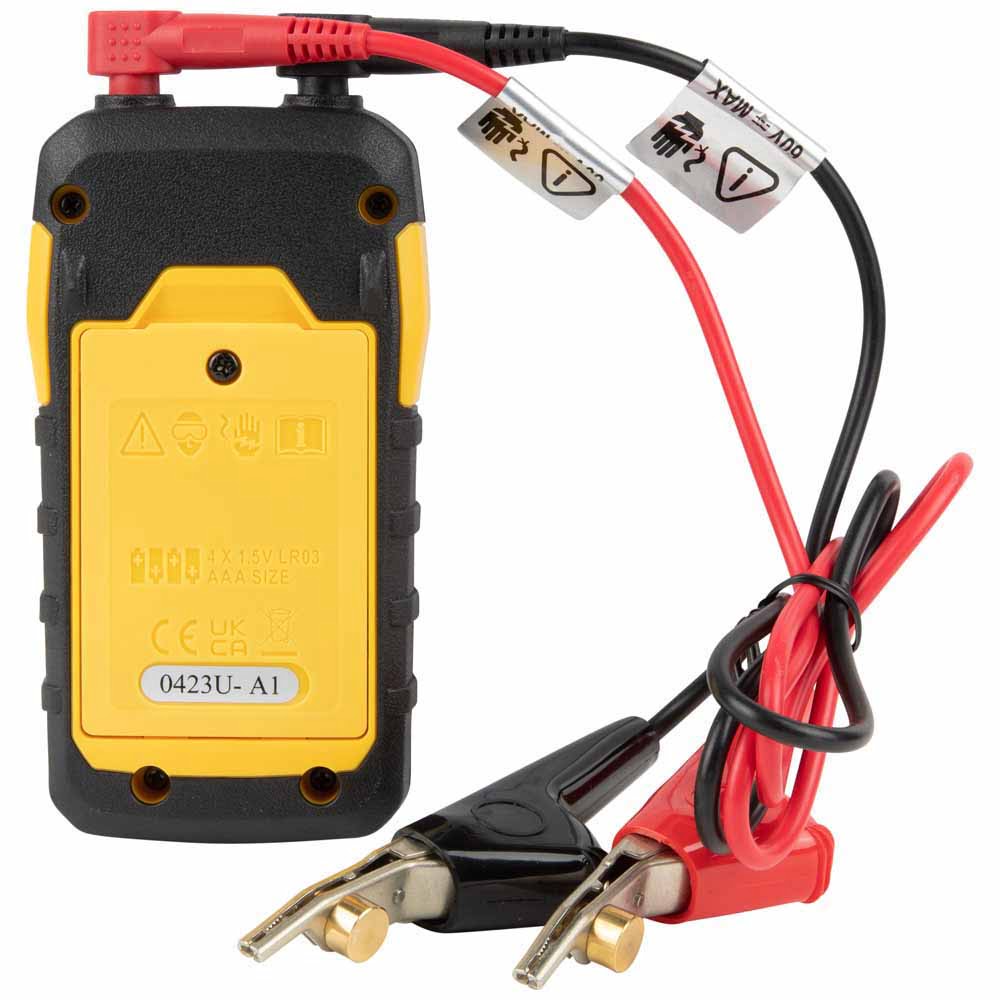

• Batteries: 4 x AAA
• Battery Life: 20 hr
• Low Battery Indicator: Yes
• Power On LED Indicator: Yes
• Auto-Power Off: Yes
• Adjustable Volume: No
• Amplifier Overload Indication: No
• Continuity Testing: Yes
• Tones: 3
• Visual Notification: LED
• Replaceable Tip: No
• Self-Storing Remote: No

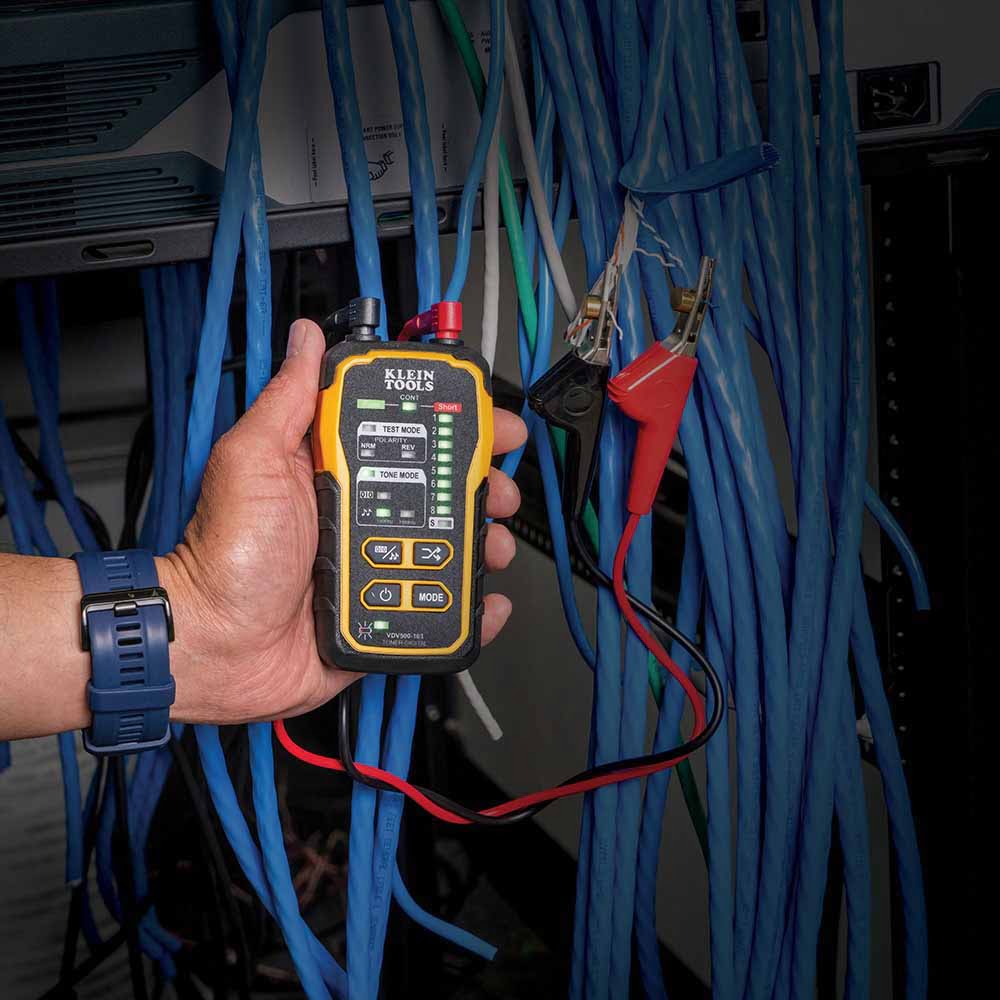

Use Klein Tools Digital Tone Generator for wire identification, wire tracing and wire pair identification. When used with the Digital Tracing Probe (Cat. No. VDV500-223; sold separately), you can trace and locate cables on an active network and wire map to check Pin-to-Pin connections with shield detection and features angled bed-of-nails (ABN) clips to securely attach to wires. Use the RJ45 port to easily test RJ45, RJ11, and RJ12 data cables.
