At a Glance
Cable Type
Coaxial
Display Type
Backlit LCD
Test Type
Continuity
Sold As
Set/Kit
For Use With
Cable Tester
Color
Blue
Description
Description
Klein VDV501-853 Description

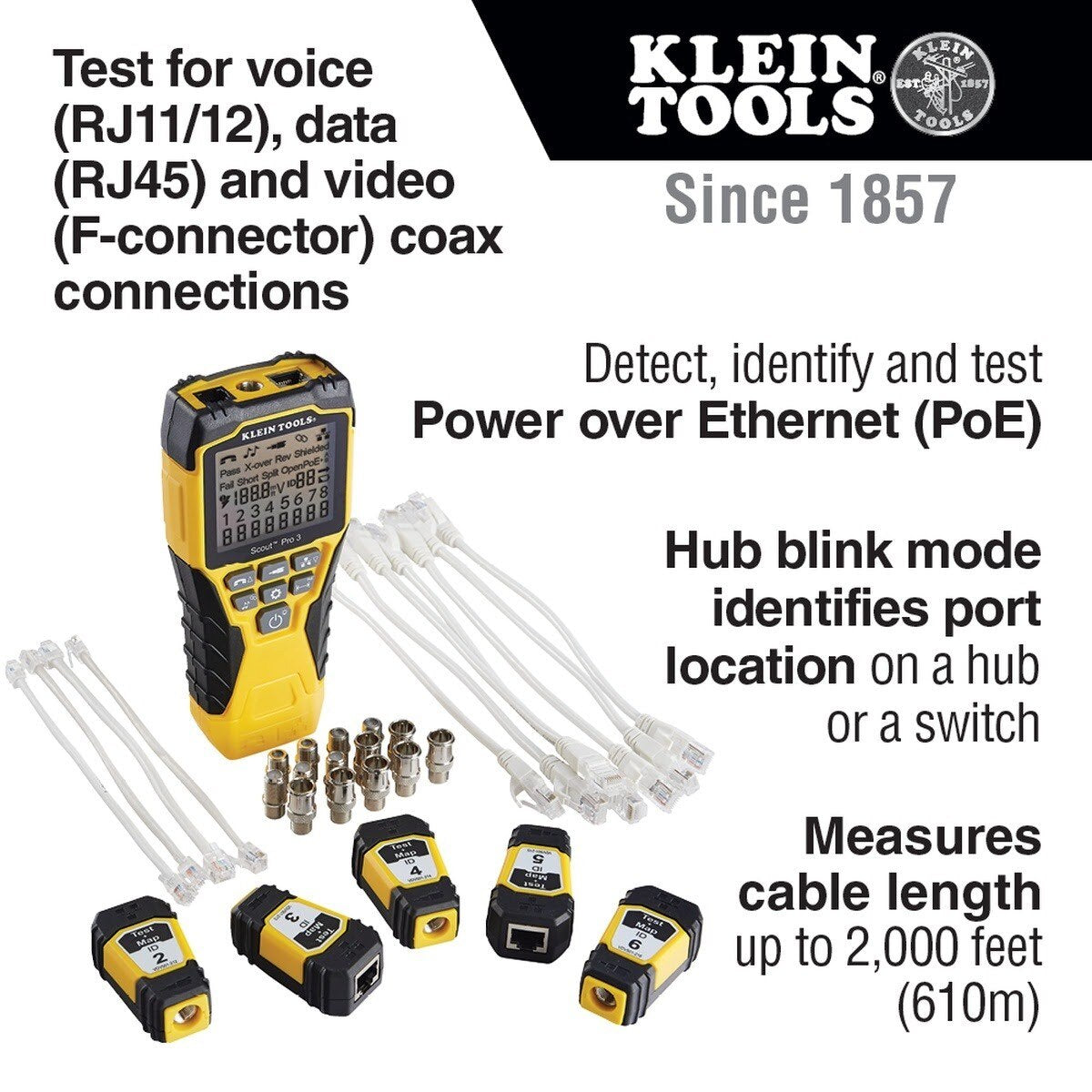

Professional cable tester kit that tests voice (RJ11/12), data (RJ45) and video (F-connector) coax connections, detects PoE, maps and identifies cables, measures length up to 2000 ft, and includes multiple Test + Map remotes and adapters with a carrying case.

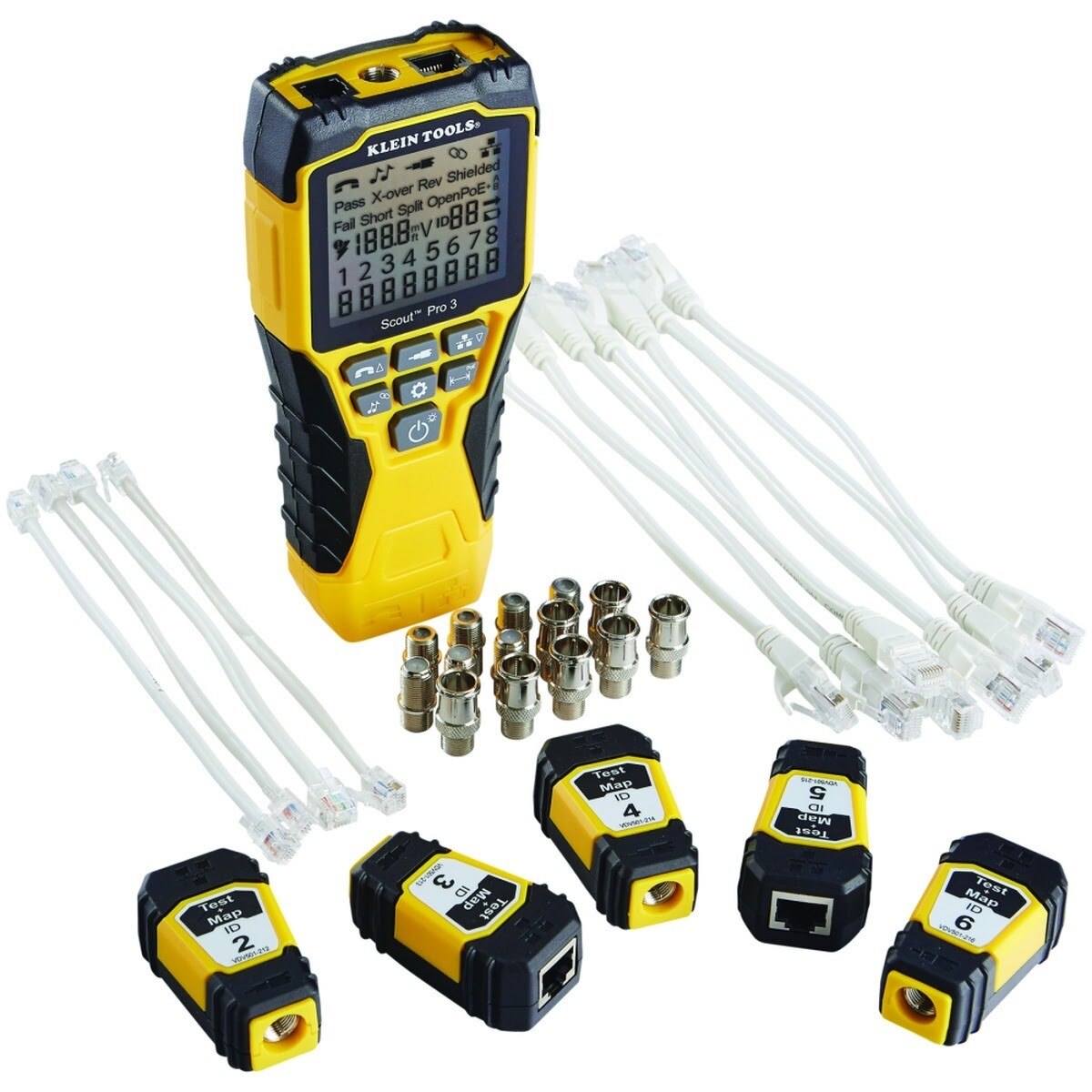

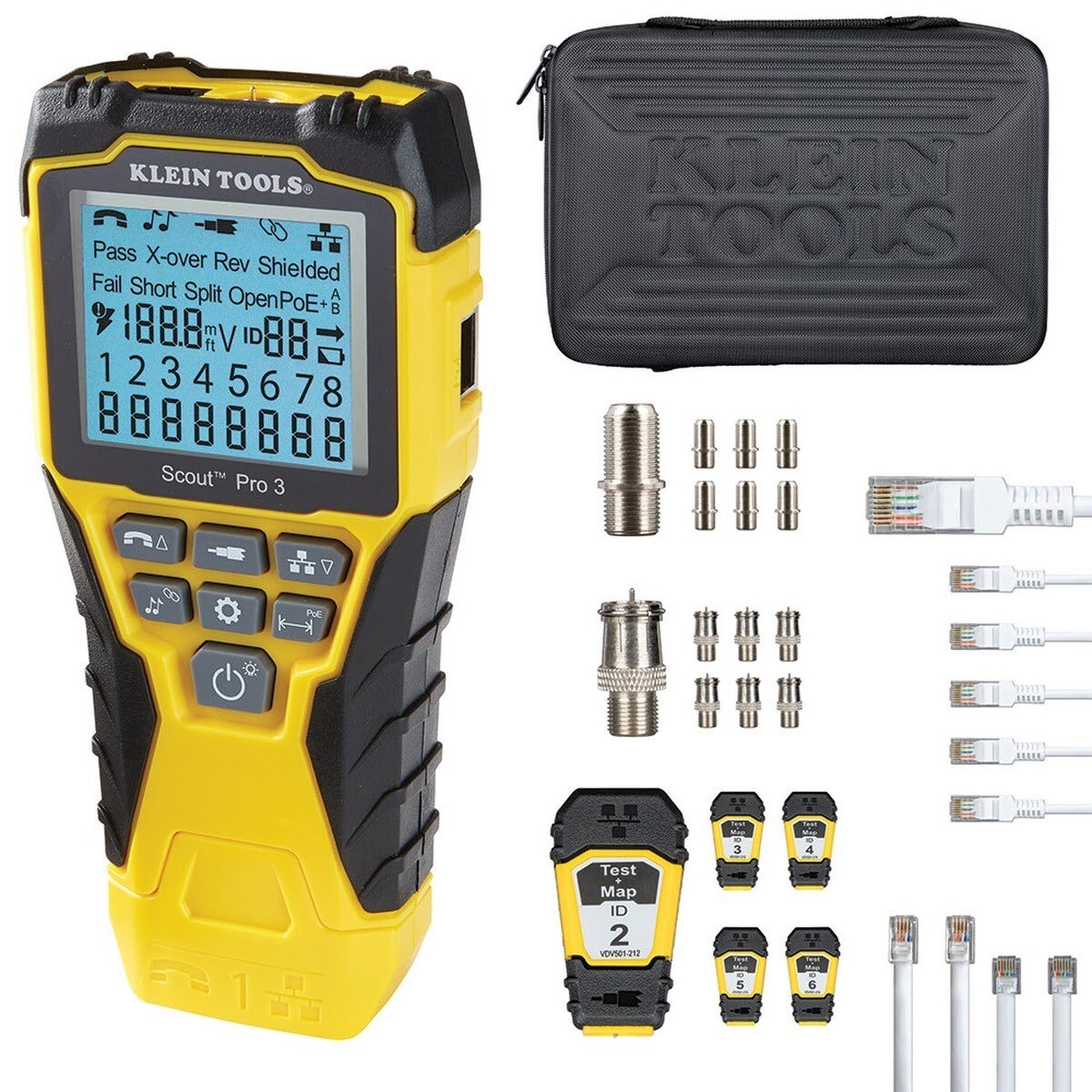

Klein VDV501-853 Includes

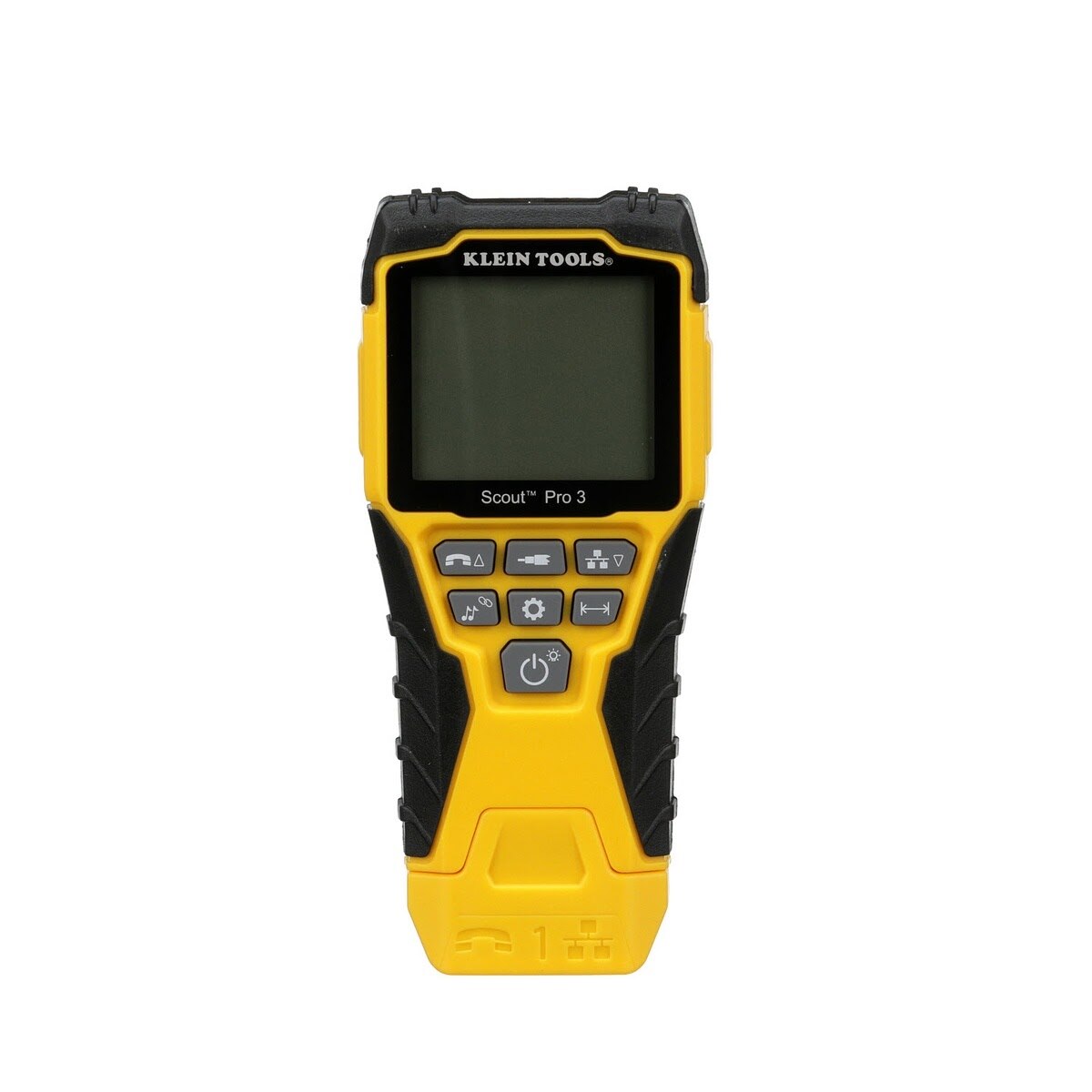

- (1) Scout Pro 3 Tester
- (1) Self-storing Test + Map Remote (#1)
- (5) Test + Map Remotes (#2 - #6)
- (7) Coaxial Barrel Adapters (female-to-female)
- (7) Coaxial Barrel Adapters (male-to-female)
- (7) RJ45 Jumper Cables (6-Inch)
- (2) RJ11 Jumper Cables (6-Inch)
- (2) RJ12 Jumper Cables (6-Inch)
- (1) Carrying Case

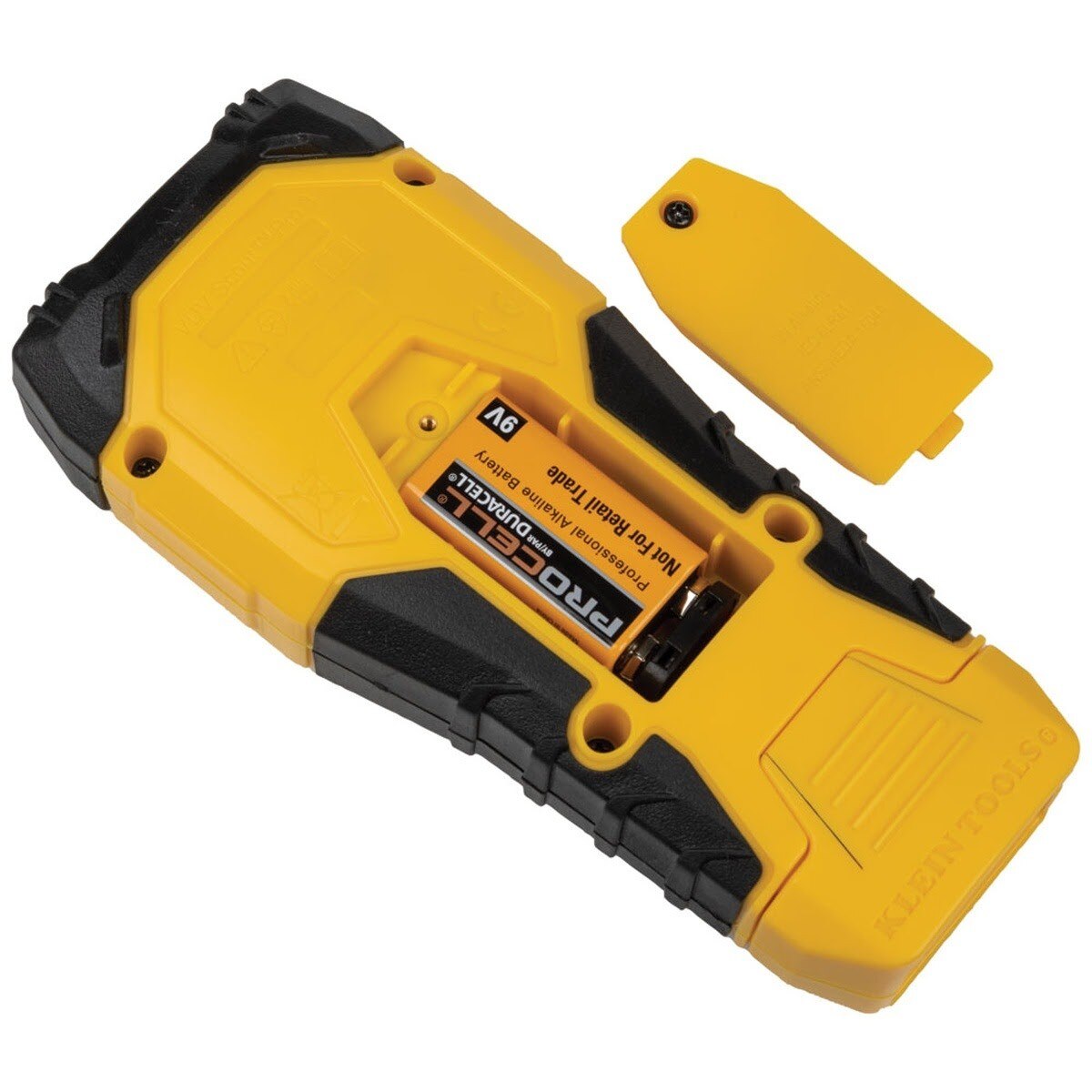

- (1) 9V Alkaline Battery
Klein VDV501-853 Features
- Tests RJ11/12 voice, RJ45 data and F-connector coax

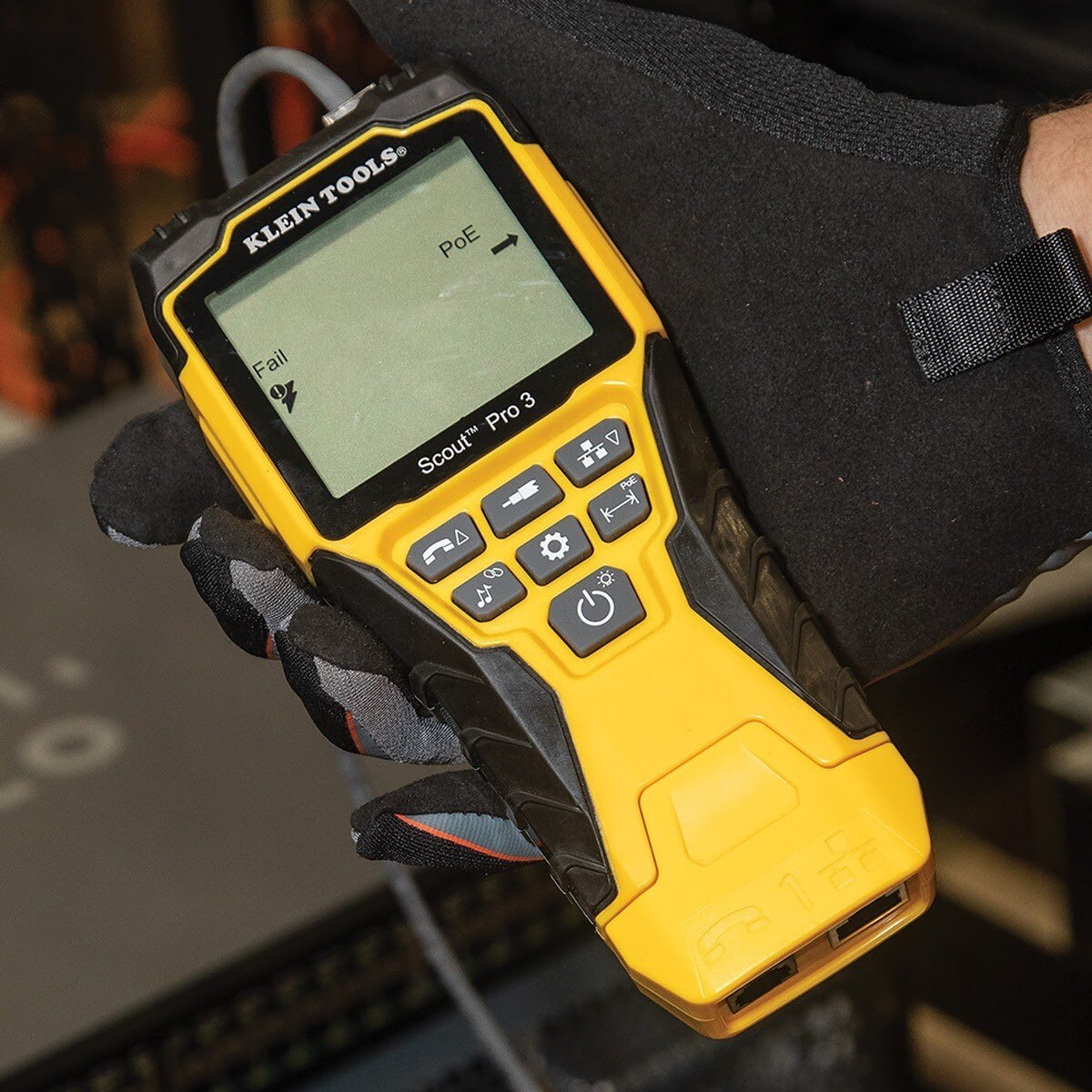

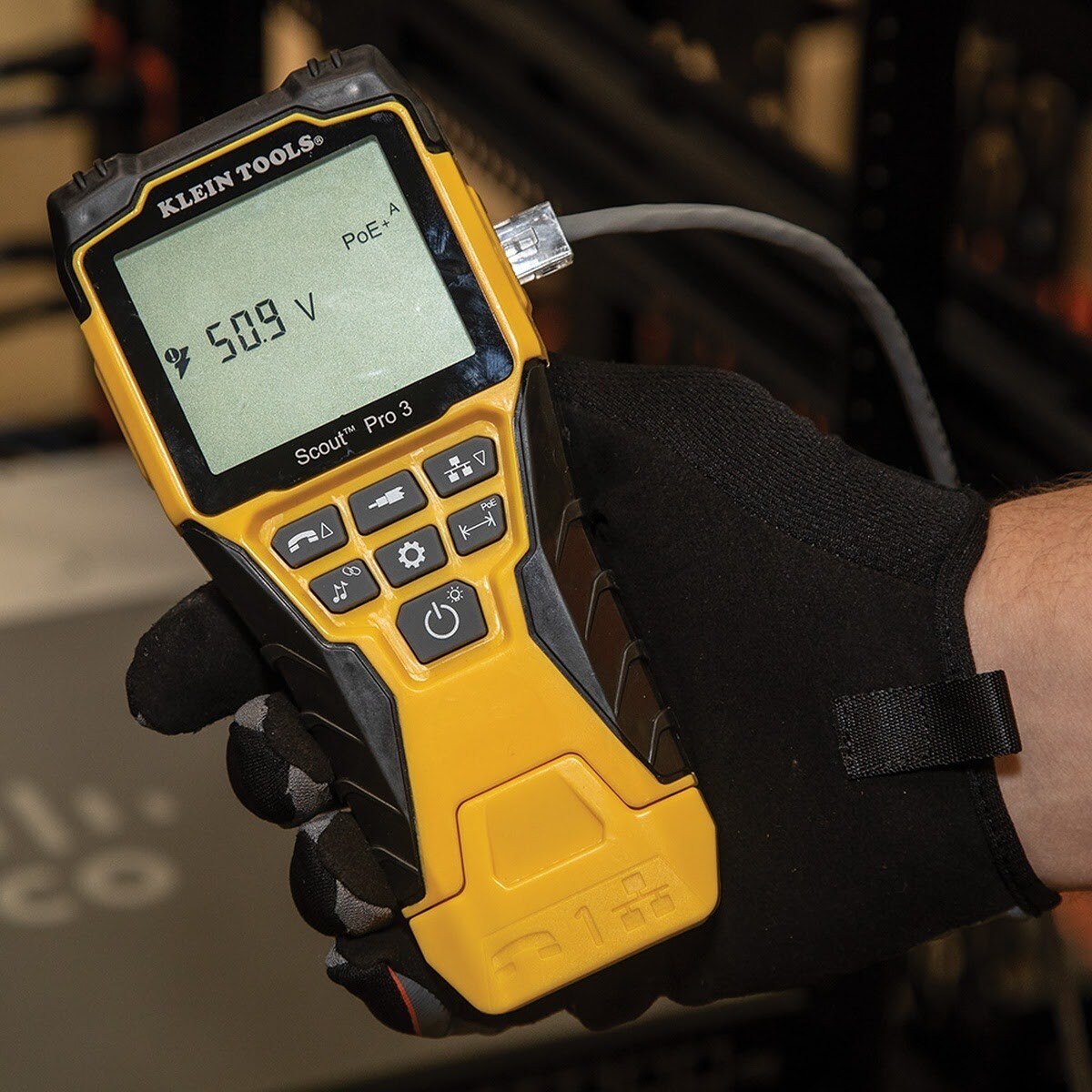

- Detects, identifies and tests Power over Ethernet (PoE)

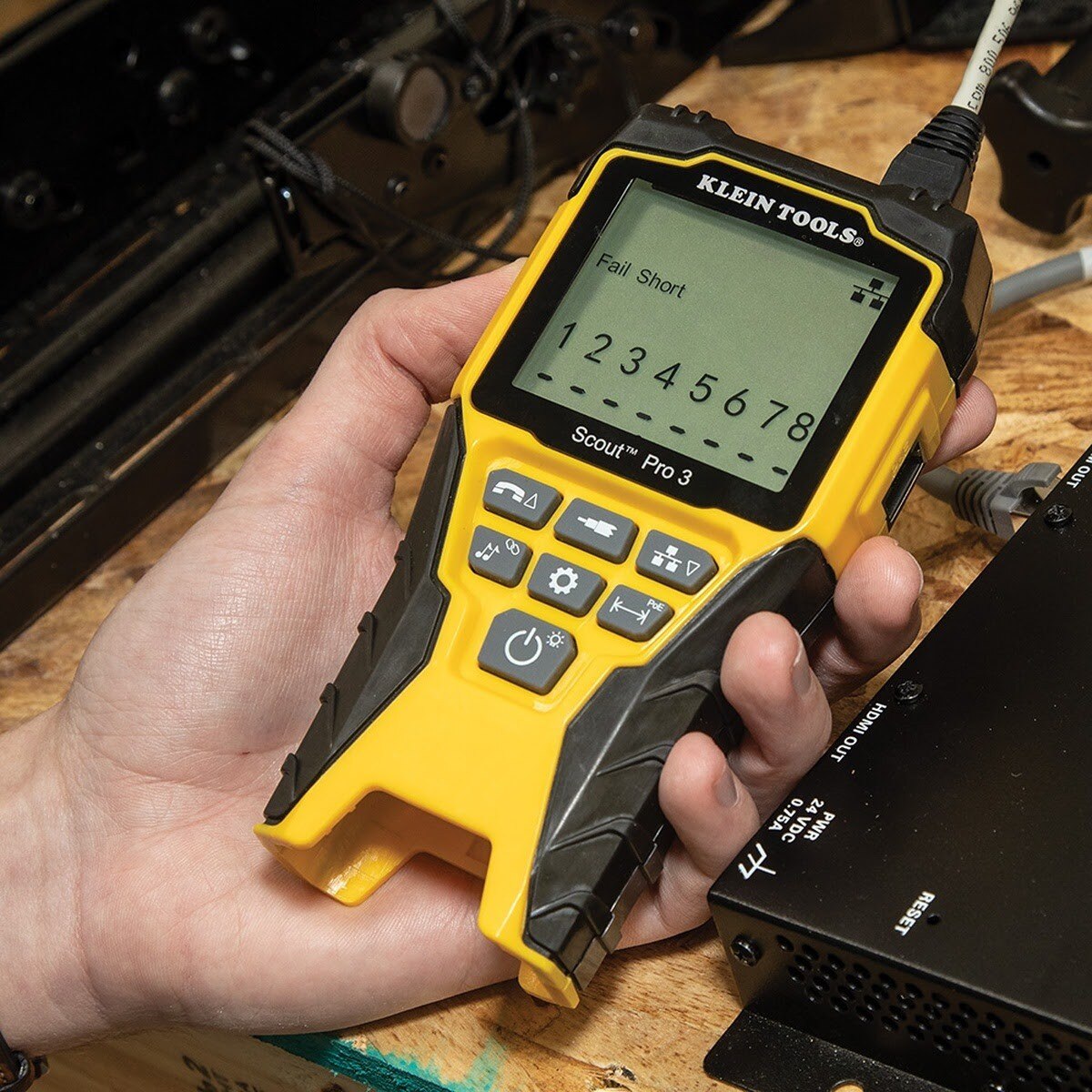

- Wiremap tests for miswires, split pairs, shorts, opens and shield
- Measures cable length up to 2000 feet
- Backlit LCD displays length, wiremap, cable ID and results

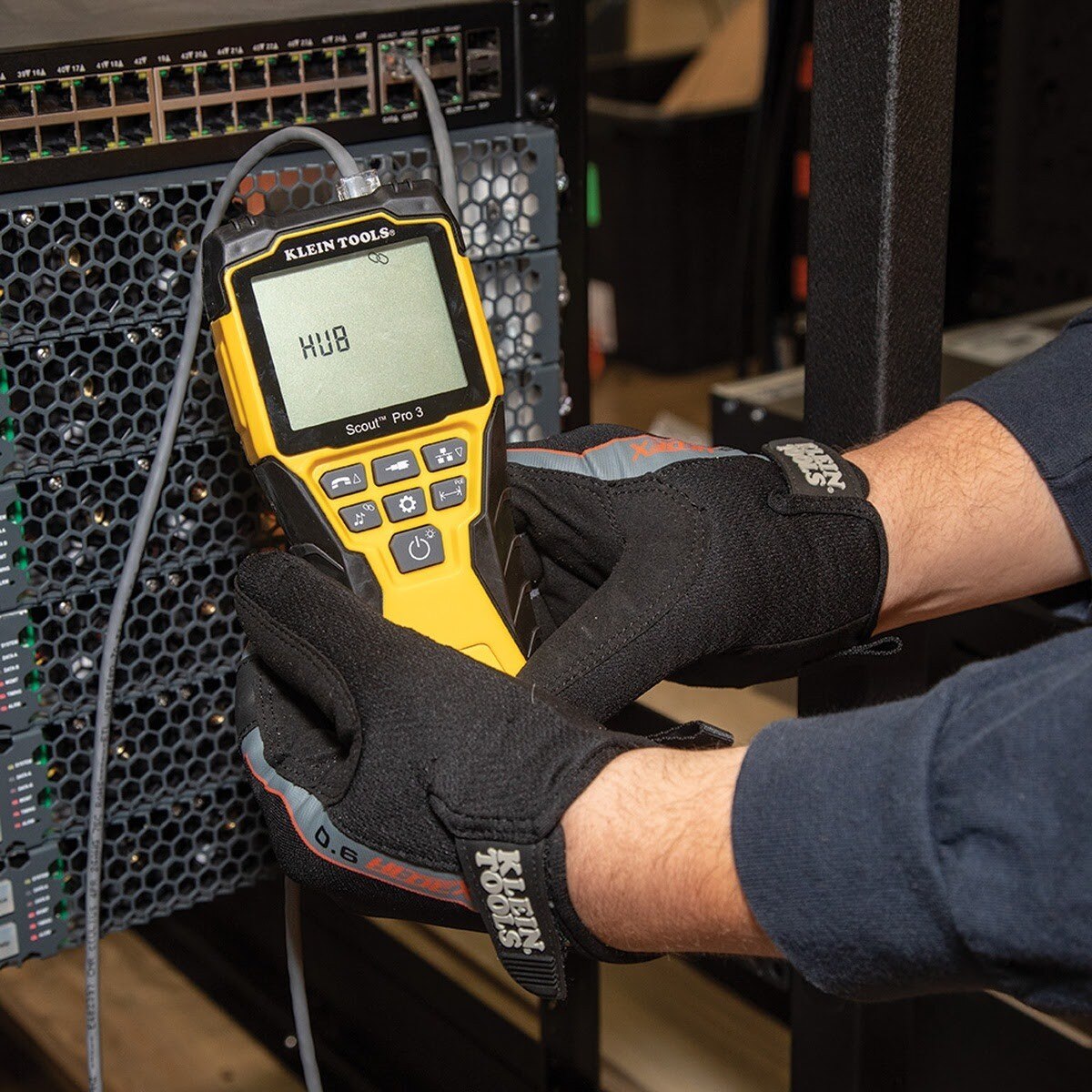

- Hub blink mode identifies port location on a hub or switch
- Multi-style tone generator for tracing (probe sold separately)
- Supports up to 18 remotes
- 2 m drop protection
Klein VDV501-853 Specifications
| Application: | Cable testing |
| Display: | Backlit LCD |
| Battery: | 9V Alkaline |
| Battery Life: | Active: 50 hours |
| Overall Length: | 7 in (17.8 cm) |
| Overall Width: | 1.5 in (3.8 cm) |
| Overall Height: | 3.2 in (8 cm) |
| Weight: | 1.2 lb (0.5 kg) |
| Cable Types: | DATA: CAT3/5e/6/6A/7 shielded or unshielded; COAX: RG59, RG6/6Q |
| Accuracy: | Length measurement +/- 5% (ft or m) |

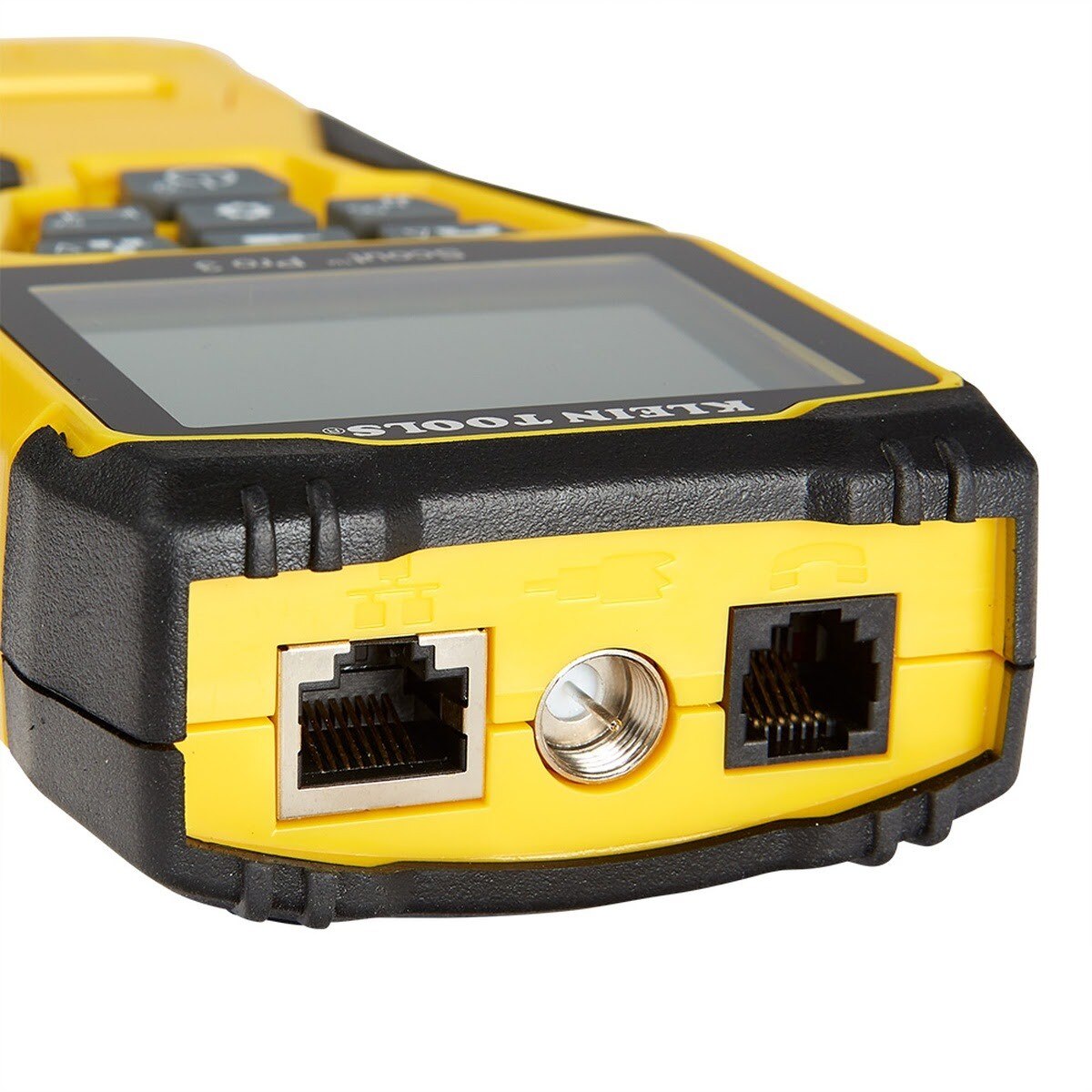

| Connections: | RJ11, RJ12, RJ45, Coax F |
| Standards: | CE |
Toolup Part # :
834861
