Klein Tools  |  SKU: VDV501770  |  Barcode: 092644583957

Klein VDV501770 Scout Pro Max Network Cable Tester With Remote Set

Free Shipping
$499.99 $699.98

Description

Klein VDV501770 Description

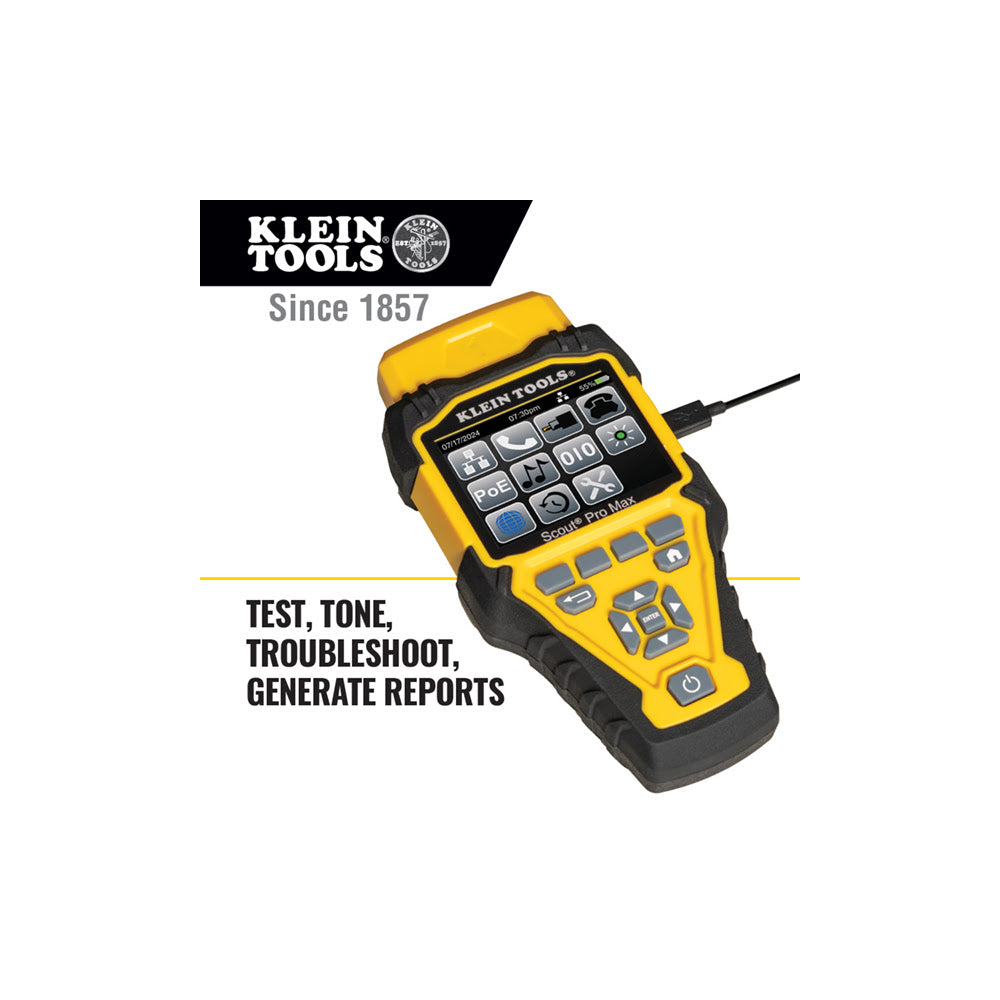

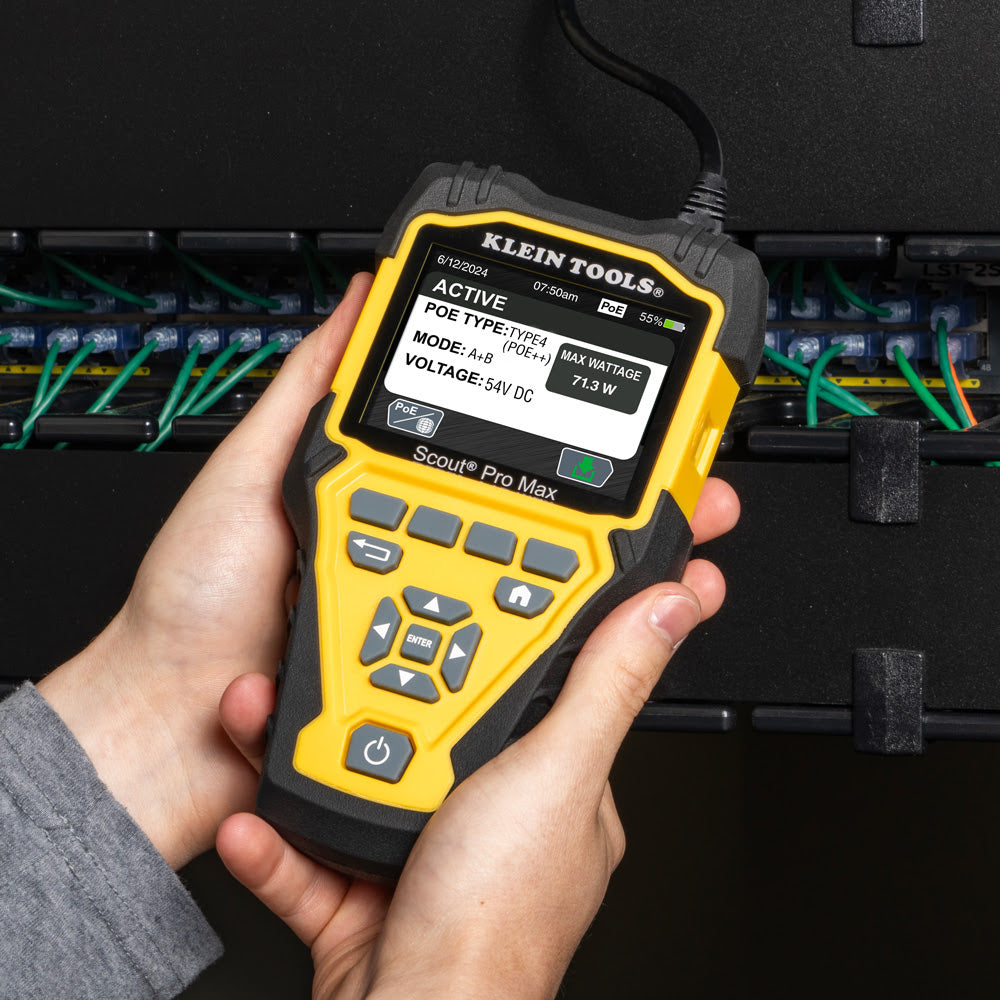

Scout® Pro Max tests and troubleshoots RJ11, RJ12, RJ45, and F-connector terminated cables and provides analog and digital tone generation for cable tracing. It measures cable lengths (via TDR) and detects distance to faults. Generate reports to show custom test history. Tests shielded and unshielded cables. Trace up to 20 locations at a time with included remotes. Perform hub blink testing, measure active and passive Power over Ethernet (PoE). Test POTS, and detect active network capabilities.

Klein VDV501770 Includes

  • (1) Tester
  • (1) Self-Storing Remote
  • (2) RJ45 CAT6 to RJ45 CAT6 Cable (T658B)
  • (2) RJ11 to RJ11 Cable
  • (2) RJ12 to RJ12 Cable
  • (1) Female Coax-F to Angled-Bed-of-Nails Cable

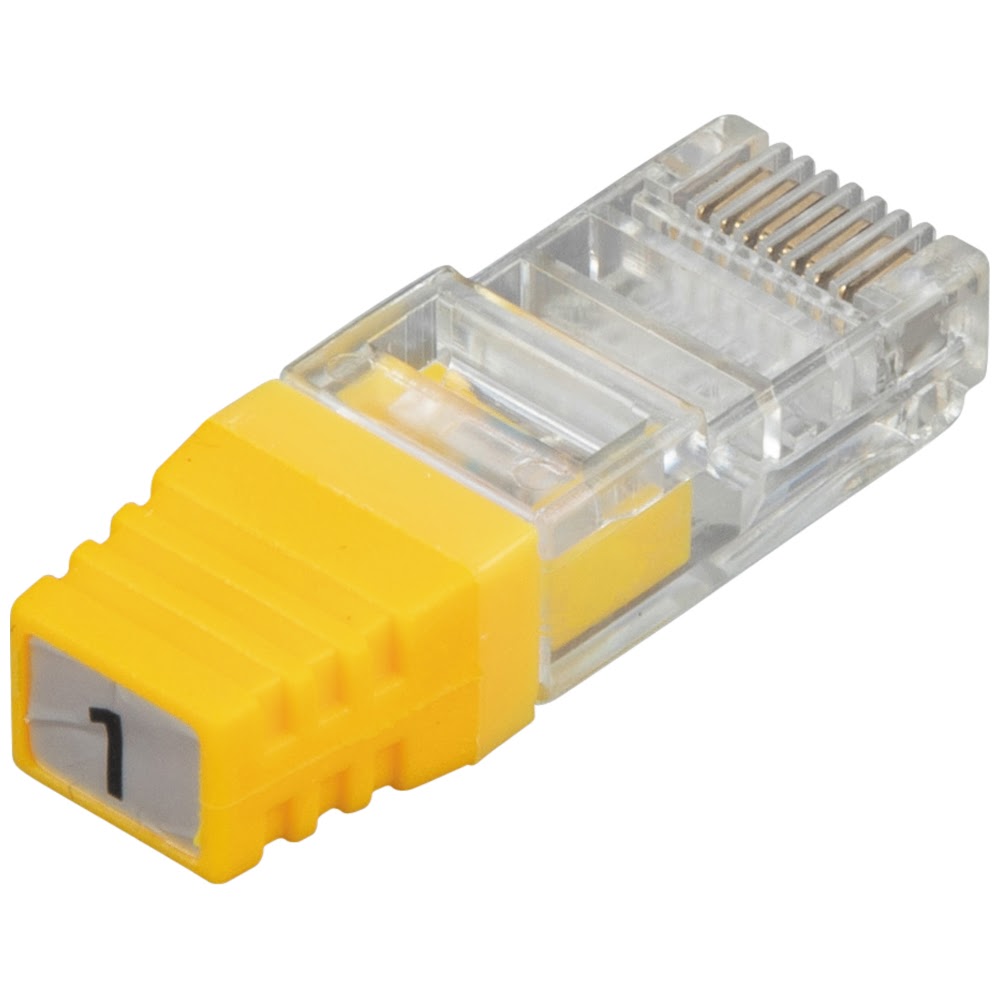

  • (1) RJ45 LanMap™ Location ID Remotes (1-20)
  • (1) F-Connector CoaxMap™ Location ID Remotes (1-20)
  • (1) Female F-Barrel Connector
  • (1) USB-C to USB-A Cable
  • (1) Carrying Case

Klein VDV501770 Features

  • Network cable tester locates, tests, and measures data, phone, and coax cables to ensure fast and accurate installations and troubleshoot faults
  • Full color back-lit screen and internal memory to store, download, and output test results for easy report management

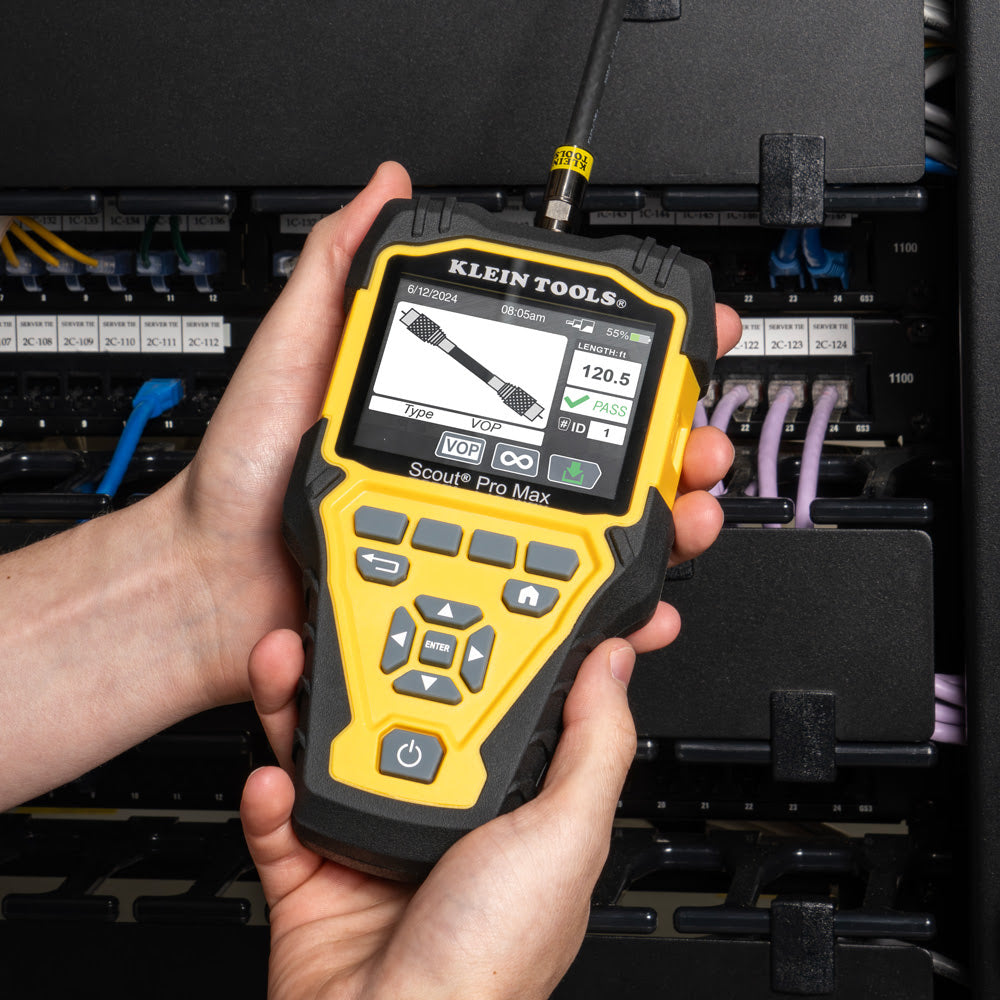

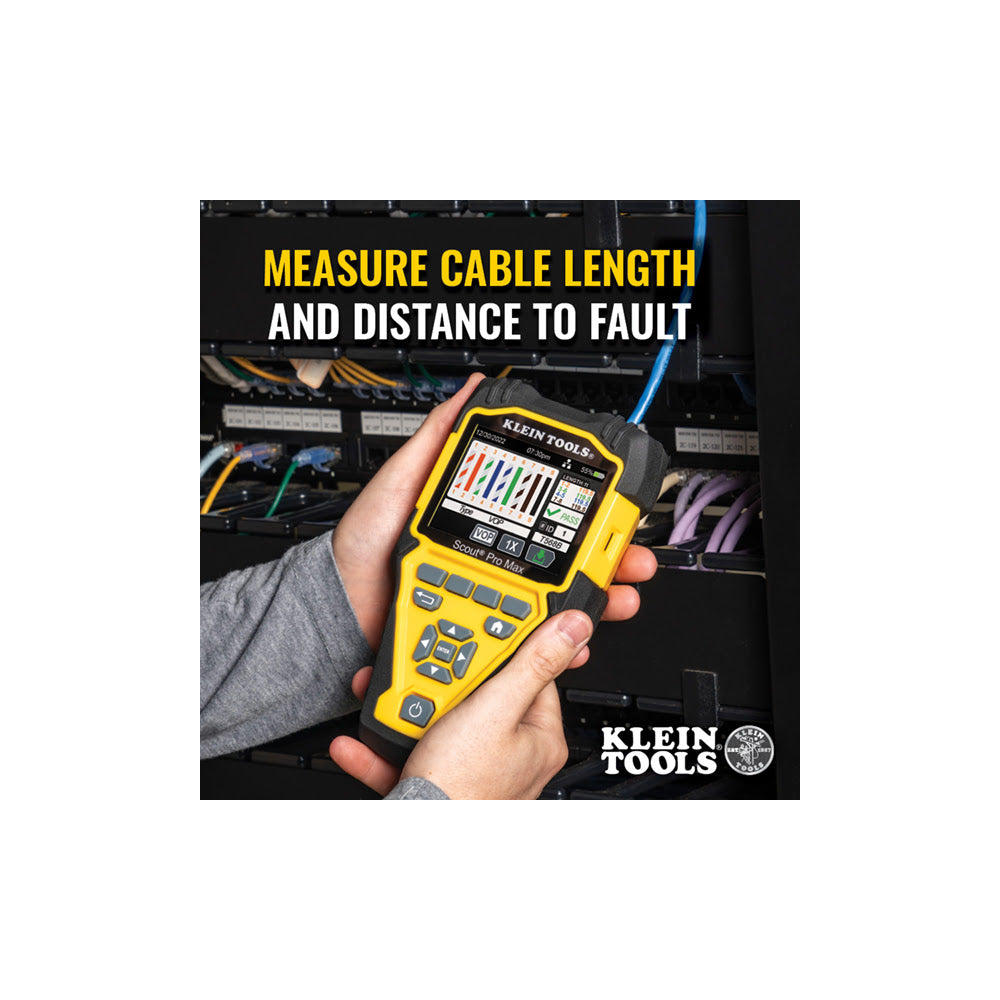

  • Measure cable length up to 2000 feet (610 m) and distance to fault with TDR

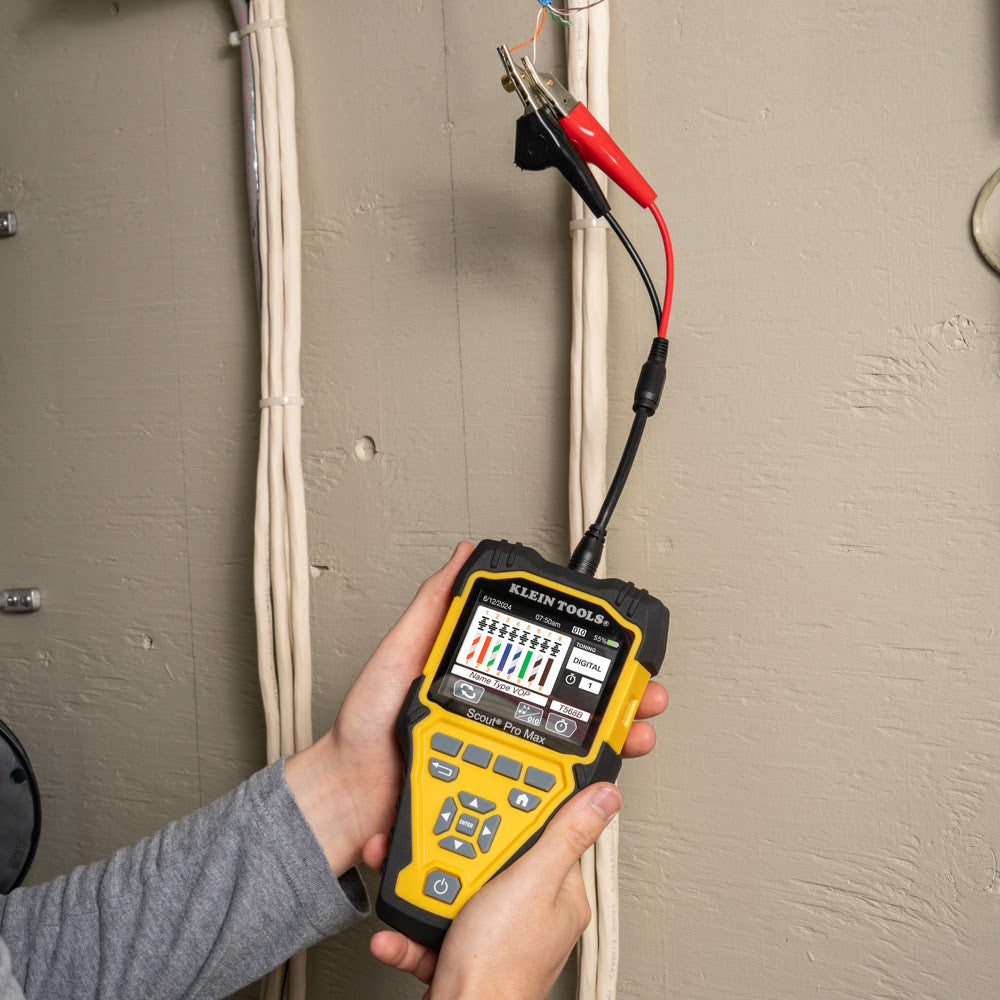

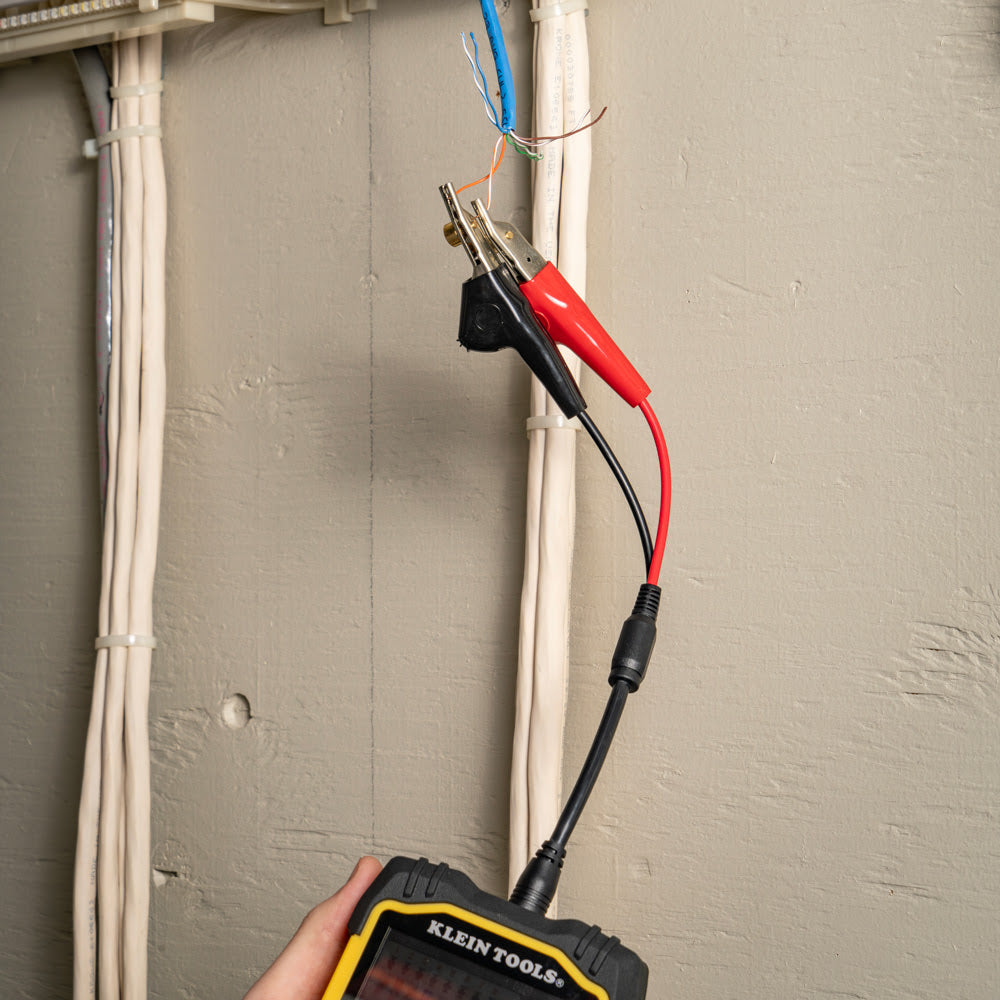

  • Digital / Analog tone generation to easily probe cables (requires Cat. No. VDV500-223, sold separately)

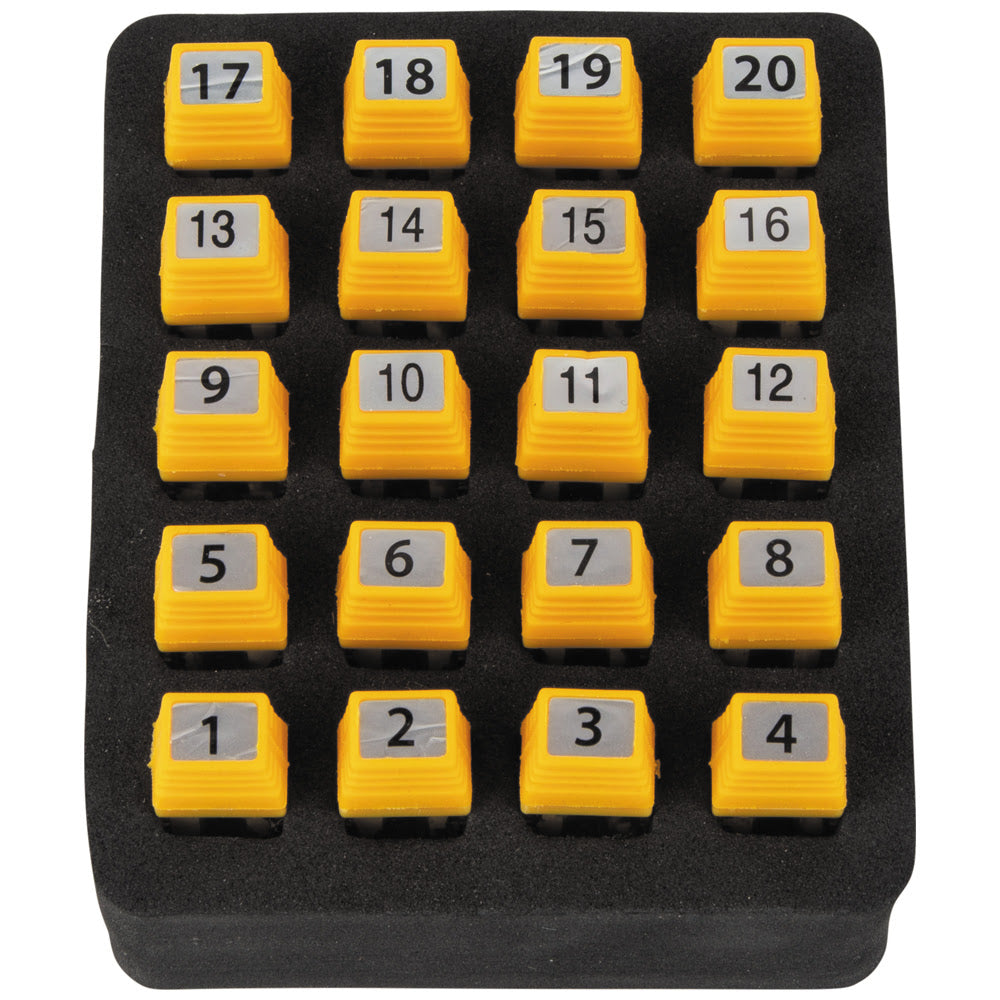

  • Locate and identify up to 20 locations with ID remotes for greater cable management and organization
  • Detect network capabilities and connection speeds up to 10G bps

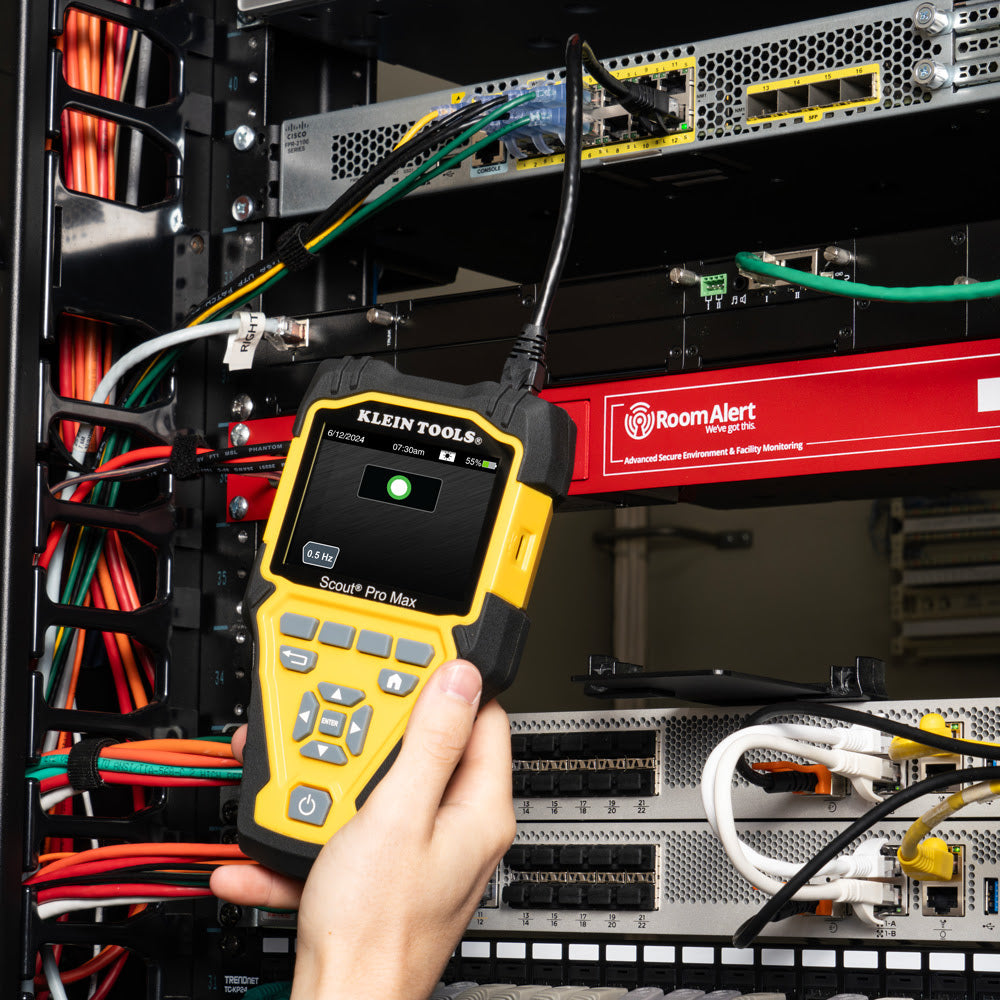

  • Initiate hub blink to easily identify and locate cables on device and POTS testing

Klein VDV501770 Specifications

Type: Twisted Pair, DATA, Voice, LAN, and Coaxial
Test & Measure Types: Ethernet/Data and Coaxial
Cable Type: DATA:, Shielded or Unshielded, CAT6; COAXIAL: RJ11, RJ12, RJ45
Material: Plastic and Metal
Supported Remotes: 41
Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-223); Sold Separately
Accuracy: ± (2% + 3' or 1 m) with Known VoP and Consistent Cable Parameters
Cable Identification: Includes 20 Remote Locators
Display: Backlit LCD
Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
Drop Protection: 6.6' (2 m)
Battery Life: Active: 15 hr; Standby: 1 yr
Batteries: 3× AA alkaline
Included: Tester, Self-Storing Remote, RJ45 CAT6 to RJ45 CAT6 Cable (T658B) (×2), RJ11 to RJ11 Cable (×2), RJ12 to RJ12 Cable (×2), Female Coax-F to Angled-Bed-of-Nails Cable, RJ45 LanMap™ Location ID Remotes (1-20), F-Connector CoaxMap™ Location ID Remotes (1-20), Female F-Barrel Connector, USB-C to USB-A Cable, Carrying Case
Special Features: Measures Cable Length; Backlit LCD; Hub Blink
Application: Cable Testing
Overall Length: 8" (20.3 cm)
Overall Width: 4" (10.2 cm)
Overall Height: 1.5" (3.8 cm)
Weight: 15.8 oz (447 g)
