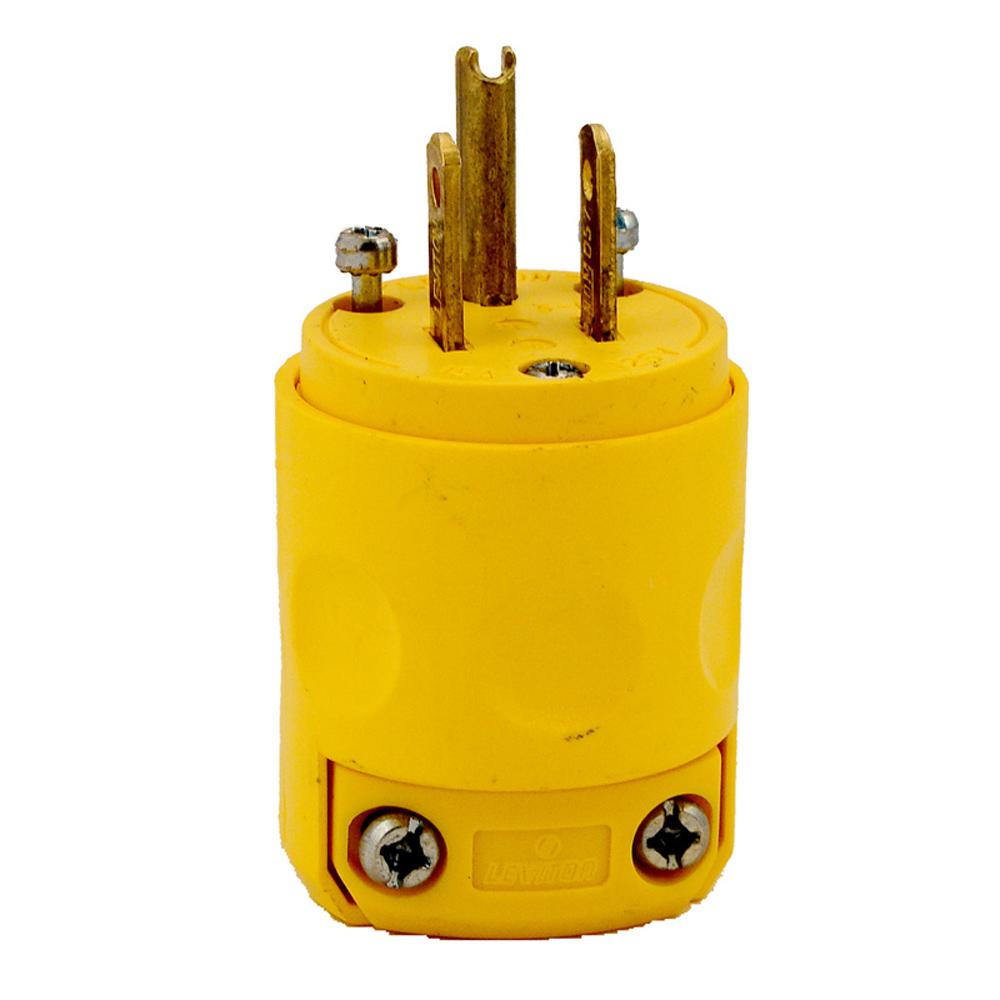

Leviton 515PV 2-Pole, 3-Wire, Plug, Straight Blade, Yellow
$2.93
$18.79
Unit price
/
Unavailable
Description
Description
15 Amp/125 Volt, u Ground Male (12-00244YL) 515PV Includes
- (1) 2-Pole, 3-Wire, Plug, Straight Blade, Yellow
15 Amp/125 Volt, u Ground Male (12-00244YL) 515PV Features
- Hinged design provides fast, easy assembly
- Ideal for replacement of plugs on tools, appliances and extension cords
- Accepts AWG SJ 16/3
- NEMA 5-15P
- Available in Black, Gray, Orange and White
- cULus, NOM
- Rugged PVC plug and connector (515PV/515CV) resists moisture and chemicals
- Unique dimpled body provides a secure hinge grip
- Built-in cord grip adjusts automatically for use with 18-12 AWG
15 Amp/125 Volt, u Ground Male (12-00244YL) 515PV Specifications
| Amperage | 15 A |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Assembly Screws | Steel, Zinc Plated |
| Blades/Contacts | Brass |
| Body Material | PVC |
| Color | Yellow |
| Cord Range | .245 - .655 |
| Product ID | Ratings and NEMA I.D. permanently marked on device |
| Terminal Accom. | 18-12 AWG |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Cord Range | .245 - .655 |
| Grade | Residential |
| NEMA | 5-15P |
| Standards and Certifications | UL/CSA |
