Leviton 9650-P Description

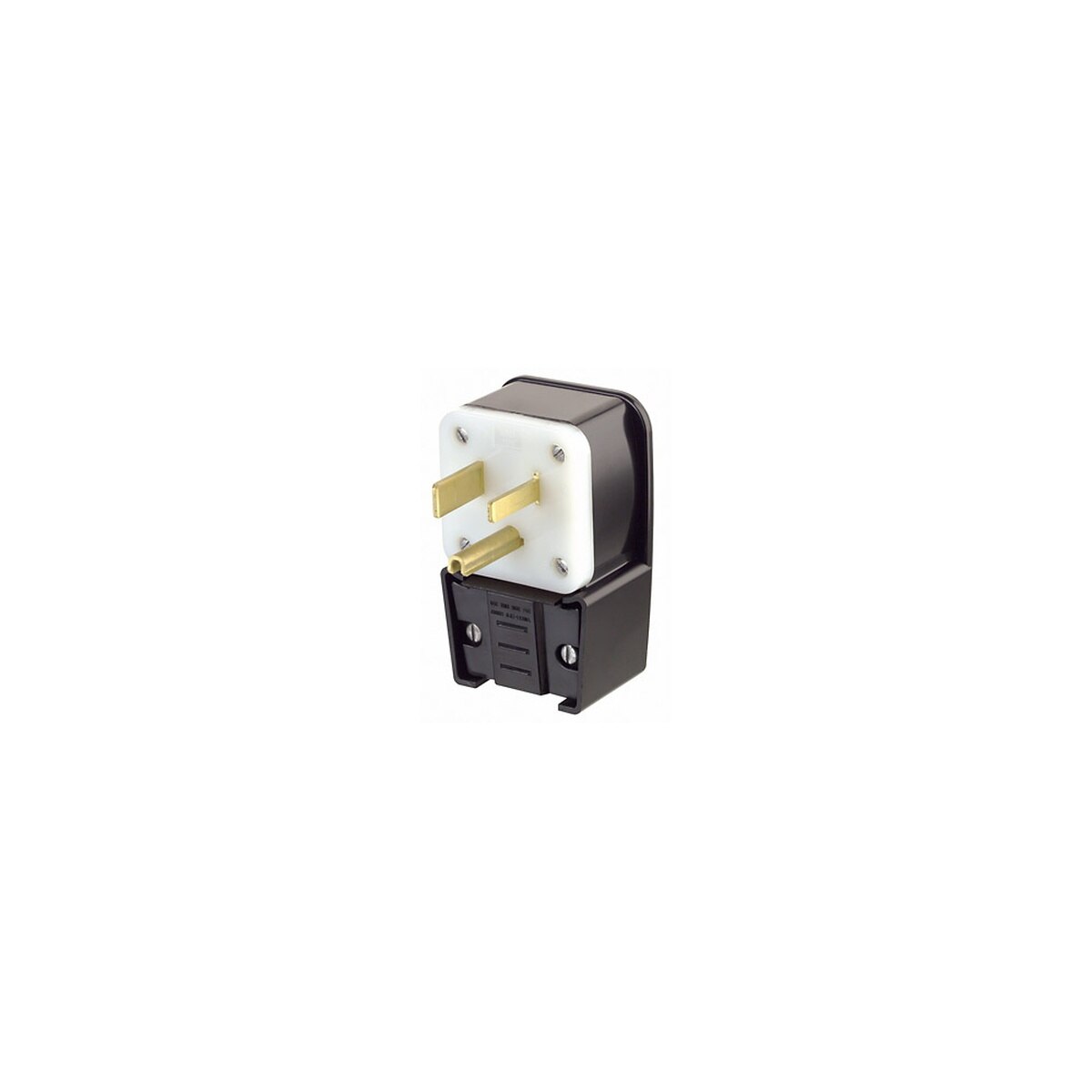

Leviton industrial grade straight blade plug designed for 50 amp, 250 volt applications. Features an angled NEMA 6-50P configuration with 2 poles and 3 wires for grounding, and a durable black nylon body with solid brass blades for reliable performance.
Leviton 9650-P Includes
- (1) NEMA 6-50P Angled Straight Blade Plug
Leviton 9650-P Features
- 50A, 250V straight blade plug for heavy duty power connections

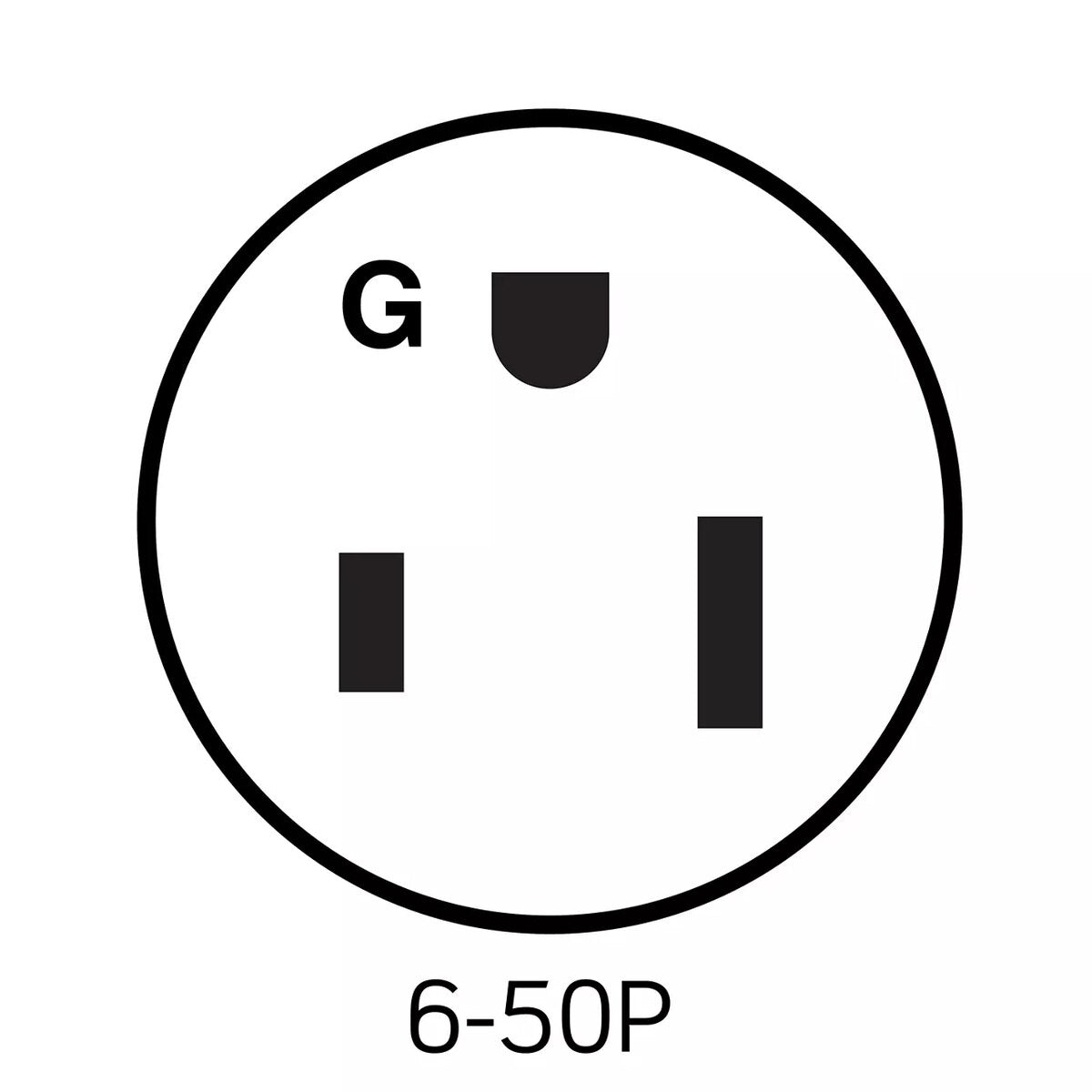

- NEMA 6-50P configuration (2-pole, 3-wire) with grounding
- Angled plug design for improved cord routing and clearance
- Industrial grade construction for demanding applications
- Super tough nylon body for durability
- Solid brass blades/contacts for dependable conductivity
- Fluted body with radial gripping ridge for easier gripping and pulling
- Catalog and NEMA numbers printed on cord clamp for identification
- Four-way positioning front module
Leviton 9650-P Specifications
| Amperage | 50 A |
| Voltage Rating | 250 VAC |
| NEMA Configuration | 6-50P |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Grounding | Grounding |
| Color | Black |
| Device Type | Power Device |
| Feature | Angled |
| Body Material | Super Tough Nylon |
| Blades/Contacts Material | Solid Brass |
| Wire Gauge | 6-4 AWG |
| Terminal Accommodation | Up to 4 AWG |
| Cord Range | 0.625 to 1.375 |
| Torque Range | 16-20 in-lbs |
| Operating Temperature | -40 DegreeC to 60 DegreeC |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Horsepower Rating | 3 HP |
| RoHS Compliant | Yes |
| Warranty | 2-Year Limited |
