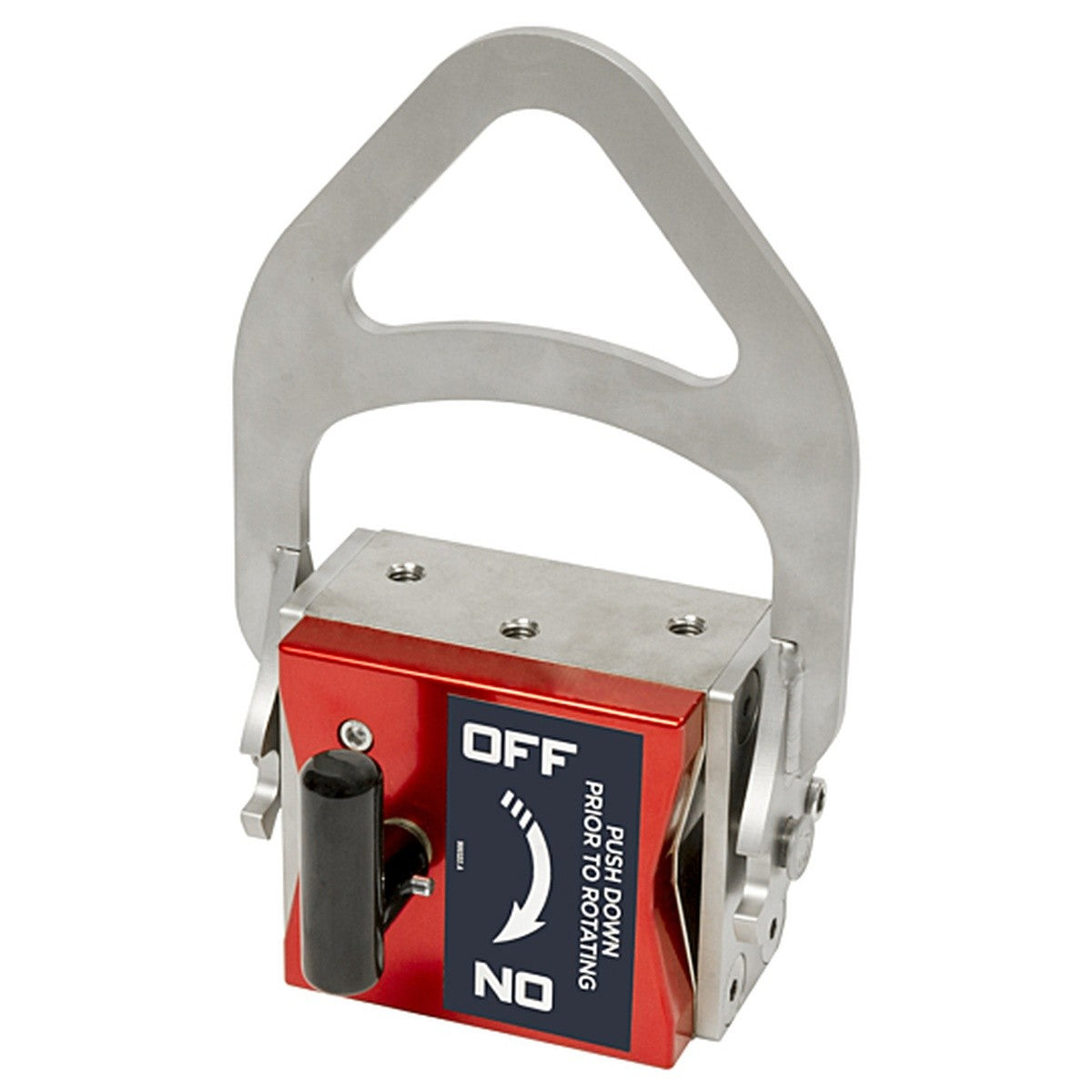

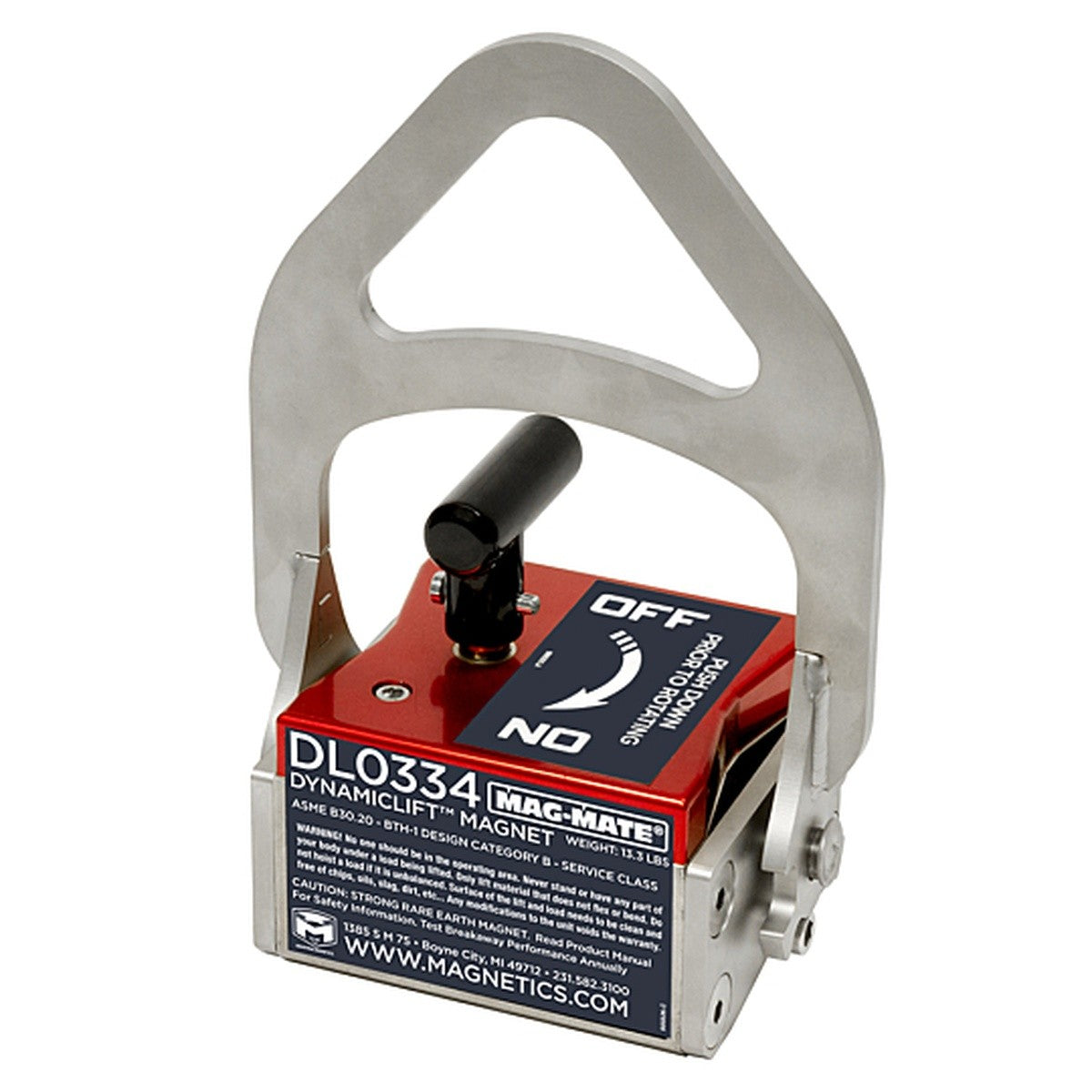

Mag-Mate DL0334 Description
The Mag-Mate DL0334 DynamicLift manual lifting magnet is a lightweight permanent rare earth lifting magnet designed for handling flat or round loads. Its top rotating and locking on/off handle allows use in tight spaces, while the internal release mechanism helps prevent contact with and damage to the load surface.
Mag-Mate DL0334 Includes
- (1) DynamicLift Manual Lifting Magnet
Mag-Mate DL0334 Features
- On/off actuated permanent rare earth magnet design
- Lifts flat or round loads horizontally and flat loads vertically
- Top rotating and locking on/off handle for use in tight spaces
- Internal manual release does not contact the load surface
- Large swivel lift lug
- Heat resistant up to 180 DegreeF (82 DegreeC)
- 3:1 design factor
- Conforms to ASME B30.20 BTH-1 Design Category B Service Class 3
- 2-pole magnet design
Mag-Mate DL0334 Specifications
| Brand | Mag-Mate |
| Model | DL0334 |
| Product Type | Manual Lifting Magnet |
| Capacity | 334 lbs |
| Material | Steel/Rare Earth |
| Color | Red |
| Product Length | 6-1/2 in |
| Product Width | 4 in |
| Product Height | 9-1/4 in |
| Shipping Weight | 13.3 lbs |
| Magnet Size | 4-1/4 in L x 4 in W x 3 in H |
| Base Dimension | 3 x 2-1/2 in |
| Handle Length | 2-1/2 in |
| Bail Opening | 1/4 x 2-1/4 x 4 in |
| Minimum Thickness | 1/4 in |
| Heat Resistance | 180 DegreeF (82 DegreeC) |
| Design Factor | 3:1 |
| Certification | ASME B30.20 BTH-1 Design Category B Service Class 3 |
| Assembly Required | No |
| Warranty | 1 Year |
Toolup Part # :
866526
