Makita 198509-5 9" Dust Extraction Cutting Guard
Description
Description
Makita 198509-5 Description

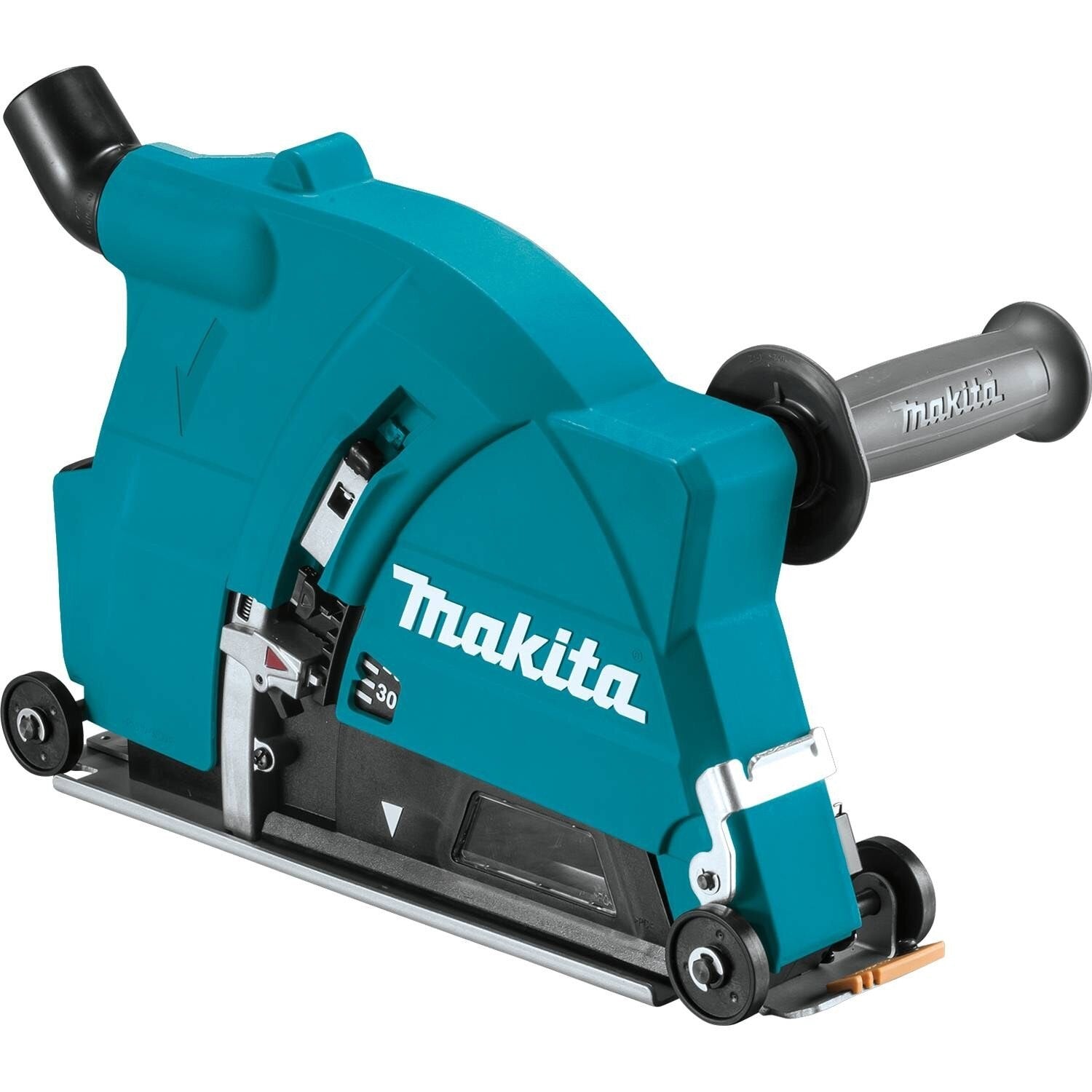

The Makita 9" Dust Extraction Cutting Guard is designed to work with Makita 9" Angle Grinders (models GA9040S, GA9031Y, GA9060, all sold separately). This full-featured sawing guard is engineered for precision cutting and maximum dust extraction when used with a vacuum (sold separately). The plunge action allows for maximum dust containment while making a cut. The adjustable depth are engineered for quick depth adjustments, with a clear viewing window for improved visibility. Added features include a rounded base plate lead edge with rollers for smooth travel while cutting, and an adjustable guide that is easy to see for increased cutting accuracy.
Makita 198509-5 Includes
- (1) Inner flange (126601-7)
- (1) Inner flange (198676-6)
- (1) Side handle
- (1) Hose holder
- (1) Wrench
Makita 198509-5 Features
- Easily adjustable depth setting allows up to 2-3/8" cutting depth when used with a 9" cutting blade
- Plunge action feature allows maximum dust containment while initiating a cut
- Adjustable depth stops allows for quick and easy depth-of-cut adjustment
- Clear viewing window for improved visibility
- Dust port can be adjusted 360° for added versatility
- Handle attachment point on guard for increased comfort
- Rounded base plate lead edge and rollers for easier travel while cutting
- Easy to see adjustable guide for increased accuracy
- Includes Inner Flange (126601-7) required for guard to function properly
- For use with Makita 9" Angle Grinders models GA9040S, GA9031Y, GA9060, XAG13 and XAG23
Makita 198509-5 Specifications
| Blade Diameter | 9" |
| Cutting Capacity (depth) | 2-3/8" |
| Dimensions (LxWxH) | 14-9/16" x 8-7/8" x 3-9/16" |
| Shipping Weight | 7.95 lbs. |
| UPC Code | 088381-487115 |
