Makita DX09 Dust Extractor Attachment with HEPA Filter
Description
Description
Makita DX09 Description

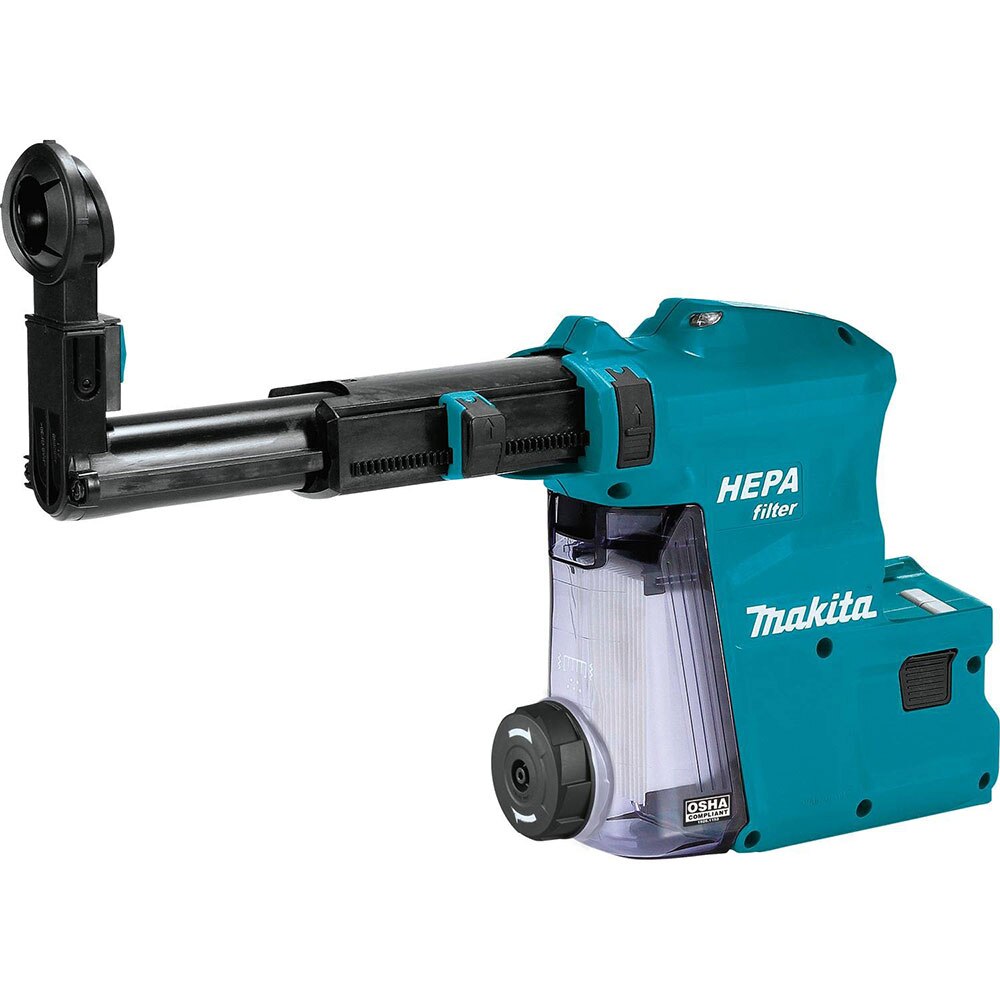

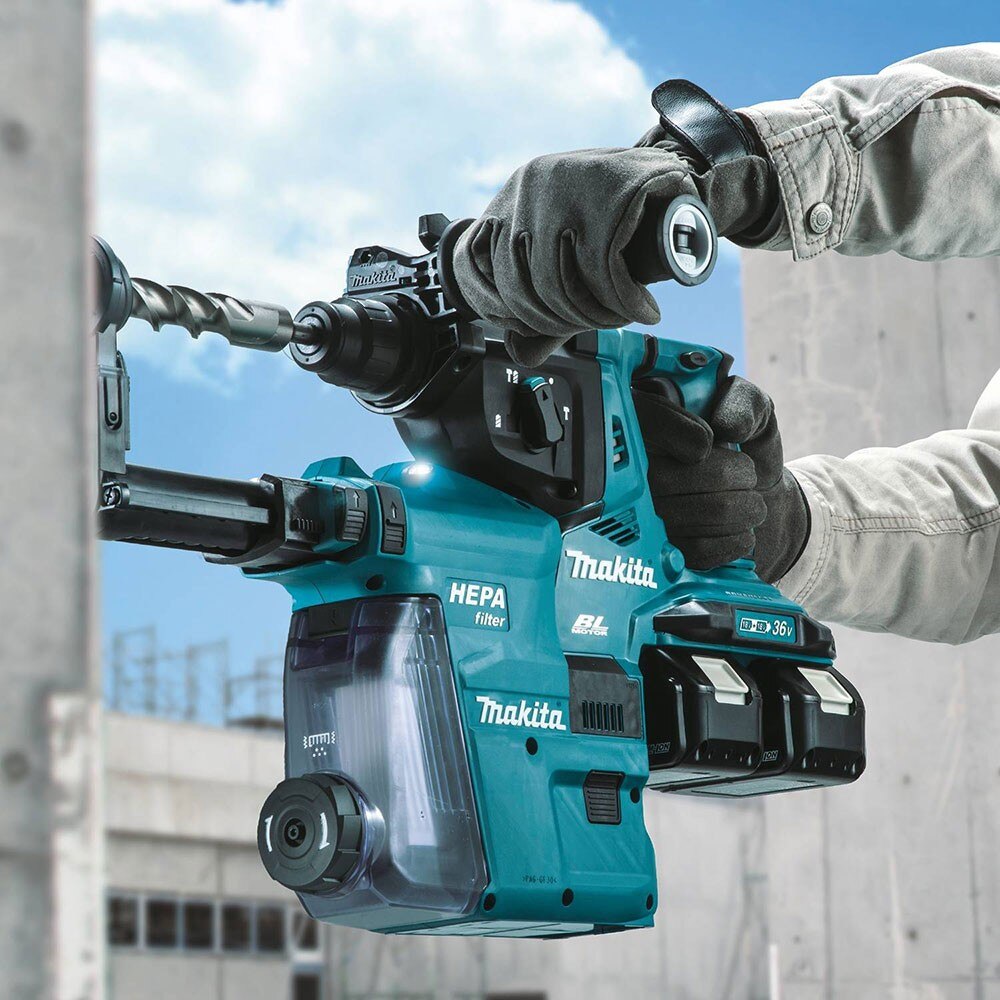

The dust extractor attachment with HEPA filter (model DX09) is for use with the 18V LXT® Lithium-Ion cordless Brushless 1 In. rotary hammer (XRH011, sold separately). The DX09 dust collection vacuum attachment features a HEPA filter engineered to capture 99.97% of dust particles (size .3 microns and larger) for improved dust collection and OSHA table 1 compliance. The dust extractor attachment is powered by a separate motor allowing the rotary hammer to consistently maintain peak drilling performance. The high-capacity dust container is transparent and provides an accurate level indicator of collected material. The container captures concrete dust during drilling; activated by the tool and provides a 3-second delay to help capture remaining dust. With a quick release, the dust container can be easily detached from the dust collection attachment when needed.
Makita DX09 Includes
- (1) Dust Case with HEPA Filter Cleaning Mechanism (199588-6)
Makita DX09 Features
- OSHA table 1 compliant on-board dust extractor provides a filter cleaning mechanism designed to help maintain optimum suction efficiency
- Extractor is powered by separate motor allowing the rotary hammer to consistently maintain peak drilling performance
- Captures concrete dust during drilling; activated by the tool and provides a 3-second delay to help capture remaining dust
- Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
- Two stage length extension allows drilling up to 3-1/2" and maximum 7-1/2" deep; up to 1-1/8" diameter holes
- Depth stop adjustment button allows for accurate drilling depth

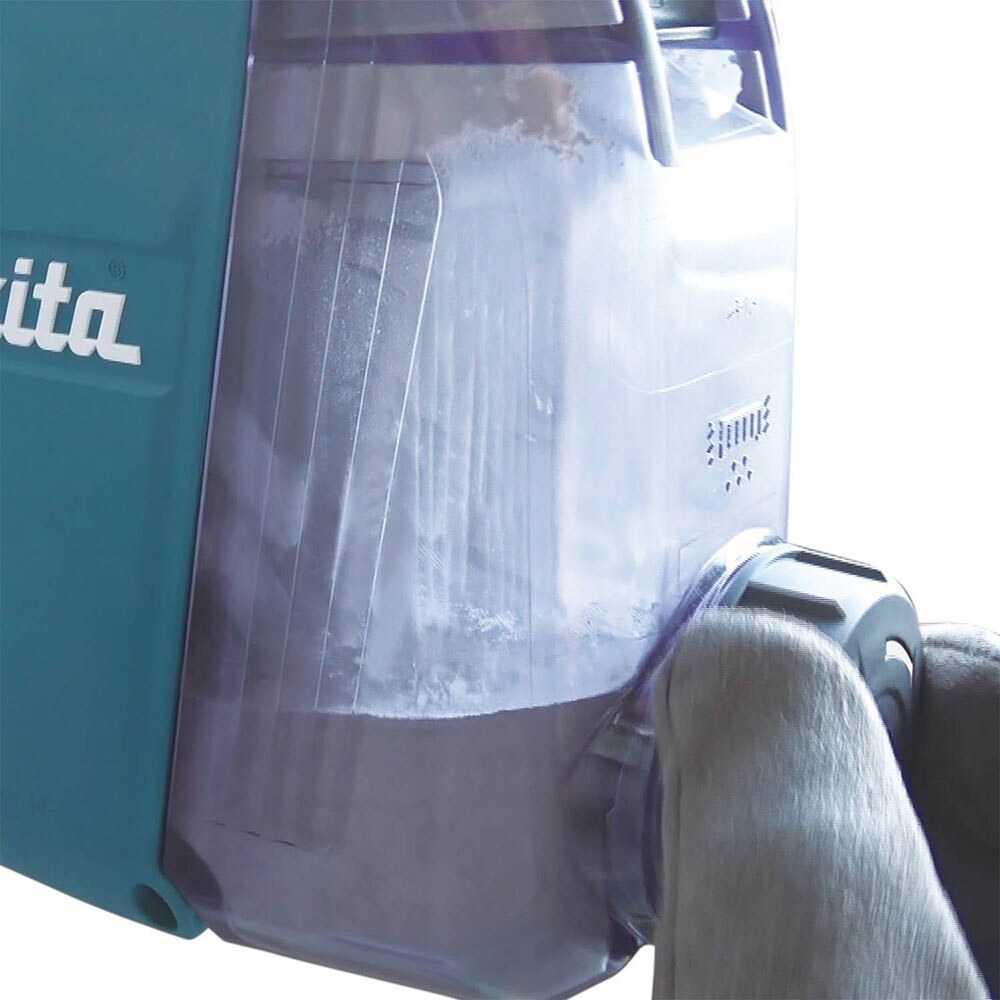

- Transparent dust container provides needed visibility in determining container fullness

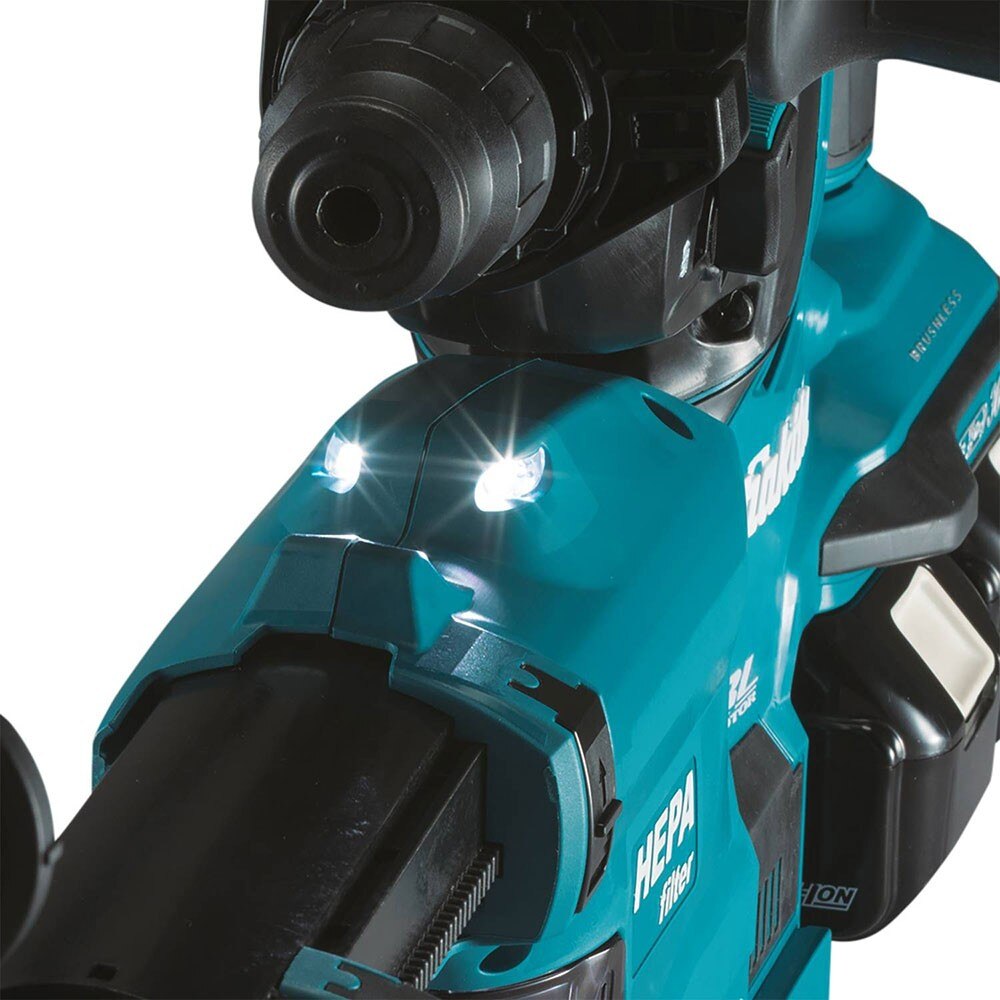

- Built-in dual L.E.D. light with an independent on/off illuminates the work area
- Compatible with Makita 18V X2 rotary hammer model XRH11
Makita DX09 Specifications
| Auto shut off time | After 2 seconds |
| HEPA filter | Yes |
| Equipped Filter Efficiency | 99.97% of .3 microns |
| Adjustable Depth Stops | Yes |
| Maximum Hole Diameter (in.) | 1.125" |
| Max. Hole Depth | 7-1/2" |
| Container Hole Count Capacity | 25 holes of dimension 5/8"x2" |
| Filter Life (Approx. container fillings) | 200 |
| Container Capacity | 10.14 oz. |
| Overall Length | 23-1/4" |
