Makita  |  SKU: GRH01M1  |  Barcode: 088381739818

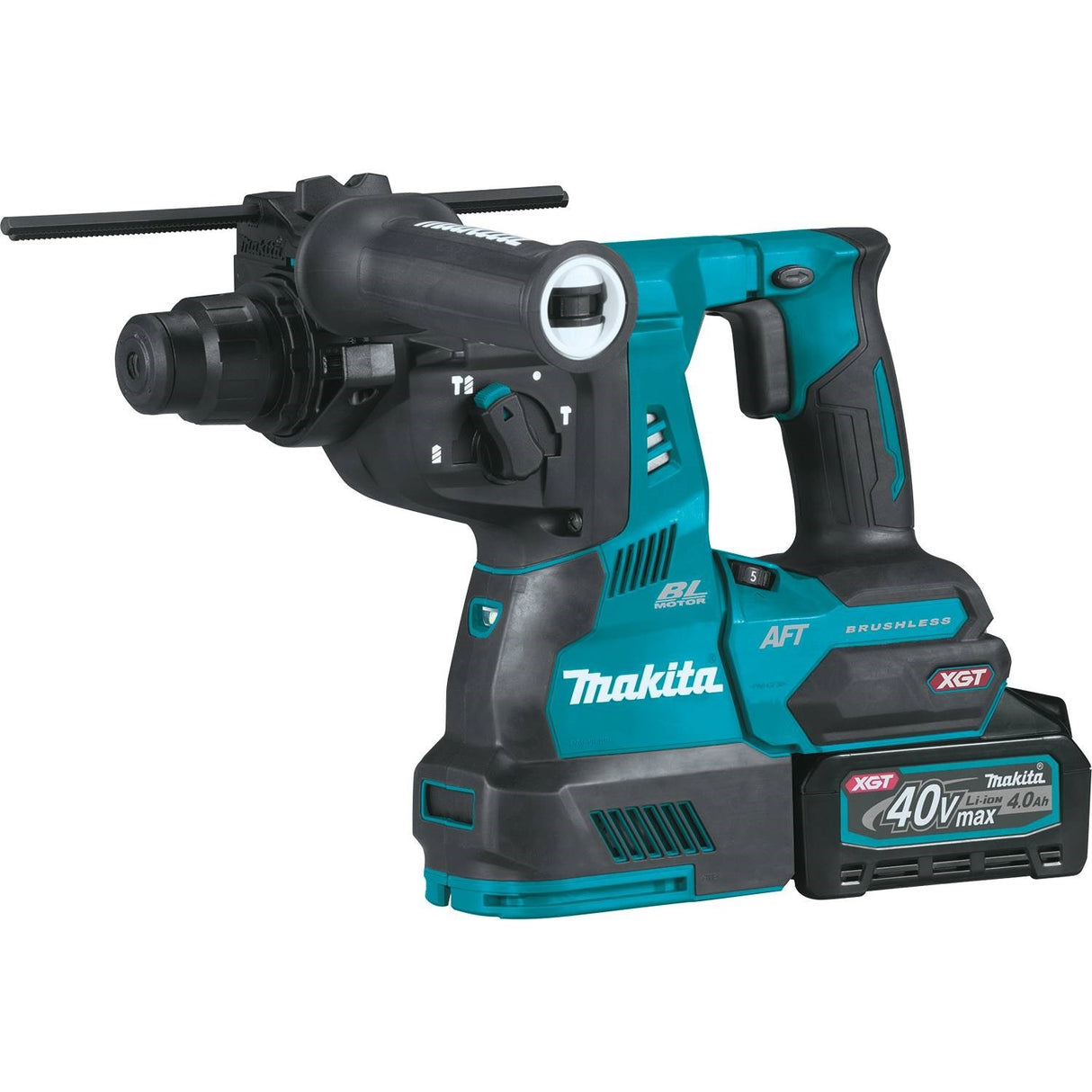

Makita GRH01M1 40V max XGT® 1-1/8" AVT® Rotary Hammer Kit

Free Shipping
$799.00 $1,404.00

Description

Makita GRH01M1 Description

The 40V max XGT® Brushless 1-1/8” AVT® Rotary Hammer Kit (GRH01M1) is a cordless concrete solution designed for heavy-load applications. It delivers the power, speed, and run-time for corded demands, without the cord. XGT technology delivers up to 135 of 3/8” holes per charge when using one 40V max XGT 4.0Ah Battery. The Makita-built brushless motor delivers a full 2.8 ft. lbs. of impact energy, with 0-980 RPM and 0-5,000 BPM. Constant speed control automatically applies additional power under load for optimum performance. The GRH01M1 features Active Feedback-Sensing Technology (AFT®), which electronically turns off the motor if rotation of bit is suddenly forced to stop, and Anti-Vibration Technology (AVT®) for reduced vibration. More than just a padded handle, AVT is an internal counterbalance that uses air pressure to move counterweight pistons in the opposite direction of the drive piston to actively reduce vibration. In addition, the vibration-absorbing back handle and side handle further reduce vibration. For added durability in harsh job site conditions, Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance. The rotary hammer has dust extraction capability with an OSHA Table 1 compliant on-board HEPA dust extractor attachment (sold separately) or standalone with Auto-Start Wireless System (AWS®). AWS uses Bluetooth® technology for wireless power-on and power-off communication between the equipped tool and dust extractor. Once connected via AWS, the AWS-equipped dust extractor will automatically power on or off when the AWS-equipped cordless tool starts or stops, running only when the tool is in use. This increases productivity on a single charge and reduces continuous noise at the job or work site. The torque limiting clutch is engineered to prevent gear damage by automatically disengaging the gears if the bit binds, and constant speed control automatically adds power to the motor to maintain speed under load to complete the most demanding jobs. Additional performance features include an electric brake, variable speed dial, built-in L.E.D. light, and a retractable tool hook. It is ideal for a range of trades including mechanical/electrical/plumbing contractors, concrete contractors, road and bridge contractors, utility workers, pest control, maintenance operations, and more. It accepts SDS-PLUS bits. XGT is a system of equipment, tools, batteries and chargers utilizing 40v max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the competition.

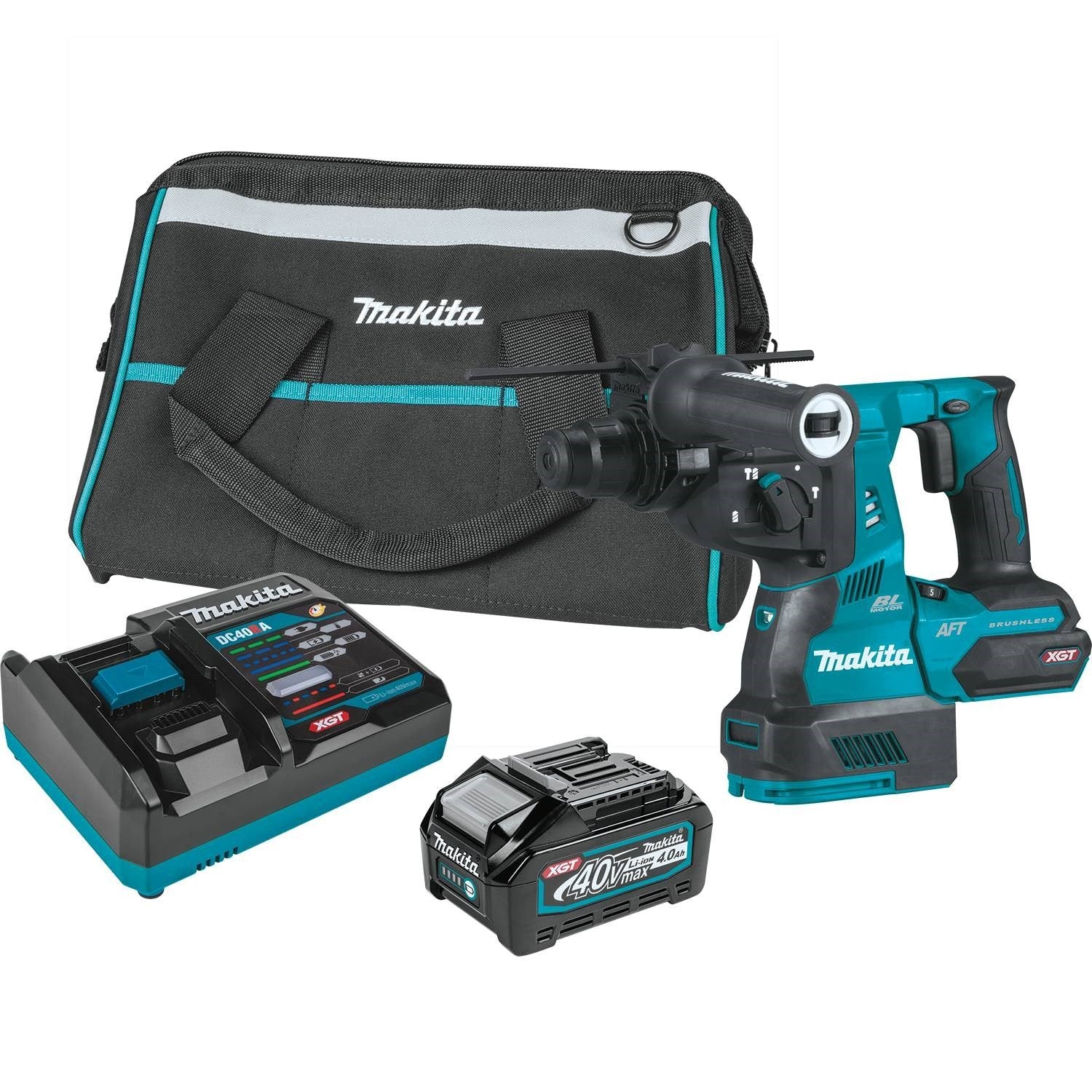

Makita GRH01M1 Includes

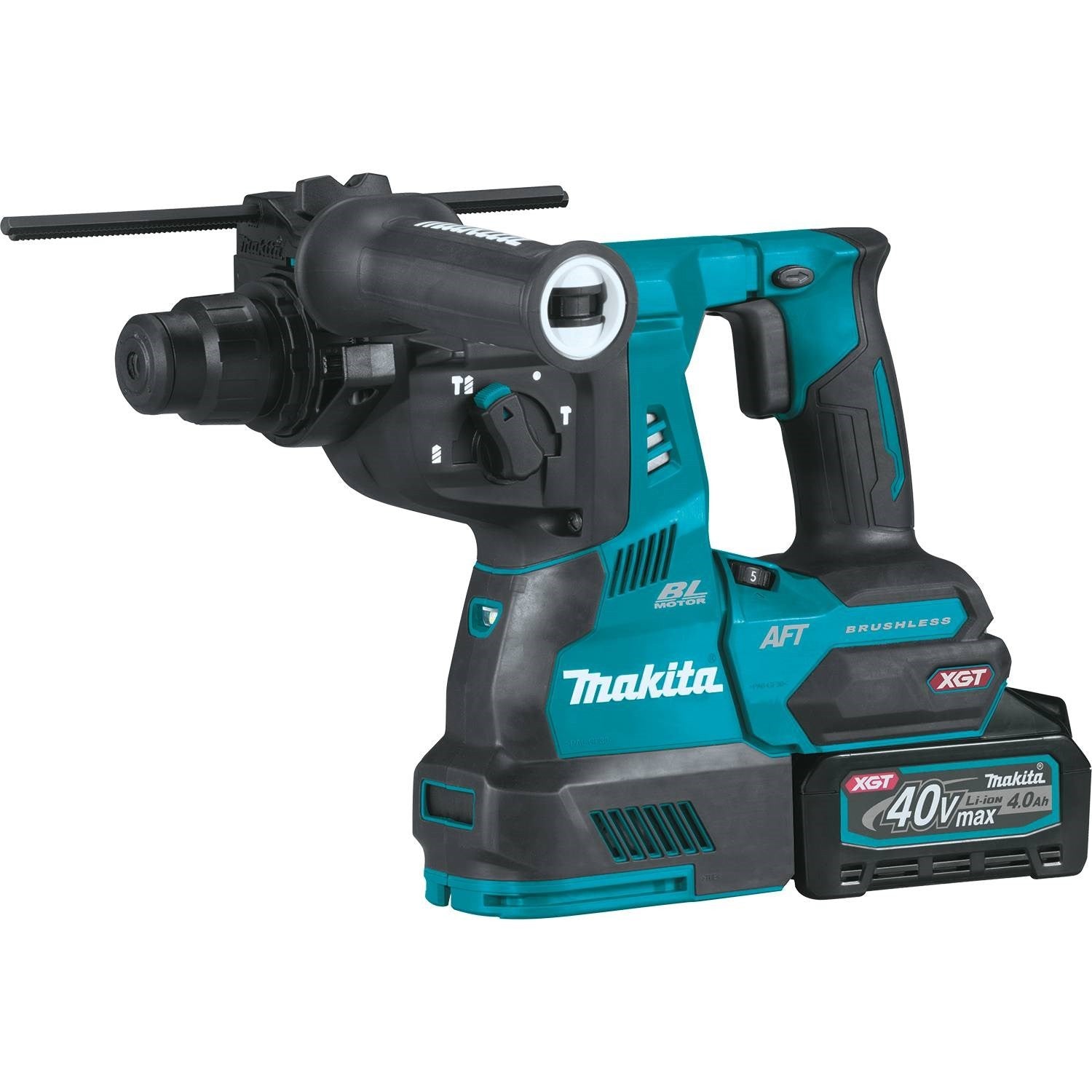

  • 40V max XGT® Brushless 1-1/8" AVT® Rotary Hammer, AFT®, AWS® Capable (GRH01Z)

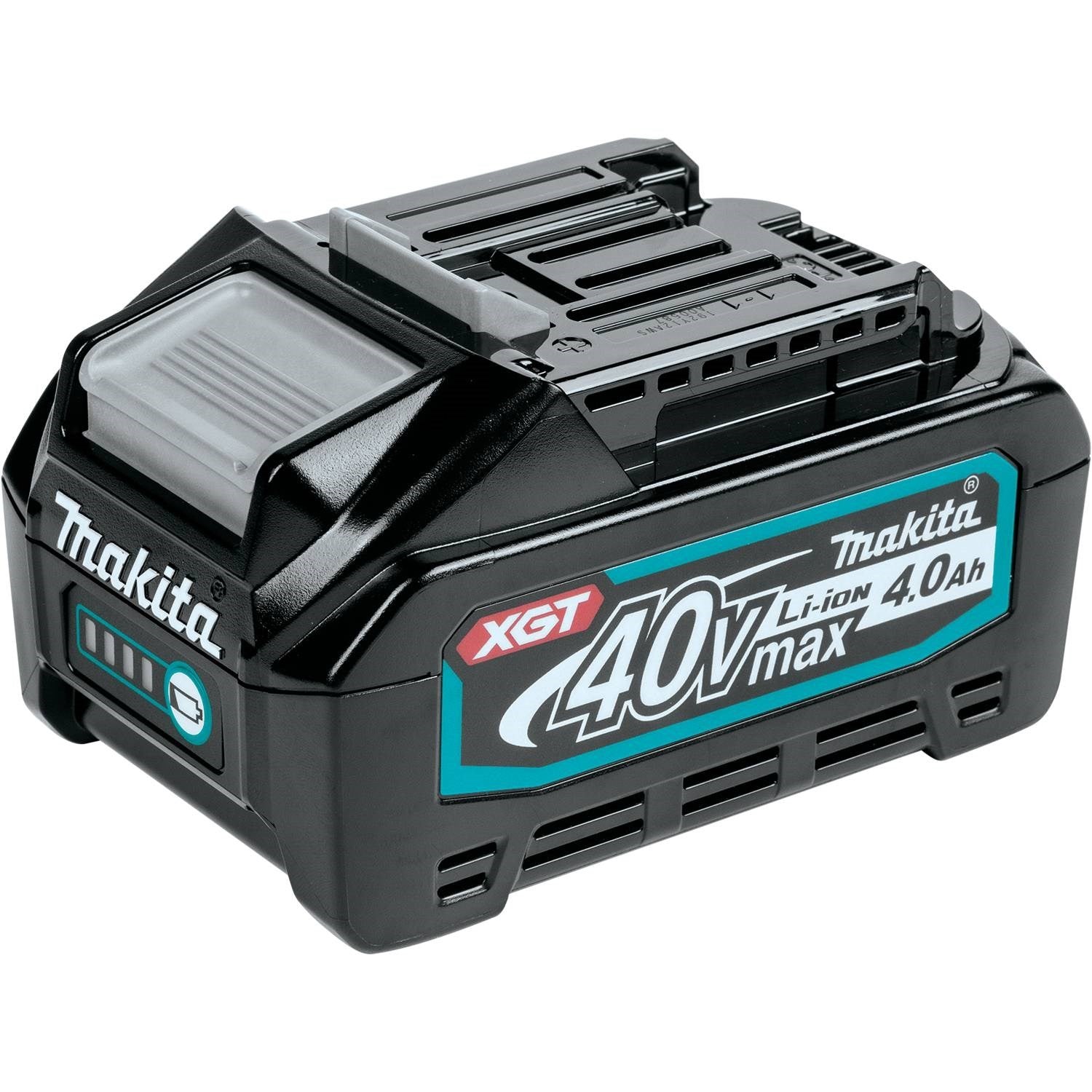

  • 40V max XGT® 4.0Ah Battery (BL4040)

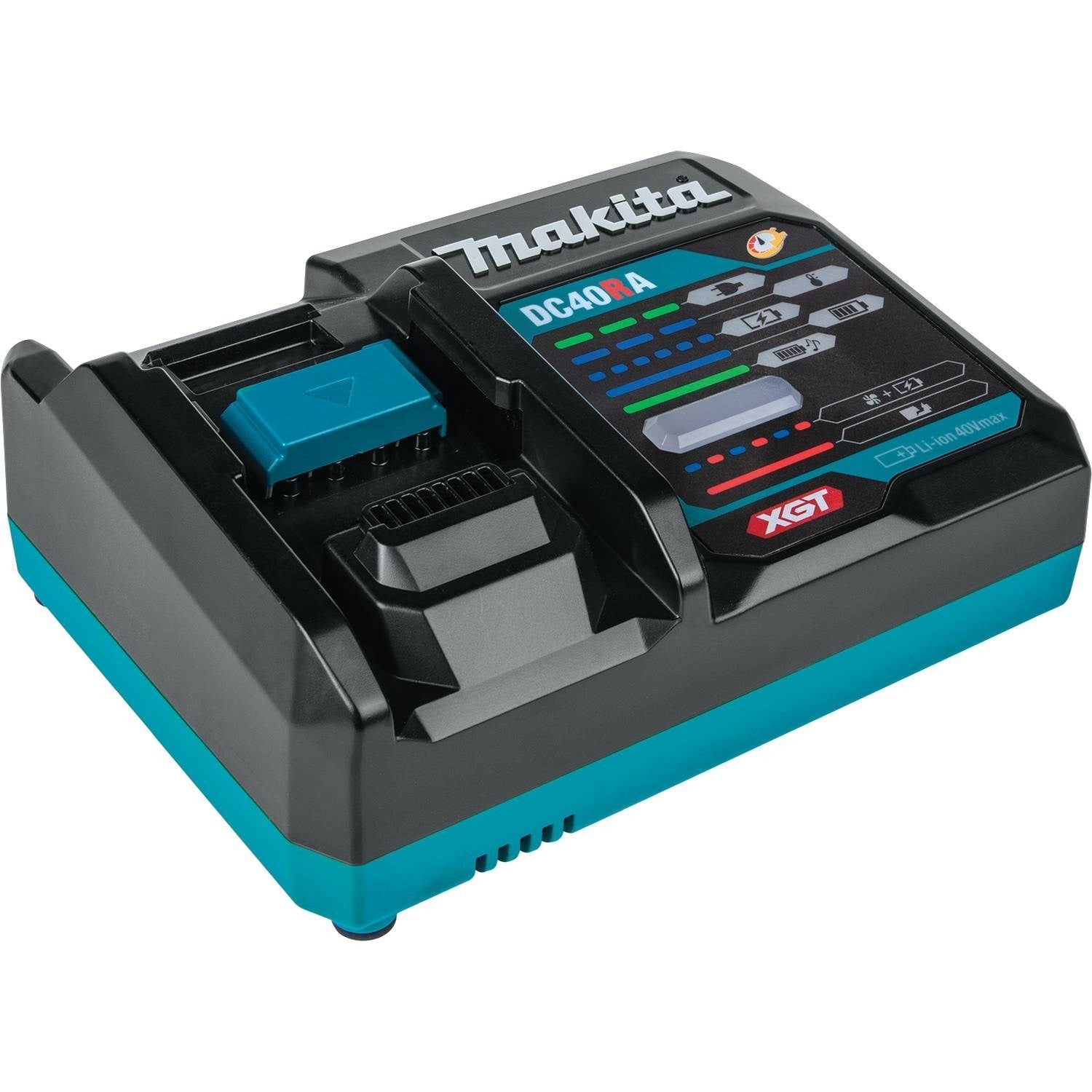

  • 40V max XGT® Rapid Optimum Charger (DC40RA)
  • Side Handle Assembly (126882-3)
  • Grease (194683-7)
  • Cloth Towel (443122-7)
  • Tool Bag

Makita GRH01M1 Features

  • OUTPOWER: Makita-built brushless motor along with 40V max XGT® battery combine to deliver the power performance required for heavy-load application
  • OUTSMART: Constant speed control automatically applies additional power under load for optimum performance
  • OUTLAST: Overload protection is designed to protect the motor from burnout in abnormally high torque situations
  • XGT® technology delivers up to 135 of 3/8" holes using a fully charged 40V XGT® 4.0Ah battery*

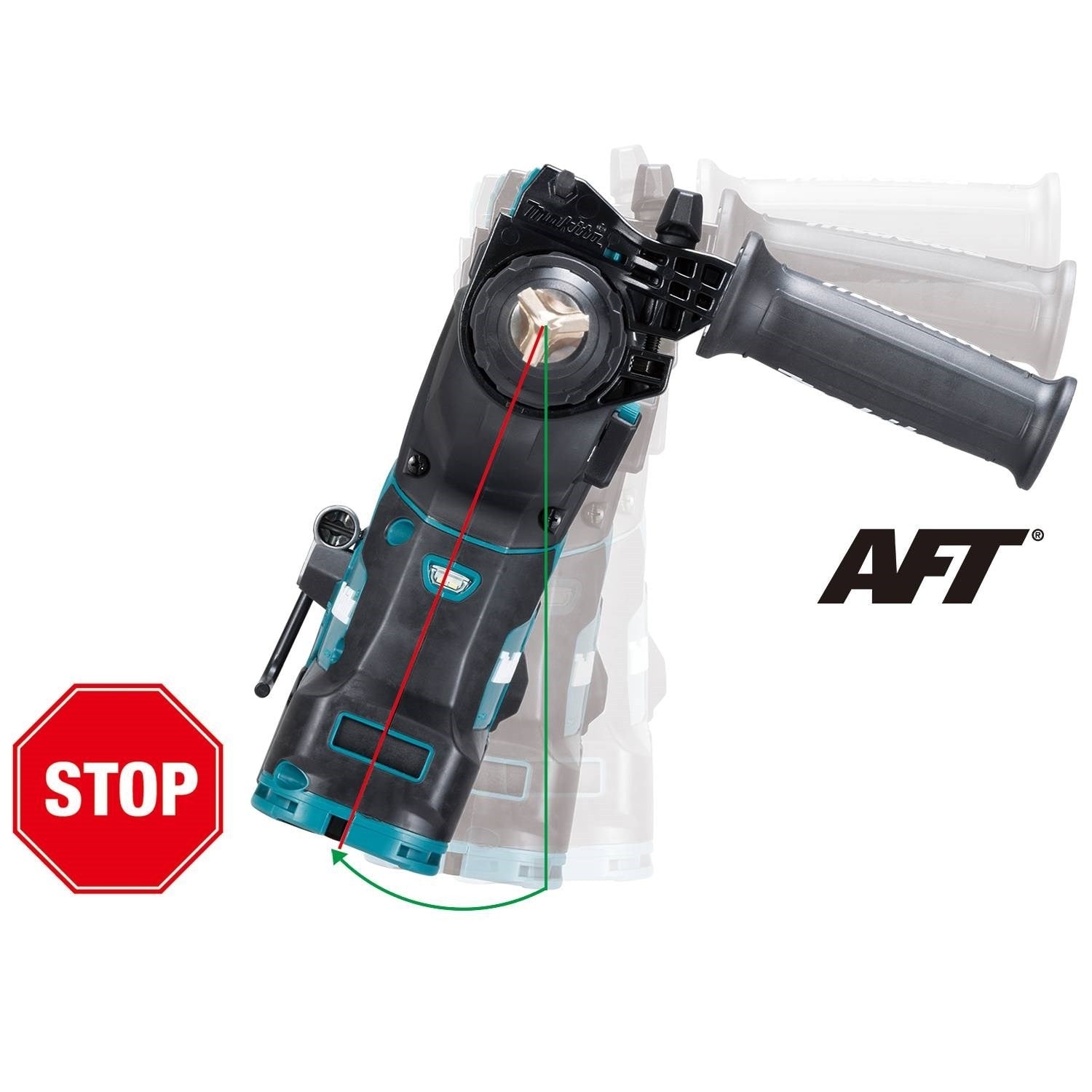

  • Active Feedback-Sensing Technology (AFT®) electronically turns off the motor if rotation of bit is suddenly forced to stop

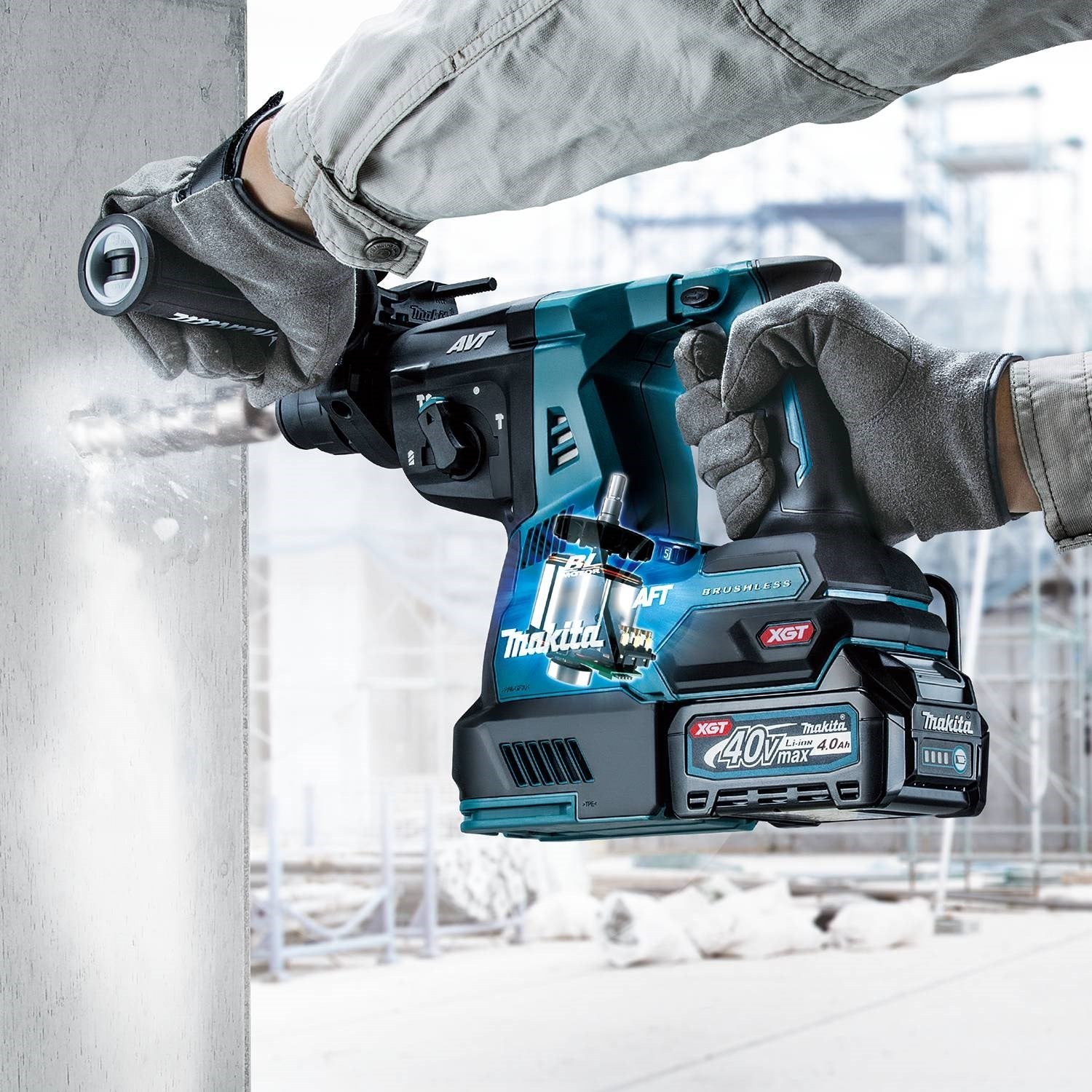

  • Anti-Vibration Technology (AVT®) is an internal counterbalance system along with vibration-absorbing handles that work together to reduce vibration
  • Dust extraction capability with OSHA Table 1 compliant on-board HEPA Dust Extractor or stand-alone AWS® Extractor options

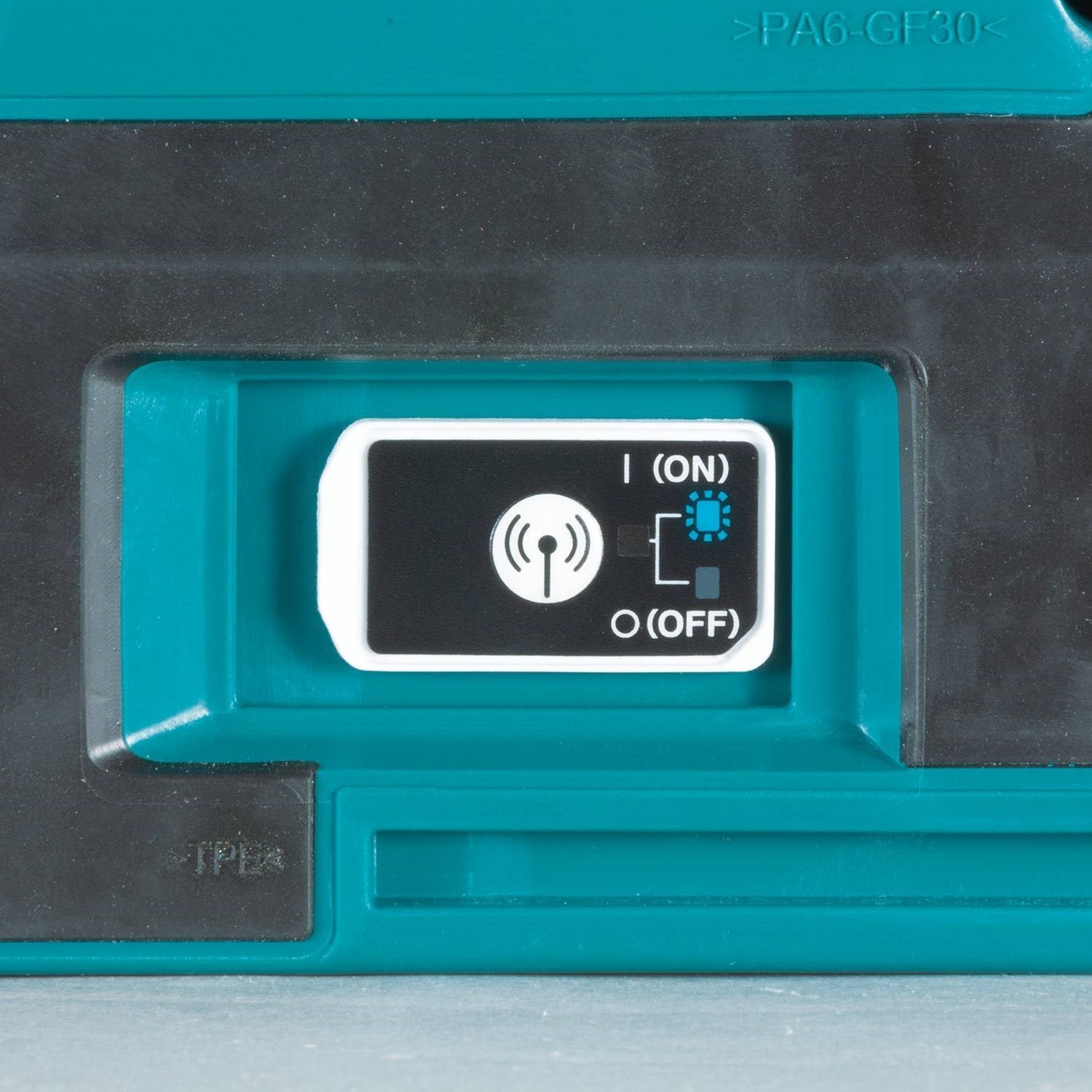

  • Auto-Start Wireless System (AWS®) utilizes Bluetooth® technology for wireless power-on/off communication between tool and dust extractor (AWS® Transmitter and dust extractor sold separately)
  • Electric brake allows the tool to be repositioned faster for maximum productivity
  • Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears during a bind-up situation

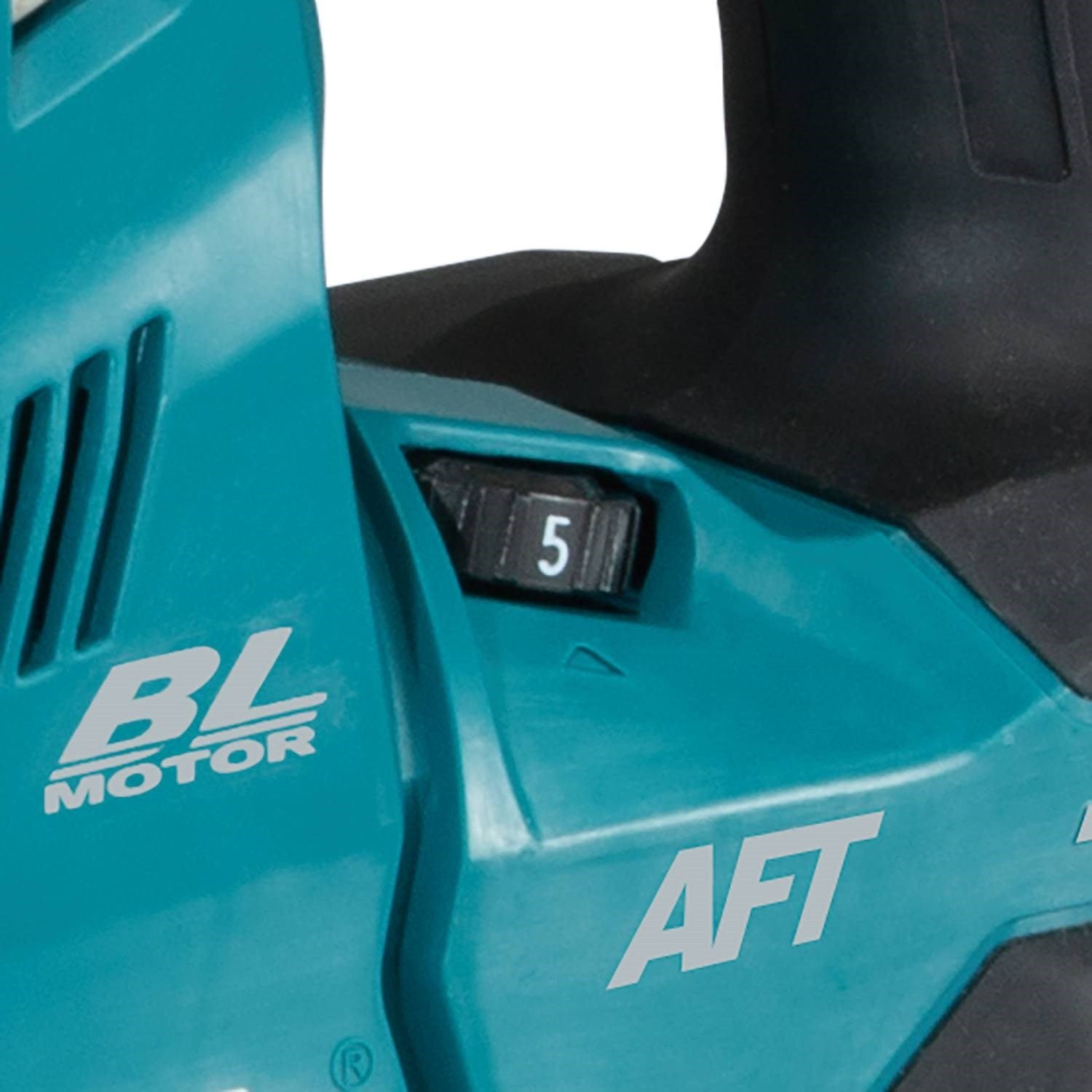

  • Variable speed dial and trigger enables user to match the speed to the application

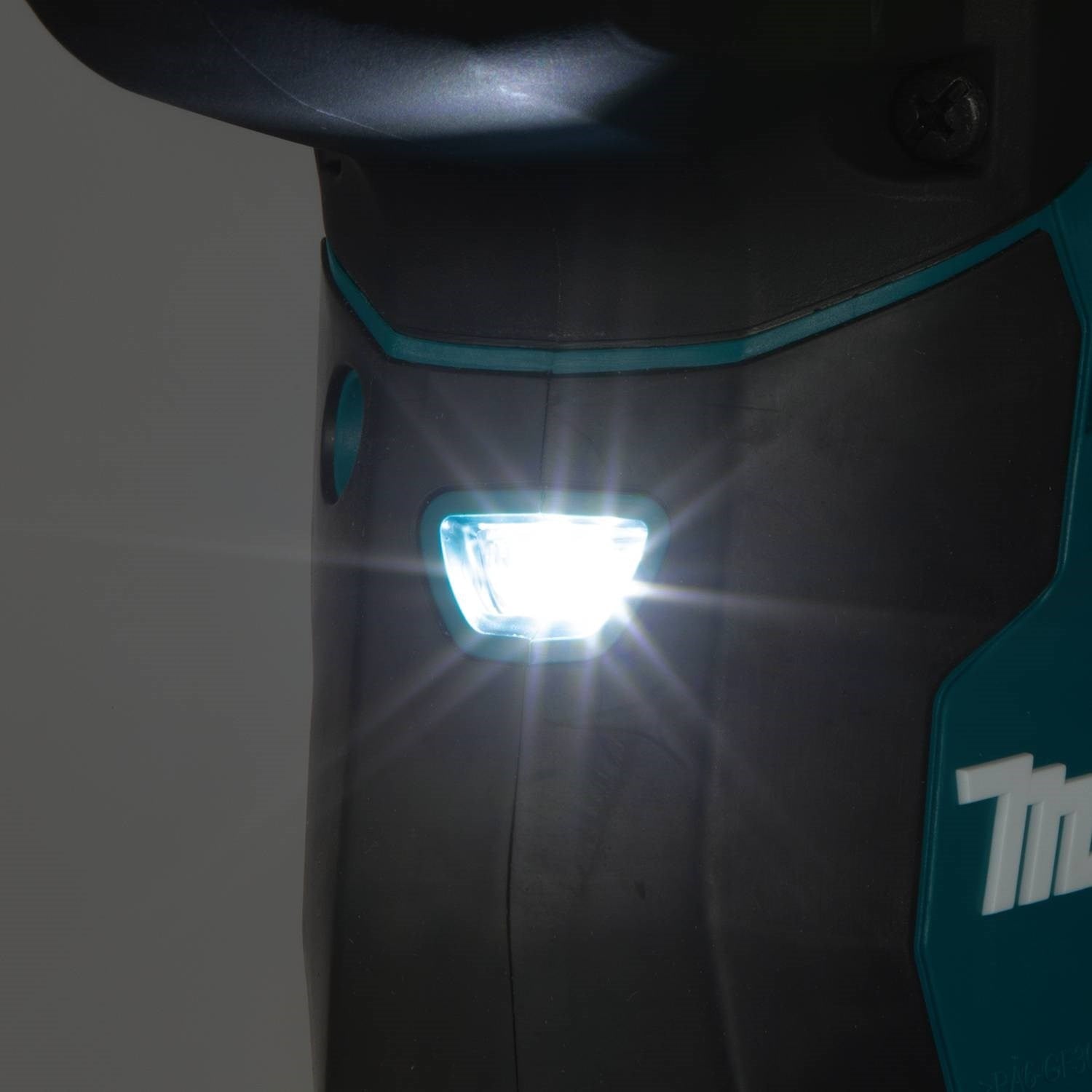

  • Built-in L.E.D. light with an independent on/off illuminates the work area
  • Ergonomic soft-grip handle and large 2-finger trigger provide increased comfort on the job
  • 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications

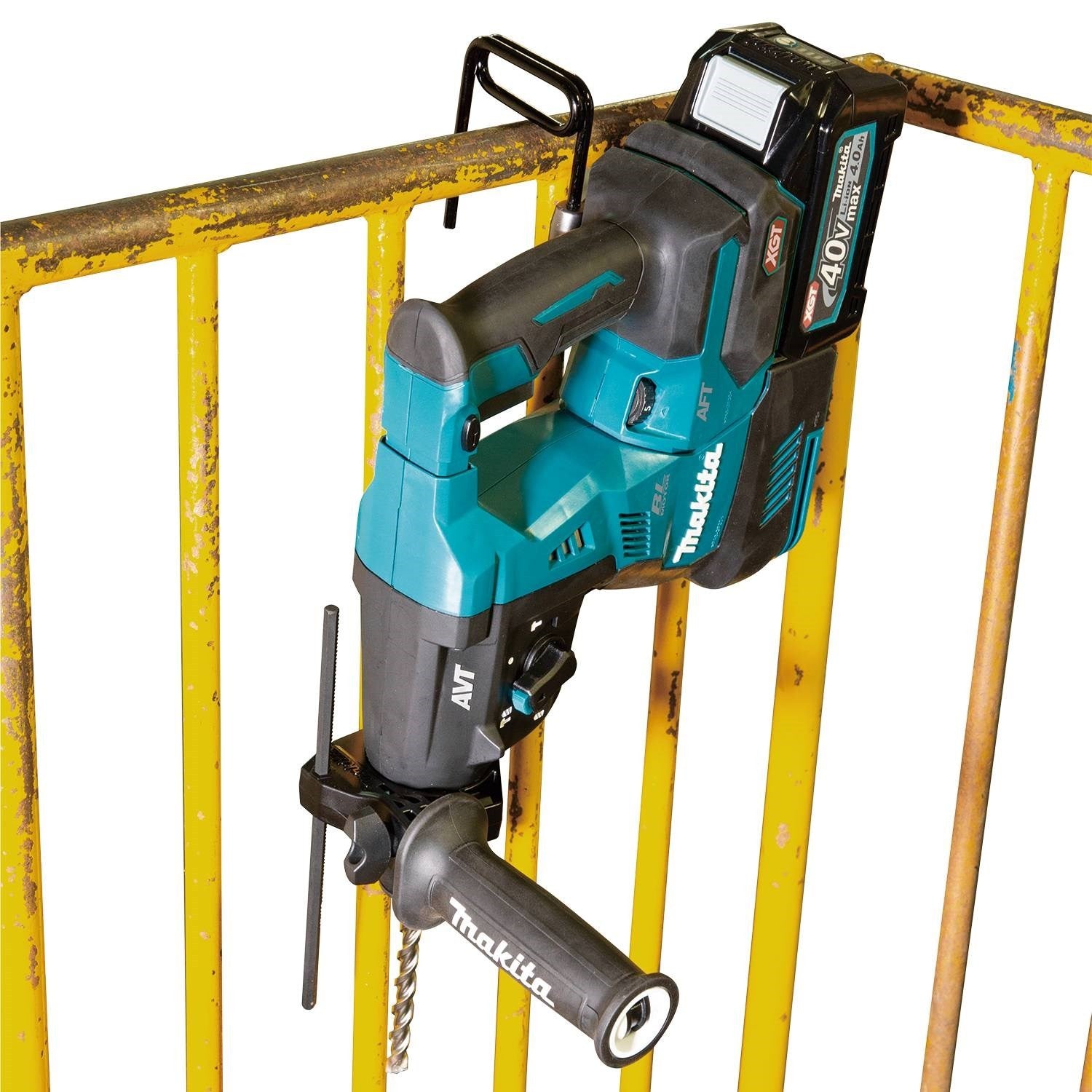

  • Retractable tool hook secures the tool when not in use
  • Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
  • The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
  • The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating

Makita GRH01M1 Specifications

System XGT
Max. Capacity (concrete drilling) 1-1/8"
Optimum Range (concrete drilling) 3/16" - 3/4"
Max. Capacity (concrete drilling w/ core bit) 2-9/16"
Impact Energy (ft.lbs.) 2.3
Impact Energy (Joules) 3.2 J
Blows Per Minute (variable speed) 0 - 5,000 BPM
No Load Speed (variable speed) 0 - 980 RPM
Bind-Up Control Yes
Vibration Control  Yes
Vibration (m/s²) 7
Automatic-start Wireless System (AWS™) Capable (transmitter sold separately)
Bit Type Accepts SDS-PLUS
Overall Length 14-3/4"
Net Weight (with battery) 10.1 lbs.
Power Type Cordless
Shipping Weight 15.26 lbs.
UPC Code 088381-739818

A New System of Equipment and Tools

The XGT System of tools outpowers, outsmarts, and outlasts the competition with innovative engineering and design. XGT 40V | 80V Max System is designed to be the equipment and tools of the future.

AHigh-Demand Applications

Makita XGT tools provide the power that rivals corded and gas powered equipment allowing pros to experience a fully battery-powered job site.

Outlast the Competition

The durable triple layer, impact absorbing structure of XGT batteries protects against water, dust, and other job site conditions. The rapid optimum charging system and dual cooling fans evaluate battery condition while delivering a consistent and fast charge.
