Makita  |  SKU: GRH09M1  |  Barcode: 088381764773

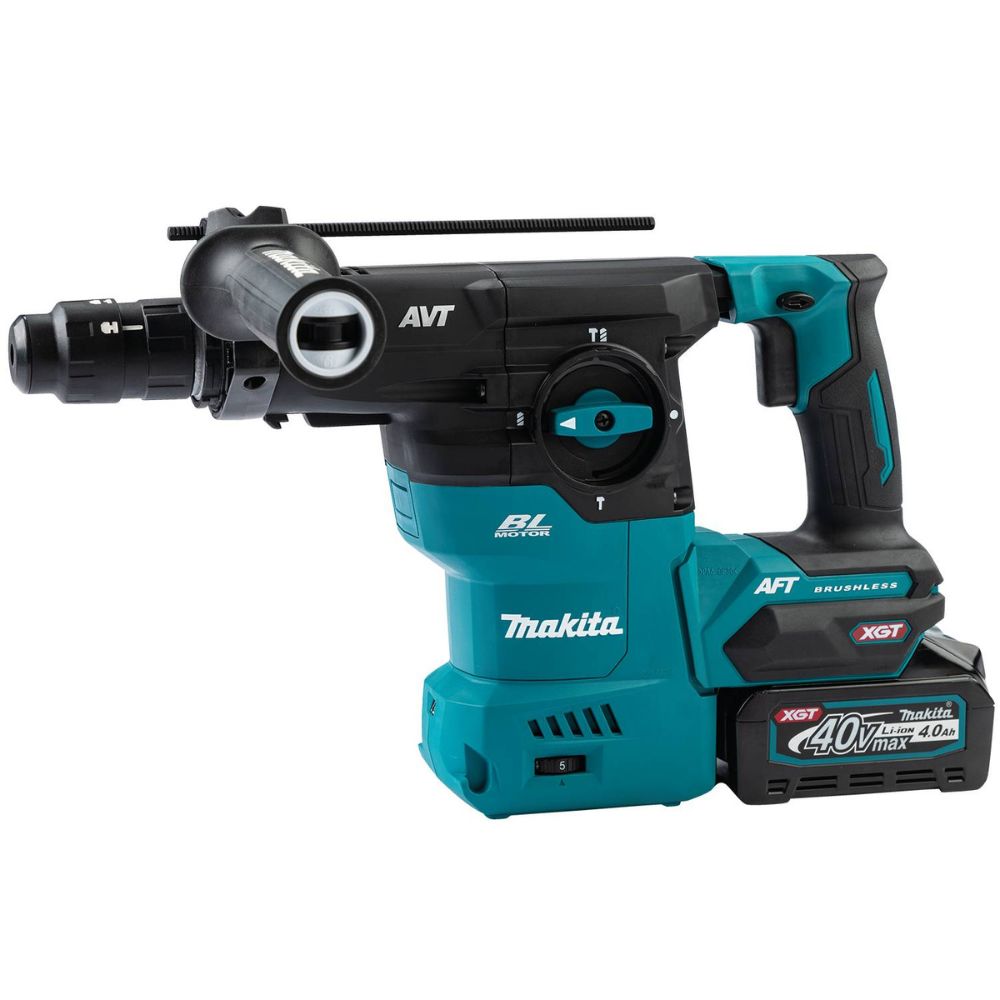

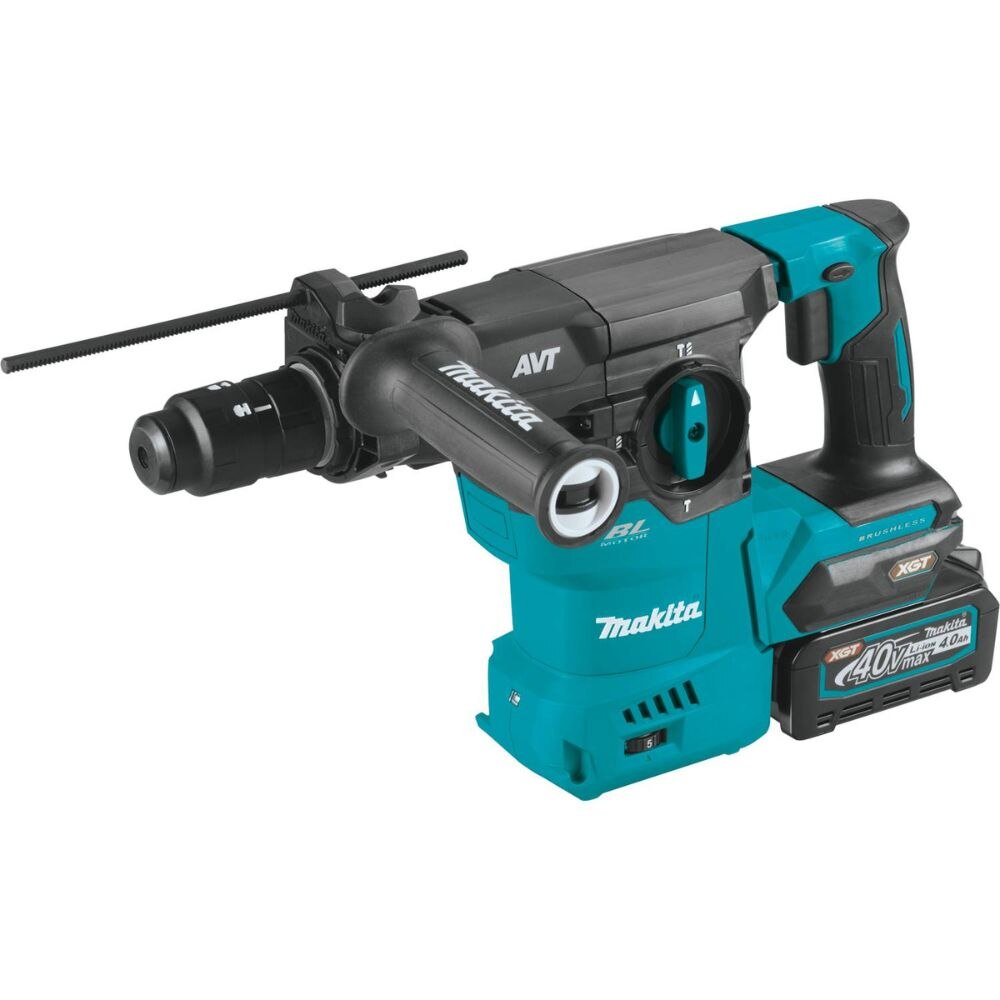

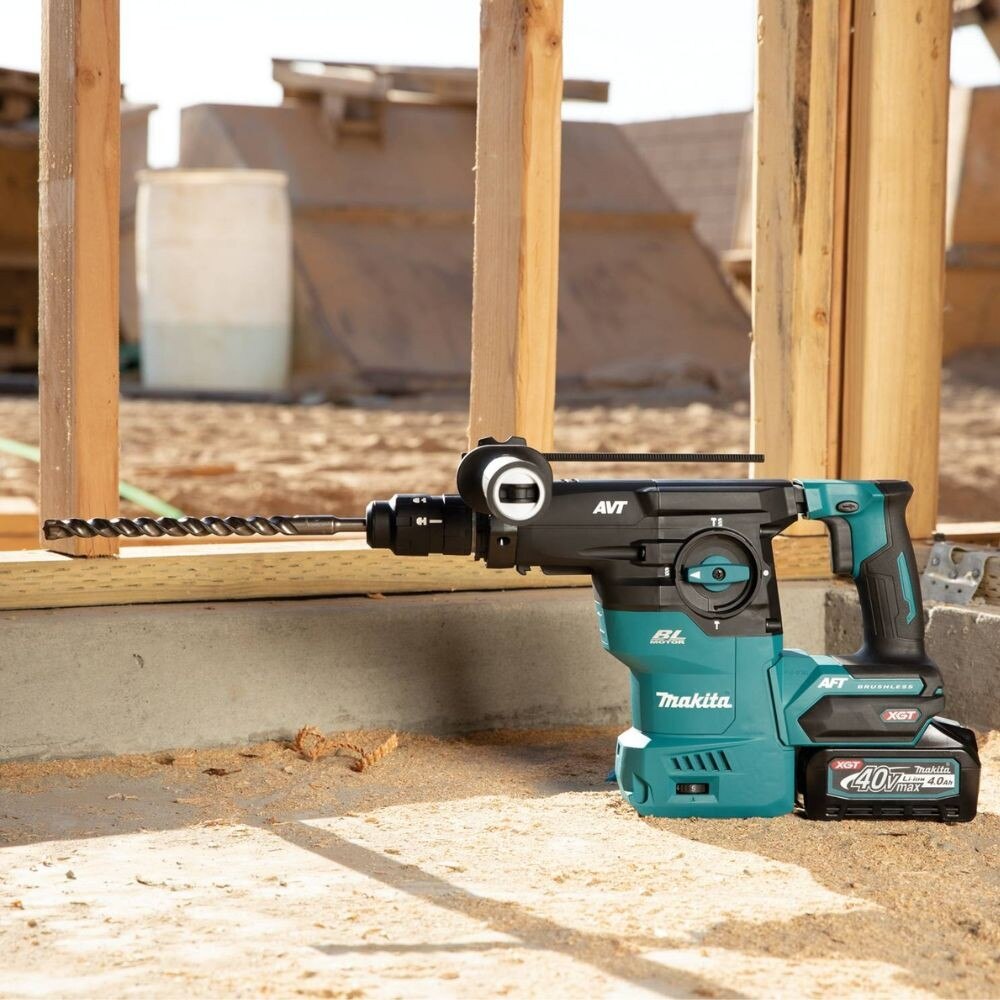

Makita GRH09M1 40V max XGT Brushless Cordless 1-3/16" AVT Rotary Hammer Kit, accepts SDS-PLUS, with Interchangeable Chuck, AWS Capable (4.0Ah)

Free Shipping
$944.00 $1,682.00

Description

Makita GRH09M1 Description

The 40V max XGT® Brushless 1-3/16" AVT® Rotary Hammer with Interchangeable Chuck, AWS® Capable (GRH09M1) is a cordless concrete solution designed for heavy-load applications. It delivers the power, speed, and run-time for corded demands, without the cord. The quick-change chuck allows for interchangeability from SDS-PLUS to 1/2" keyless chuck for utilization of straight shank bits. The GRH09M1 is powered by a 40V max battery with a Makita-built brushless motor that combine to deliver the power and performance required for heavy-load applications. It can deliver up to 135 of 3/8" holes using a fully charged 40V XGT® 4.0Ah battery*. The variable speed dial and trigger enables user to match the speed to the application. This hard-hitting performance is combined with advanced comfort and convenience features including Active Feedback-Sensing Technology (AFT®), which electronically turns off the motor if rotation of bit is suddenly forced to stop. It is also equipped with Anti-Vibration Technology (AVT®) for reduced vibration. More than just a padded handle, AVT is an internal counterbalance that uses air pressure to move counterweight pistons in the opposite direction of the drive piston to actively reduce vibration. In addition, the vibration-absorbing back handle and side handle are engineered to further reduce vibration. For added durability in harsh job site conditions, Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance. The GRH09M1 has dust extraction capability (sold separately) and is OSHA Table 1 compliant with an on-board HEPA Dust Extractor or stand-alone AWS® Extractor options. For added efficiency, the Rotary Hammer is equipped with Auto-Start Wireless System (AWS®), which uses Bluetooth® technology for wireless power-on and power-off communication between the equipped tool and dust extractor (sold separately). Once connected via AWS, the AWS-equipped dust extractor will automatically power on or off when the AWS-equipped cordless tool starts or stops, running only when the tool is in use. This increases productivity on a single charge and reduces continuous noise at the job or work site. Constant speed control automatically applies additional power under load for optimum performance. The torque limiting clutch is engineered to prevent gear damage by automatically disengaging the gears if the bit binds, and constant speed control automatically adds power to the motor to maintain speed under load to complete the most demanding jobs. Additional performance features include an electric brake, a built-in L.E.D. light, and an ergonomic soft-grip handle with a large 2-finger trigger that provides increased comfort on the job. It also features a retractable hook that allows the tool to be secured when not in use. It has 3-modes of operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications. The GRH09M1 is ideal for a range of trades including mechanical/electrical/plumbing contractors, concrete contractors, road and bridge contractors, utility workers, pest control, maintenance operations, and more. It accepts SDS-PLUS bits. XGT is a system of equipment, tools, batteries and chargers utilizing 40v max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest. *Tested 2-3/8" deep holes in 5,000 PSI concrete

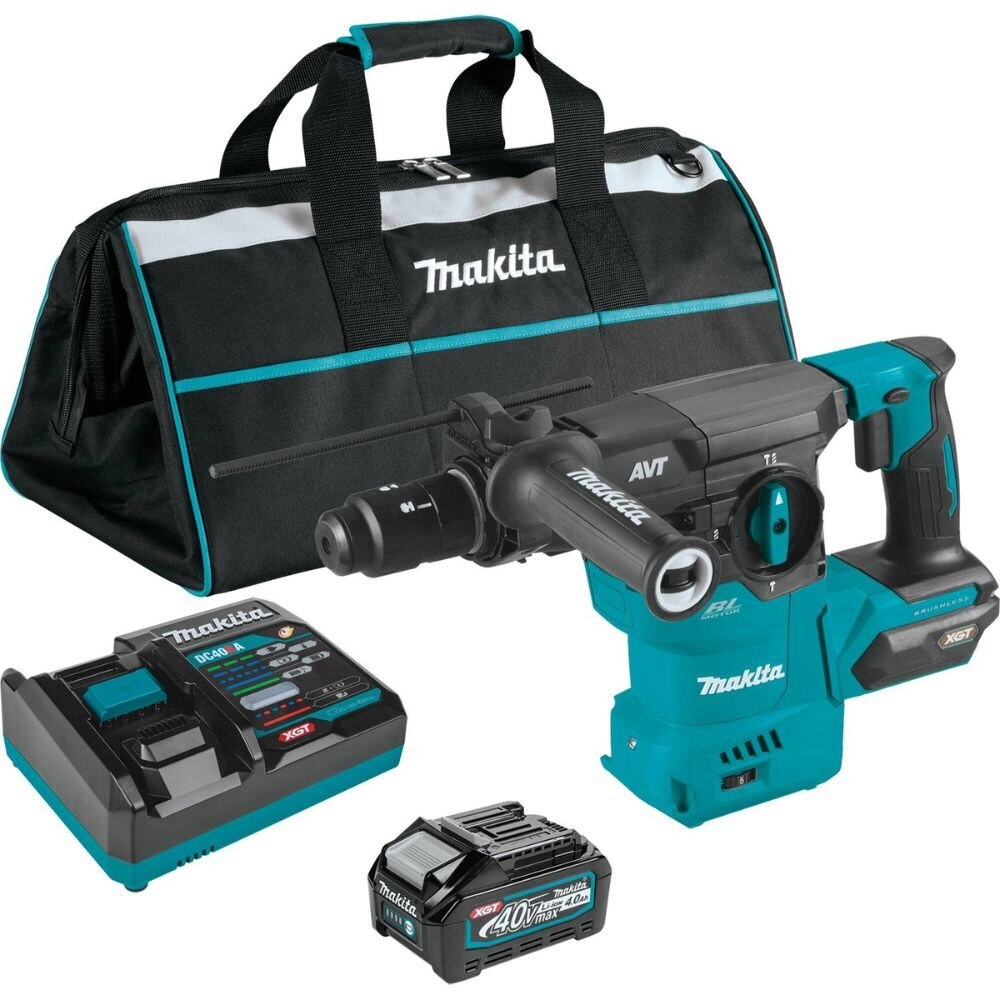

Makita GRH09M1 Includes

  • (1) 40V max XGT® Brushless 1-3/16" AVT® Rotary Hammer, with Interchangeable Chuck, AWS® Capable (GRH09Z)
  • (1) 40V max XGT® 4.0Ah Battery (BL4040)
  • (1) 40V max XGT® Rapid Optimum Charger (DC40RA)
  • (1) Quick Change 1/2" Keyless Chuck (199139-5)
  • (1) Side Handle Assembly (126882-3)
  • (1) Grease (194683-7)
  • (1) Cloth Towel (443122-7)
  • (1) Tool Bag

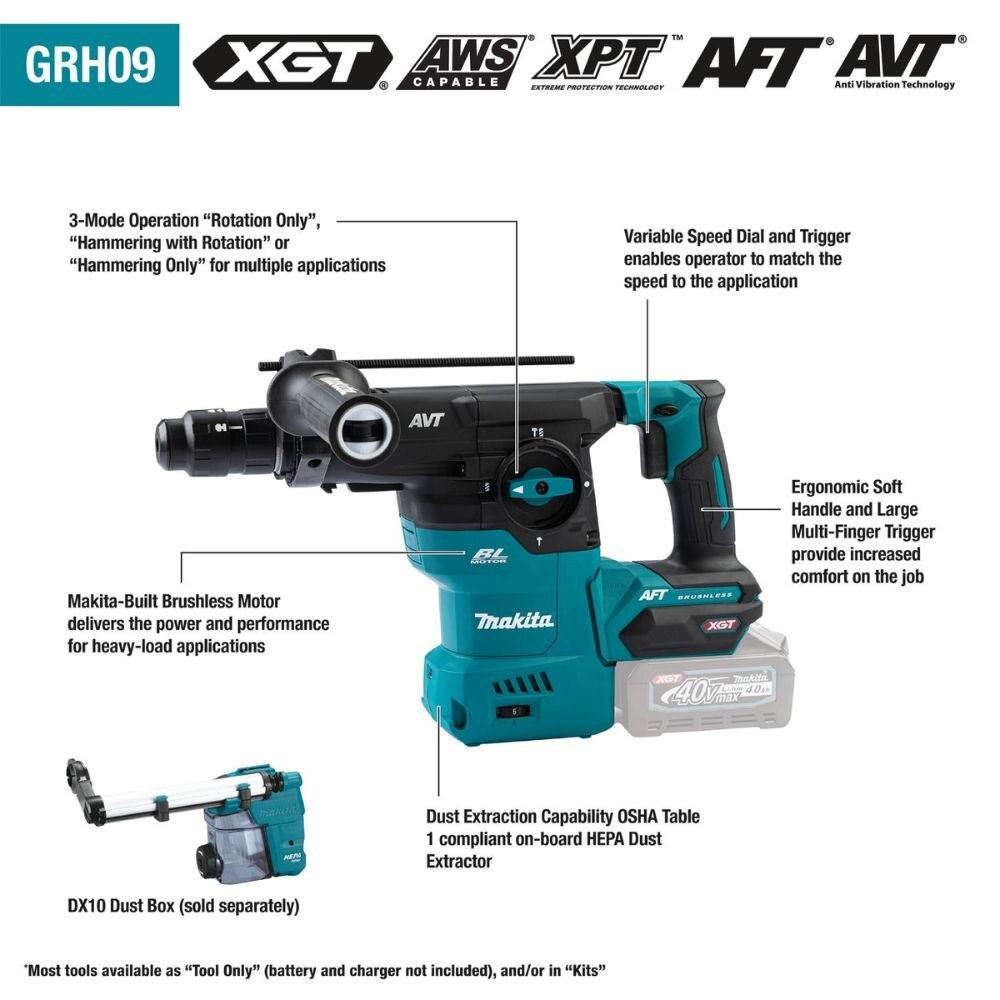

Makita GRH09M1 Features

  • OUTPOWER: Makita-built brushless motor along with 40V max XGT® battery combine to deliver the power performance required for heavy-load application
  • OUTSMART: Constant speed control automatically applies additional power under load for optimum performance
  • OUTLAST: Overload protection is designed to protect the motor from burnout in abnormally high torque situations
  • XGT® technology delivers up to 135 of 3/8" holes per charge using full charged 40V XGT® 4.0Ah battery*

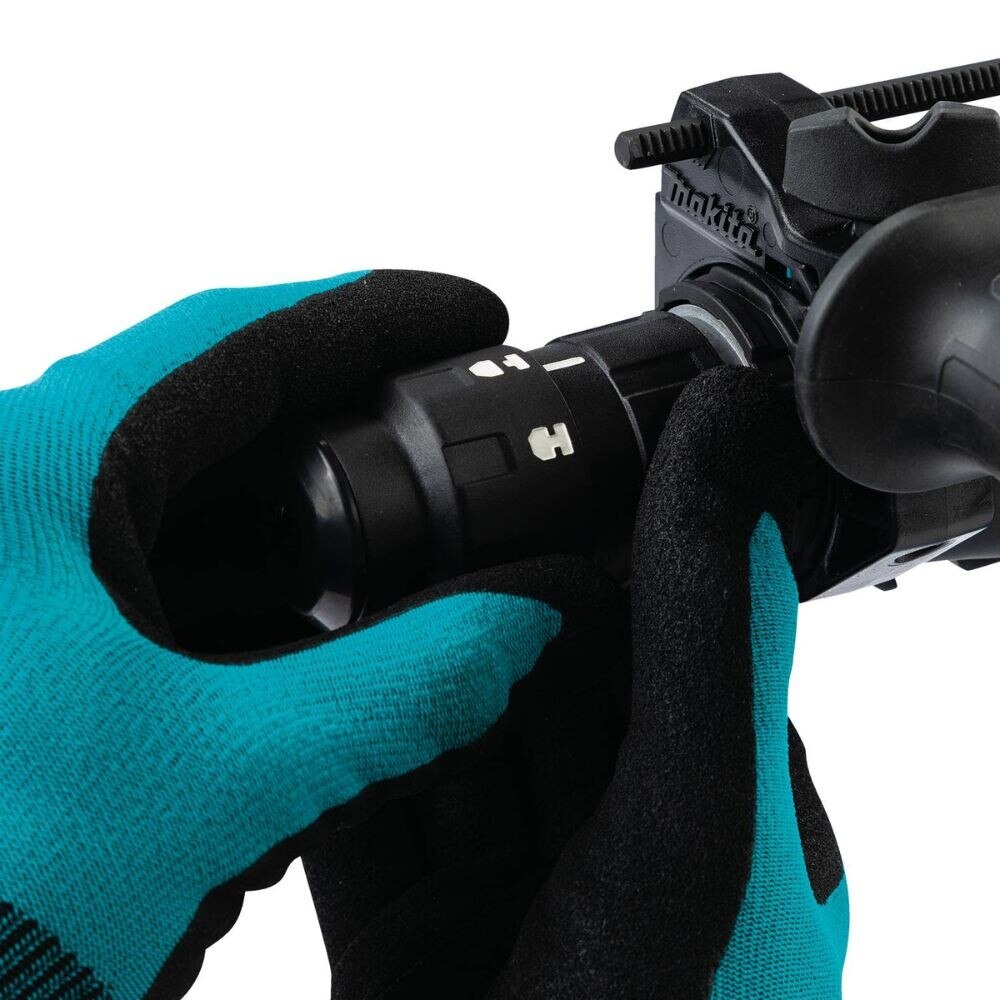

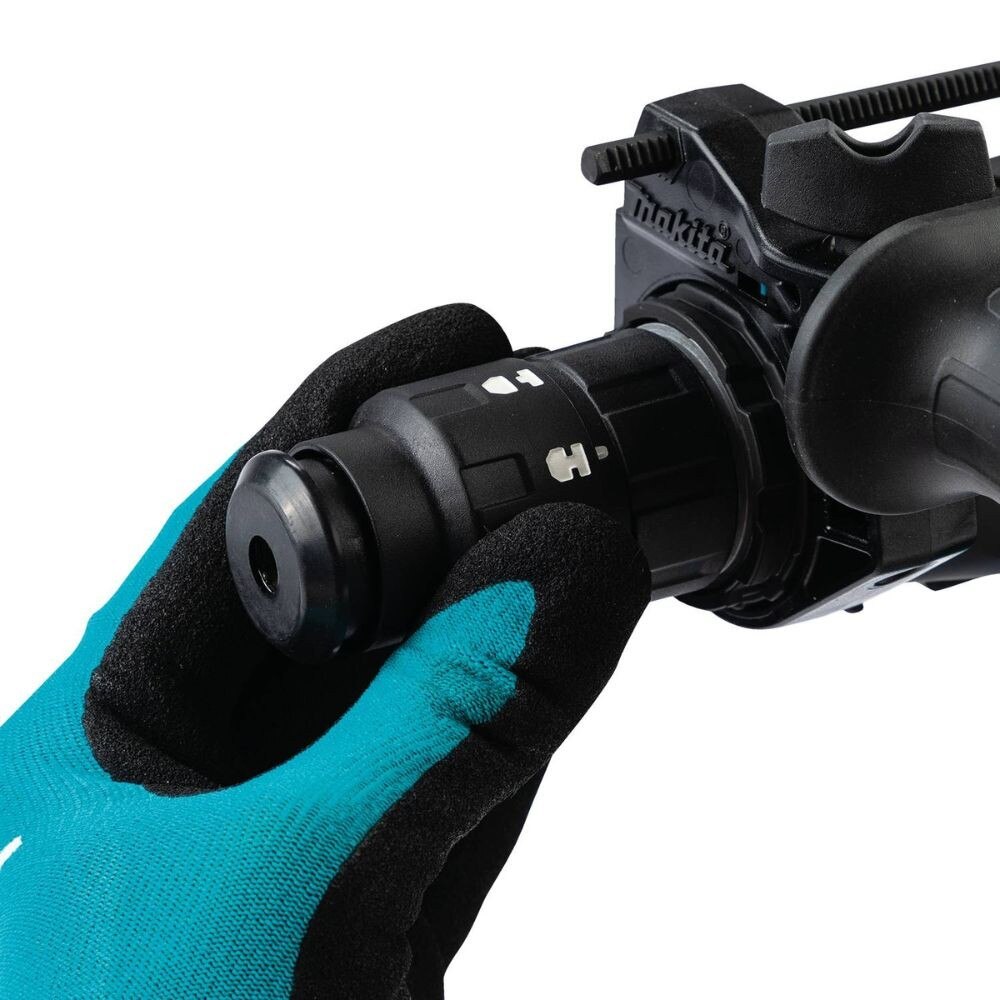

  • Quick change chuck allows for interchangeability from SDS-PLUS to 1/2" keyless chuck for utilization of straight shank bits
  • Active Feedback-Sensing Technology (AFT®) electronically turns off the motor if rotation of bit is suddenly forced to stop
  • Anti-Vibration Technology (AVT®) is an internal counterbalance system along with vibration-absorbing handles that work together to reduce vibration

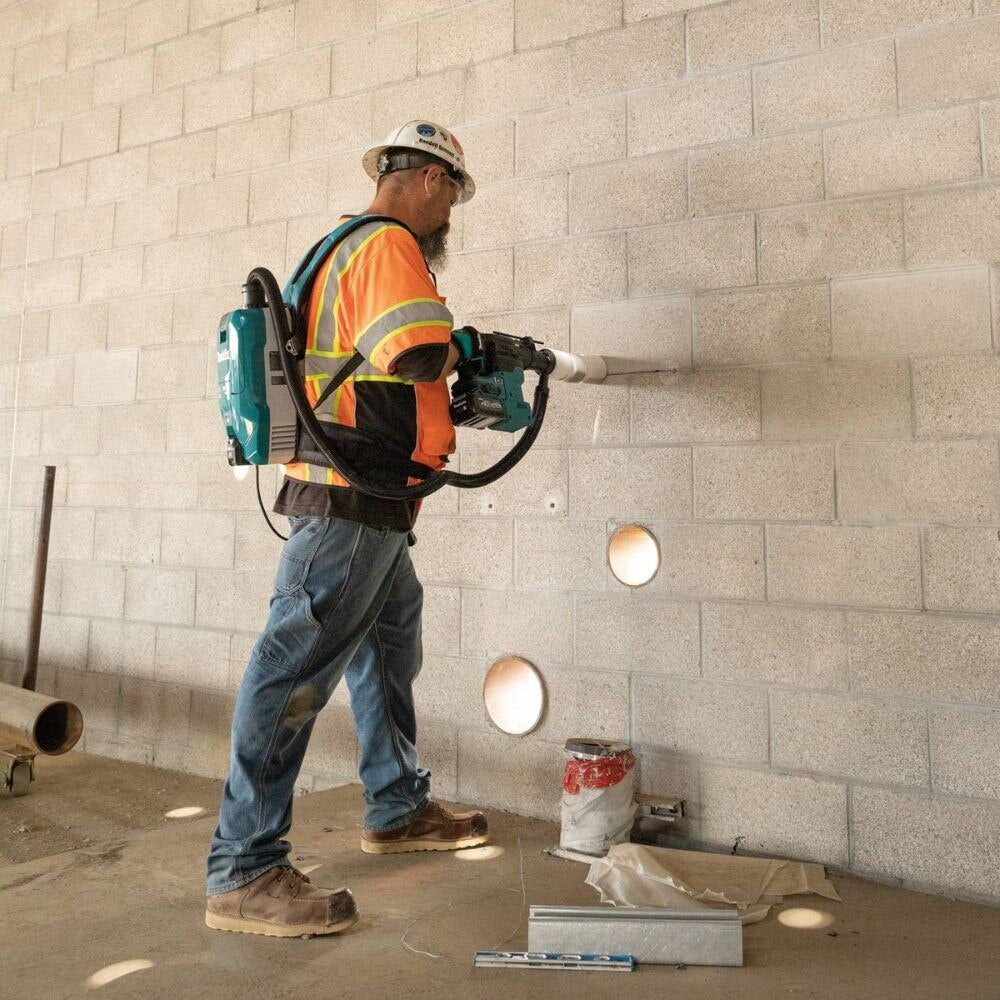

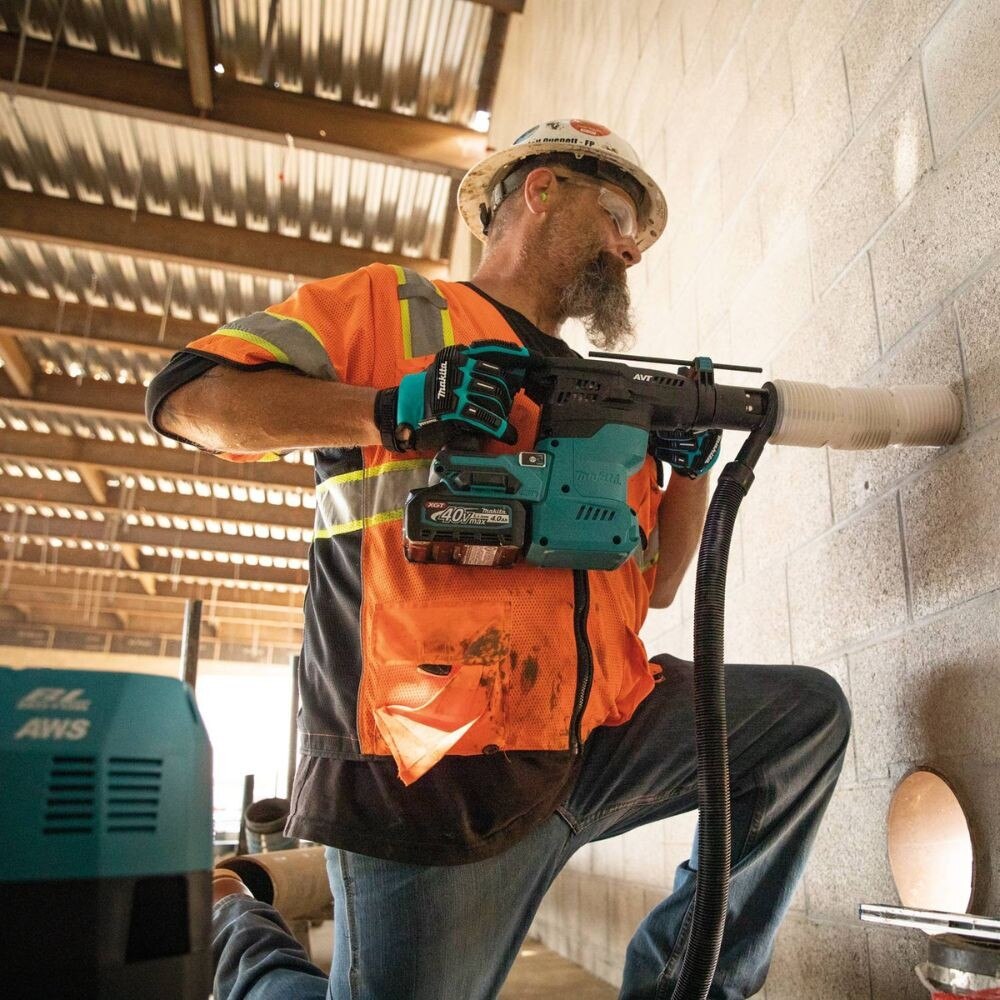

  • Dust extraction capability with OSHA Table 1 compliant on-board HEPA Dust Extractor or stand-alone AWS® Extractor options

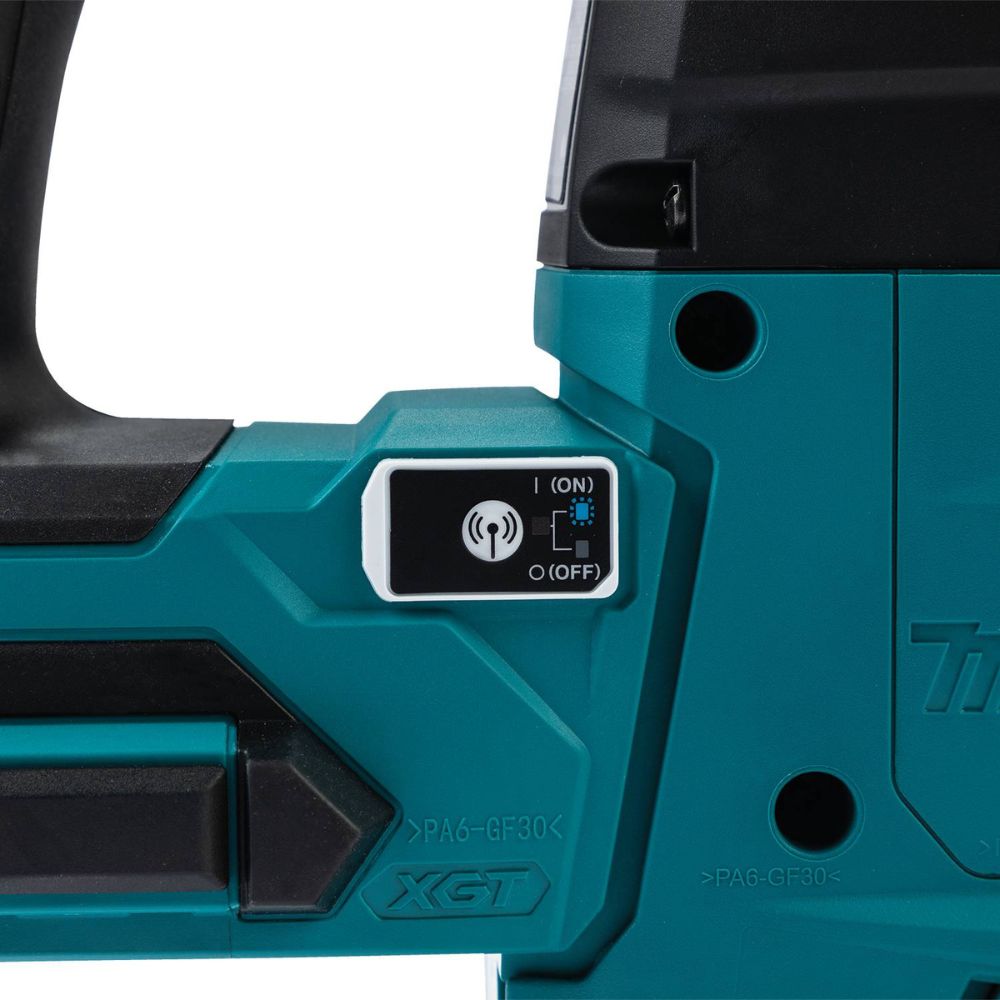

  • Auto-Start Wireless System (AWS®) which utilizes Bluetooth® technology for wireless power-on/off communication between tool and dust extractor (AWS® Transmitter sold separately)
  • Electric brake allows the tool to be repositioned faster for maximum productivity
  • Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears during a bind-up situation

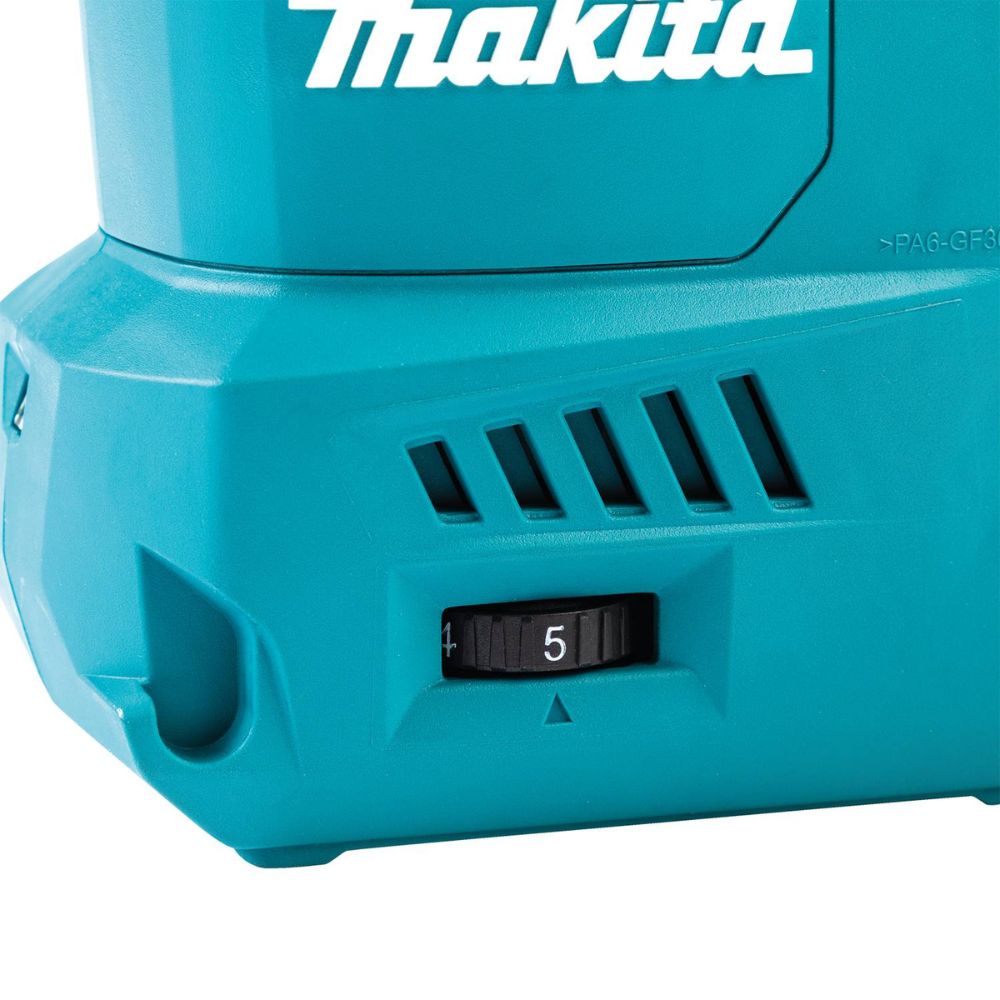

  • Variable speed dial and trigger enables user to match the speed to the application

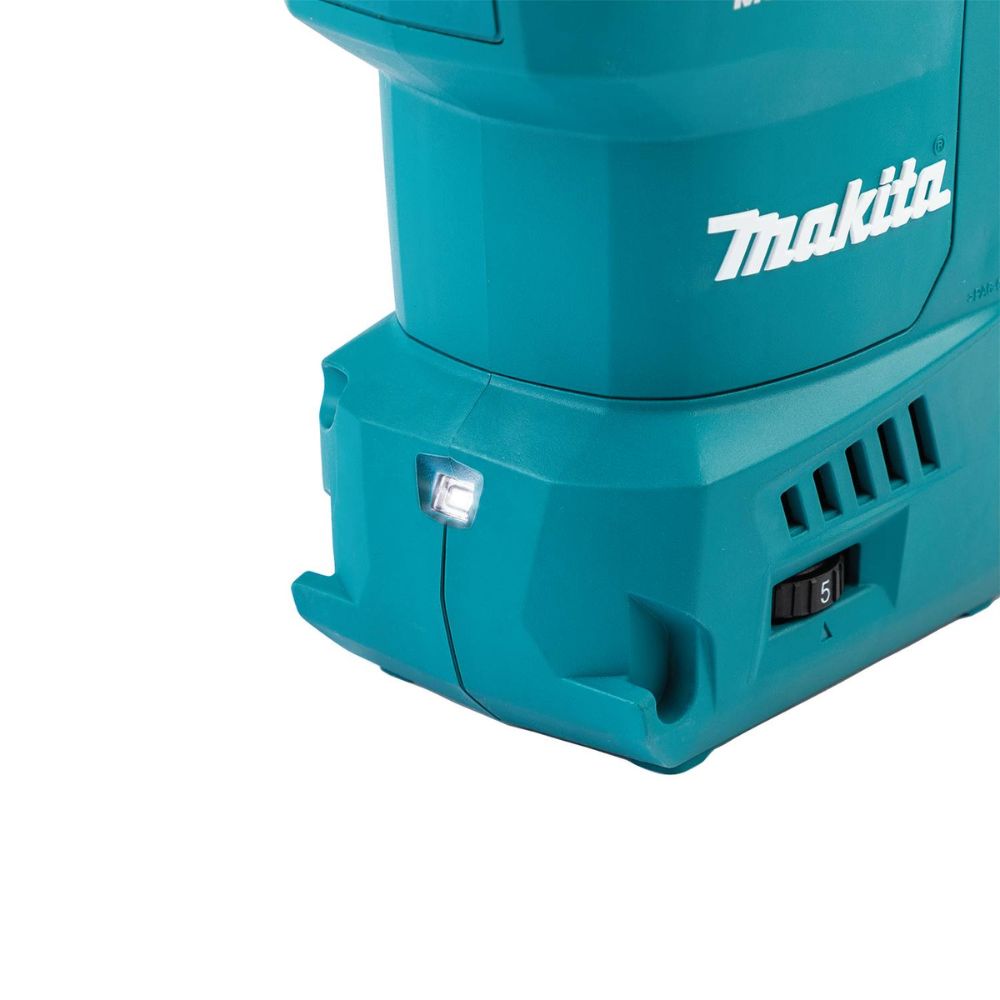

  • Built-in L.E.D. light with an independent on/off illuminates the work area
  • Ergonomic soft-grip handle and large 2-finger trigger provide increased comfort on the job

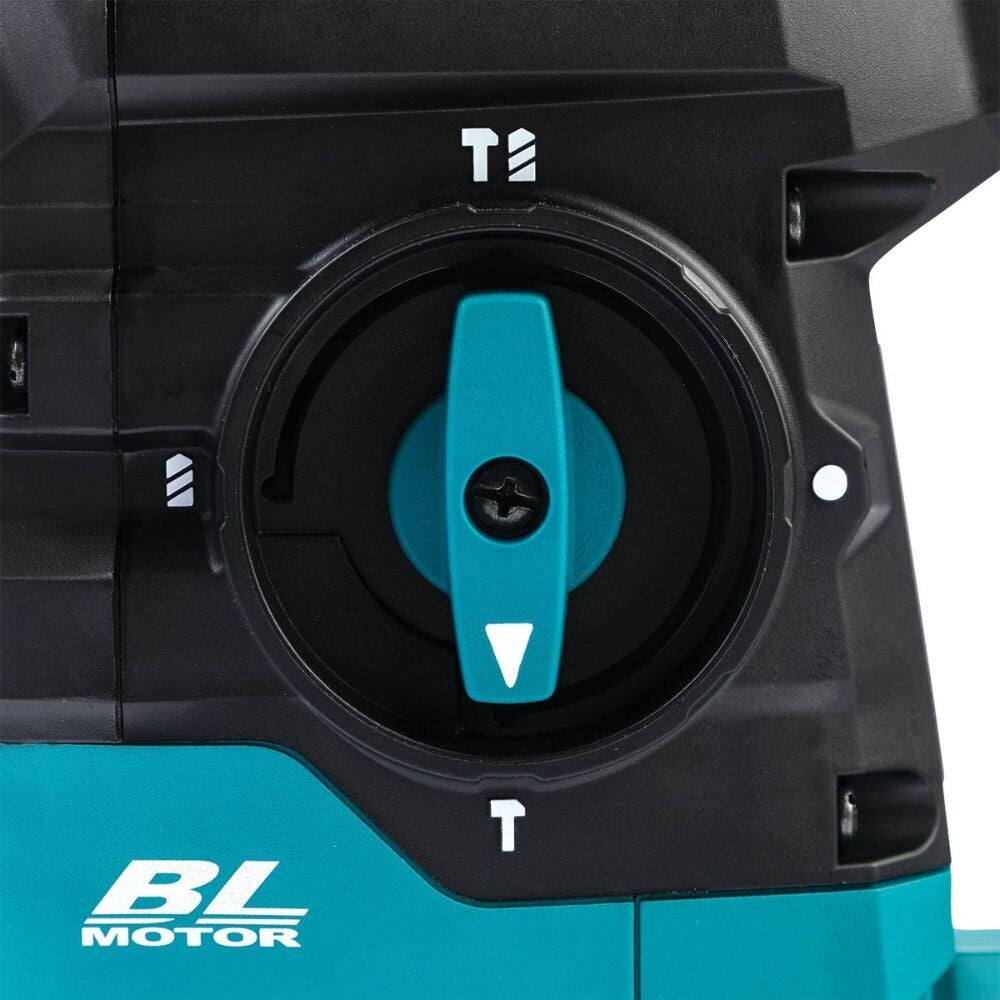

  • 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications
  • Retractable tool hook secures the tool when not in use
  • Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
  • The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications

Makita GRH09M1 Specifications

System 40V max XGT®
Battery 40V max XGT® Lithium-Ion
Max. Capacity (concrete drilling) 1-3/16"
Optimum Range (concrete drilling) 3/16" - 3/4"
Max. Capacity (concrete drilling w/ core bit) 3-1/8"
Impact Energy (ft.lbs.) 2.9
Impact Energy (Joules) 3.9 J
Blows Per Minute (variable speed) 0 - 4,500 BPM
No Load Speed (variable speed) 0 - 840 RPM
Bind-Up Control Yes
Vibration Control  Yes
Vibration (m/s²) 9.1
Automatic-start Wireless System (AWS™) Capable (transmitter sold separately)
Bit Type Accepts SDS-PLUS
Overall Length 16-1/4"
Net Weight (with battery) 10.1 lbs.
Power Type Cordless
Shipping Weight 22.67 lbs.
​ ​ ​ ​ ​ ​
