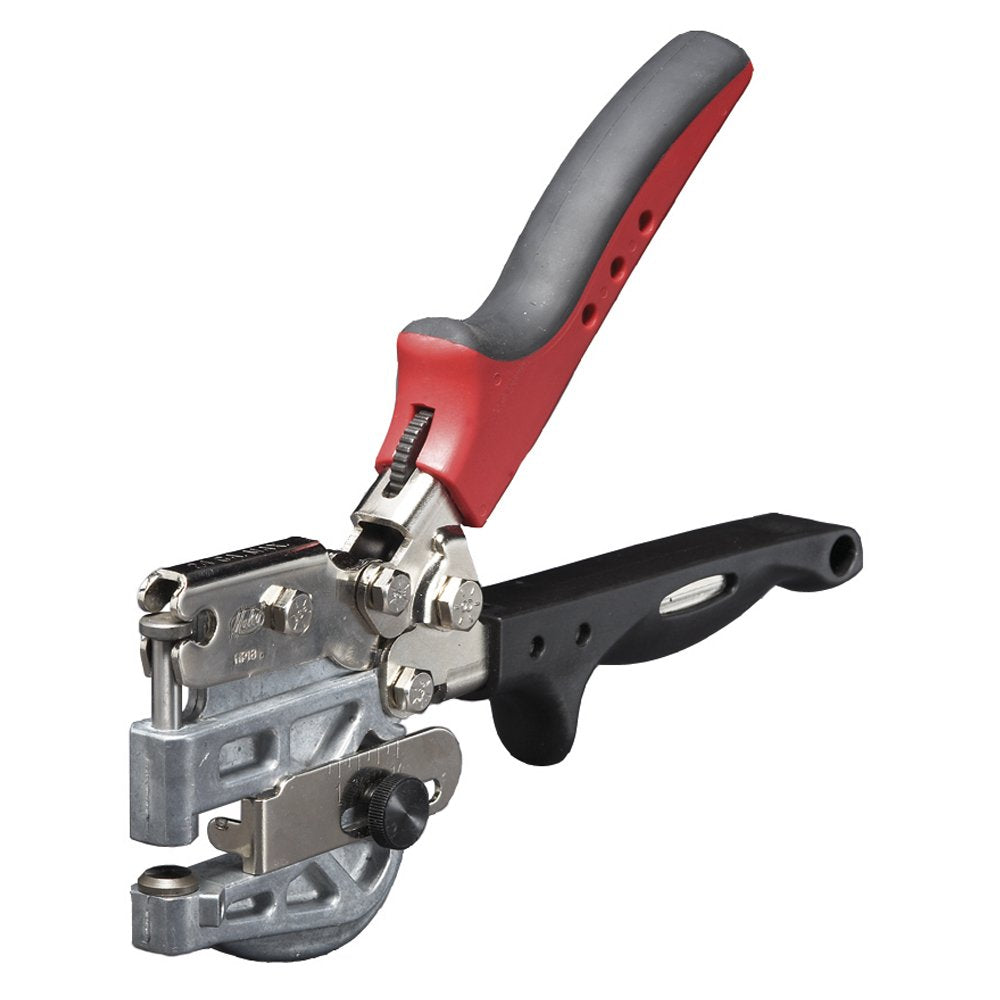

Malco HP18KR Hole Punch, Sheet Metal, Vinyl Plastic
Description
Description
Malco HP18KR Description
The HP18KR Hole Punch does the work of more expensive, bulkier punches faster and easier! Use the Malco HP18KR for making holes along the edge of sheet metal and vinyl plastic including rivet or screw fastener holes in metal ductwork and vinyl window extrusions, or hog ring holes for attaching signs or bumpers to chain link fences or equipment cages. The tool is supplied with a 1/8 inch (3.2 mm) punch and die, pre-installed on the tool, as well as a 3/16 inch (4.8 mm) punch and die assembly. Punch and die assemblies are also available separately, including 3.6, 4.1 and 6.3 mm punch and die assemblies. The tool steel punches and dies can be changed or replaced on the job. A stop gauge permits tool throat depth adjustments from 1/4 to 1-1/8 inches (6.4 to 28.6 mm) for easy hole placement. The tool body consists of a lightweight, die cast aluminum "C" frame head and hardened steel handles and parts stampings with a rust-resistant, nickel plating to ensure long service life.
Malco HP18KR Includes
- (1) Hole Punch, Sheet Metal, Vinyl Plastic
Malco HP18KR Features
- Lightweight and maneuverable.
- Make holes in sheet metal and vinyl plastic fast and easy.
- Replaceable punch and die installs on the job.
- Adjustable throat depth for easy hole placement.
- Compound leverage produces 8 to 1 mechanical advantage.
- Ergonomic Redline Handles won’t wear you down.
Malco HP18KR Specifications
| Throat Depth (Adjustable) | 1/2" to 1-1/8" |
| Nominal Length | 9-1/2" |
| Net Weight | 1 lbs |
