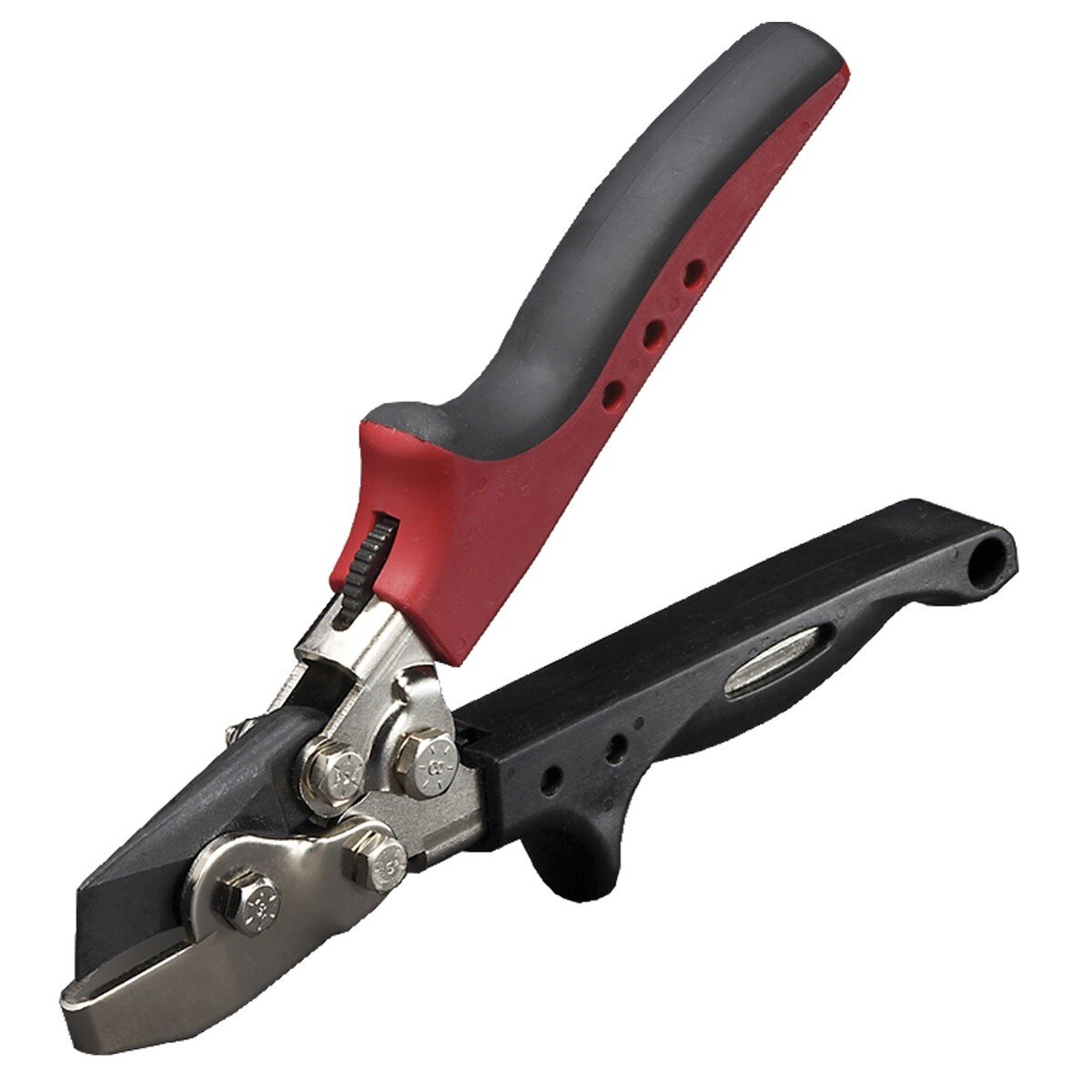

Malco N1R Description
The Malco N1R RedLine Hand Notcher is built for sheet metal fabrication tasks such as corner notching and take-off tab work in duct applications. It makes a clean 30 Degree V-shaped cut with a maximum throat depth of 13/16 inch in 24-gauge galvanized steel, using compound leverage to provide strong cutting power with comfortable one-hand operation.
Malco N1R Includes
- (1) Malco N1R RedLine Hand Notcher (13/16 in. throat)
Malco N1R Features
- Makes a clean 30 Degree V-shaped corner notch for sheet metal fabrication
- Maximum throat depth of 13/16 inch (20.6 mm)
- Designed to notch 24-gauge (0.71 mm) galvanized steel
- Compound leverage delivers 7:1 mechanical advantage for easier cutting
- Hook-style cutting jaw helps notch corners or take-off tabs without slipping
- Drop-forged, high-impact alloy steel upper cutting jaw
- Hardened stamped steel components with rust-resistant finishes
- Ergonomic RedLine handle design supports comfortable one-hand operation
- Non-slip grip insert and contoured handle grip for control
- Spring handle actuation and thumb-operated handle latch
Malco N1R Specifications
| Tool Type | Hand Notcher |
| Cut Shape | V |
| Cut Angle | 30 Degree |
| Maximum Throat Depth | 13/16 in |
| Material Capacity | 24-gauge galvanized steel |
| Mechanical Advantage | 7:1 |
| Jaw Material | Drop forged alloy steel (upper cutting jaw) |
| Component Finish | Nickel plate and black oxide |
| Product Length | 8 in |
| Handle Length | 5 in |
| Warranty | Limited Lifetime Warranty |
Toolup Part # :
66417
