Marson 48600 Description

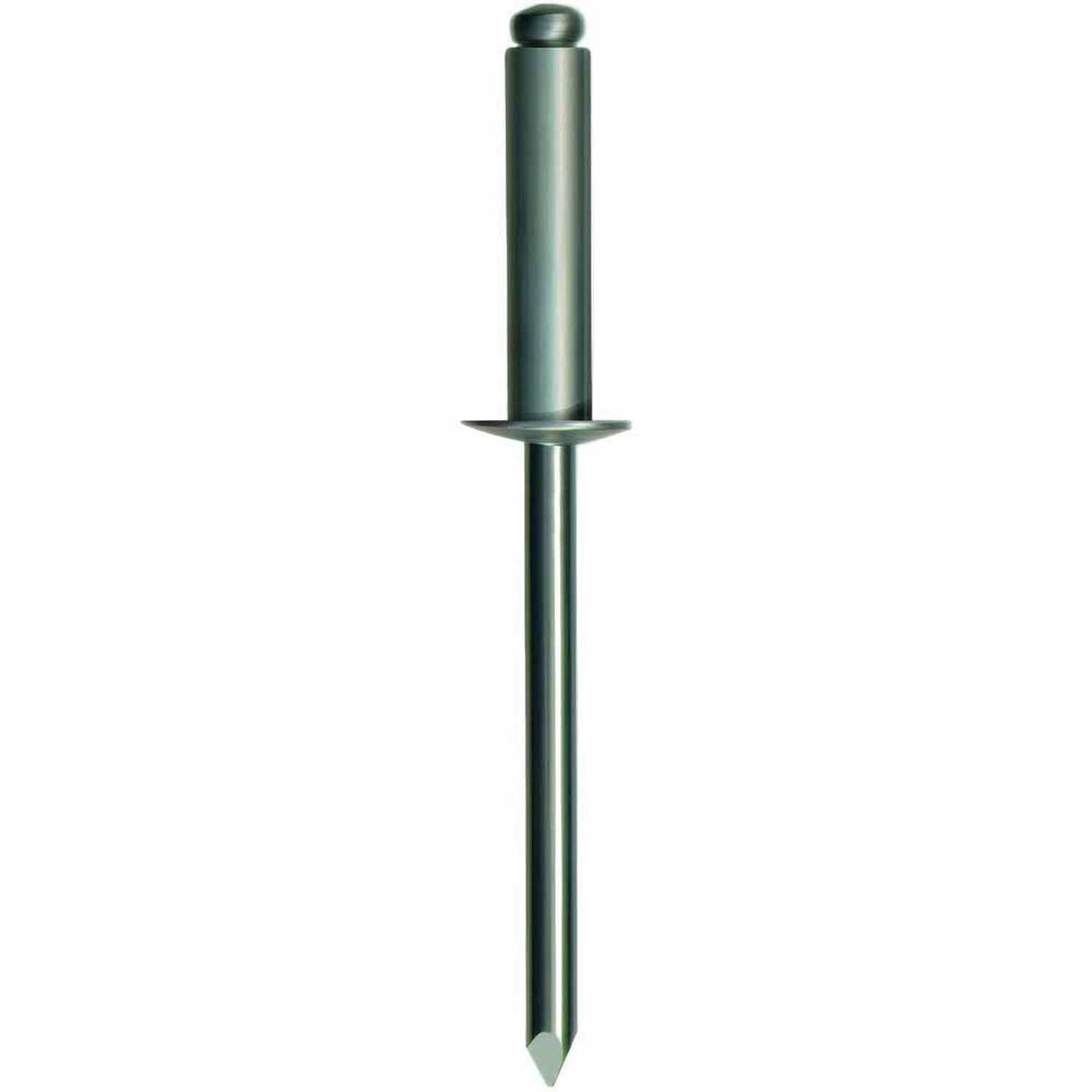

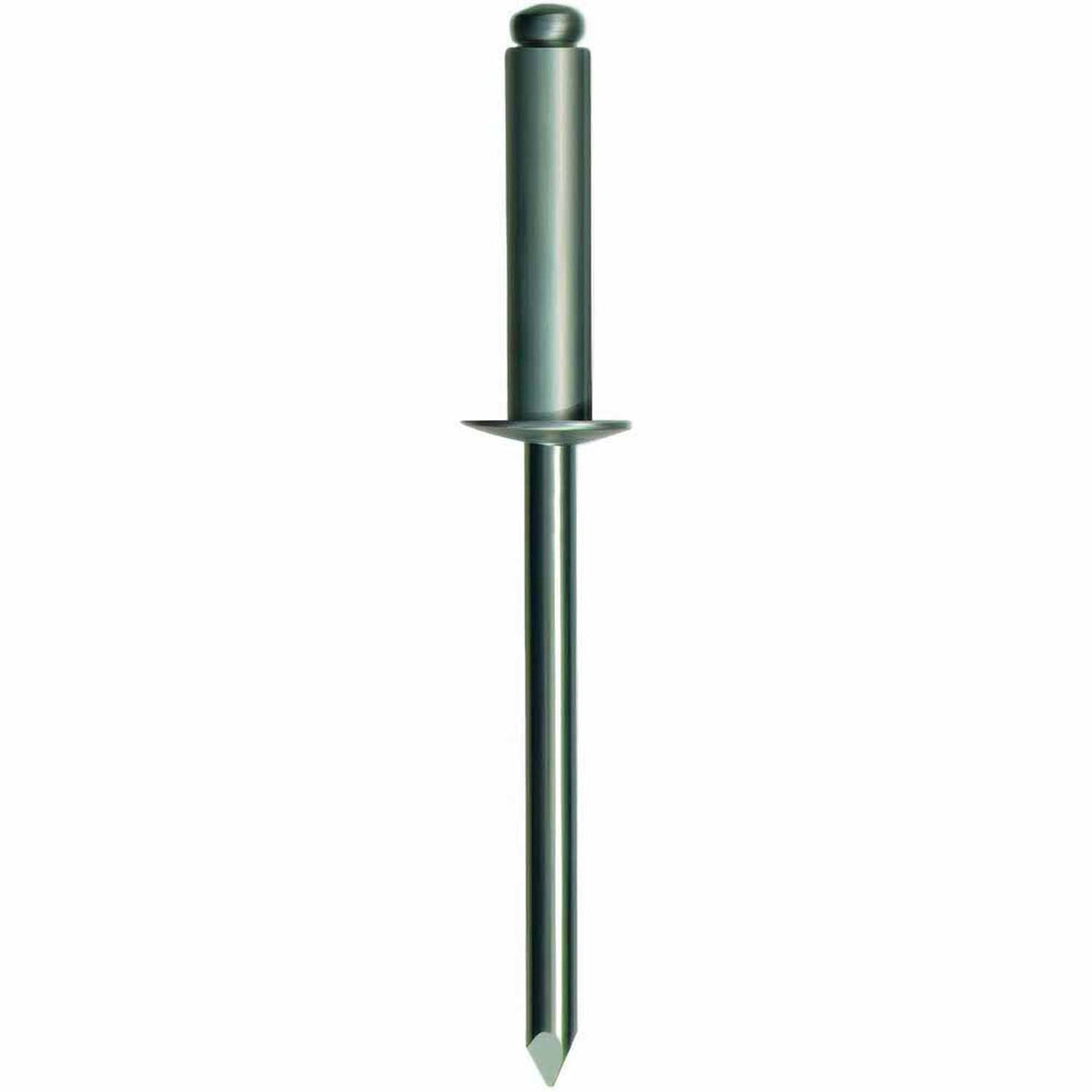

Marson CB4-2B copper open end blind rivets feature a copper body with a button (dome) head and are suited for #30 drilled holes, providing a 0.063–0.125 in. grip range for general fastening applications.
Marson 48600 Includes
- (500) Open End Blind Rivets (Copper Body, Button Head)
Marson 48600 Features
- Open end blind rivet for quick one-sided installation
- Copper body with button/dome head for clean appearance
- Steel/Brass mandrel depending on source; sized for #30 drill holes
- 1/8 in. body diameter with 0.063–0.125 in. grip range
- Approx. 300 lb tensile and 215 lb shear strength
Marson 48600 Specifications
| Rivet Type | Open End Blind |
| Head Type | Button (Dome) |
| Body Material | Copper |
| Mandrel Material | Steel or Brass (varies by listing) |
| Body Diameter | 0.125 in (1/8 in) |
| Head Diameter | 0.250 in |
| Head Height | 0.040 in |
| Grip Range | 0.063–0.125 in |
| Minimum Hole Size | 0.129 in |
| Maximum Hole Size | 0.133 in |
| Drill Size | #30 |
| Body Length | 0.275 in |
| Tensile Strength | 300 lb |
| Shear Strength | 215 lb |
| Unit of Measure | Pack of 500 |
Toolup Part # :
155547
