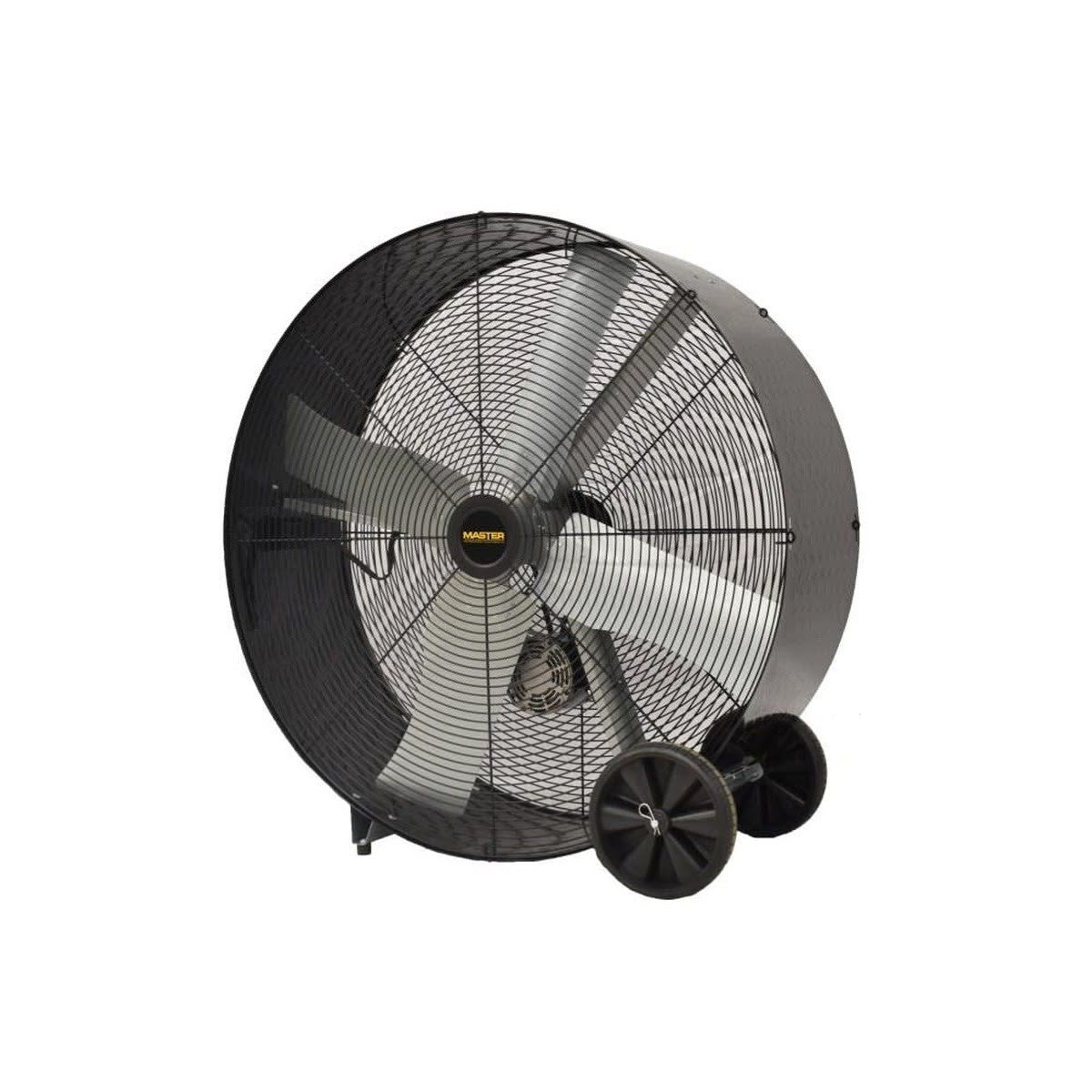

Master MAC-48-BDF-C Description
The Master 48 inch belt drive barrel fan circulates large volumes of air to help cool warehouses, garages, barns, and other large spaces. Its quiet belt drive design helps extend motor life, while the portable frame with fold-out wheels and built-in handle makes it easy to move and store.
Master MAC-48-BDF-C Includes
- (1) Master MAC-48-BDF-C 48 Inch Belt Drive Barrel Fan
- (1) 10 ft Power Cord
Master MAC-48-BDF-C Features
- High capacity airflow up to 17200 CFM (free air)
- 2 speed operation
- Quiet belt drive design helps prolong motor life
- 48 inch diameter, 4 blade oversized fan
- Portable design with fold-out wheels for easy mobility and storage
- Machined built-in handle for transport
- OSHA-compliant safety guards with 1/2 inch guard spacing
- ETL certified
Master MAC-48-BDF-C Specifications
| Fan Diameter | 48 in |
| Drive Type | Belt |
| Speeds | 2 |
| Airflow (High) | 17200 CFM |
| Airflow (Low) | 10600 CFM |
| Airflow (Free Air) | 17200 CFM |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Phase | 1 |
| Power | 1 hp |
| Watts | 950 W |
| Nameplate Amps | 9.2 A |
| Cord Length | 10 ft |
| Oscillating | No |
| Portability | Portable |
| Product Dimensions (L x W x H) | 49 x 21 x 50 in |
| Shipping Dimensions (L x W x H) | 50 x 50 x 15 in |
| Net Weight | 103 lbs |
| Shipping Weight | 110 lbs |
| Blade Material | Aluminum |
| Guard Material | Galvanized Steel |
| Housing Material | Steel |
| Guard Spacing | 1/2 in OSHA |
| Certifications | ETL |
| Country of Origin | USA |
| Product Color | Black |
Toolup Part # :
865872
