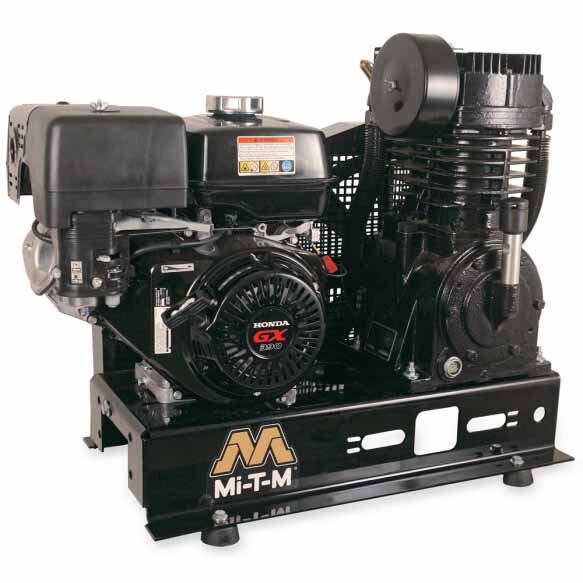

Mi-T-M ABS-13H-B Base Mount Two Stage Gasoline Air Compressor
Description
Description
FEATURES:
• Powder Coated ASME coded 30 or 80-gallon receiver tank (Tank-mounted models)
• Quality two stage compressor
• Electric start engine (battery and cables not included)
SPECIFICATIONS:
• CFM @ 175 PSI: 29.0
• Displacement/Engine: 389cc Honda OHV
• Bolt Down Dimensions (LxW): 21 x 13.5 inches
• Warranty: 3 Year Honda Engine
• Warranty: 2 Year Pump Exchange
Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure · Splash lubricated cast iron crankcase to exten the hours of performance · Cast iron head and cylinder for extended durability · Stainless-steel braided discharge hose · Oil level sight indicator
Engine: Industrial Honda OHV engine (Electric start standard - battery and cables not included) · Pneumatic idle control to conserve fuel
Frame: 3/16-inch base plate to reduce vibration · 14-gauge powder coated totally enclosed belt guard · Tabbed design offers flexible installation
Components: Regulator and two gauges for tank and outlet pressure · ASME safety valves · Belt tightening system pulls engine straight to ensure constant belt alignment · 16.5-inch fly wheel for extra cooling and longer life · Tank shut-off valve
