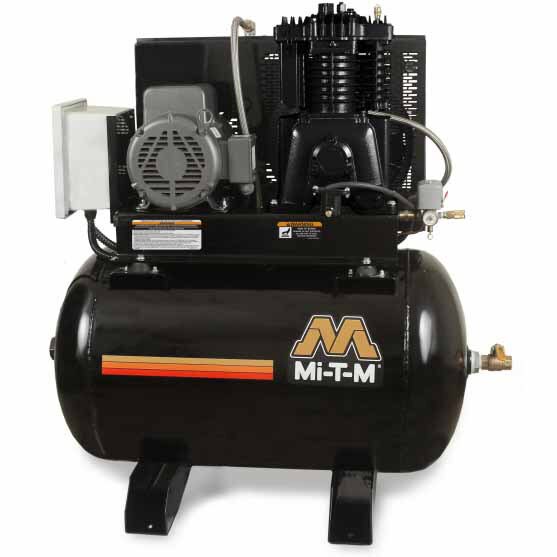

Mi-T-M ACS-23175-80HM M Series 80-Gallon Two Stage Electric Air Compressor
Description
Description
• Magnetic Starter
• Hour Meter
• Low Oil Shut Down
• Aftercooler
• Rubber Isolators
FEATURES:
• Powder coated ASME coded 80-gallon receiver tank
• Quality two stage compressor
• Stainless-steel braided discharge hose
SPECIFICATIONS:
• CFM: 23.3 @ 175
• HP/Motor: 7.5 HP, 230V, 1Ø, 31.0A
• Warranty: 1 Year Electric Motor
• Warranty: 2 Year Pump Exchange
• Warranty: ASME - U
Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head and cylinder for extended durability · Stainless-steel braided discharge hose · Oil level sight indicator
Motor: Low RPM industrial motor
Frame: Powder coated ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · 14-gauge powder coated totally enclosed belt guard · Fly wheel for extra cooling and longer life
Components: ASME safety valves · Pressure gauge · Belt tightening system pulls motor straight to ensure constant belt alignment · Intake filter/silencer · Tank shut-off valve
