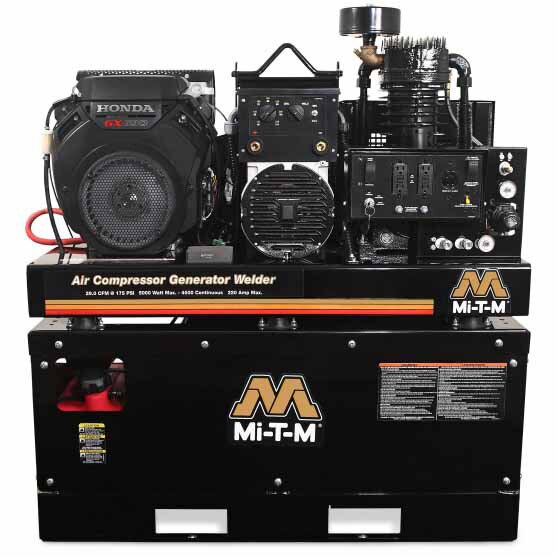

Mi-T-M AGW-SH22-20M 20-Gallon Two Stage Gasoline Air Compressor/Generator/Welder Combination
Description
Description
FEATURES:
• Powder caoted ASME coded 20-gallon receiver tank
• Quality two stage compressor
• Industrial 5000-watt generator
• Brush-type 2 pole 120/240V alternator
• Amperage selection switch, 170AA or 220A maximum
SPECIFICATIONS:
• Displacement/Engine: 688cc Honda OHVwith electric start (cables are included, battery not included)
• Rated Speed: 3600 RPM
• CFM @ 175 PSI : 29.0
• Tank: 20-gallon receiver tank
• Max. AC Output: 5000 watts
• Rated AC Output: 4500 watts
Operation
Generator Mode
AC current only · Selector switch set to idle down –engine will idle down when generator is not in use and tank pressure is 175 PSI · Switch is set to full throttle –engine will run full throttle continuously
Welder Mode
DC current only · Selector switch must be set to full throttle
Compressor Pump: Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Durable stainless-steel braided discharge hose · Quality pilot valve unloader
Generator: Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings
Welder: 220 DCA arc welder · Amperage selection switch
Frame: Powder coated ASME coded 20-gallon receiver tank · 1/4-inch base plate to reduce vibration · 14-gauge powder coated four-piece belt guard
Components: Belt tightening system pulls engine straight to ensure constant belt alignment · Manual drain valves for proper maintenance · Regulator and two gauges for tank and outlet pressure · 16.5-inch fly wheel for extra cooling and longer life · 10-gallon fuel tank capacity
*Equipped with 150-PSI maximum rated regulator.
Offering the convenience of three machines in one, this new model combines a 220-amp arc welder, two-stage air compressor and a 5000-watt generator with a 688cc Honda OHV engine. You'll save space and money and reduce your load capacity with this new combination unit. And with only one engine powering these components, you'll also save time on serving parts and maintenance.
