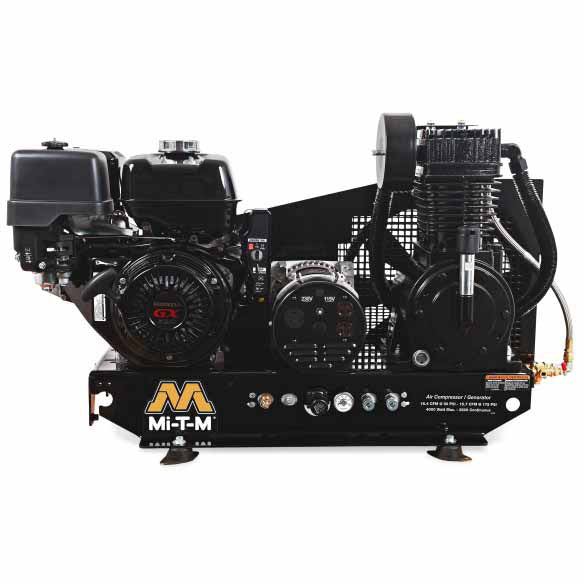

Mi-T-M AGW-SR14-B Base Mount Two Stage Gasoline Air Compressor/Generator/Welder Combination

FEATURES:
• Powder caoted ASME coded 20 or 30-gallon receiver tank
• Quality two stage compressor
• Industrial 5000-watt generator
• Brush-type 2 pole 120/240V alternator
• Amperage selection switch, 170AA or 220A maximum

SPECIFICATIONS:
• Displacement/Engine: 404cc Subaru OHC
• Rated Speed: 3600 RPM
• CFM @ 90 PSI: 16.4
• Max. AC Output: 5000 watts
• Rated AC Output: 4500 watts
• Cont. on-load @ 90 PSI: 3000 watts

Operation
Generator Mode
AC current only · Selector switch set to idle down –engine will idle down when generator is not in use and tank pressure is 175 PSI · Switch is set to full throttle –engine will run full throttle continuously

Welder Mode
DC current only · Engine must be running full throttle · Selector switch must be set to full throttle

Engine: Performance-proven engine with low-oil shutdown · Electric start (battery and cables not included)

Compressor Pump: Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Durable stainless-steel braided discharge hose for longer life

Generator: Brush-type 2 pole 12V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings

Welder: Amperage selection switch, 170 maximum

Frame: 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard with 1-4-turn release for quick access to belts

Components: Belt tightening system pulls engine straight to ensure constant belt alignment · Manual drain valves for proper maintenance · Regulator and two gauges for tank and outlet pressure · 16.5-inch fly wheel for extra cooling and longer life · Quality pilot valve unloader

Offering the convenience of three machines in one, this new model combines a 170A arc welder, two-stage air compressor, and a 5000-watt generator all in one piece of equipment. Save space, save money and reduce your load capacity with this new combination unit, and with only one engine you will save time on service parts and maintenance as well.
