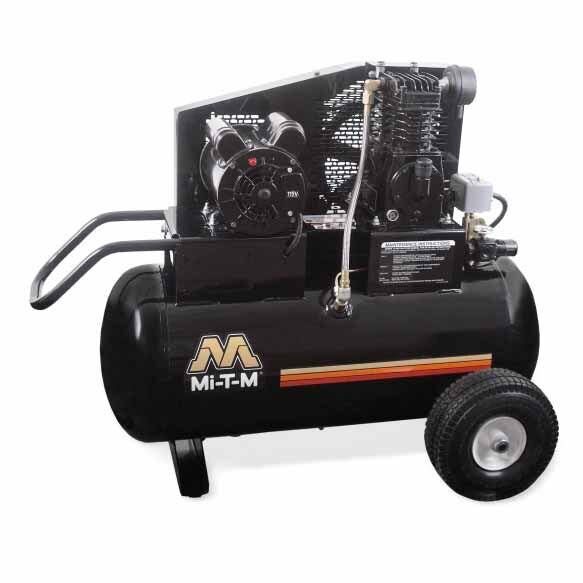

Mi-T-M AM1-PE15-20M 20-Gallon Single Stage Electric Air Compressor
Description
Description
FEATURES:
• Powder coated ASME coded 20-gallon receiver tank
• Quality single stage compressor
• Auto start/stop (continuous run optional)
SPECIFICATIONS:
• CFM @ 90 PSI: 7.3
• HP/Motor: 1.5/120V, 13.2A Electric
• Plug Type: NEMA 5-15P
• Warranty: 1 Year Electric Motor
• Warranty: 2 Year Pump Exchange
• Warranty: ASME - UM
Compressor Pump: Quality cast iron single stage compressor · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Large canister intake filter · Stainless-steel braided discharge hose
Motor: Industrial UL-listed electric motor · Auto start/stop (continuous run optional) · Thermal overload motor protection
Frame: Powder coated ASME coded 20-gallon receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts · Convenient lifting handle
Components: Regulator and two gauges for tank and outlet pressure · 10-inch fly wheel for extra cooling and longer life · Manual drain valves for proper maintenance · Belt tightening system pulls engine straight to ensure constant belt alignment · Industrial grade pressure switch
