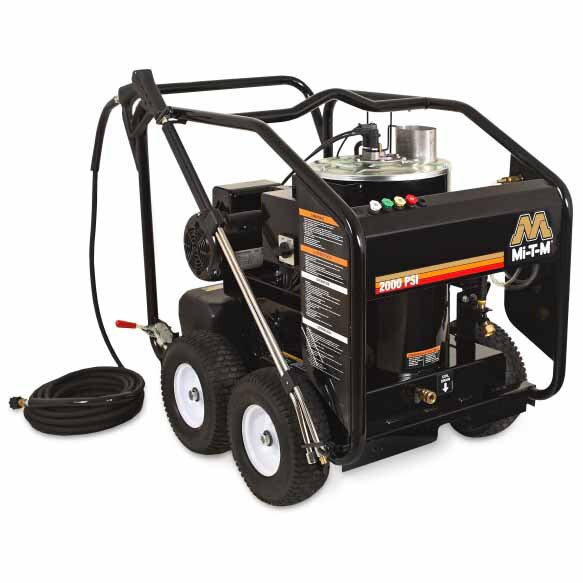

Mi-T-M HSE-1002-0MM11 HSE Series Electric Direct/Belt Drive Hot Water Pressure Washer

INCLUDES:
• Gun
• Wand
• Hose
• Tips

FEATURES:
• Totally enclosed fan-cooled electric motor
• Direct or belt drive triplex piston General or Mi-T-M pump with ceramic plungers
• Stainless-steel and brass unloader
• Energy-efficient top-fired heat exchanger designed for convenient troubleshooting and easy maintenance

SPECIFICATIONS:
• PSI: 1000
• GPM: 2.0
• Horsepower/Motor: 1.5 HP, 120V, 1Ø, 15.0A
• Pump: Mi-T-M
• Plug Type: NEMA 5-15P
• Burner Fuel Tank Cap. : 4.0 gallon

Pump: Direct drive triplex Mi-T-M pump with ceramic plungers · Stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve · High pressure detergent injection (available as option)

Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord with in-line GFCI which meets required CSA certification · Solid state electronic ignition

Frame: Reinforced powder coated steel tube frame with center balanced lifting hook  · Electric cord hanger · Powder coated steel gun/wand holder · Locking tire brake

Components: Energy-efficient top-fired heat exchanger designed for convenient troubleshooting and easy maintenance · High quality fuel filter/water separator ensures clean fuel supply · Complete system diagnostic board · Pressure and high limit safety controls · No. 1 or No. 2 diesel or kerosene fired burner (Bio-fuel not approved at this time) · Polyethylene burner fuel tank · Easy coil drain helps prevent freezing in cold weather

Unit Includes:  Quick connect nozzles (0°, 15°, 25° and 40°) · 50-foot x 3/8-inch steel wire-braided pressure hose with swivel, quick connects and bend restrictors · Professional-grade insulated trigger gun with safety lock-off · Adjustable pressure insulated dual lance

Miscellaneous:  Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F · Water ouput temperature is 190°-200°F
