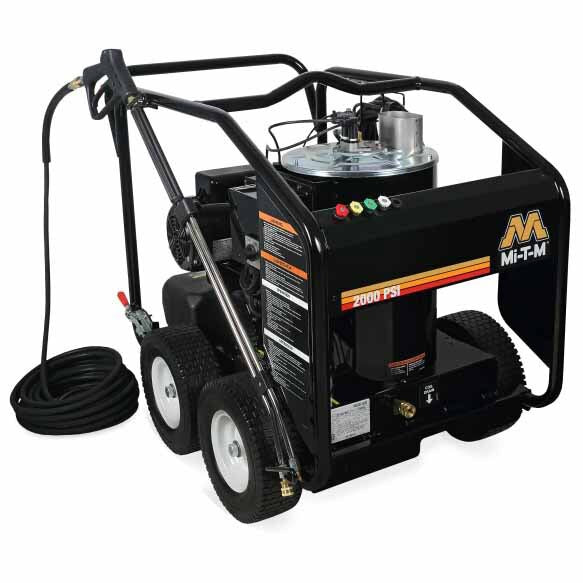

Mi-T-M HSE-2003-0MM11 HSE Series Electric Direct/Belt Drive Hot Water Pressure Washer

INCLUDES:
• Gun
• Wand
• Hose
• Tips

FEATURES:
• Totally enclosed fan-cooled electric motor
• Direct or belt drive triplex piston General or Mi-T-M pump with ceramic plungers
• Stainless-steel and brass unloader
• Energy-efficient top-fired heat exchanger designed for convenient troubleshooting and easy maintenance

SPECIFICATIONS:
• PSI: 2000
• GPM: 2.8
• Horsepower/Motor: 4.0 HP, 230V, 1Ø, 18.0A
• Pump: Mi-T-M
• Plug Type: NEMA 6-20P
• Burner Fuel Tank Cap. : 4.0 gallon

Pump: Direct drive triplex Mi-T-M pump with ceramic plungers · Stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve · High pressure detergent injection (available as an option)

Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord with in-line GFCI which meets required CSA certification · Solid state electronic ignition

Frame: Reinforced powder coated steel tube frame with center balanced lifting hook · Electric cord hanger · Powder coated steel gun/wand holder · Locking tire brake

Components: Energy-efficient top-fired heat exchanger designed for convenient troubleshooting and easy maintenance · High-quality fuel filter/water separator ensures clean fuel supply  · Complete system diagnostic board · Pressure and high limit safety controls · No.1 or No.2 diesel or kerosene fired burner (Bio-fuel not approved at this time) · Polyethylene burner fuel tank · Easy coil drain helps prevent freezing in cold weather



Unit Includes: Quick connect nozzles (0, 15, 25, and 40 degree) · Professional-grade insulated trigger gun with safety lock-off · Adjustable pressure insulated dual lance · 50-foot x 3/8-inch steel wire-braided pressure hose with quick connects, swivel and bend restrictors



Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F · Water output temperature is 190°-200°F
