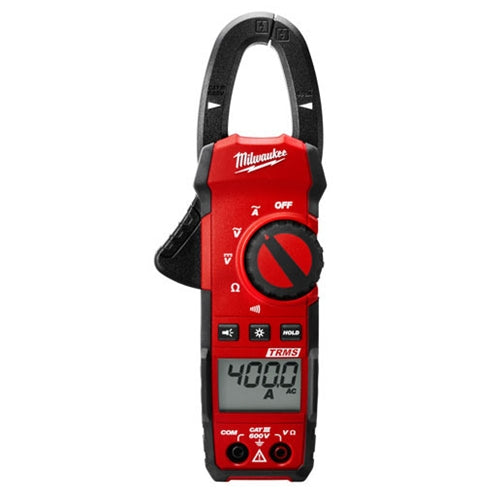

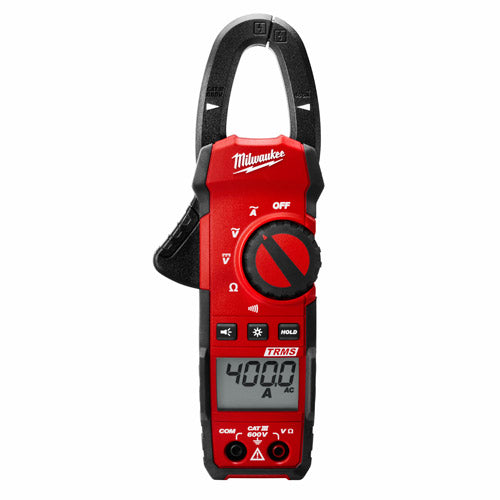

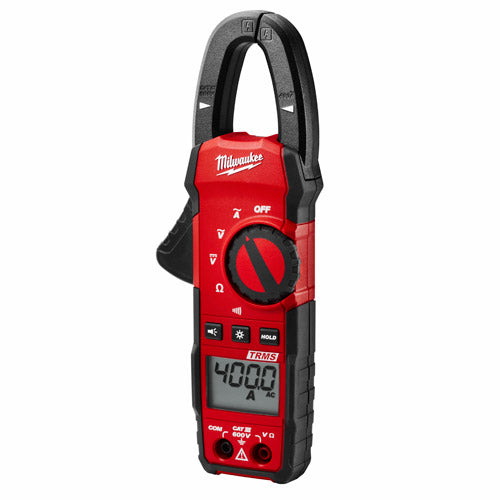

Milwaukee 2235-20 400 Amp Clamp Meter
Description
Description
Milwaukee 2235-20 Description
Heavy duty True-RMS electrical current tester for professional residential, commercial, and industrial applications. The perfect tool for the professional electrician; includes all the features that are needed to get the job done in the field, on-site or in the plant. Milwaukee 2235-20 Clamp Meter features: jaw size of 1.0” measuring up to 350 MCM cable; rated CAT III 600V; current measurement to 400 amps AC; voltage measurement to 600 volts AC/DC; LED Work Light to improve task lighting; resistance measurement to 4000 ohms; test for continuity; black on white display and backlight for easier reading; rugged over-molding for increased durability and user grip; includes one (1) electrical test lead set, two (2) AAA batteries, and manual; covered by 5 year warranty. Nothing but HEAVY DUTY.
Milwaukee 2235-20 Includes
- 2235-20 Clamp Meter
- One (1) electrical test lead set, red and black
- Two (2) AAA batteries
- Manual
Milwaukee 2235-20 Features
- Measures up to 400 amps AC, Large 1.0” jaw opening
- Thin Jaw Profile for easier wire measurement in panels or in bundles
- Wide Voltage range to 600 AC/DC volts
- True-RMS for accurate measurement in all applications
- Built-In LED Work Light
- CAT III 600V for increased safety
- Rugged over-molding increases durability and user grip
Milwaukee 2235-20 Specifications
| Voltage Range: | 600V AC/DC |
| Safety Category Rating: | CAT III 600V |
| TRMS: | Yes |
| AC Amps: | 400 amps |
| AC Volts: | 600 volts |
| DC Volts: | 600 volts |
| Ohms: | 4000 ohms |
| Auto Calibration: | No-Recommend sending in for calibration service once every year |
| Continuity: | Yes |
