At a Glance
Battery Platform
Milwaukee MX FUEL
Voltage
18 V
Overall Length
21-1/8 in
Cable Size Range
4 AWG - 1000 MCM
Crimp Force
11 ton
Die Type
Die-less
Crimp Type
Hydraulic Battery
Sold As
Individual
For Use On
Copper/Aluminum
Color
Red
Description
Description
Milwaukee 2876-20 Description

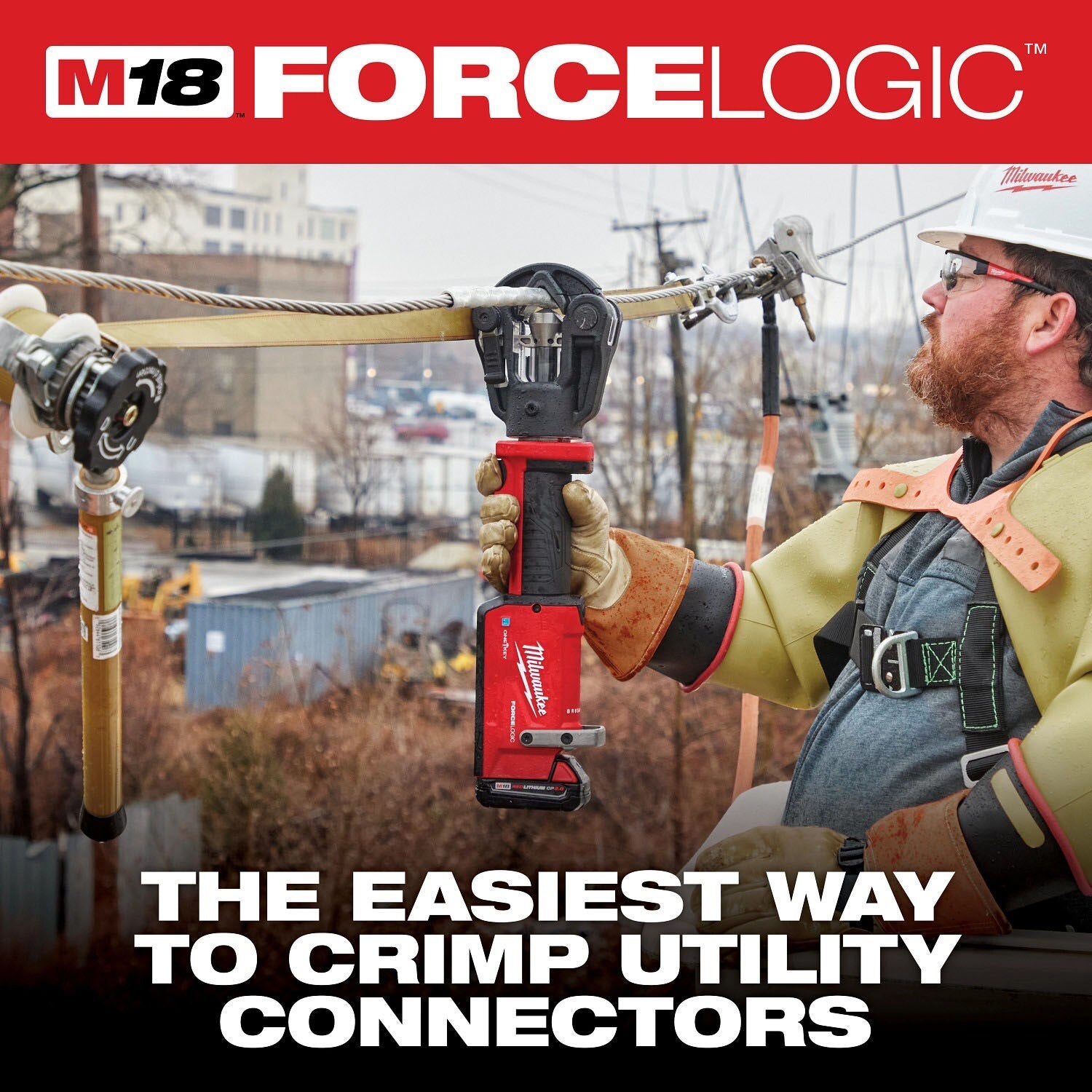

The Milwaukee M18 FORCE LOGIC 11T Dieless Latched Linear Utility Crimper is a cordless crimper that delivers fast, consistent crimps meeting ANSI C119.4 and UL486A-B on leading utility connectors. Its balanced inline design enables one-handed use, with a 340 Degree rotating head, enlarged trigger, electronic release, and PFM force monitoring. ONE-KEY technology records each crimp for reporting.
Milwaukee 2876-20 Includes

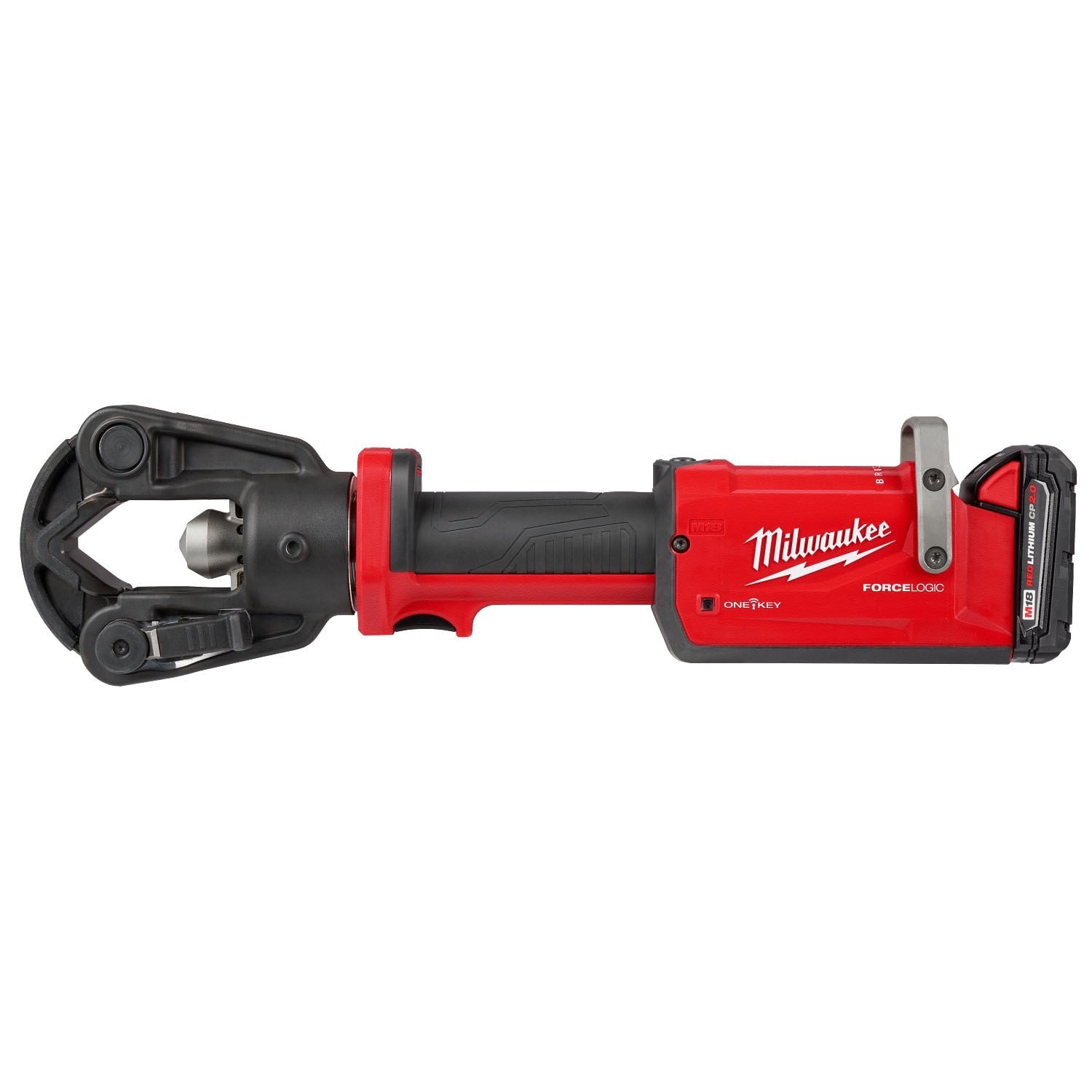

- (1) M18 FORCE LOGIC 11T Dieless Latched Linear Utility Crimper

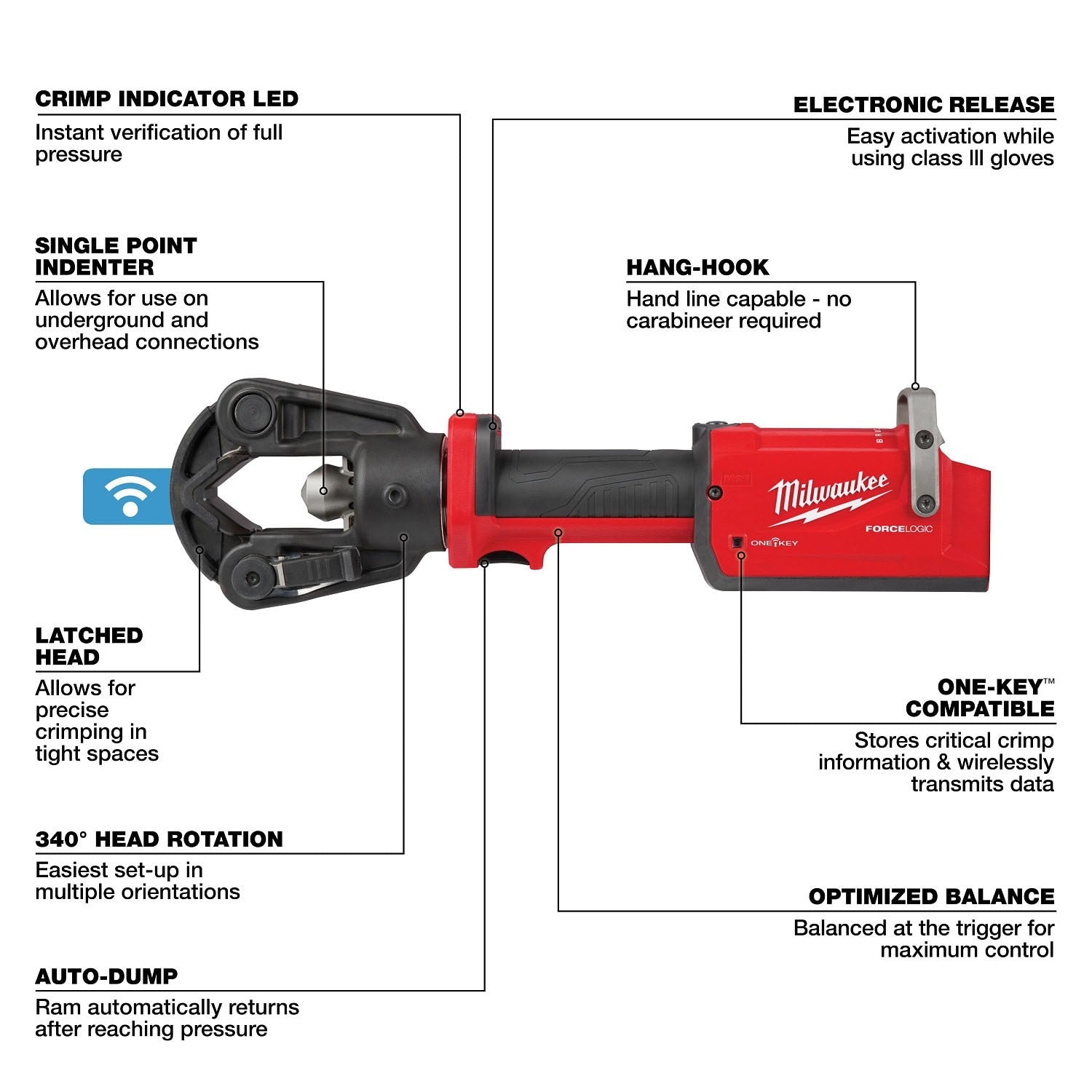

Milwaukee 2876-20 Features
- Lightest, balanced inline design for maximum control
- Predictive Force Monitoring measures output force for consistent crimps
- Fast 11T dieless crimping performance
- Meets ANSI C119.4 and UL486A-B connection standards on leading utility connectors

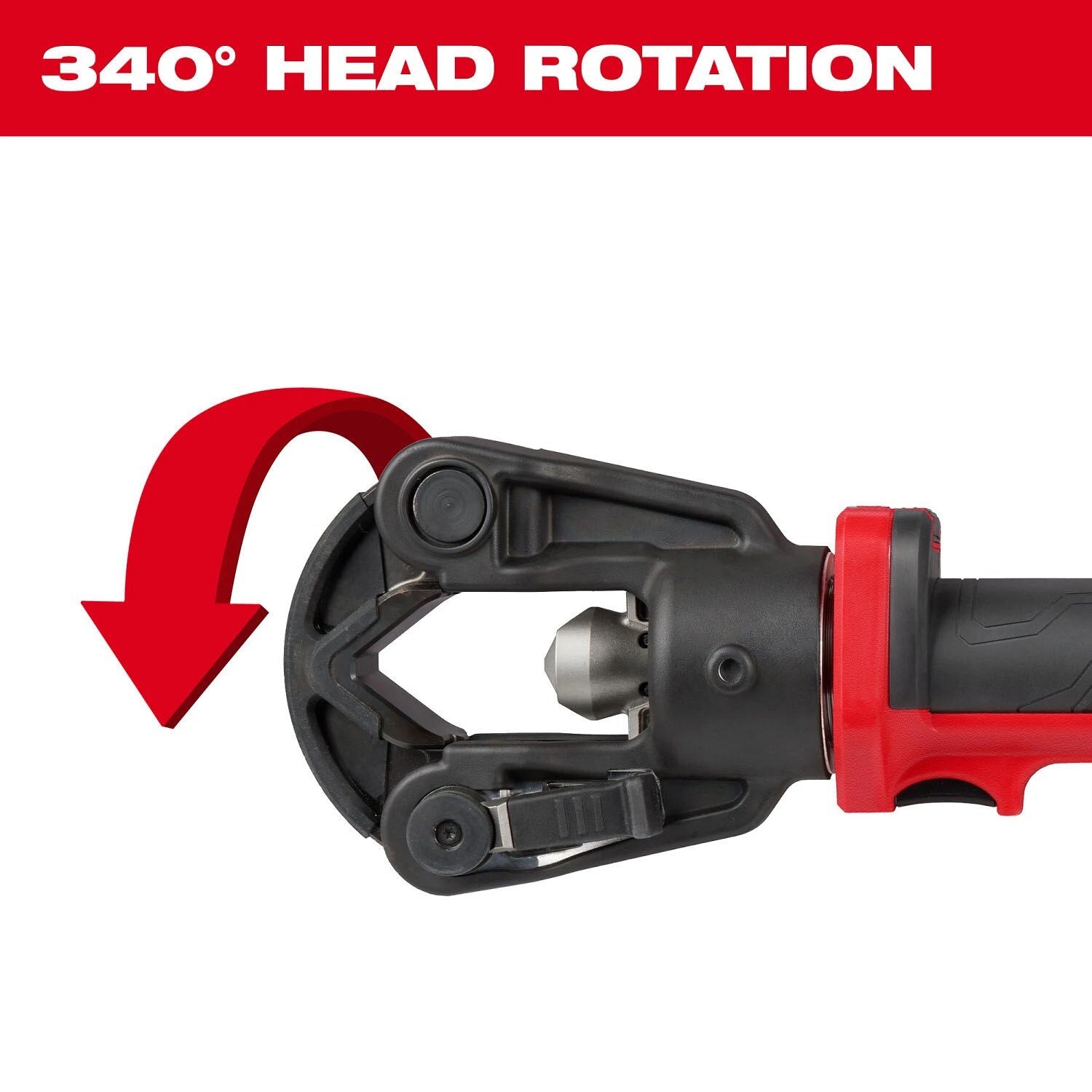

- 340 Degree rotating head for tight-space access
- Enlarged trigger for Class 3 glove use
- Electronic release for right- or left-handed activation

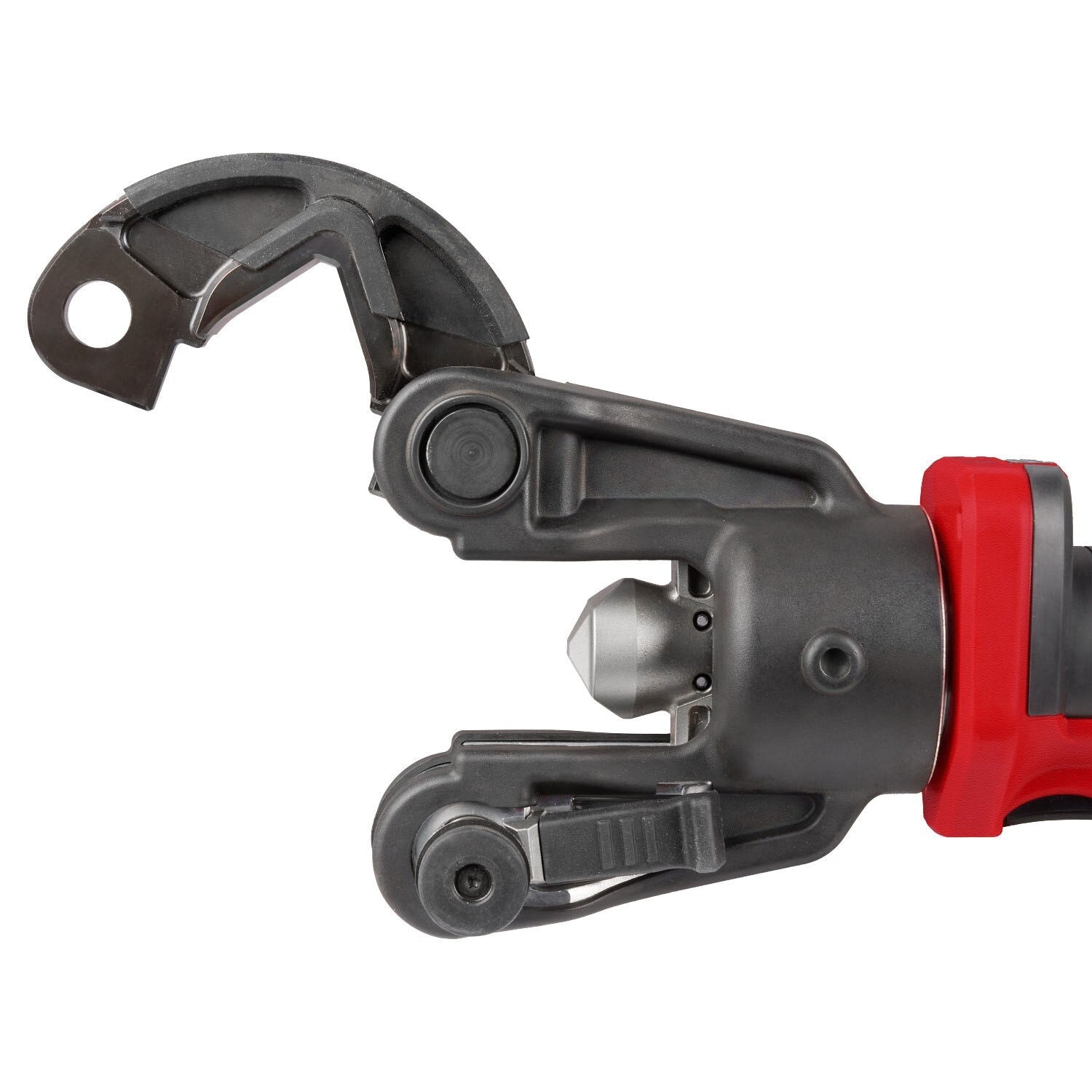

- Quick-release, push-to-close latch pin for easy setup
- Pre-crimp battery check ensures enough charge to complete a crimp

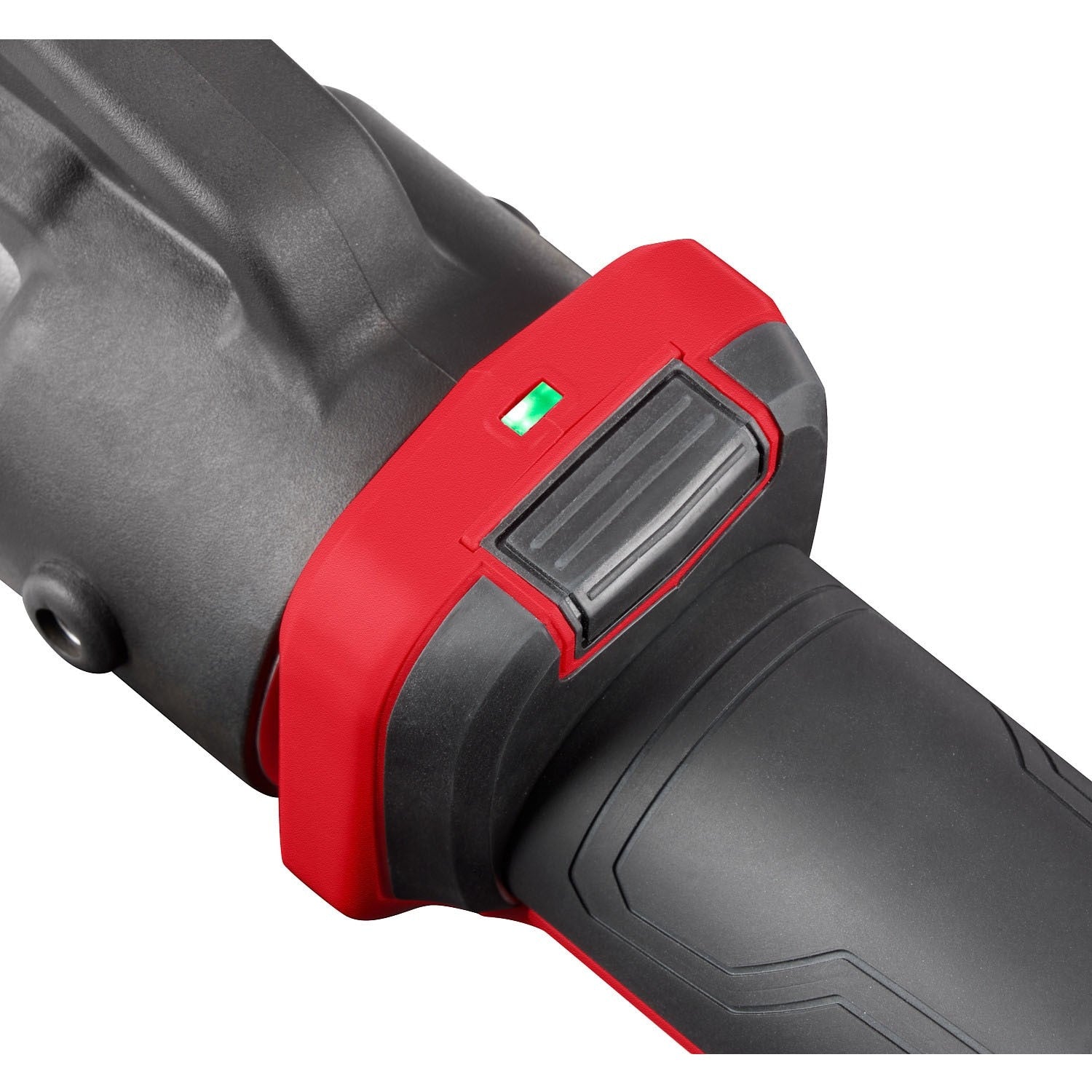

- Green LED indicates successful cycle
- Hydraulic system optimized for -4 to 140 Degree F performance
- Brushless motor and weather-protected electronics for longer life

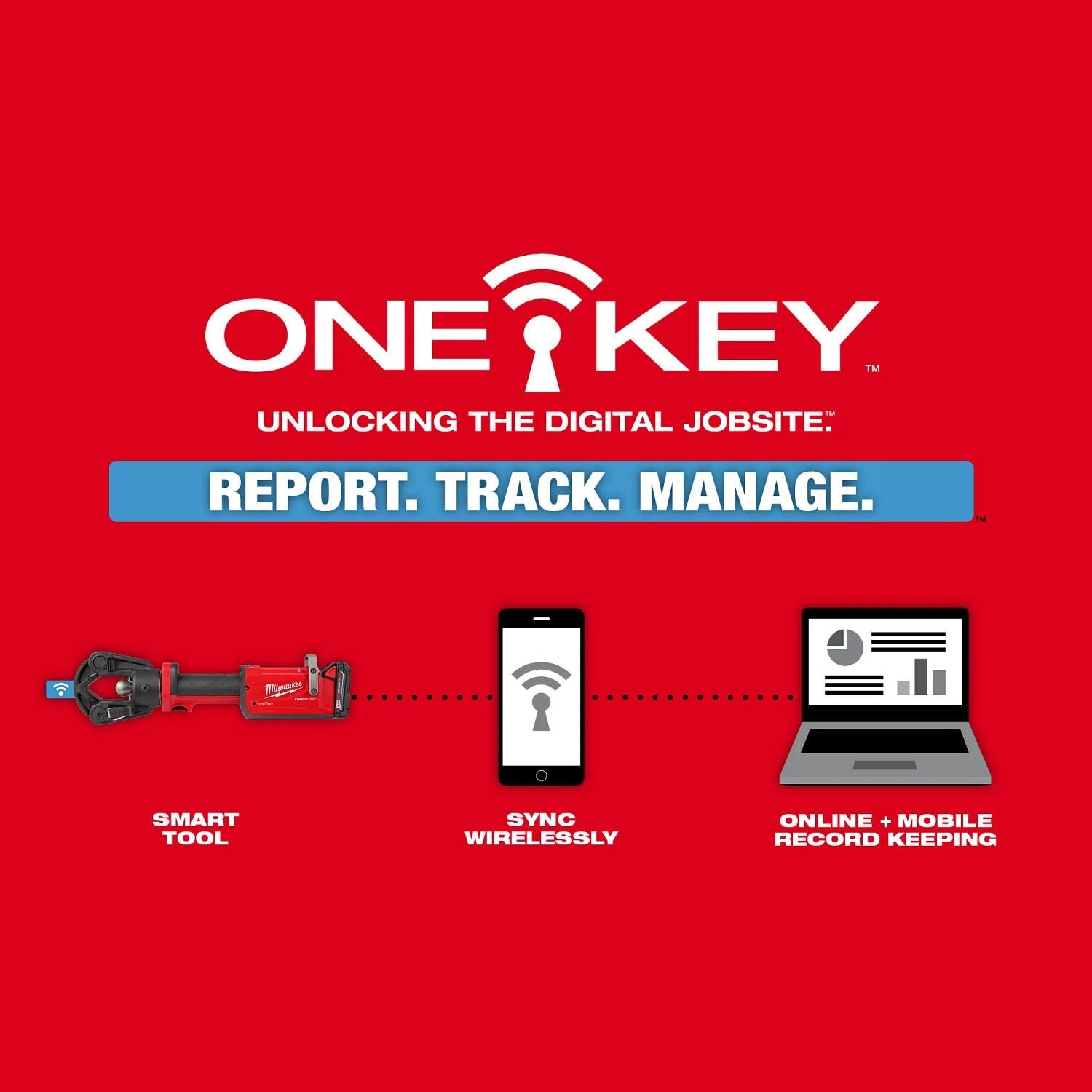

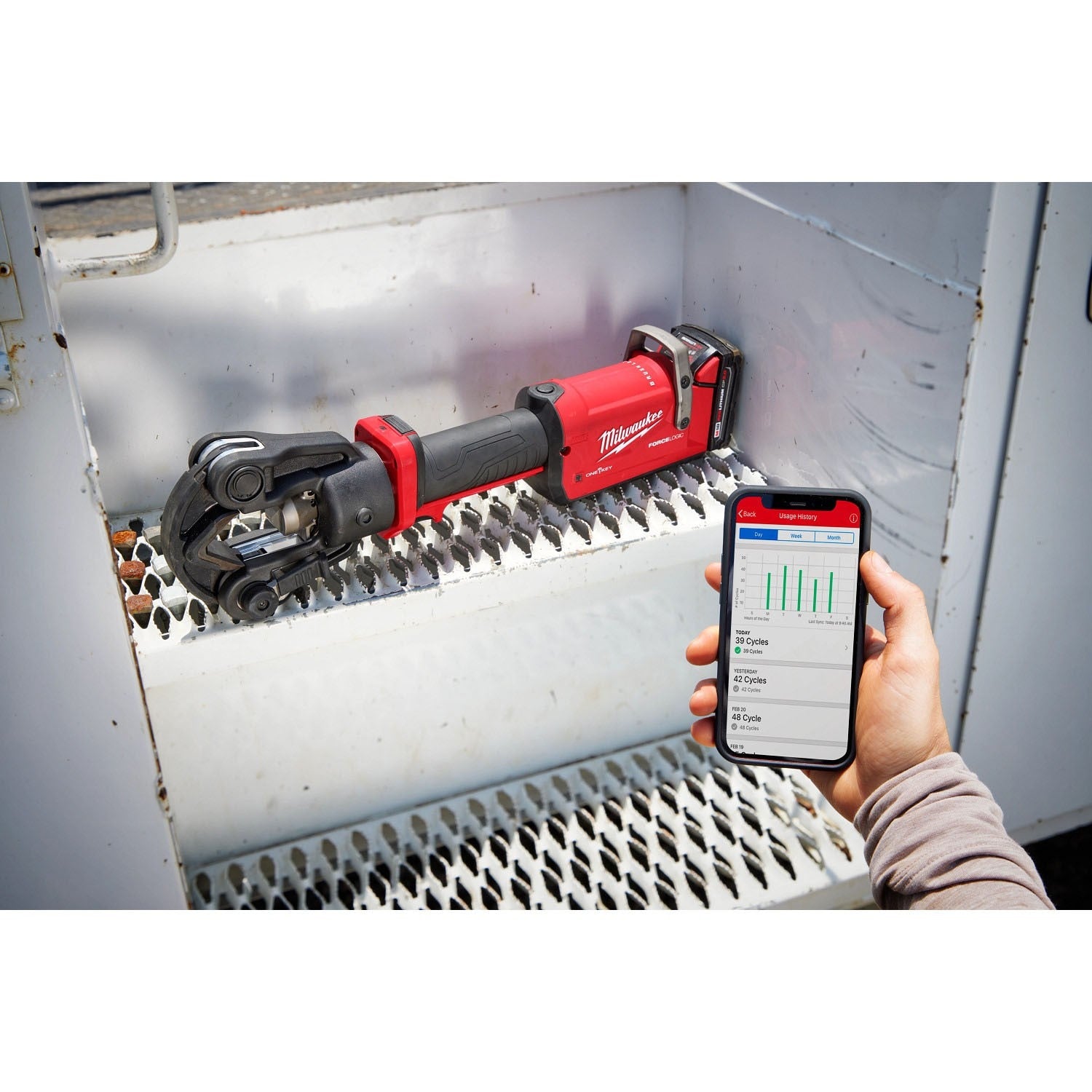

- Records and stores every crimp via ONE-KEY
- Part of the M18 System
Milwaukee 2876-20 Specifications
| Powered Tool Power Source | Electric - Cordless |
| Color / Finish | Red |
| Length (in) | 24.00 |
| Width (in) | 12.67 |
| Height (in) | 10.66 |
| Head Rotation (°) | 340 |
| Crimp Speed (sec) | 3 |
| Weight - Excluding Battery (lbs) | 24.25 |
| Number of Batteries Included | 0 |
| Number of Batteries Required | 1 |
| Battery Voltage (V) | 18 |
| Battery Composition | Lithium-Ion (Li-ion) |
| Charger Included | No |
| Manufacturer Warranty | 5 Year Limited Warranty |
Toolup Part # :
836025
