Milwaukee 3973-20 120' Mid-Stiff Modular Pipeline Inspection Reel
Description
Description
Milwaukee 3973-20 Description

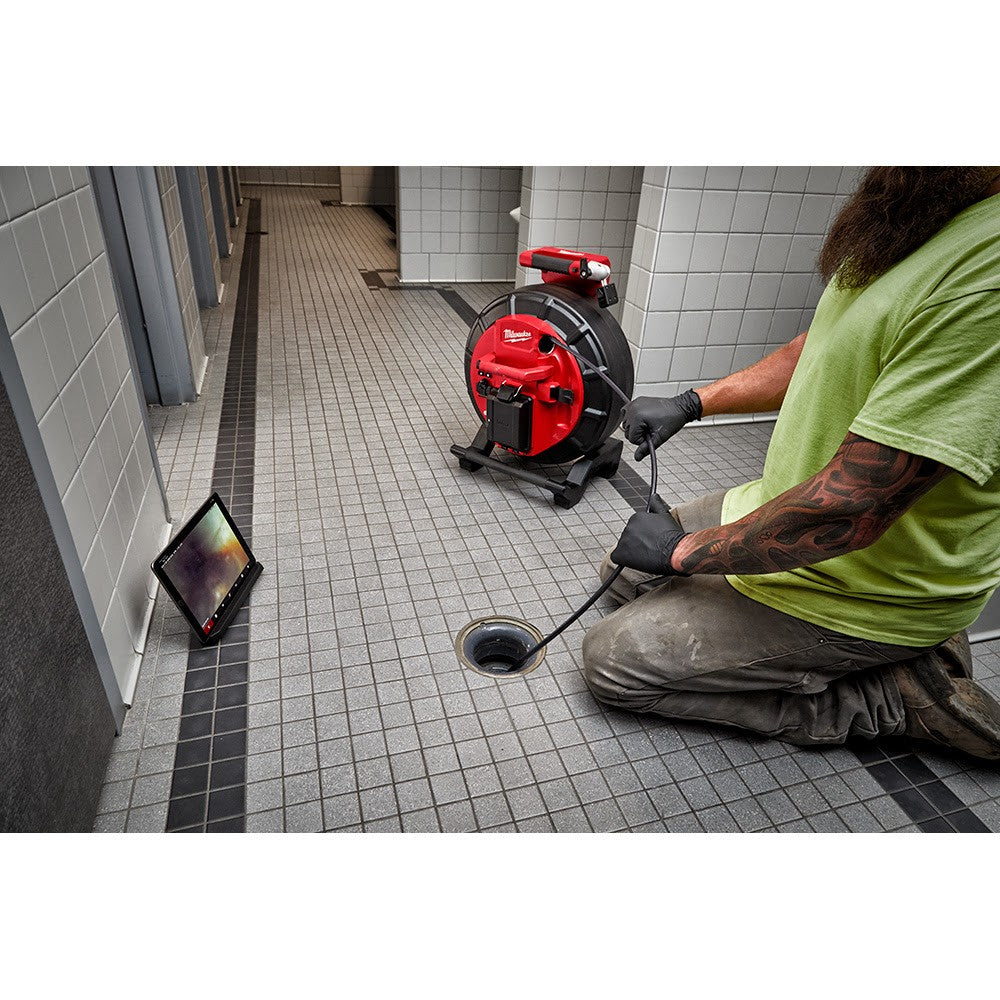

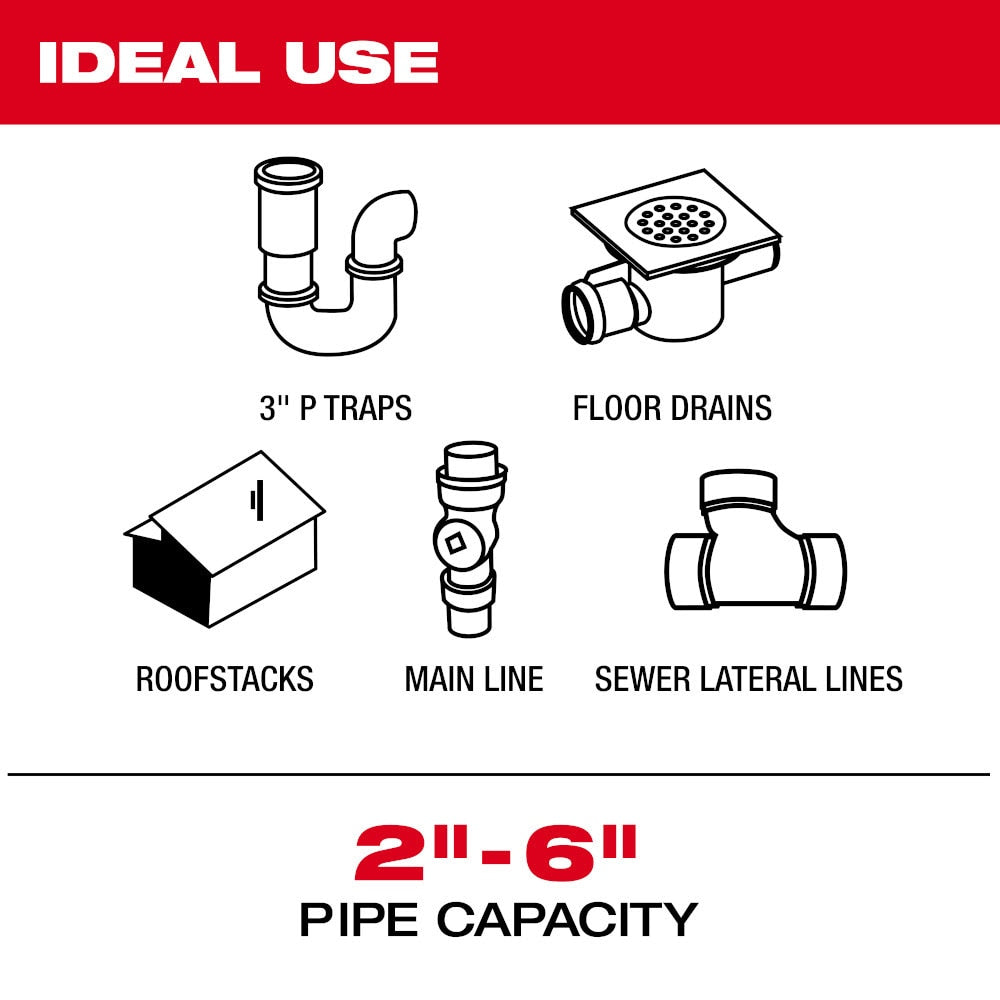

The MILWAUKEE 120’ Mid-Stiff Pipeline Inspection Reel, designed for 2”-6” drain lines, is powered by the M18 500 GB Control Hub, part of the M18 Modular Pipeline Inspection System. Featuring the industry’s shortest 25 mm self-leveling camera head, the ability to digitally zoom up to 4X, and optimize light output inside of pipes, technicians can now see more in drain lines than ever before. The HDR self-leveling camera heads allow you to see both up close and further down the line with superior clarity, reducing washed-out areas and highlighting detail in dark conditions. The pitch sensing feature reads and displays the pitch on screen for easier diagnosis and more effective reporting. The 120' Pipeline Inspection Reel features a compact design with removable backpack straps, making transportation to any roof, drain, crawl space, or cleanout easier. It comes equipped with small and medium camera skids and a camera head sleeve to center and protect the camera while inside pipes.

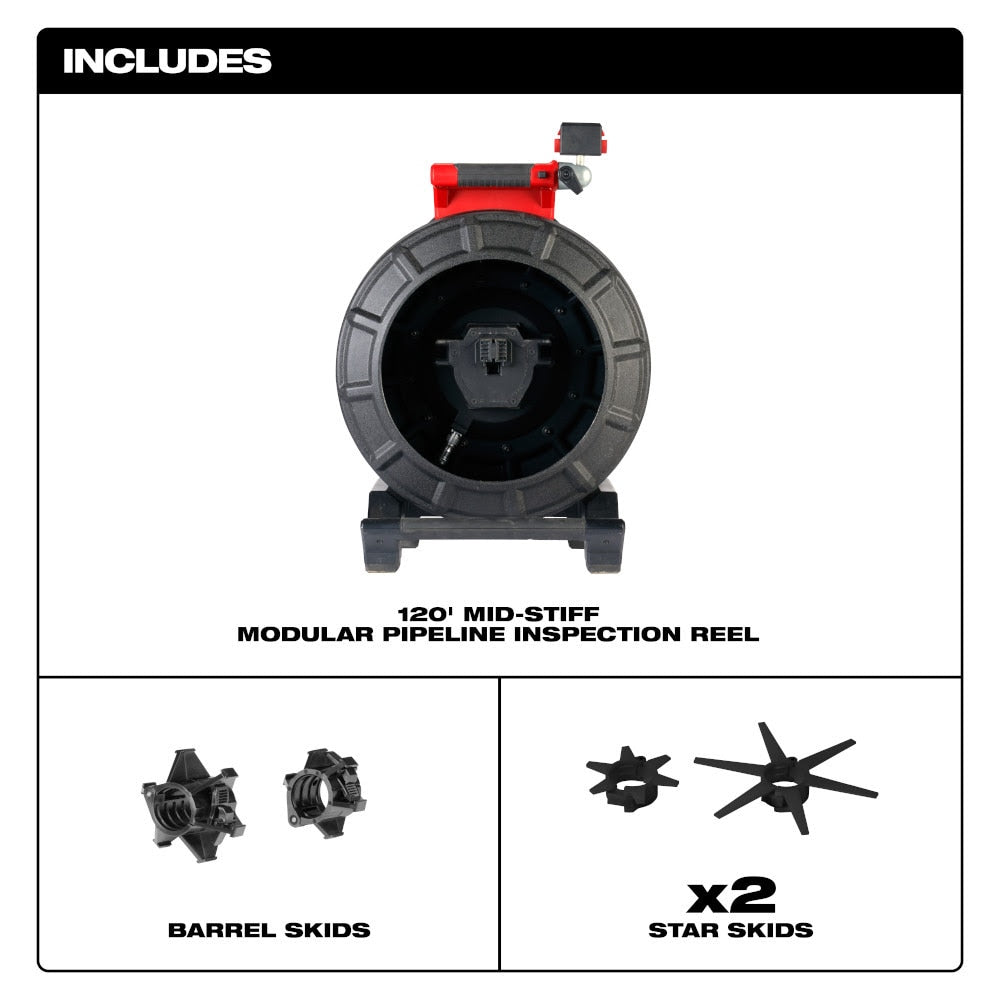

Milwaukee 3973-20 Includes

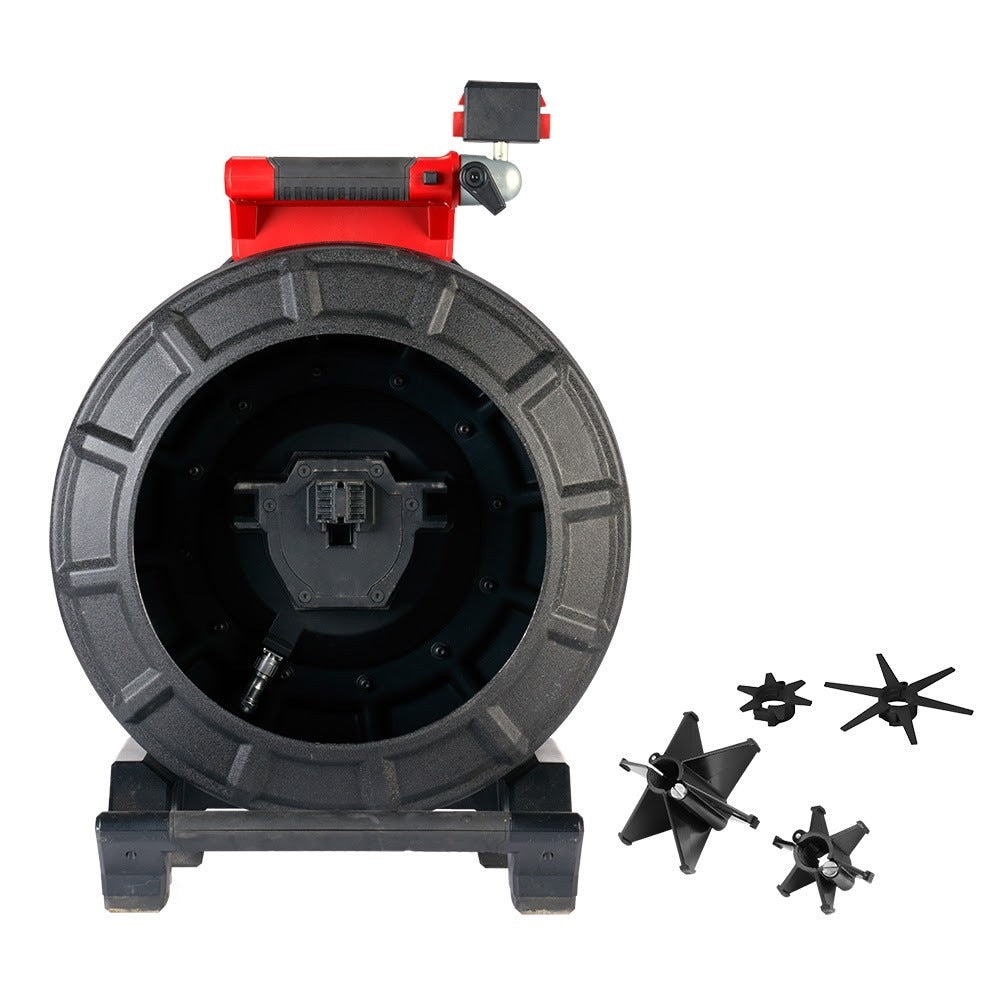

- (1) Milwaukee 120’ Mid-Stiff Pipeline Inspection Reel(3973-20)
- (1) Medium camera head skid for 25mm camera
- (1) Small camera head skid for 25mm camera
Milwaukee 3973-20 Features
- High resolution camera provides the industry's clearest image inside of drain lines

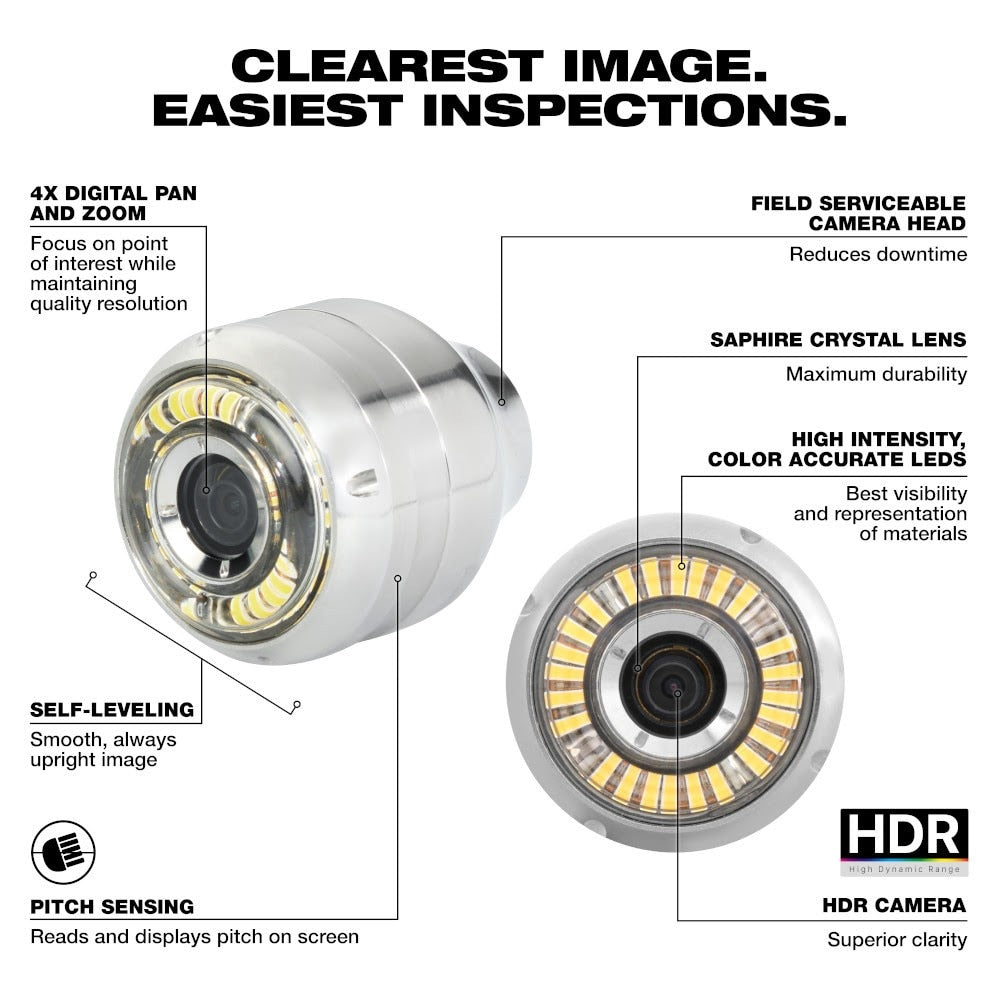

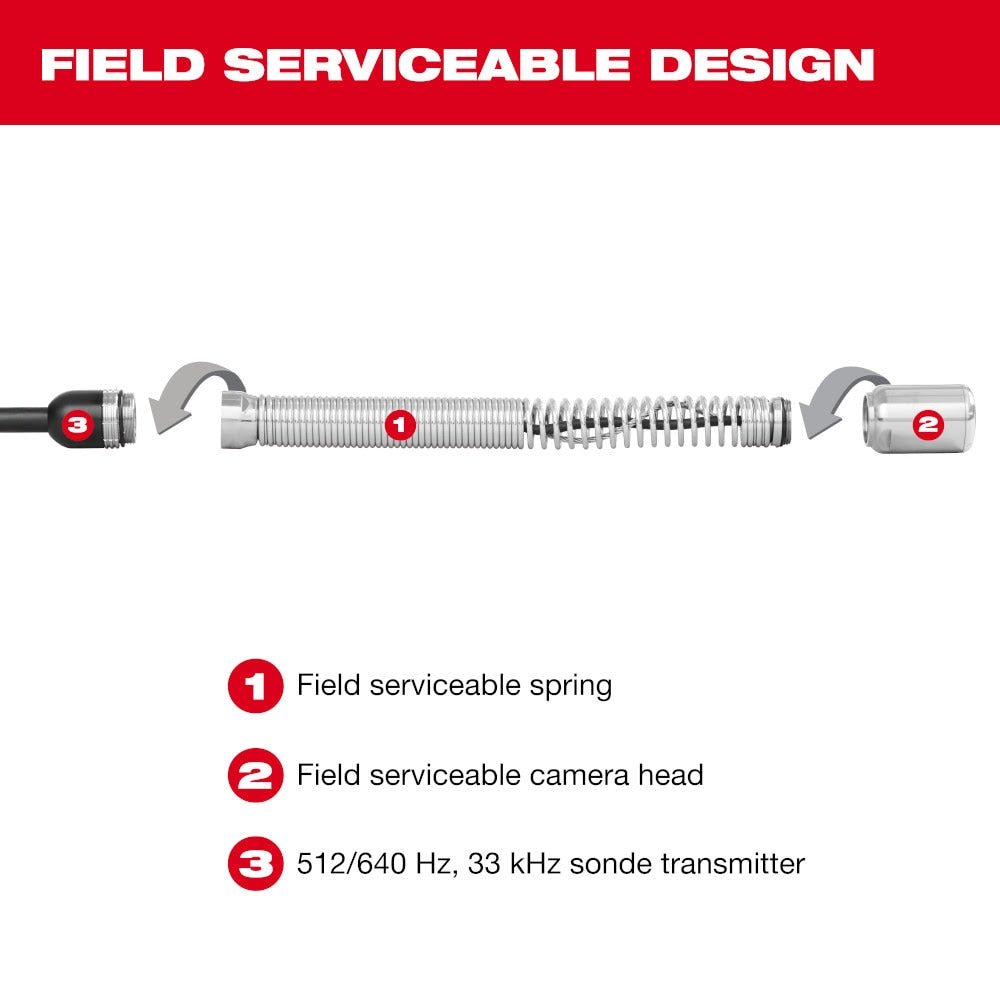

- 25 mm self-leveling HDR camera head with Sapphire Crystal lens
- Pitch sensing feature for easier diagnosis and more effective reporting

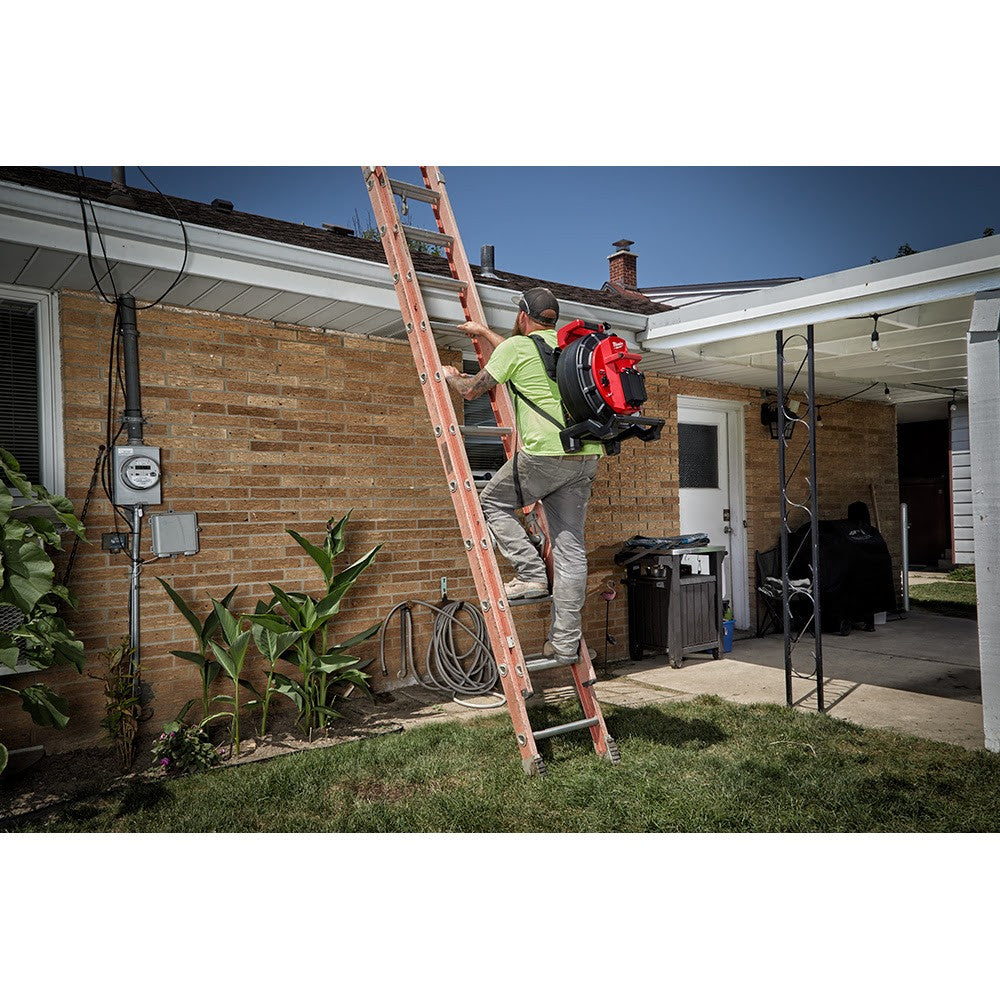

- Removable backpack straps for hands-free carrying

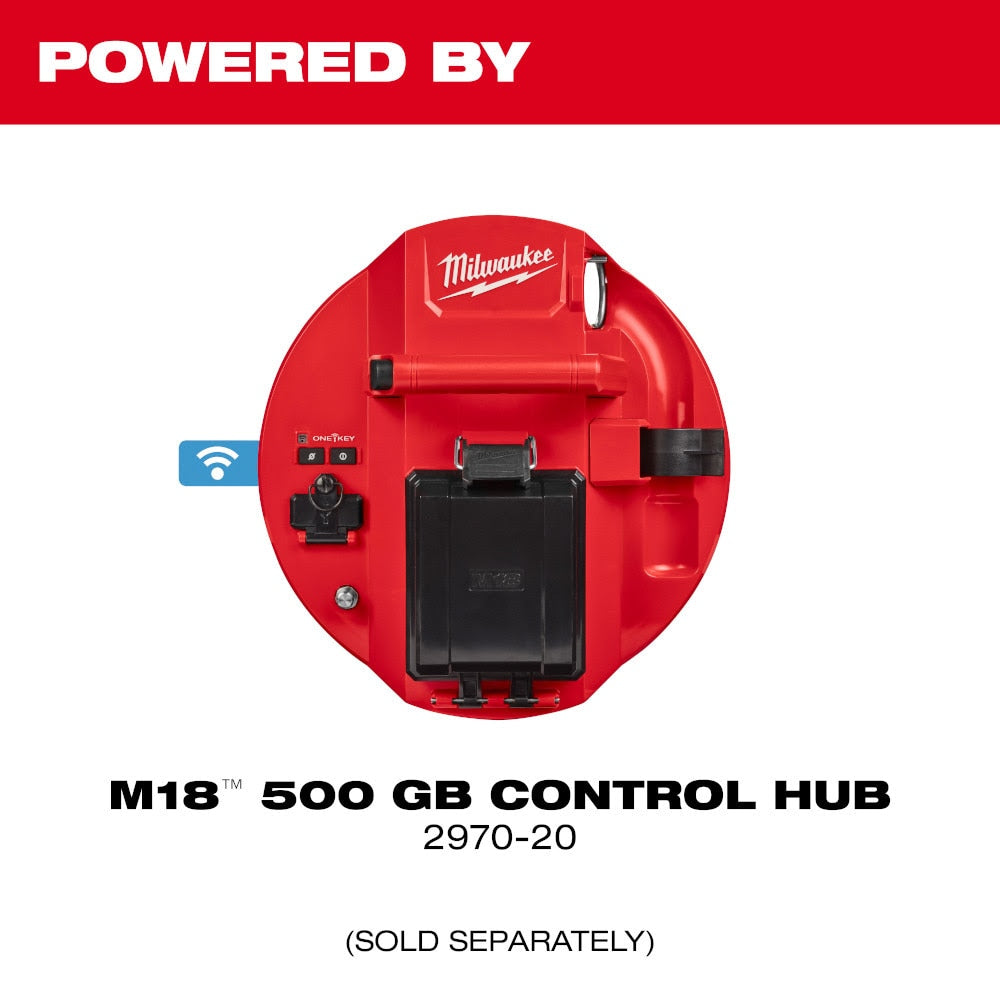

- Powered by the M18 500GB Control Hub
- Swap batteries without system shutdown

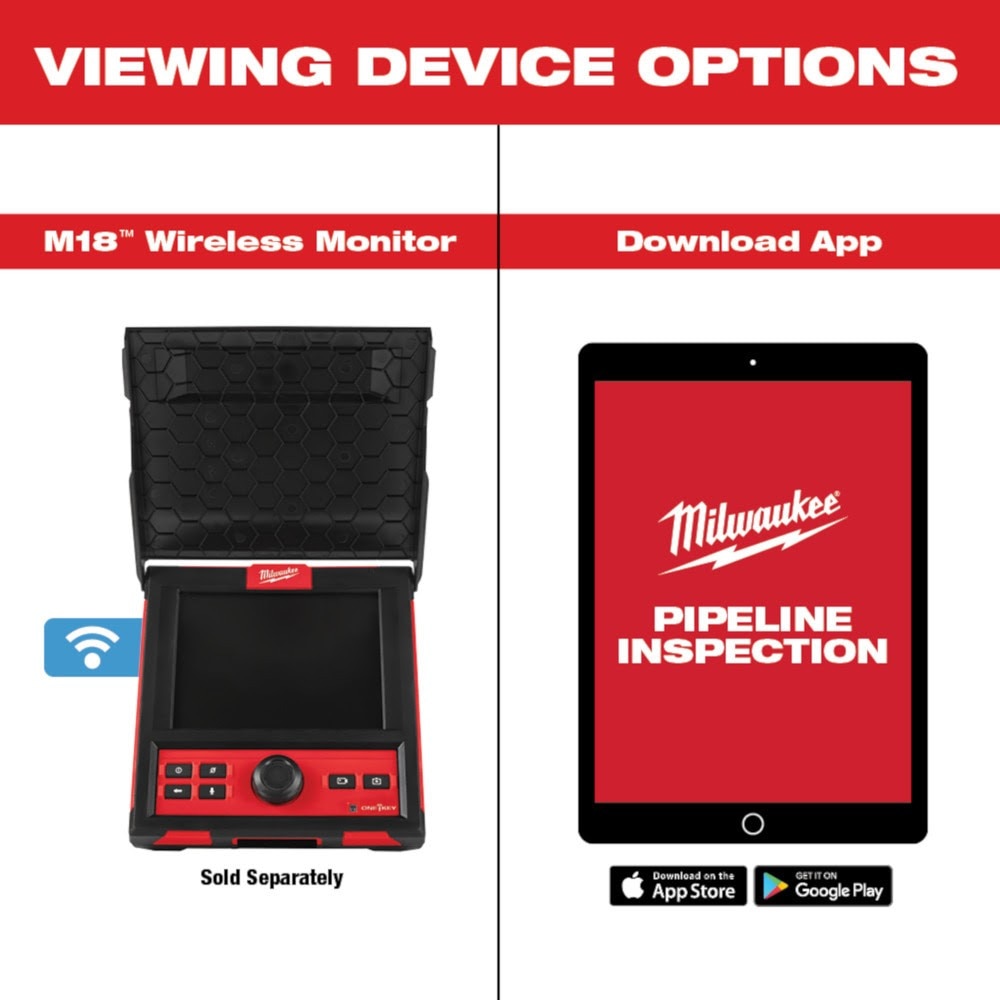

- Onboard monitor mount for viewing and transportation
Milwaukee 3973-20 Specifications
| Cable Length (ft): | 120 |
| Cable Diameter (in): | 3/8 |
| Camera Diameter (in): | 0.98 |
| Color / Finish: | Black, Red |
| Length (in): | 13.3 |
| Width (in): | 17.8 |
| Height (in): | 22.7 |
| Maximum Pipe / Tube Diameter (in): | 6 |
| Minimum Pipe / Tube Diameter (in): | 2 |
| Screen Image: | Color |
| Weight (lbs): | 42.4 |
| Manufacturer Warranty: | 5 Year |
