Pacific Laser Systems | SKU:
PLS3RKIT
Pacific Laser 5009357 PLS 3R KIT, 3-Point Red Laser Kit
Free Shipping
$353.55
$358.99
Unit price
/
Unavailable
Description
Description
Pacific Laser Systems 5009357 Description

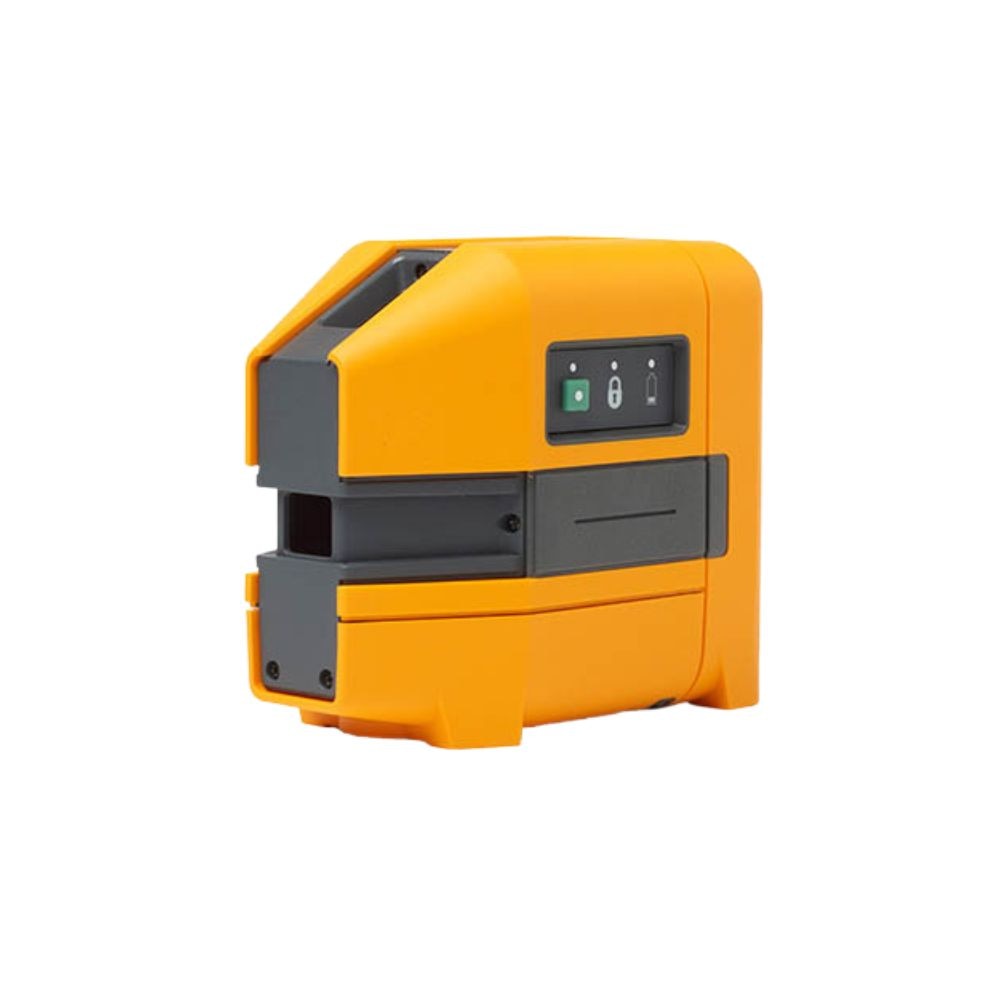

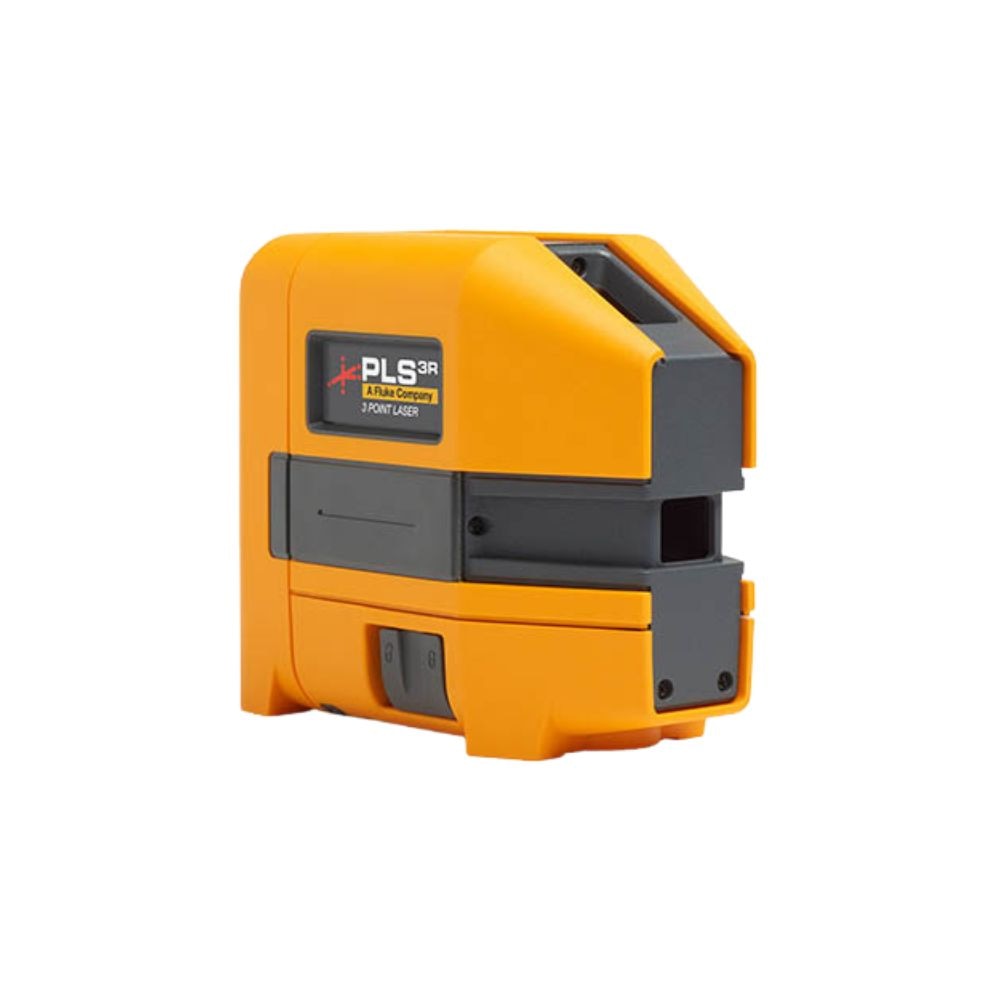

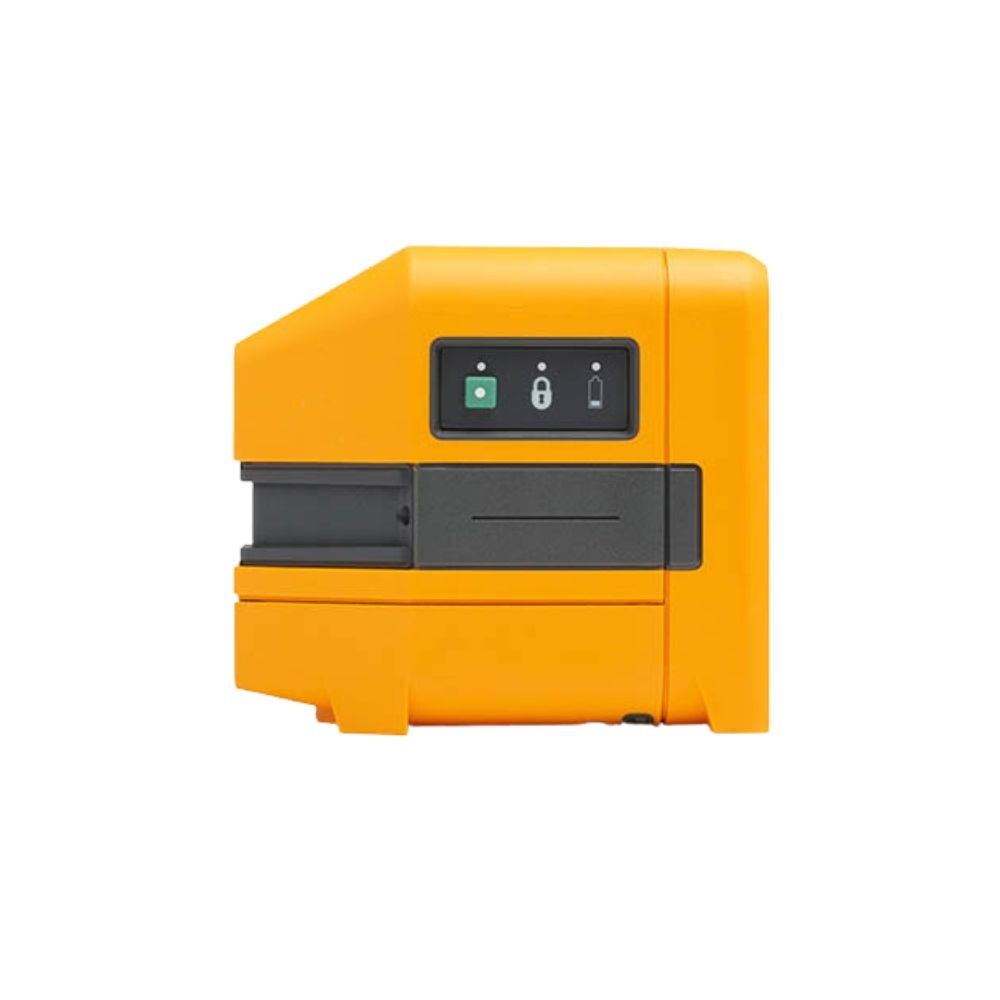

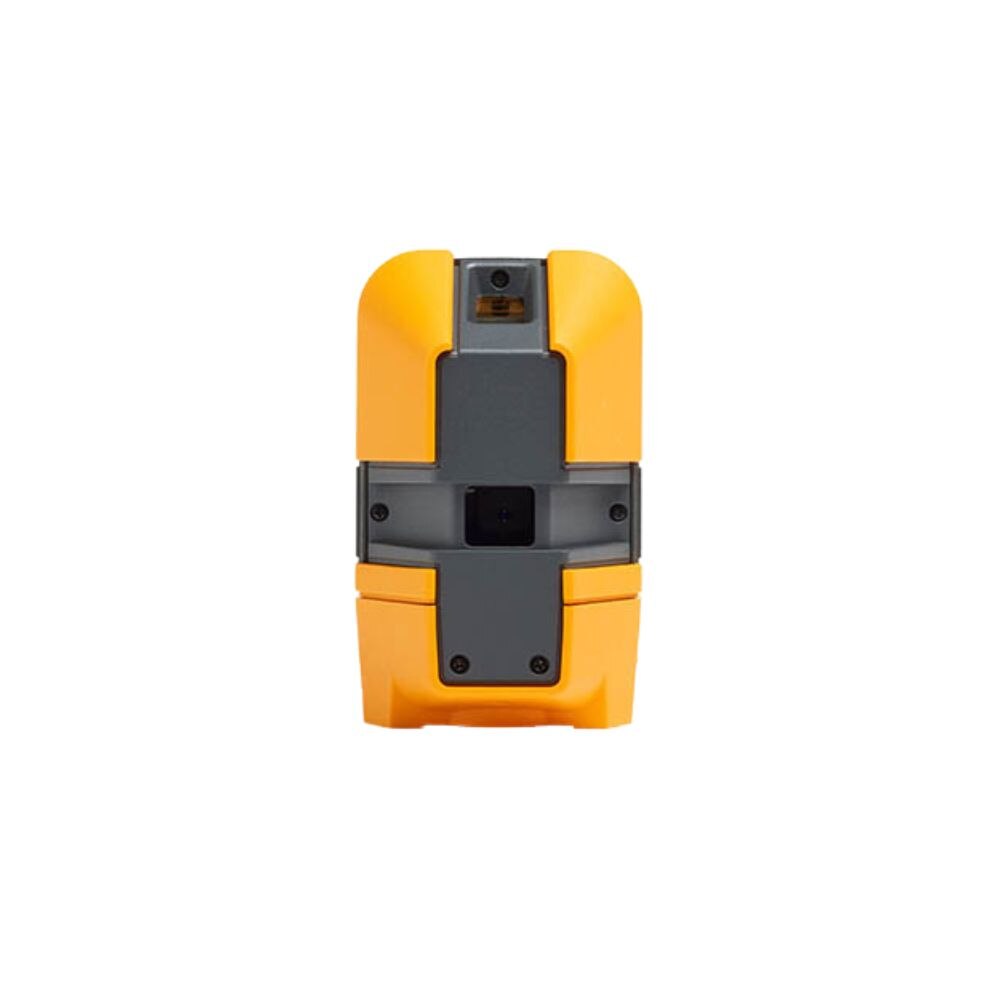

The PLS 3R Kit is a 3-point red laser level for plumb alignment packaged in the C18 Laser Level Toolbox.

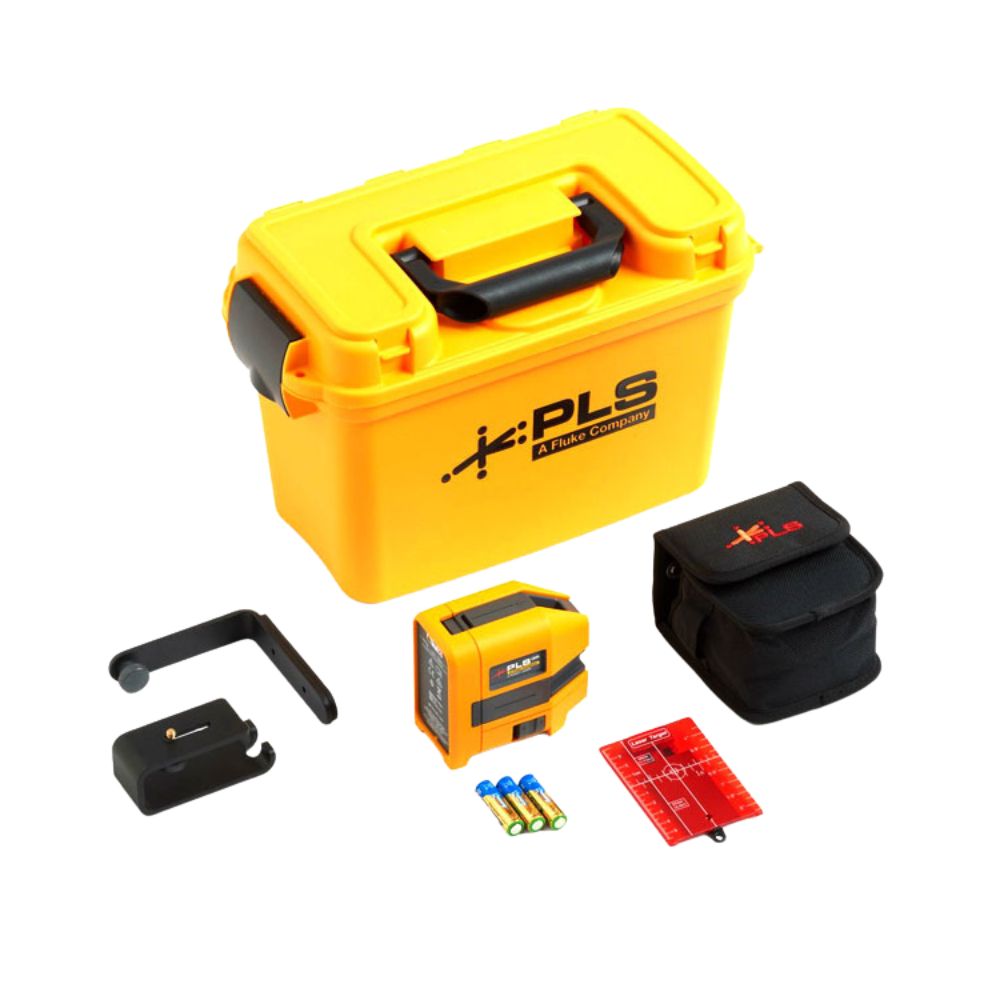

Pacific Laser Systems 5009357 Includes
- (1) PLS 3R laser level
- (1) PLS-60573 canvas pouch
- (3) PLS BP5 alkaline battery pack with AA batteries

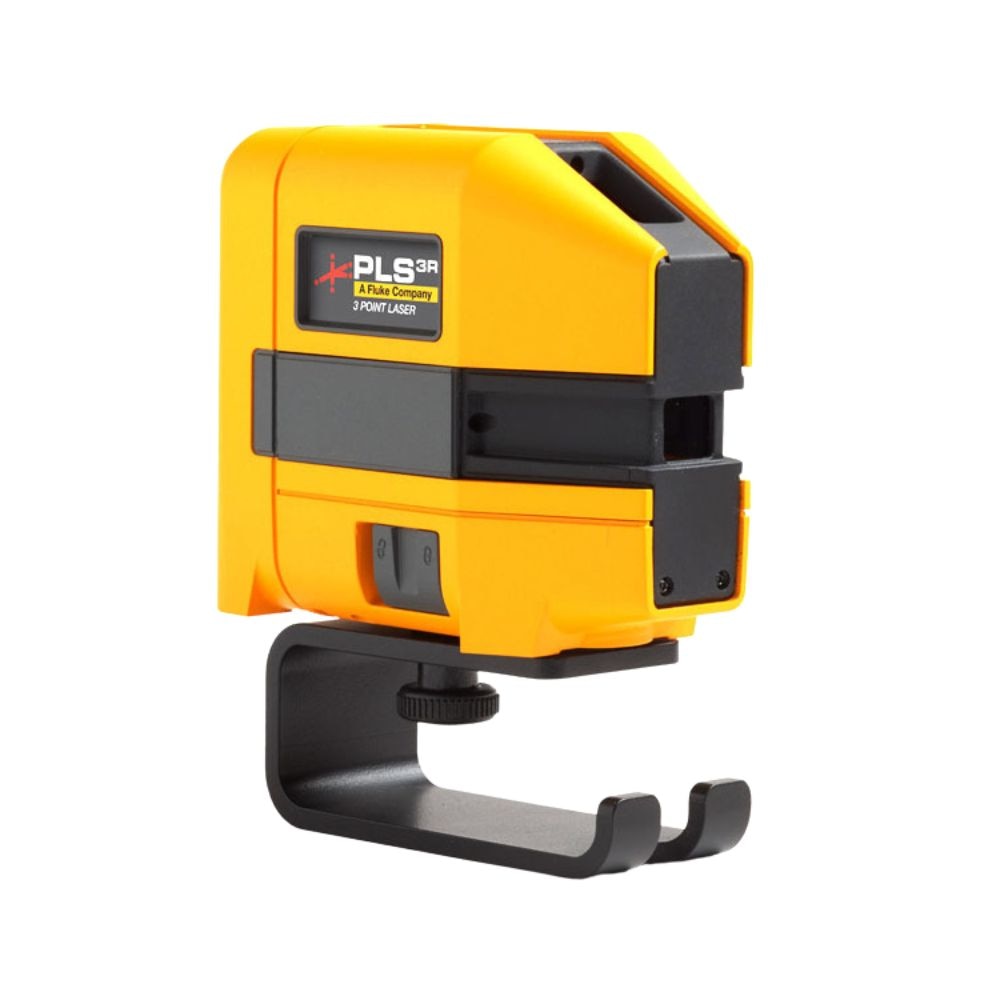

- (1) PLS MLB Magnetic Wall Bracket
- (1) PLS FS Floor Stand
- (1) PLS RRT4 Reflective Target
- (1) C18 Carrying Case
- (1) Quick Reference Guide
- (1) Safety Documentation
Pacific Laser Systems 5009357 Features
- Red 3-Point Laser Level
- Class II Red Laser
- Self-leveling within ±4 degrees
- Pendulum Lock
| Specifications | |||
|---|---|---|---|
| Battery | 3 x AA Alkaline IEC LR6 | ||
| Battery Life, Continuous Use | Red | ≥ 30 hours | |
| Green | ≥ 16 hours | ||

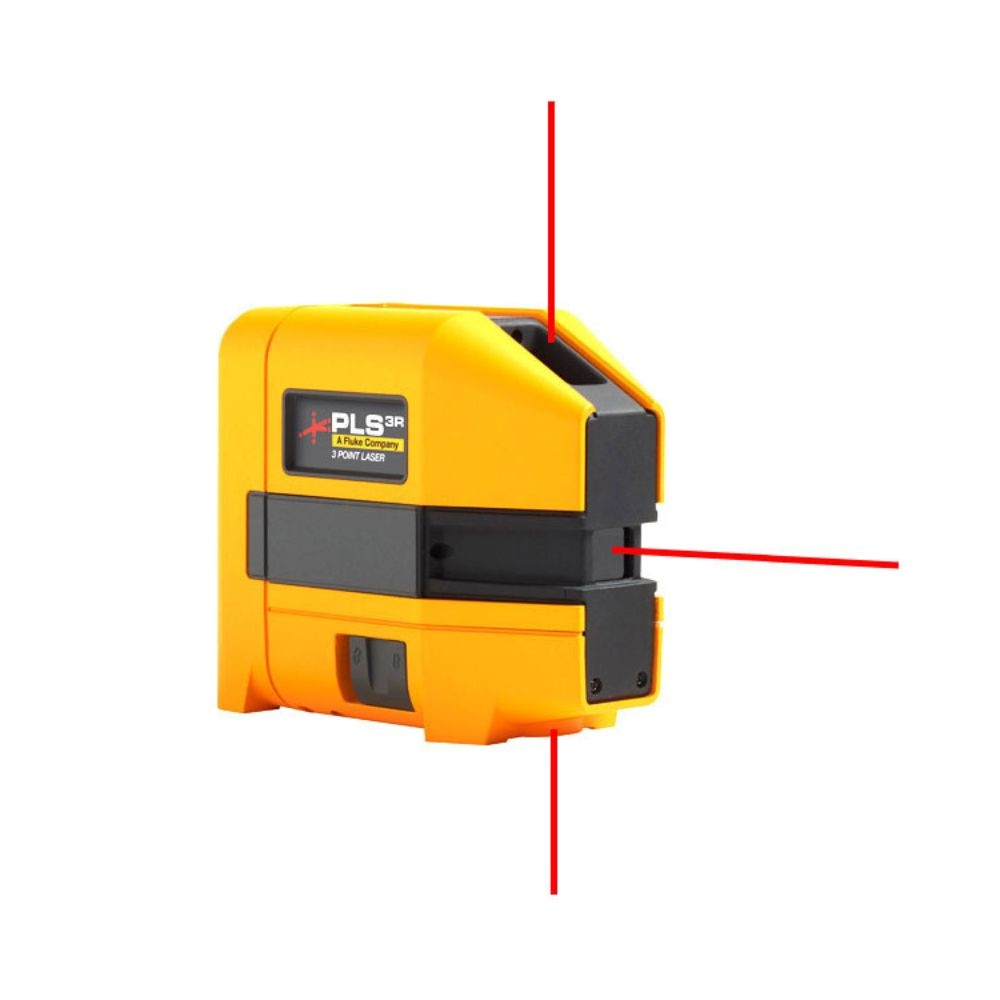

| Point Laser Direction | 90° up, down, forward | ||
| Working Range | ≤ 30 m (100 ft.) | ||
| Accuracy | ≤ 3 mm @ 10 m (≤ 1/8 in at 30 ft.) | ||
| Laser Leveling | System | Automatic, Pendulum | |
| Range | 4 ° | ||
| Point Laser Diameter | ≤ 4 mm at 5 m | ||
| Temperature | Operating | -10 °C to 50 °C (14 °F to 122 °F) | |
| Storage | 15 cm x 9 cm x 3 cm (6 in x 3.6 in x 1.3 in) | ||
| With Batteries | -18 °C to 50 °C (-0.4 °F to 122 °F) | ||
| Without Batteries | -20 °C to 70 °C (-13 °F to 158 °F) | ||
| Relative Humidity | 0 % to 90 % (0 °C to 35 °C) | ||
| 0 % to 75 % (35 °C to 40 °C) | |||
| 0 % to 45 % (40 °C to 50 °C) | |||
| Size (H x W X L) | 116 mm x 64 mm x 104 mm (4.6 in x 2.5 in x 4.1 in) | ||
| Weight | ~0.6 kg (1.3 lb.) | ||
| Safety | IEC 61010-1: Pollution Degree 2 | ||

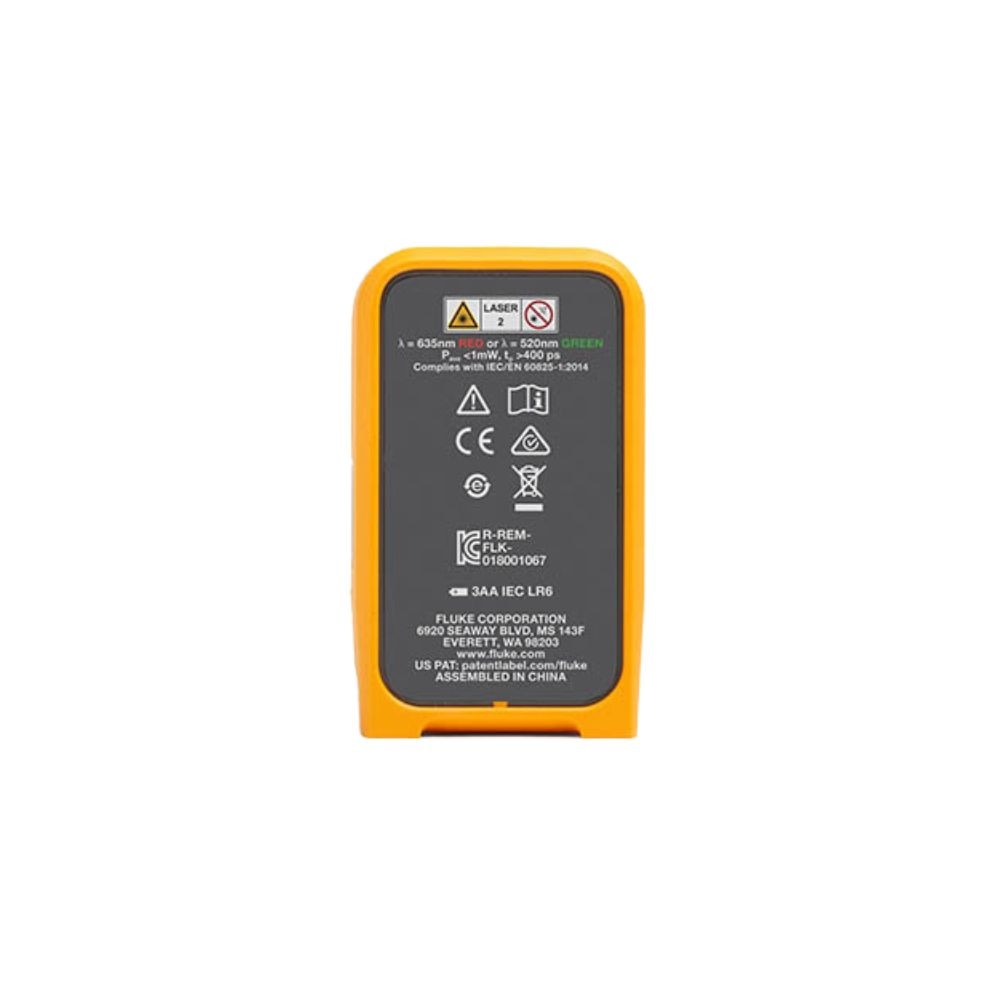

| Laser | IEC 60825-1:2014 Class 2 | ||
| Light Source | Semiconductor laser diode | ||
| Max Output Power | < 1 mW | ||
| Wavelength | Red | 635 nm ± 5 nm | |
| Green | 525 nm ± 5 nm | ||
