Pacific Laser Systems | SKU:
PLSHV2GKIT
Pacific Laser 5022520 PLS HV2G KIT, Manual Slope Green Rotary Laser Kit
Free Shipping
$2,675.71
$2,888.99
Unit price
/
Unavailable
Description
Description
Pacific Laser Systems 5022520 Description

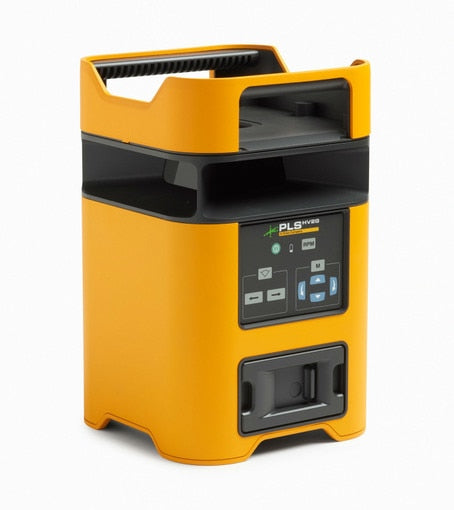

The PLS HV2G Kit is a green horizontal with vertical plumb point rotary laser level for level, slope, and square alignment packaged for individual sale in the PLS C19 rotary laser case and printed cardboard box.

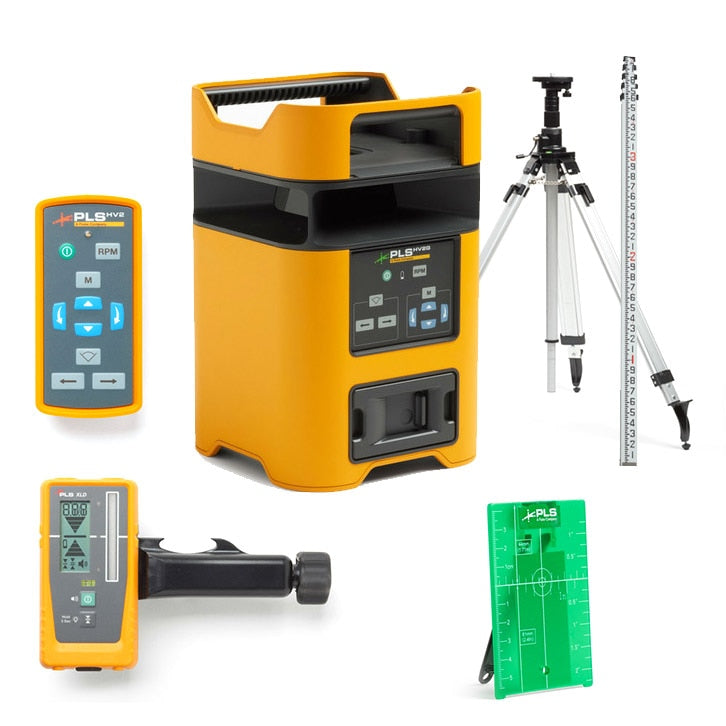

Pacific Laser Systems 5022520 Includes
- (1) PLS HV2G

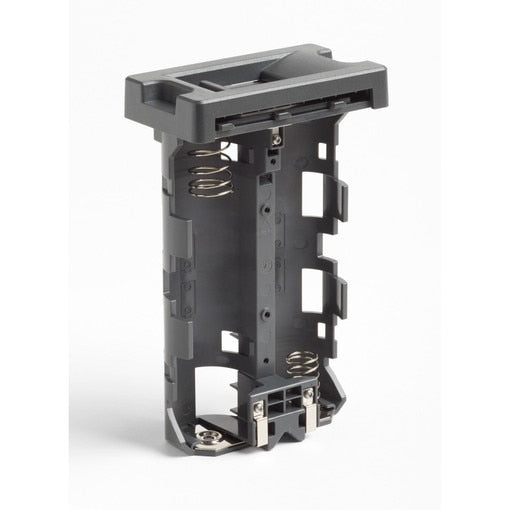

- (1) PLS BP10 Alkaline Battery Tray
- (4) D Batteries

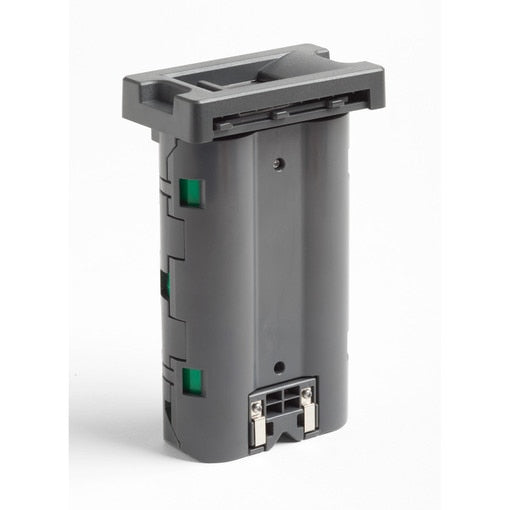

- (1) PLS RBP10 NiMH Battery Tray

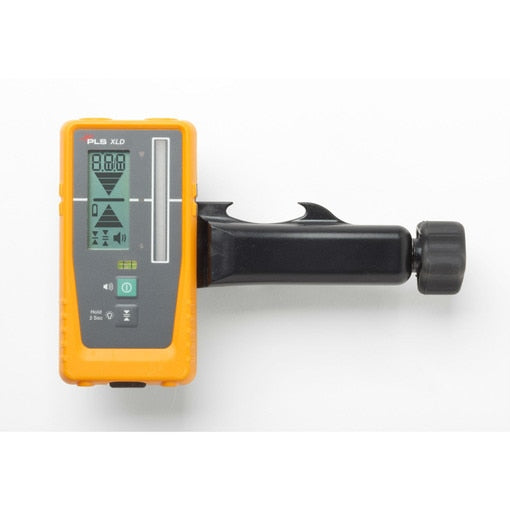

- (1) PLS XLD Detector with Clamp

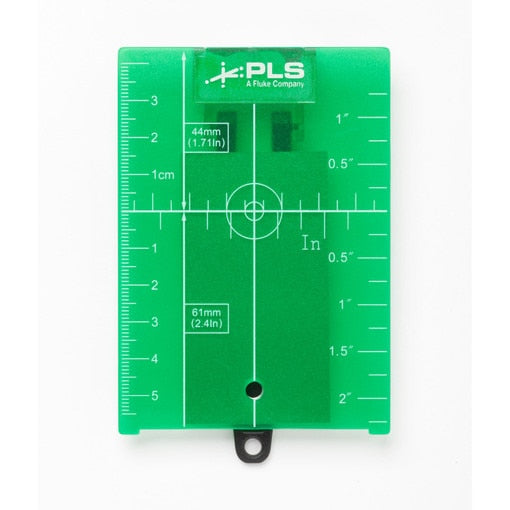

- (1) PLS GRT4 Reflective Target

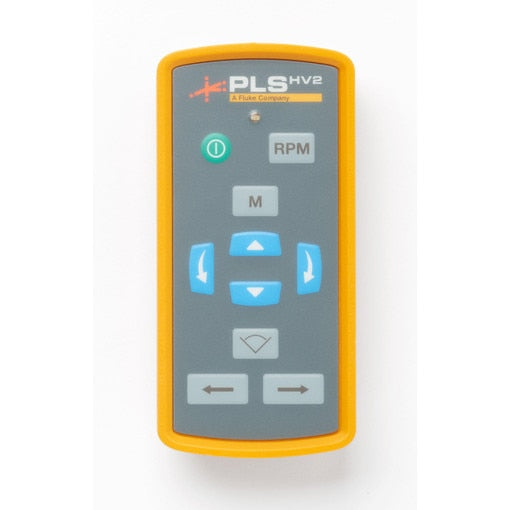

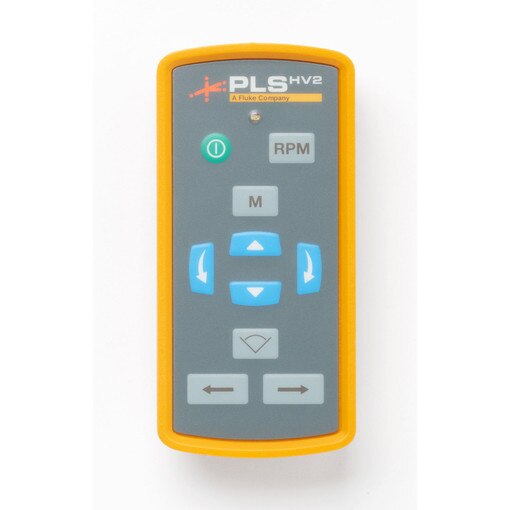

- (1) PLS RC2 Remote

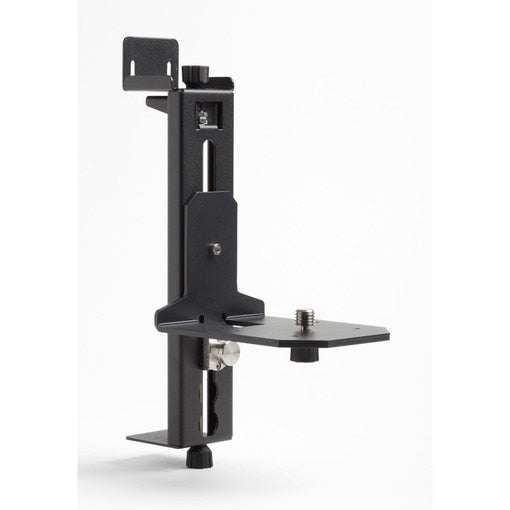

- (1) PLS WCB10 Bracket

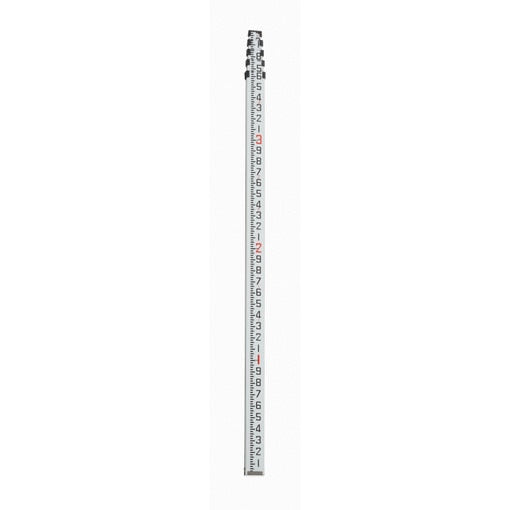

- (1) PLS GR16 Grade Rod

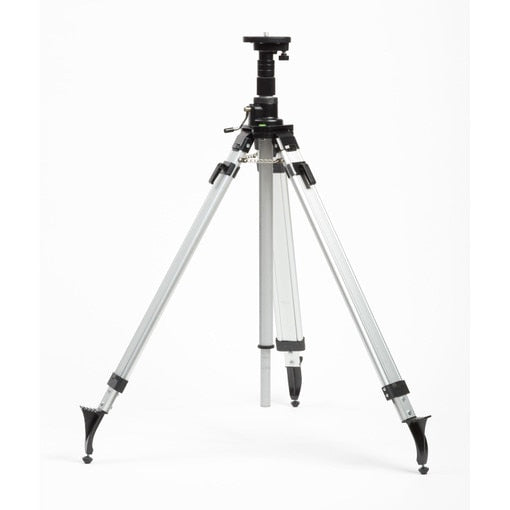

- (1) PLS TPOD500 Tripod

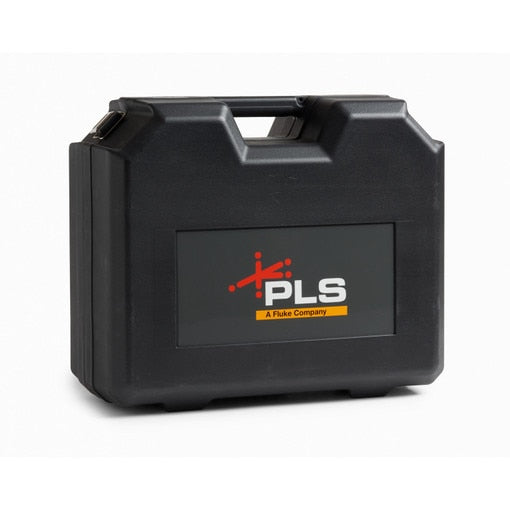

- (1) PLS C19 Carrying Case
- (1) Quick Reference Guide
- (1) Safety Documentation
Pacific Laser Systems 5022520 Features
- Green Horizontal/Vertical Rotary Laser Level
- Class II Green Laser
- Self-leveling within ±5 degrees
- Dual Manual Slope
- Up-Point for Layout Tasks
- Remote Control
- Alkaline and NiMH Battery Trays
| Rotary levels | PLS HV2R | PLS HV2G | |
|---|---|---|---|
| Laser | Class II red | Class II green | |
| Laser axis | Horizontal and Vertical | Horizontal and vertical | |
| Accuracy | ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft) | ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft) | |
| Auto-leveling range | ± 5-degrees | ± 5-degrees | |
| Manual slope range | ± 5-degrees | ± 5-degrees | |
| Working range | |||
| Without XLD laser detector |
≤ 30 m (100 ft) | ≤ 30 m (100 ft) | |
| With XLD laser detector |
≤ 300 m (1000 ft) | ≤ 300 m (1000 ft) | |
| Weight | 3 kg (6.6 lb) | 3 kg (6.6 lb) | |
| Drop test | 1 m | 1 m | |
| IP rating | IP67 | IP67 | |
| Operating temperature |
-20 °C to 50 °C (-4 °F to 122 °F) | -20 °C to 50 °C (-4 °F to 122 °F) | |
| Battery | 4 x D Alkaline or NiMH rechargeable | 4 x D Alkaline or NiMH rechargeable | |
| Battery life | > 60 hours | > 60 hours | |
| Accessories | PLS XLD Rotary Laser Detector | ||
| Working range | 300m (1000 ft) | ||
| Dimensions | 135 mm x 69 mm x 25 mm | ||
| Weight | 0.19 kg (0.42 lbs) | ||
| Drop test | 1 m | ||
| IP rating | IP67 | ||
| Operating temperature |
-20 °C to 50 °C (-4 °F to 122 °F) | ||
| Battery | 1 x AA Alkaline | ||
| Battery life | > 50 hours | ||
| Visible spectrum | 450 nm – 800 nm | ||
| Accuracy | |||
| Fine | 1 mm (0.05 in) | ||
| Medium | 2 mm (0.1 in) | ||
| Coarse | 5 mm (0.2 in) | ||
| Electromagnetic compatibility (EMC) | |||
| International | IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object |
||
| Korea (KCC) | Class B Equipment (Broadcast communications equipment for home) | ||
| USA (FCC) | 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. | ||
